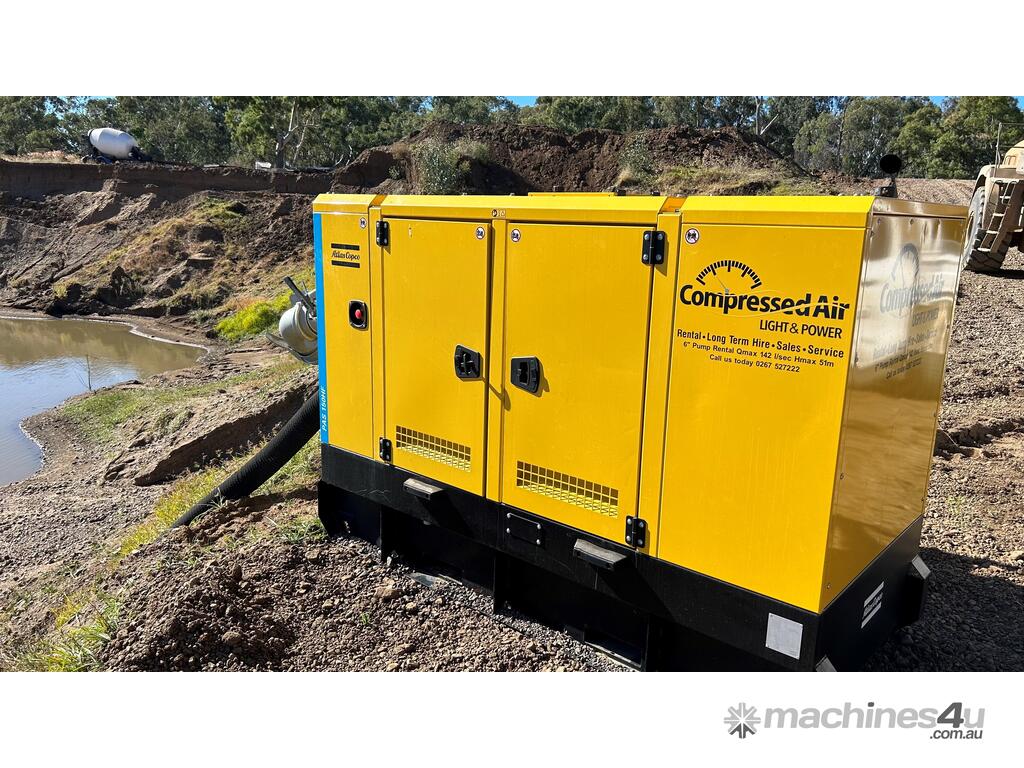

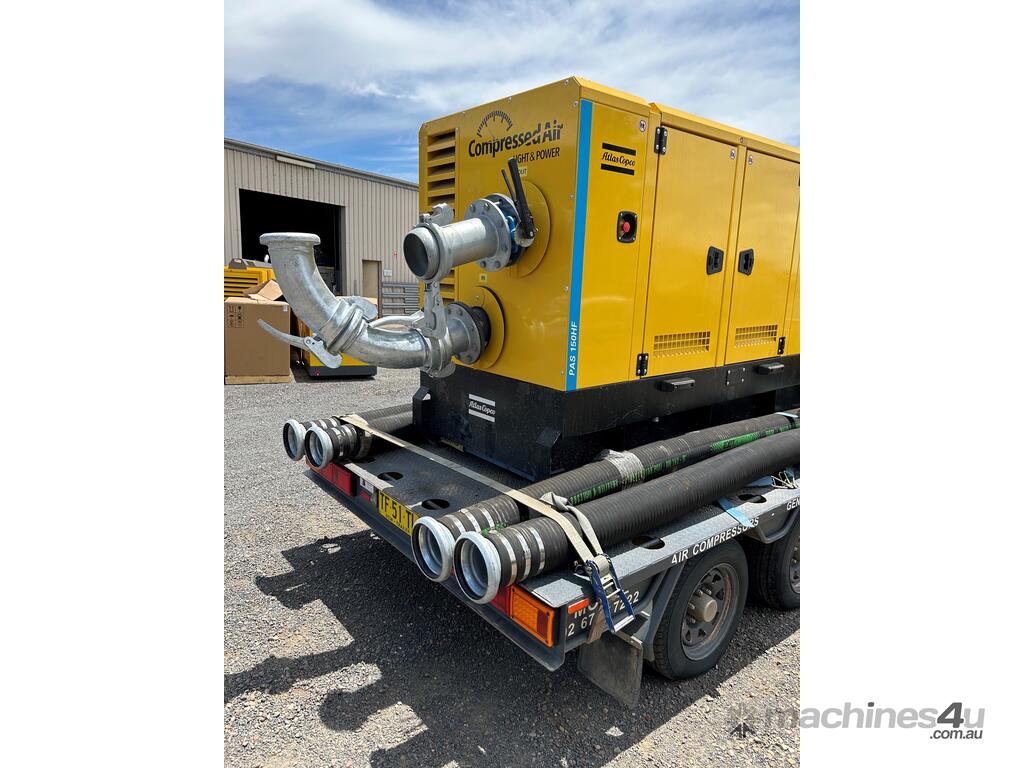

Atlas Copco PAS150HF Centrifugal Pump

Name: Atlas Copco PAS150HF Centrifugal Pump
Brand: Atlas Copco
SKU: x010
Price: 71500 AUD
Availability: InStock

MOREE, NSW

Play Video

$71,500 AUD($78,650 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$243.74
Per Week

3.18% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

New

Category:

Irrigation Equipment

Make:

ATLAS COPCO

Model:

PAS150HF

Year:

2023

Member Since: Jun 2021

Silver Member

Listings: 56

Sellers stock ID:

x010

Description

PAS HF - Vacuum prime centrifugal pumps

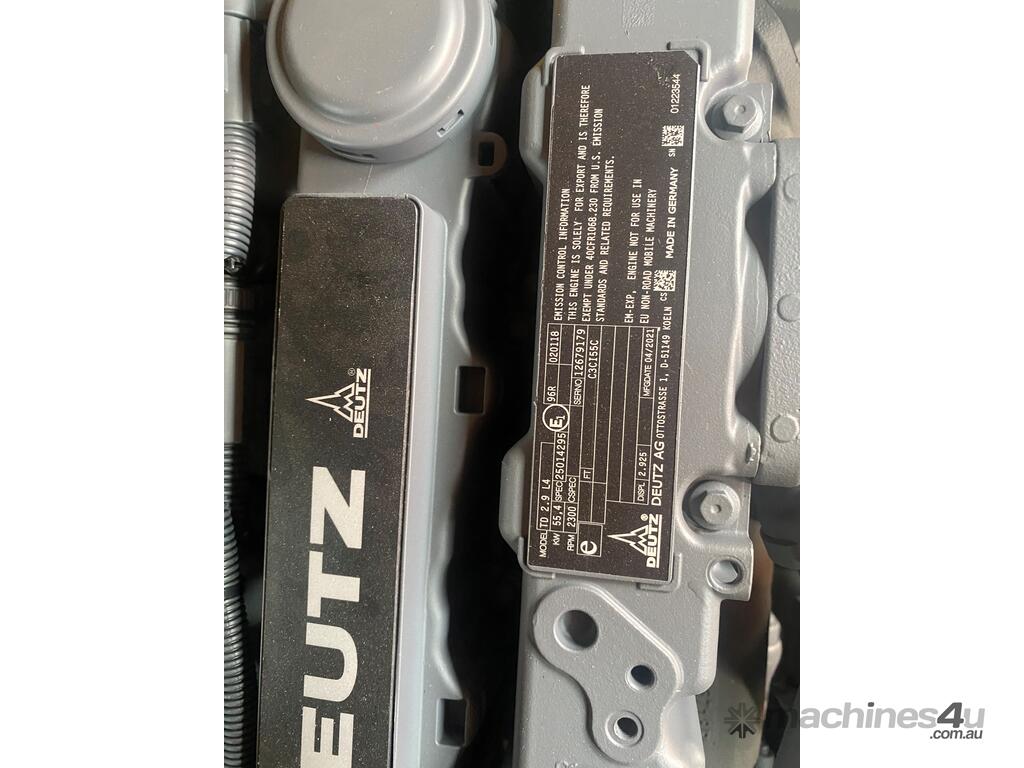

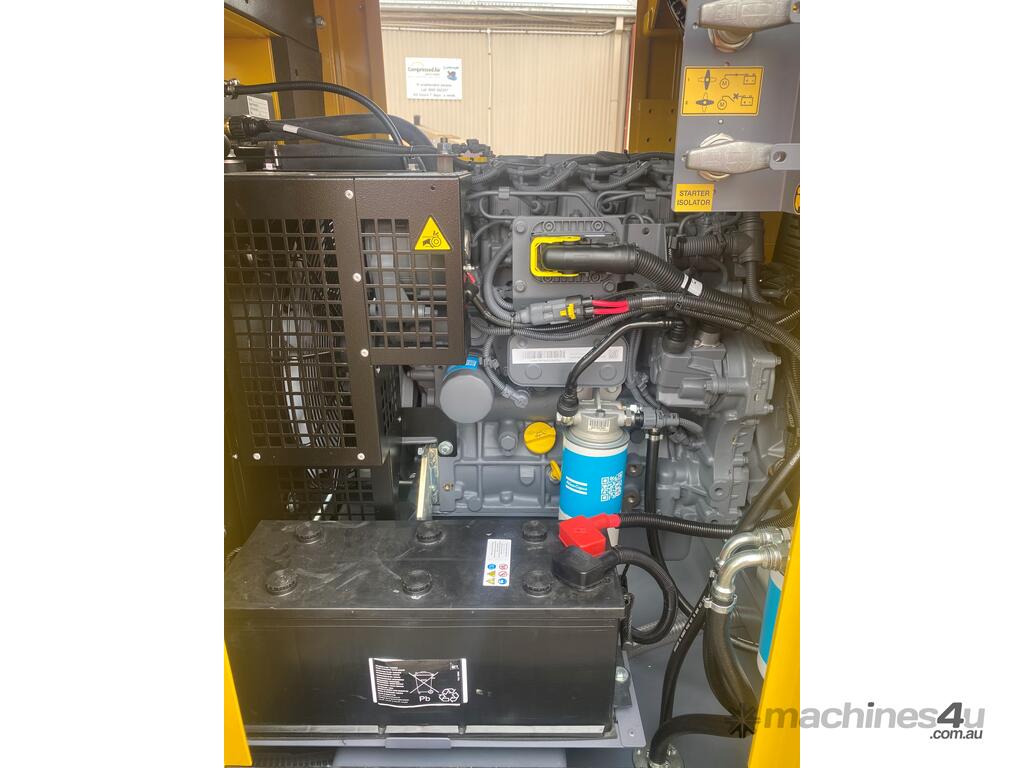

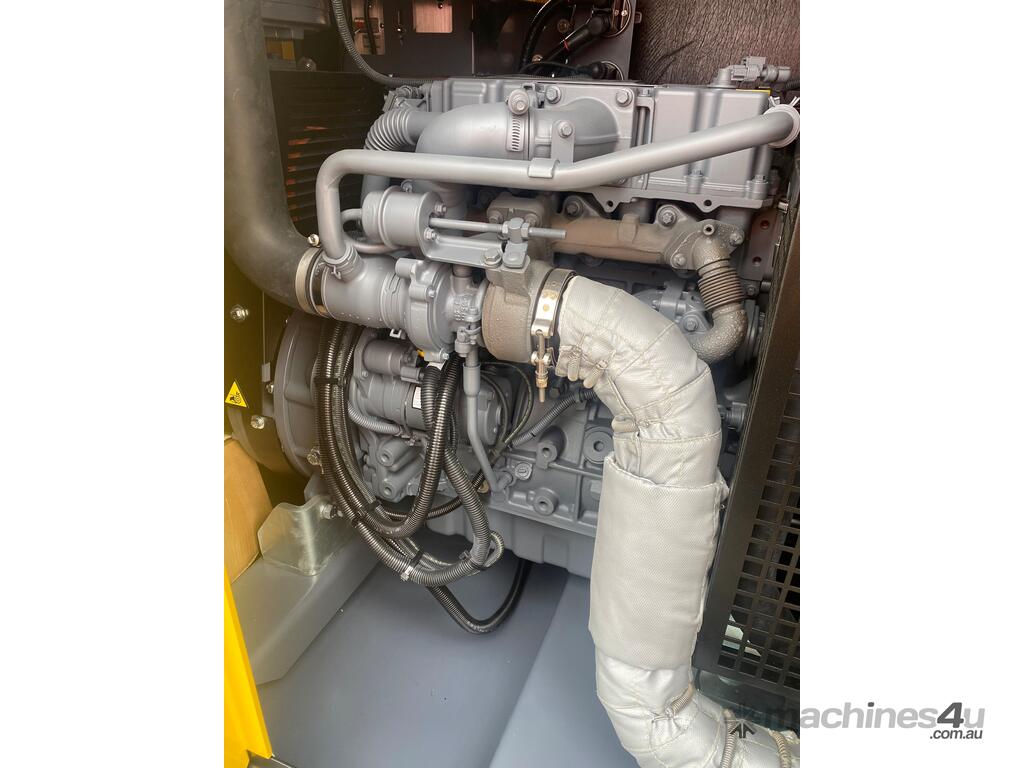

PAS150HF - Hmax 51m Qmax; 142l/sec, Spherical solids handling: D.76 mm (3") - 51kw Deutz electronic engine

The Atlas Copco PAS150HF pump system consists of a centrifugal pump and a separator, which enables air to be separated from the liquid and be sucked by a vacuum pump - making automatic priming possible. Even with suction heights of several meters the machine rapidly evacuates the air from the suction pipe and starts to pump. Additionally, thanks to the
semi-open impeller, the PAS HF range is also suitable for pumping liquids with solids in suspension.

Diaphragm vacuum pump
Oil free suitable for dry running: no contamination of the environment

Mechanical shaft seal in oil bath
It allows the “dry running” operation of the pump

Easy maintenance
Hinged cover for direct access to the impeller (without lifting devices). Link belt quick to replace on the field.

Wear plates
Cast iron or stainless steel (F10) wear plate, that is
easily replaceable
