Atlas Copco PAS200HF Centrifugal Pump

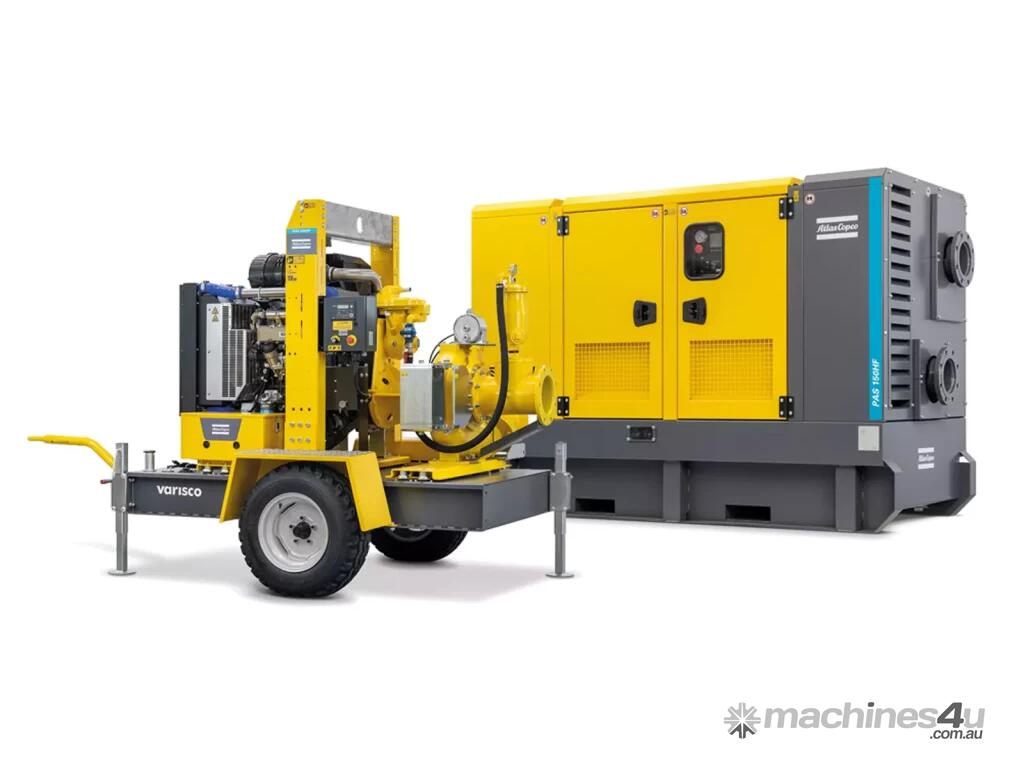

Available as a Canopy or open set - the PAS200HF pumping system consists of a centrifugal pump and a separator, which enables air to be separated from the liquid and be sucked by a vacuum pump - making automatic priming possible. Even with suction heights of several meters the machine rapidly evacuates the air from the suction pipe and starts to pump. Additionally, thanks to the semi-open impeller, the PAS HF range is also suitable for pumping liquids with solids in suspension. For more information - please refer to the attached Atlas Copco PDF brochure

Benefits

Pump - (High efficiency: 64% (B.E.P.)
Rapid “dry” priming - (Up to a height of 8.5 m (27.5 ft)
High resistance - (To abrasive liquids and turbid sandy waters)
Semi-open impeller (Solids handling up to 76 mm (3")
Diaphragm vacuum pump - (Oil free suitable for dry running: no contamination of the environment)
Mechanical shaft seal in oil bath - (It allows the “dry running” operation of the pump)
Wear plate - (Cast iron (G10 rubber lined) or stainless steel wear plate, that is easily replaceable)
Easy maintenance - (Hinged cover for direct access to the impeller (without lifting devices). Link belt quick to replace on the field.
