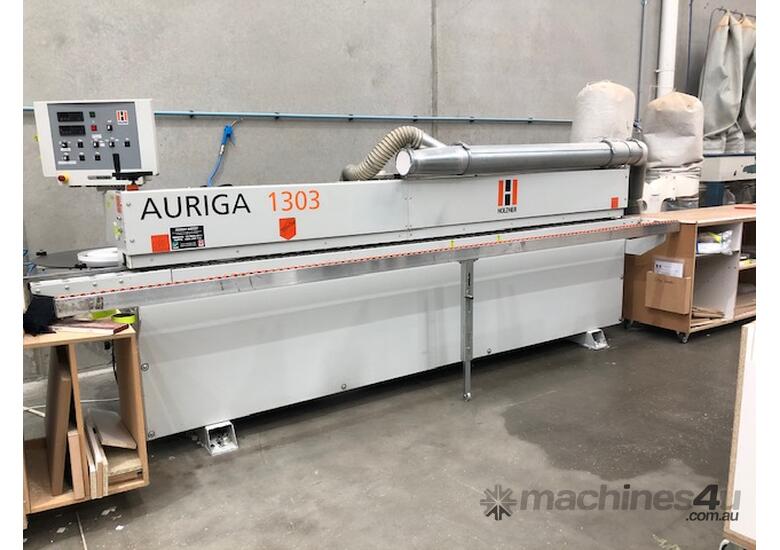

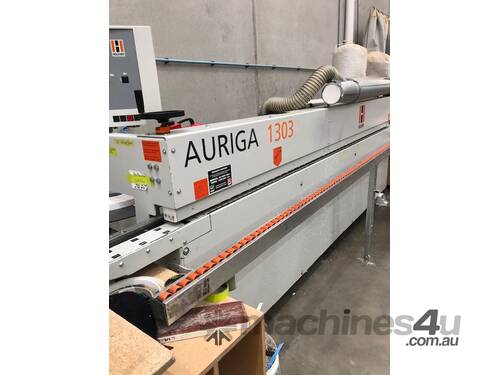

Overall length of machine 3,917mm. Weight 930kg. Pull out workpiece support up to 600mm
Feed speed 10 m/min
Suits coils and edge strips 0.4 – 6 mm (depending on material) Work piece width minimum 65 mm
Work piece length minimum 160 mm Work piece thickness 8 – 60 mm
Edge feeder 1903, for automatic transport of coils and single strips with feed belt.
Glue application system nozzle Glu Jet GJ301 (2.3kW, 50Hz) suitable for processing EVA and PUR adhesives.
Heat up time only 3 minutes with patented nozzle technology.
Pressure unit 1912-3, with first roller driven and two support pressure rollers.

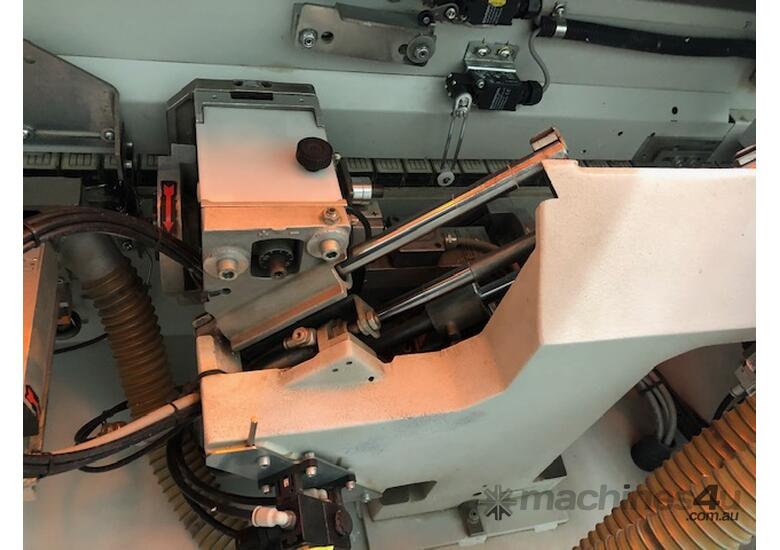

End trimming unit 1918 (60mm), twin saw, pneumatic adjustment for chamfer-type end trimming. Multifunctional trimming unit, FR201, for flush trimming, radius and chamfering.
Includes 2mm radius diamond cutters (left and right handed), with LEUCO technology and integrated chip removal patented ProLock screw-in clamping system for rapid tool change.
Finishing scraper unit 1929 with chip removers and 2 scraper carriers.
Surface scraper unit 1964 for scraping off glue residue, including blow nozzles.
