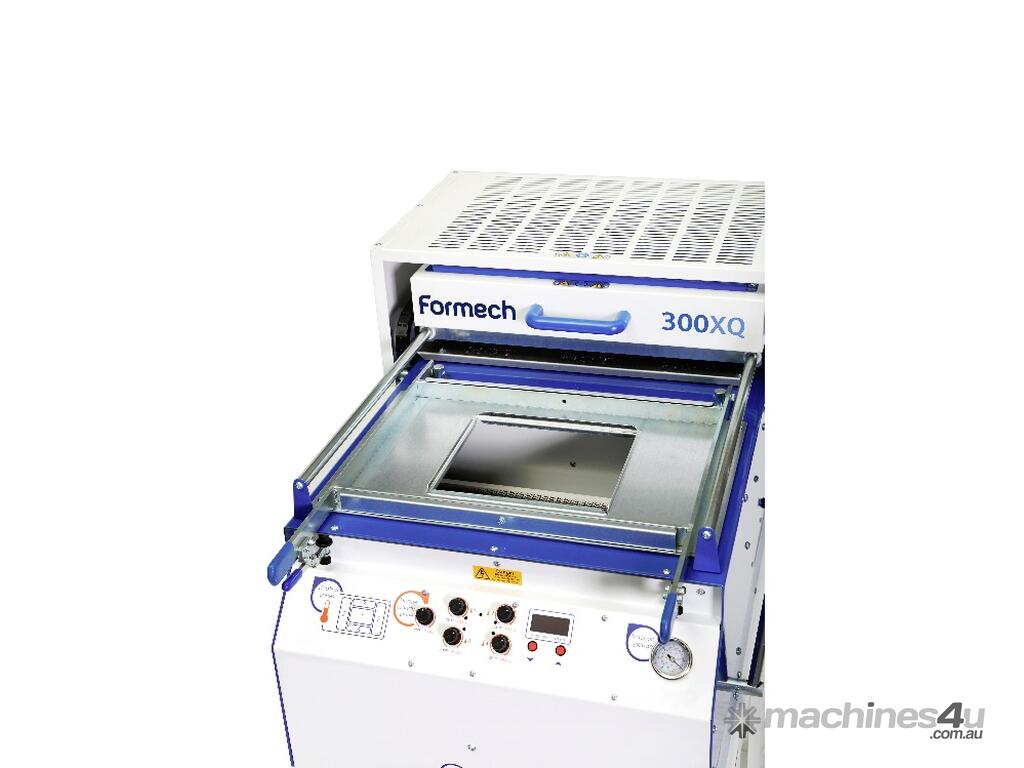

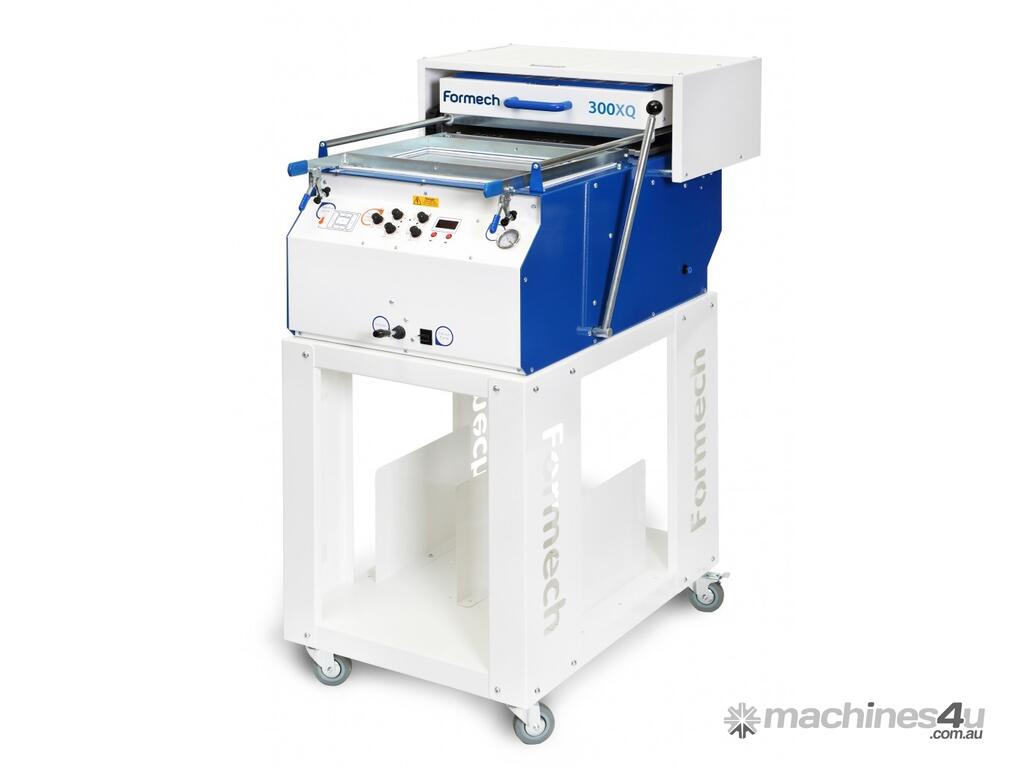

FORMECH 300XQ from as LOW as $36.00 per WEEK
The most powerful and energy efficient Vacuum-Forming Machine in it's class! Technical Specifications:
Material Size: 450mm x 300mm, Forming Area: 430mm x 280mm, Max. Depth of Draw: 160mm, Max. Material Thickness - 6mm
Electrical Specifications:
• 240 V, 13 amps, 50 Hz single phase
• 220 V, 13 amps, 60 Hz single phase
• 2.25 kilowatts
• 13 amp supply
Other Features
• CE approved

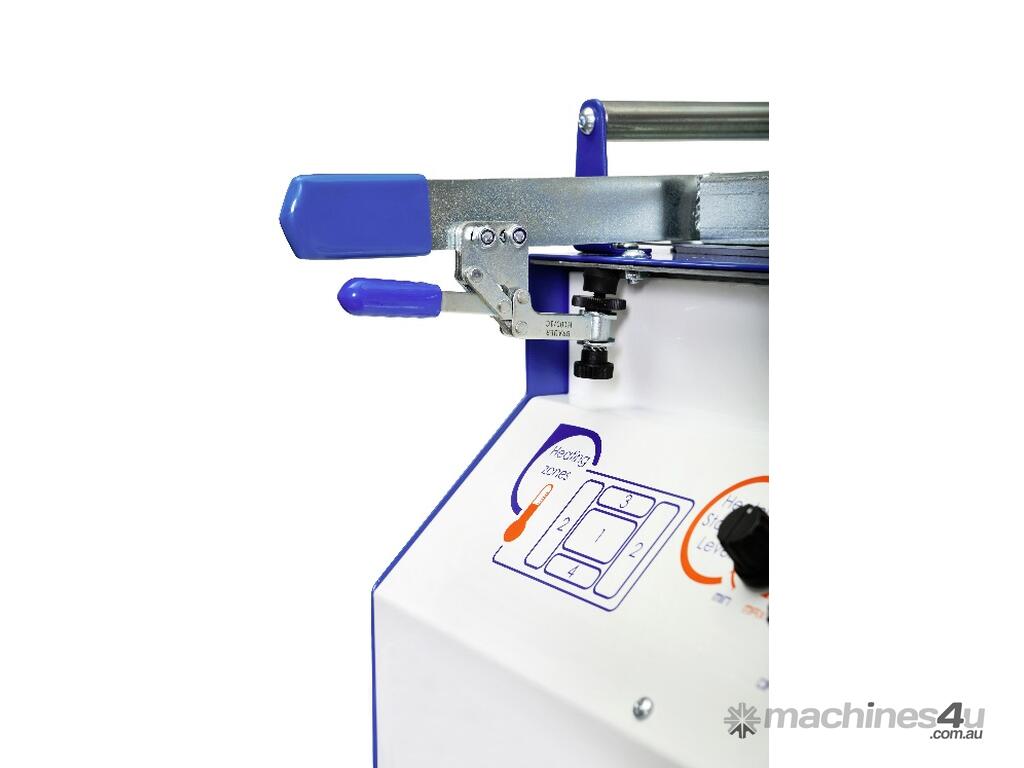

• Interlock feature to ensure mould cannot be raised when heater is in forward position

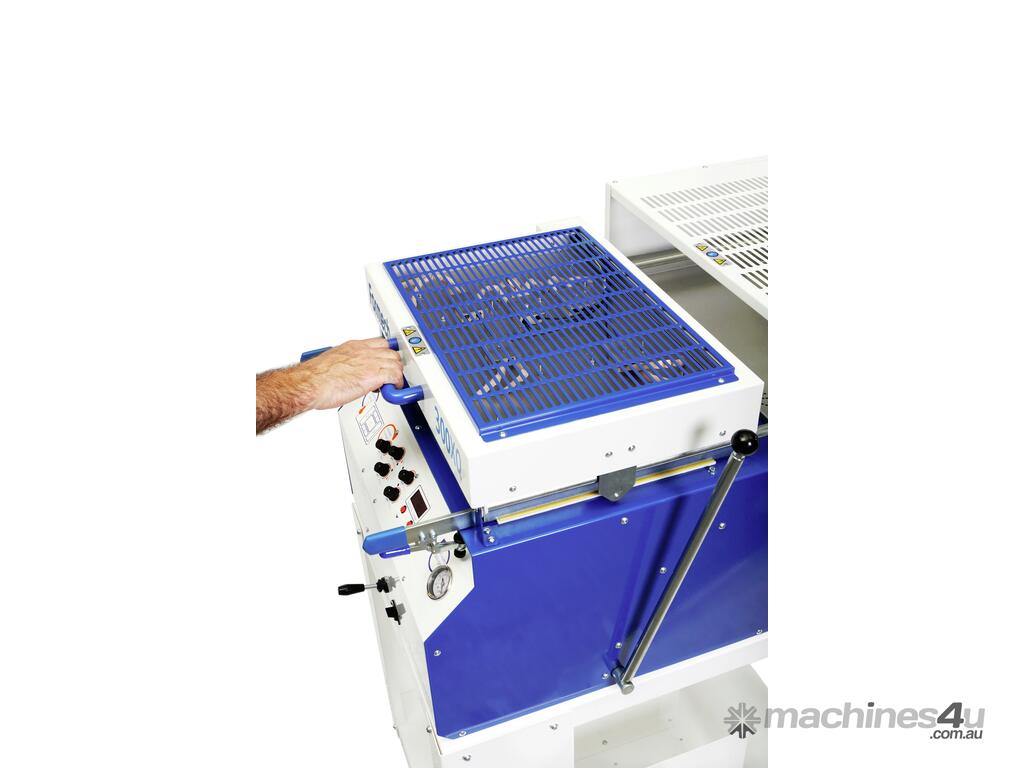

• Heater movement track to prevent lifting and derailing of heater box during use
• Powerful quartz heaters with standby feature
• Fast warm up facility, ready to use within minutes

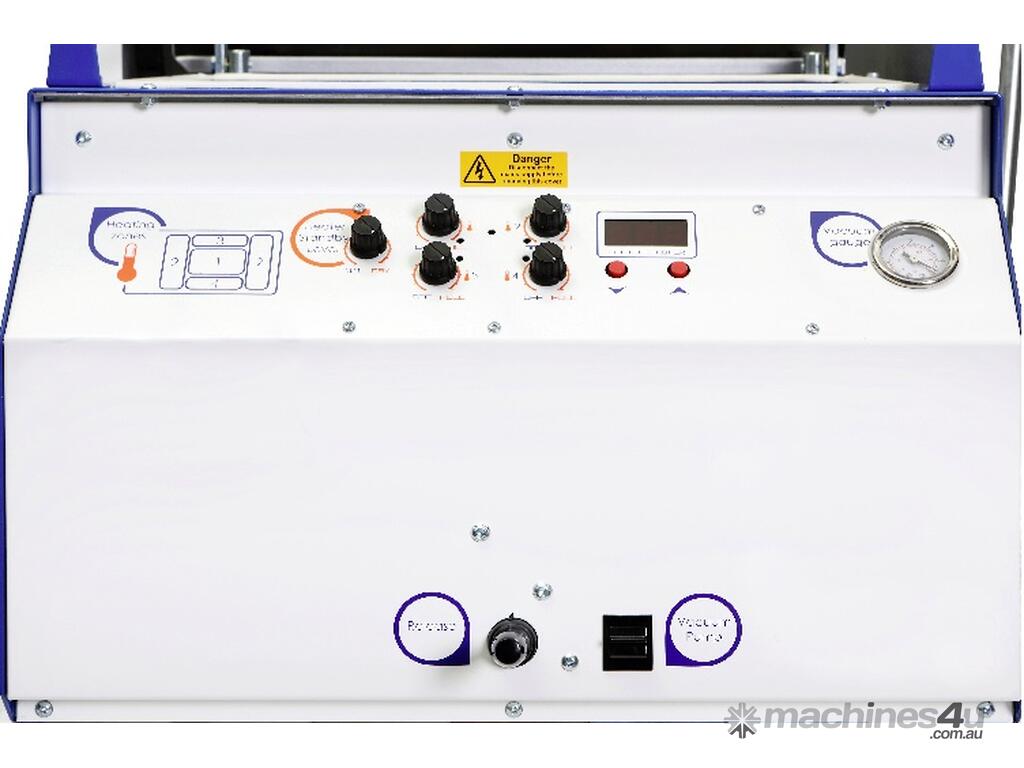

• Four independent zone controls
• Digital timer incorporated to ensure accurate heat cycles
• Vacuum and release controls
• Vacuum gauge
• Designed for ease of maintenance - any parts can be changed in the minimum period of time
• Powerful diaphragm pump = 25” Hg - 5.52 m3/hr

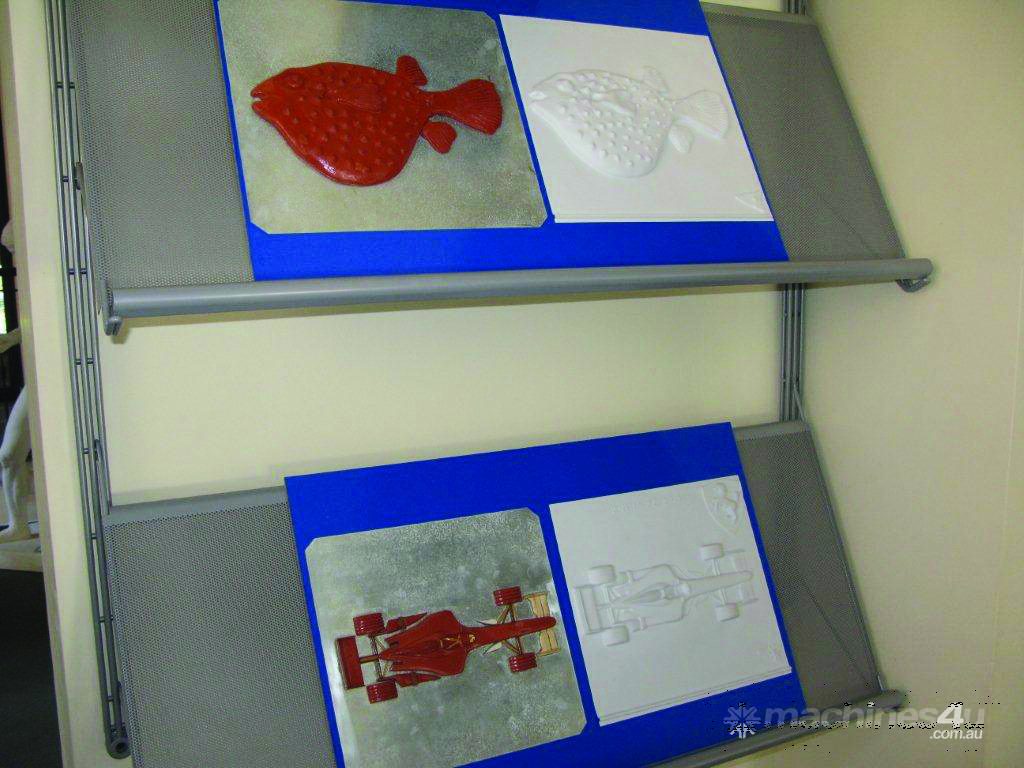

• Fast tool change facility - accepts moulds from clay, wood, resin, aluminium
• Easily maintained with 12 month warranty
