New Salvamac Workpiece stops for sale - Automated saw stop

Absolute Premium quality new SALVASTOP for SALVAMAC

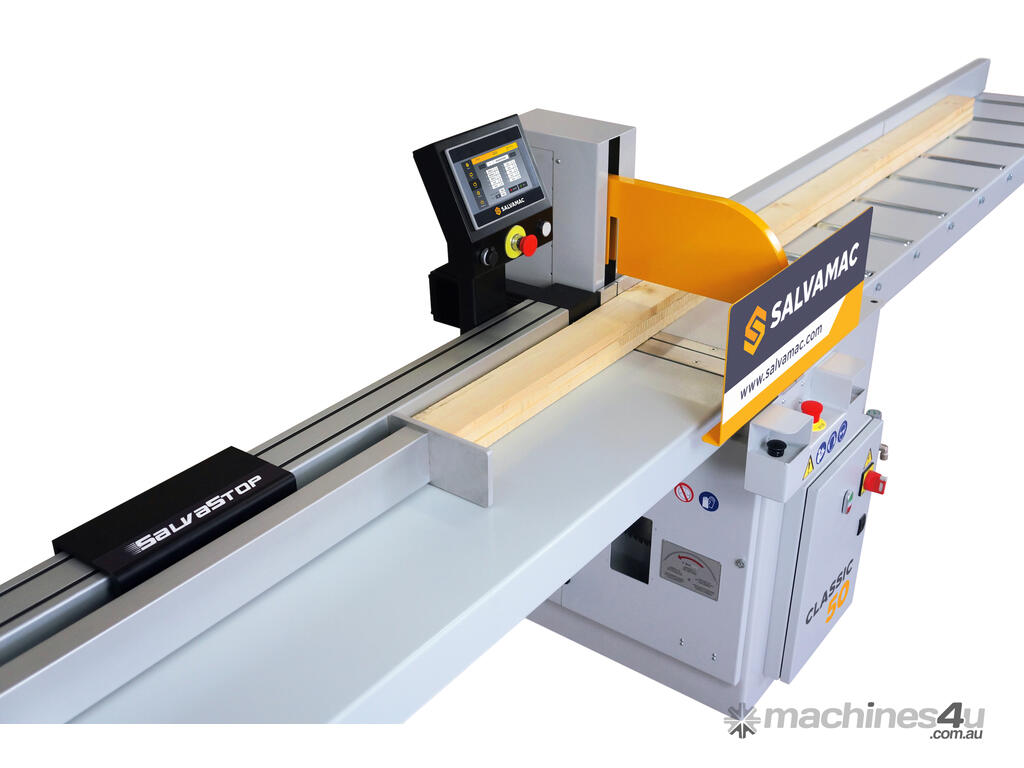

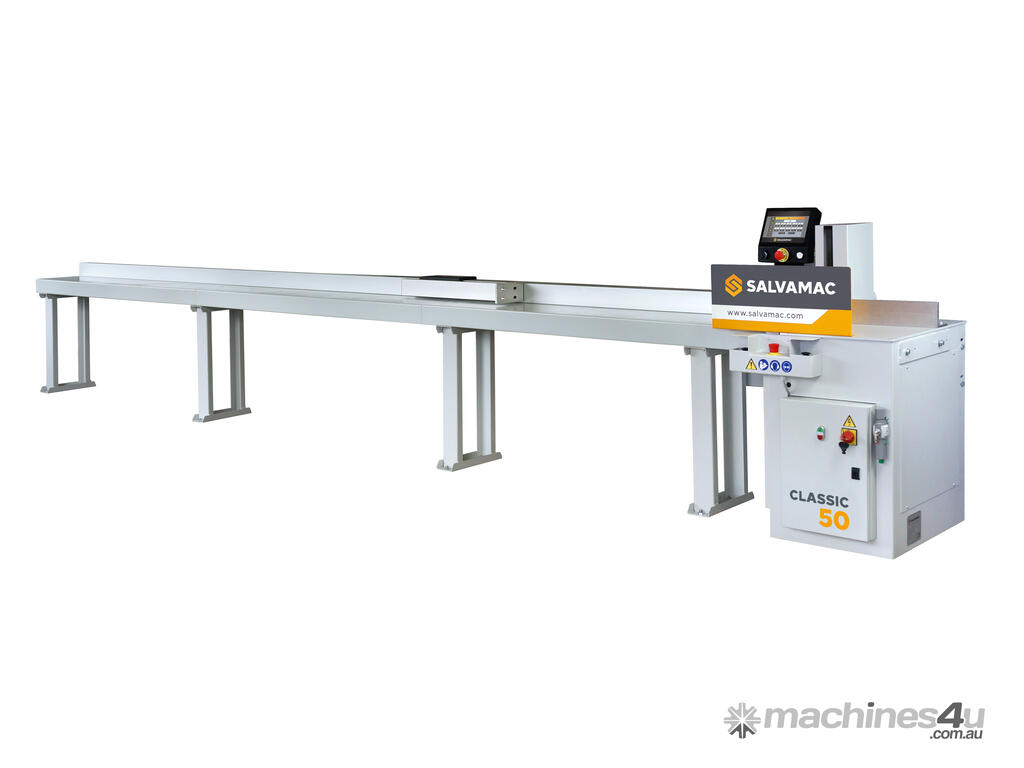

SalvaStop 100 is the evolution of the numerically controlled length stop and pushing positioning system.

SalvaStop 100 to save (Salva in Italian) your labors cost, productivity waste and measuring human errors. Forget and stop to use the tape meter!

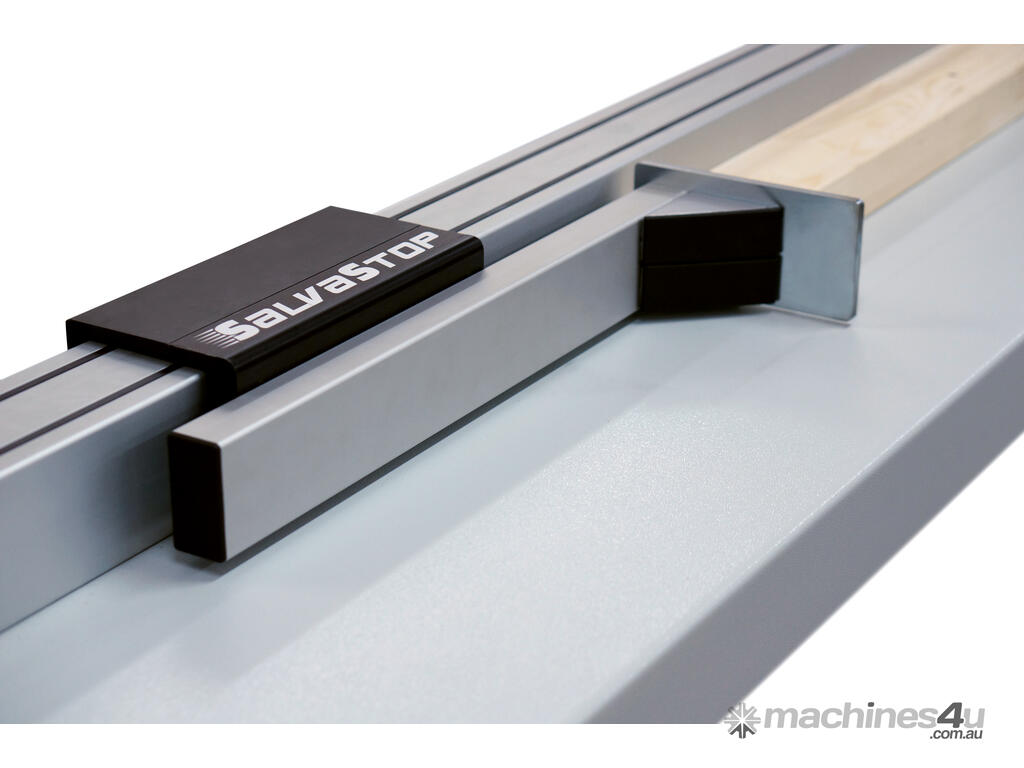

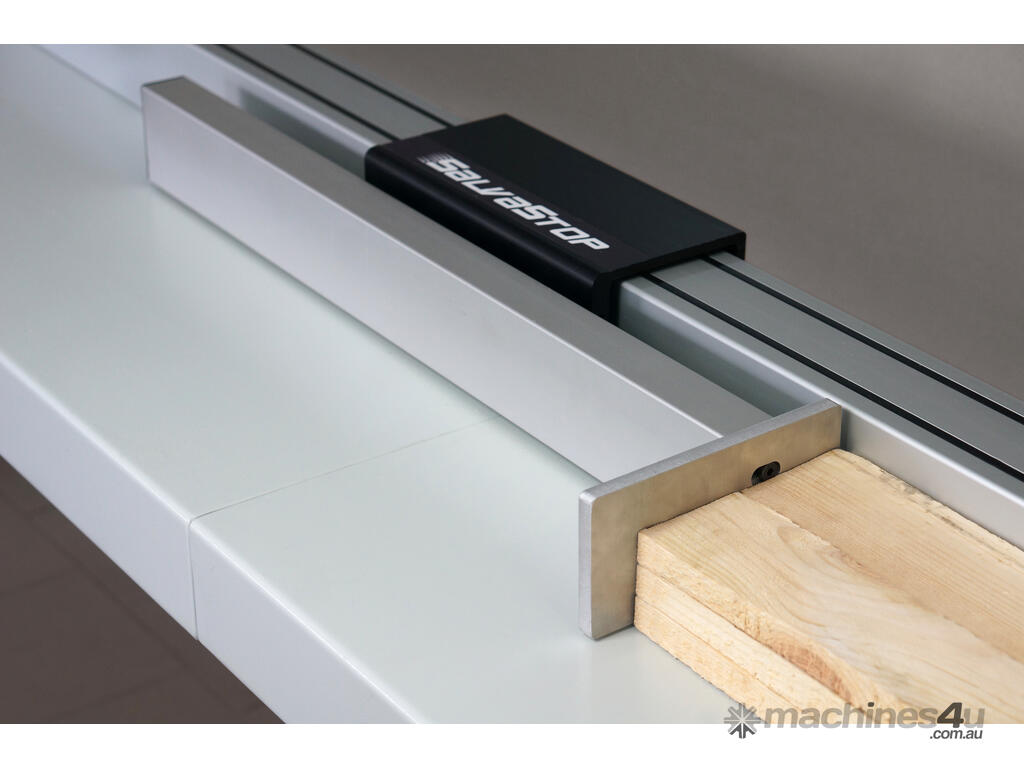

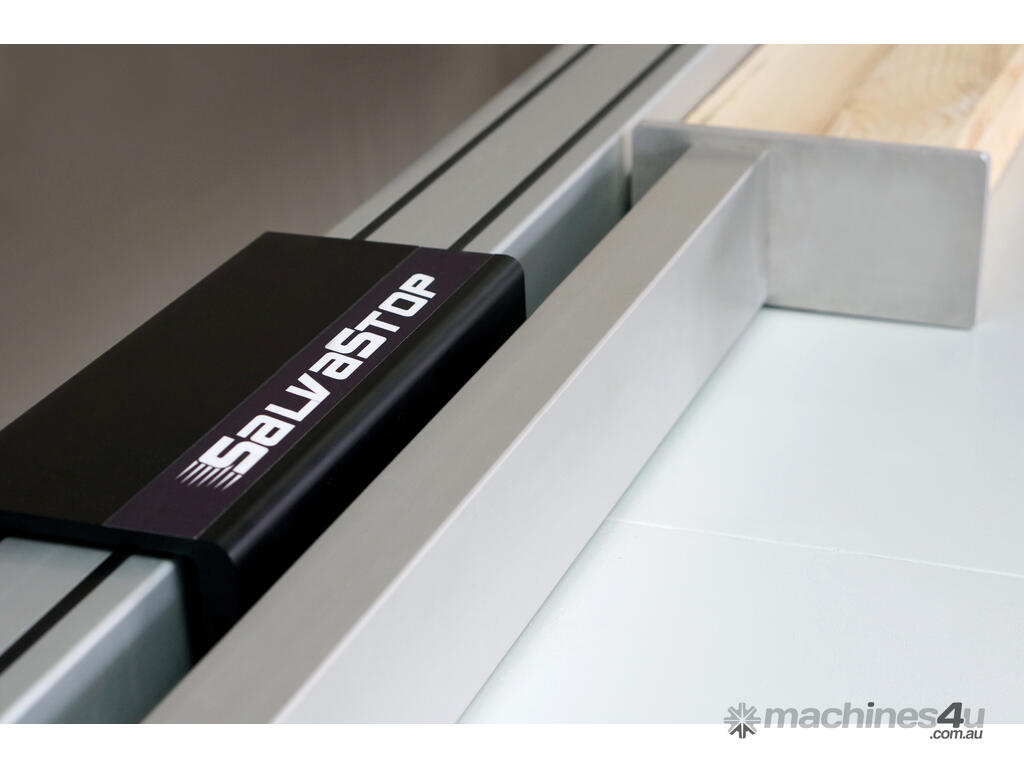

THE BEAM
New technological concept anodized aluminum beam: section mm 100x100, reinforced big thickness of the profile edge.
3 Sides with groves to adapt and install the structure.
1 Flat fence Side to favor the sliding of the wood on the guide avoiding wearing and dust problems.
Maximum speed of carriage movement adjustable up to max. 60 m/min.
High capacity pusher carriage thanks to considerable dimensions
Transmission system through toothed belt width 32 mm. with steel strips inside of high precision and capacity, with very high tolerance of positioning.
Robust and independent steel heads for long life, reliability and precision.
Strong arm with end aluminum plate with about mm.100 x 200 size.

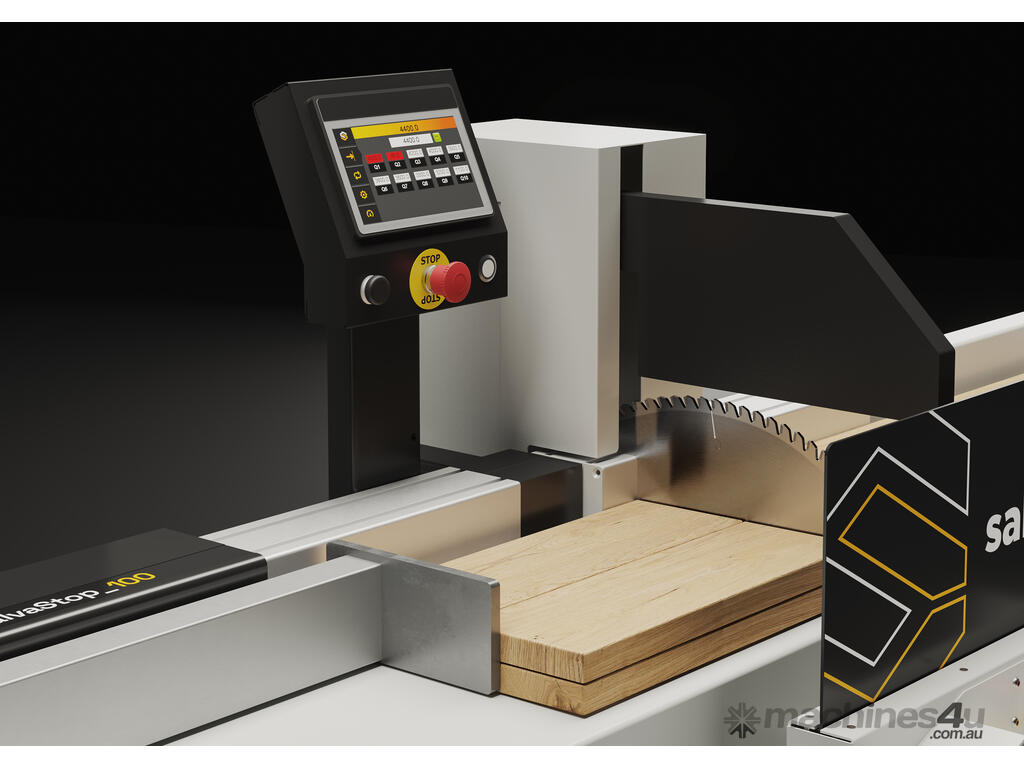

THE ELECTRONIC HARDWARE
Servodrive electronic moving motor in integrated version allows be simple, long life, compact and with the maximum efficiency.
This special technology allows the to use the motor in closing loop controlling and not losing every moment the position even in case of accidental external pressures and strokes.
The motor is placed in front and pulling-position. Motor power 11 Nm. I/O system from servodrive.

Safety emergency button and start button in ergonomic position.
