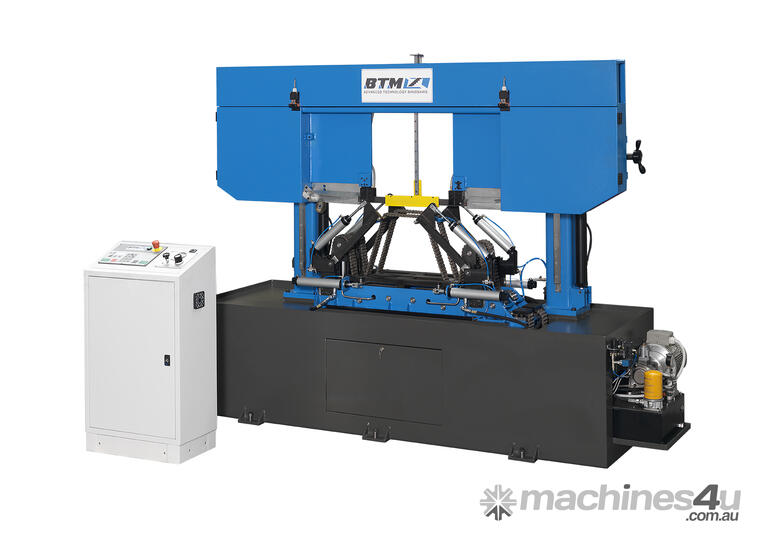

Automatic BTM TT 350 Bandsaw Machine

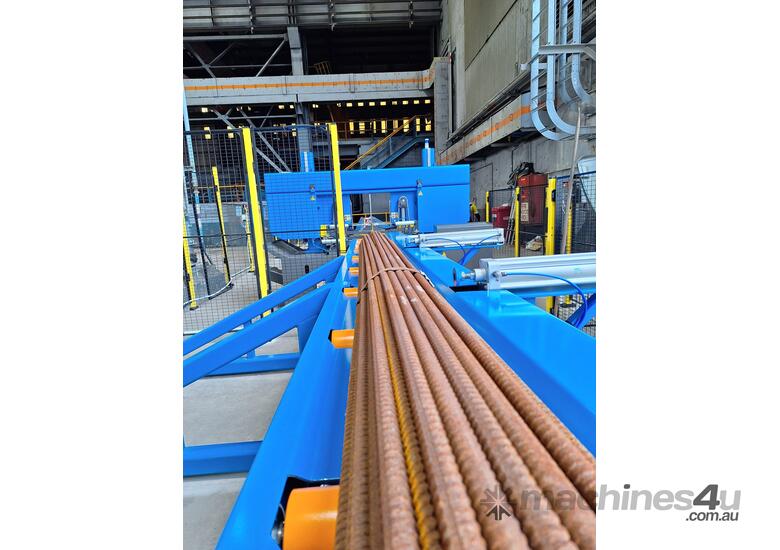

Heavy-duty European Semiautomatic bandsaw for rebars cutting with 350mm clamping capacity.

Key features:

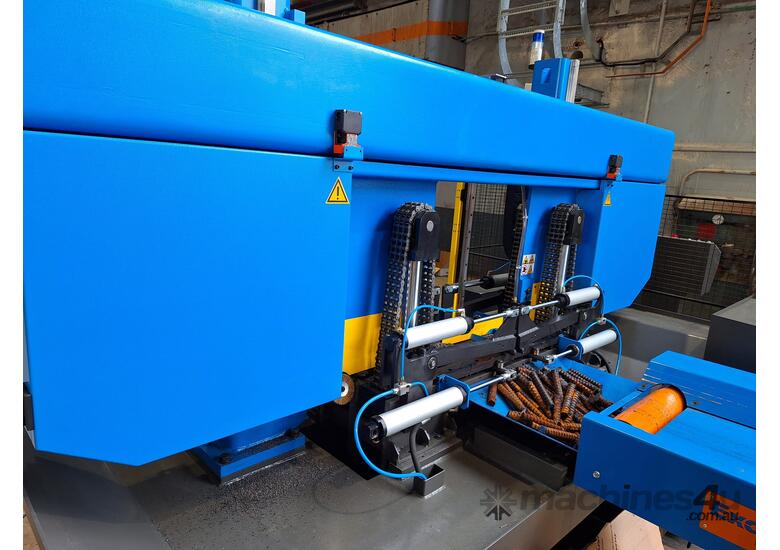

- The clamp has a locking system with chains to grant an optimal locking.
- Bow and base in steel construction
- Vertical bow descent on ball bearing guides
- Hydraulic blade tensioning
- Chip conveyor
- Low voltage electrical system according to EC rules


Technical features:
- Cutting capacity: 350 mm
- Blade dimensions: 5800 x 41 x 1.3 mm
- Working height: 870 mm
- Blade motor power: 3 kW
- Hydraulic pump motor power: 4 kW
- Cooling pump motor power: 0.37 kW
- Chip conveyor motor power: 0.09 kW
- Blade speed: 20 - 100 m/min (Variable)
- Overall dimensions: 1150 x 3200 x 2400 mm
- Weight: 2200 kg

Optional accessories:
- Dry cooling device
- Laser
