Automatic Bandsaw Ø 260mm Single Mitre

Maximize Precision and Versatility with the FMB Jupiter+CN Automatic Bandsaw

Step up your cutting game with the FMB Jupiter+CN, a cutting-edge bandsaw engineered for superior production accuracy, ease of setup, and exceptional versatility. Designed for efficiency, this bandsaw offers a seamless user experience with its advanced CN control system, ensuring precision and minimizing waste.

Effortless Operation and Advanced Features

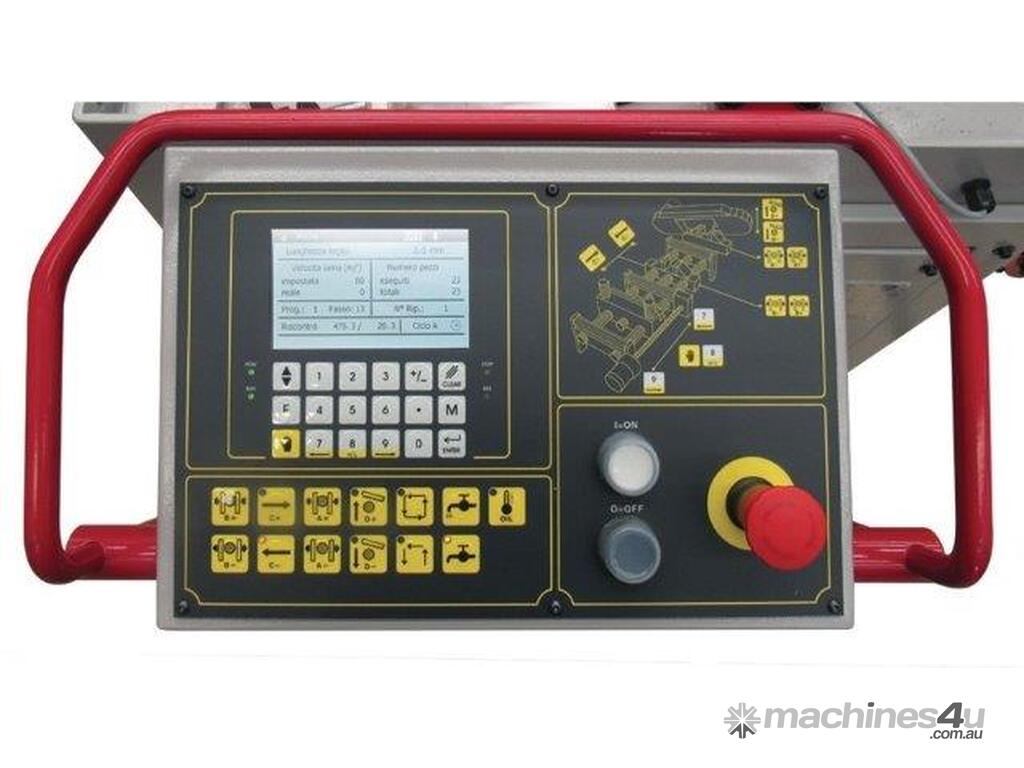

With the intuitive CN control, programming your cuts is as simple as entering the length, specifying the number of cuts, and pressing start. The manual swivel saw head allows for precise mitre cuts from 0 to 60°, offering flexibility for various cutting applications. The CN control system can store up to 99 cutting cycles, streamlining your workflow and reducing scrap.

Click here to download the Brochure

Key Features:

Versatile Cutting Capacity:
- Handles materials up to Ø 260 mm round or 260 x 310 mm in section with precision.
Bundle Cutting Option:
- Optional bundle cutting for dimensions 120 x 280 mm.
Automatic and Semi-Automatic Modes:
- Choose between fully automatic or semi-automatic operations for optimal flexibility.
Variable Cutting Speed:
- Infinitely adjustable cutting speeds from 16-120 m/min to suit different materials and cutting requirements.
Manual Swivel Saw Head:
- Mitre cutting capability from 0 to 60° for versatile cutting angles.

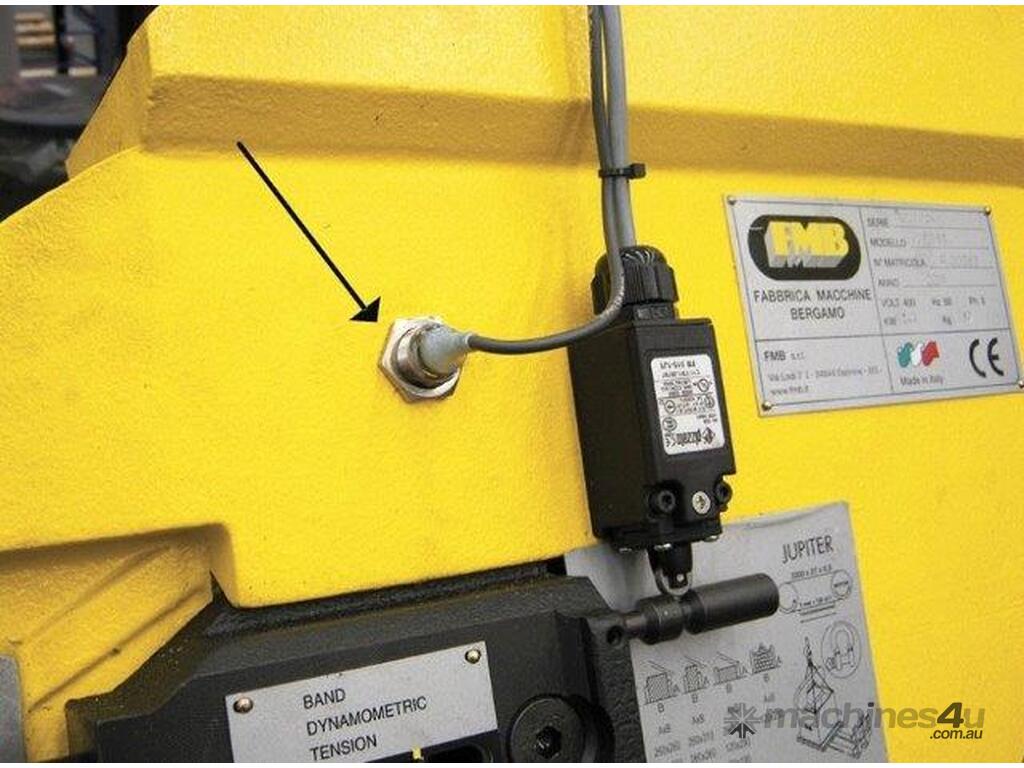

- Precision Sensors: Equipped with SENS – Blade rotation sensor for accurate performance.
Extended Feed Stroke:

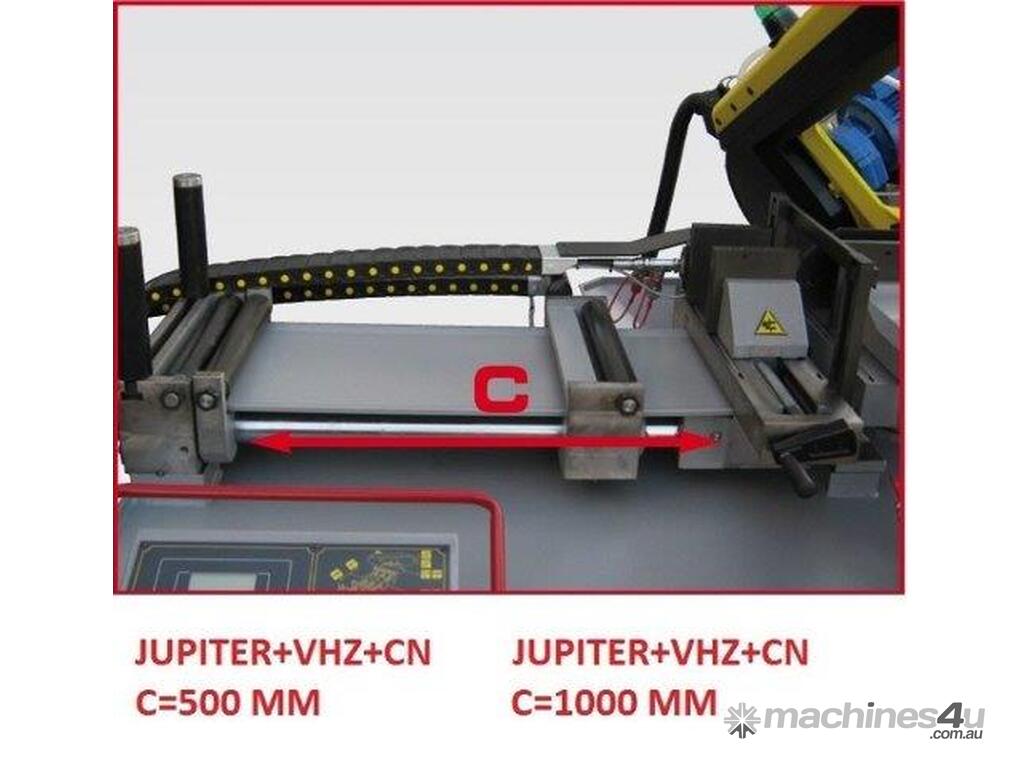

- CN+1000 feature offers an increased feed stroke of 1000 mm for larger workpieces.
Enhanced Measuring System:
- Dual micro switch system for precise carriage vice control with a tolerance of ± 0.2 mm.
Efficient Waste Management:
- 45 mm cutting of final scrap and integrated features to minimize waste.
Rugged Construction:
- Includes a single leg roller table (RA) on the load side, a heavy-duty machine base with a locking cabinet, and a rugged support surface for easy material loading.
Hydraulic and Mechanical Systems:
- Hydraulic clamping vice with manual movement, mechanical blade tensioning, and a self-centring device for distorted material.
Advanced Gearbox and Guides:
- Helical gearbox with 95° efficiency and precision carbide blade guides with side bearings.
Automatic Safety Features:
- Broken blade detection system that automatically shuts down the machine to prevent damage.

Elevate your cutting capabilities with the FMB Jupiter+CN. Ready to enhance your production efficiency and accuracy?

Place Your Order:

Contact us today to place a factory order and enhance your cutting operations with the high-performance Olimpus range. Experience superior productivity and reliability with a machine designed to meet the highest standards.
