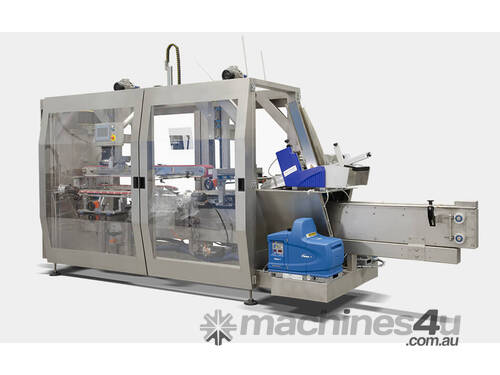

Automatic Carton Sleeve Wrapper

Fully Automatic Carton Sleeve Wrapper Machine

The main function of our automatic carton sleever is to wrap the product with the flat blank, sealing it on the bottom. Perfect for individual or stacked small-medium sized products such as thermoformed trays, sponges, glasses, etc. The flat cardboard blanks are carefully picked or released from storage and then positioned above the product; the flaps are then folded around the product and a spot of glue applied to the bottom, thereby completing the process. Compact layout of the built-in loading belt, partially automated format changes carried out using motorized movements thanks to the touch screen.

Cantilever structure, completely accessible for easy and rapid maintenance and cleaning.

High automatic, carton sleever designed to wrap cardboard blanks around single or multi pack products. The blanks are picked or released from storage, positioned above the product arriving from the loading belt and wrapped around it. Designed and constructed on a cantilever structure which is totally accessible. It is available in various versions based on the reachable speed: up to 35 ppm, up to 90 ppm and up to 125 ppm.

SPEED: depends on the size of the product and the quality of the box; up to 125 clusters/min. DIMENSIONS OF THE BOX: LENGTH:MINIMUM: 60 -MAX. 300 MM
WIDTH: MINIMUM 60- MAX. 495 MM;
PRODUCT DIMENSIONS: LENGTH: 60-270 MM WIDE: 40-270 MM HEIGHT: 20-130 MM.

Version available in STAINLESS STEEL
