Automatic Corner Welding System

TIG/Plasma welding of corners is a basic requirement for most precision sheetmetal processing shops.
Many corners are on basic rectangular shaped parts of varying heights, base materials and thickness.
Although a basic requirement, skilled staff are required to ensure weld quality and neat and tidy appearance.
From GECAM we present the CSW-150 Automatic Corner Welding System.

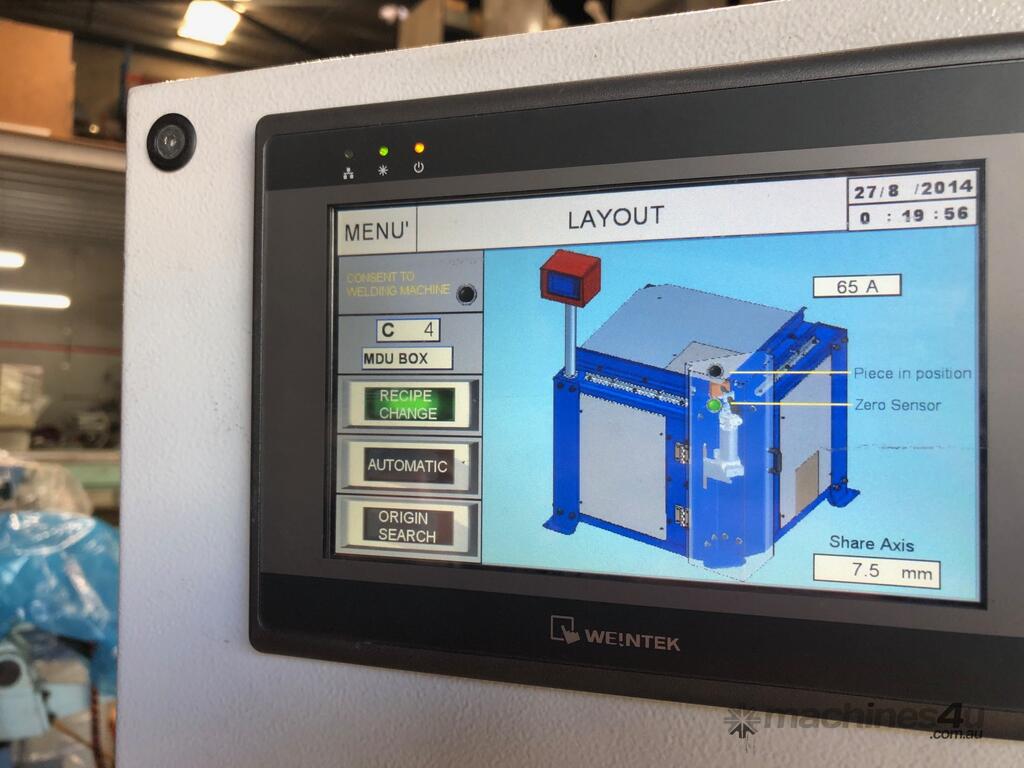

Either TIG or Plasma power sources are intergarted into the machine, so programs can be created and stored for future recall should the same job be repeated in future times.
Materials including mild steel, aluminium and stainless steel can be processed, and quickly programmed to create smooth consistant welds on corners of folded parts.

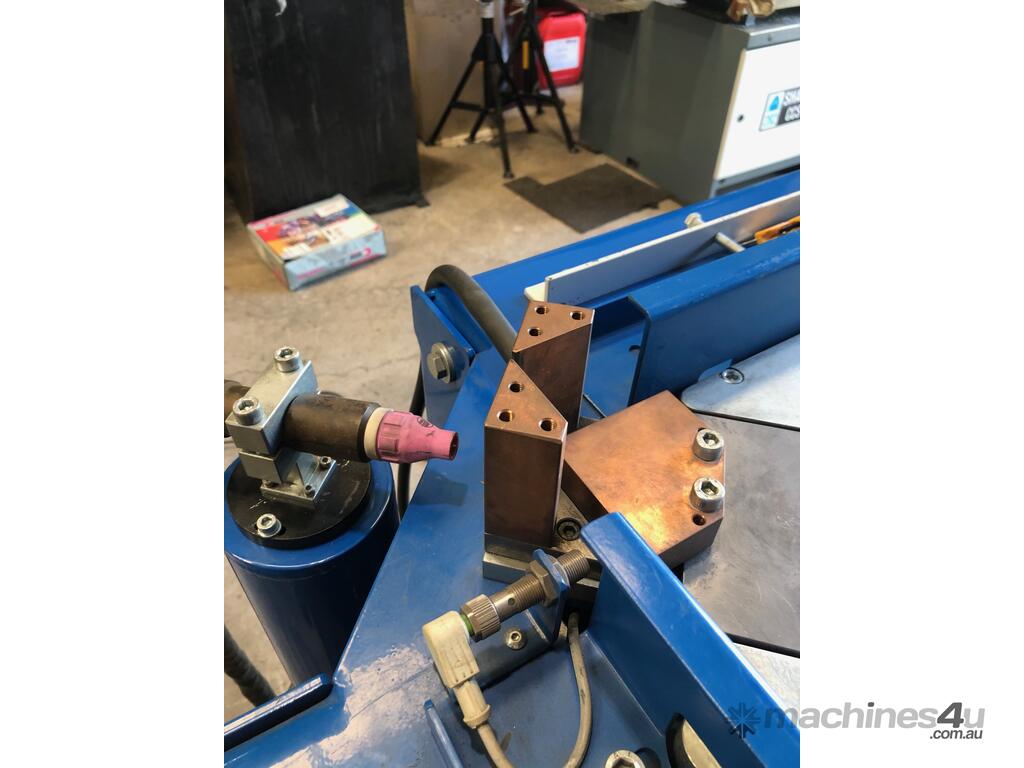

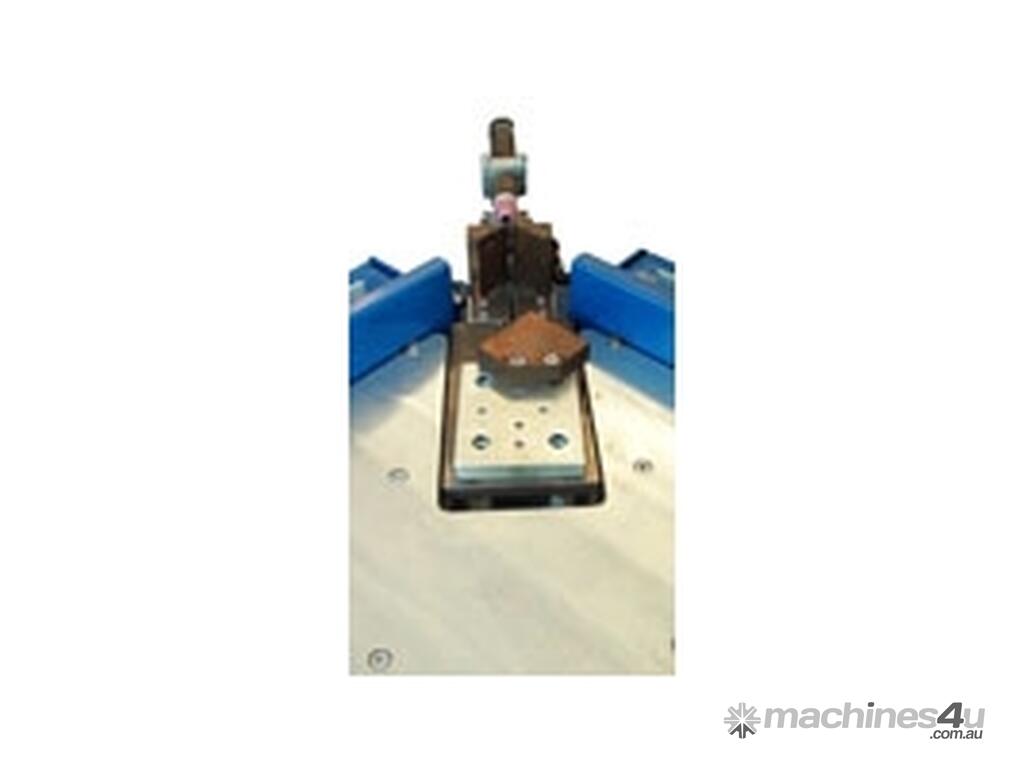

The CSW-150 has a clamping system that ensures the corner is positioned consistantly in the same place relevent to the electrode.
Further automation is possible by interfacing with robots, and even corner linishing and radius machines to finish the welded corners to a perfect finish.
Please contact us for additional information, including applications to your products.
