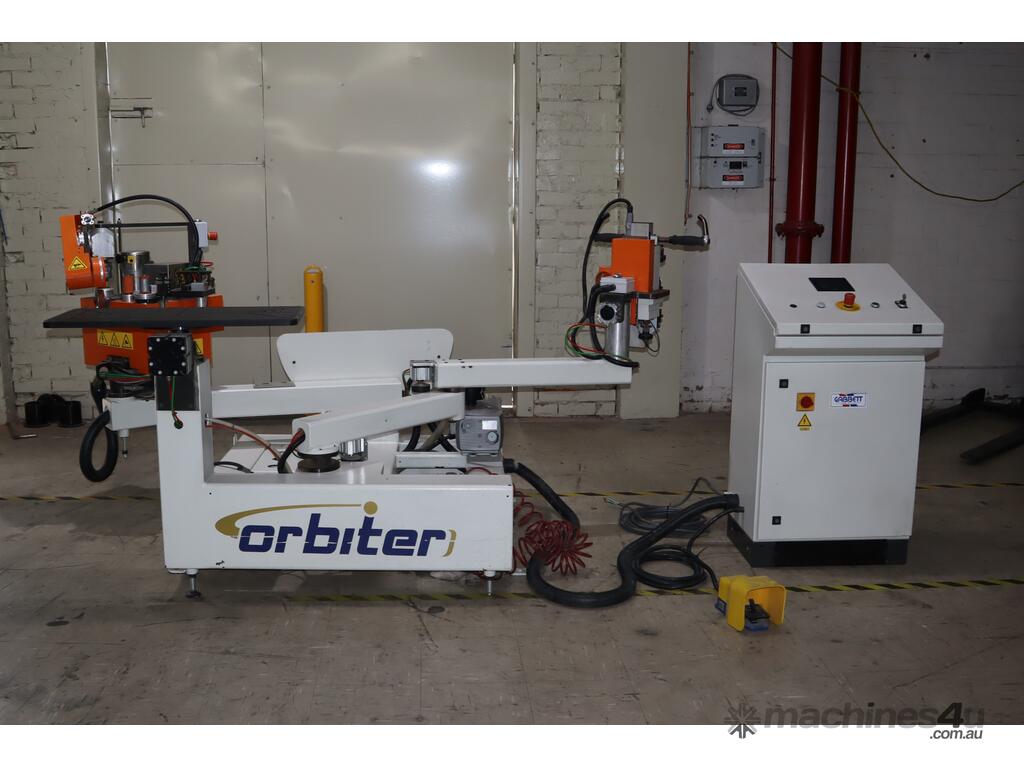

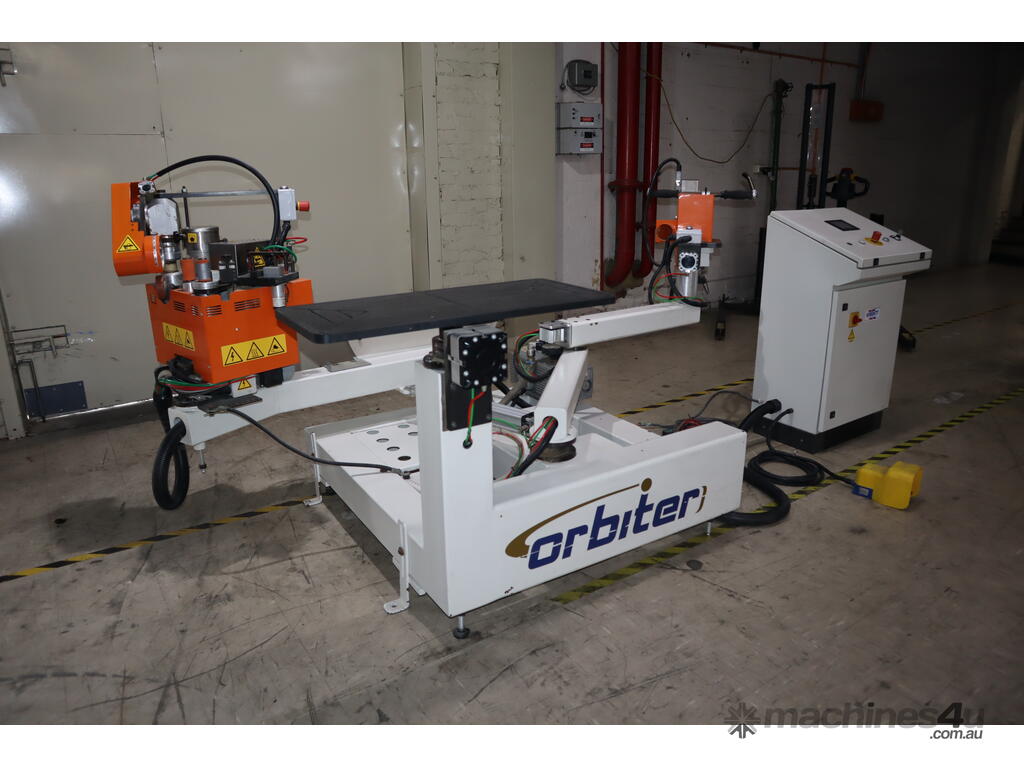

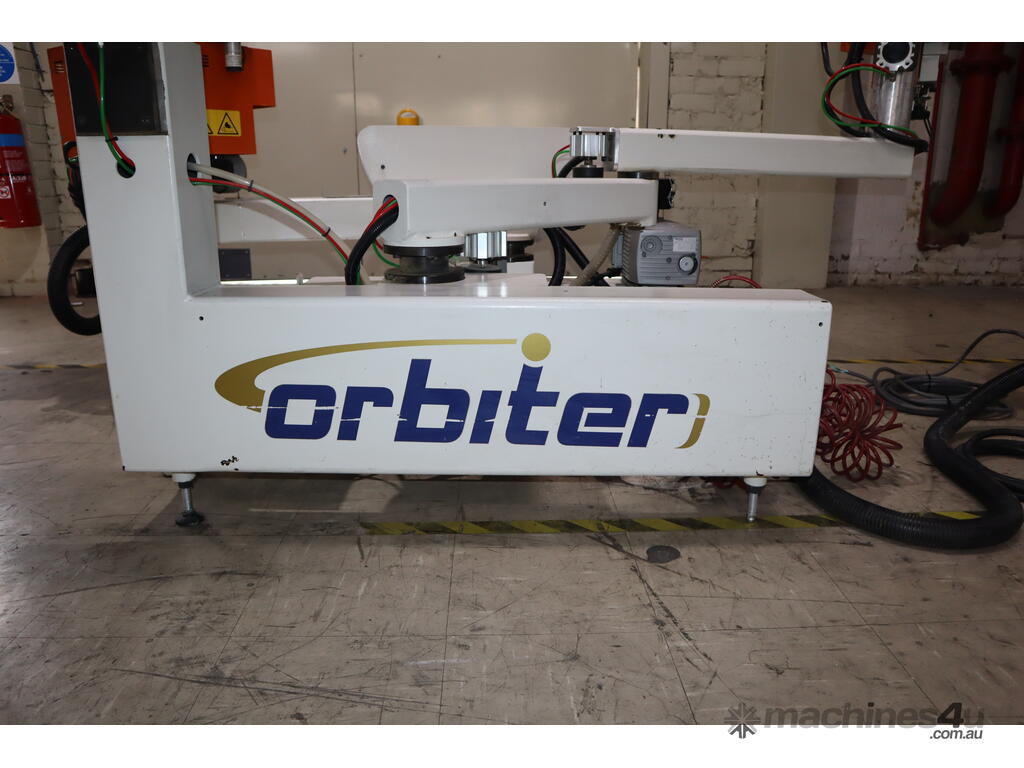

Automatic Curved Edge Banding Machine - Vitap Orbiter

FOR A STRICTLY LIMITED TIME, MERCURI TRADING IS ACCEPTING ALL REASONABLE OFFERS!


PRODUCT INFORMATION:

- Description: Automatic Edgebanding Machine for curved panels

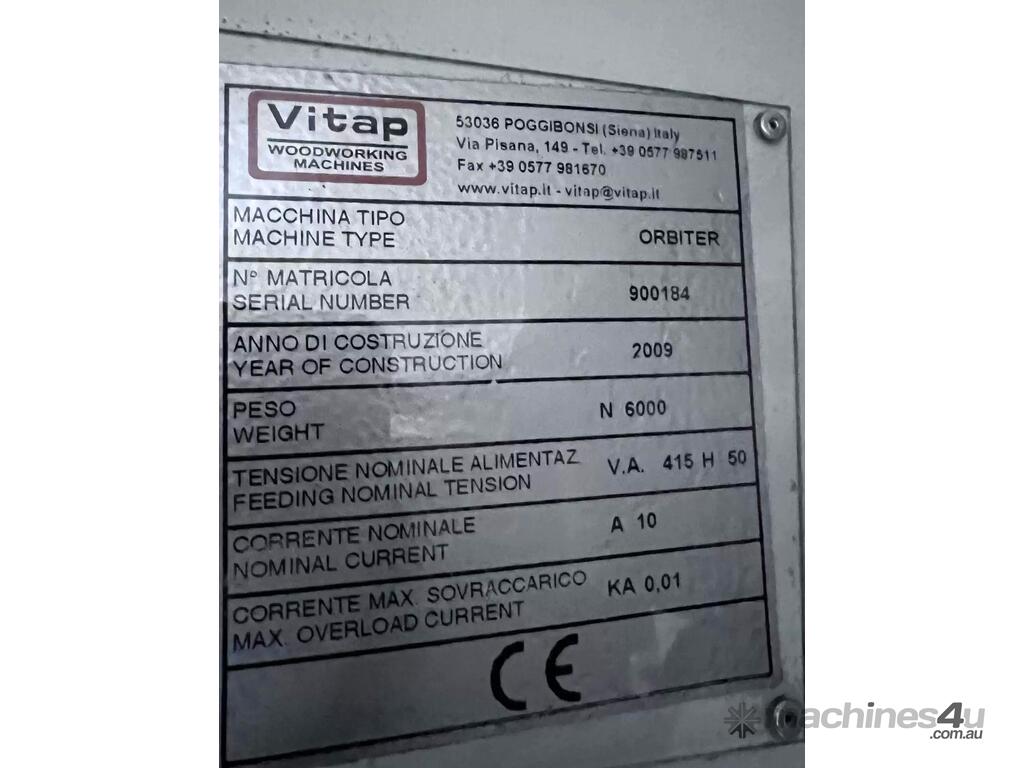

- Model: Orbiter
- Manufacturer: Vitap Costruzioni Meccaniche S.p.A.
- DoM: Circa 2008
- Origin: Made in Italy

APPLICATION:

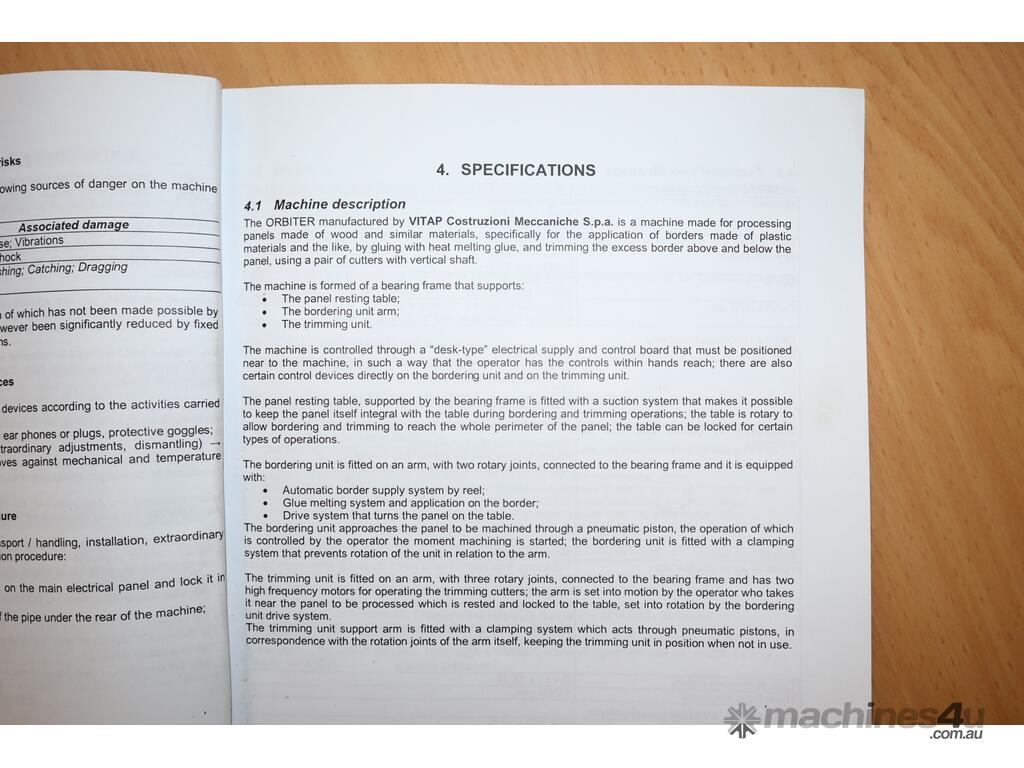

"This automatic edgebanding machine may be suitable for woodworking industries where panel edging is a critical process. The Vitap Orbiter may be ideal for businesses producing custom cabinetry, furniture, and other wood or composite-based products requiring high-precision curved or straight edge banding. The machine can apply borders made of plastic materials, and trims the excess using a pair of cutters. It may benefit businesses seeking efficiency, accuracy, and the ability to handle non-linear edges. The edgebander operates with heat-melting glue and uses high-frequency motors to drive the cutters. Panels are positioned on a rotating table for full perimeter trimming. The machine is controlled via an electrical control box, allowing the operator to manage operations efficiently."

FEATURES:

- Automatic border supply with reel

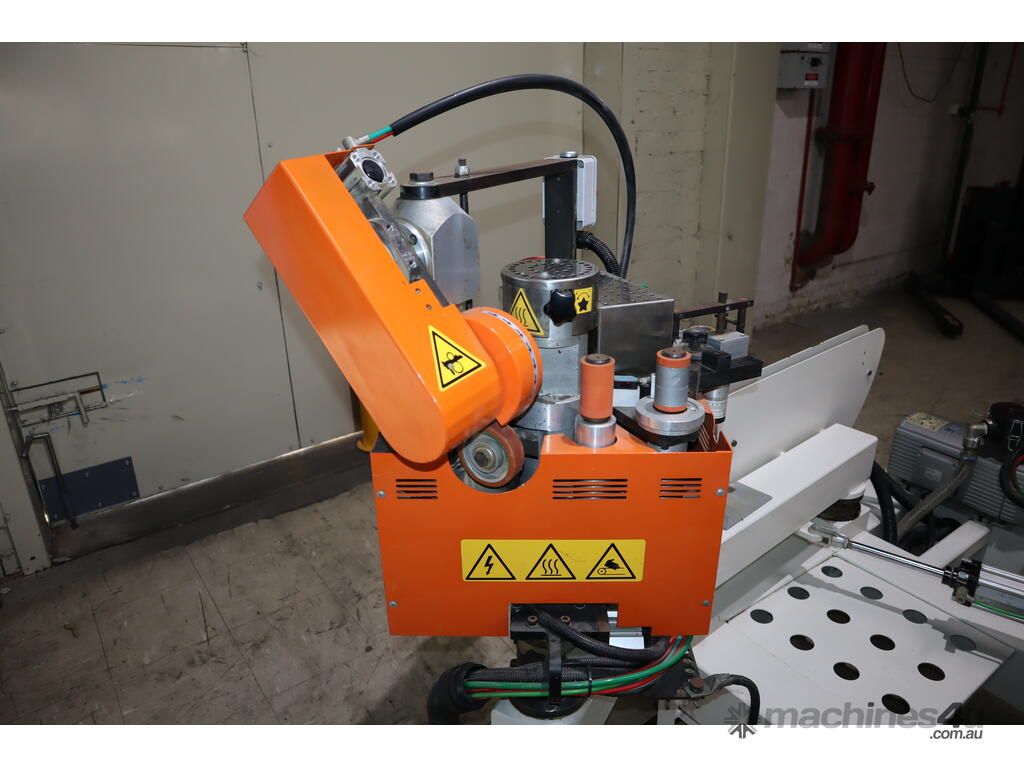

- Glue-melting system with precise border application
- Table rotation system for handling curved panels

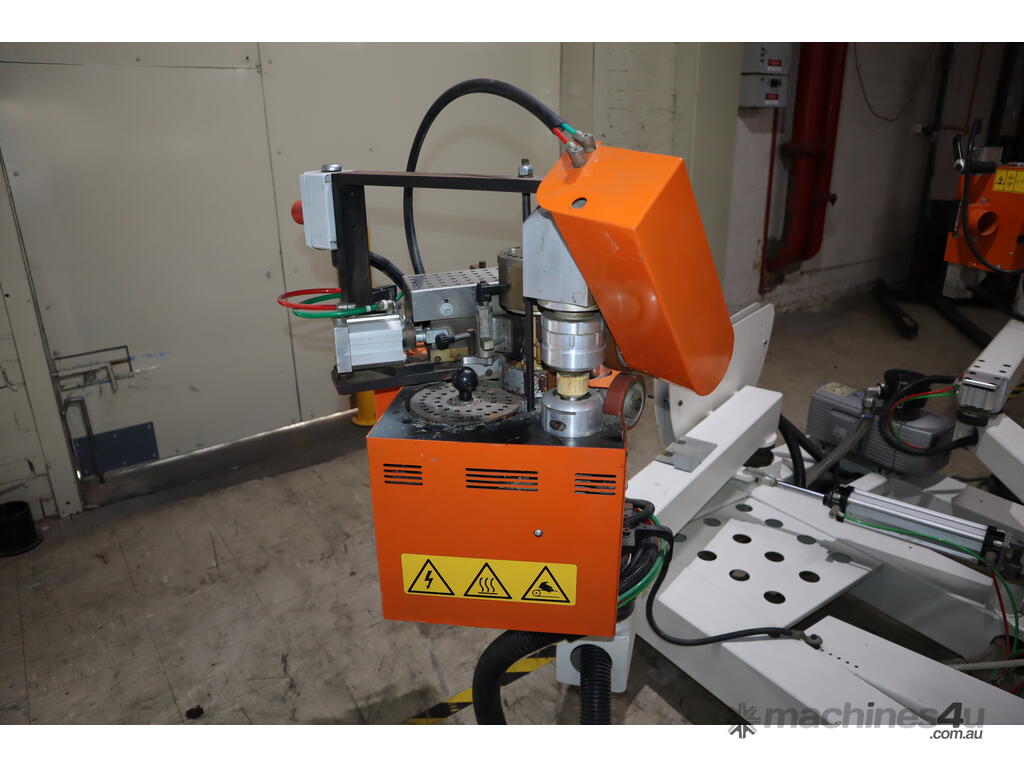

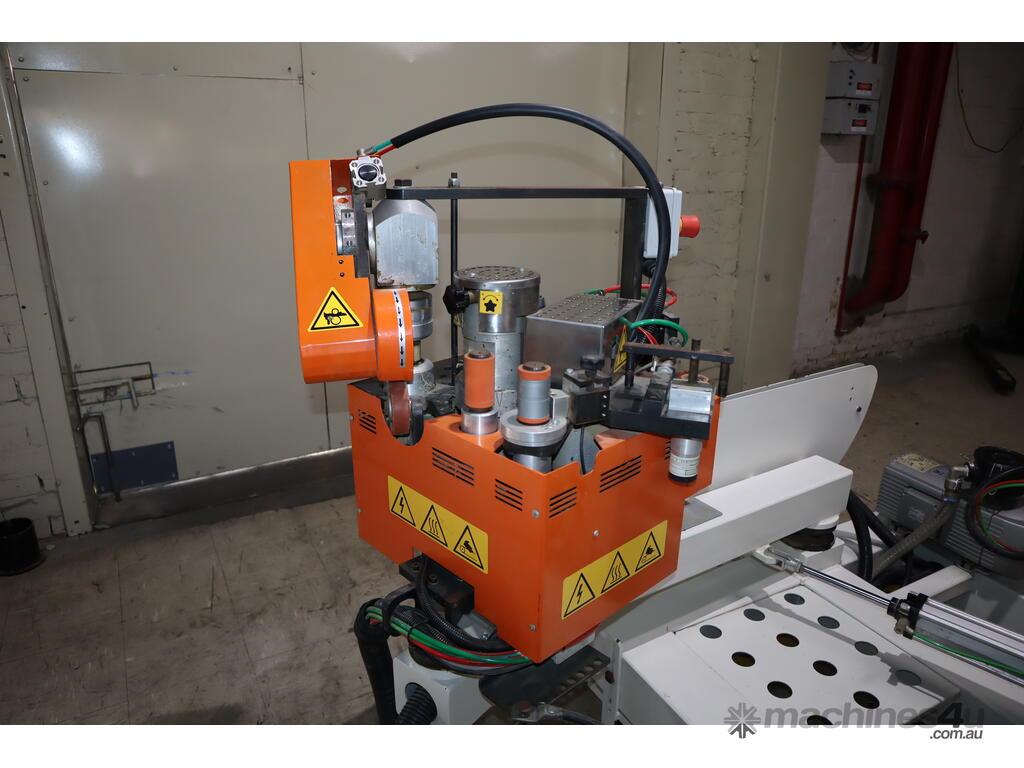

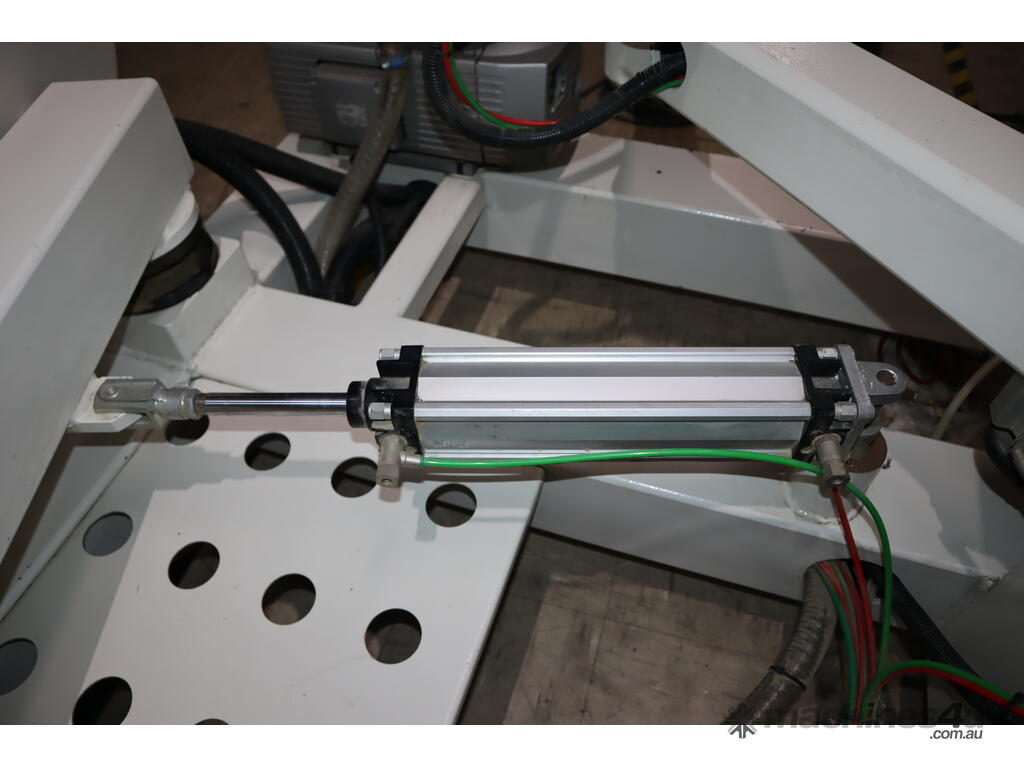

- Pneumatically controlled bordering and trimming arms
- Equipped with a Becker vacuum pump system

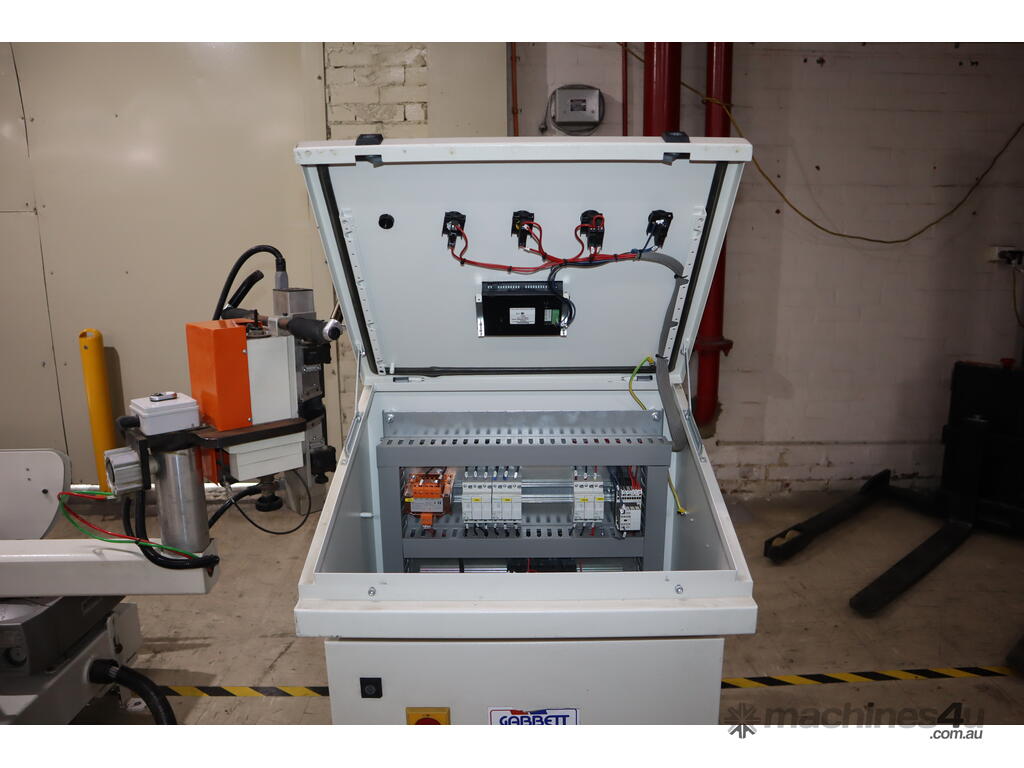

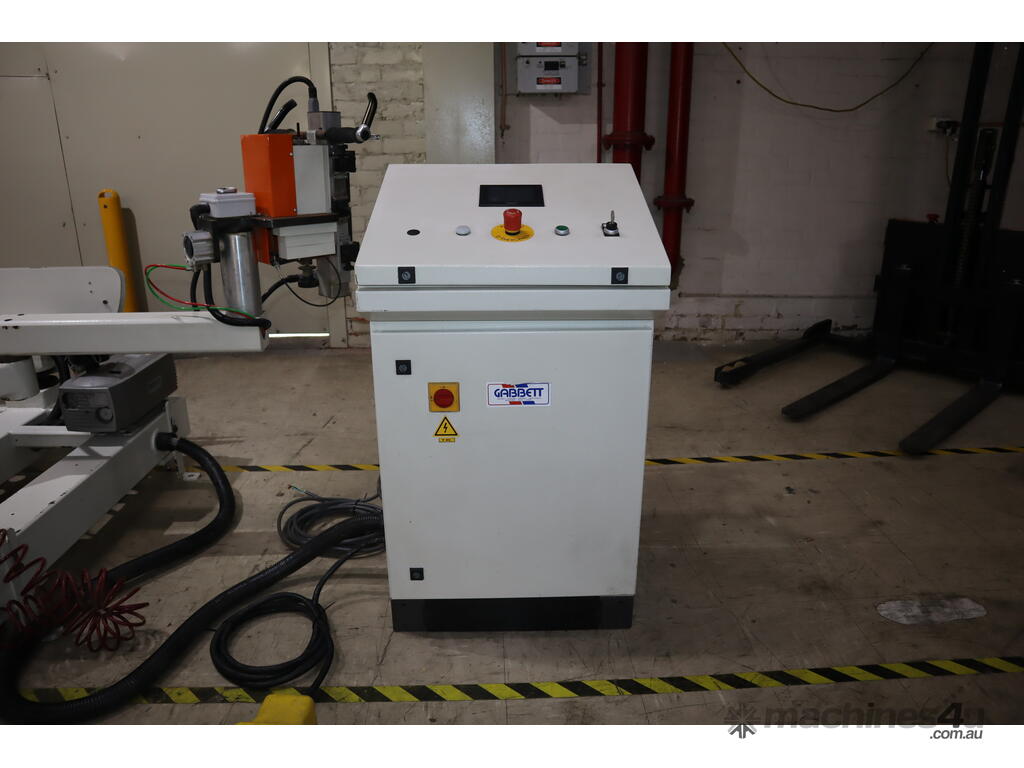

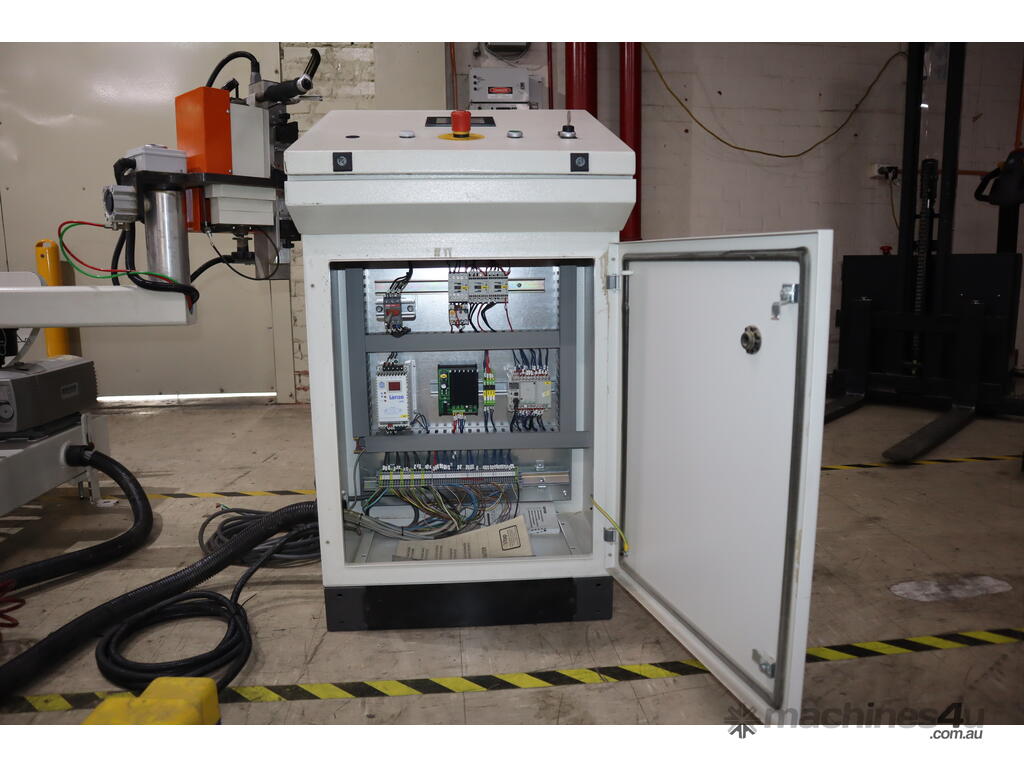

- Control via a dedicated electrical control box (Gabbett-branded)

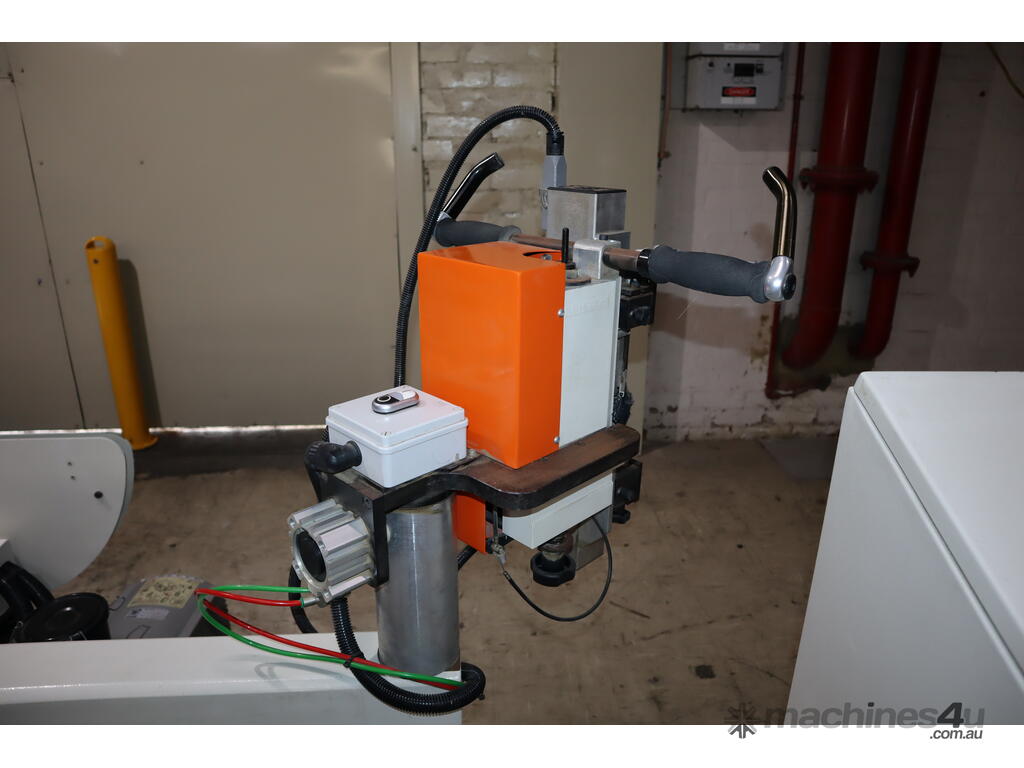

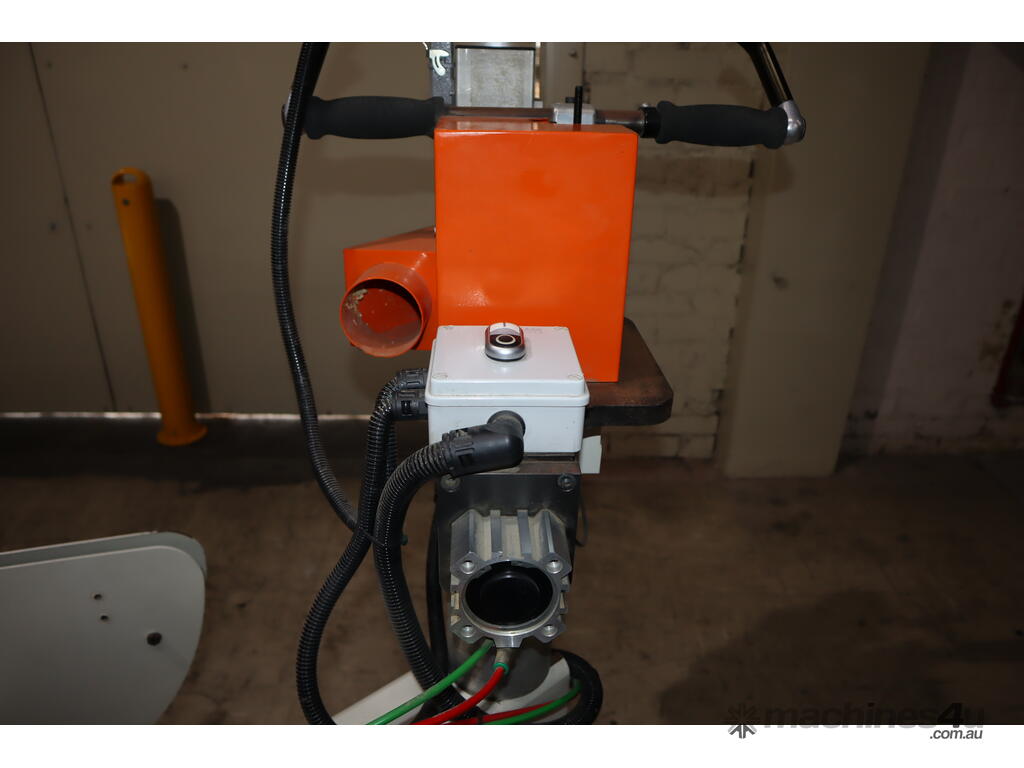

- Twin high-frequency motors for trimming

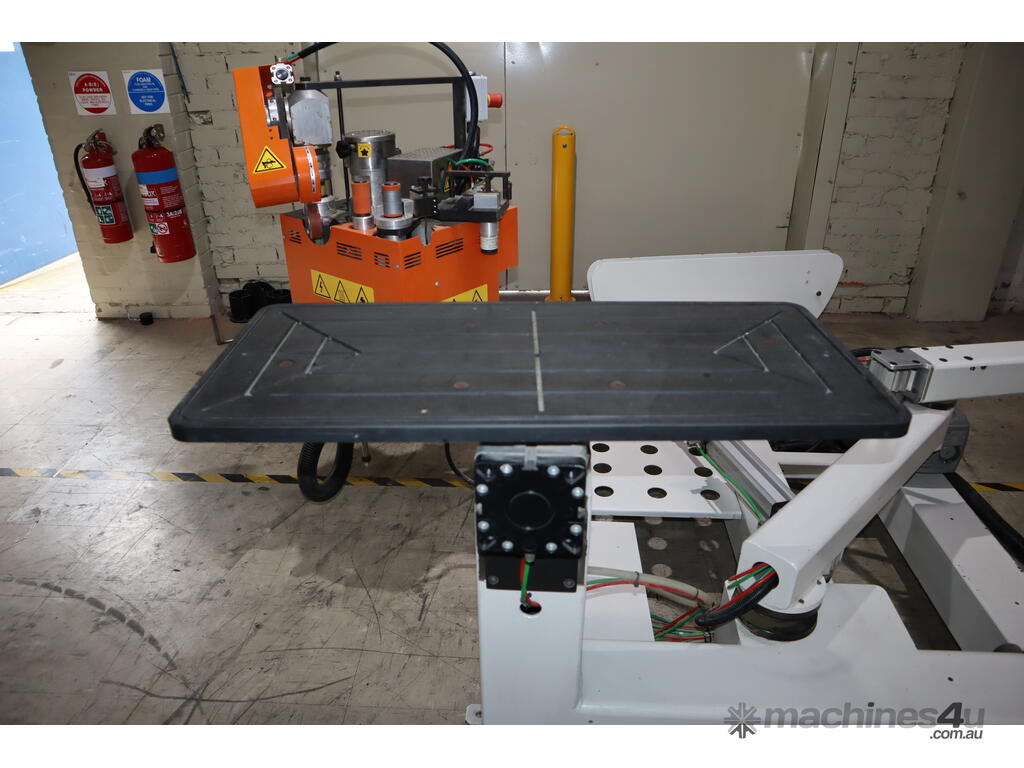

- Rotary table for precise and versatile panel positioning
- Heat-melting glue for edge application

SPECIFICATIONS:

- Types of tapes and material: pressure laminate, ABS, PVC, melamine
- Panel Thickness: 16 - 50mm
- Tape Height: 18 - 54mm
- Edgeband thickness max: 2.5mm
- Thickness of coiled edgeband max: 3mm
- Workpiece diameter max: 2400 mm
- Inner radius min: 250 mm
- Milling units for edge trimming: 1
- Feedrate max: 4.2m/min
- Cutting knife: Yes
- Flush milling: Yes
- Glue application: Yes
- Total connection: 5kW

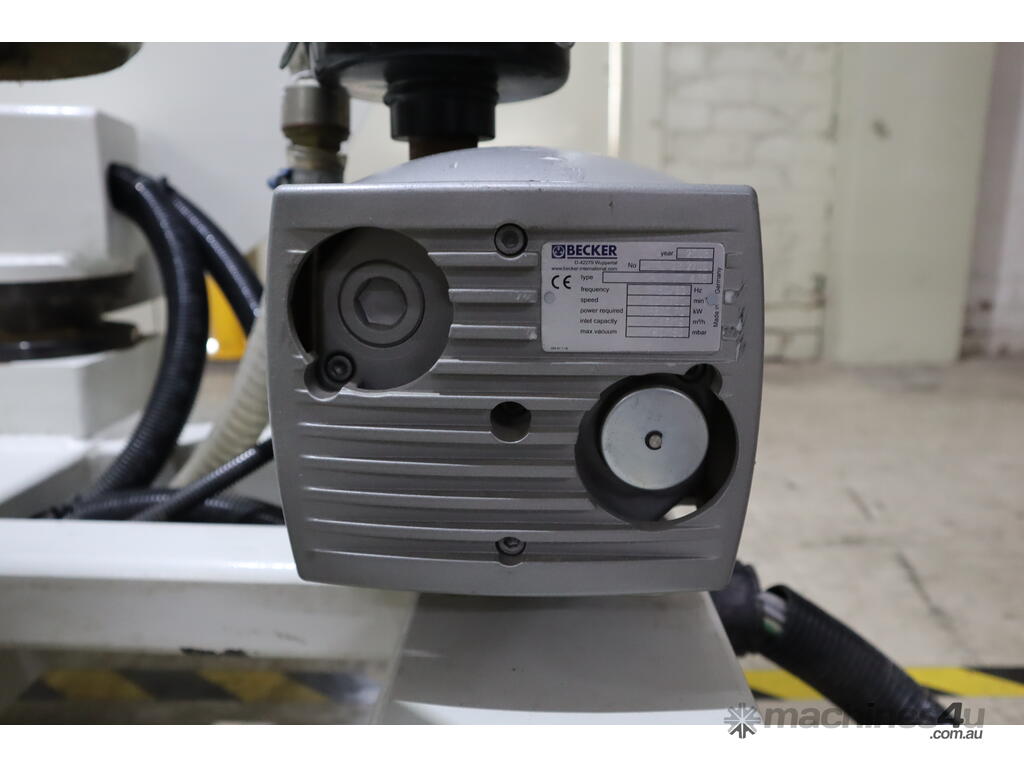

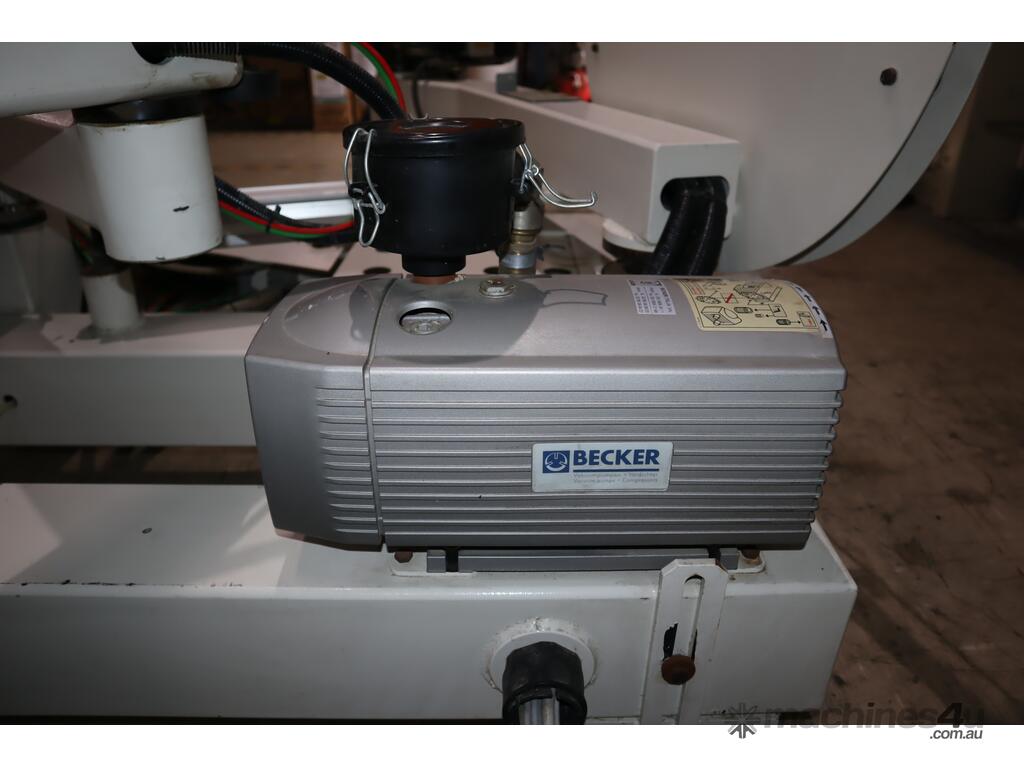

VACUUM PUMP:

- Type: Vacuum pump
- Make: Becker
- Model: VT 4.16
- No.: 2312799
- RPM: 1420
- Frequency: 50 Hz
- Amps: 2.2 A
- Phase: 3-Phase
- Power Required: 0.55 kW
- Inlet Capacity: 16 m3/h
- Max. Vacuum: 150 mbar
- Origin: Made in Germany

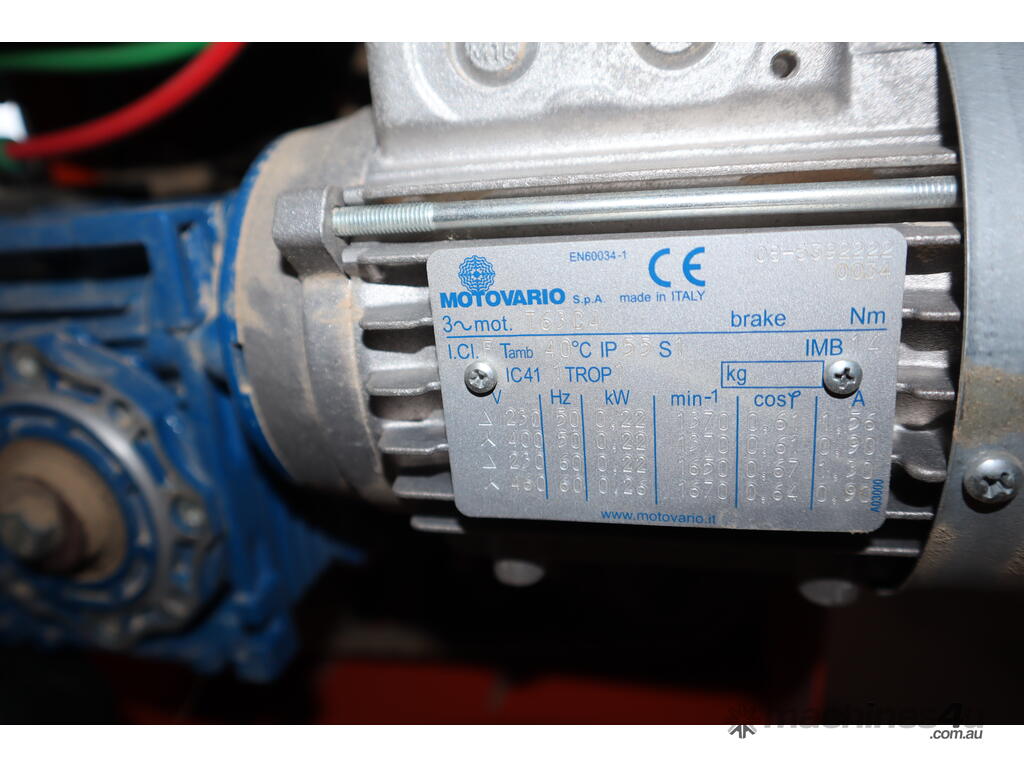

MOTOR:

- Type: 3 Phase Induction Motor
- Make: Motovario
- Model: T63C4
- Power: 0.22 kW
- Amps: 0.9 A
- RPM: 1370 rev/min
- Voltage: 400V
- Frequency: 50 Hz
- Phase: 3-phase
- Origin: Made in Italy

MEASUREMENTS:

- Overall Dimensions (mm): 2000 x 2500 x 1300
- Weight: 500kg


NEED TO KNOW:

This item was removed from a functional environment and is backed by our guarantee to be in good working order.
