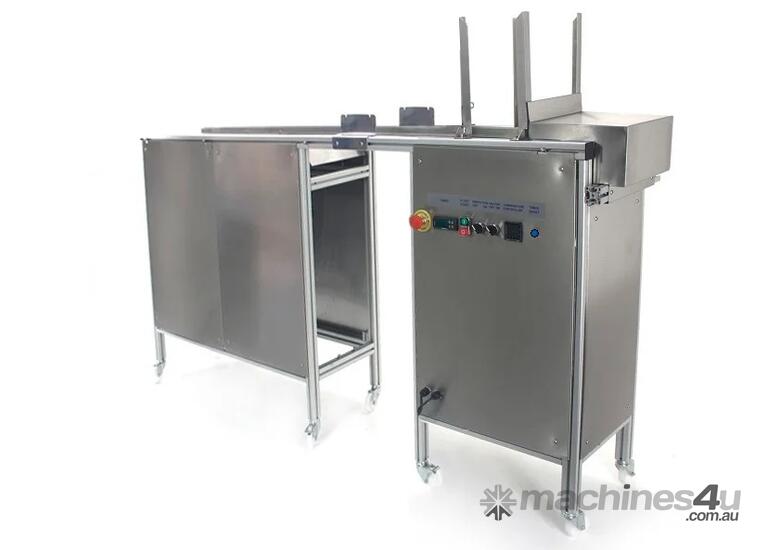

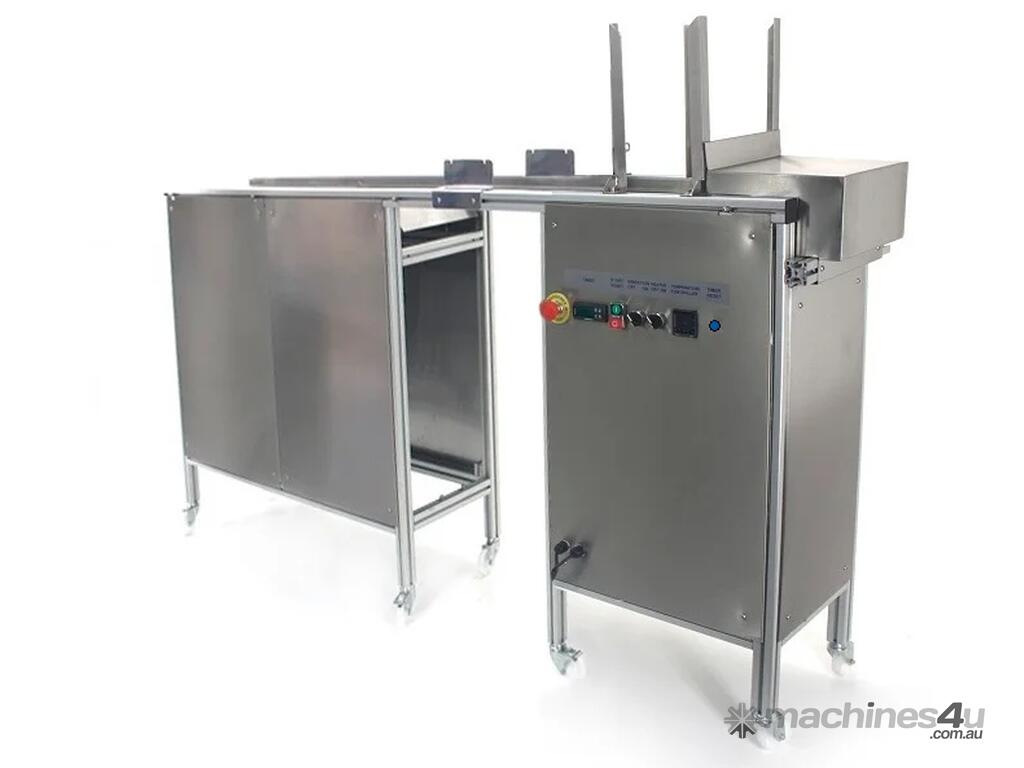

Automatic chocolate moulding line

Moulding Line Moulding Lines | ChocMakers | Chocolate Making Machines | Australia The moulding line is designed to automate the process of filling and vibrating tempered chocolate into polycarbonate moulds.

It includes integrated digital timing and dosing controls, and when combined with an INFINITY LX, MX or AX, it can deposit up to 100g per second with a maximum throughput rate of 600 moulds per hour.

The INFINITY AML is supplied with a depositing head and one depositing plate custom made to suit a mould design of your choice.

?Additional features include:

NO independent power supply is required as the INFINITY AML plugs straight into and draws power from your INFINITY LX, MX or AX tempering machine

NO air supply is required as the mould-feeder is driven by an electric motor, not compressed air

Deposit timing is controlled by an integrated timer

The vibrating station is built into the INFINITY AML so the optional INFINITY LX/MX/AX vibrating table is NOT required and can be removed during use

Additional chocolate machines can be easily and quickly rolled in & out to swap chocolate flavours

Made in the UK

Note: the INFINITY AML does not include the LX, MX or AX machines. This equipment is purchased separately.

Technical Specifications

INFINITY AML-1

Maximum chocolate deposit of 100g per second

Maximum throughput rate of 600 moulds per hour

Built-in digital timer for controlling deposits

Ball screw driven mould feeder (no compressed air required)?

Powered by INFINITY LX, MX or AX (no extra power supply required)

Supplied with a depositing head and one depositing plate custom made to suit your chosen polycarbonate mould dimensions

Overall Dimensions:

AML-1 (L) 2700mm x (D) 400mm x (H) 1050mm
