Lift capacity 800 kg | Lift height 2.8 m | Engine power 22 hp | Drive speed 12 km/h | Kubota Diesel Engine | Unbeatable power - price ratio.

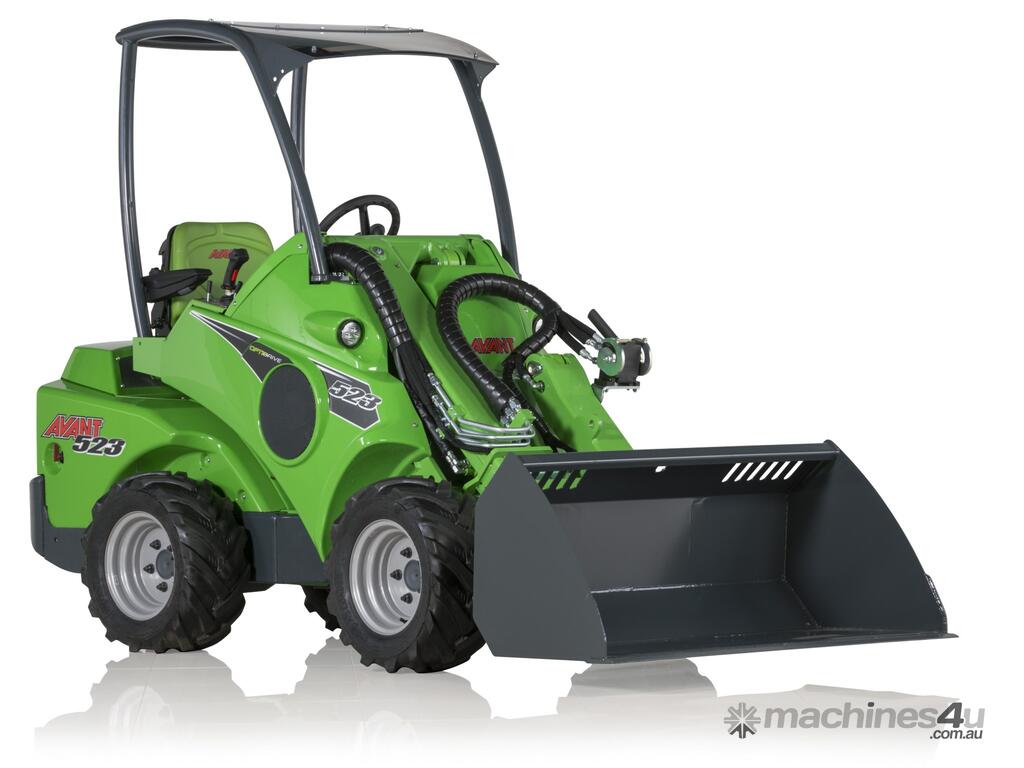

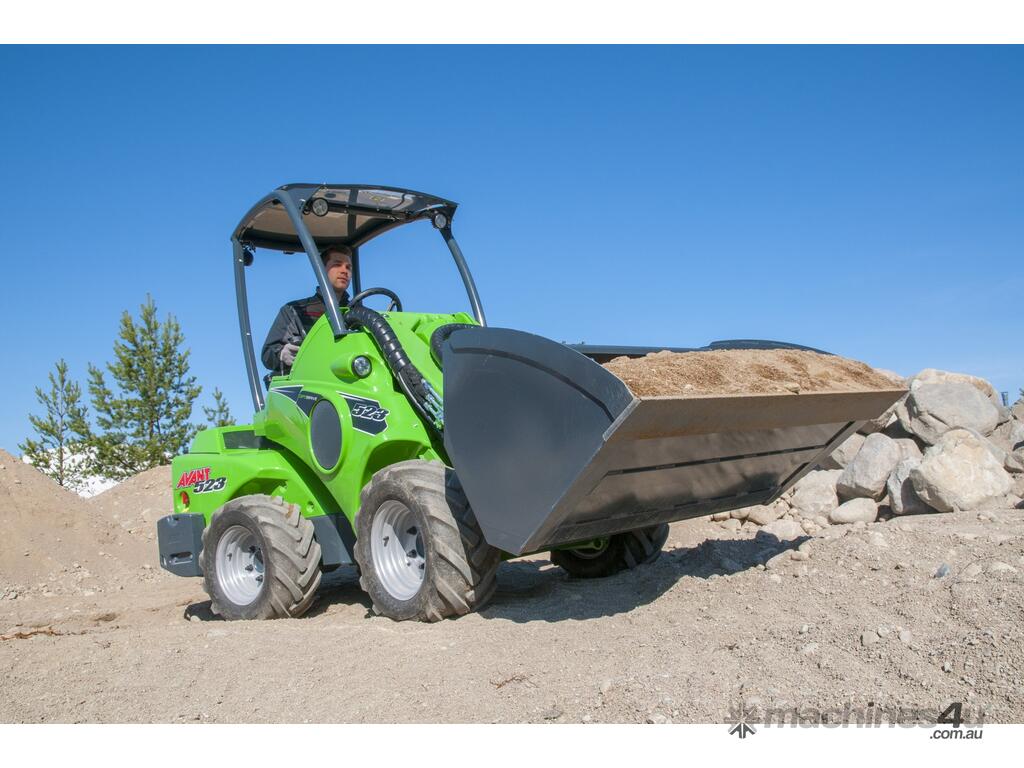

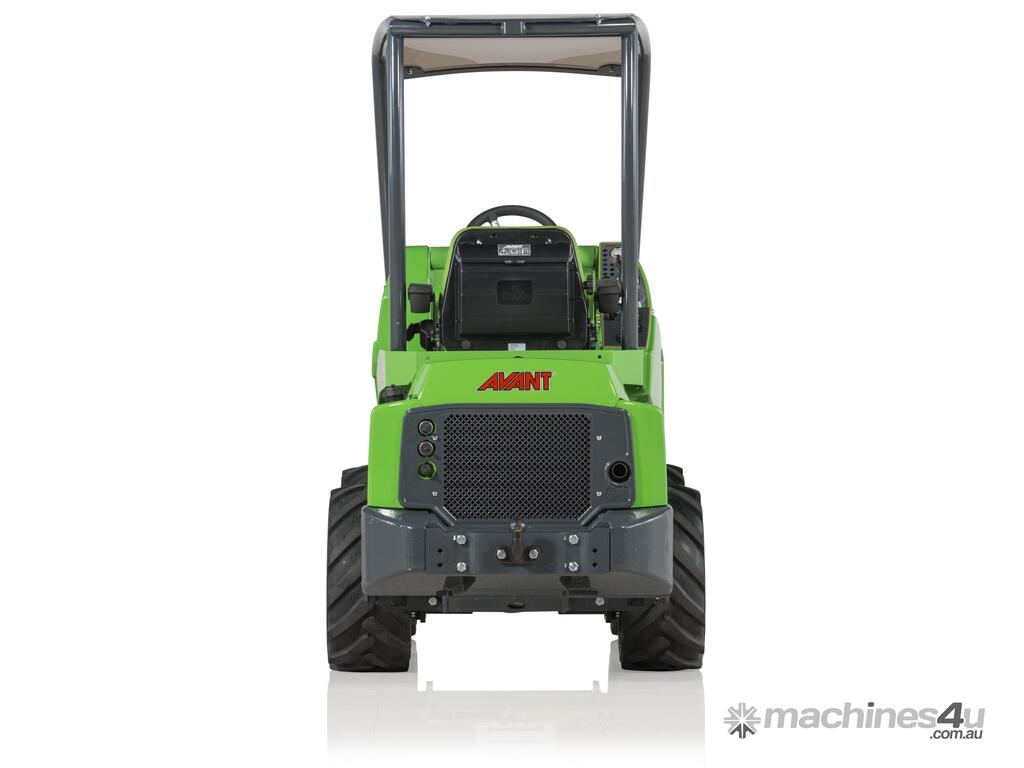

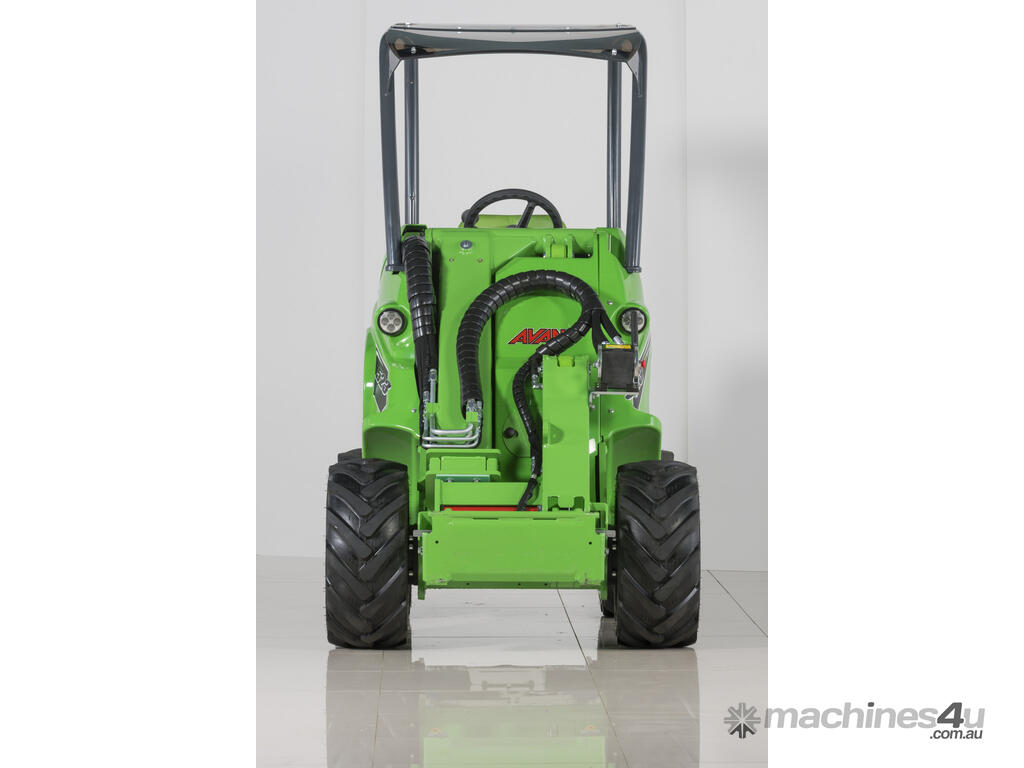

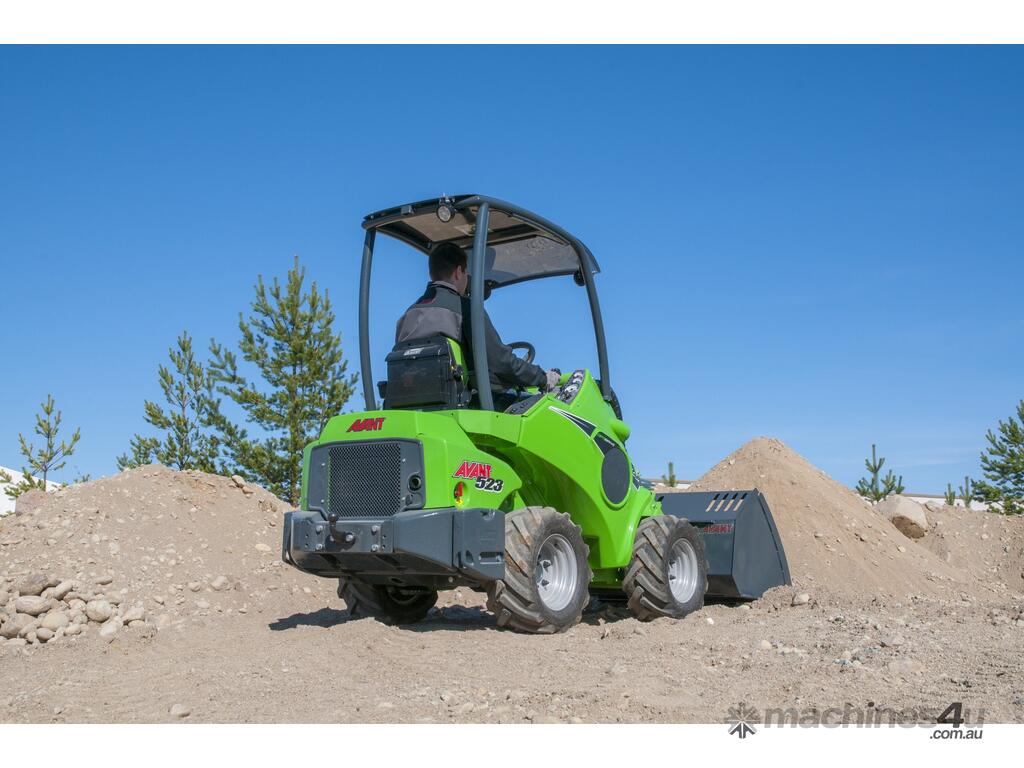

Avant 523 compact loaders are ideal for a wide range of industries thanks to their power and straight forward hydraulics. It can lift amazingly heavy loads compared to the size of the machine.
- Telescopic Boom
- Lift capacity 800 kg
- Lift height 2.8 m
- Engine power 22 hp
- Drive speed 12 km/h
- Optidrive™ drive circuit gives more power for the drive and hydraulic attachments.
- Simple, effective hydraulics means good power and low operating costs
- Easy to transport with a car trailer
- Optional Cab options available
- Over 200 attachments available for a wide range of industries
- Kubota Diesel D902 18kw / 25hp
- All New OptiDrive System

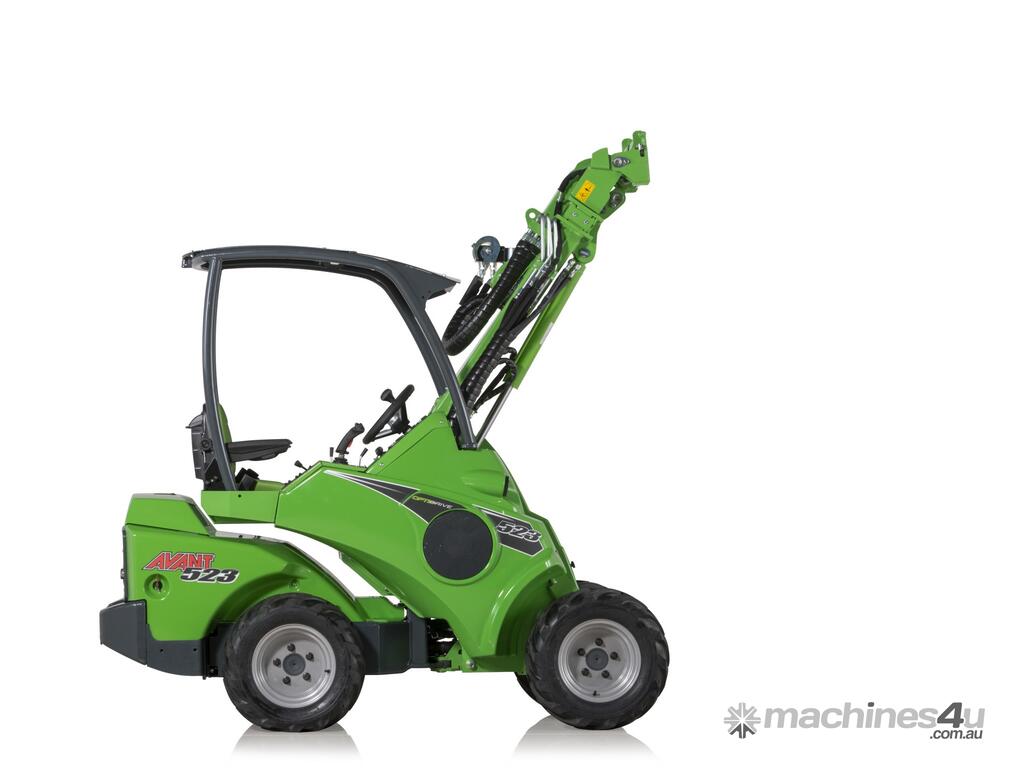

- Teleboom with 2820mm Lift height
- Self-levelling Boom
- Hydrostatic 4 Wheel Drive
- Hydraulic Pilot Operated Drive Pedal
- Direct Drive, 4 Hydraulic Motors
- Drive Speed 0 – 12 km/hr
- Auxiliary hydraulics, 1 Gear Pump 34L/min
- Hydraulic oil Cooler With Single Fan
- Drive release
- Suspension Seat with Arm Rests
- Hour Meter, Temperature Gauge, Tachometer
- Joystick 6 Function
- 2 Front Work Lights LED
- Poclain Wheel Motors
- Hydraulic Parking Brake
- Multi Connector on Aux. Hydraulics
- Heavy Duty Cover Panels
- ROPS & FOPS
- 23” * 10.50-12 Wheels & tyres 1090mm Wide

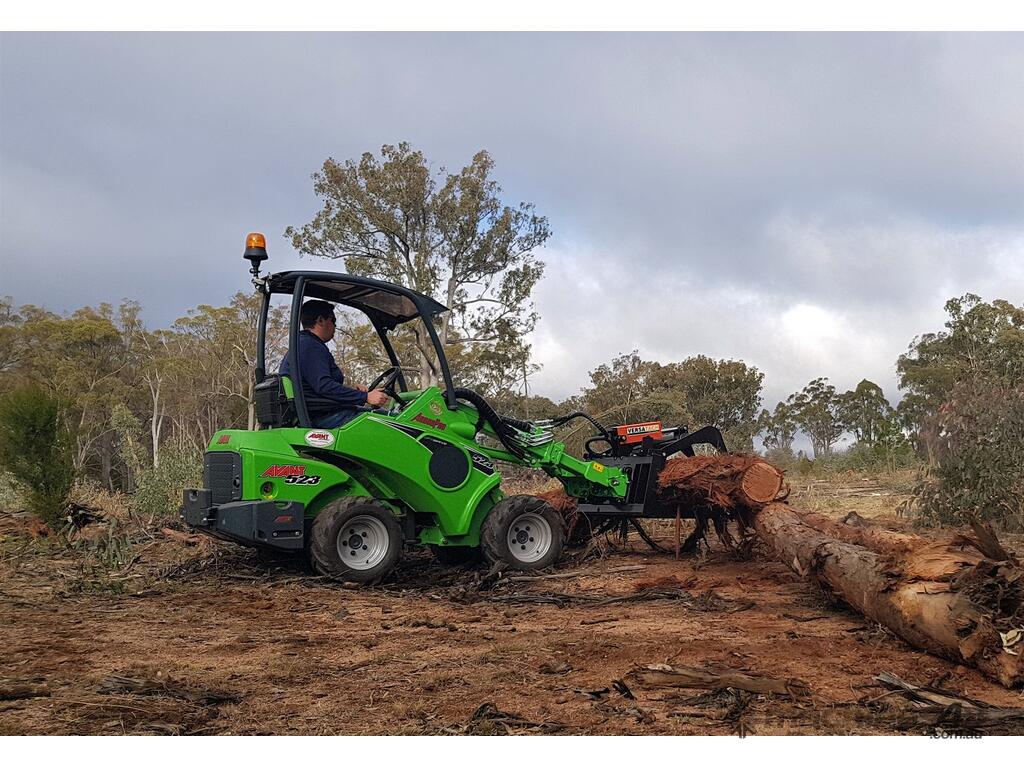

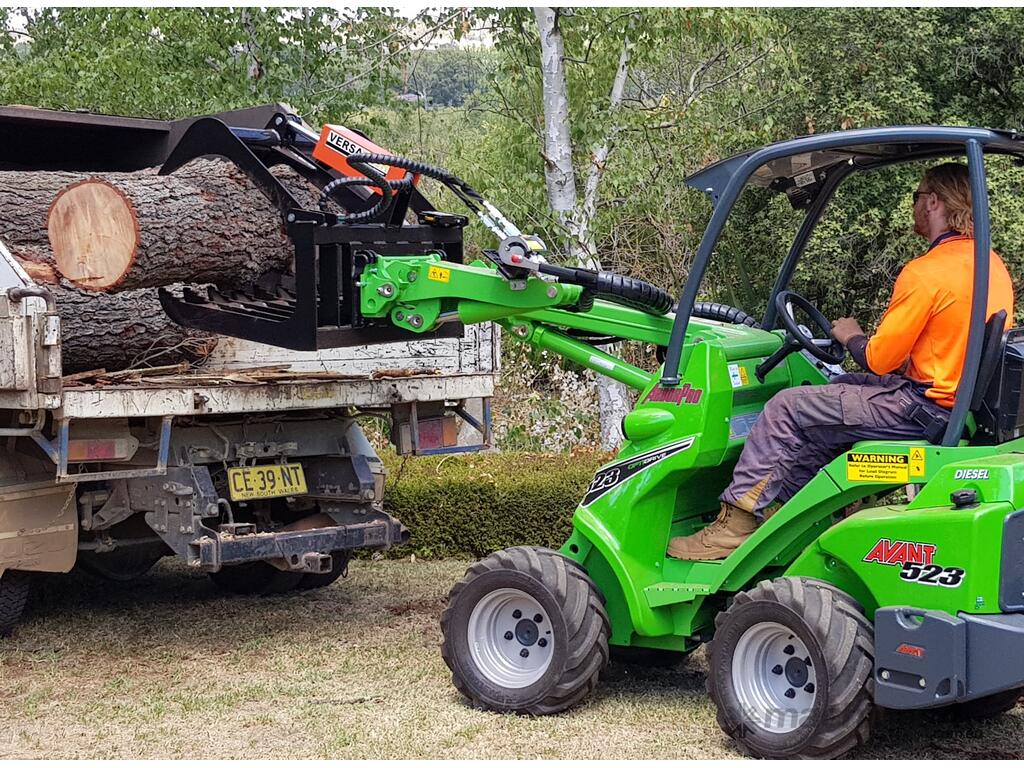

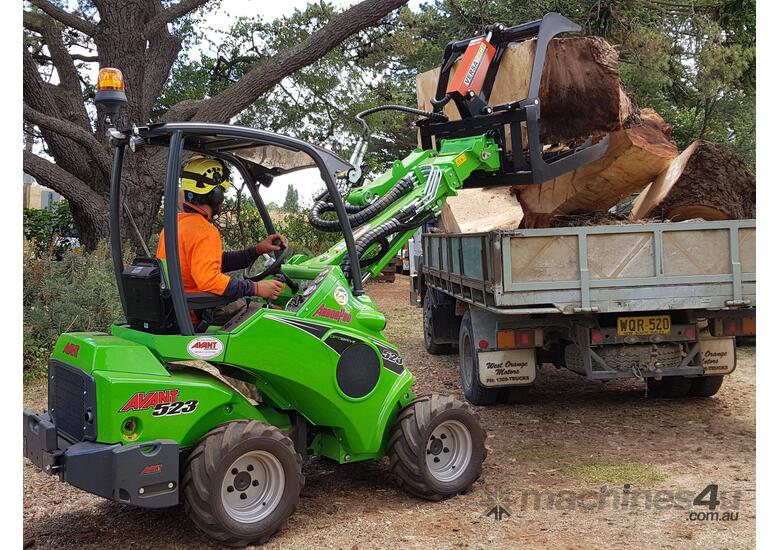

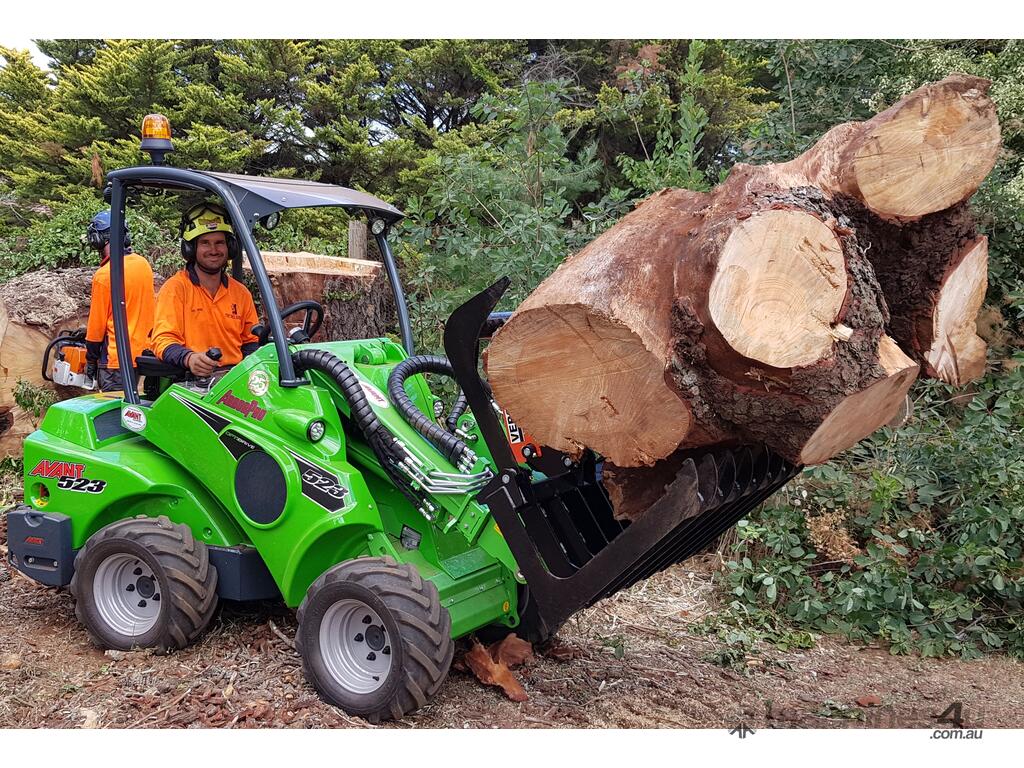

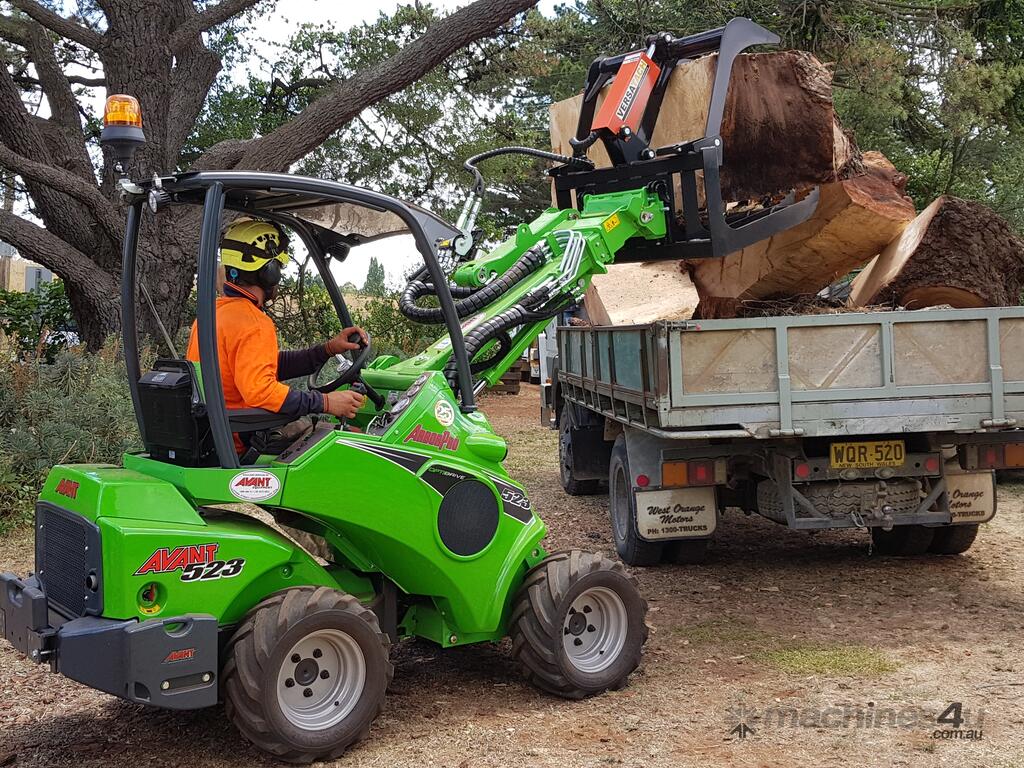

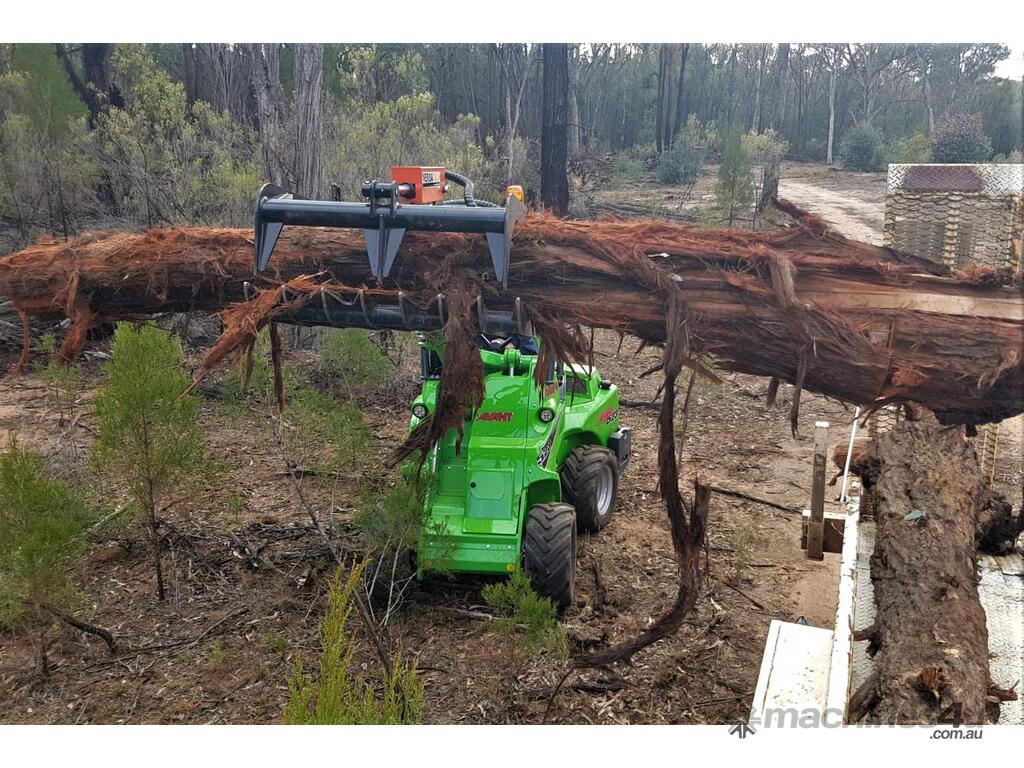

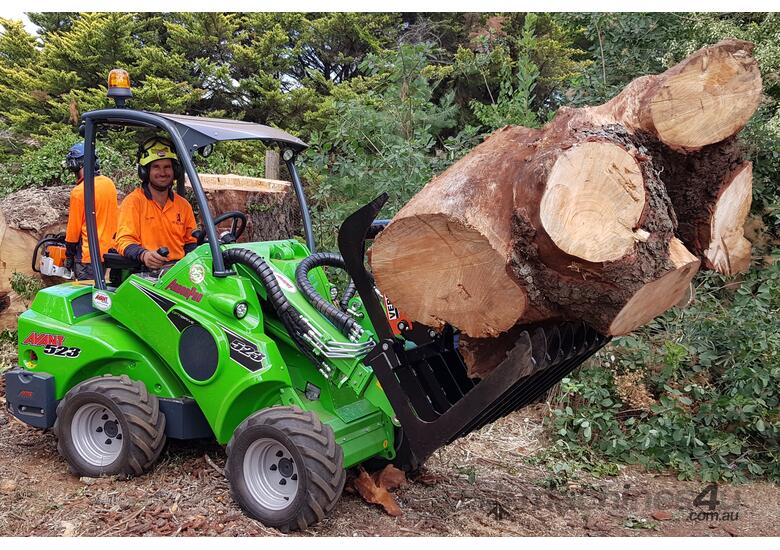

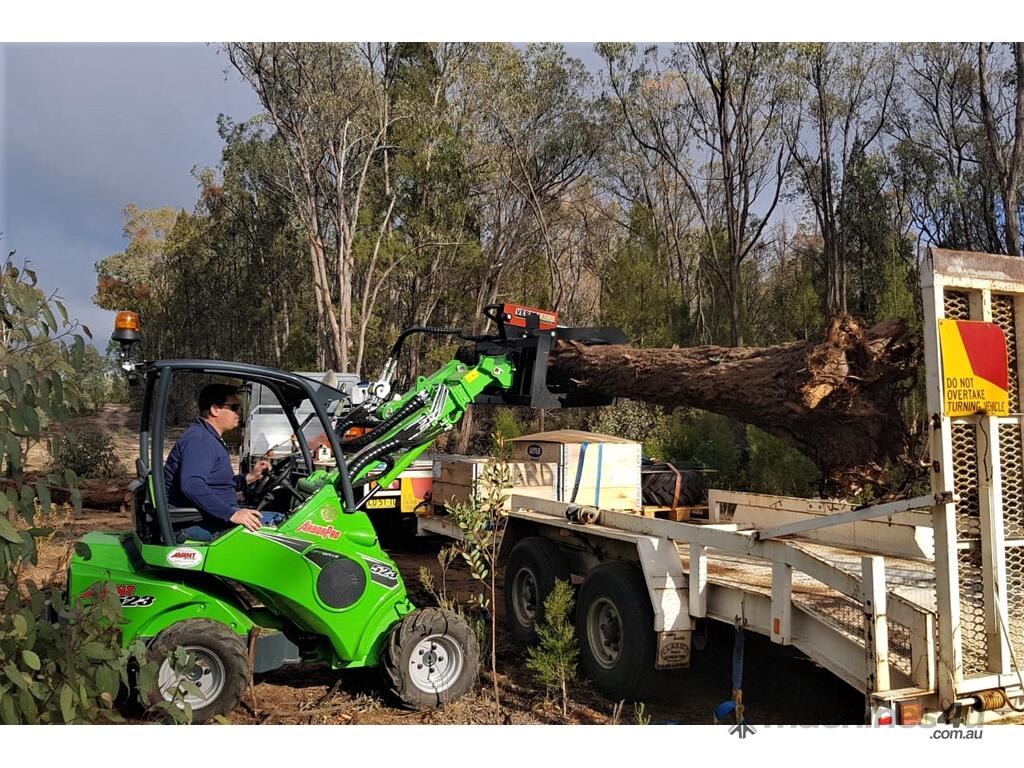

- Includes Log grab
