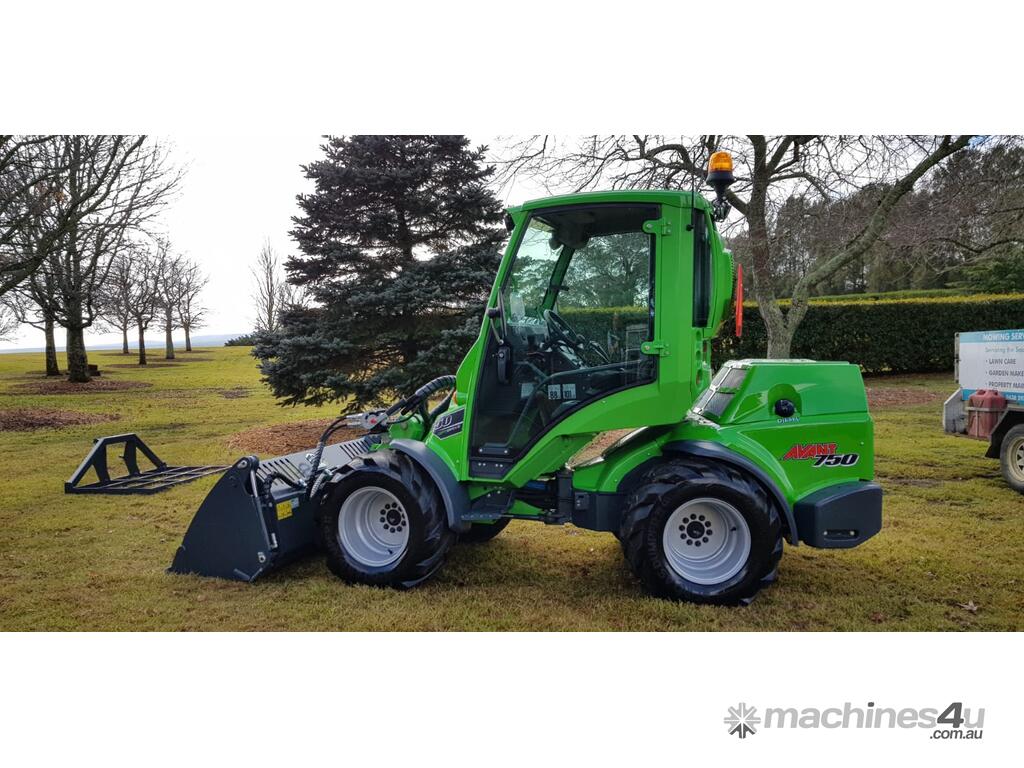

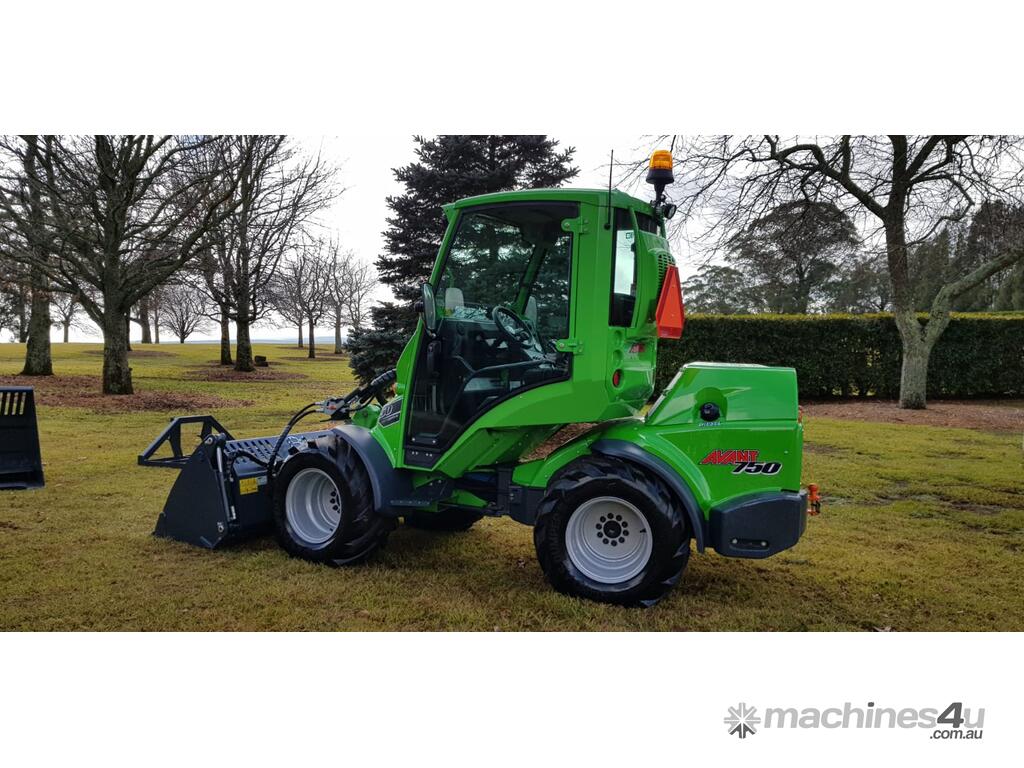

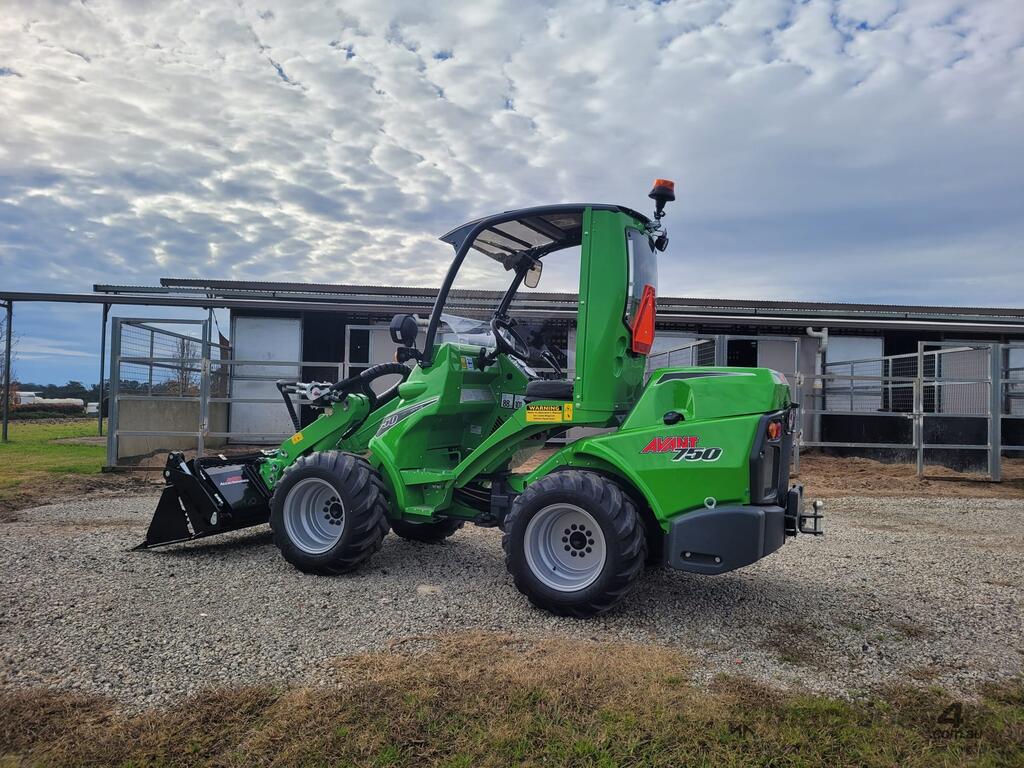

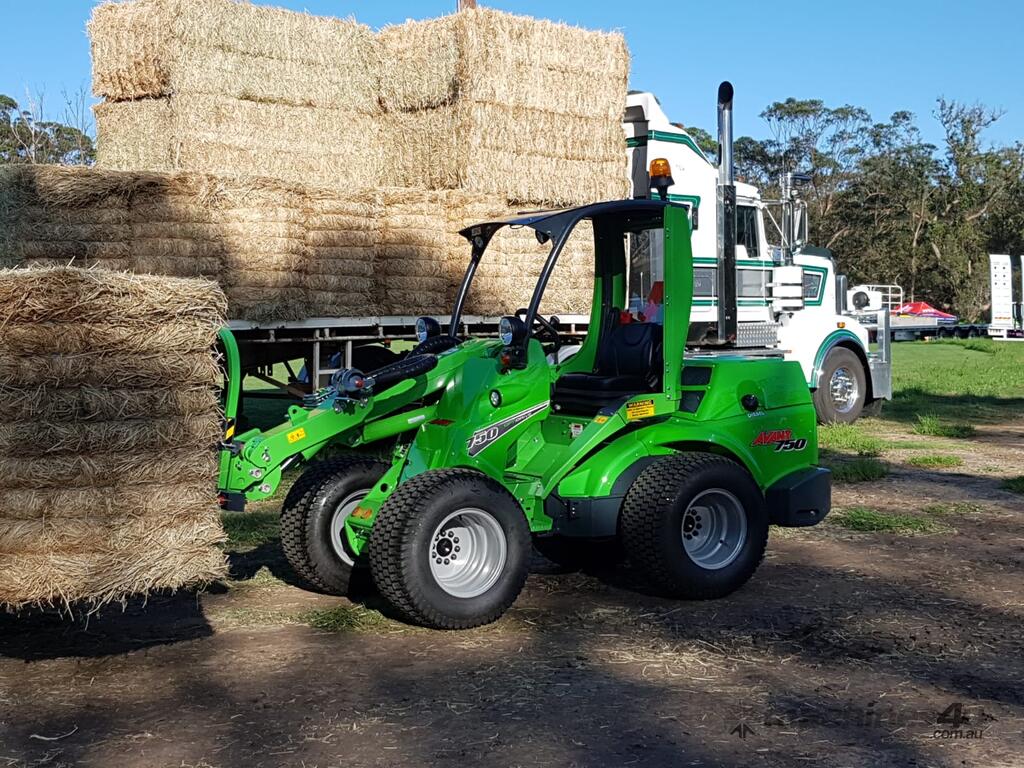

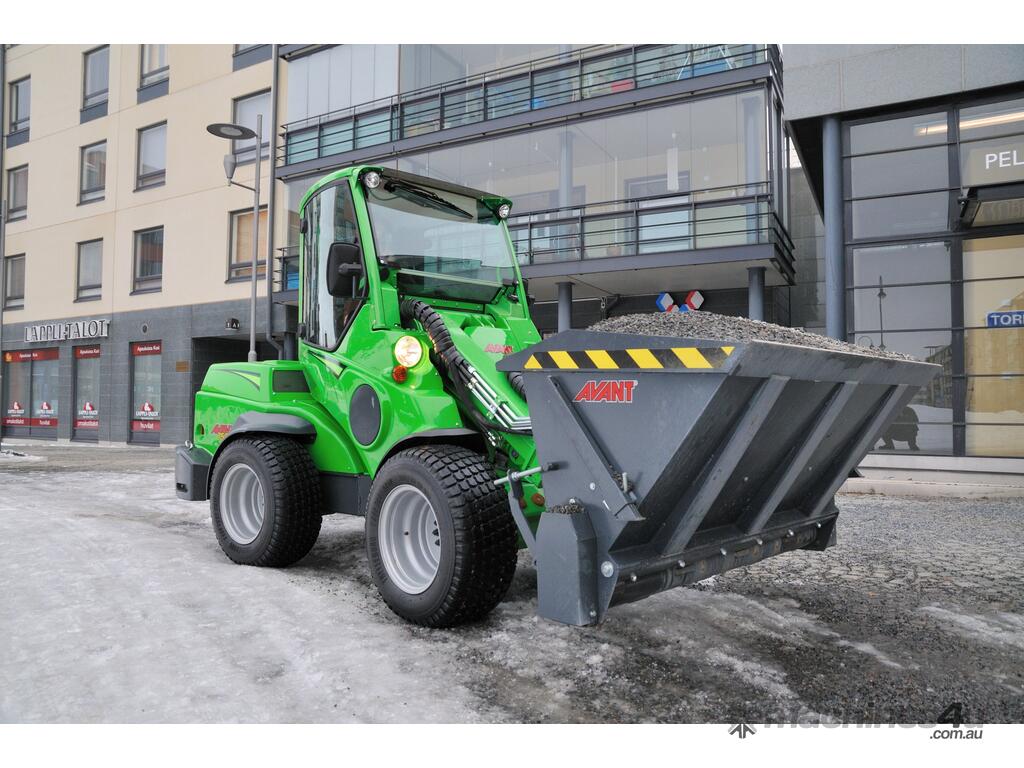

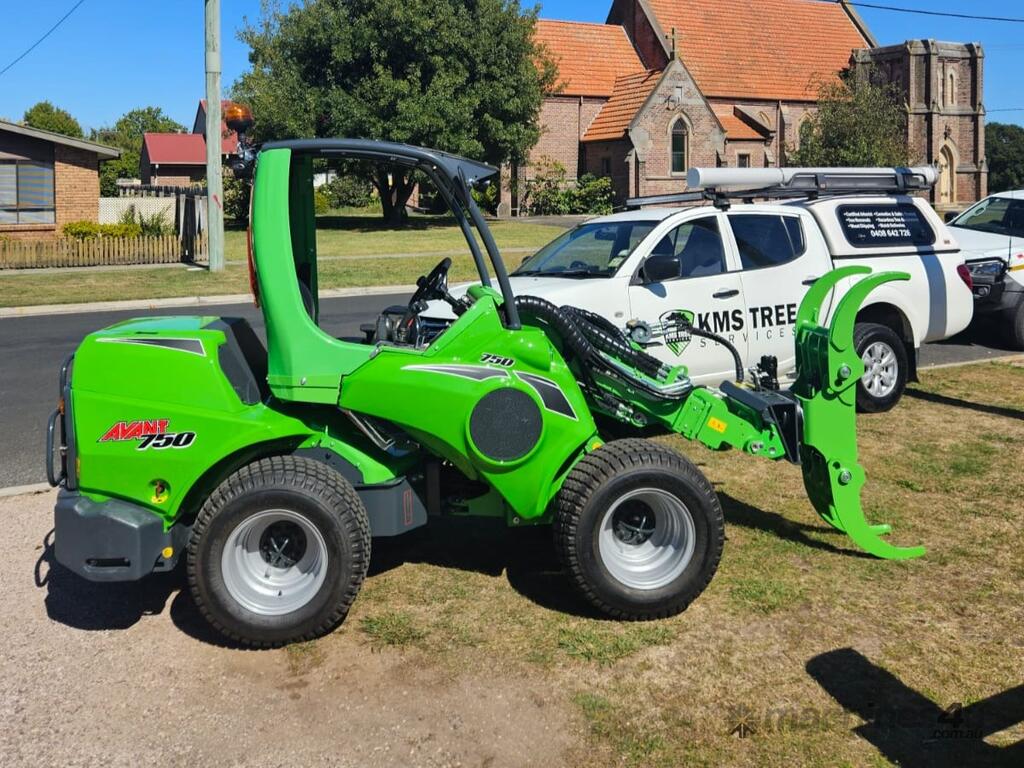

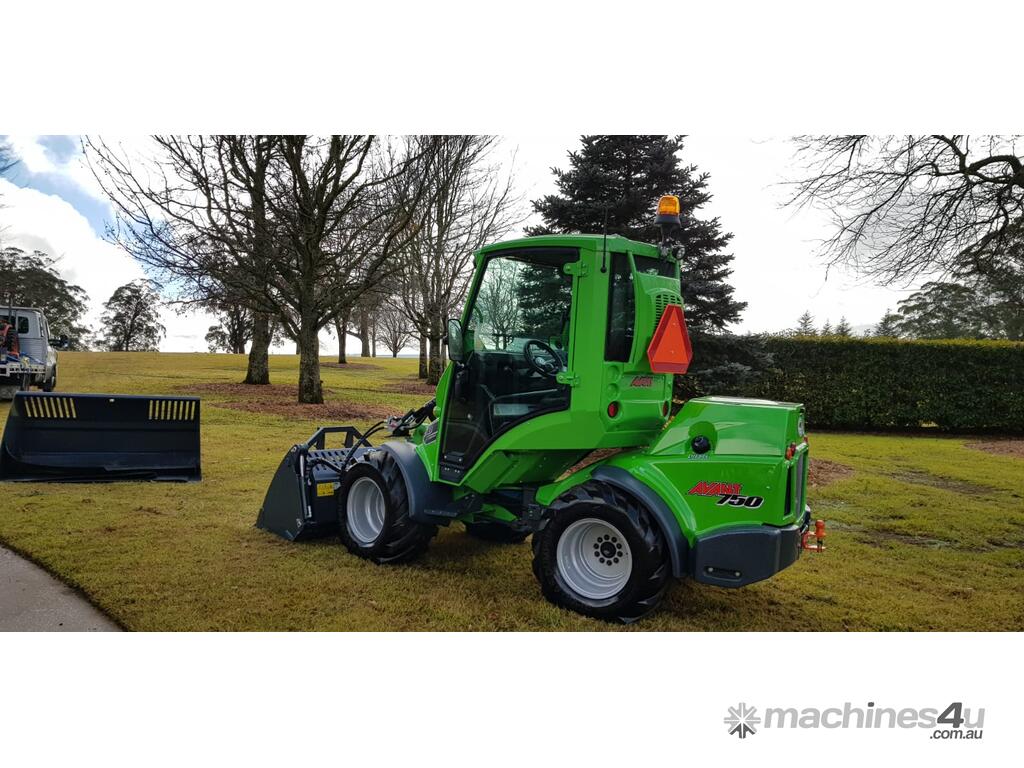

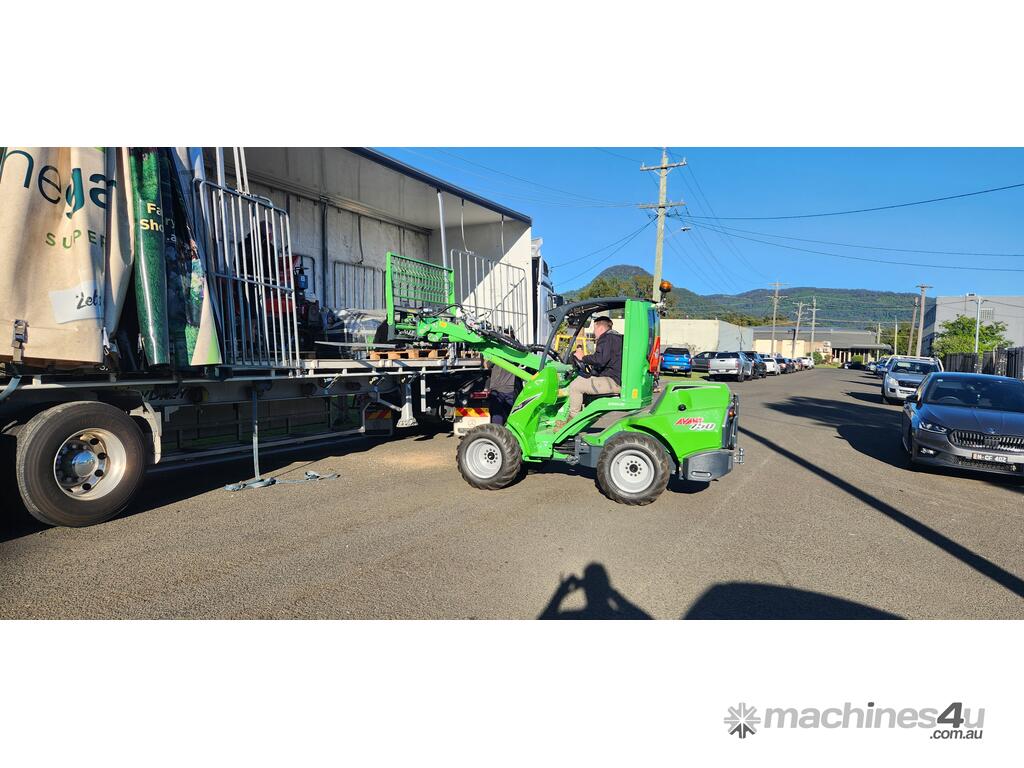

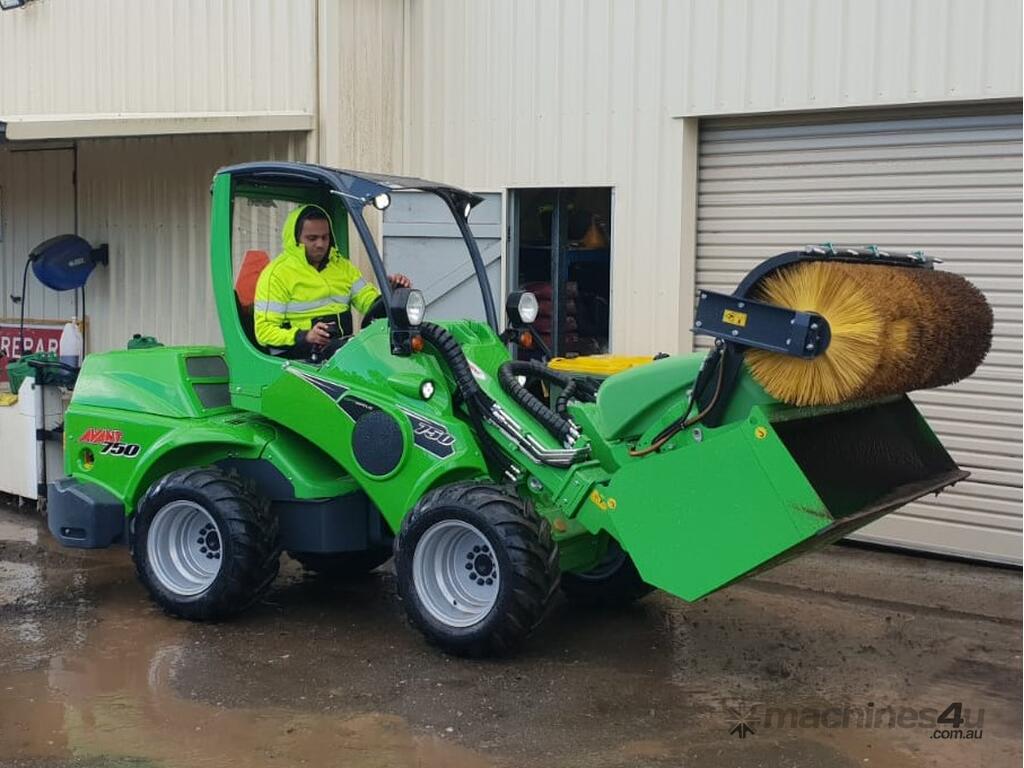

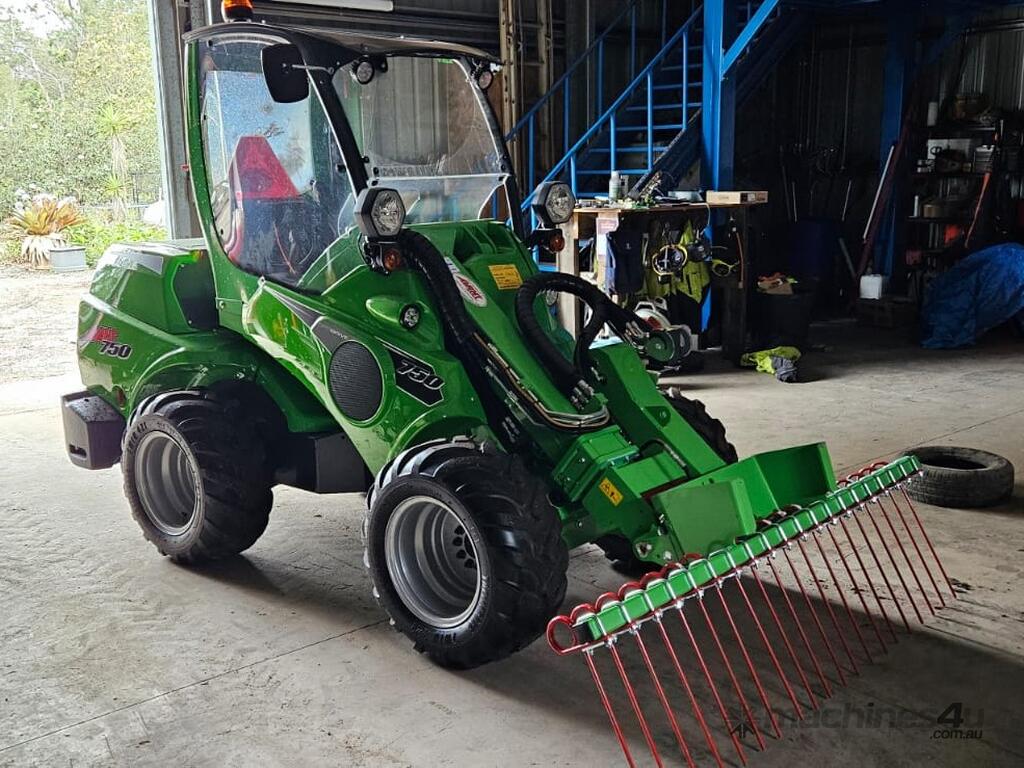

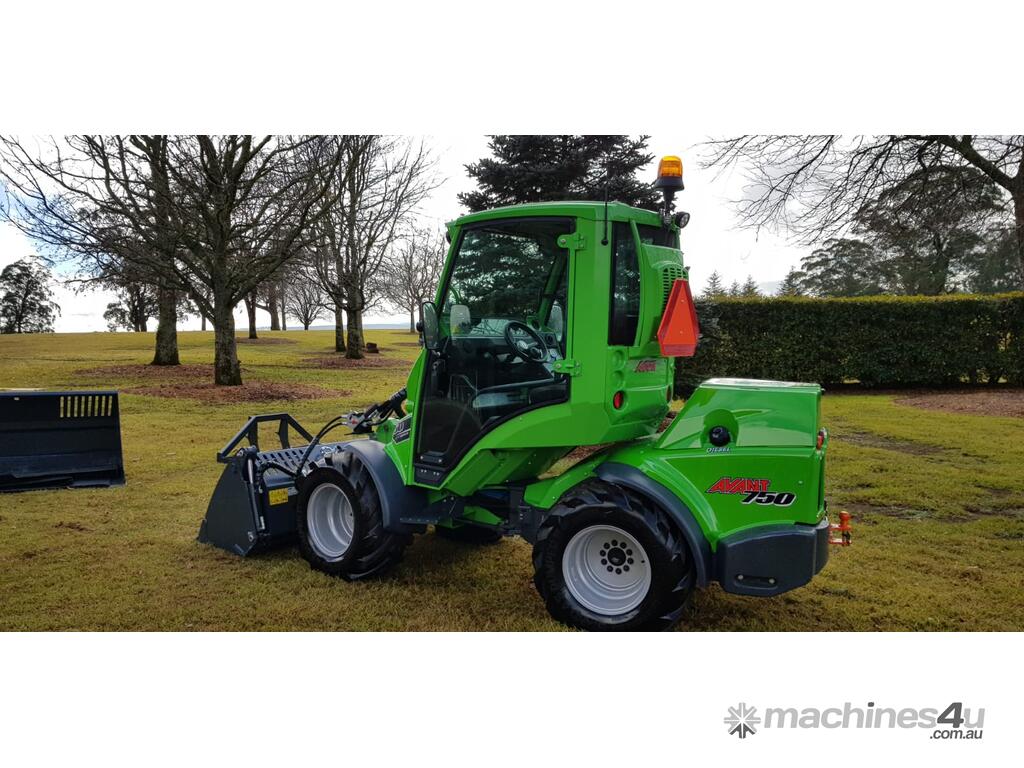

Avant 750 Articulated Mini Loader with Telescopic Boom

Lift capacity 1,400 kg | Lift height 3.1 m | Engine power 49 hp | Drive speed 24 km/h | Kubota Engine | Made in Finland

Powerful mini loader for professionals, The Avant 750 is an excellent compact loader with huge handling capacity. It is strong and a real multi-use loader for jobs where high lift capacity and/or drive speed and a compact machine is required.

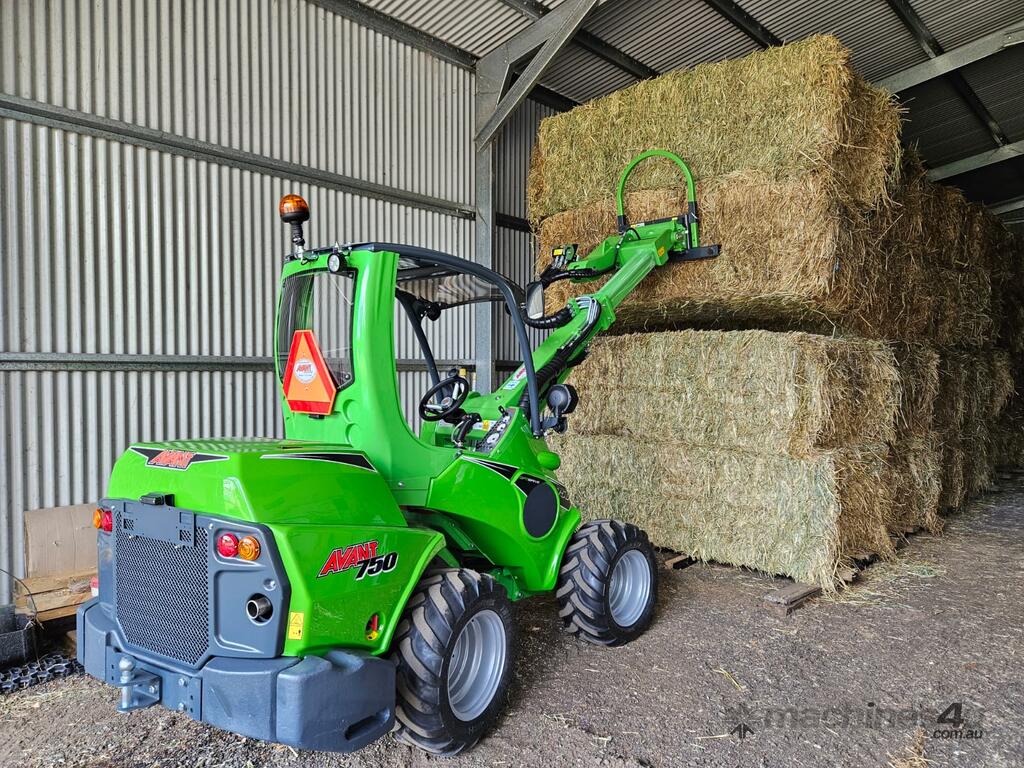

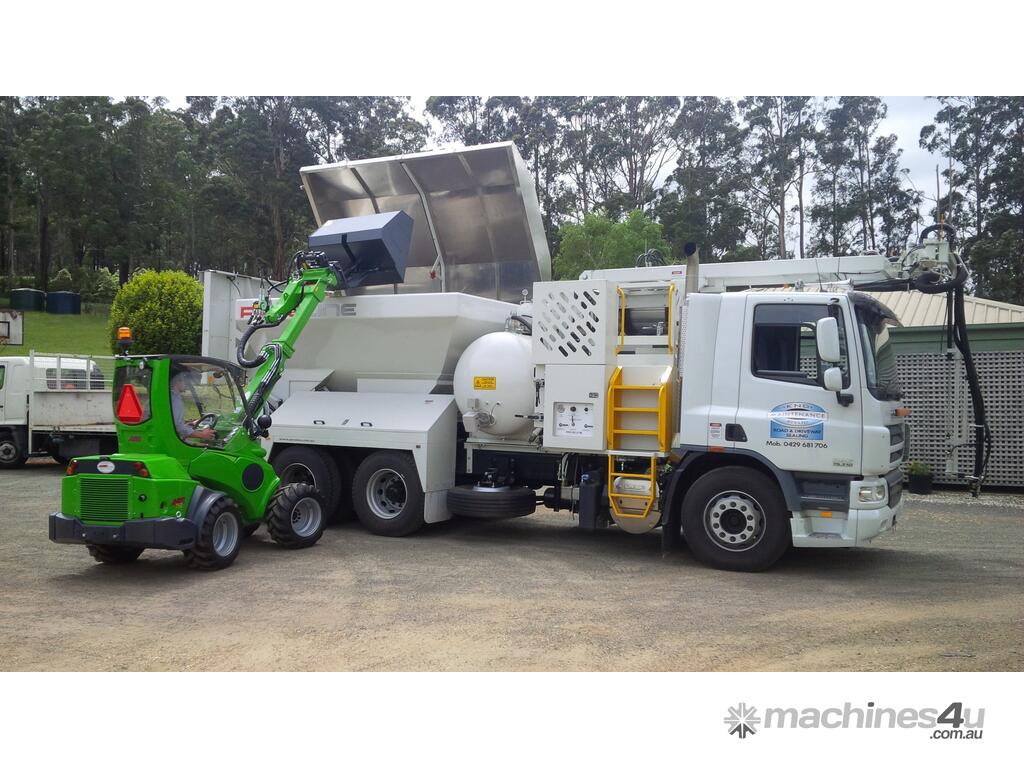

- Telescopic Boom
- Lift capacity 1,400 kg
- Lift height 3.1 m
- Engine power 49 hp
- Drive speed 24 km/h
- Hydrostatic 4WD loader
- Cab options L/LX/DLX available, DLX also with A/C
- Multi connector system for hydraulic attachments

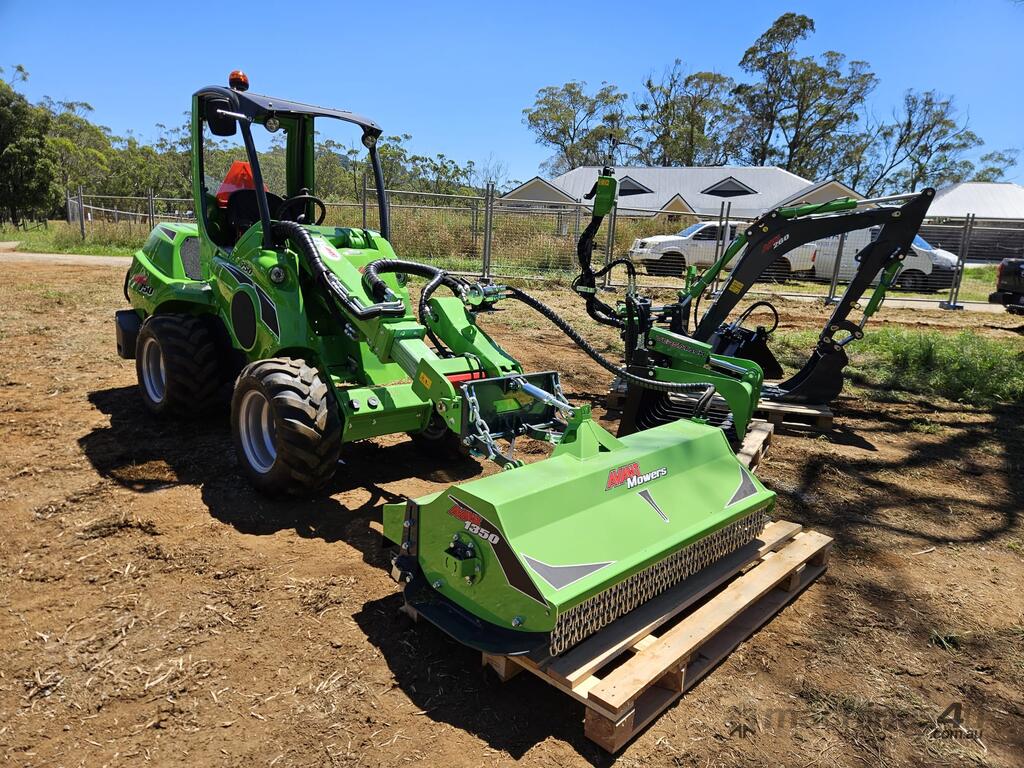

- Over 200 attachments available

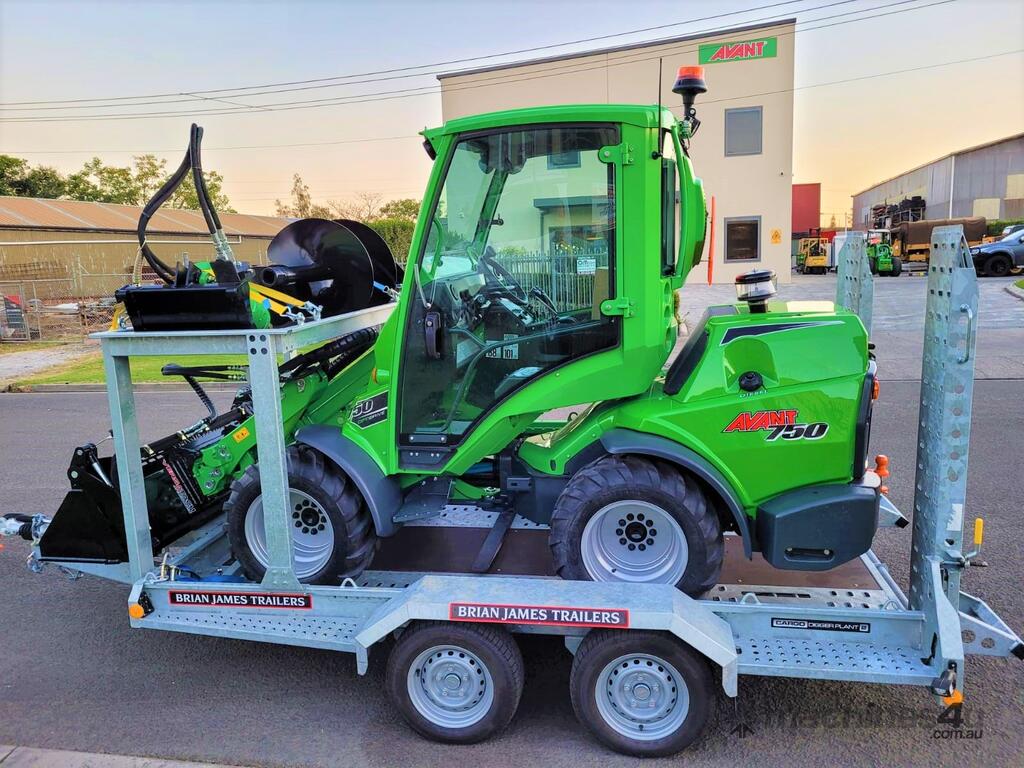

- Easy to transport with a car trailer
- Optidrive™ drive circuit gives more power for the drive and hydraulic attachments
- Made in Finland

SPECIFICATIONS
Length 3060 mm
Width 1360 mm
Height 2100 mm
Weight, starting from 1910 kg
Standard wheels 320/55-15” TR/grass
Transmission, drive hydrostatic
Aux. hydraulics oil flow / pressure 70 l/min 240 bar
Turning radius inside/outside 1240 / 2780 mm
Max. lifting height 3080 mm
Max. lifting capacity (hydr.) 2100 kg
Tipping load * 1400 kg
Max. breakout force / 50 cm 1700 kg
Engine make and type Kubota V2403
Engine output (ISO Gross) 36 kW (49 hp)
Fuel Diesel
