Avant 850 Articulated Compact Loader w Telescopic Boom & Bucket

Telescopic Boom | Lift Capacity 1900 kg | Engine Power 49 hp | Lift Height 3.5 m | Speed 30 km/h
Powerful Compact Articulated Loader

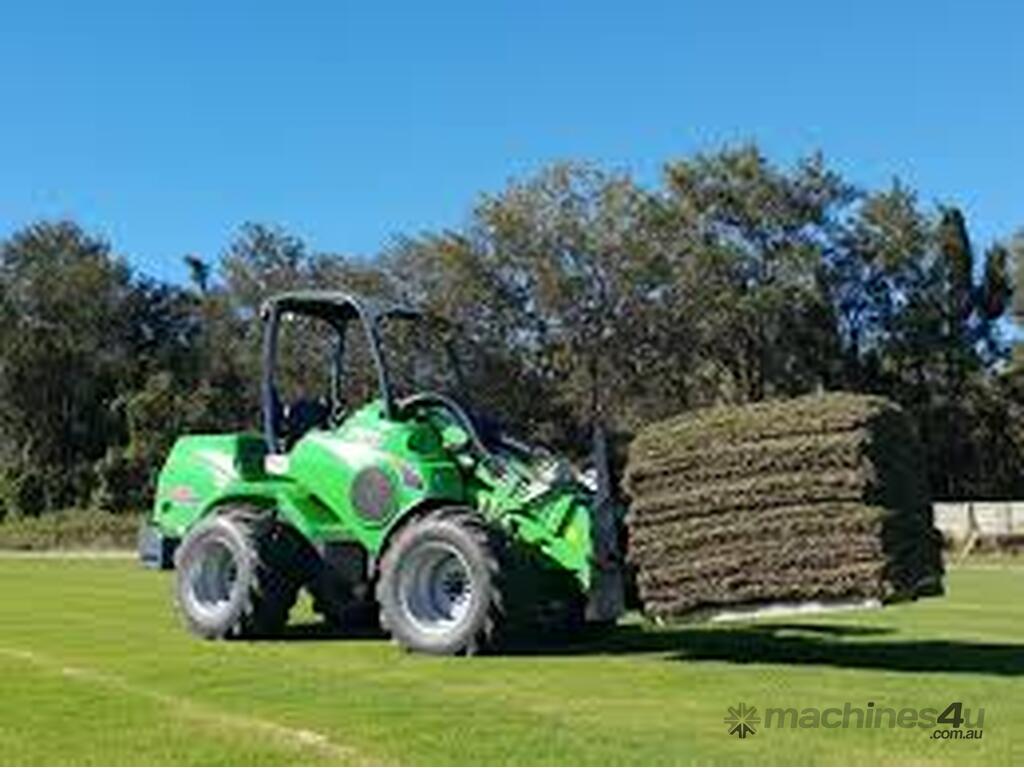

Largest and more powerful of the Avant loader range, the Avant 800 series pushes the limits of a compact loader. It has more lift height and capacity any other Avant loader. It reaches all the way to tall mixer feeder wagons and can load a truck from one side to the far edge – no need to drive around the truck when loading. The Avant 800 series can handle stone pallets with ease thanks to the 1.9 tonne capacity. Yet it is compact enough to work in places where bigger machines can’t access and can be transported on a conventional car trailer.

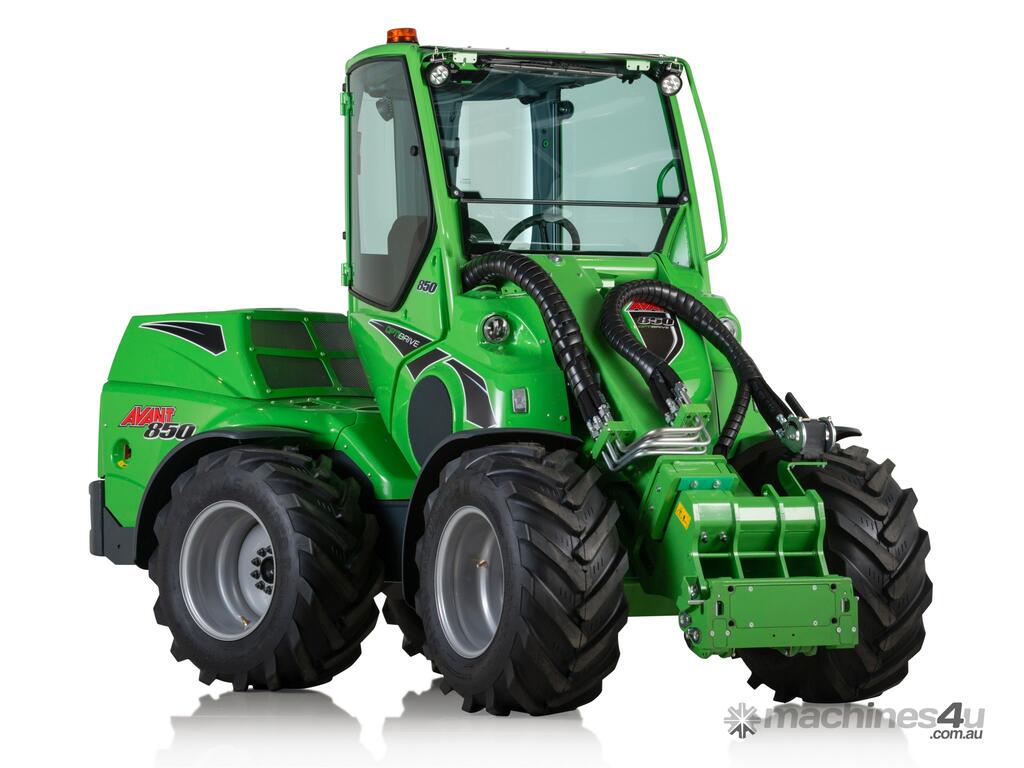

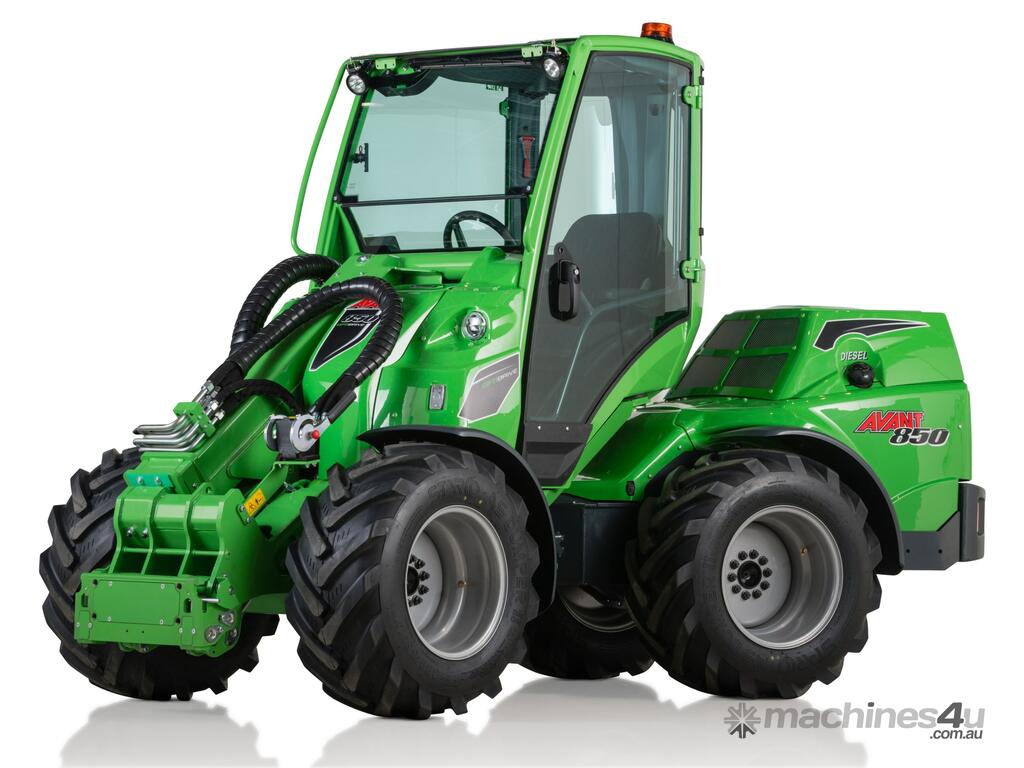

In addition to the standard ROPS/FOPS cab, an optional GT cab is available, a modern air-conditioned, vibration insulated comfort zone for the driver. A low noise level combined with excellent visibility and ergonomics guarantees a comfortable full day’s work in the cab. The cab can be equipped options such as A/C, Bluetooth radio, air suspension seat and other options.

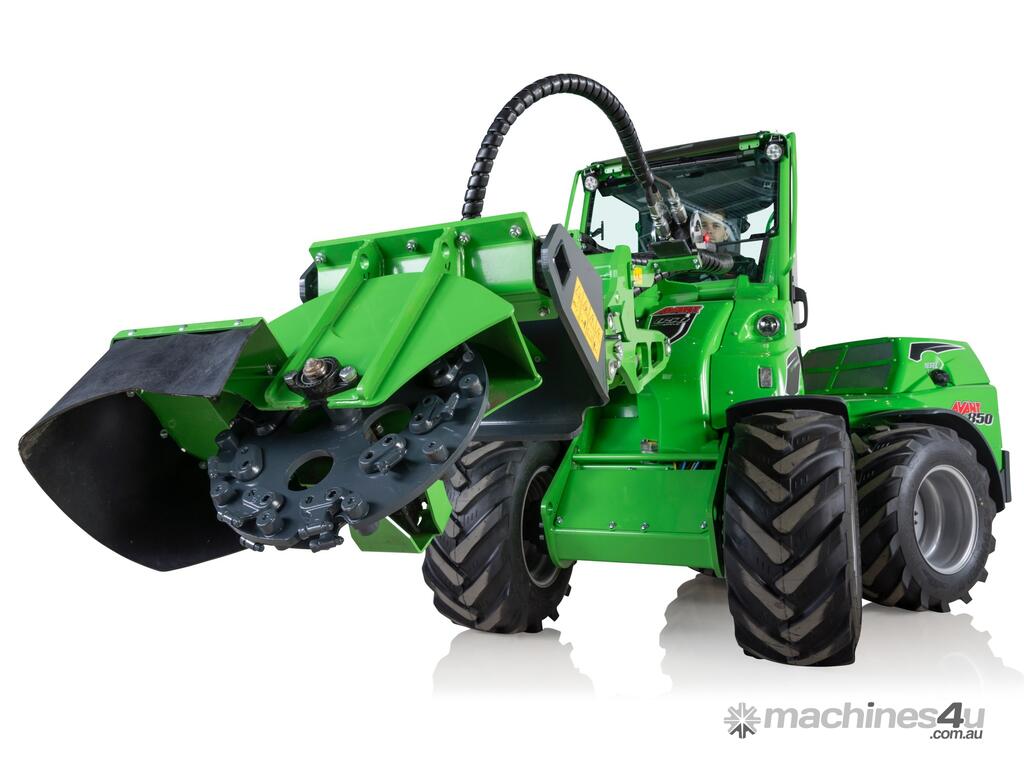

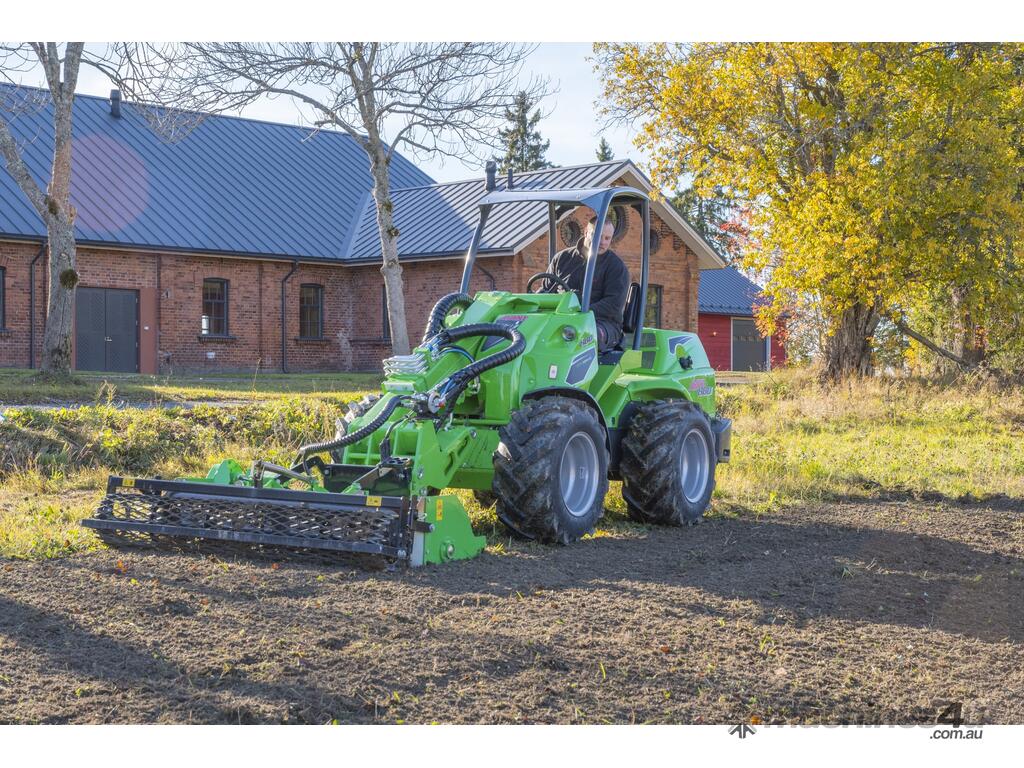

- Over 200 attachments available
- Options available to customise
- Cab option available
- Lift capacity 1,900 kg
- Lift height 3.5 m
- Engine power 49 hp
- Drive speed 26 km/h
- Large 17" wheels as standard

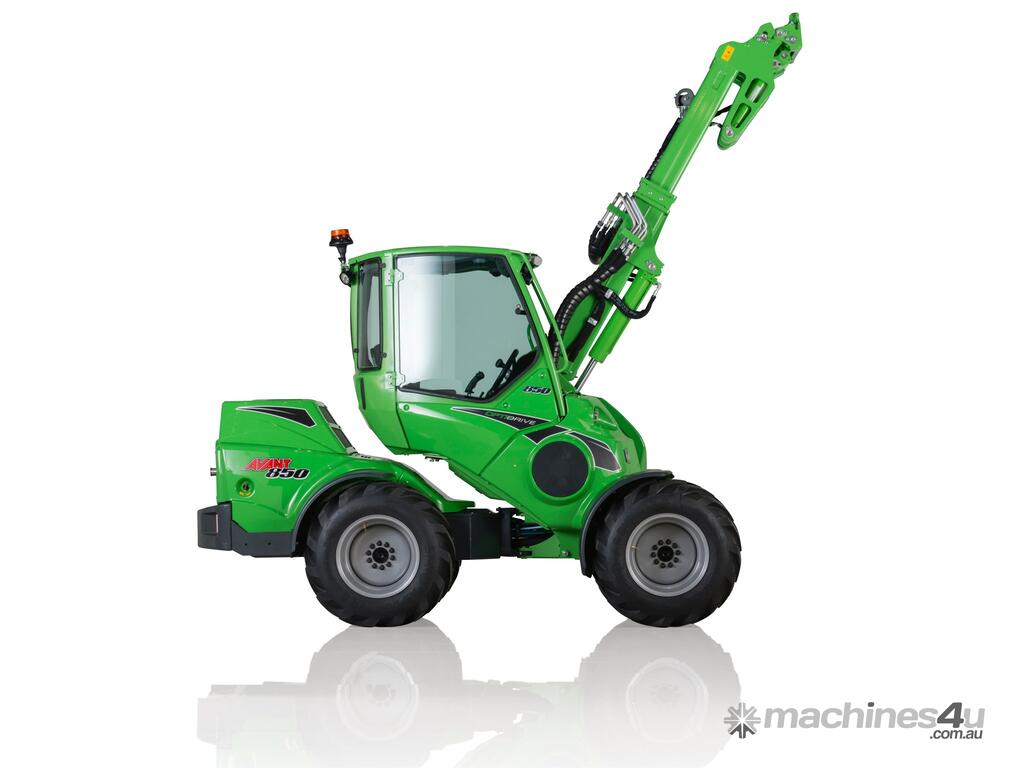

- Option new vibration insulated and low-noise level GT cab available

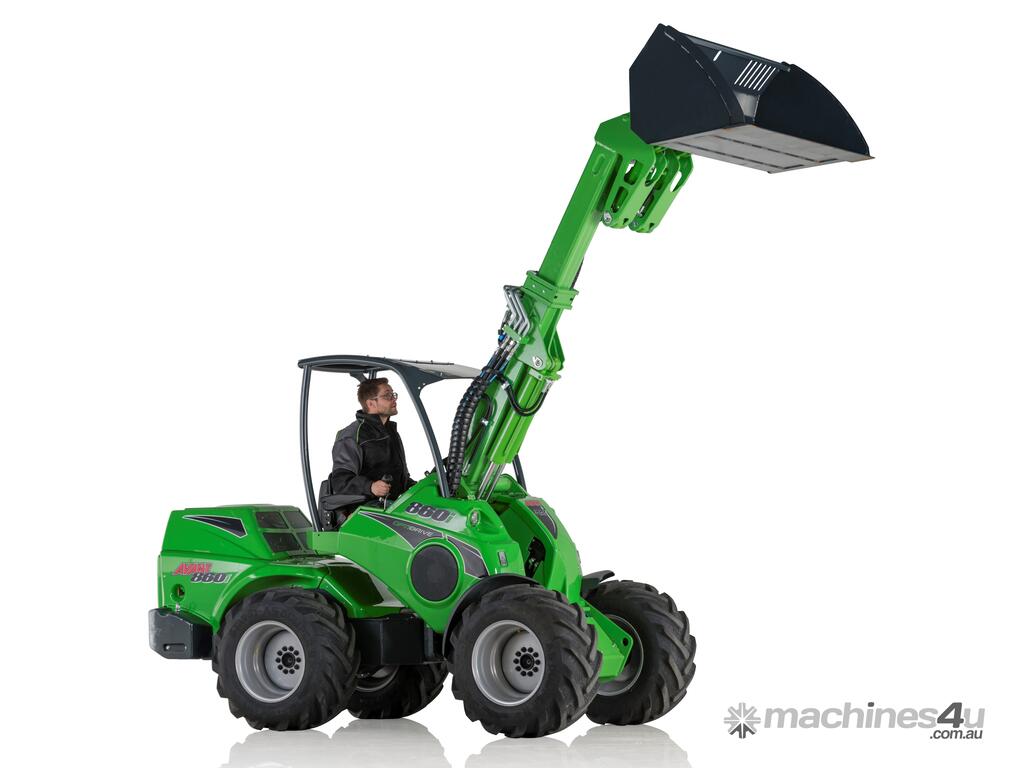

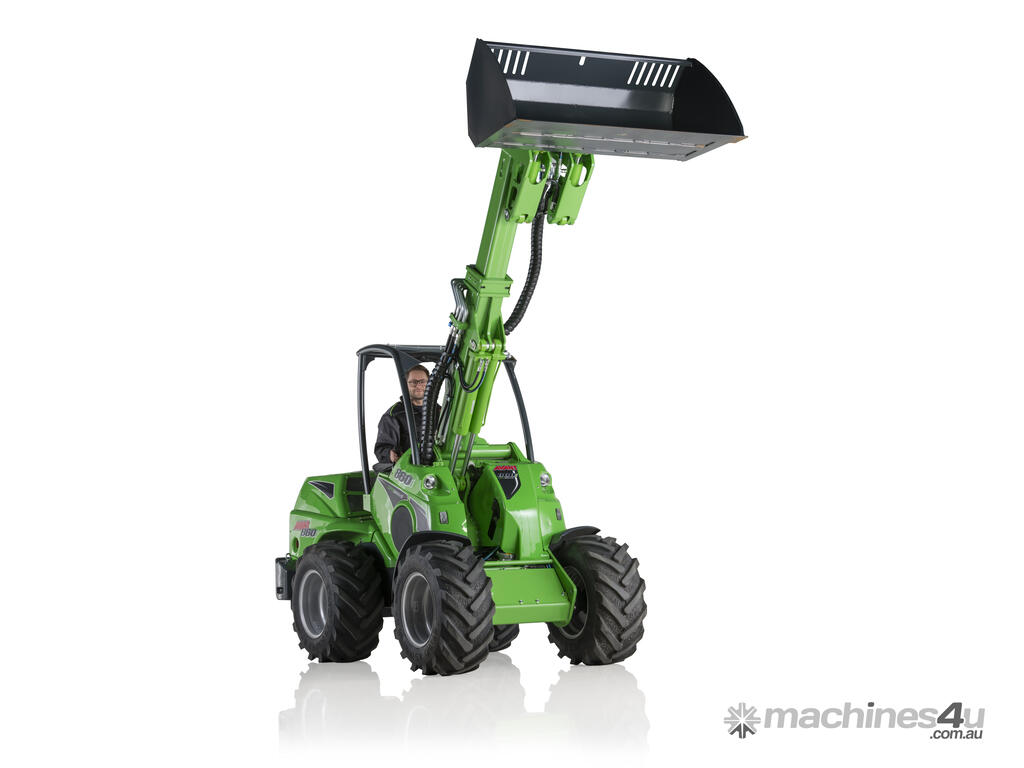

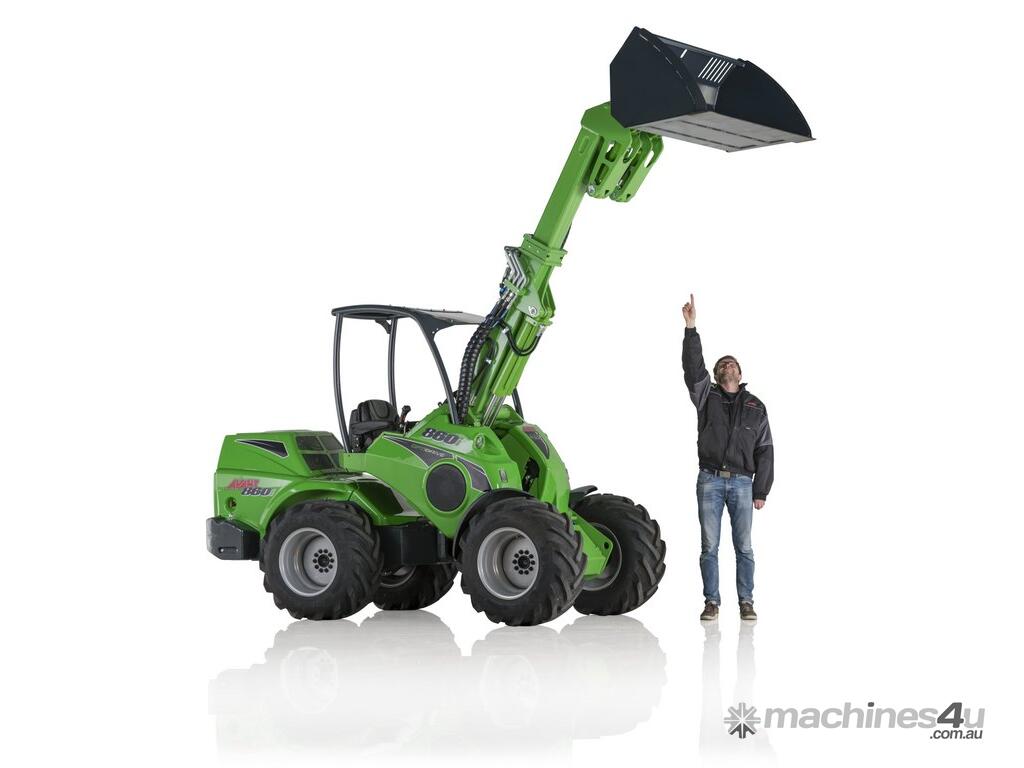

- Greater reach with Avant's signature telescopic boom
- Optidrive™ drive circuit gives more power for the drive and hydraulic attachments

Specifications
- Length 3395 mm
- Width (with standard wheels) 1490 mm
- Height (with standard wheels) 2200 mm
- Weight 2480 kg
- Standard wheels 380/55-17” TR
- Transmission, drive hydrostatic
- Pulling force max. 2100 kp
- Drive speed max. 26 km/h
- Auxiliary hydraulics 70 l/min 225 bar
- Turning radius inside/outside 1370 mm / 2990 mm
- Lifting height to pivot point 3500 mm
- Max. tipping load* 1900 kg
- Max. breakout force / 50 cm 2200 kg
- Engine make and type Kubota V2403 Stage 3B
- Engine output (ECE R120) 36 kW (49 hp)
- Maximum torque 156 Nm 1600 rpm
- Fuel diesel
