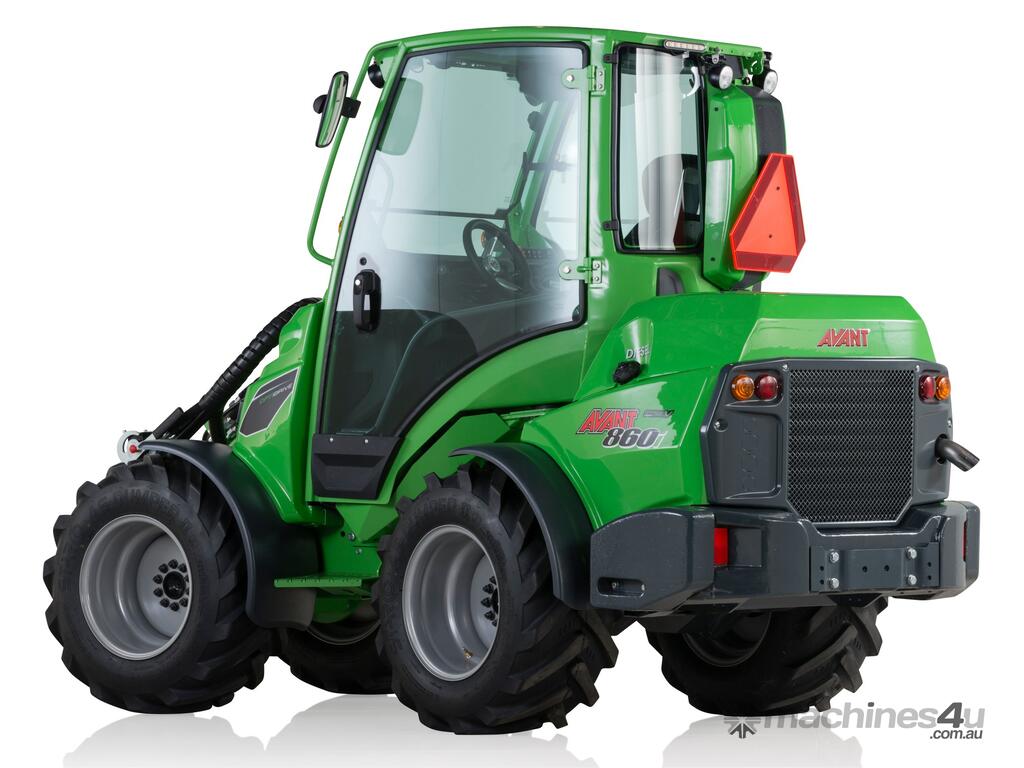

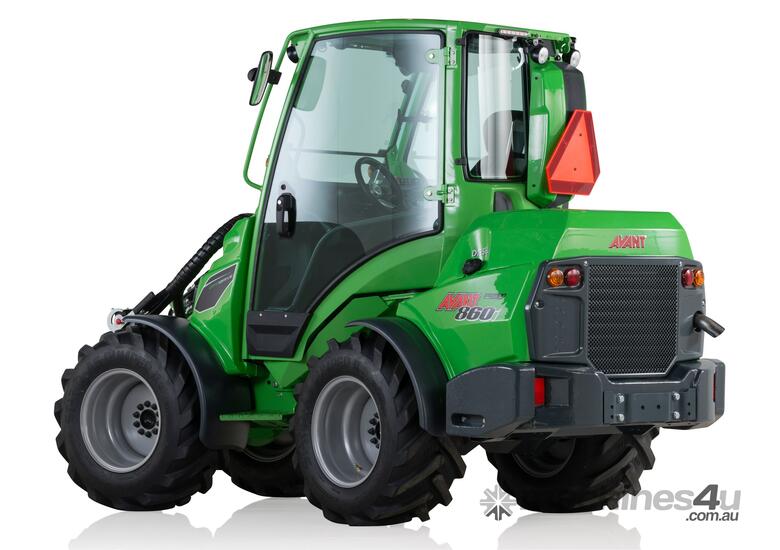

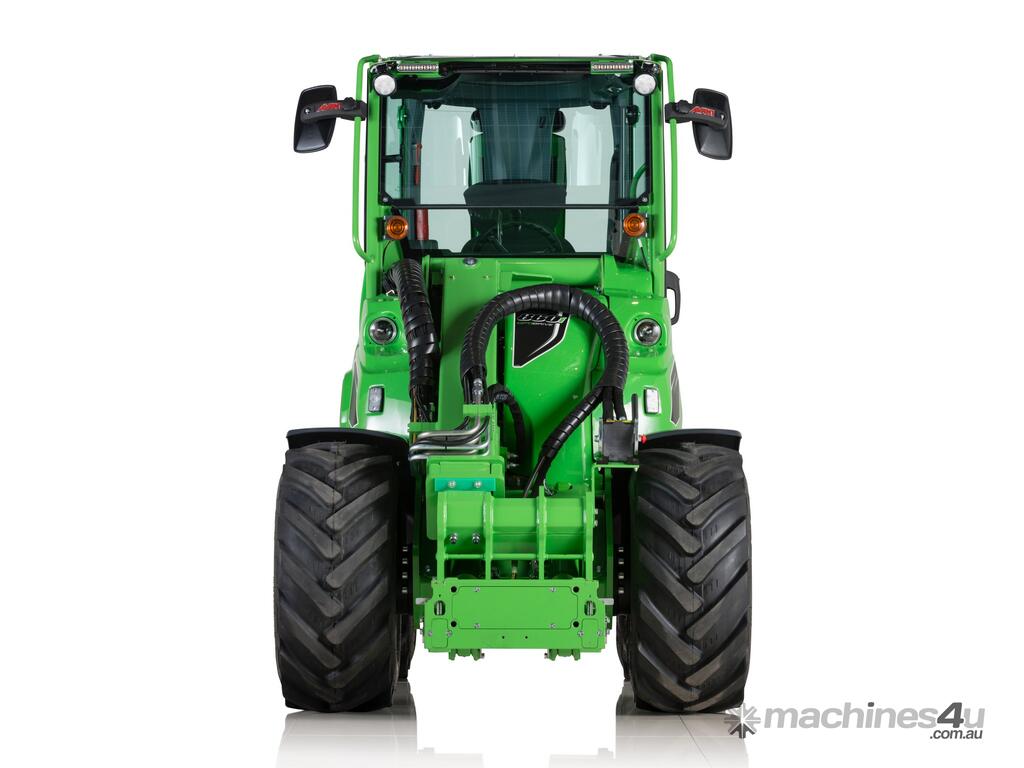

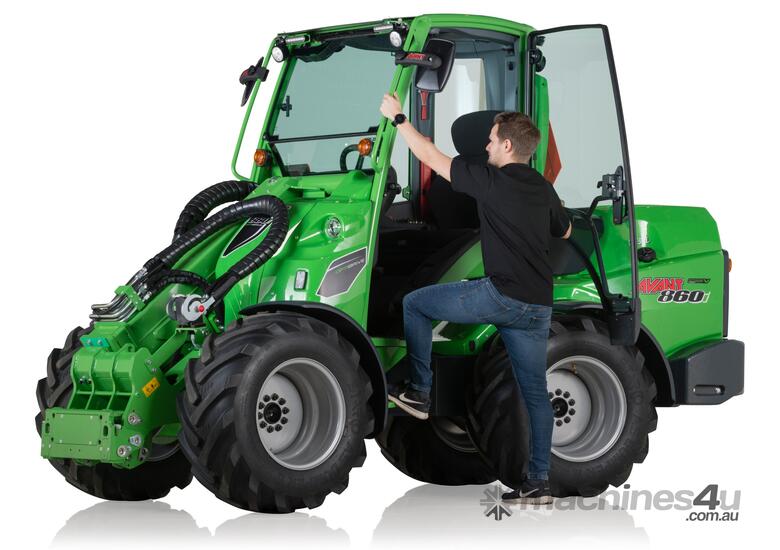

Avant 860i Compact Loader with GT Enclosed Cab and A/C

Enclosed Cab | Air Conditioning | Telescopic Boom | Lift capacity 1,900 kg | Lift height 3.5 m | Engine power 57 hp | Drive speed 30 km/h | Made in Finland

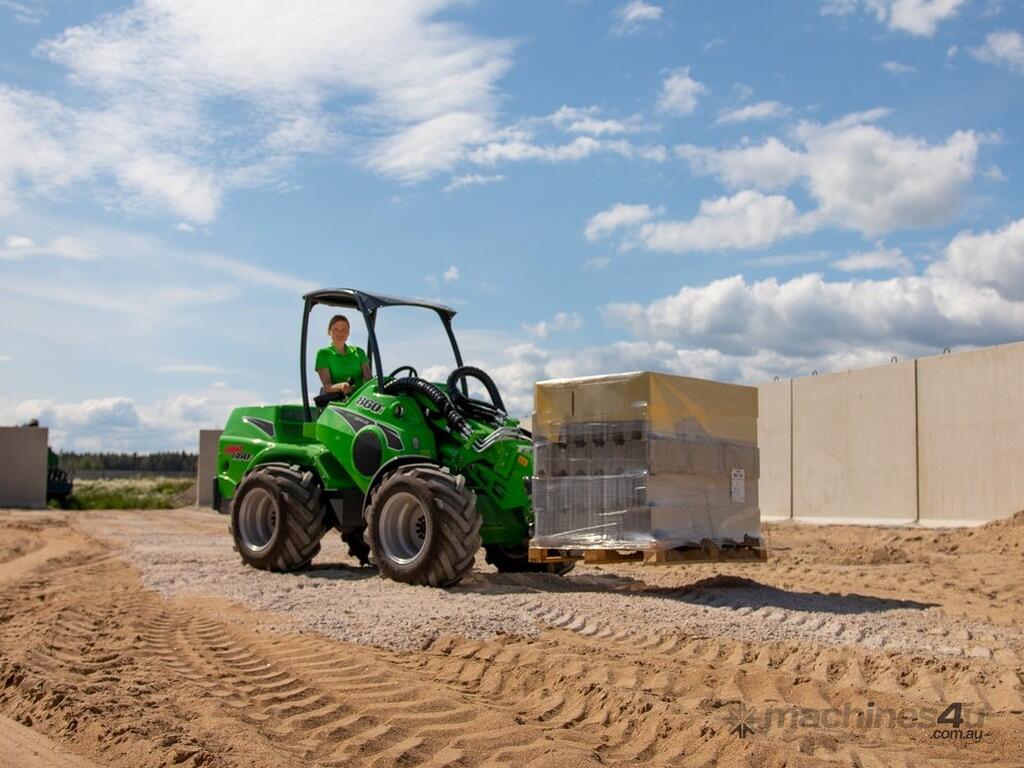

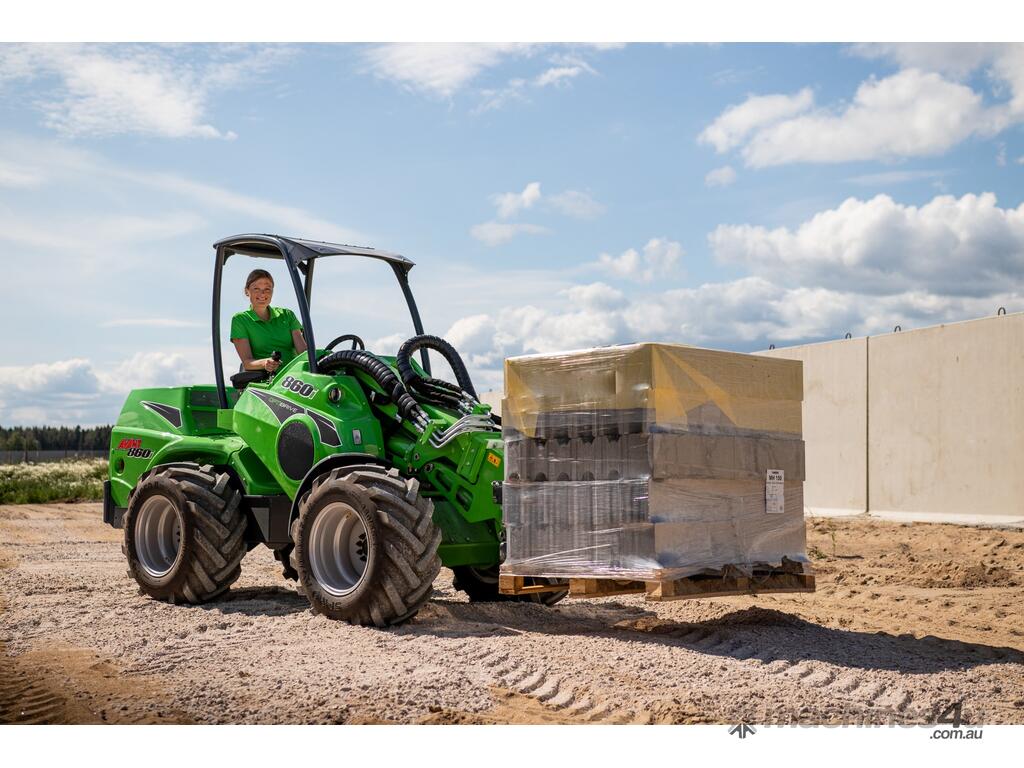

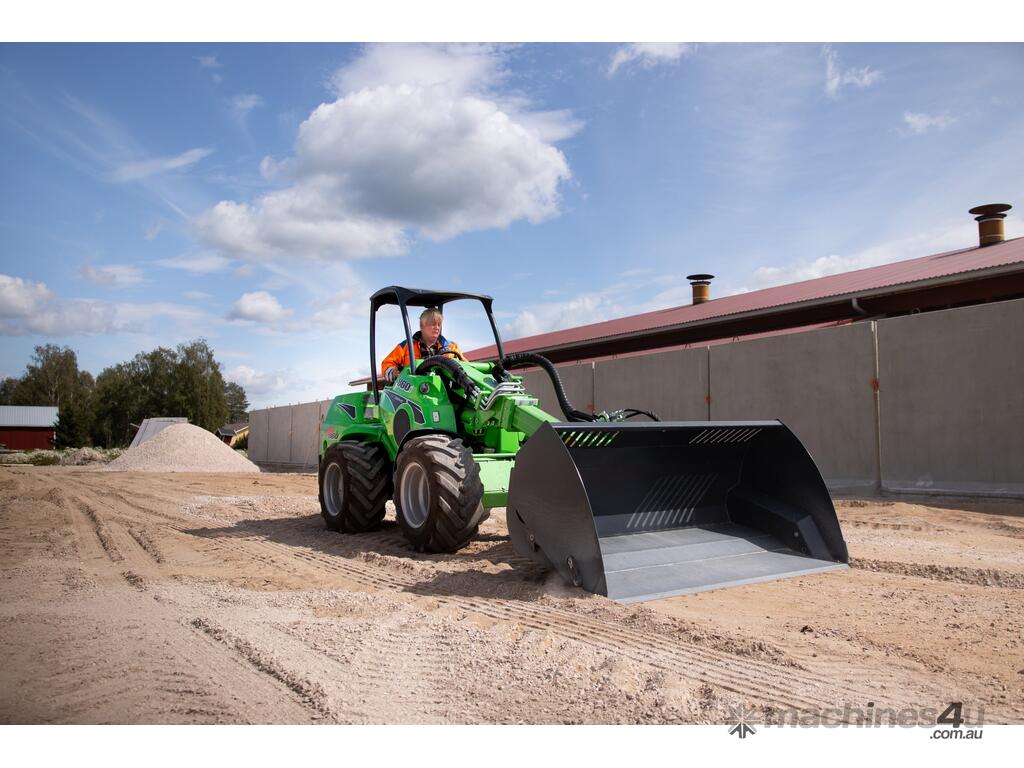

Largest and more powerful of the Avant loader range, the Avant 800 series pushes the limits of a compact loader. It has more lift height and capacity any other Avant loader. It reaches all the way to tall mixer feeder wagons and can load a truck from one side to the far edge – no need to drive around the truck when loading. The Avant 800 series can handle stone pallets with ease thanks to the 1.9 tonne capacity. Yet it is compact enough to work in places where bigger machines can’t access and can be transported on a conventional car trailer.

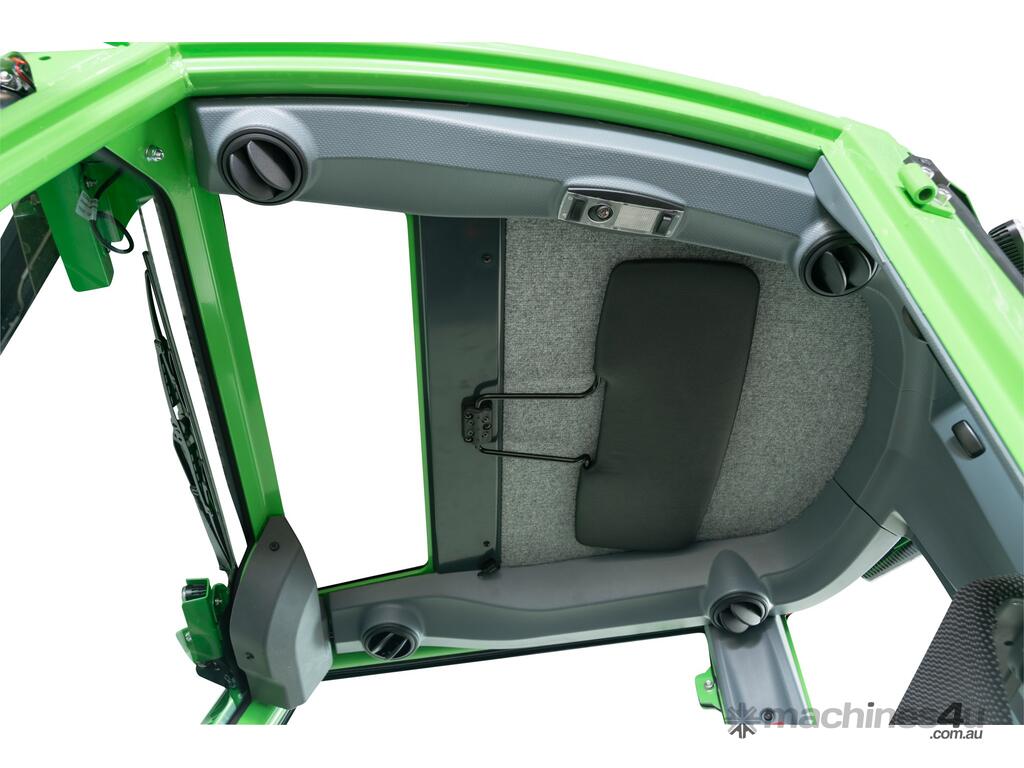

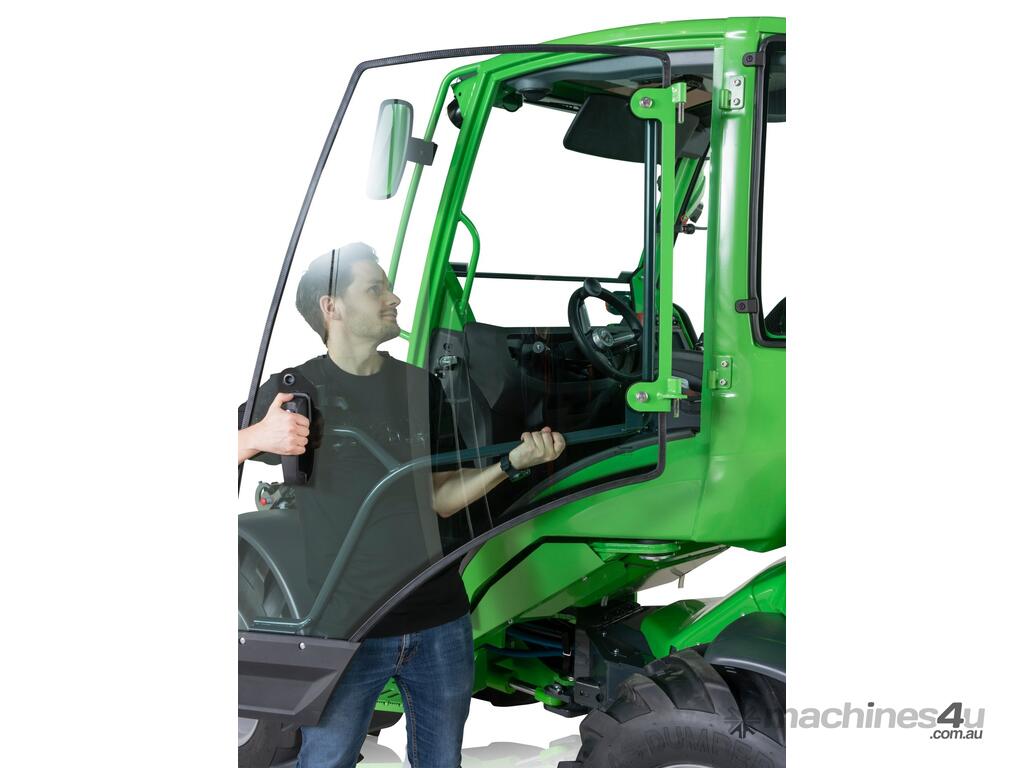

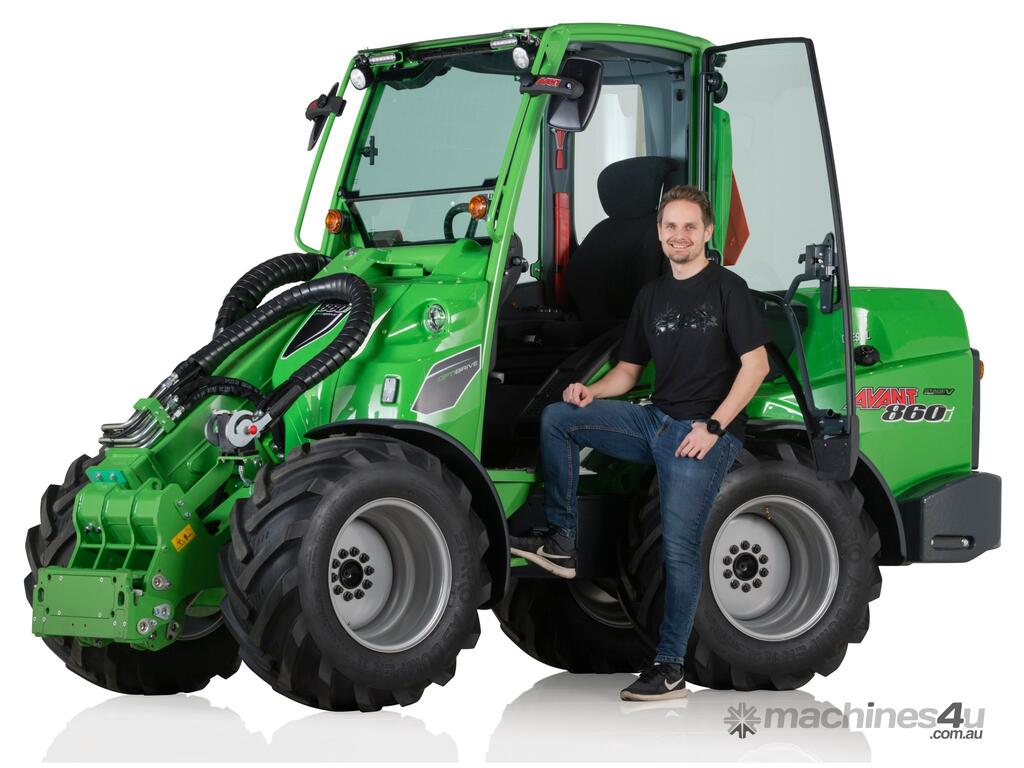

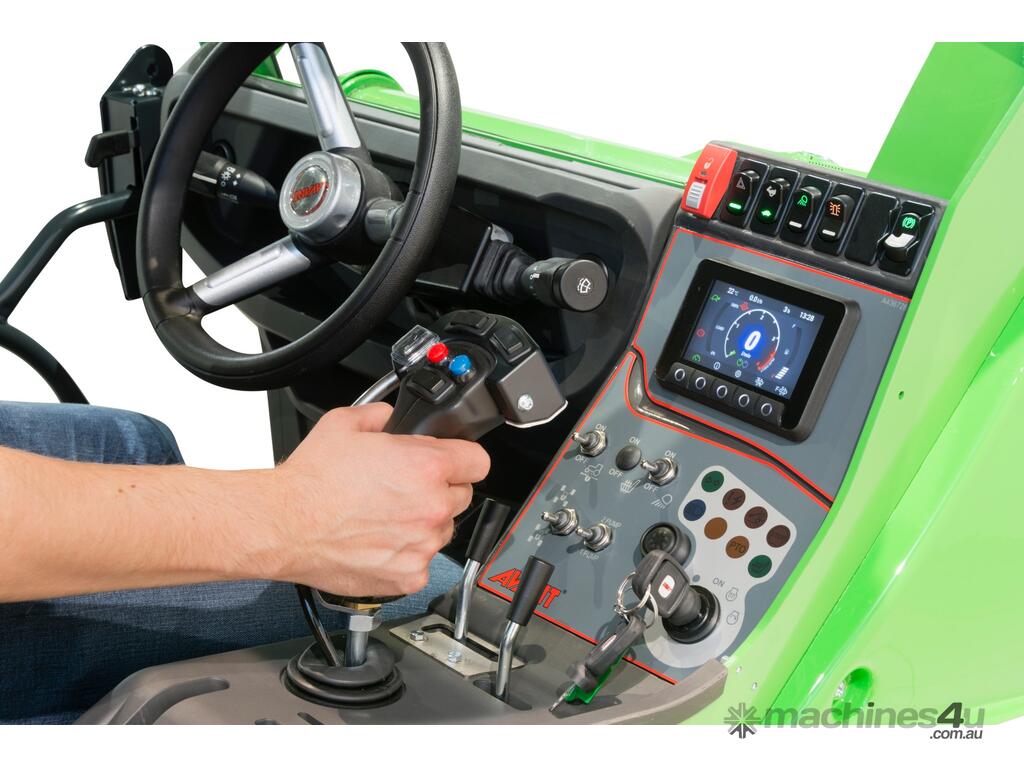

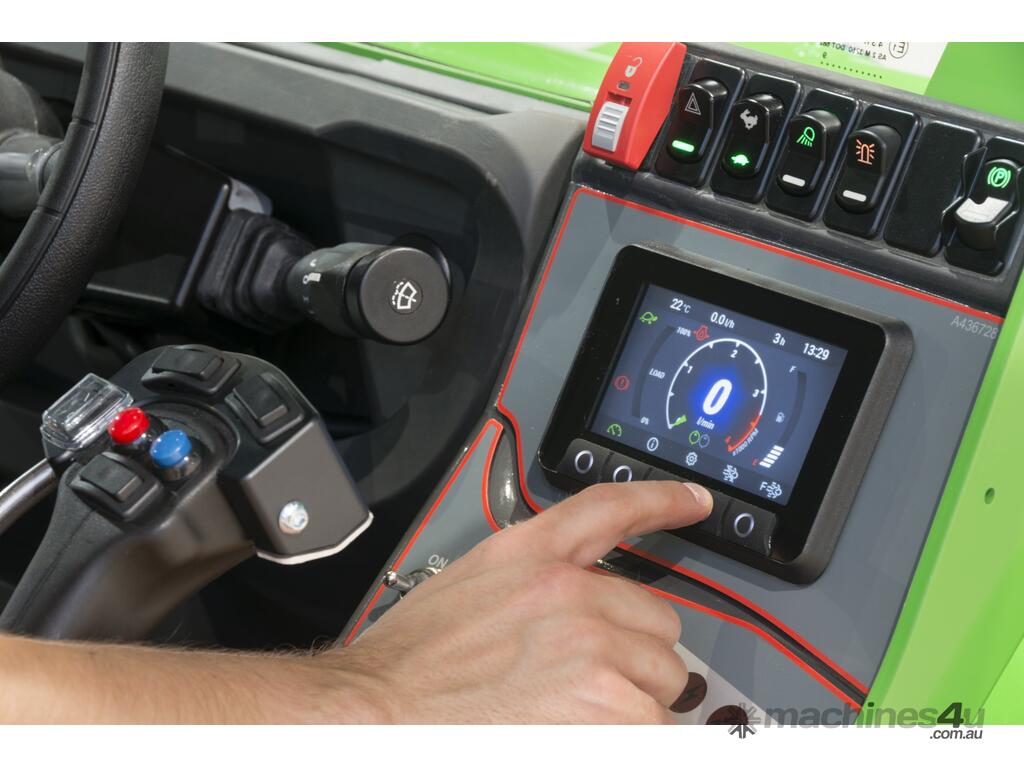

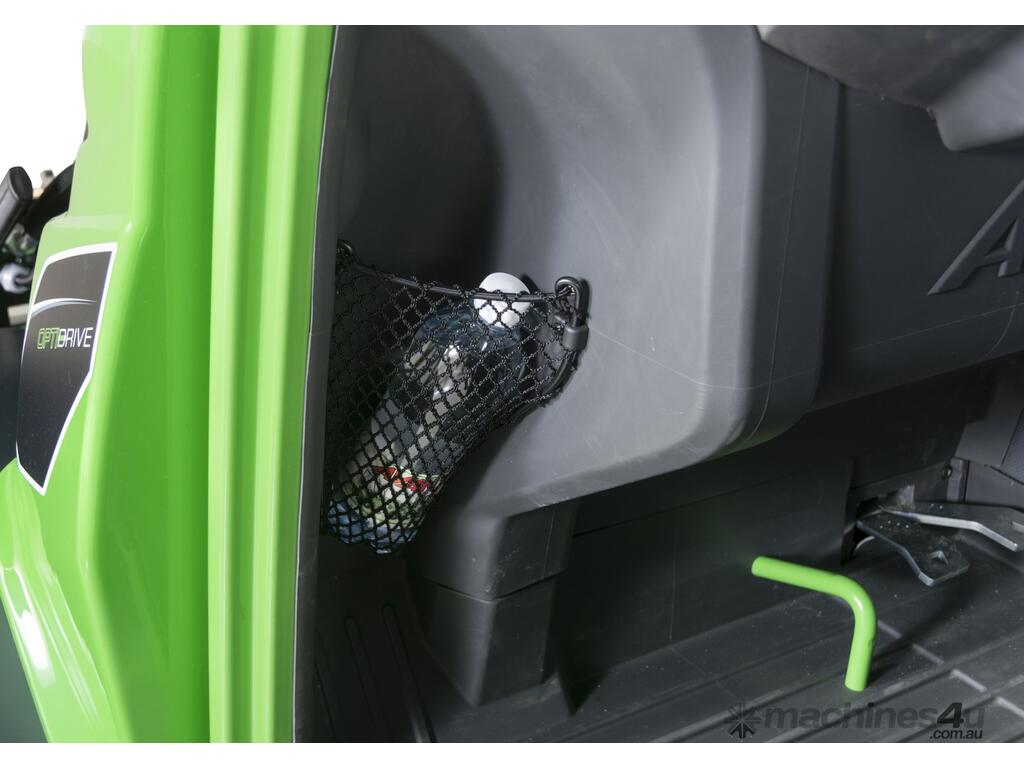

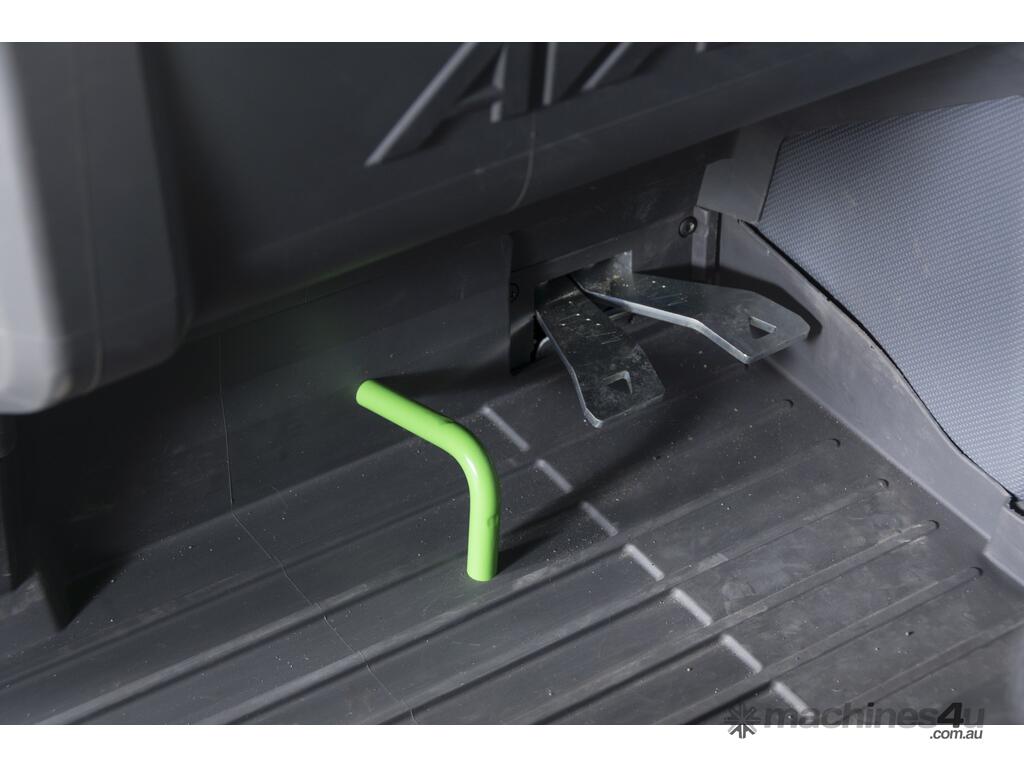

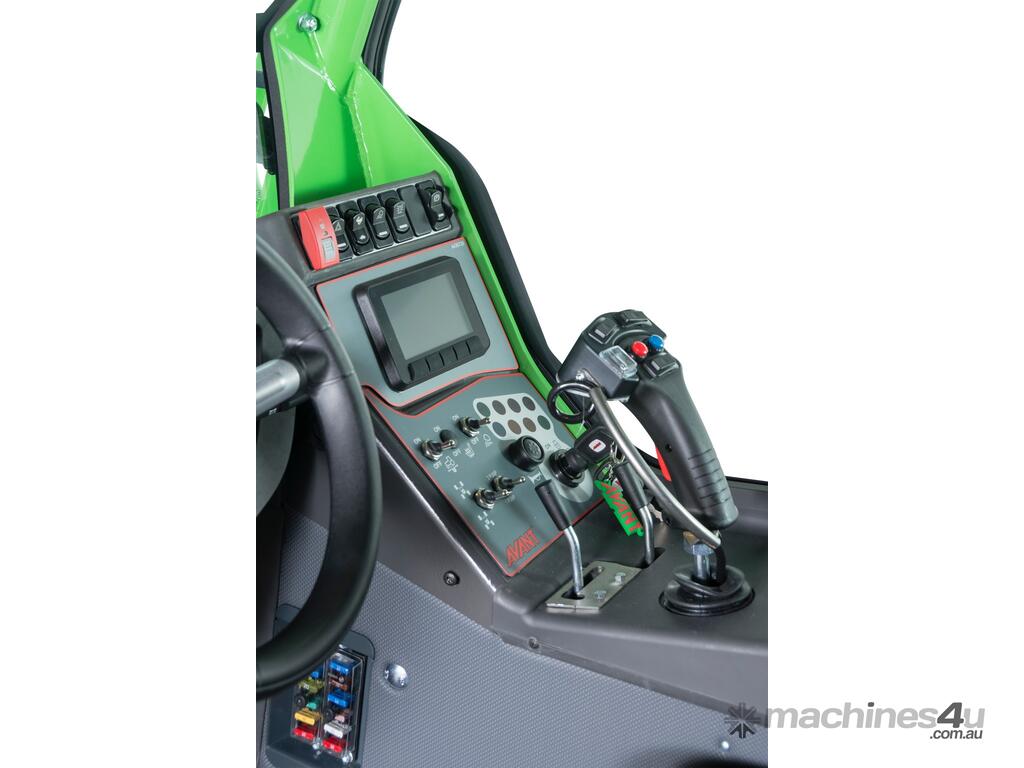

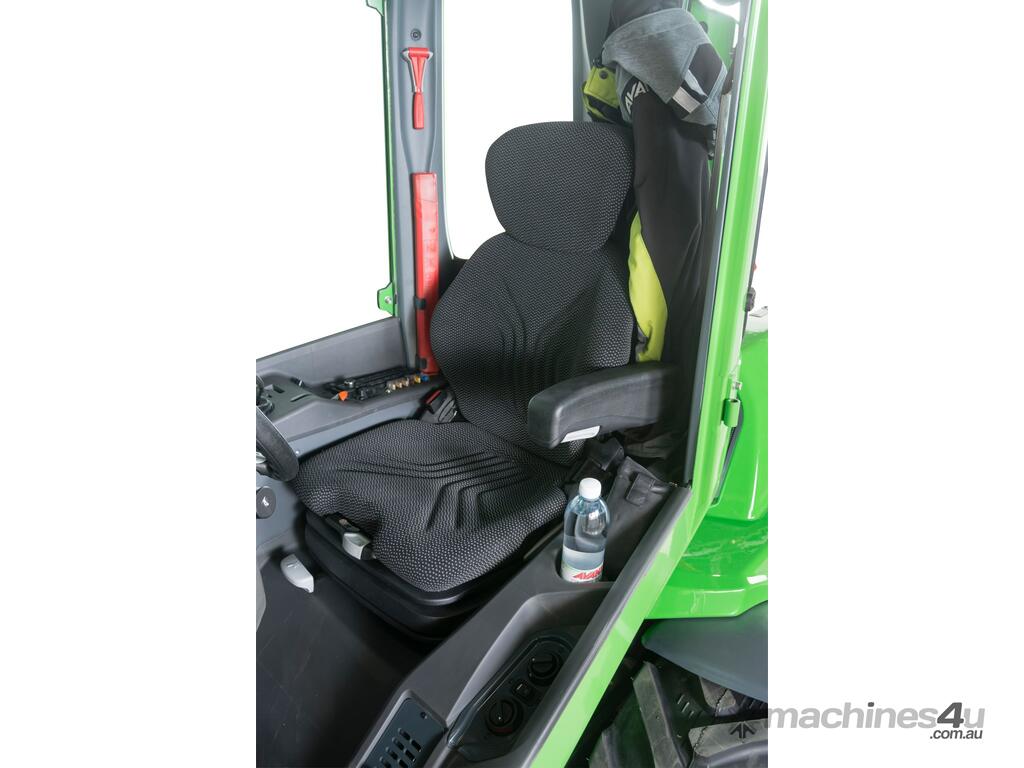

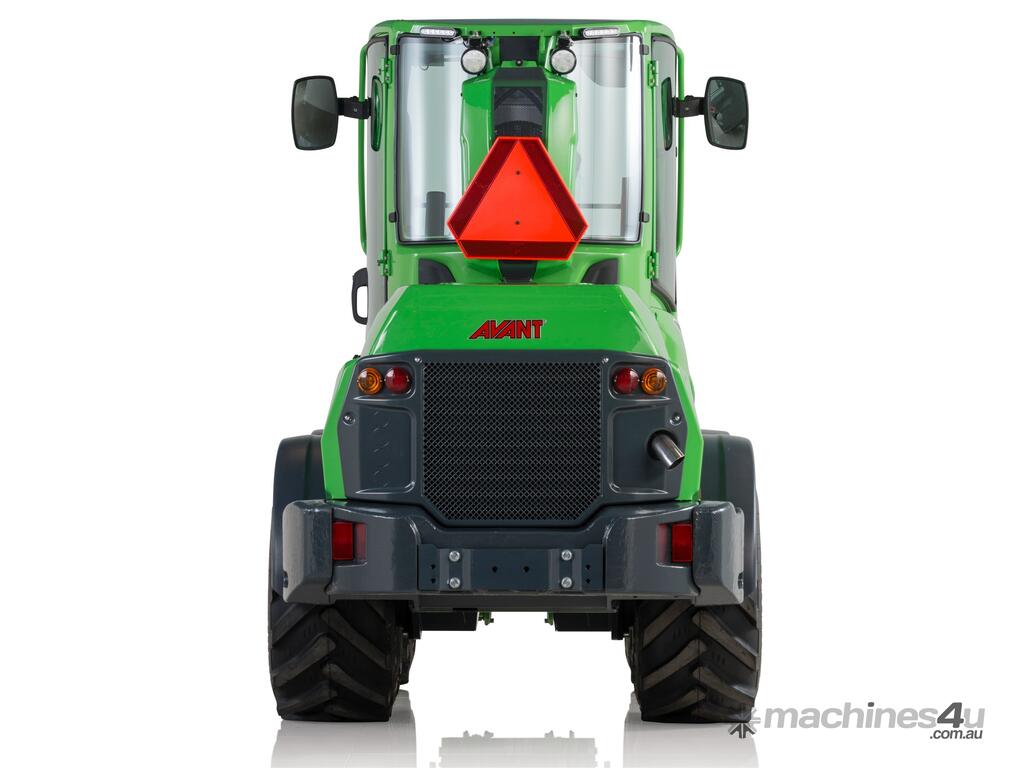

Enclosed GT cab with Air Conditioning, a modern air-conditioned, vibration insulated comfort zone for the driver. A low noise level combined with excellent visibility and ergonomics guarantees a comfortable full day’s work in the cab.

- Over 200 attachments available
- 57 hp turbo diesel common rail engine
- Lift capacity 1,900 kg
- Lift height 3.5 m
- Hydraulic quick hitch
- Extra hydraulic outlets
- Drive speed 30 km/h
- Large 17" wheels as standard
- Option new vibration insulated and low-noise level GT cab available
- Greater reach with Avant's signature telescopic boom
- Optidrive™ drive circuit gives more power for the drive and hydraulic attachments

Specifications
- Length 3395 mm
- Width (with standard wheels) 1490 mm
- Height (with standard wheels) 2200 mm
- Weight 2540 kg
- Standard wheels 380/55-17” TR
- Transmission, drive hydrostatic
- Pulling force max. 2100 kp
- Drive speed max. 30 km/h
- Auxiliary hydraulics 80 l/min 225 bar
- Turning radius inside/outside 1370 mm / 2990 mm
- Lifting height to pivot point 3500 mm
- Max. tipping load* 1900 kg
- Max. breakout force / 50 cm 2200 kg
- Engine make and type Kohler KDI 1903 TCR
- Engine output (ECE R120) 42 kW (57 hp)
- Maximum torque 225 Nm 1500 rpm
- Fuel Diesel
