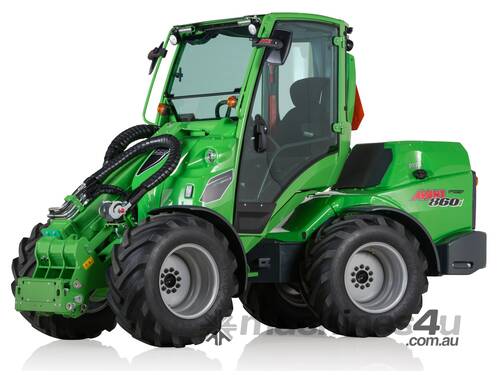

Enclosed Cab | Air Conditioning | Telescopic Boom | Lift capacity 1,900 kg | Lift height 3.5 m | Engine power 57 hp | Drive speed 30 km/h | Made in Finland

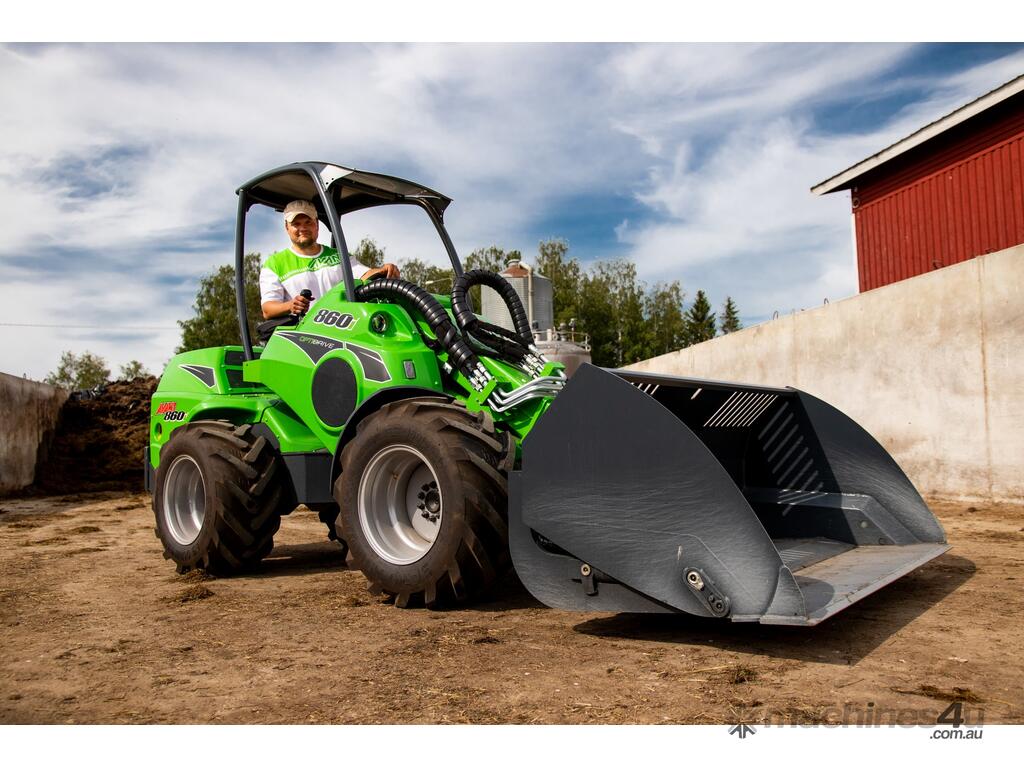

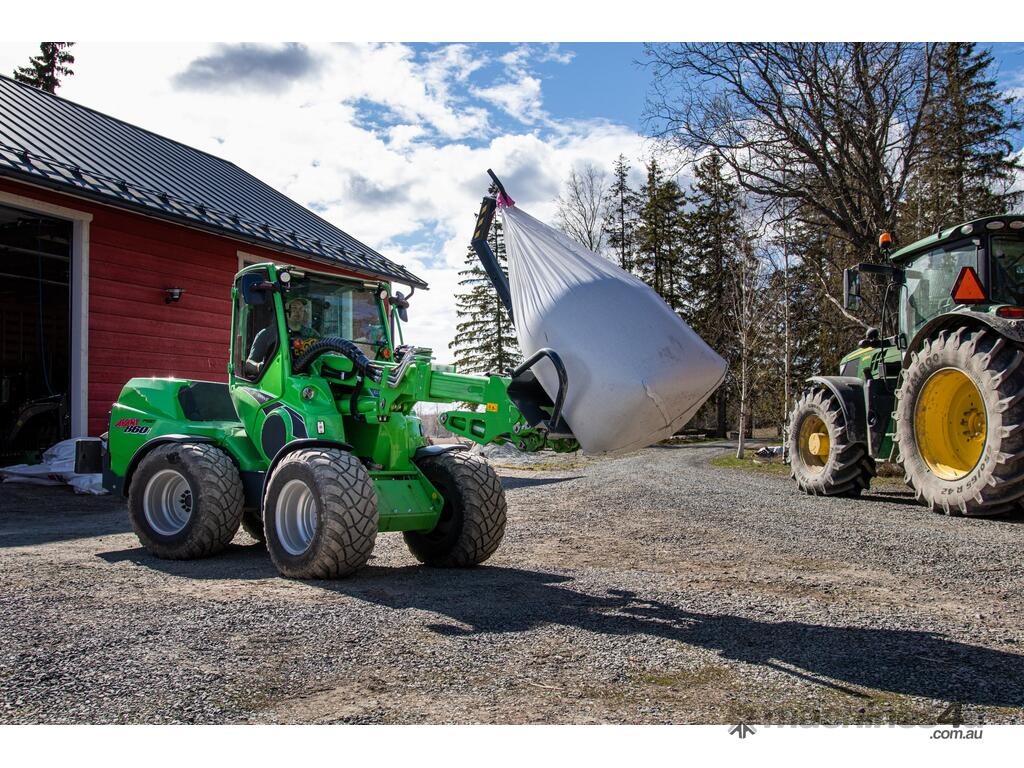

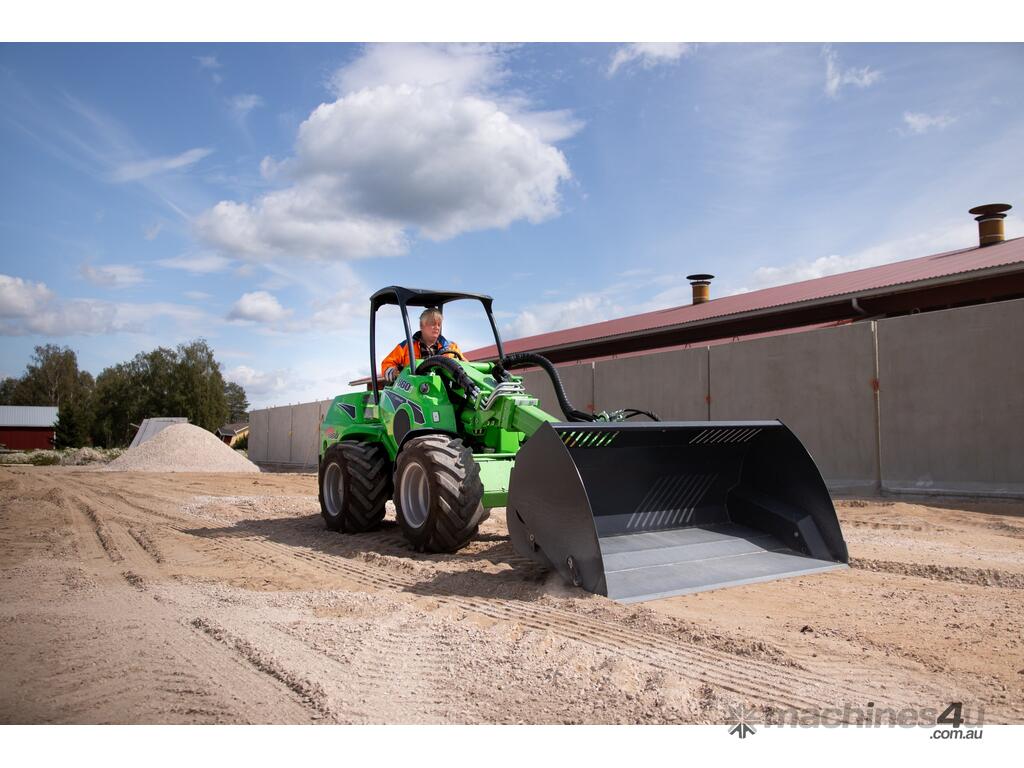

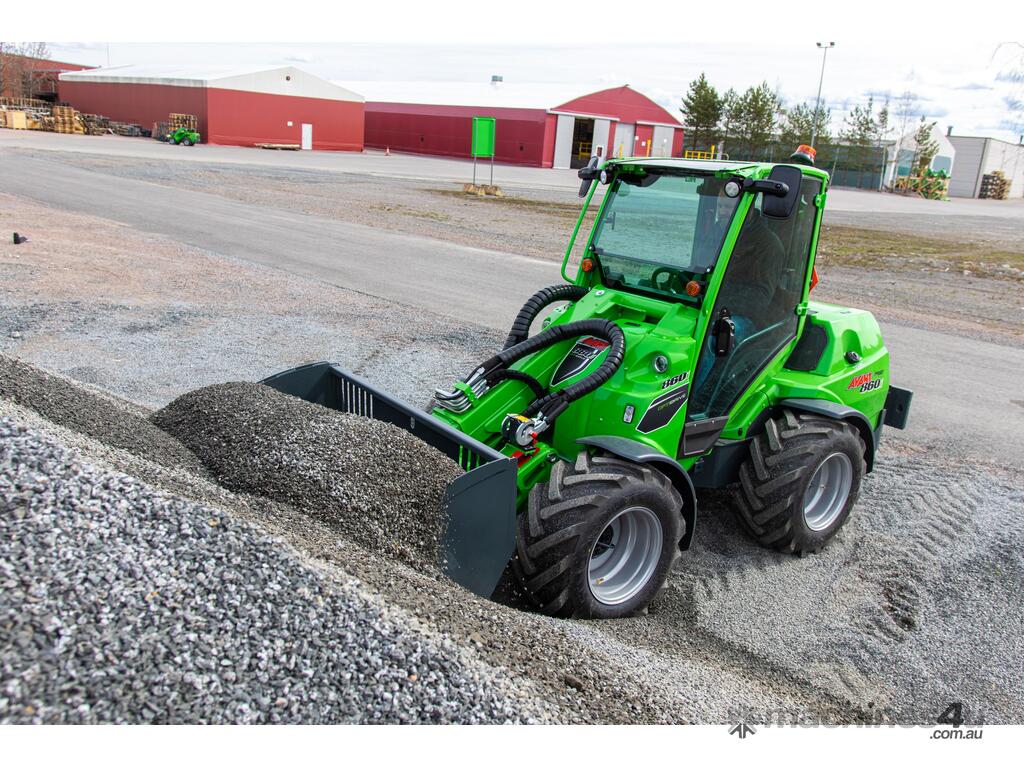

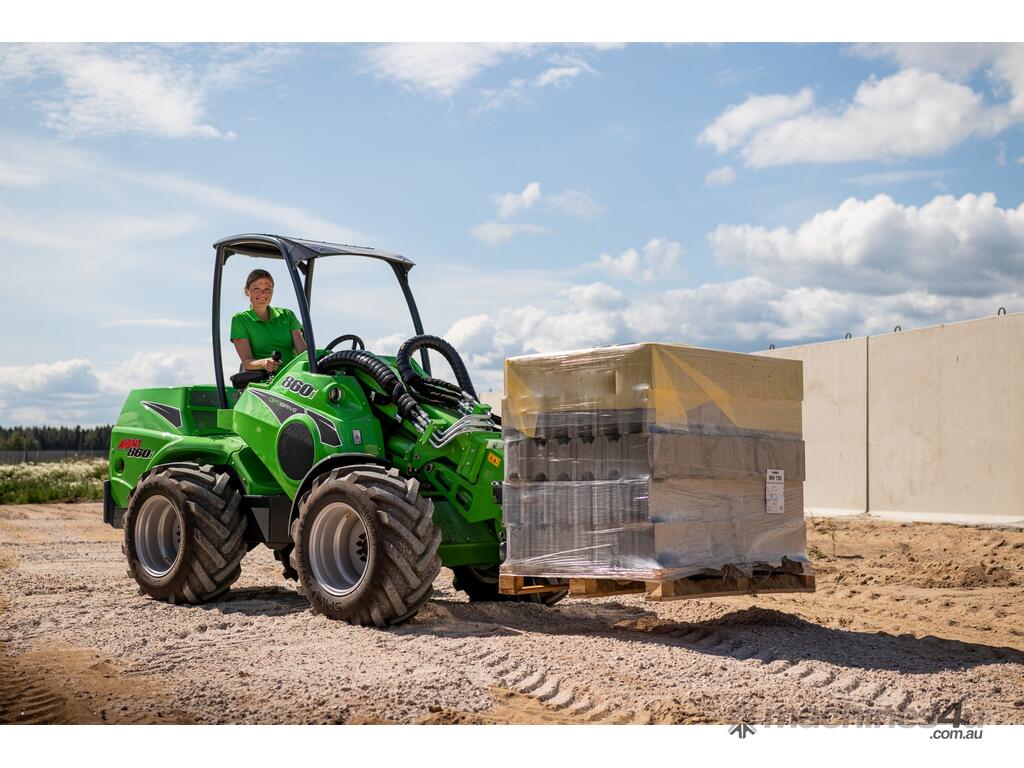

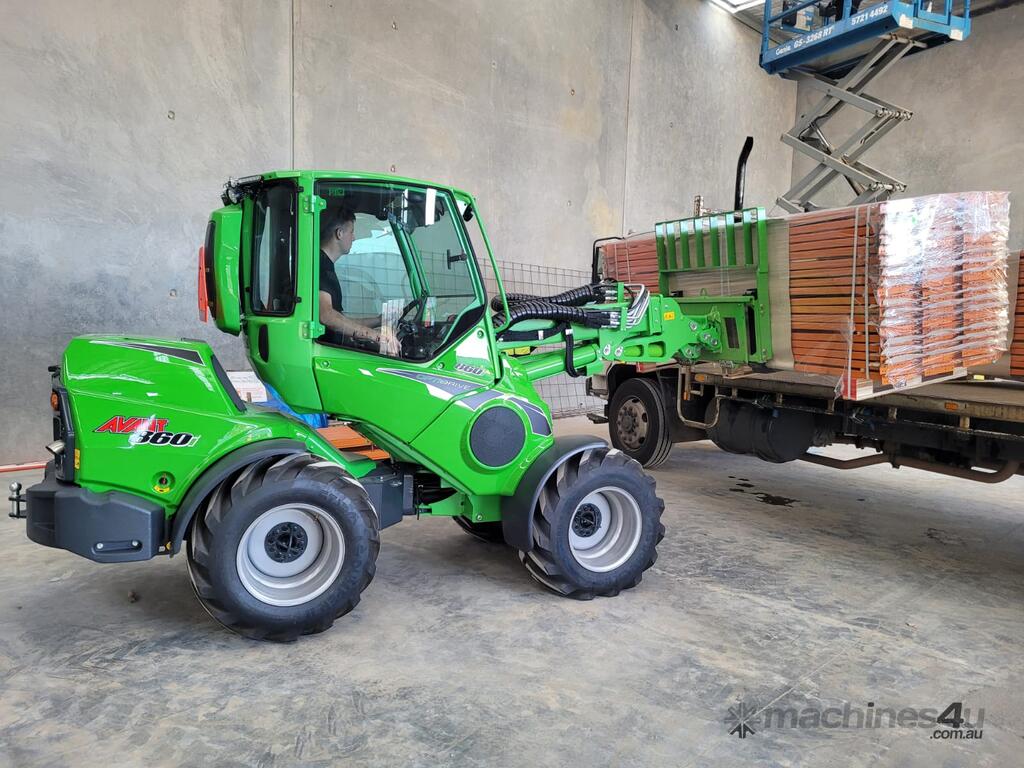

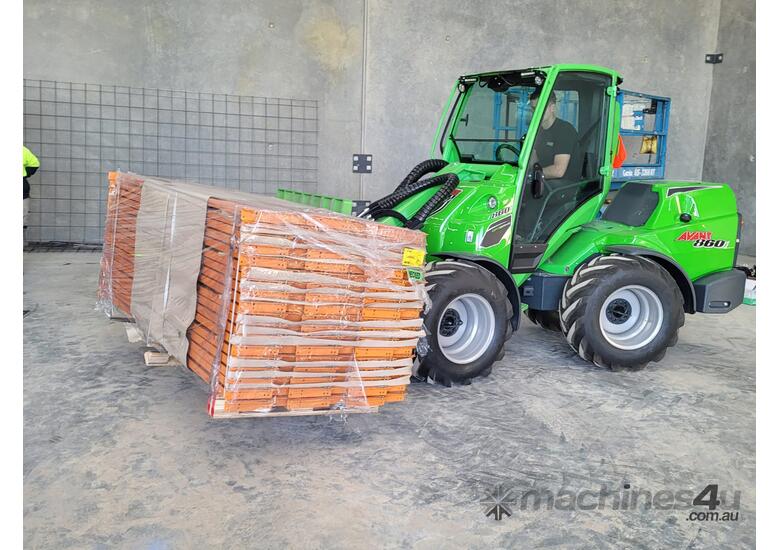

Largest and more powerful of the Avant loader range, the Avant 860i pushes the limits of a compact loader. It has more lift height and capacity any other Avant mini loader. It reaches all the way to tall mixer feeder wagons and can load a truck from one side to the far edge – no need to drive around the truck when loading. The Avant 860i loader is ideal for materials handling with the 1.9 tonne lift capacity. Yet it is compact enough to work where bigger machines can’t access and can be transported on a conventional car trailer.

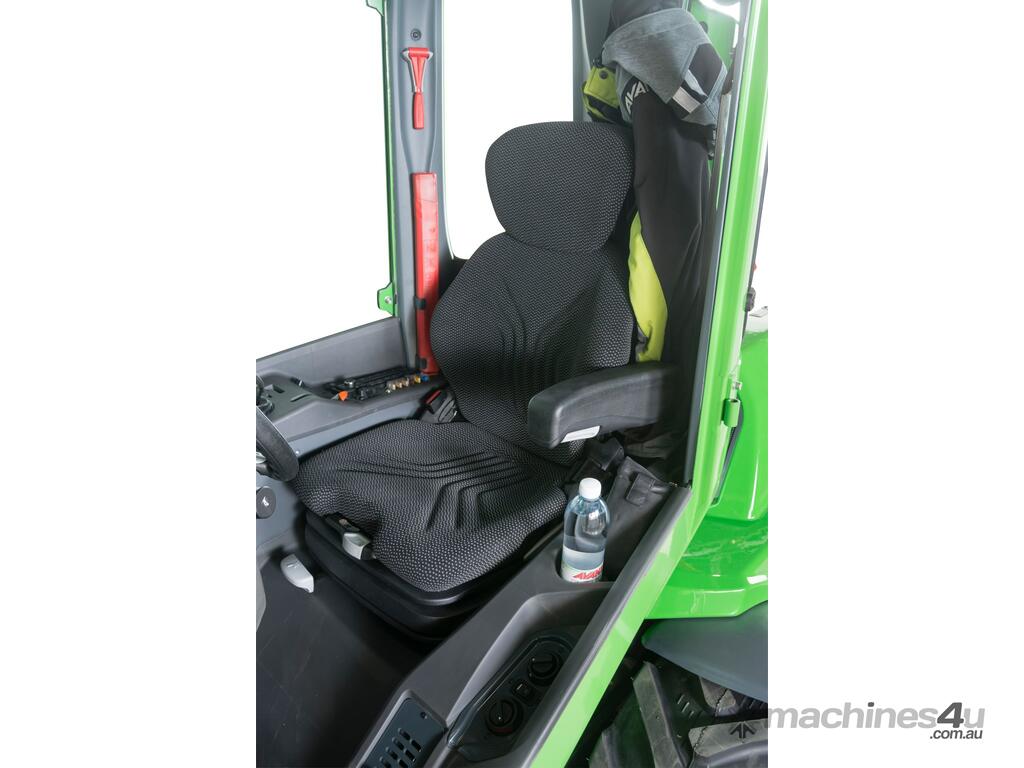

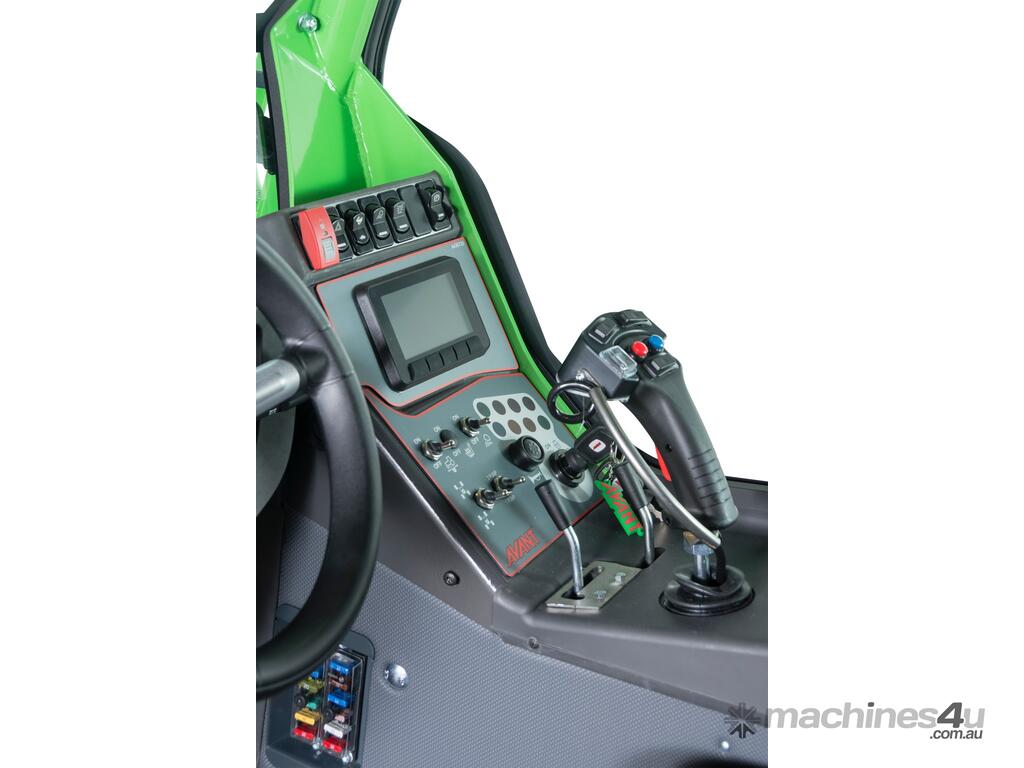

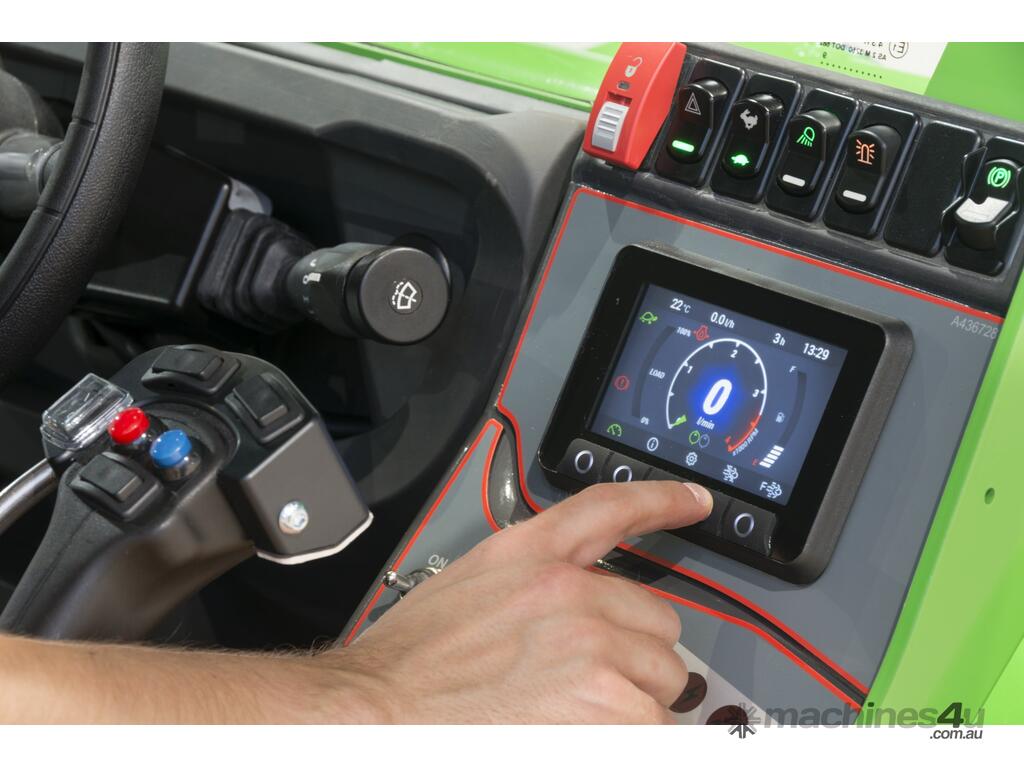

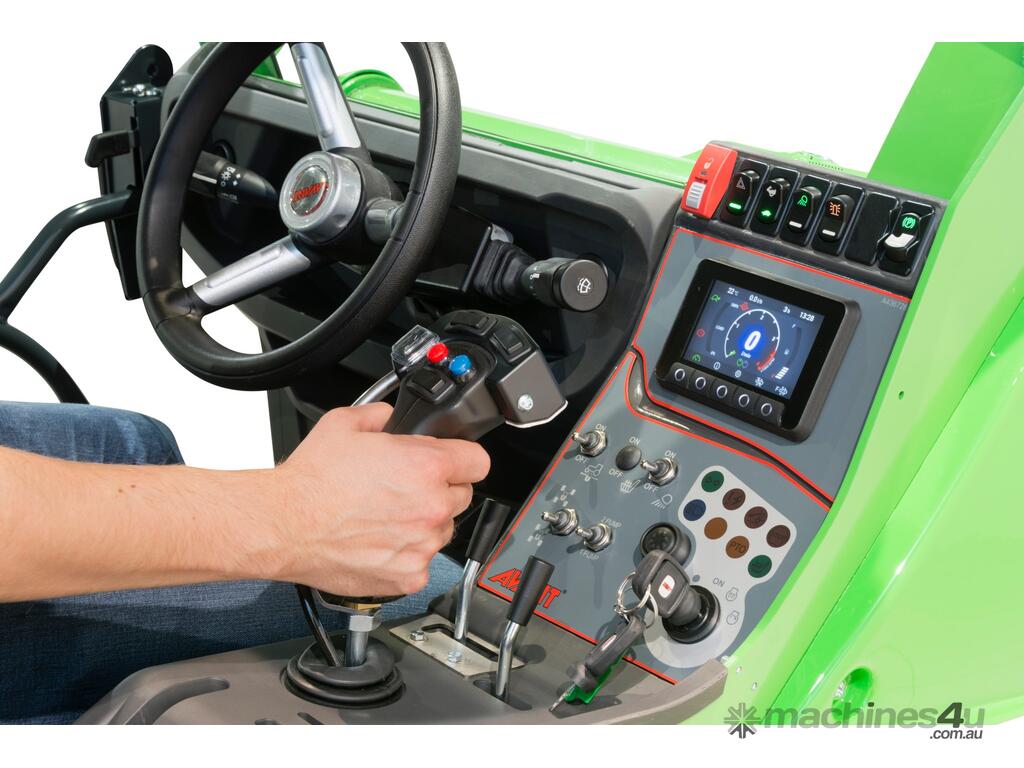

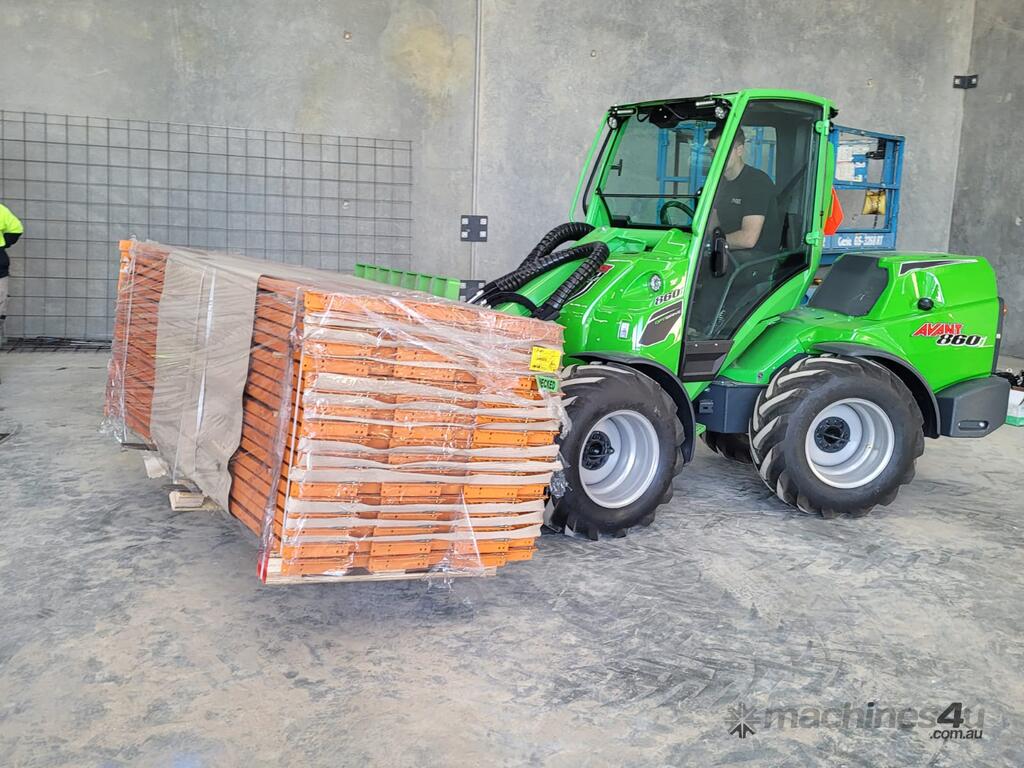

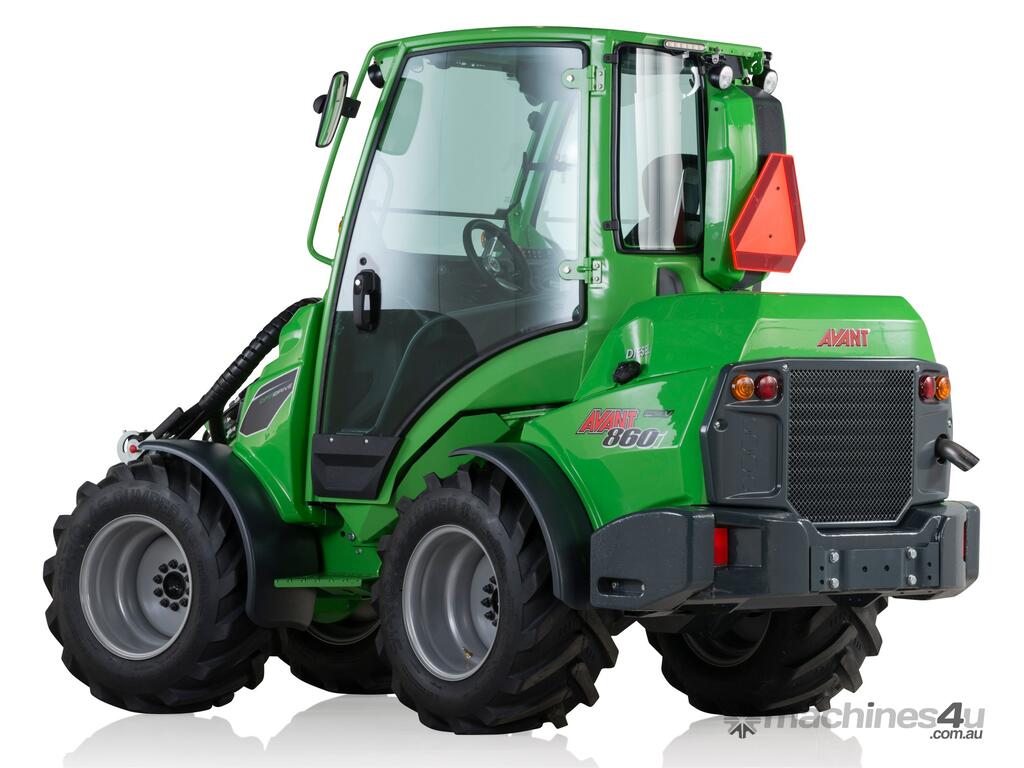

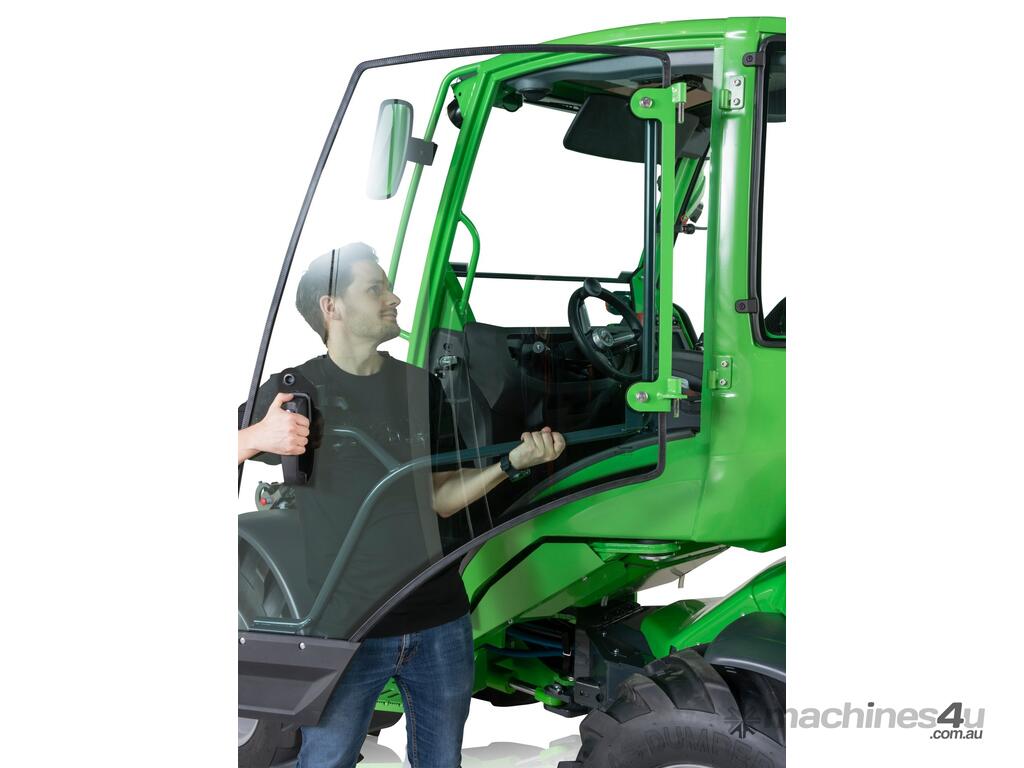

Enclosed GT cab with a modern air-conditioned, vibration insulated ergonomic zone for the driver. The low noise level combined with excellent visibility and ergonomics guarantees a comfortable full day’s work in the cab.

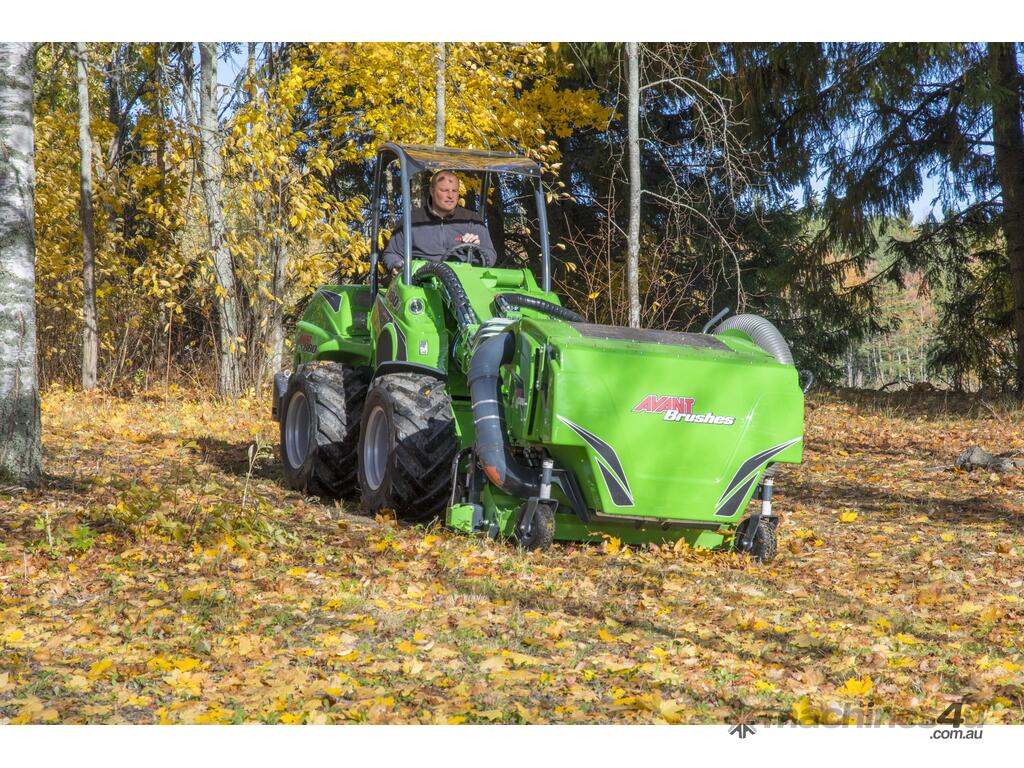

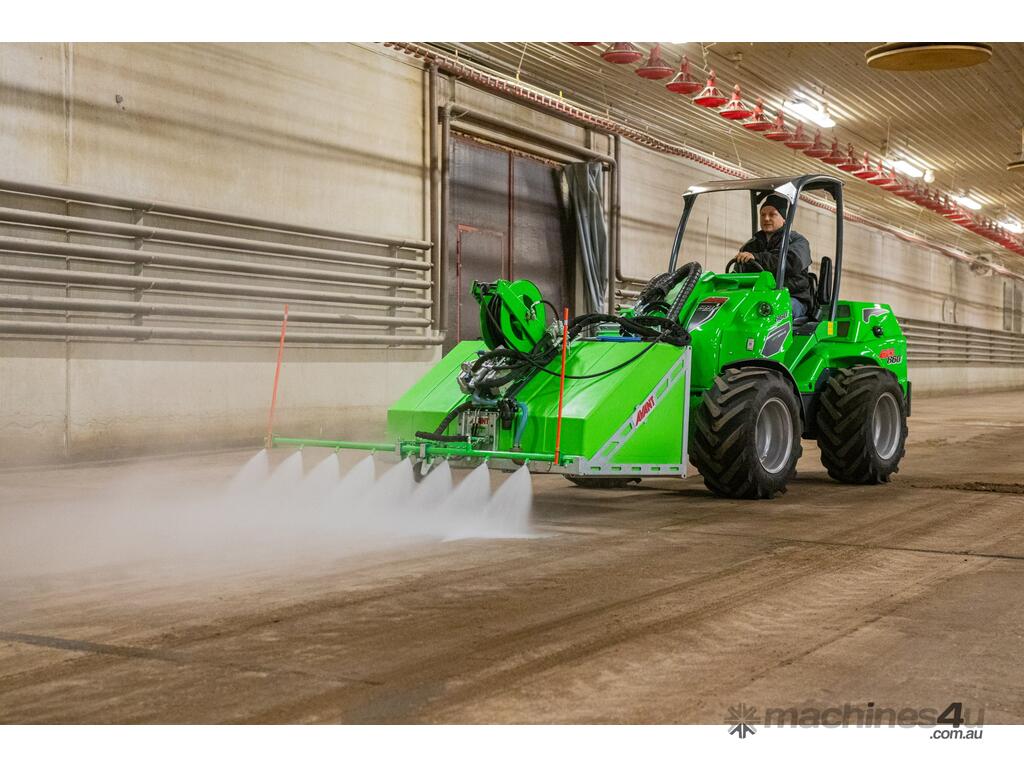

With over 200 attachments available this powerful articulated loader is ideal for a range of industries.
- Over 200 attachments available
- 57 hp turbo diesel common rail engine
- Lift capacity 1,900 kg
- Lift height 3.5 m
- Hydraulic quick hitch
- Extra hydraulic outlets
- Drive speed 30 km/h
- Large 17" wheels as standard
- GT Cab is vibration insulated and has a low-noise level

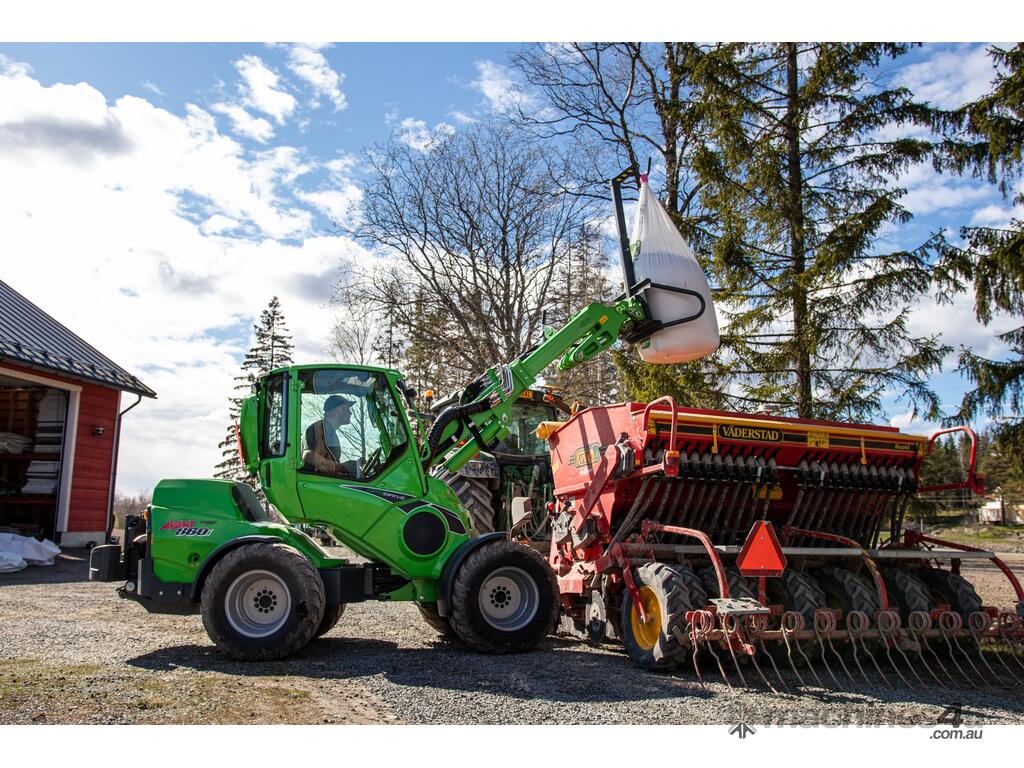

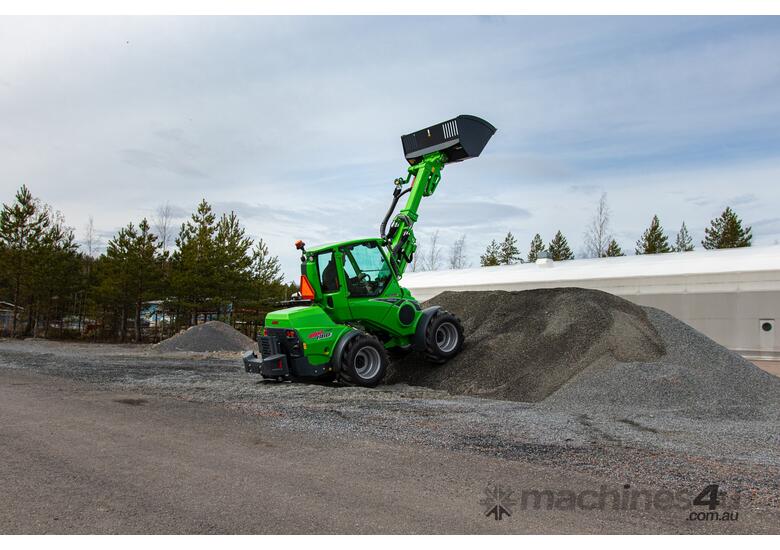

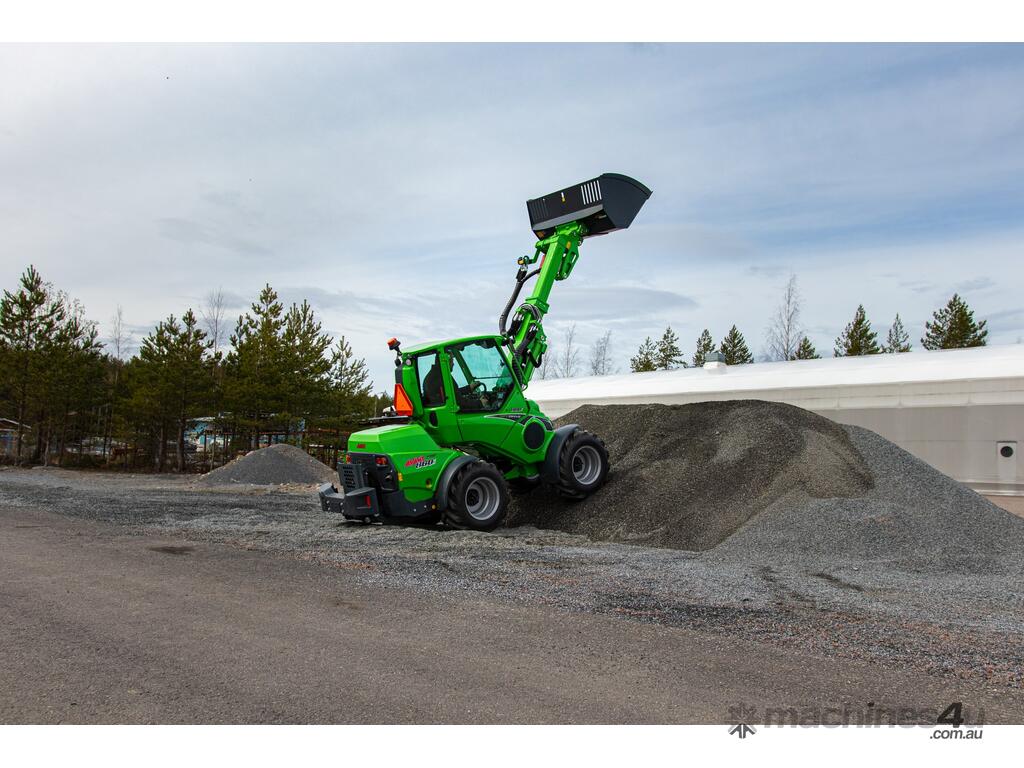

- Extended reach with telescopic boom
- Optidrive™ drive circuit gives more power for the drive and hydraulic attachments
Specifications
- Length 3395 mm
- Width (with standard wheels) 1490 mm
- Height (with standard wheels) 2200 mm
- Weight 2540 kg
- Standard wheels 380/55-17” TR
- Transmission, drive hydrostatic
- Pulling force max. 2100 kp
- Drive speed max. 30 km/h
- Auxiliary hydraulics 80 l/min 225 bar
- Turning radius inside/outside 1370 mm / 2990 mm
- Lifting height to pivot point 3500 mm
- Max. tipping load* 1900 kg
- Max. breakout force / 50 cm 2200 kg
- Engine make and type Kohler KDI 1903 TCR
- Engine output (ECE R120) 42 kW (57 hp)
- Maximum torque 225 Nm 1500 rpm
- Fuel Diesel
