Lift capacity 1,900 kg | Lift height 3.5 m | Engine power 57 hp | Drive speed 30 km/h | Made in Finland

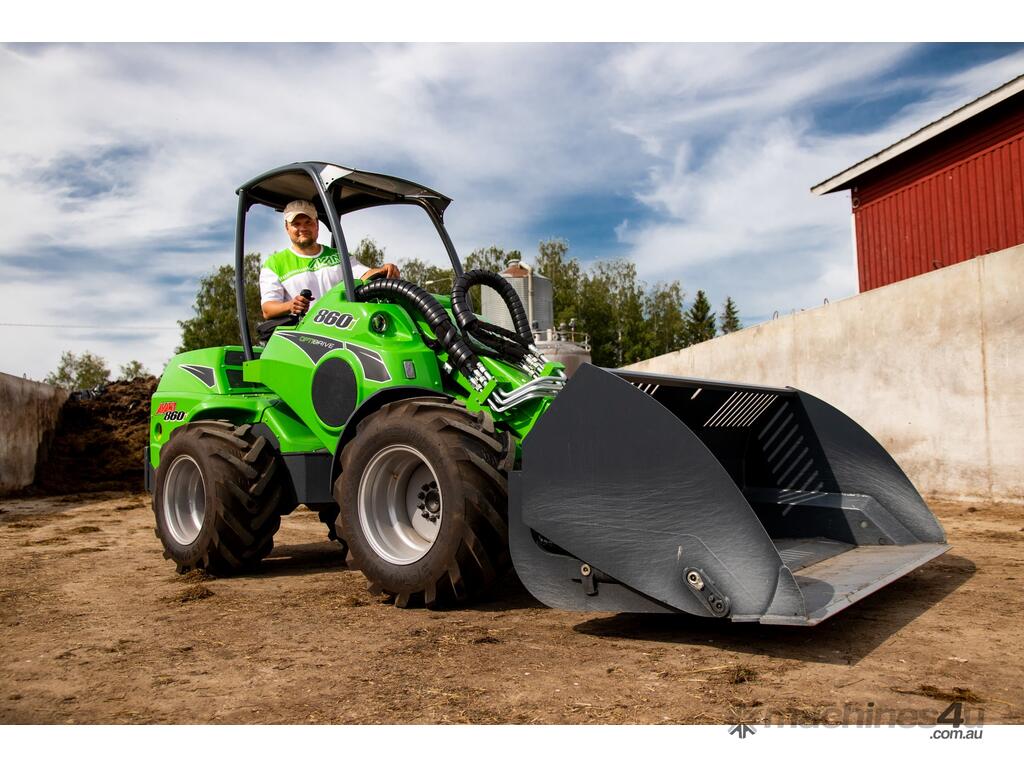

Powerful Articulated Mini Loader - UNLEASHING POWER AND VERSATILITY
Enhance productivity and simplify daily tasks

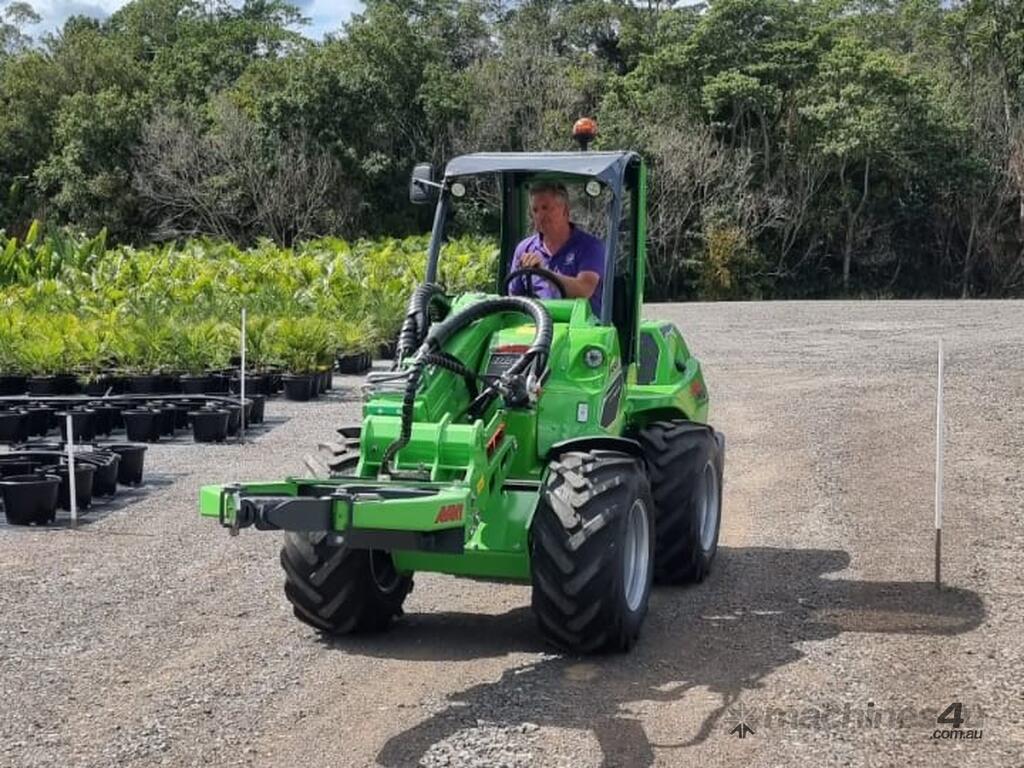

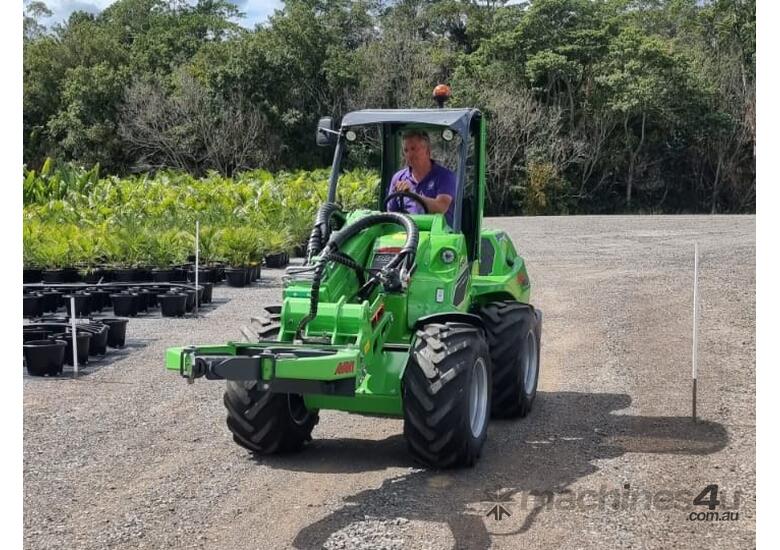

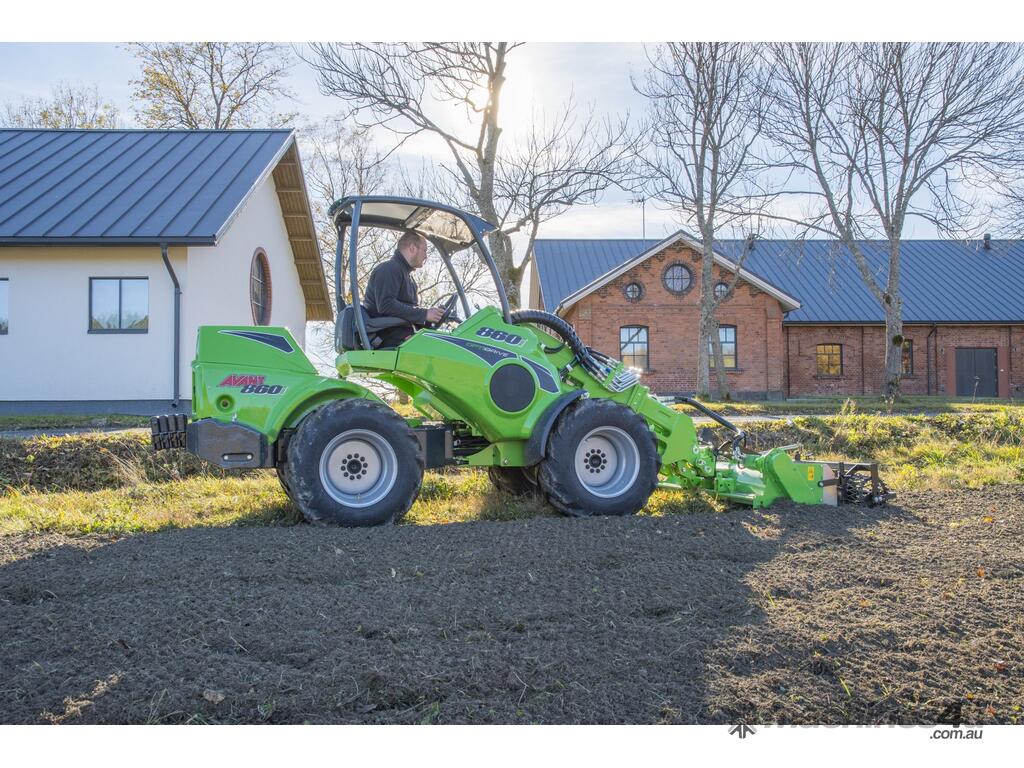

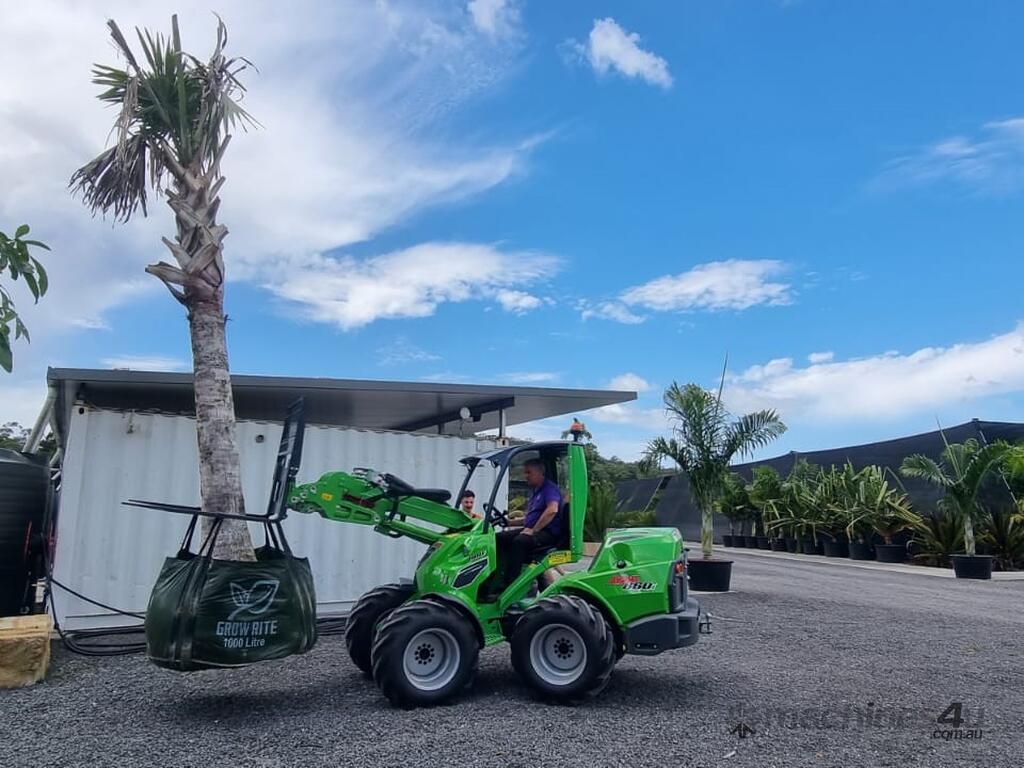

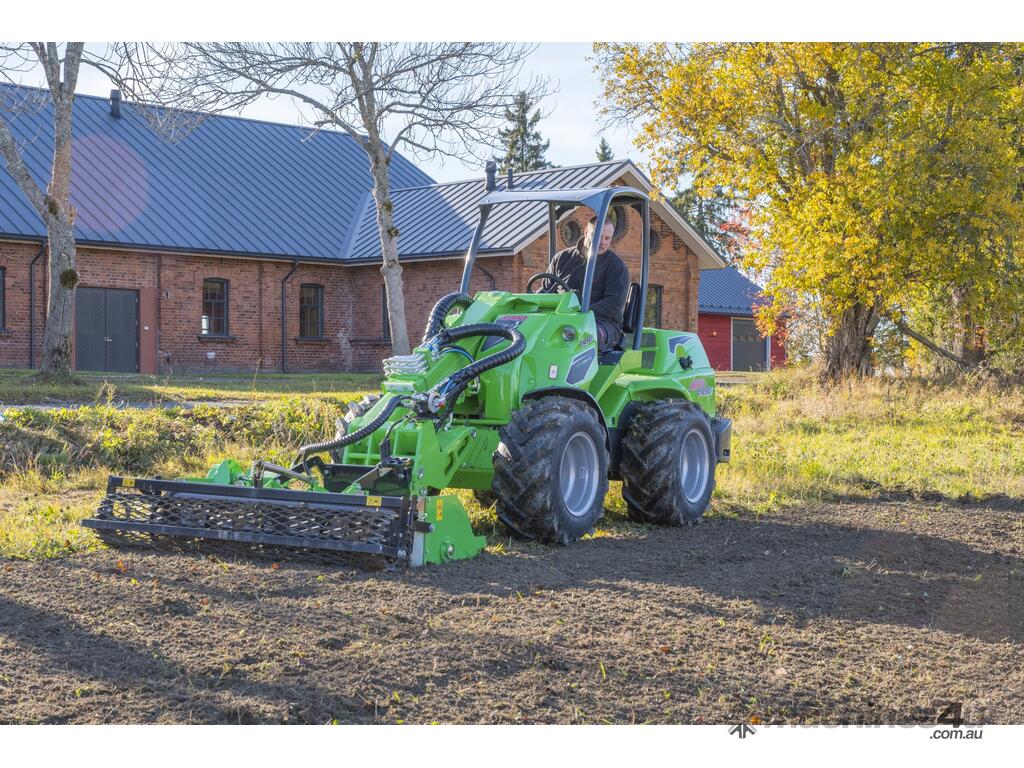

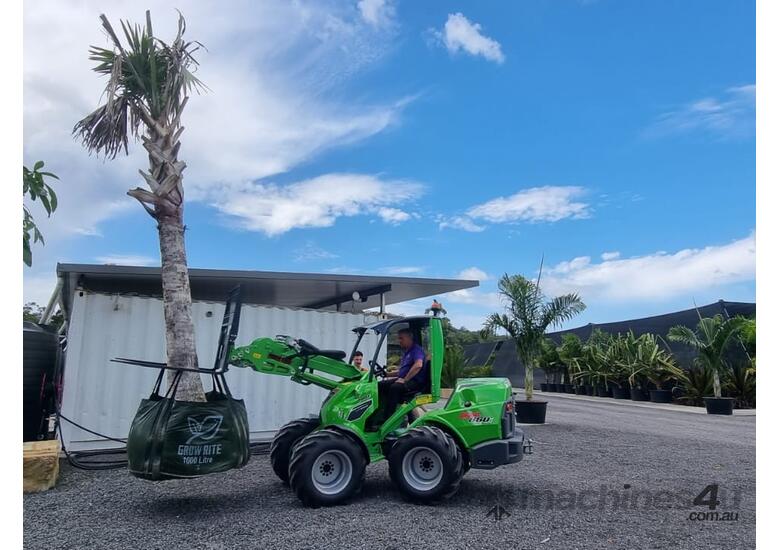

With its compact size, powerful performance and remarkable capabilities, the Avant mini loader offers unparalleled benefits for nurseries. This innovative machine is designed to tackle a wide range of tasks, from lifting, transporting and loading heavy pots, plants and materials to delicate soil preparation and landscaping work.

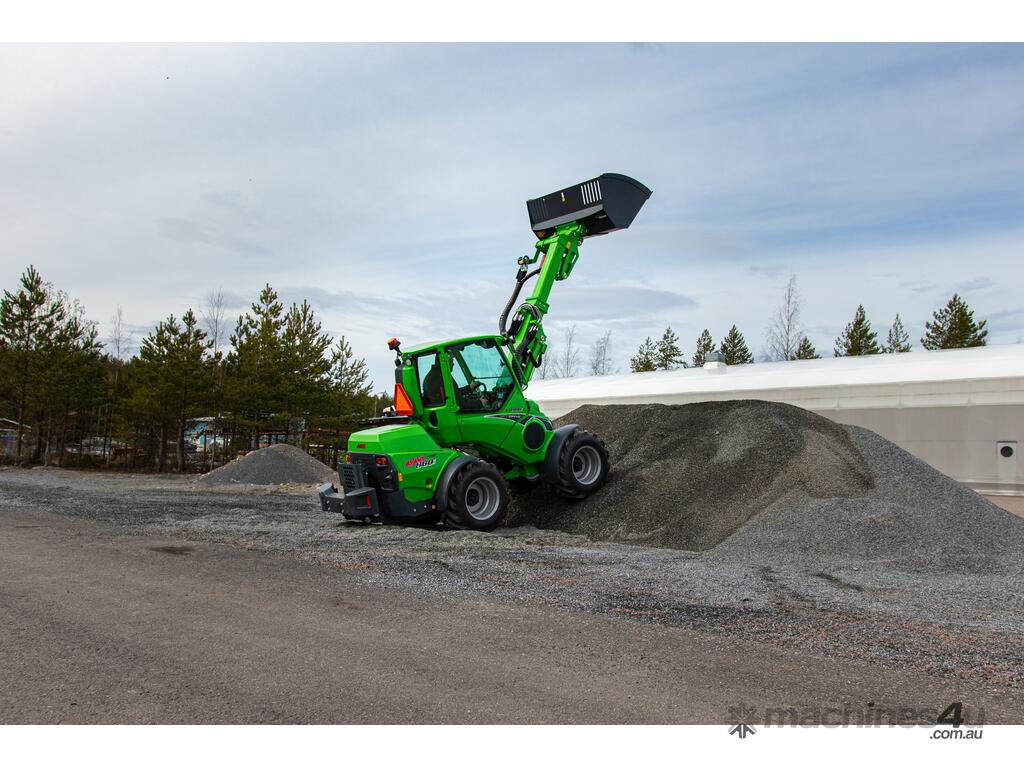

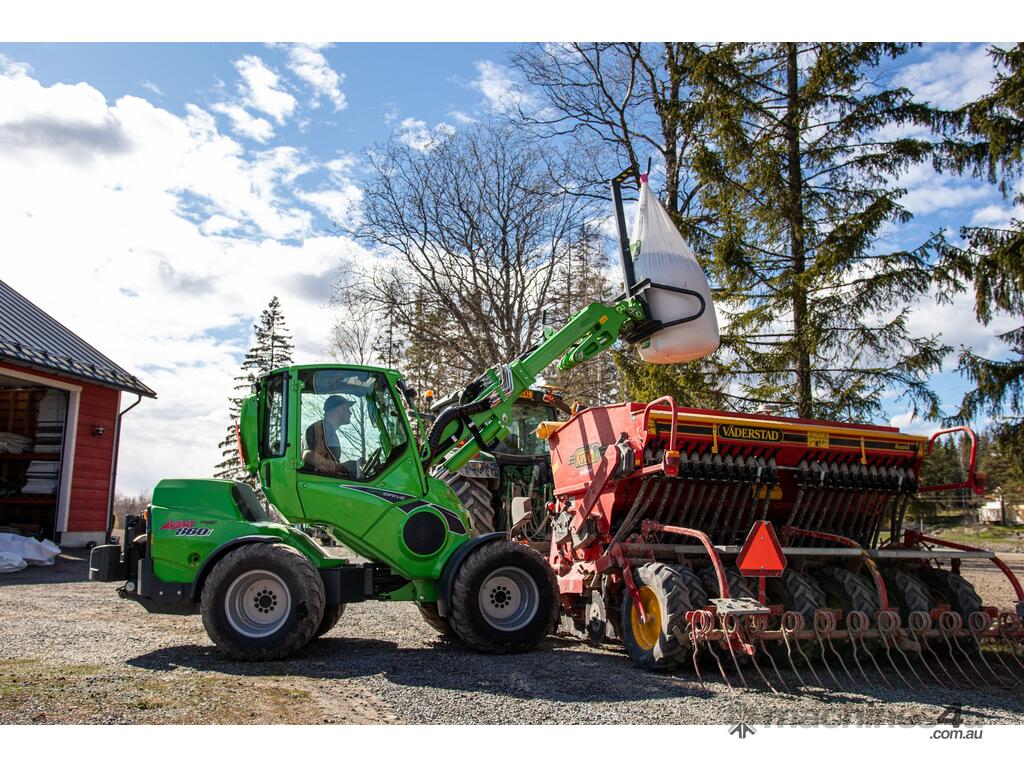

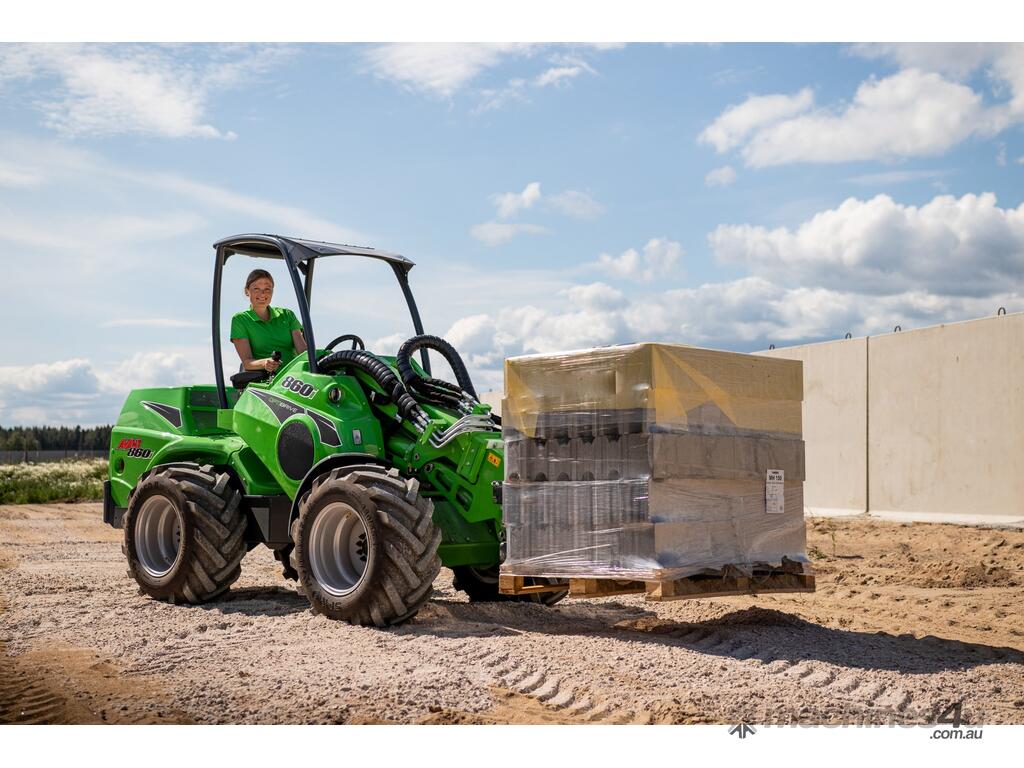

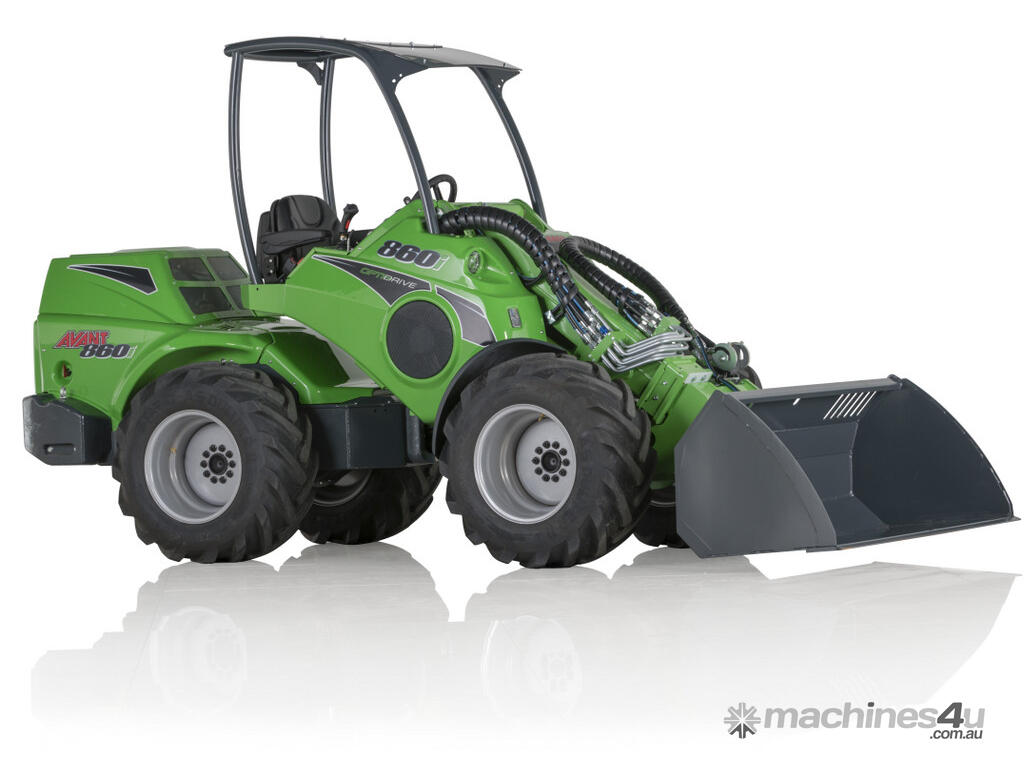

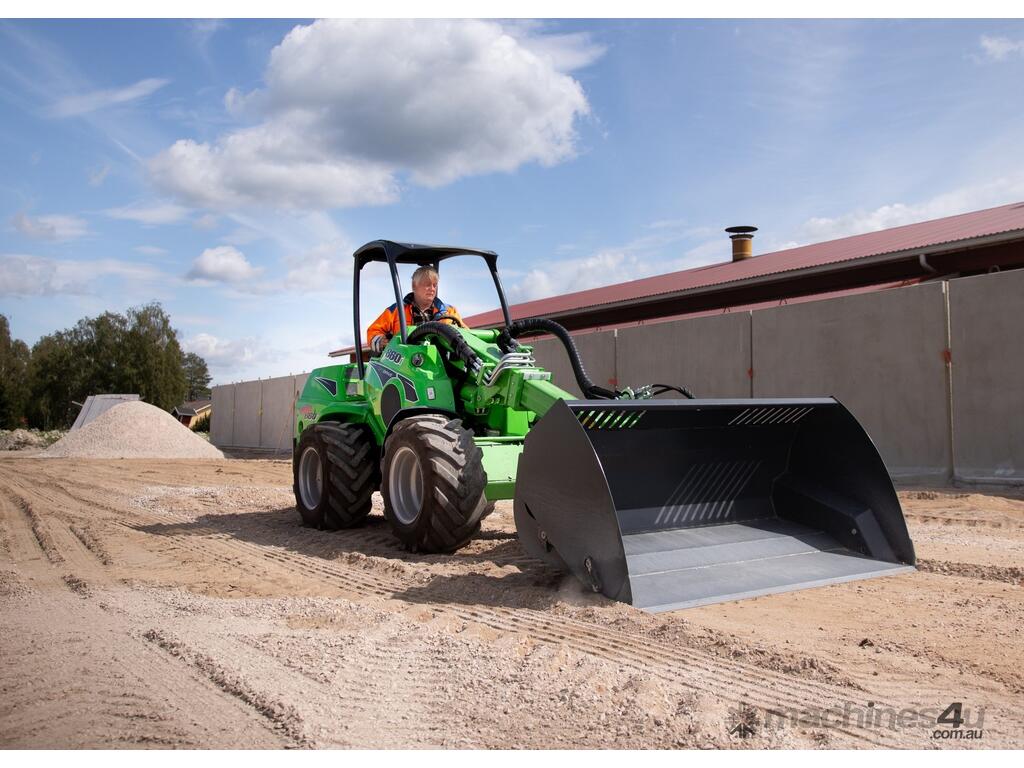

Largest and more powerful of the Avant loader range, the Avant 860i pushes the limits of a compact loader. It has more lift height and capacity any other Avant mini loader. It reaches all the way to tall mixer feeder wagons and can load a truck from one side to the far edge – no need to drive around the truck when loading. The Avant 860i wheel loader can handle stone pallets with ease thanks to the 1.9 tonne capacity. Yet it is compact enough to work in places where bigger machines can’t access and can be transported on a conventional car trailer.

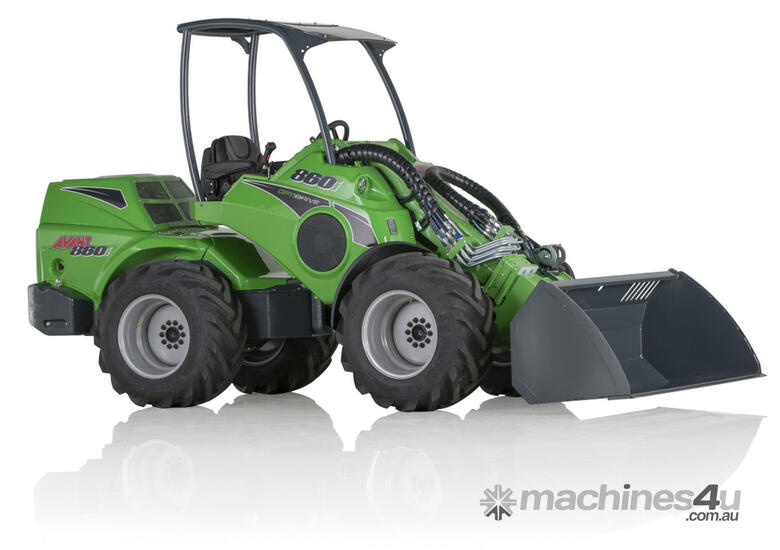

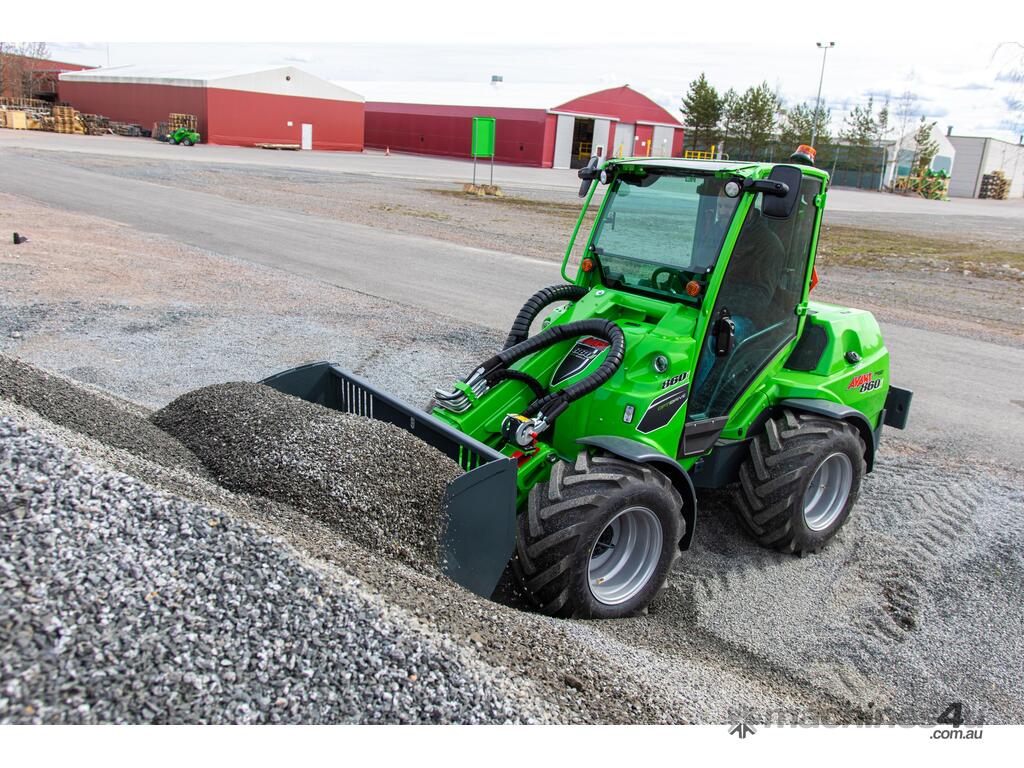

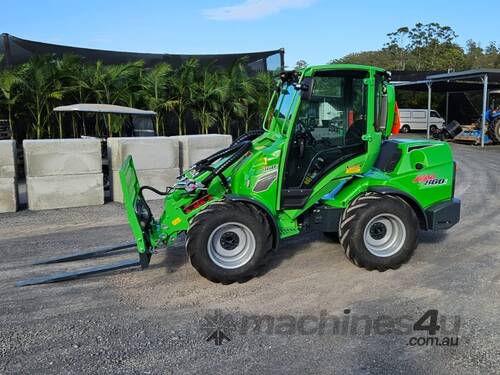

In addition to the standard ROPS/FOPS cab, an optional GT cab is available, a modern air-conditioned, vibration insulated comfort zone for the driver. A low noise level combined with excellent visibility and ergonomics guarantees a comfortable full day’s work in the cab. The cab can be equipped options such as A/C, Bluetooth radio, air suspension seat and other options.

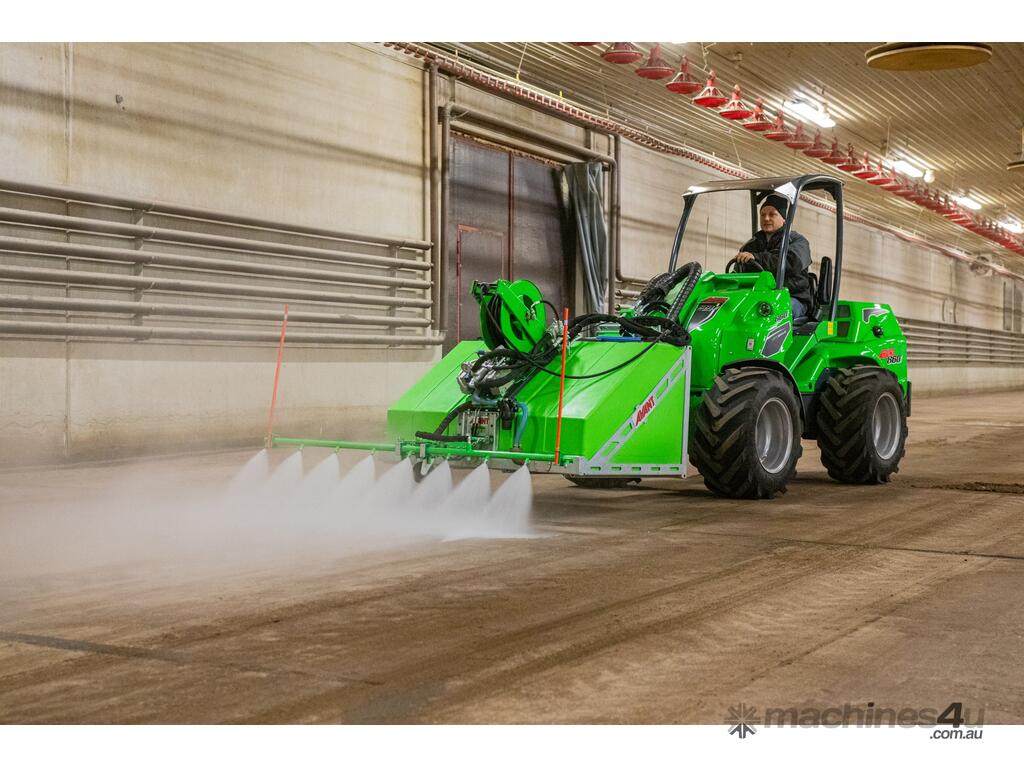

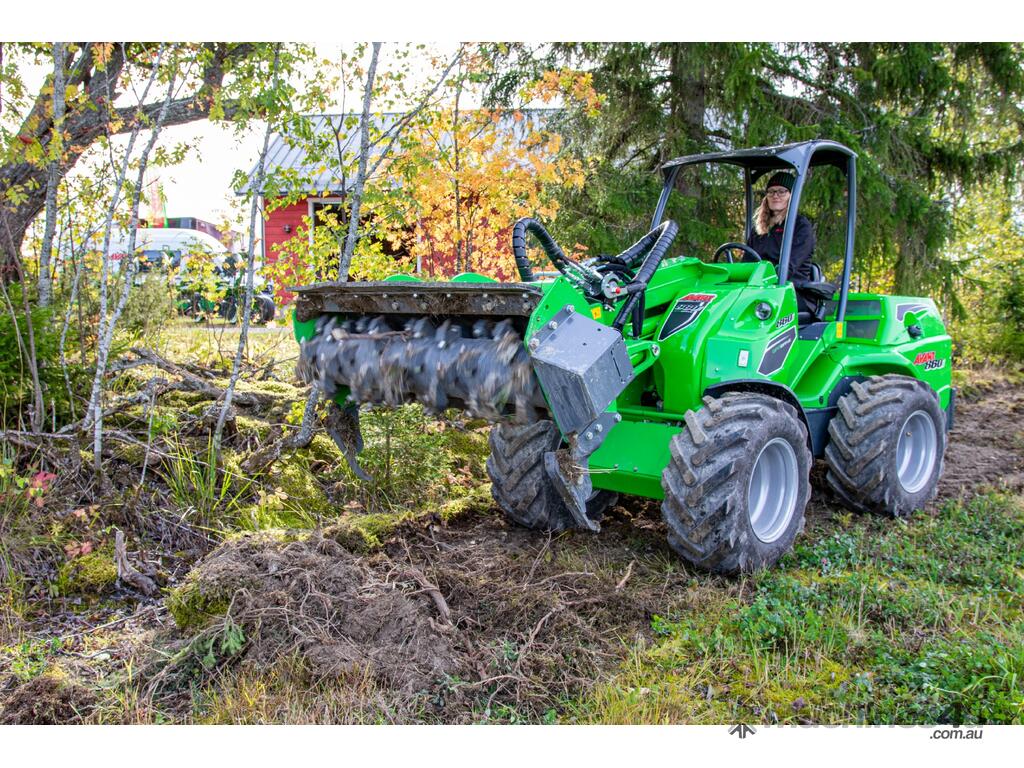

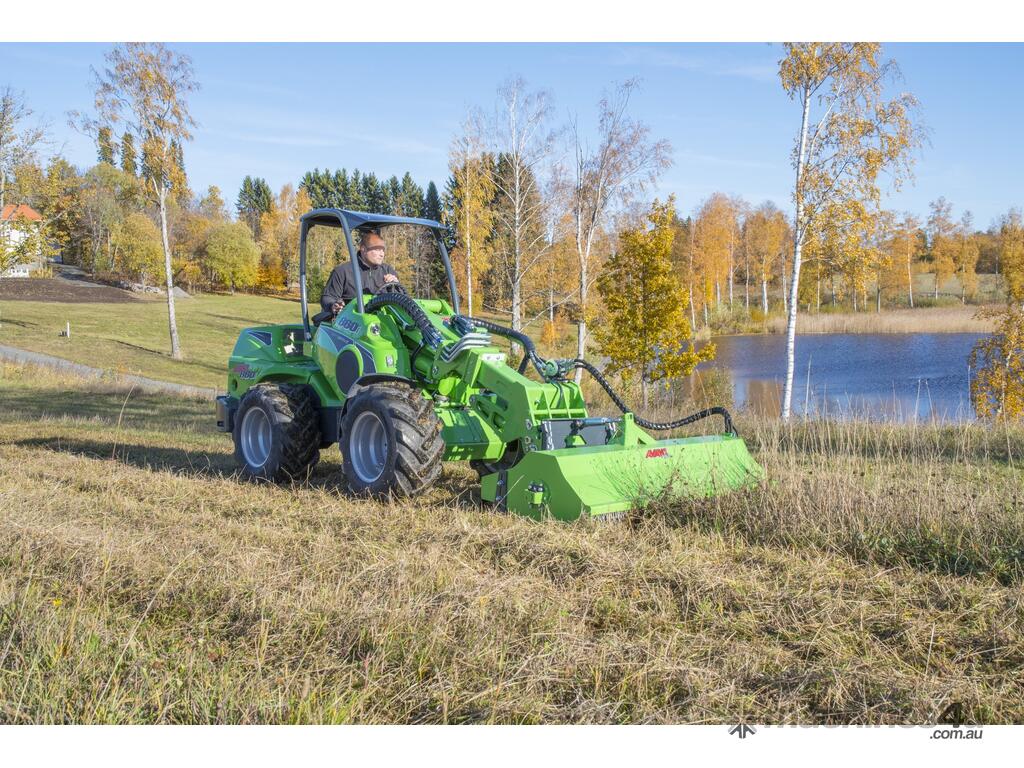

- Over 200 attachments available
- Made in Finland
- Options available to customise loader
- Cab options available
- Lift capacity 1,900 kg
- Lift height 3.5 m
- Engine power 57 hp
- Drive speed 30 km/h
- Kohler KDI Engine

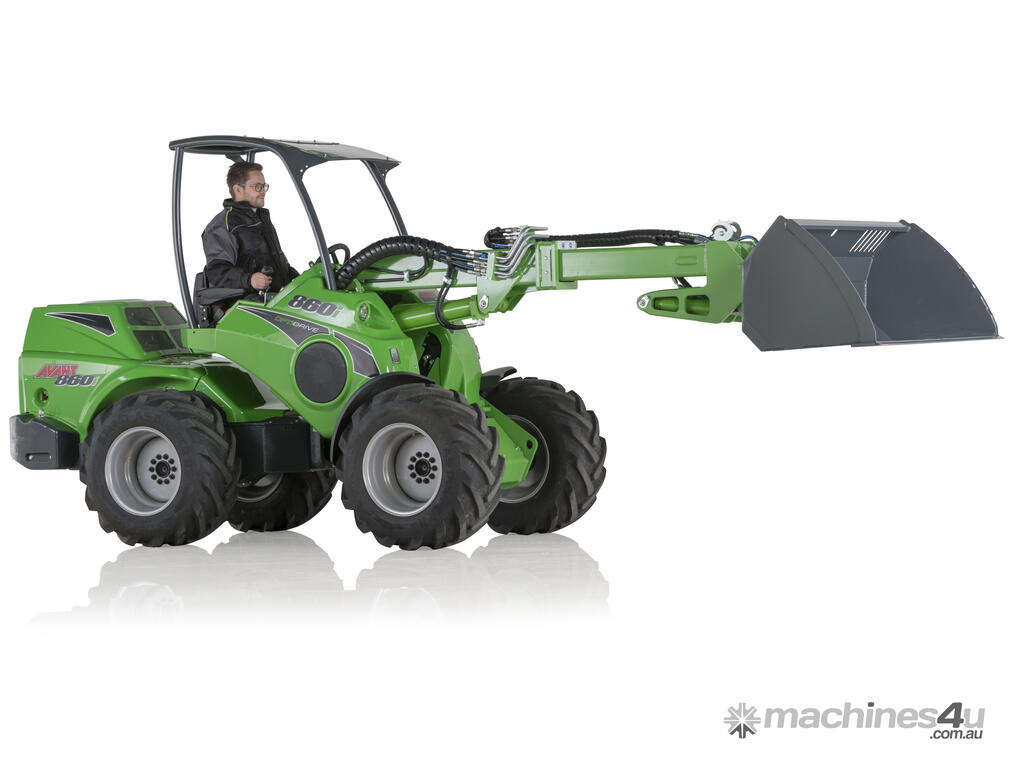

- Telescopic Boom
- Hydraulic Parking Brake
- Boom self levelling
- Boom floating
- Two drive speeds
- Large 17" wheels as standard

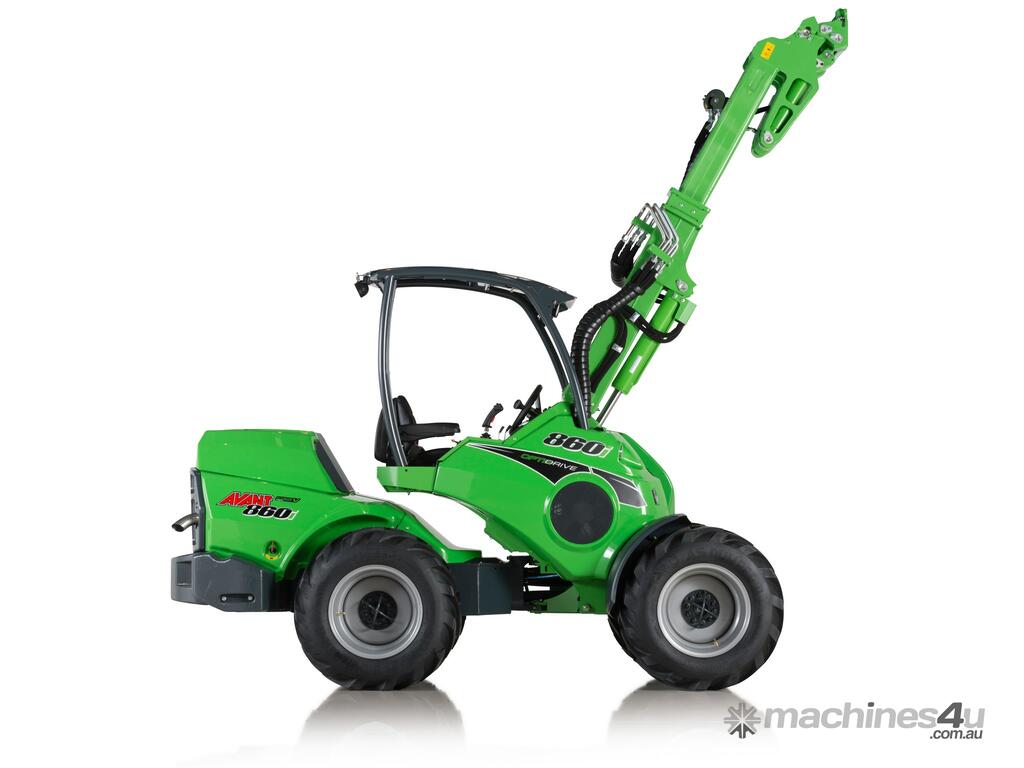

- Greater reach with Avant's signature telescopic boom
- Optidrive™ drive circuit gives more power for the drive and hydraulic attachments.
- Full suspension heated seat with seat belt and hand rests
- Option new vibration insulated and low-noise level GT cab available
Specifications
• Length: 3395 mm
• Width: 1490 mm
• Height: 2200 mm
• Weight: Open Cab 2,540 kg GT Cab 2,790 kg
• Transmission: hydrostatic, Avant OptidriveTM
• Drive Speed: max. 30 km/h
• Auxiliary hydraulics: 80 l/min
• Turning Radius: inside/outside 1370/2990 mm

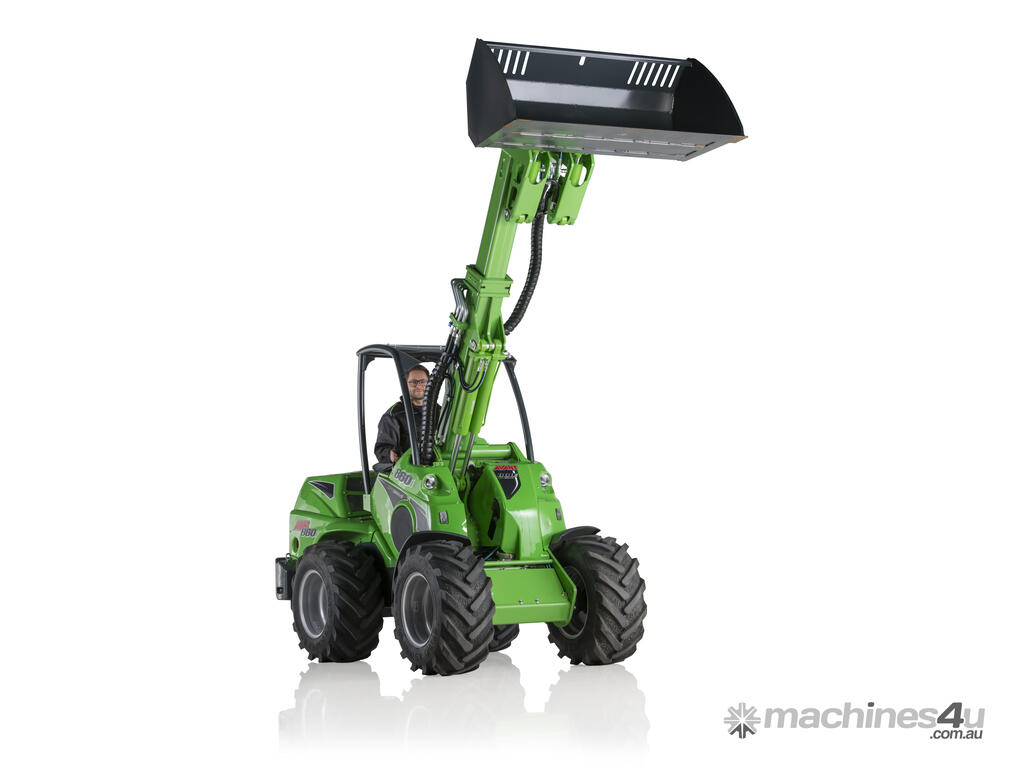

• Lifting Height: 3500 mm
• Tipping Load: 1900 kg
• Breakout Force 500 mm 2200 kg
• Engine: Kohler KDI 1903TCR
• Engine Output (ECE R120): 42 kW (57 hp)
• Torque: max. 220 Nm 1500 rpm
• Fuel Type: Diesel
• Articulated chassis allows driving over sensitive surfaces without marking
• Extra Worklight Kit and Beacon Road Lighting Kit
• Easy side access into cab and 360° visibility
