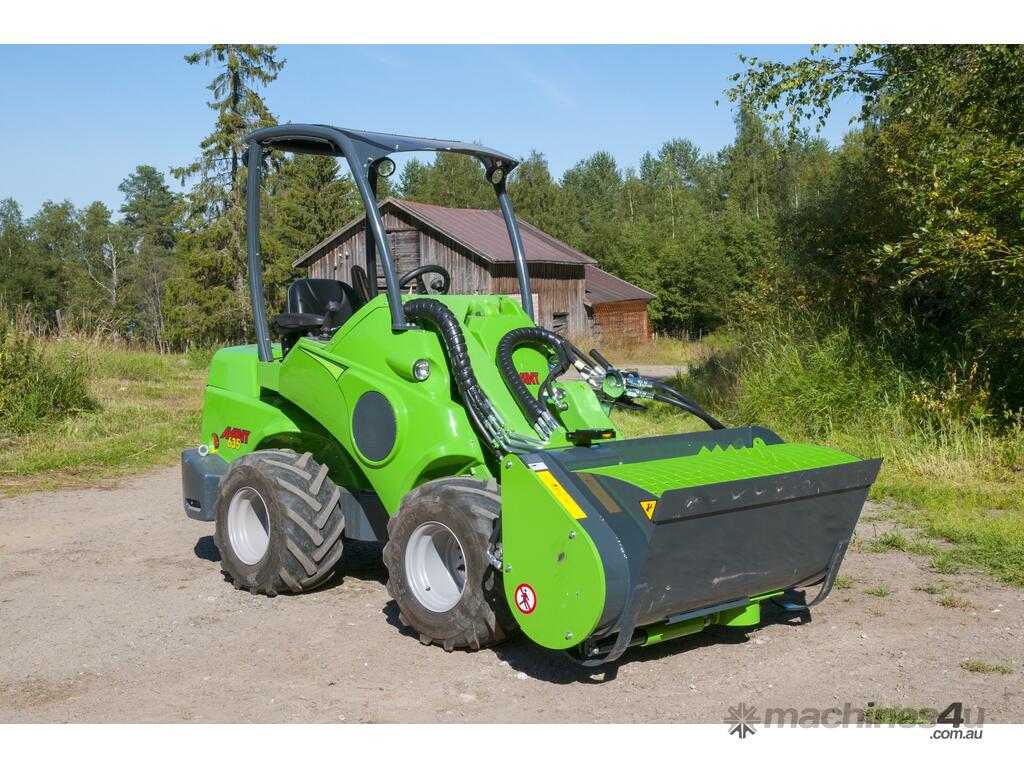

Avant Concrete Mixing Bucket

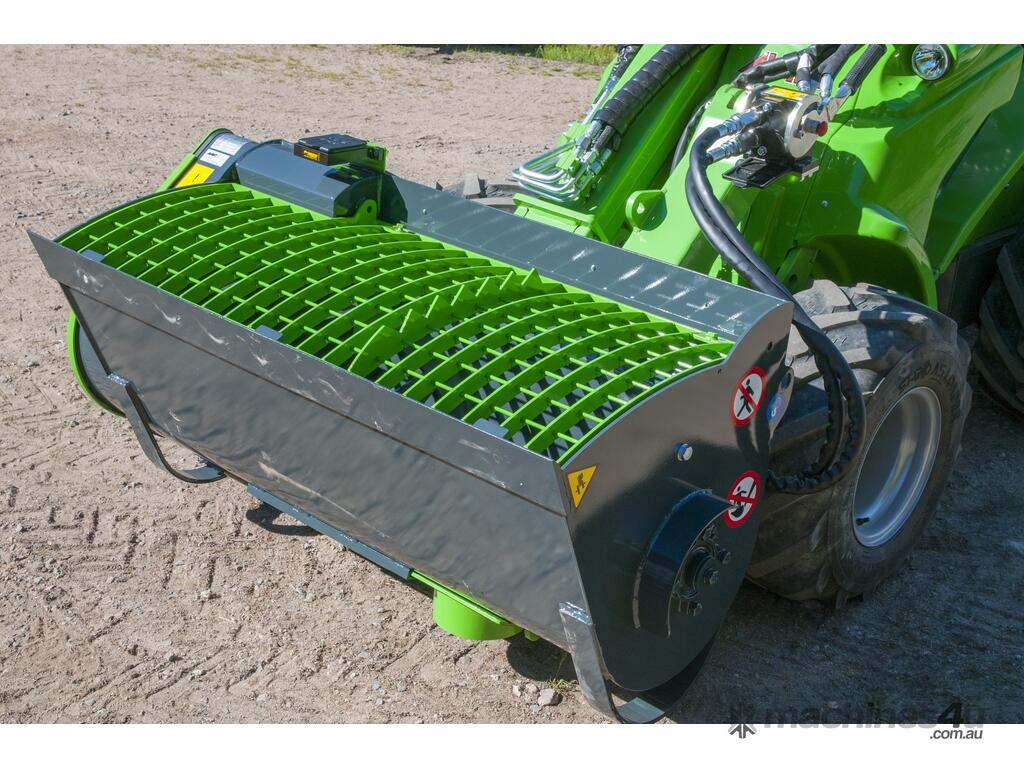

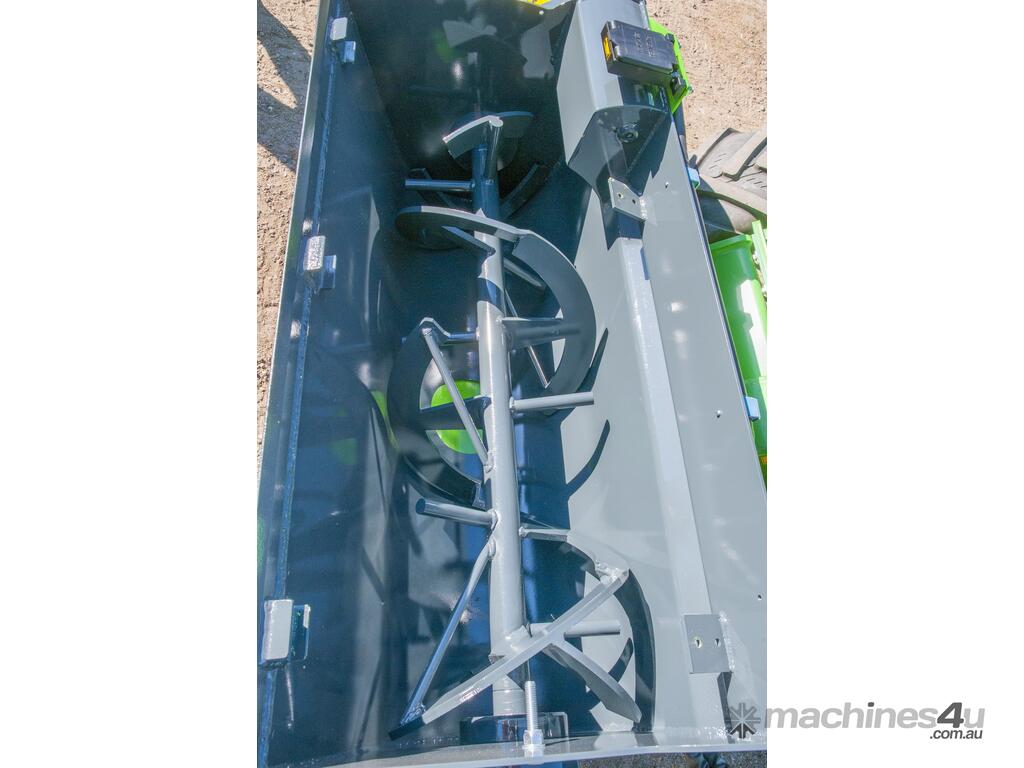

The Avant Concrete Mixing Bucket attachment is handy when you need to make concrete on site, especially if you don’t have electricity, or when you need to transport or lift the concrete to hard to access areas. The new model is equipped with a 400 mm screw shaft and a guard grill on the bucket.

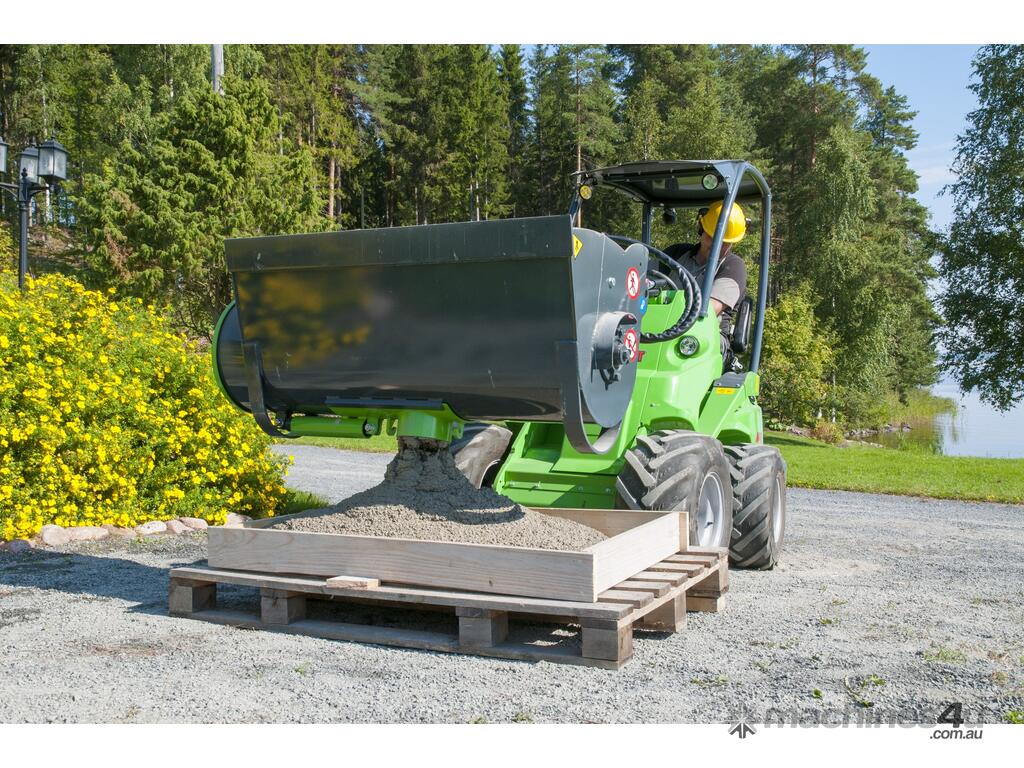

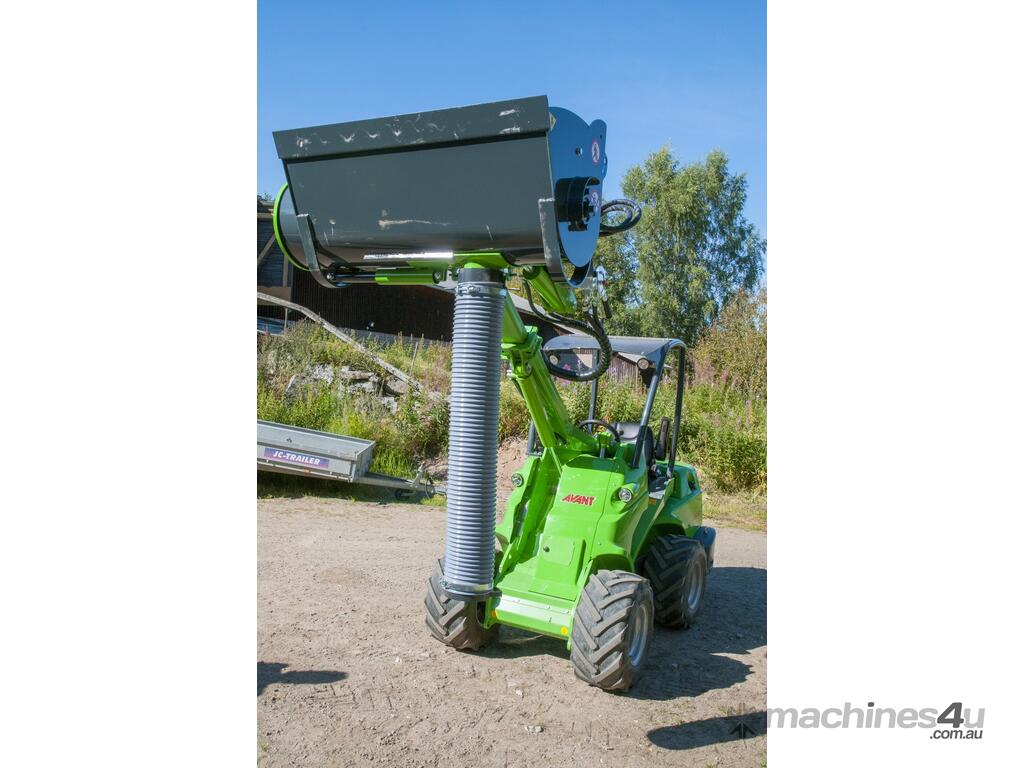

bucket is emptied from the bottom hatch in the middle of the bucket or in the other model on the left side of the bucket. Hatch opening is powered by a hydraulic cylinder controlled with an electric directional valve, operation from driver’s seat with an electric switch. The bucket is also equipped with a flexible emptying tube which mounts on the bottom hatch. This enables pouring of the concrete further away from the bucket.

- Easy and efficient way to make concrete in places where electricity is not available
- The mixed concrete is easy and effortless to transport and pour into desired place

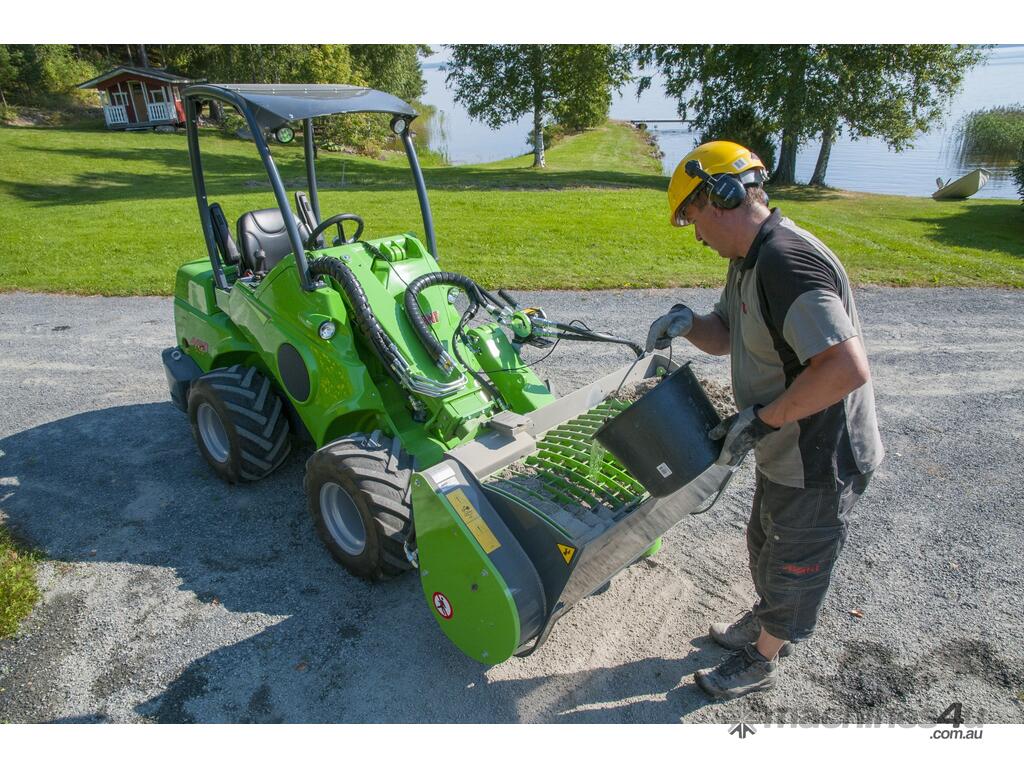

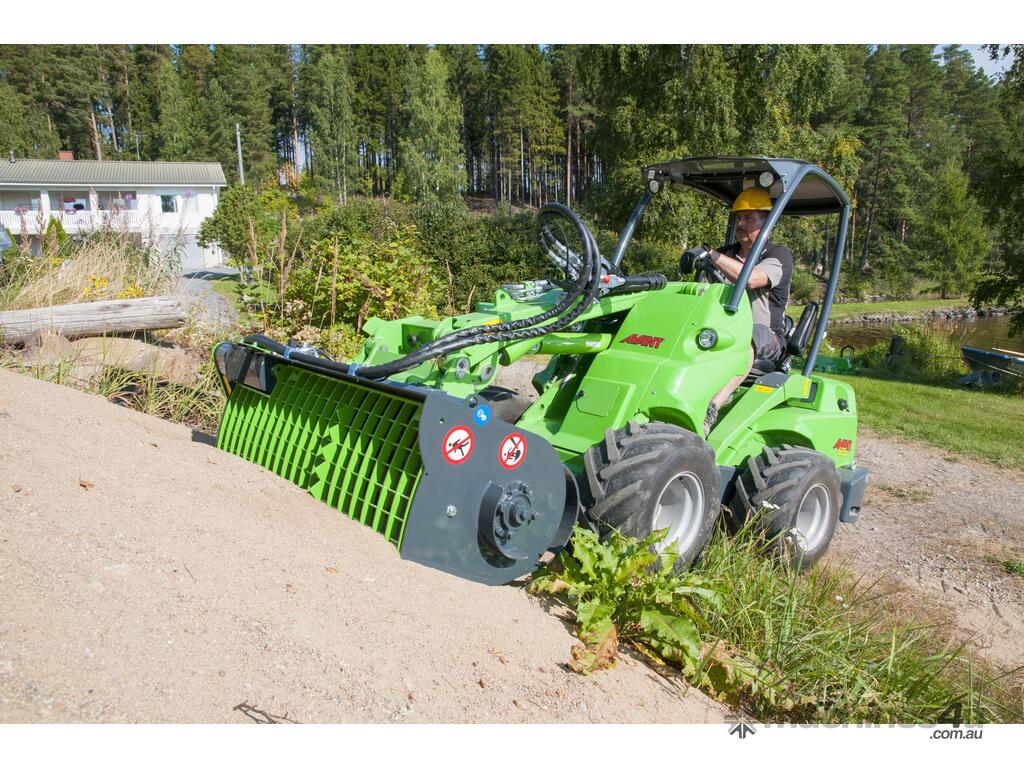

- Sand can be taken in the bucket from the ground

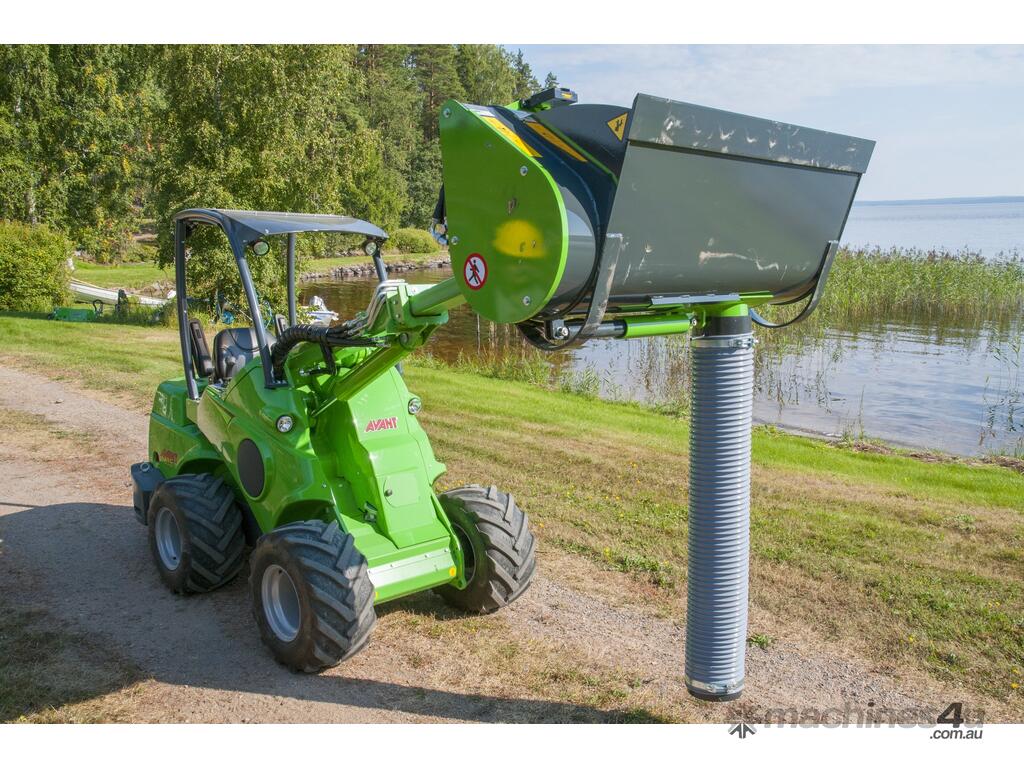

- Concrete can be ejected up to 2 m height.

Technical Specifications
- Total width 1490 mm
- Screw shaft diameter 400 mm
- Volume 210 l
- Empty weight 299 kg
- Weight at max. capacity 794 kg
- Unloading hatch diameter 180 mm
- Emptying tube length 1350 mm
- Product no, discharge in the middle A36473
- Product no, discharge on the left A37241
