Avant High Tip Bucket for Avant Mini Loaders

Avant High Tip Bucket for Avant Mini Loaders

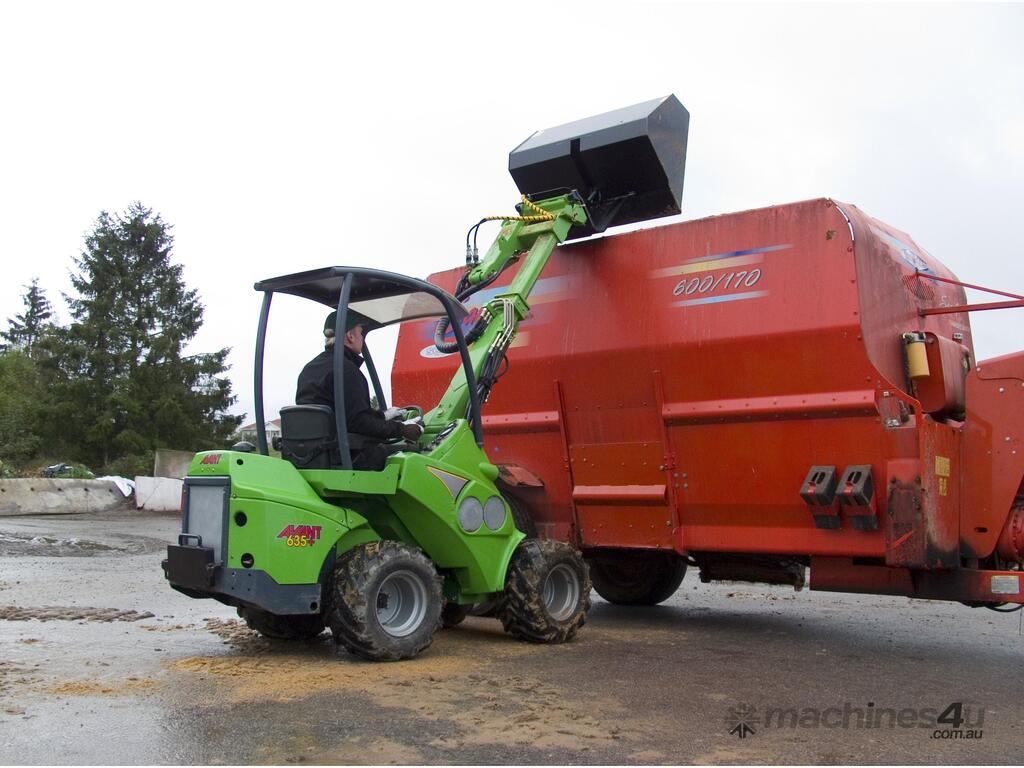

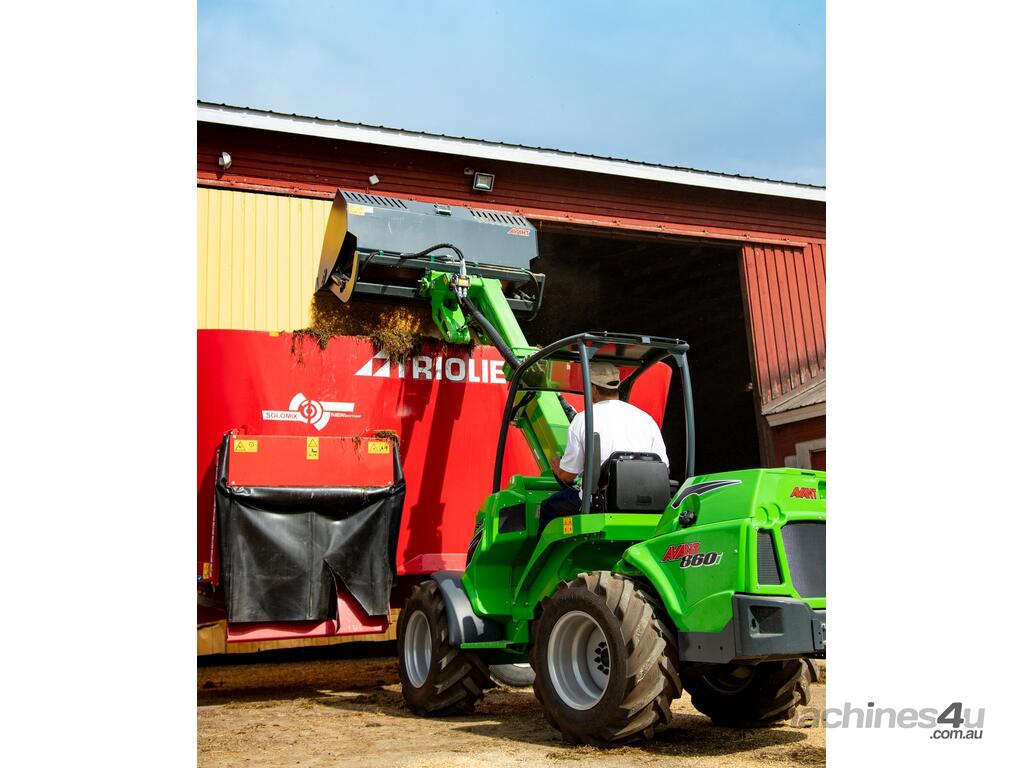

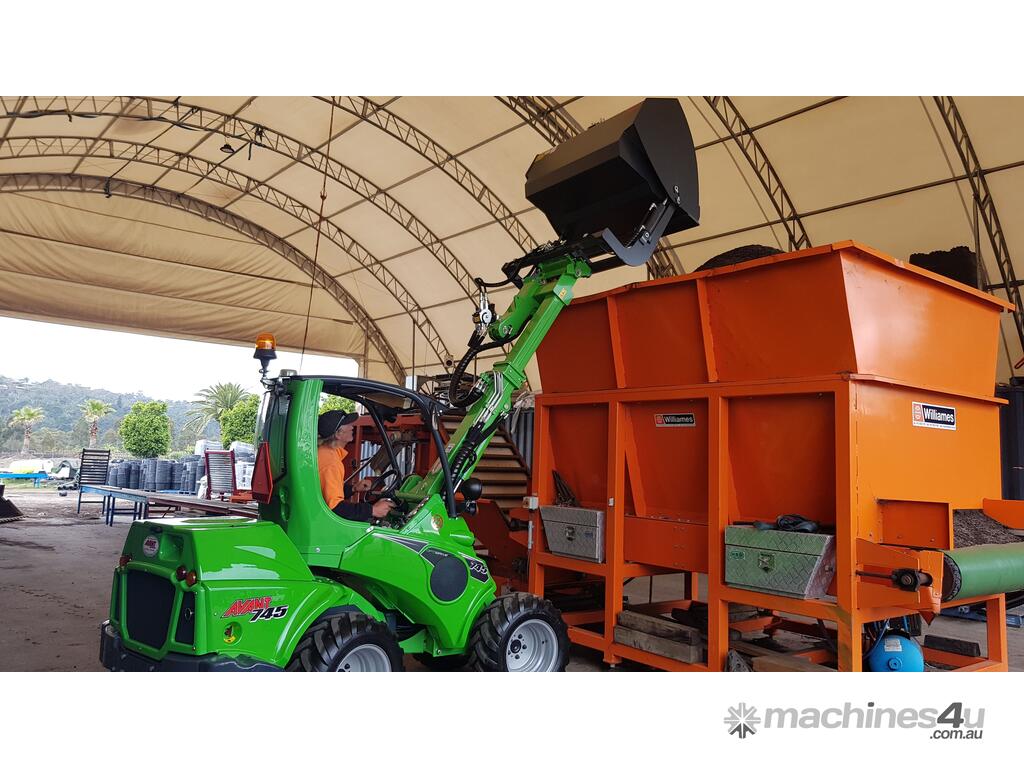

The Avant High Tip Bucket attachment is the right choice when you need to reach higher and longer to tip material in to high sided trucks, trailers and storage. It is ideal for handling large volume materials at high levels. The bucket is equipped with a hydraulic cylinder that pushes and tips the bucket over its front edge, which gives considerably more tipping height than with a normal bucket.

- High tipping height
- More volume than a general bucket – excellent for loose and light material loading
- Increases tipping height of mini loader

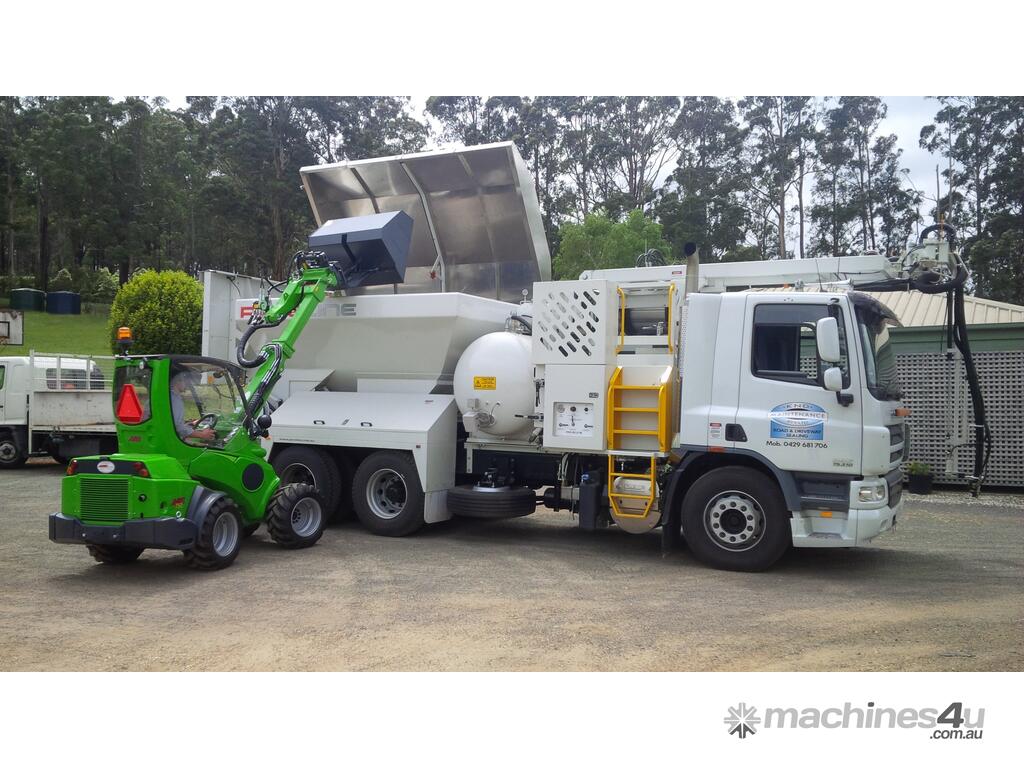

- Ideal for tipping into high sided trucks

Maximum Tipping Height on Avant Compact Articulated Mini Loaders
200 series: 1680 mm
400-600 series: with telescopic boom 3100 mm
600 series: 3150 mm
700 series: 3500 mm
800 series: 4000 mm

Width Volume Weight
1050mm 1501 120kg
1280mm 3501 160kg
