Awea AF-860APC Twin Pallet Vertical Machining Centre

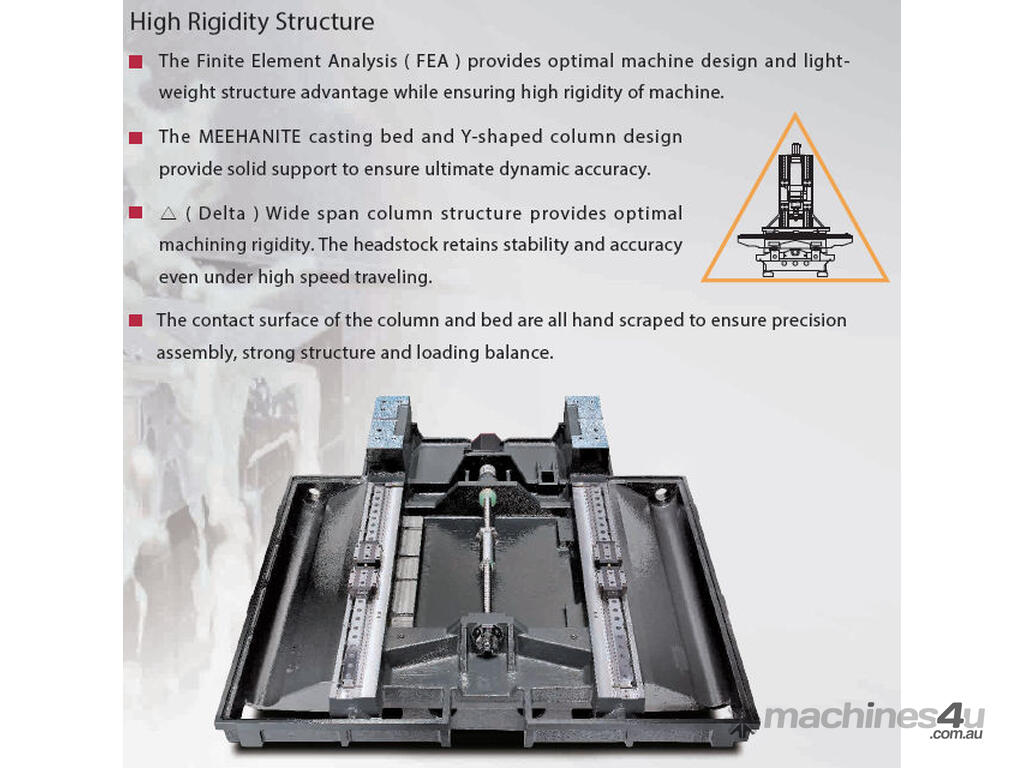

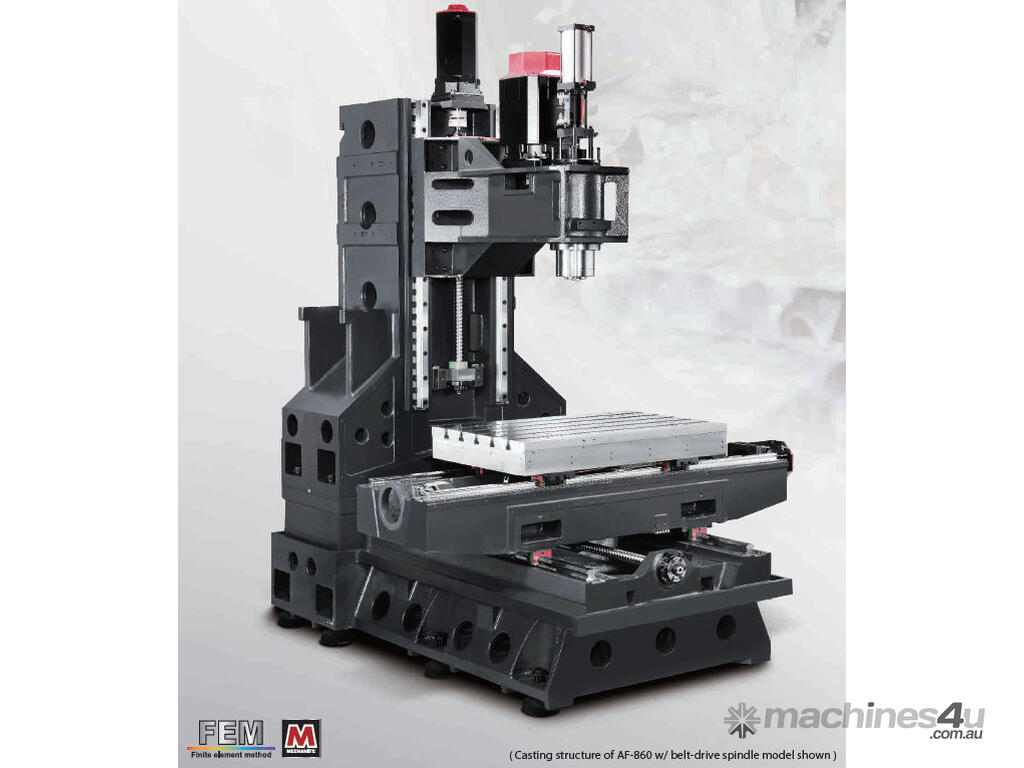

The AF-860APC is a super versatile VMC allowing continuous machine operation using a twin pallet configuration! Powerful 8000rpm / 15hp Spindle Motor, Super High Speed 48m/min Rapid Traverse with a Rigid Frame Design!

Ron Mack Machinery are excited to announce the launch the extensive range of High Quality CNC Machine Tools from AWEA Mechantronics into the Australian market with special introductory pricing, $$$$’s off the recommended selling price so get in quick and request a quote.

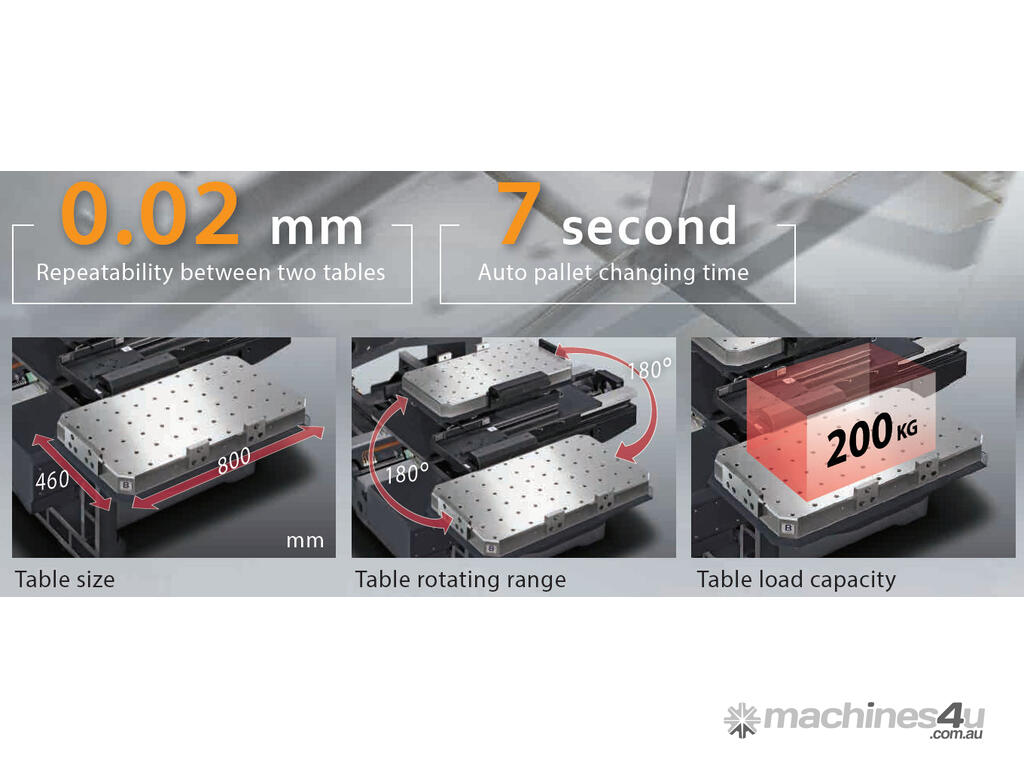

Table size (mm): 2 x 800 x 460
Max table load (kg): 2 x 200
Travels X, Y, Z (mm): 800 x 600 x 600
Rapid traverse X, Y / Z (m/min): 32 / 24
Cutting feed range (m/min): 1 ~ 10,000
Spindle taper: BT 40

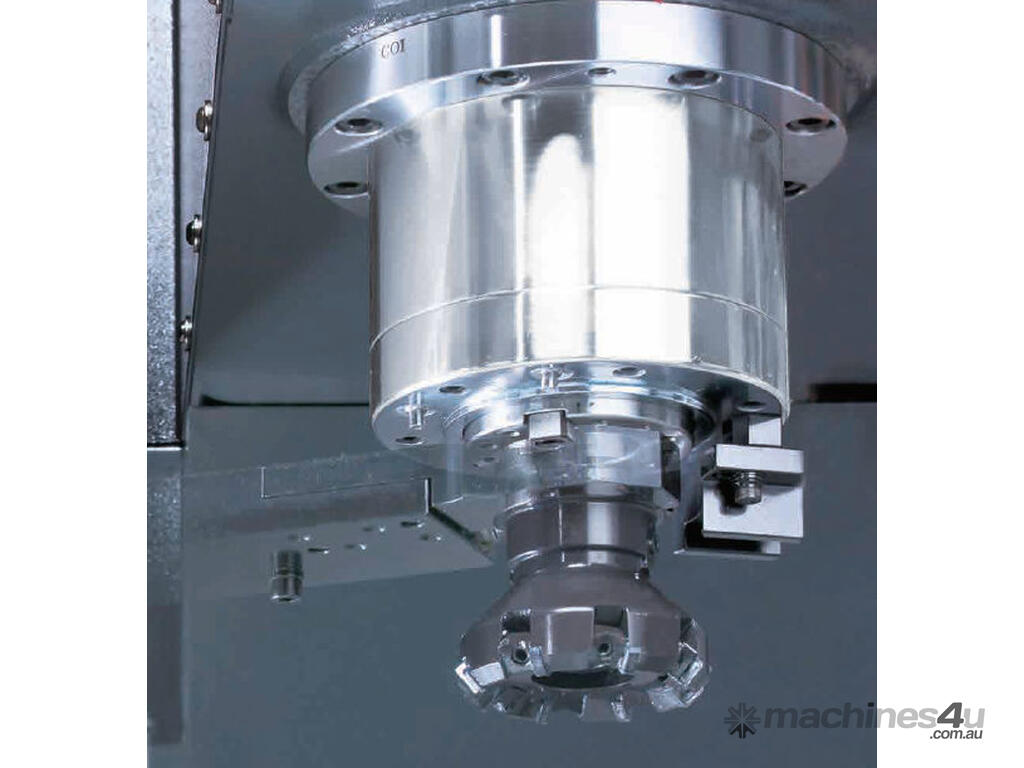

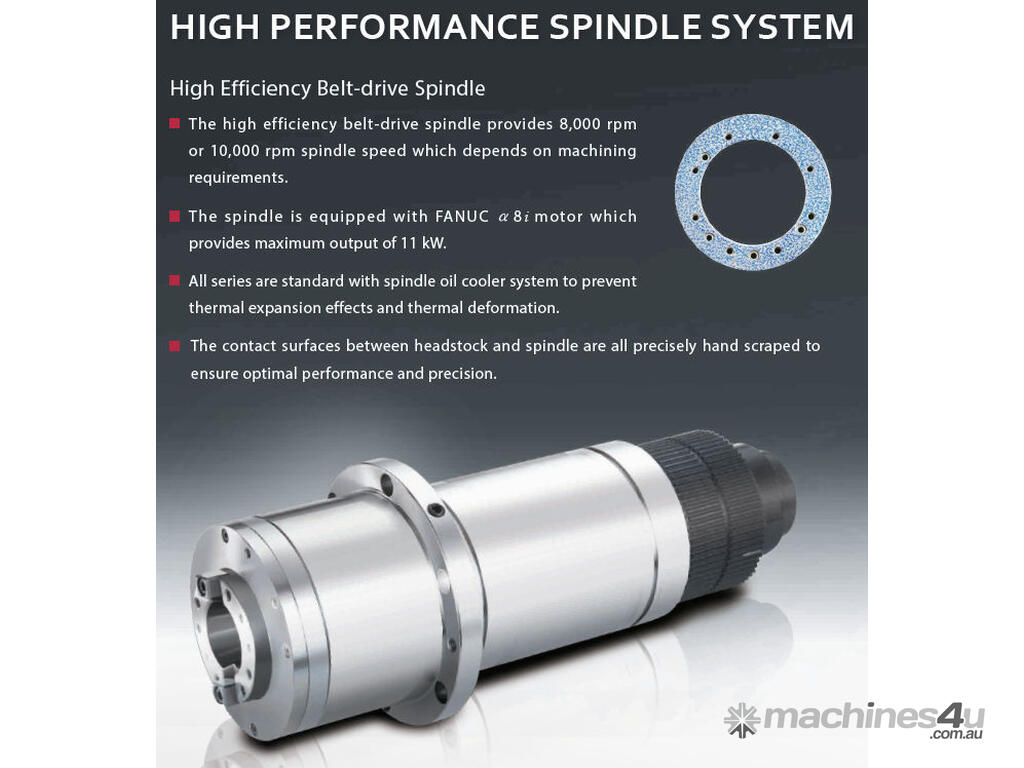

Spindle speed (rpm): 8,000
Spindle motor (kw): 7.5 / 11

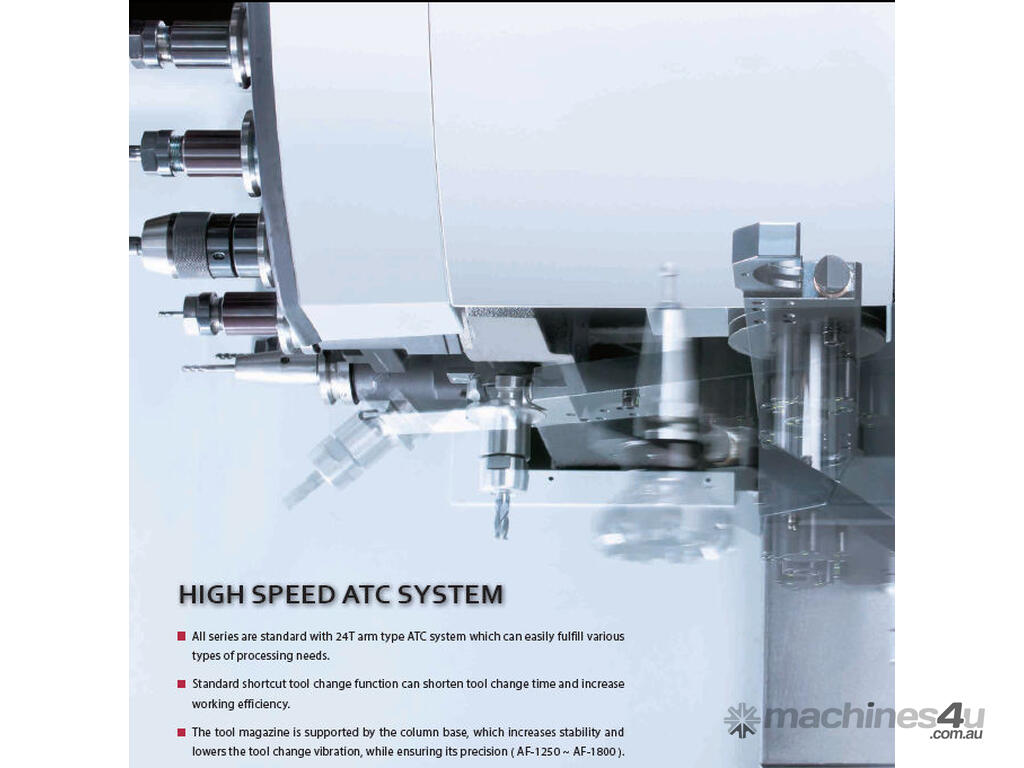

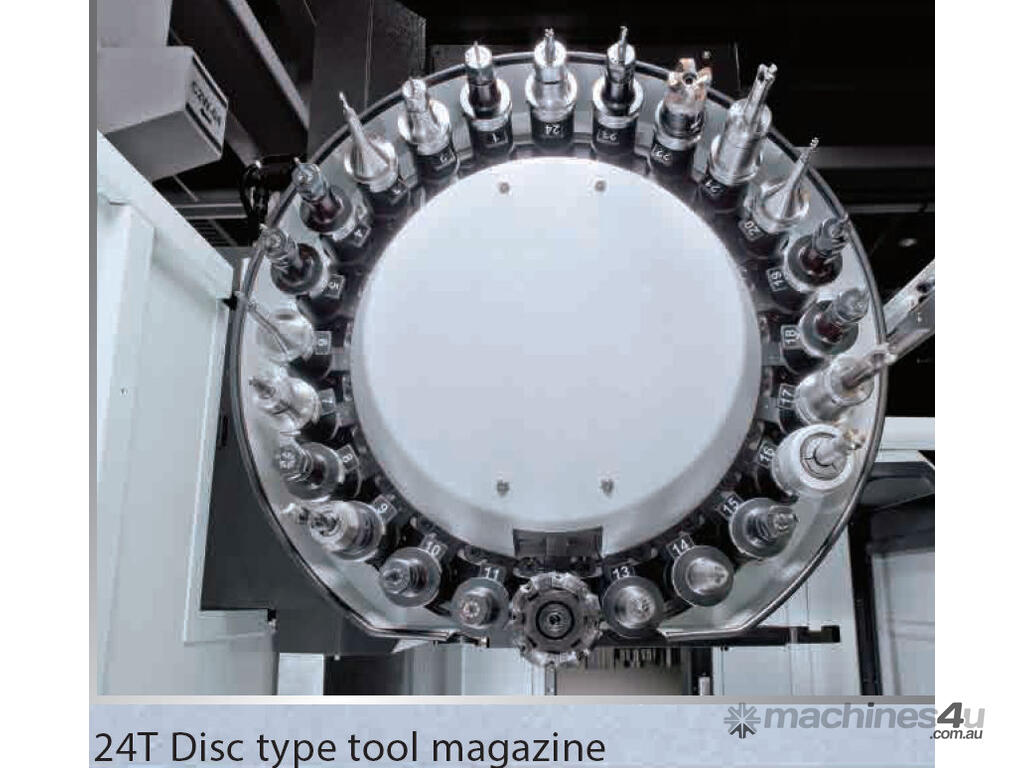

ATC (arm type): 24 tools
Controller: Fanuc 0iMF with 10.4” Screen and MGI (Siemens & Heidenhain also available)
Machine weight (kg): 6,500

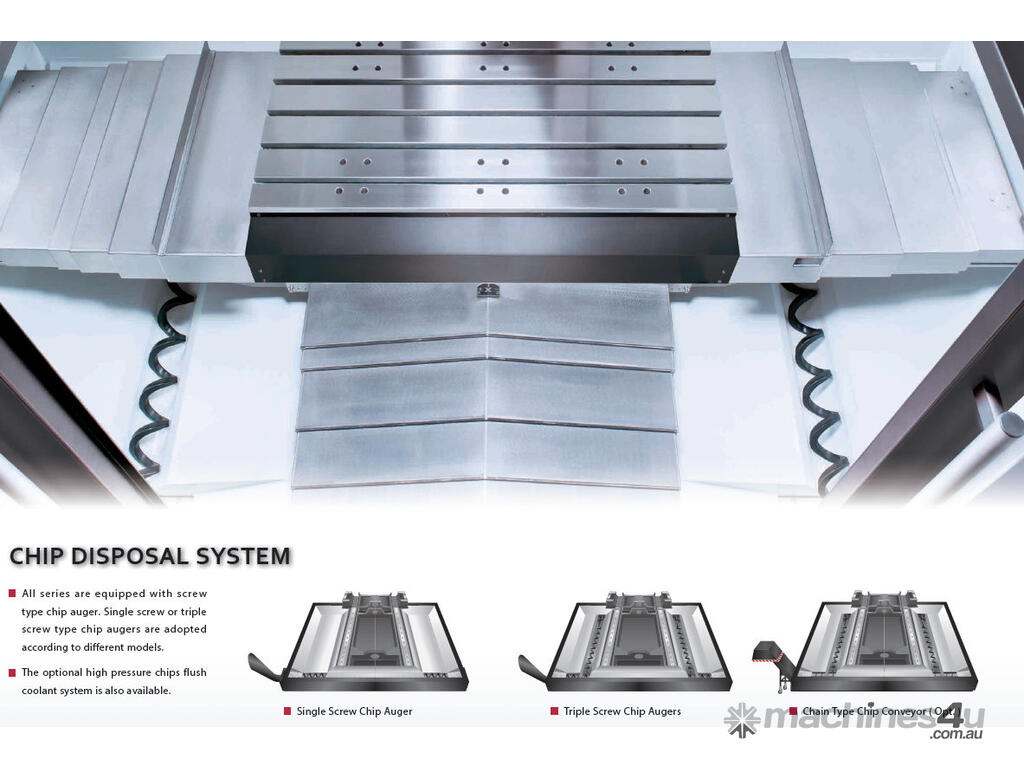

C/w: A powerful 15hp spindle motor, prepared for Coolant Thru Spindle, high speed Arm Type ATC, coolant flood ring around the spindle, spindle oil chiller, integrated chip augers, chip flushing system, preparation for 4th axis, oil skimmer, integrated air gun and coolant wash down gun. Many other options available on request.

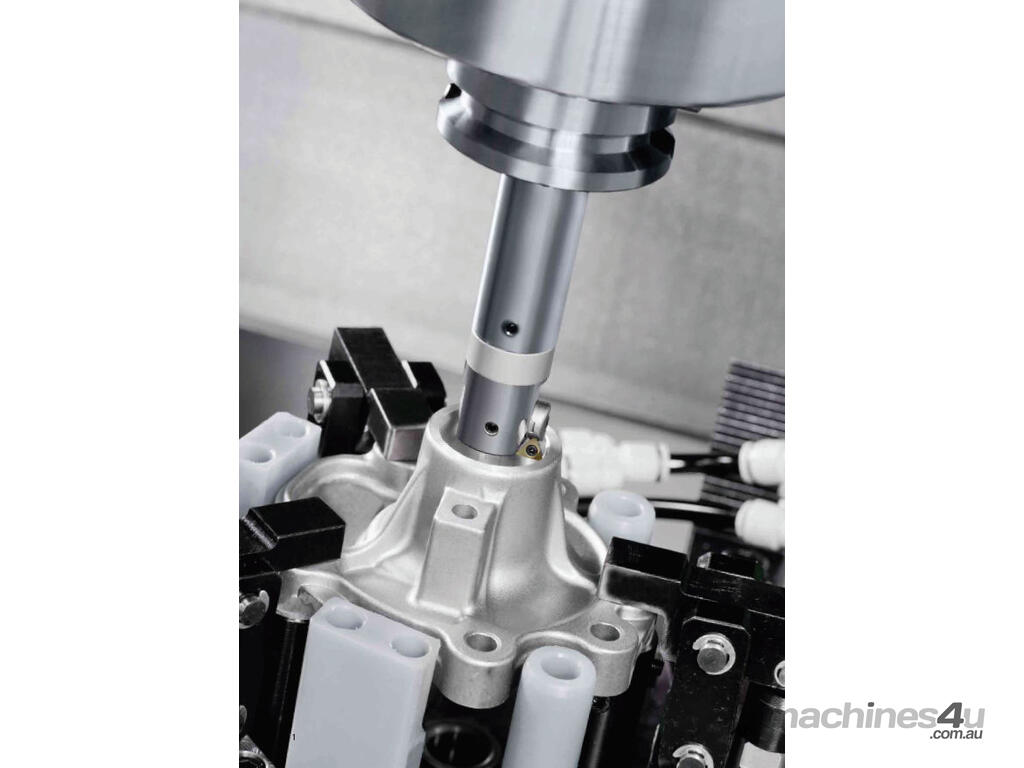

Numerous units have been installed in Japan at world famous Japanese auto parts machining plants for processing of automotive intake manifold, gear box shell and other key components. Because of AWEA’s high quality and high reliability performance, the number of installed machines continues to grow.

For many years Awea Mechantronic have been regarded as the No 1 manufacturer of Double Column Machining Centres in Taiwan and we now offer full sales and support for their comprehensive CNC range including: Vertical Machining Centres, 5 Axis Machining Centres, Horizontal Machining Centres, CNC Horizontal and Floor Type Boring Machines, Double Column and Gantry Machining Centres. Awea are the sister company of Goodway and make a logical inclusion into our growing range of high quality CNC products.

Awea Mechantronic was established in 1986, is now one of Taiwan's largest professional CNC machine manufacturers. The machine travel range spans from 510 mm all the way to 20,000 mm. Product line includes 5-axis, five-sided, vertical, horizontal, and other types of CNC machines. Especially for the large-scale bridge type machines, they are widely recognized by the global market and enjoy the "Bridge Mill Family" reputation.

Mr. Edward Yang has been the chairman of the company since 2002. With the help of his professional background, and the business philosophy of "Innovation, development, and pursuing excellence", AWEA Mechantronic has grown nearly tenfold over the past 15 years, with excellent brand awareness across the United States, Germany, Italy, Turkey, Spain, South Korea, and China.

Through sustainable operation over the past two decades, Awea has established a comprehensive management system integrated with research, designing, manufacturing, assembling, testing, monitoring, sales and services. Globally, Awea is an extensively certified company passing ISO 9001, ISO 14001 and CE and so on. Domestically, Awea is not only a highly awarded company but also one of few machine tool companies listed on the Taiwan Stock Exchange.
