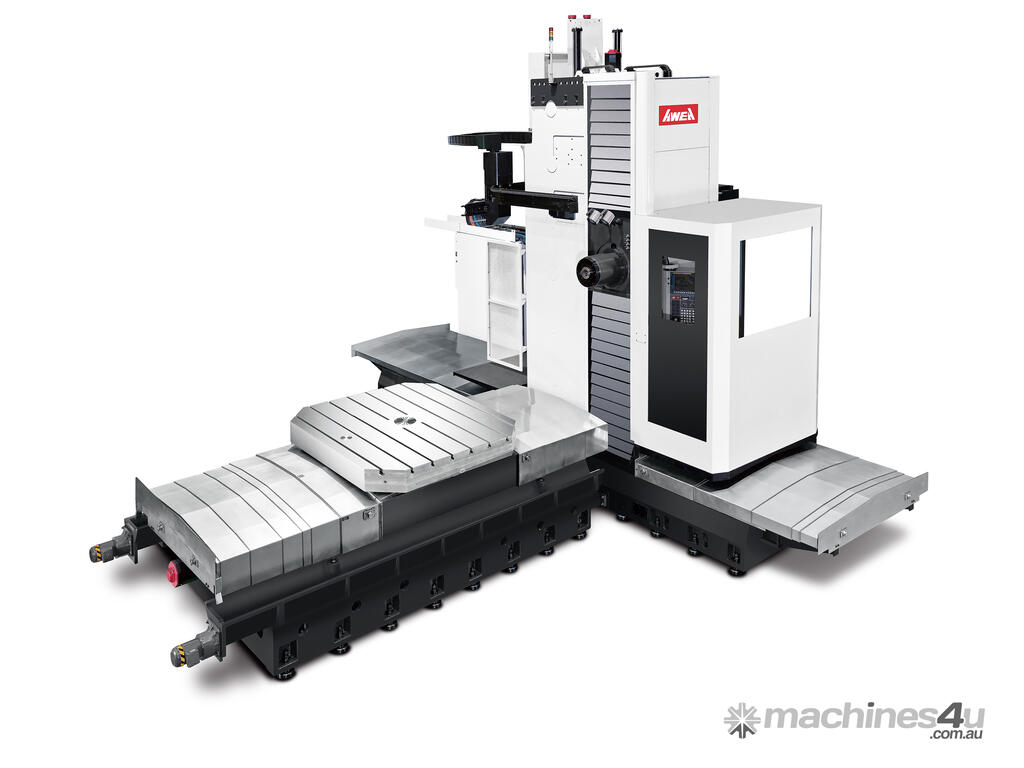

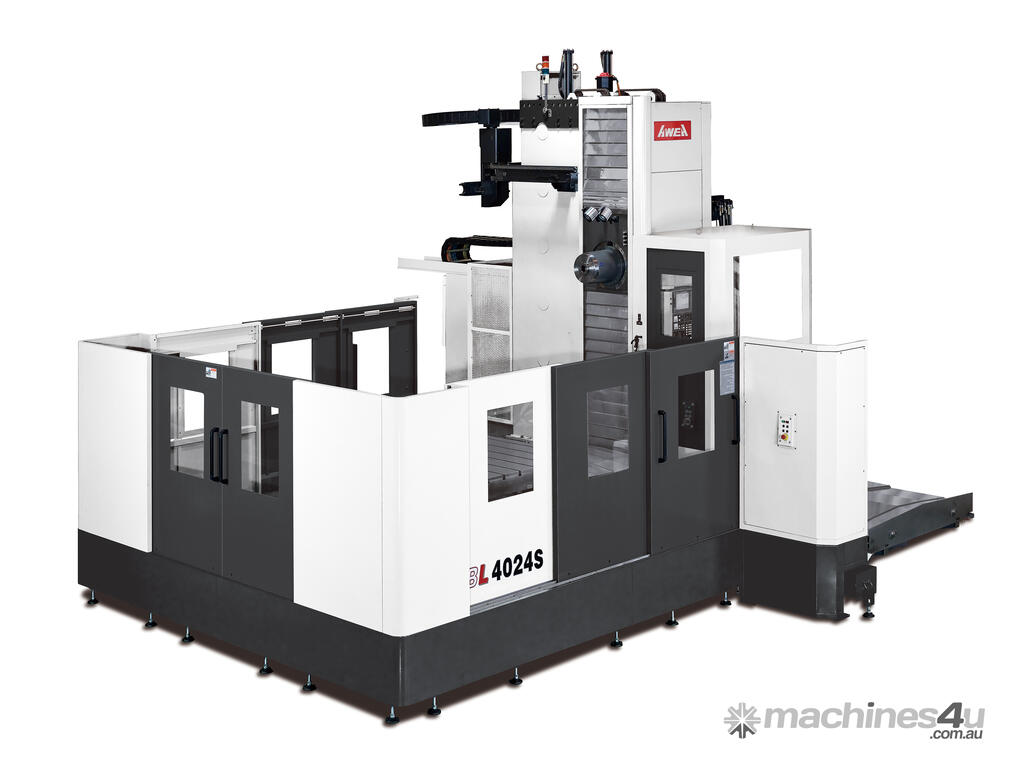

Awea BL Series Horizontal Boring Machine

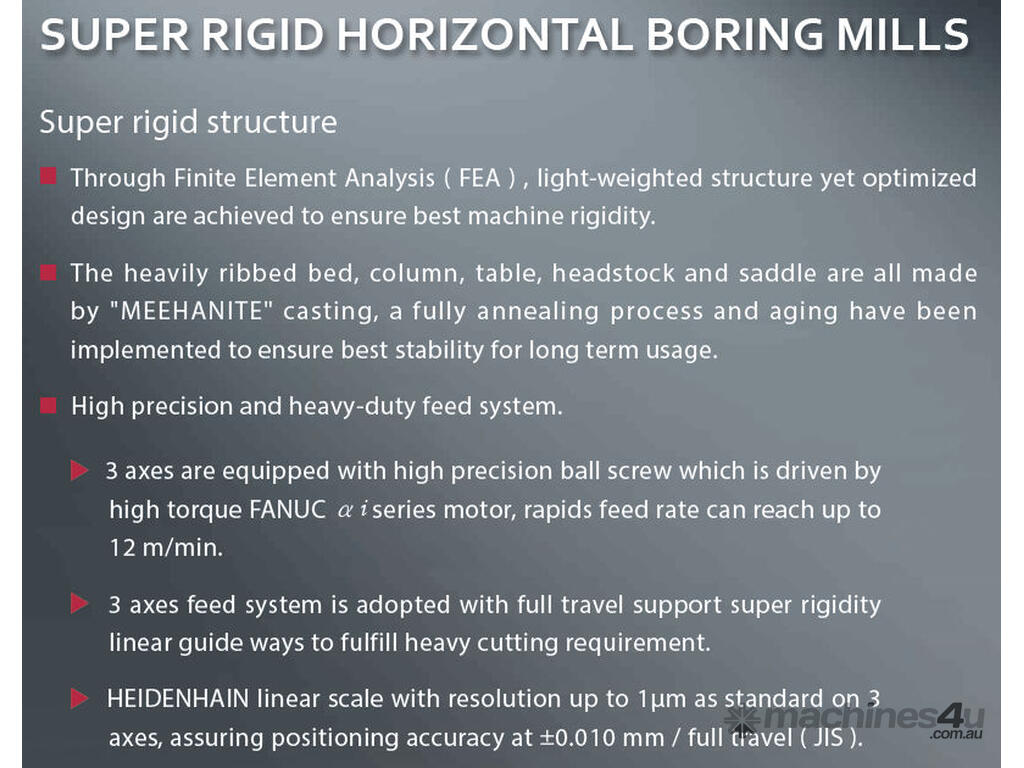

From Awea, the No 1 DMC manufacturer in Taiwan, the Compact Floor Type, CNC Boring Machine, BL Series! Available with X travel up to 6,000mm and combining a super rigid structure, heavy duty load capacity rotary table (floor plates also available, or a combination of both) and a high torque spindle (BL-S) or high speed spindle (BL-FM) along with our innovative design, professional assembly and hand scraping skills the BL series can easily overcome most stringent requirements of heavy duty machining but also high precision mould milling to meet all the needs for today and the future. Looking for value without sacrificing quality? Look no further !!!

Ron Mack Machinery are excited to announce the launch the extensive range of High Quality CNC Machine Tools from AWEA Mechantronics into the Australian market with special introductory pricing, $$$$’s off the recommended selling price so get in quick and request a quote.

Travels X (mm): 2,000 ~ 6,000
Travels Y (mm): 1800 (2,400, 3,000 & 3600 optional)
Travels Z (mm): 1,300 (1,700 optional)

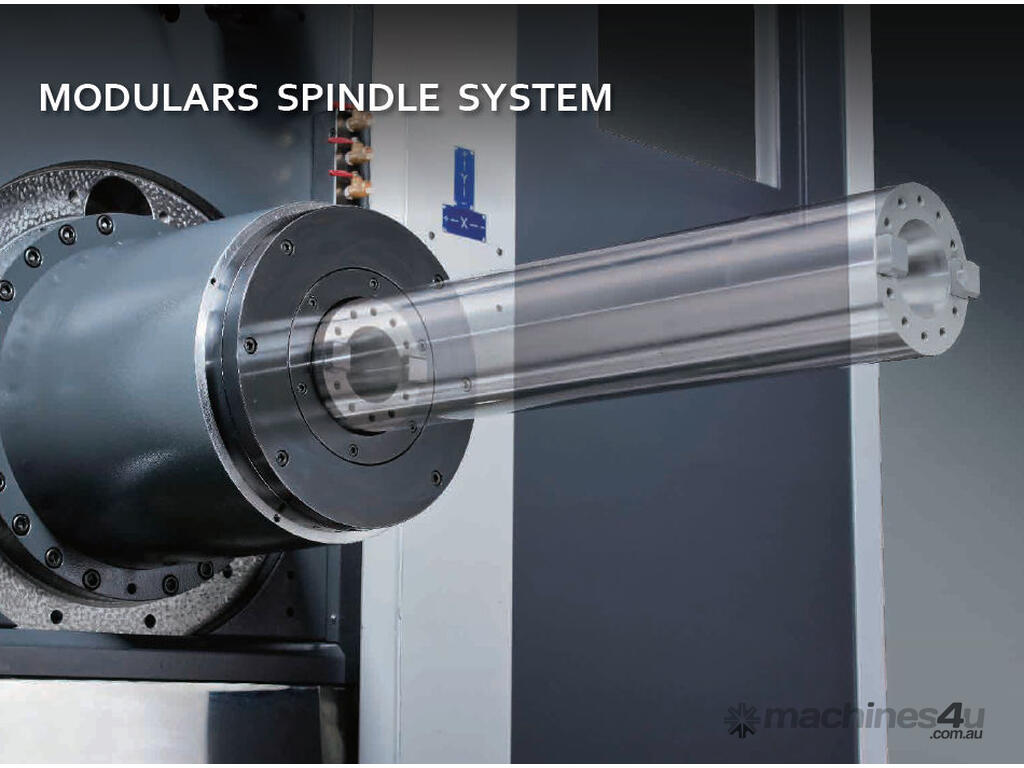

Travels W (mm): 600
Rotary table size (mm): 1,600 x 1,800 (2,300 x 2,500 optional)
Max table load (kg): 15,000 (20,000 optional)
Rapid traverse (m/min): 12

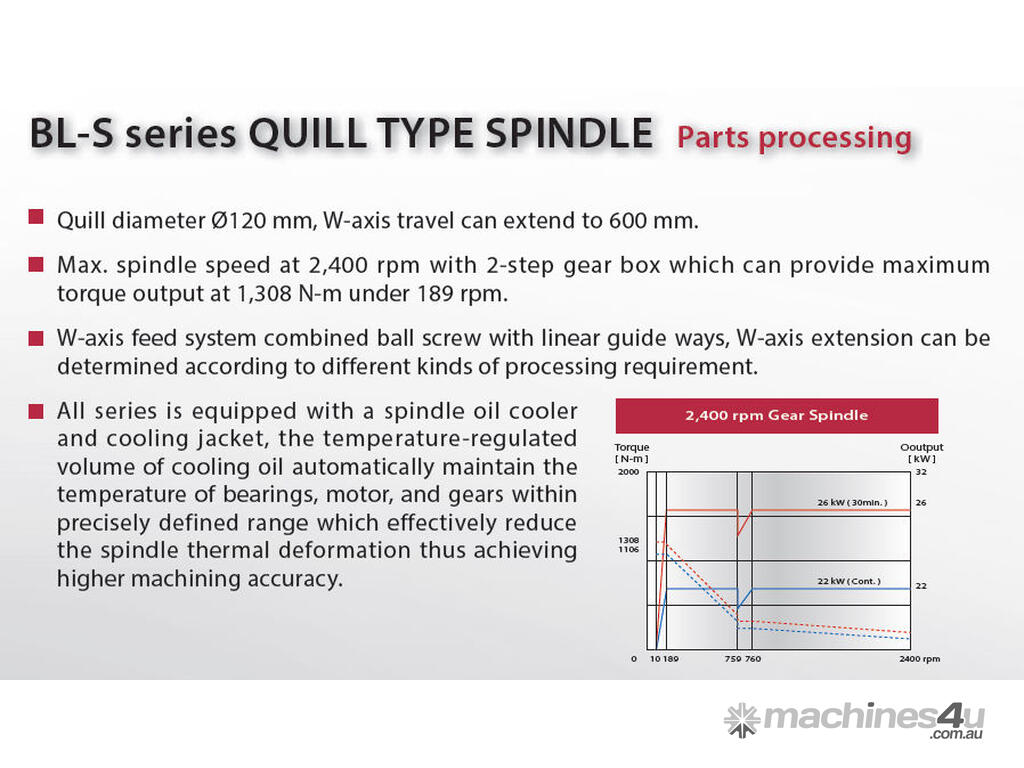

Spindle diameter (mm): 120
Spindle taper: BT 50

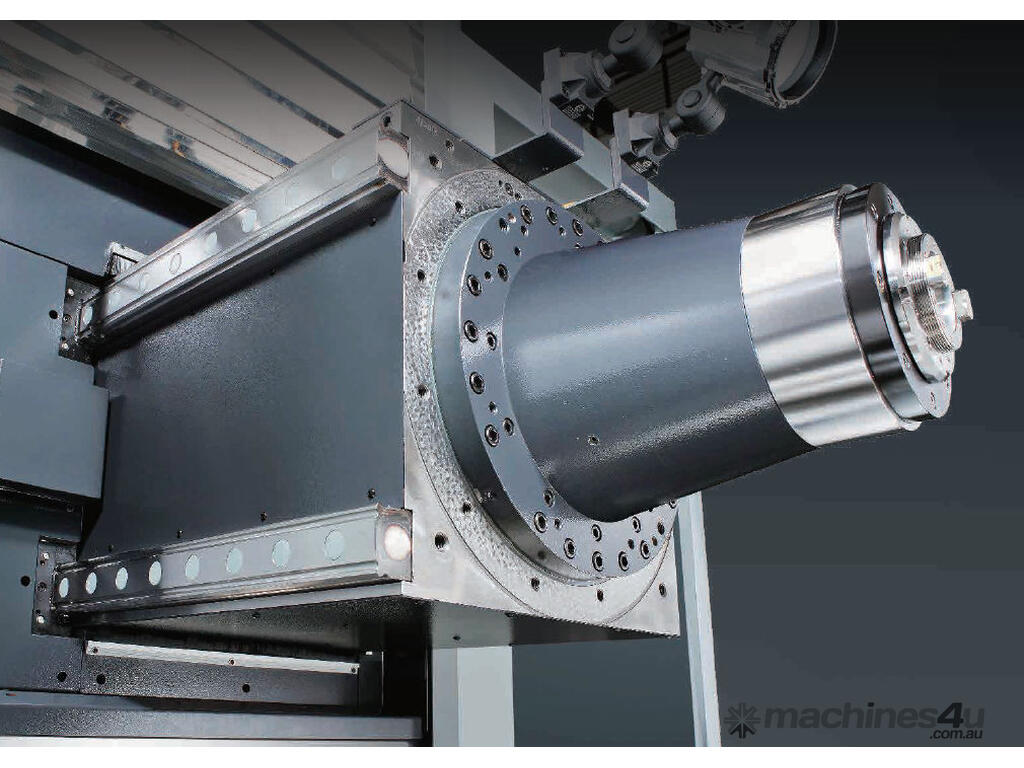

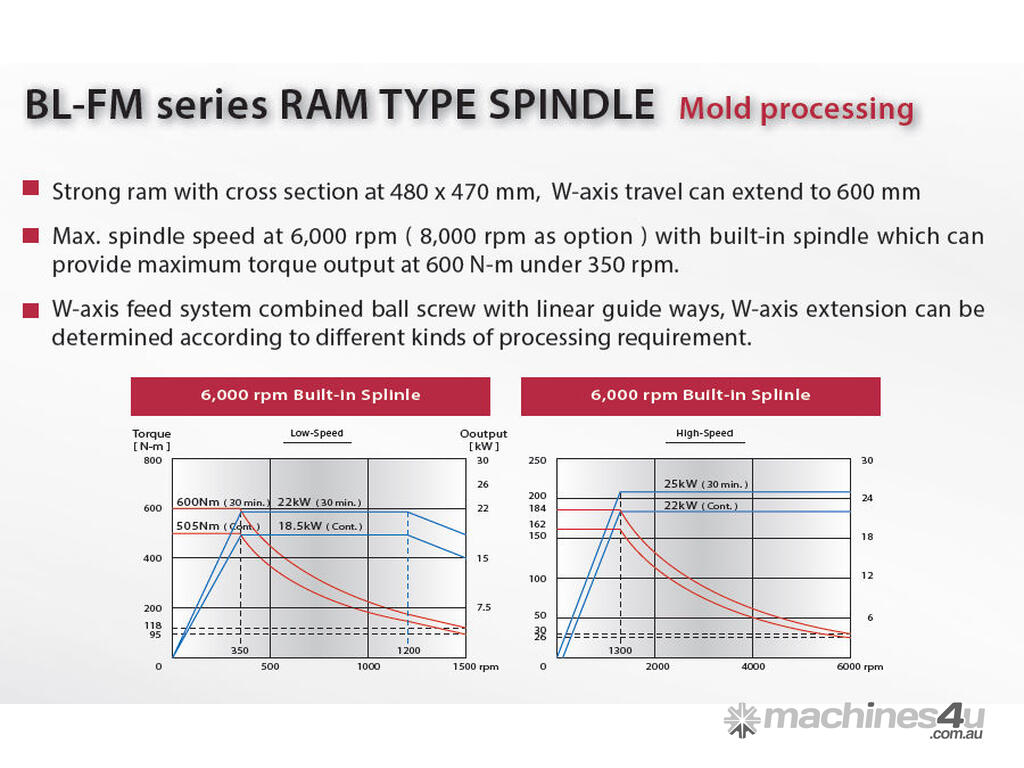

Spindle speeds (rpm): Quill type: 2,400 / Ram type: 6,000

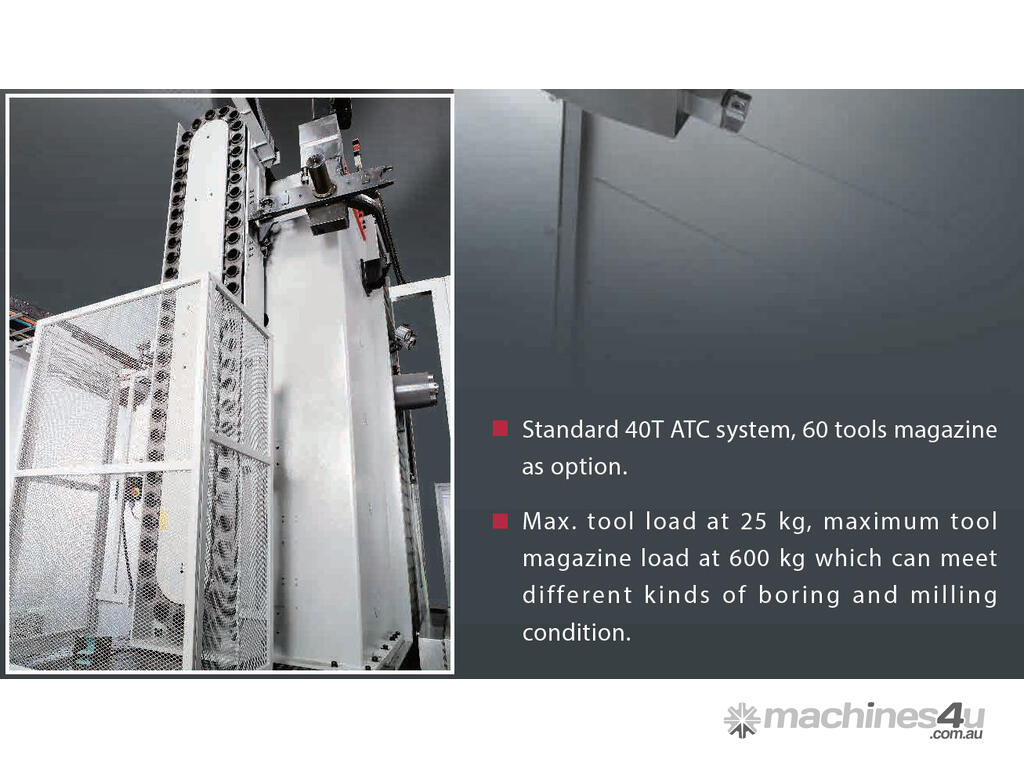

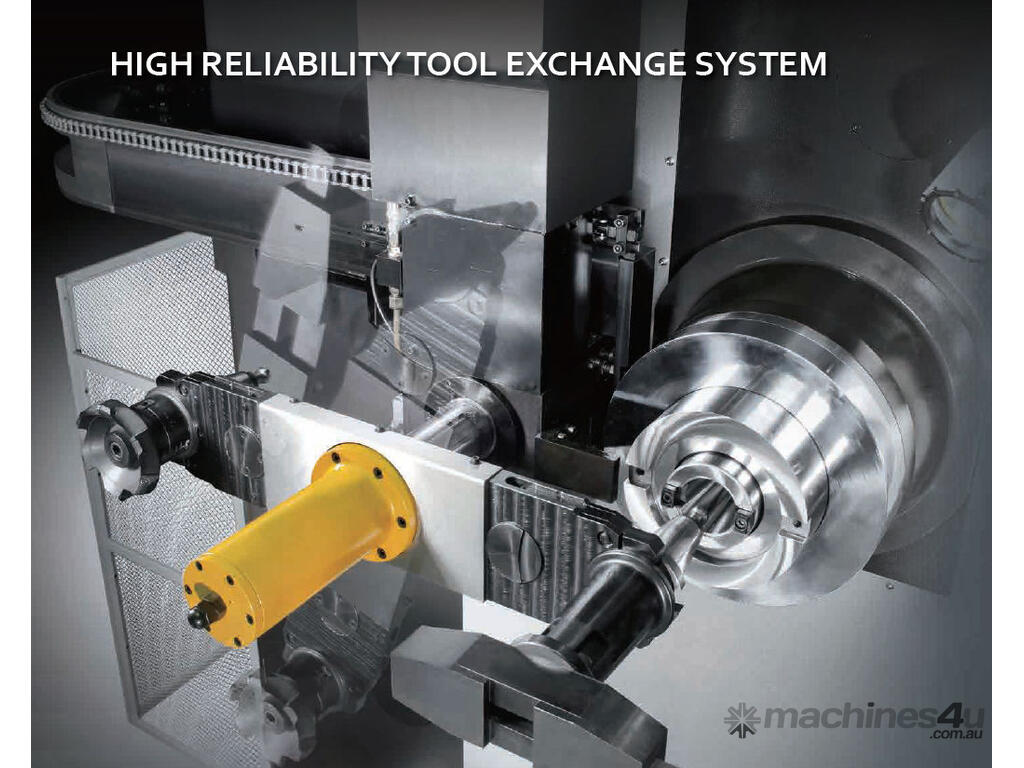

ATC: 40 tools
Spindle motor (kw): 22 / 26
Controller: Fanuc 31i (Siemens / Heidenhain optional)

C/w: 0.001° table indexing, linear feedback for X, Y & Z axes, 40 tool ATC, 2 piece table guards (full enclosure available), lift up chip conveyor, enclosed operator area, spindle oil chiller. Many other options are available.


For many years Awea Mechantronic have been regarded as the No 1 manufacturer of Double Column Machining Centres in Taiwan and we now offer full sales and support for their comprehensive CNC range including: Vertical Machining Centres, 5 Axis Machining Centres, Horizontal Machining Centres, CNC Horizontal and Floor Type Boring Machines, Double Column and Gantry Machining Centres. Awea are the sister company of Goodway and make a logical inclusion into our growing range of high quality CNC products.

Awea Mechantronic was established in 1986, is now one of Taiwan's largest professional CNC machine manufacturers. The machine travel range spans from 510 mm all the way to 20,000 mm. Product line includes 5-axis, five-sided, vertical, horizontal, and other types of CNC machines. Especially for the large-scale bridge type machines, they are widely recognized by the global market and enjoy the "Bridge Mill Family" reputation.

Mr. Edward Yang has been the chairman of the company since 2002. With the help of his professional background, and the business philosophy of "Innovation, development, and pursuing excellence", AWEA Mechantronic has grown nearly tenfold over the past 15 years, with excellent brand awareness across the United States, Germany, Italy, Turkey, Spain, South Korea, and China.

Through sustainable operation over the past two decades, Awea has established a comprehensive management system integrated with research, designing, manufacturing, assembling, testing, monitoring, sales and services. Globally, Awea is an extensively certified company passing ISO 9001, ISO 14001 and CE and so on. Domestically, Awea is not only a highly awarded company but also one of few machine tool companies listed on the Taiwan Stock Exchange.
