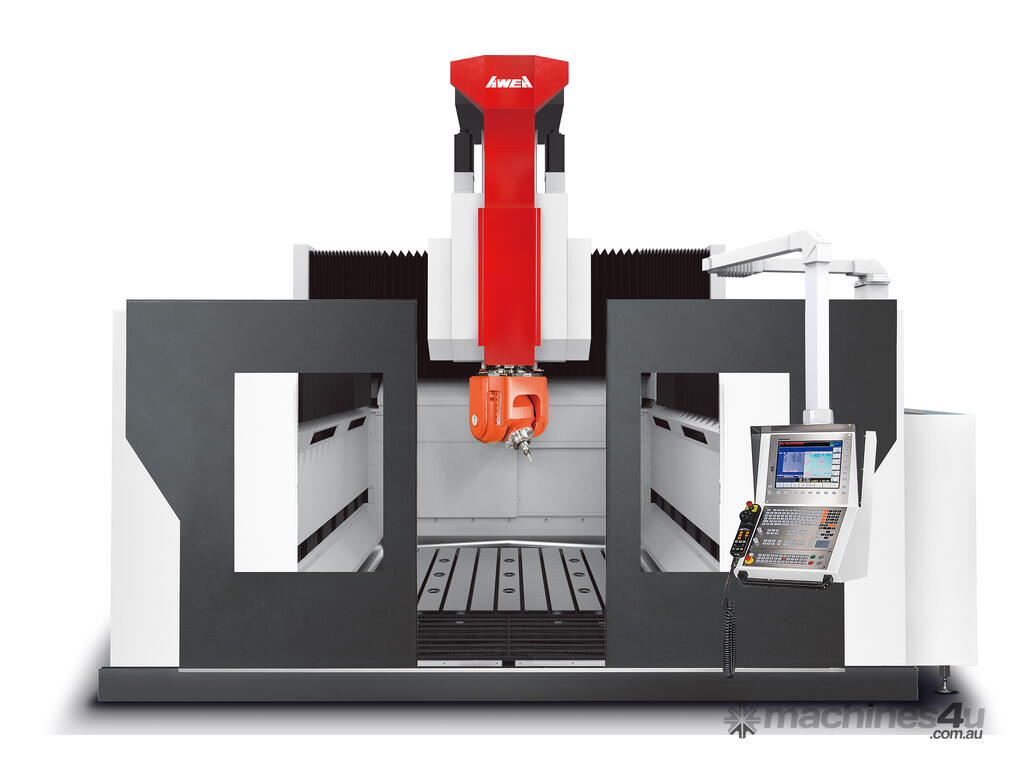

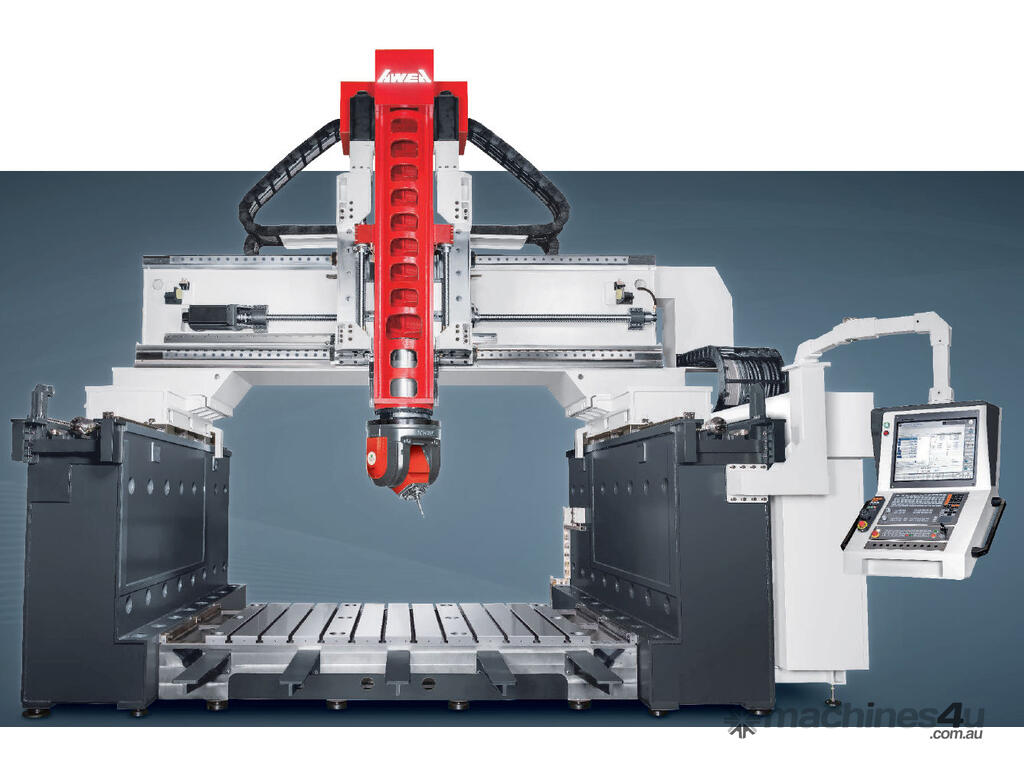

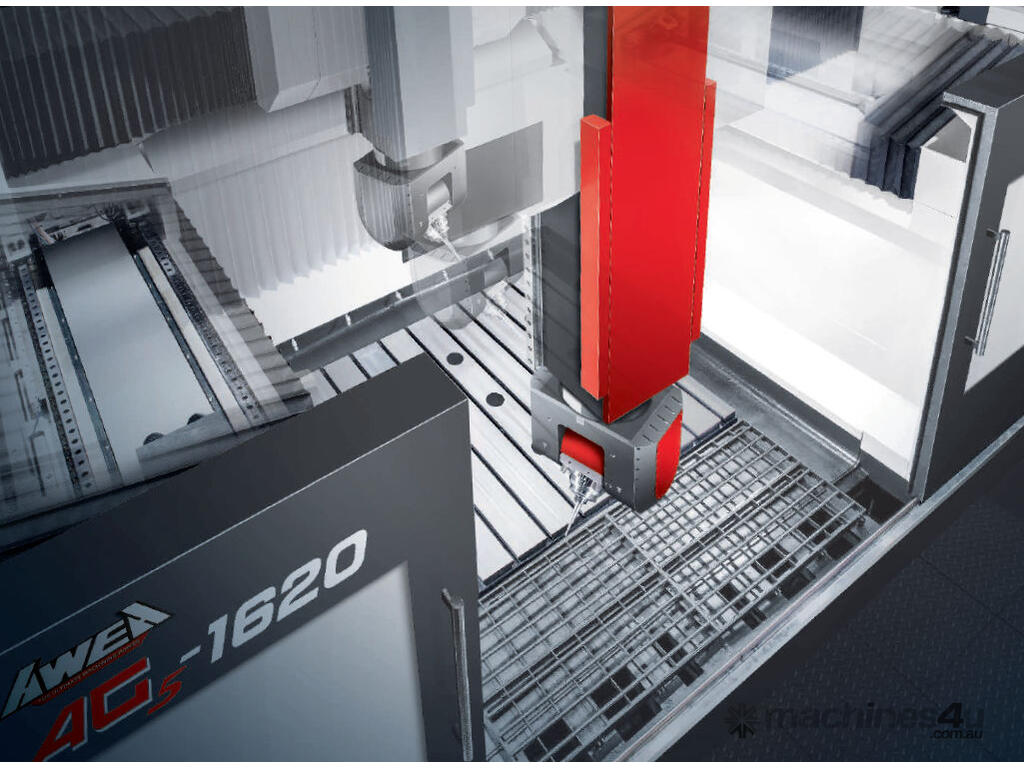

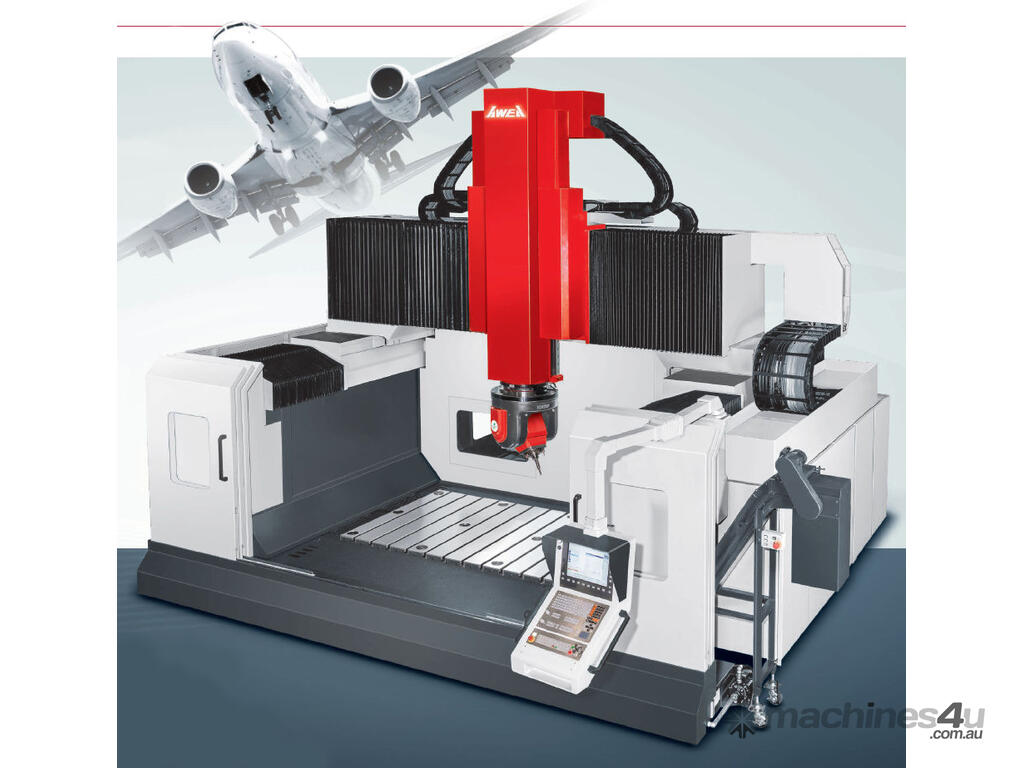

Awea Gantry Type 5 Axis Machining Centre

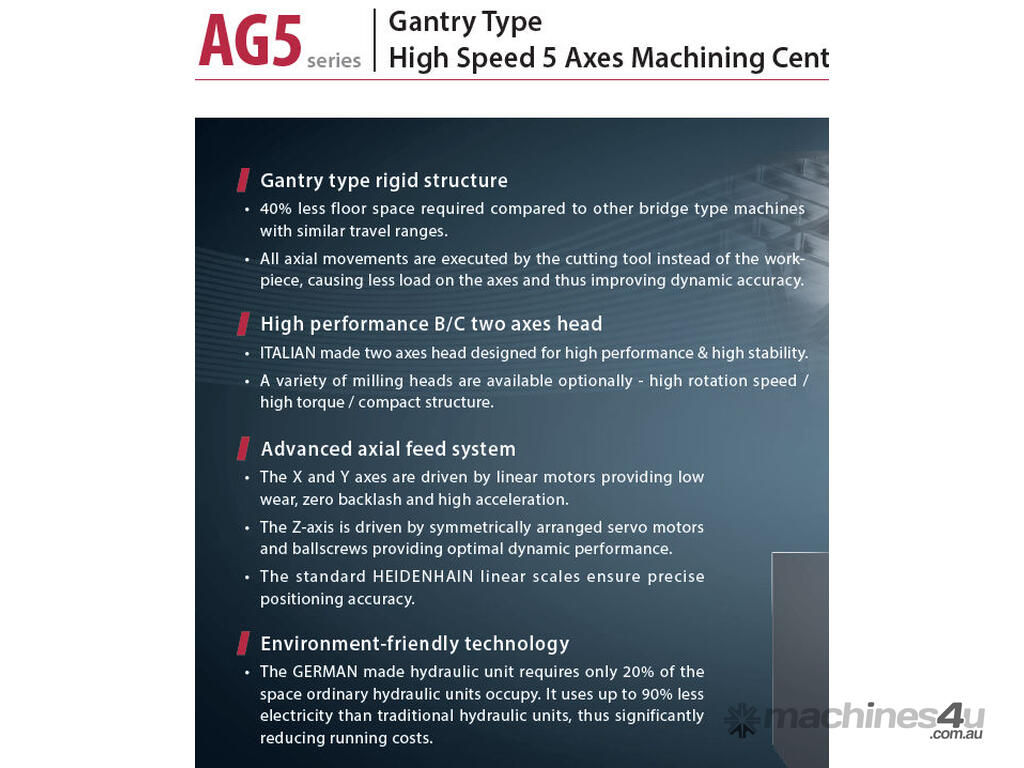

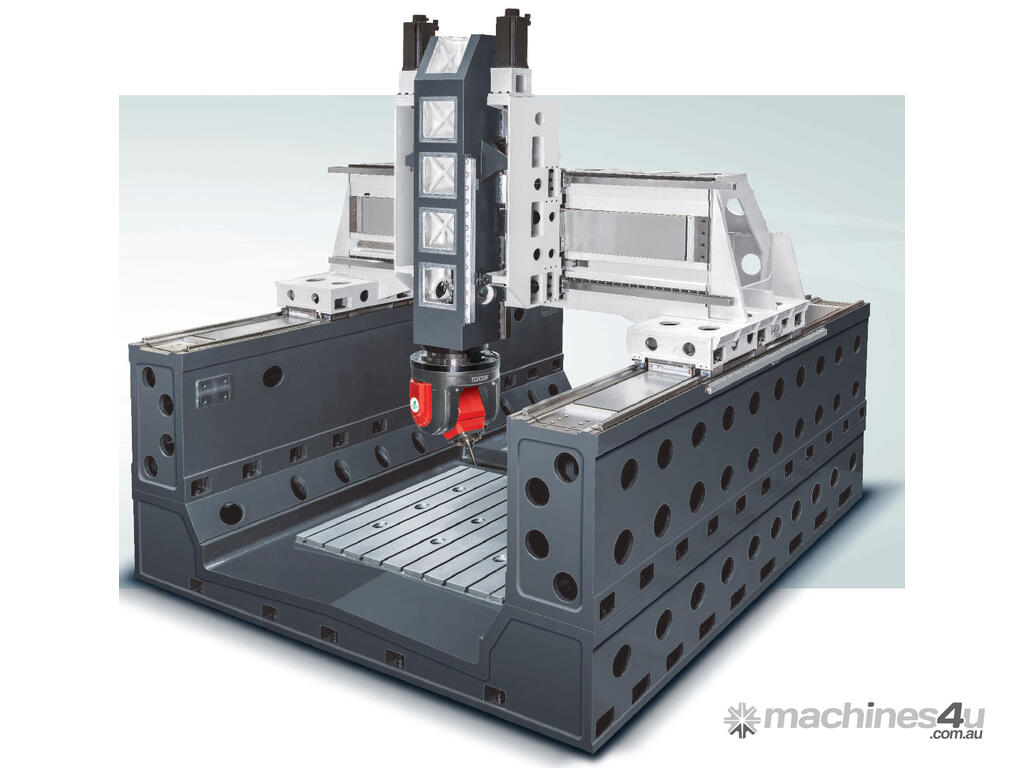

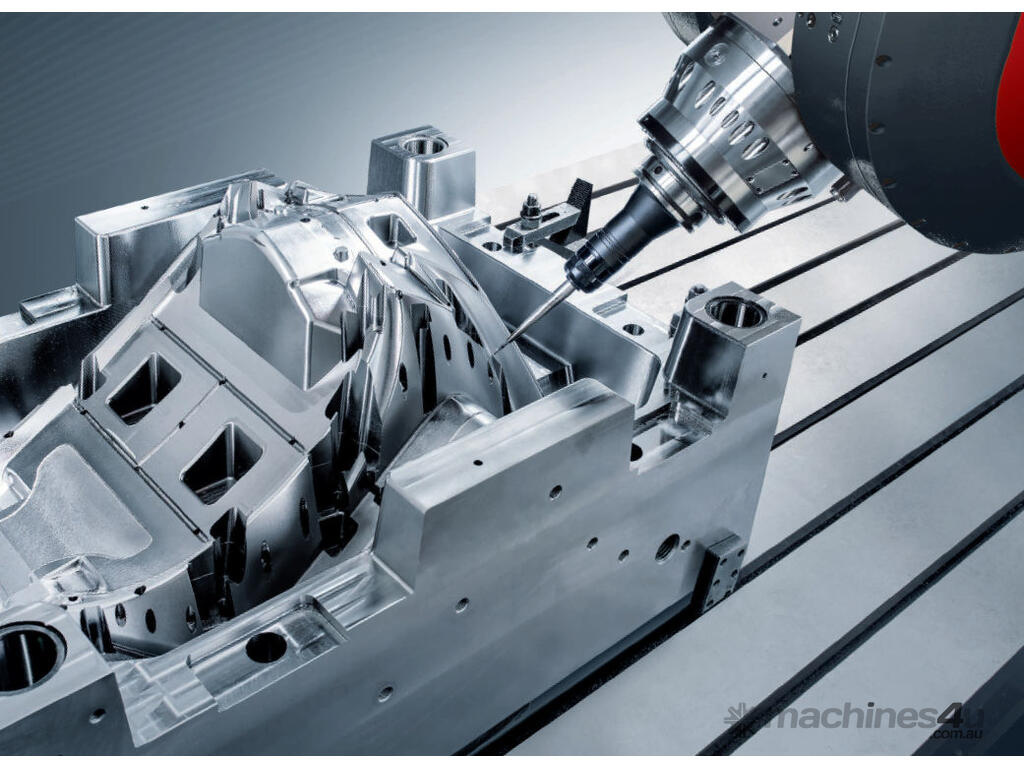

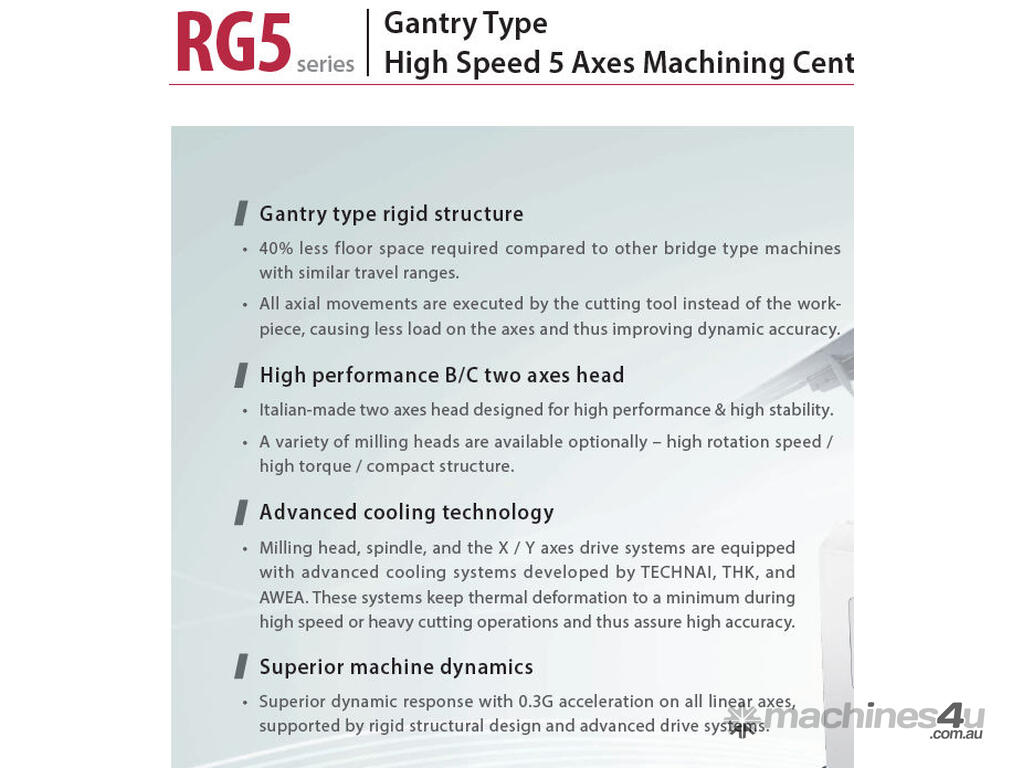

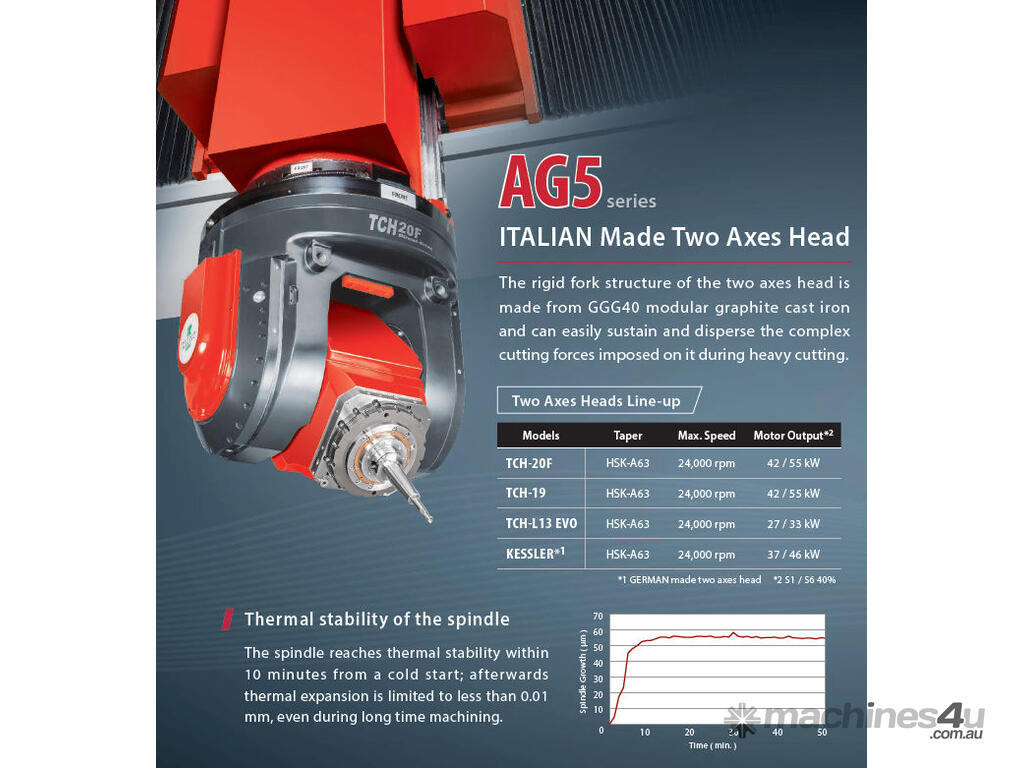

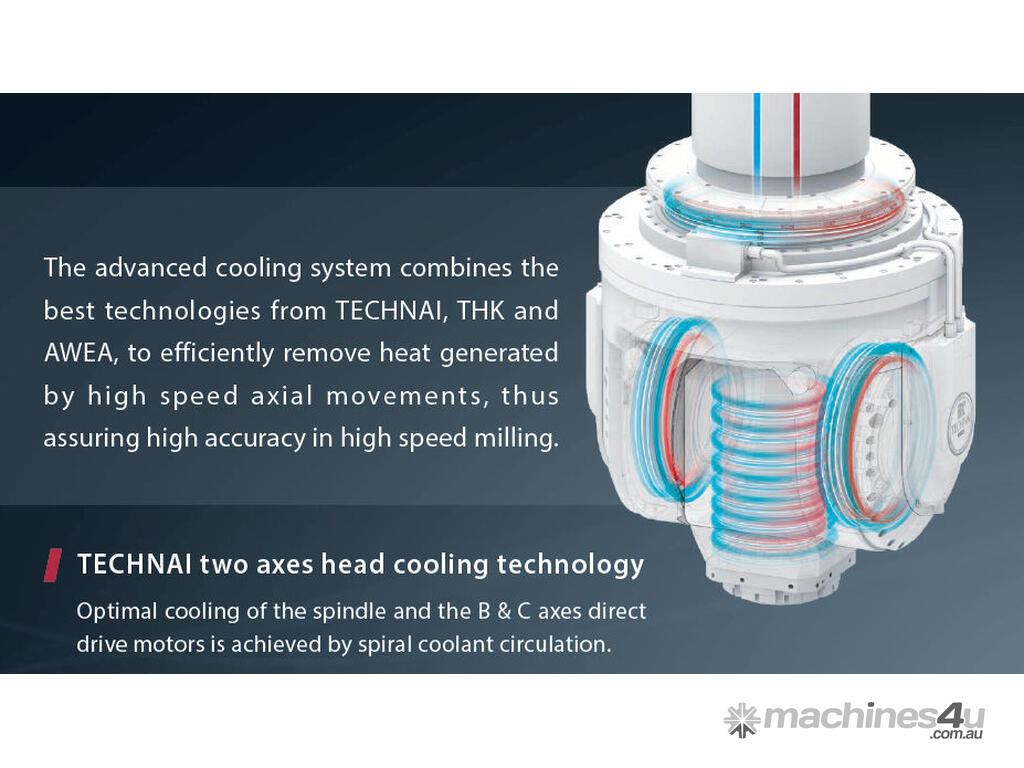

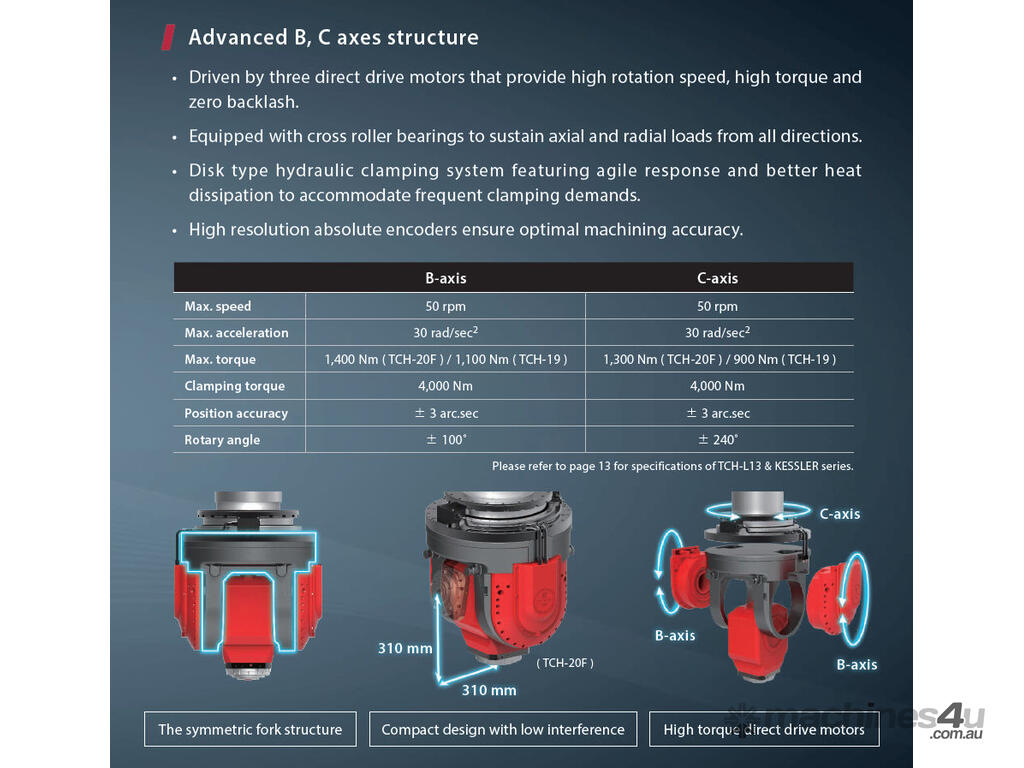

From Awea, the No 1 DMC manufacturer in Taiwan, the ultimate 5 axis , linear motors (AG5) with 60 m/min rapid traverse speeds, large capacity machining capability designed with the integration of the ultimate electro-mechanics and high quality components. The ITALIAN made high performance milling head enables simultaneous 5 axes ( X , Y , Z , B , C ) machining of large, compound angular work-piece machining needs. The AG5 and RG5 are the best choice when advanced machining requirements need to be met. Looking for value without sacrificing quality? Look no further !!!

Ron Mack Machinery are excited to announce the launch the extensive range of High Quality CNC Machine Tools from AWEA Mechantronics into the Australian market with special introductory pricing, $$$$’s off the recommended selling price so get in quick and request a quote.


Travels X (mm): 1,000 ~ 3,200
Travels Y (mm): AG5 - 2,000 / RG5 – 2,500
Travels Z (mm): 1,000
Table size (mm): AG5 – 1,600 (3,200 opt) x 2,000 / RG5 – 1,600 (3,200 opt) x 2,500
Spindle taper: HSK-A63
Spindle speed (rpm): 24,000
Spindle motor (kw): 42 / 55
Max spindle torque (nm): 56


For many years Awea Mechantronic have been regarded as the No 1 manufacturer of Double Column Machining Centres in Taiwan and we now offer full sales and support for their comprehensive CNC range including: Vertical Machining Centres, 5 Axis Machining Centres, Horizontal Machining Centres, CNC Horizontal and Floor Type Boring Machines, Double Column and Gantry Machining Centres. Awea are the sister company of Goodway and make a logical inclusion into our growing range of high quality CNC products.

Awea Mechantronic was established in 1986, is now one of Taiwan's largest professional CNC machine manufacturers. The machine travel range spans from 510 mm all the way to 20,000 mm. Product line includes 5-axis, five-sided, vertical, horizontal, and other types of CNC machines. Especially for the large-scale bridge type machines, they are widely recognized by the global market and enjoy the "Bridge Mill Family" reputation.

Mr. Edward Yang has been the chairman of the company since 2002. With the help of his professional background, and the business philosophy of "Innovation, development, and pursuing excellence", AWEA Mechantronic has grown nearly tenfold over the past 15 years, with excellent brand awareness across the United States, Germany, Italy, Turkey, Spain, South Korea, and China.

Through sustainable operation over the past two decades, Awea has established a comprehensive management system integrated with research, designing, manufacturing, assembling, testing, monitoring, sales and services. Globally, Awea is an extensively certified company passing ISO 9001, ISO 14001 and CE and so on. Domestically, Awea is not only a highly awarded company but also one of few machine tool companies listed on the Taiwan Stock Exchange.
