Axile G6 High Performance 5 Axis Gantry Type VMC

Axile G Series High Performance Gantry Type 5 Axis Machines are taking the world by storm and fast becoming one of the bestselling 5 axis machines in the world! This hasn’t happened by accident, from the beginning, each model has been developed specifically to compete head to head with high end German and Japanese manufacturers, traditionally regarded as the market leaders in the field. Absolutely no compromises are made in the build quality of the G Series, an example of the quality is that the two main parts of the G series machines, the spindle and the table assembly are both sourced from Kessler in Germany and of the ultimate quality!

Axile have installed a total 400 G Series machines in Europe, 200 of these have been sold into Germany which speaks volumes about the G Series as an overall 5 axis package!

The G6 is an advanced, heavy duty multi tasking 5 axis vertical machining centre of unrivalled quality capable of machining a 600kg work piece, designed for producing complex parts at high speed, with a 5 axis configuration, complex machining can be accomplished in one set up drastically reducing machining time and helping you stay competitive.

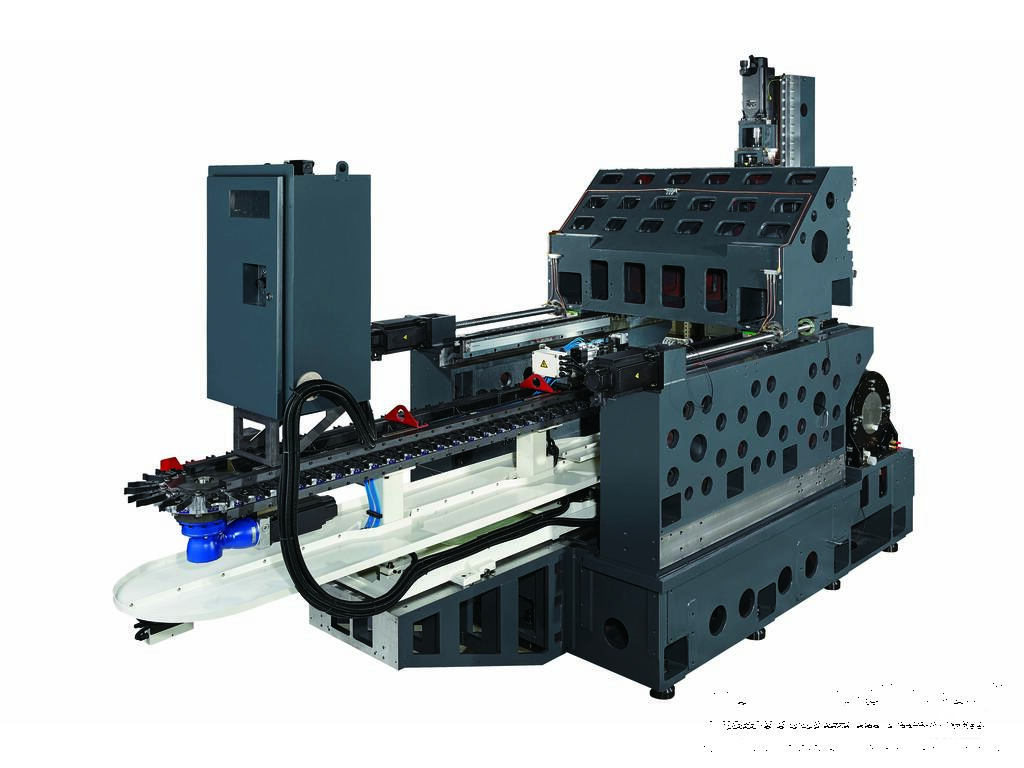

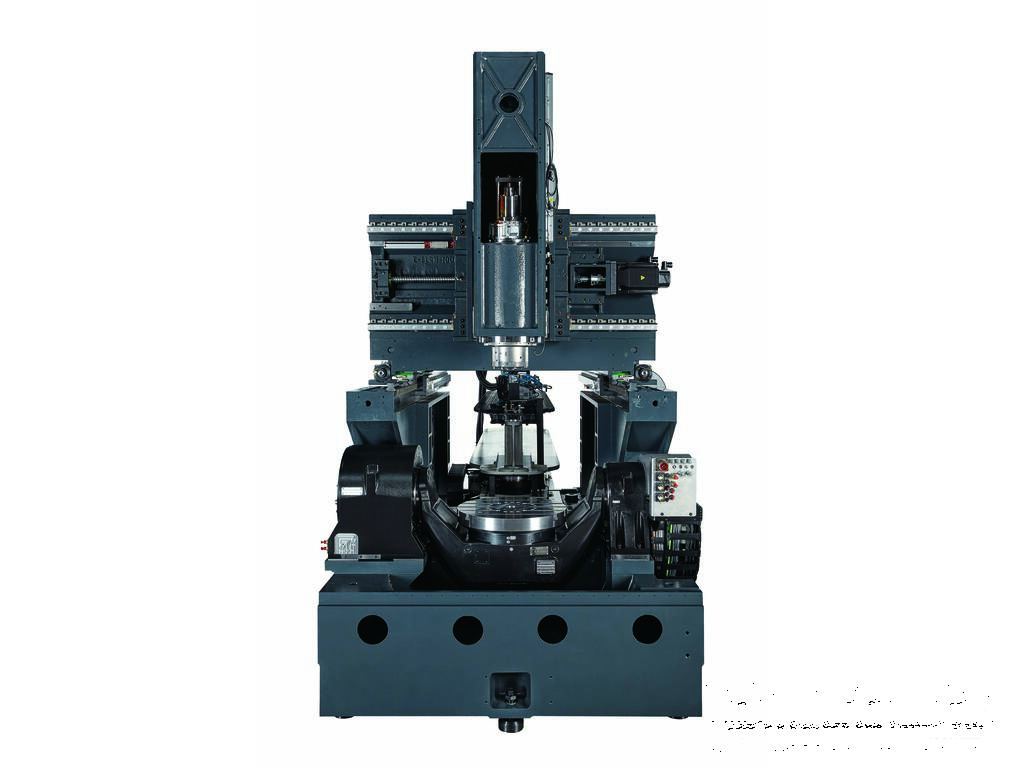

A big feature of the G6 is that unlike many machines with Ø600mm table size, the Axile G6 is a Gantry Type machine with the perfect U Shape closed design offering the ultimate in rigidity and stability which also provides unrivalled ergonomics for the operator to access the working area. The machine finish and design is second to none and when seen in the flesh it’s understandable why the G Series is causing a lot of headaches for high-end manufacturers in today’s markets around the world.

Take a look at some of the features included as STANDARD with each machine below:

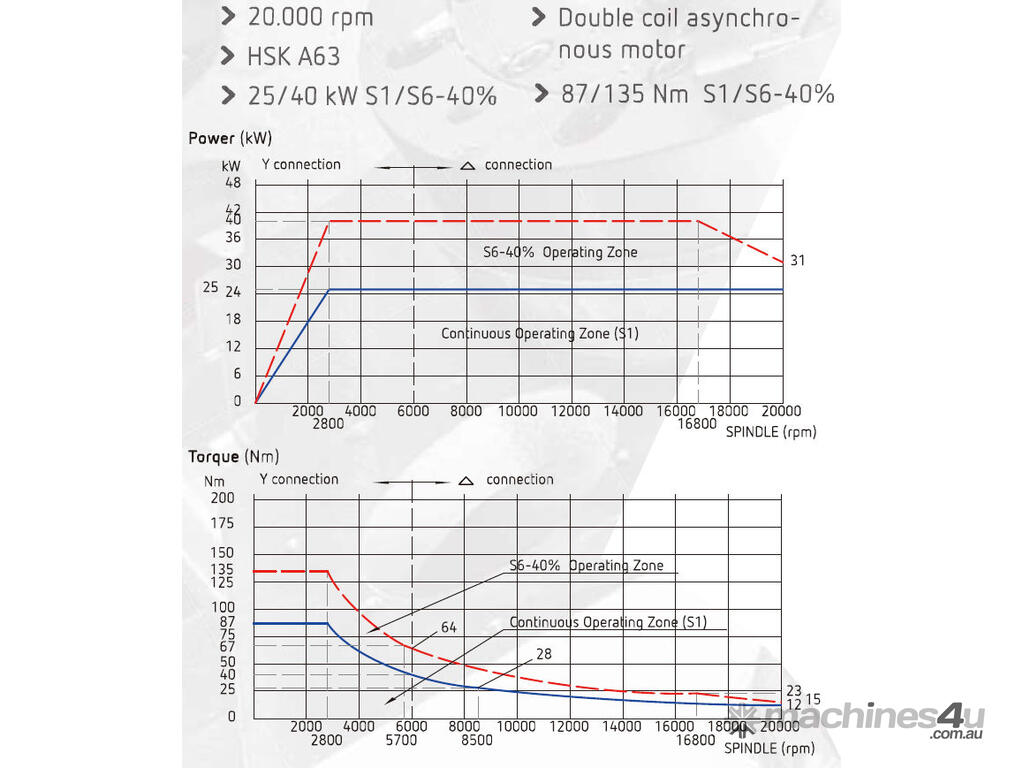

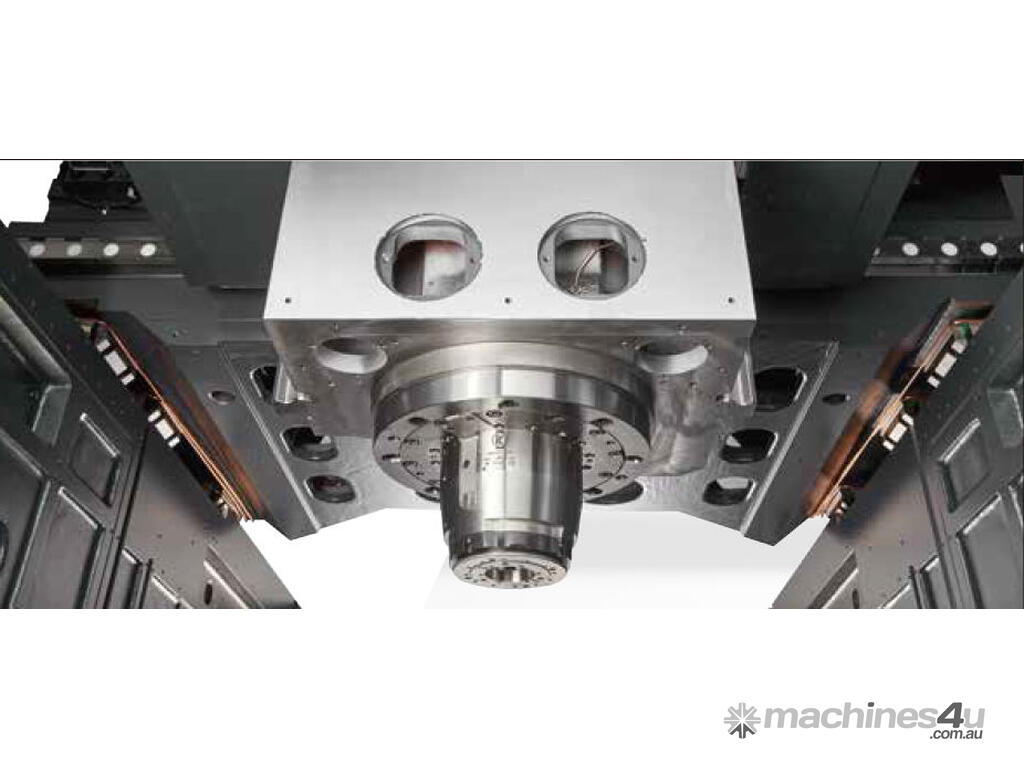

Kessler (Germany) Powerful 20,000 rpm Built In Spindle: 25 / 40 Kw (87 / 135 Nm)
Kessler (Germany) 2 Axis Rotary Table with Torque Motors and Brakes
Blum Tool Setter Integrated into The Table

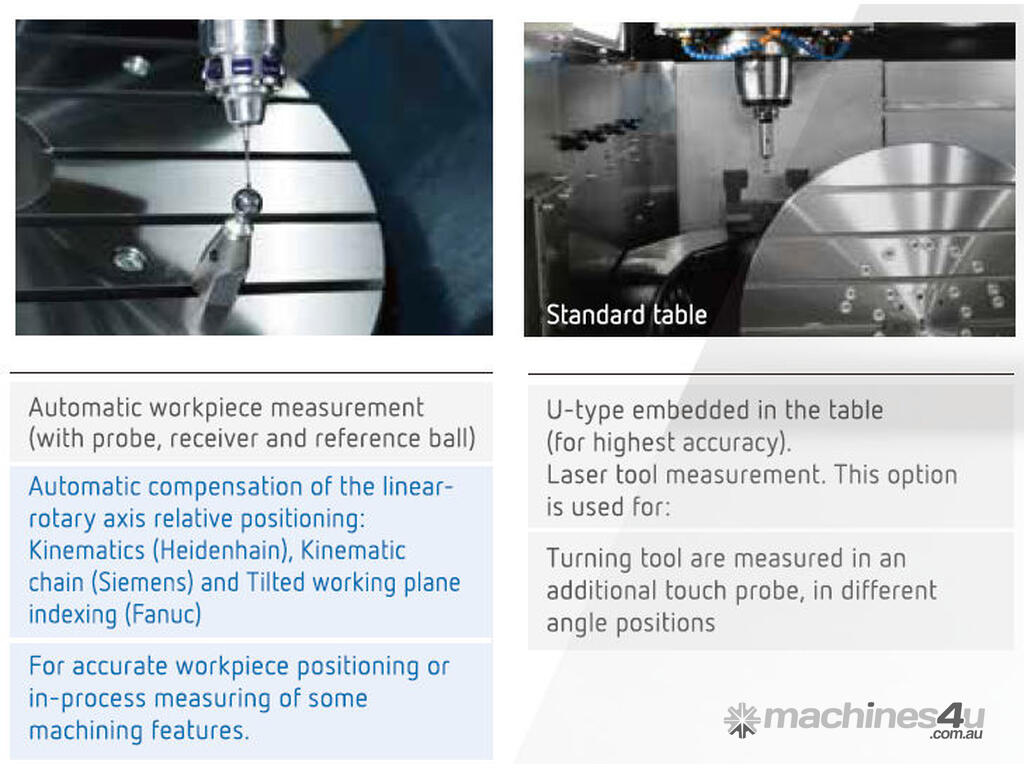

Heidenhain or Renishaw Workpiece Probe
Kinematics + Reference Ball

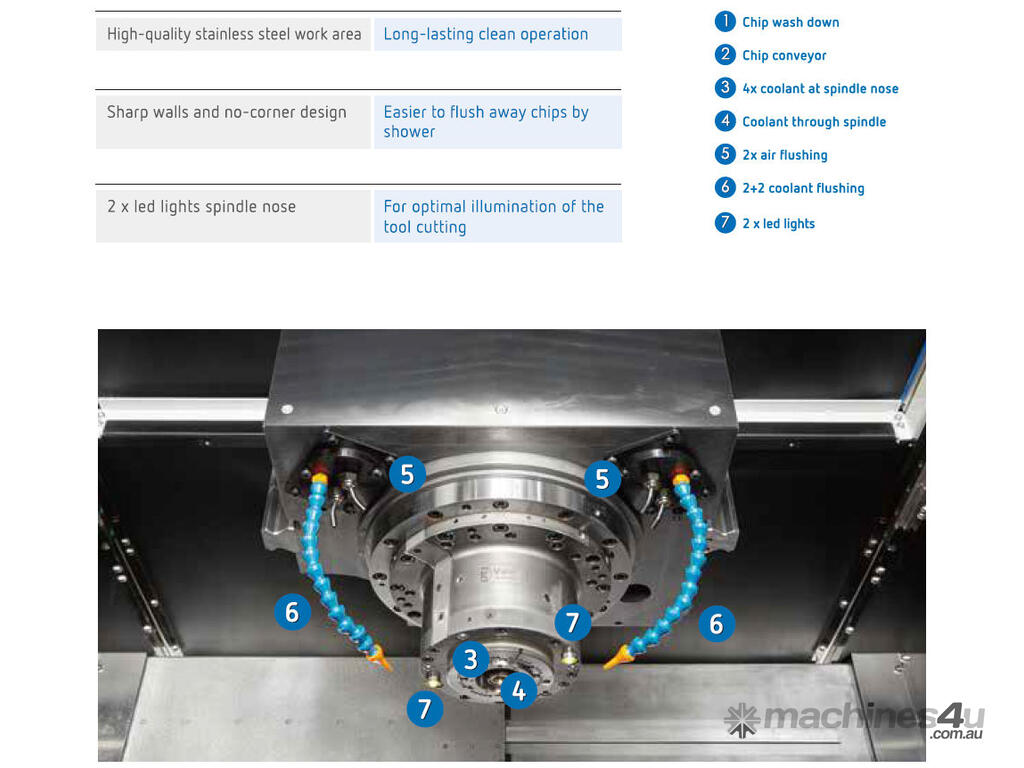

20 Bar CTS
DCM: Dynamic Collision Monitoring
TPC: Tool Tip Positioning Control
SVS: Spindle Vibration Supervision
AAC: Axial Accuracy Control
Linear Feedback on X, Y & Z Axes
Direst Absolute Measuring on Kessler Rotary Table

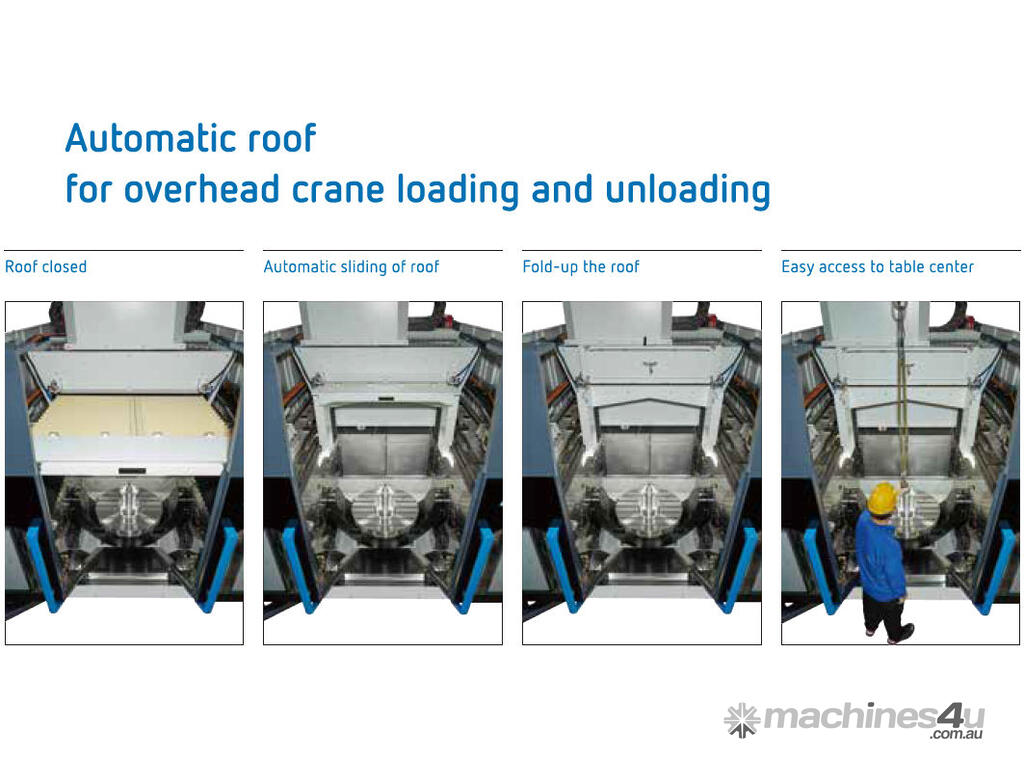

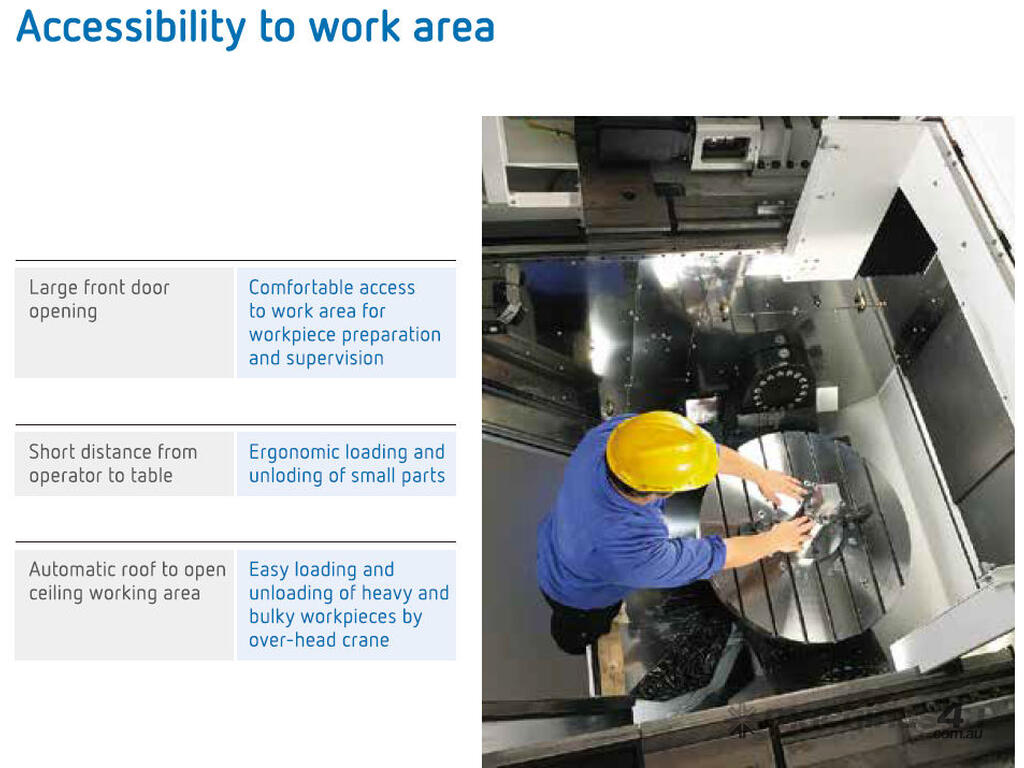

Automatic Programmable Roof for Overhead Loading by Crane
3 x Hydraulic and 1 x Pneumatic Integrated Interfaces in the Table

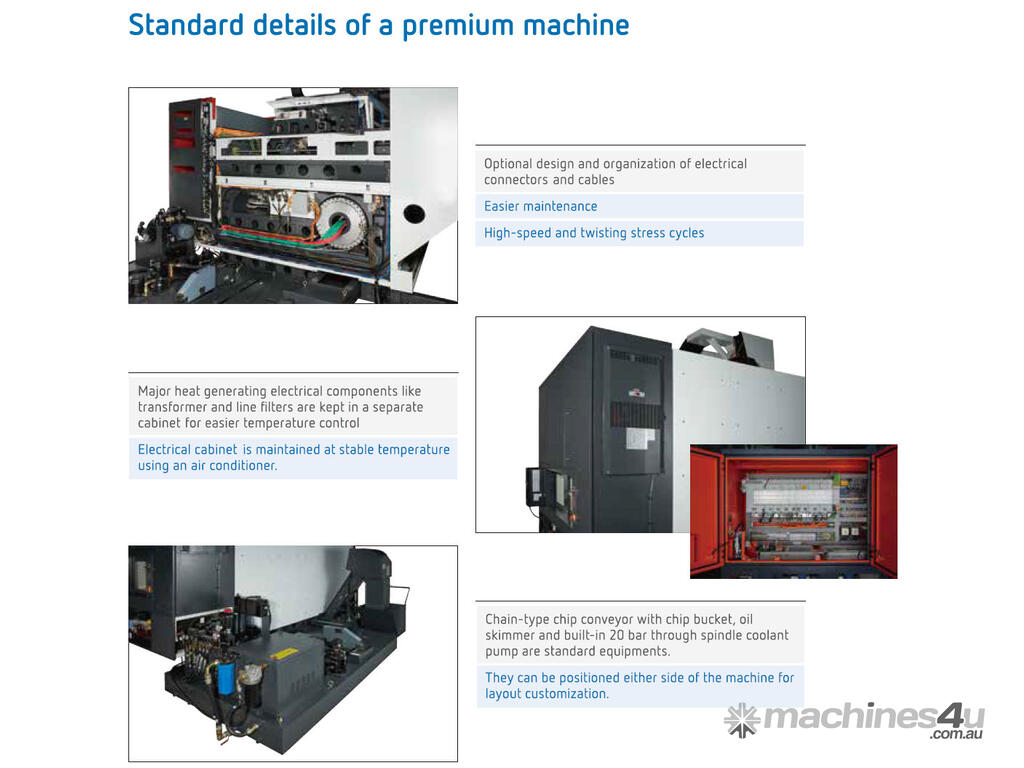

Swarf Wash Down System

Axiles big advantage is their advanced manufacturing and supply chain which enables a very cost effective manufacturing process enabling costs to be kept at a minimum giving you exceptional value for money!

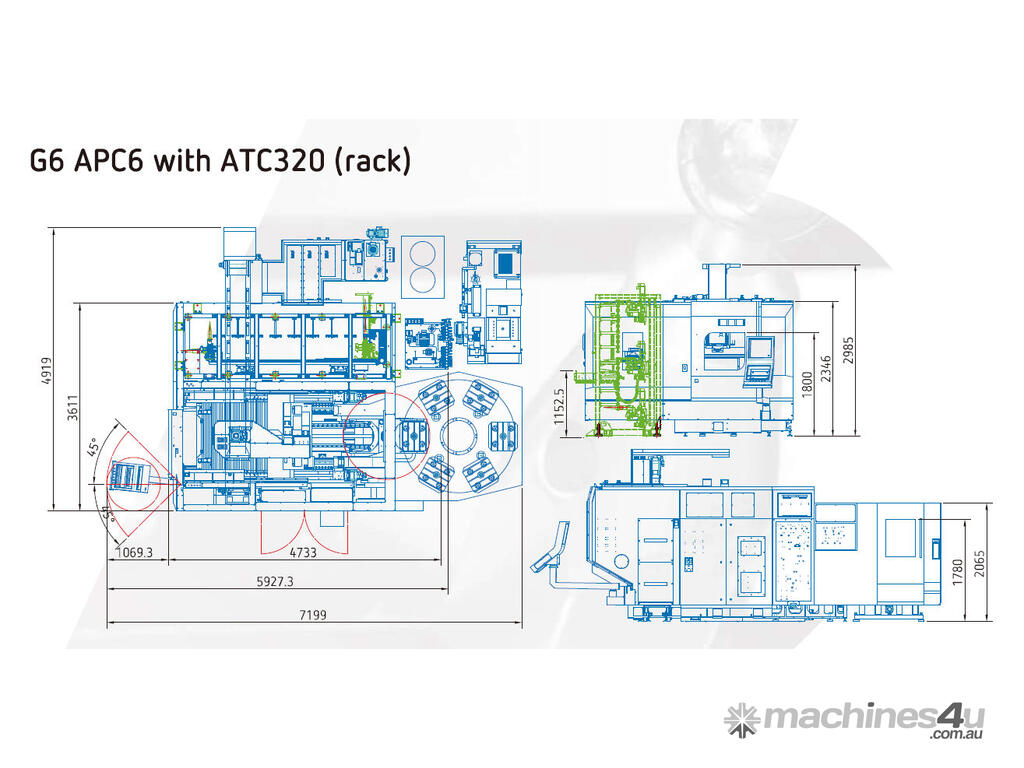

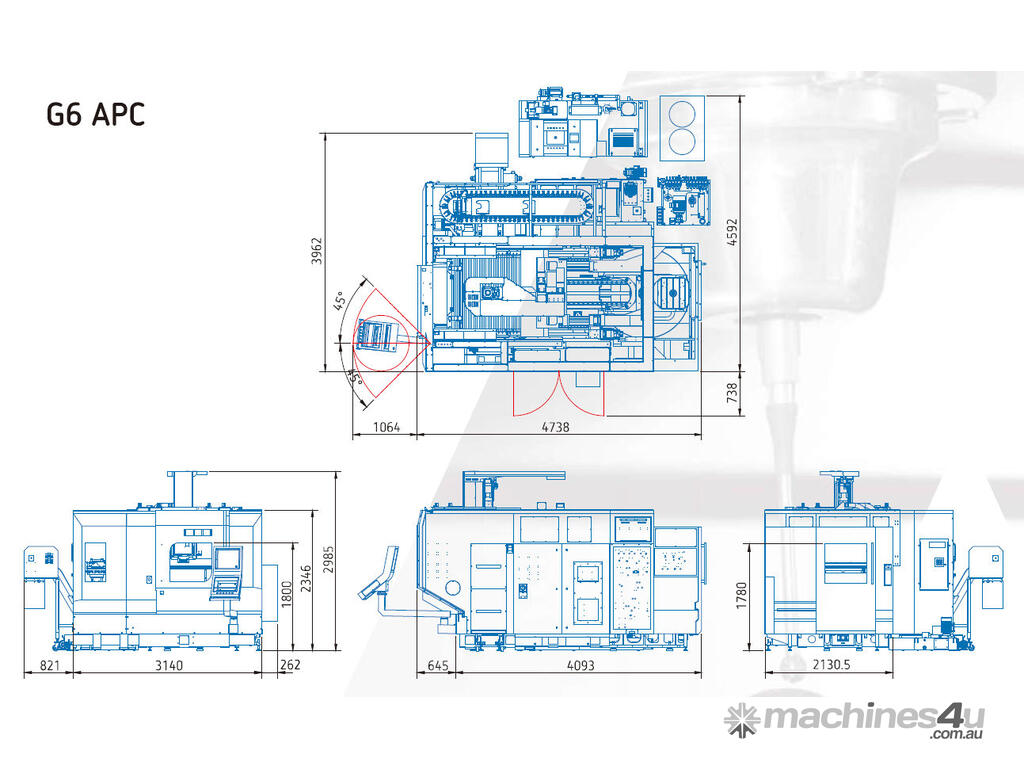

The G6 is available in various configuration and perfectly suited for automation: turning function, multi pallet and FMS options are all available on the G6!

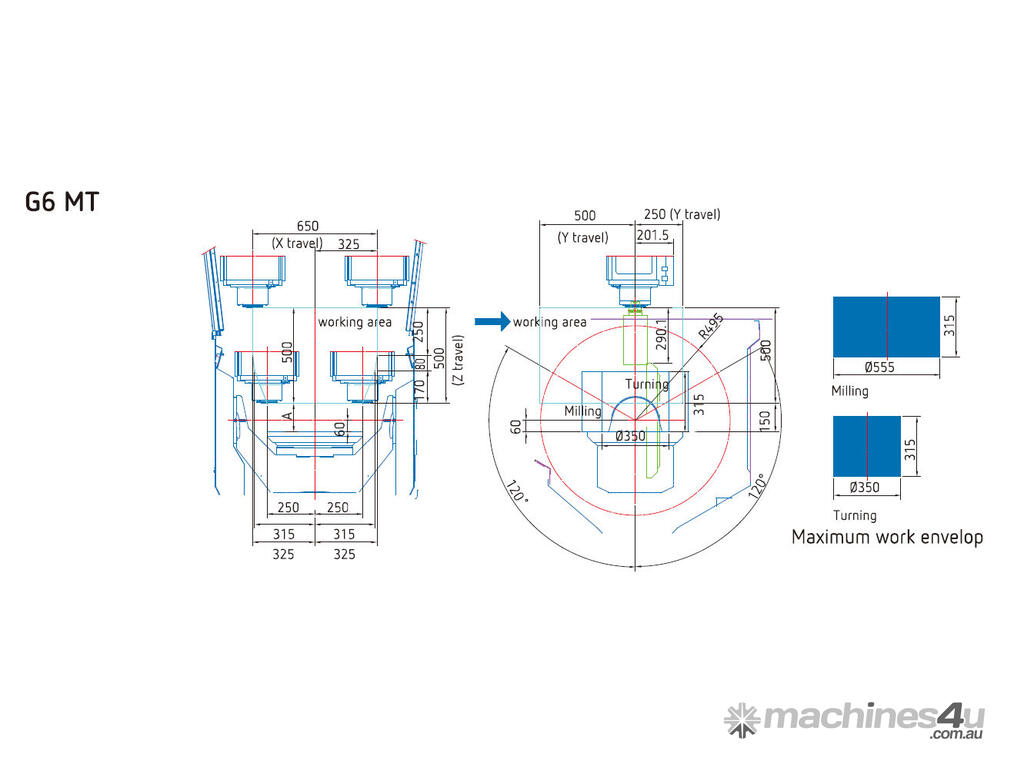

G6 Specification:
Table working area (mm): Ø600
Max table load (kg): 600

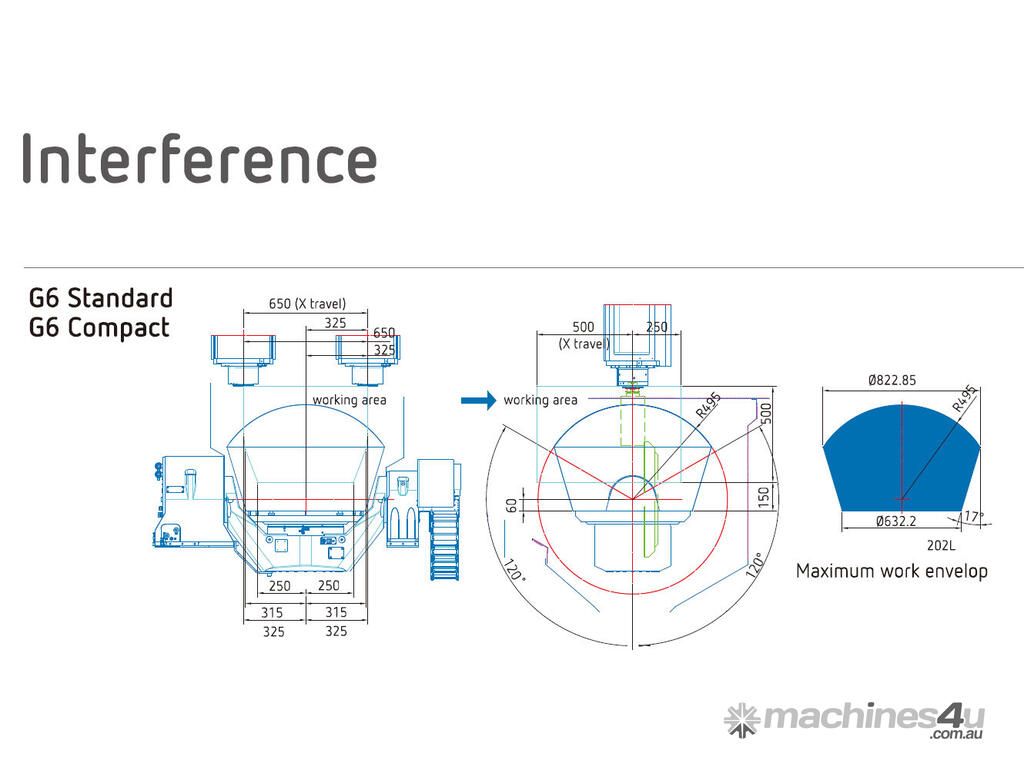

Travels X, Y, Z (mm): 650 x 750 x 500
A axis tilting range (deg): -120 ~ +120
C axis rotating range (deg): 360
Spindle taper: HSK A63
Spindle speed (rpm): 20,000
Spindle motor (kw): 25 / 40
Spindle torque (Nm): 87 / 135

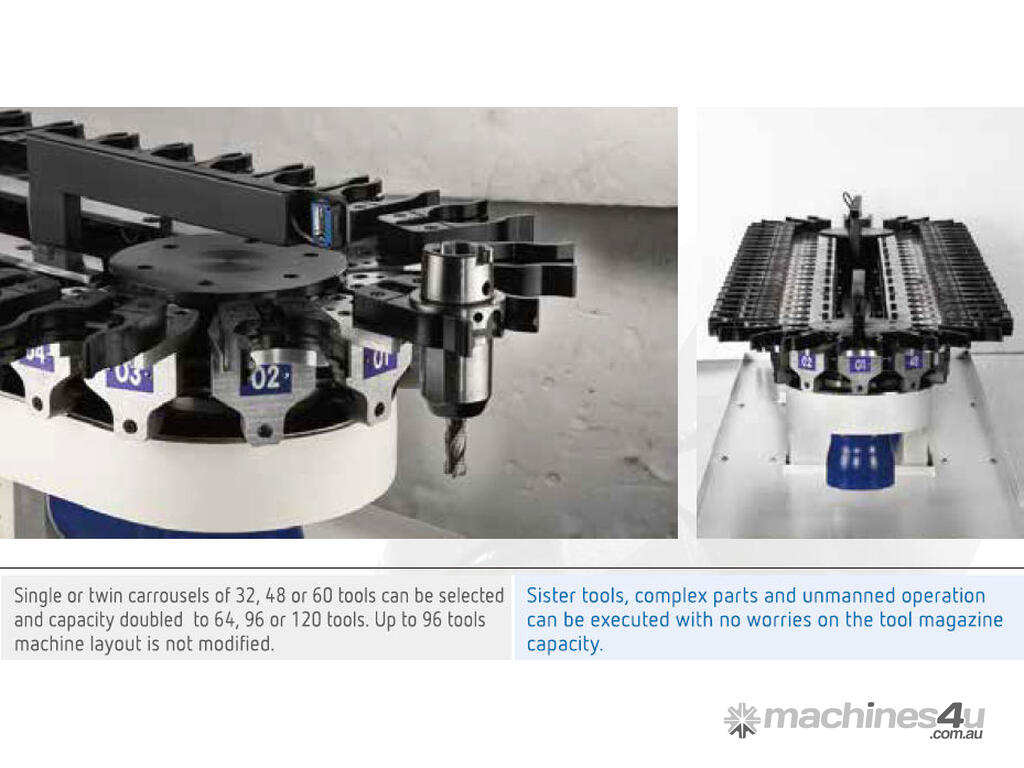

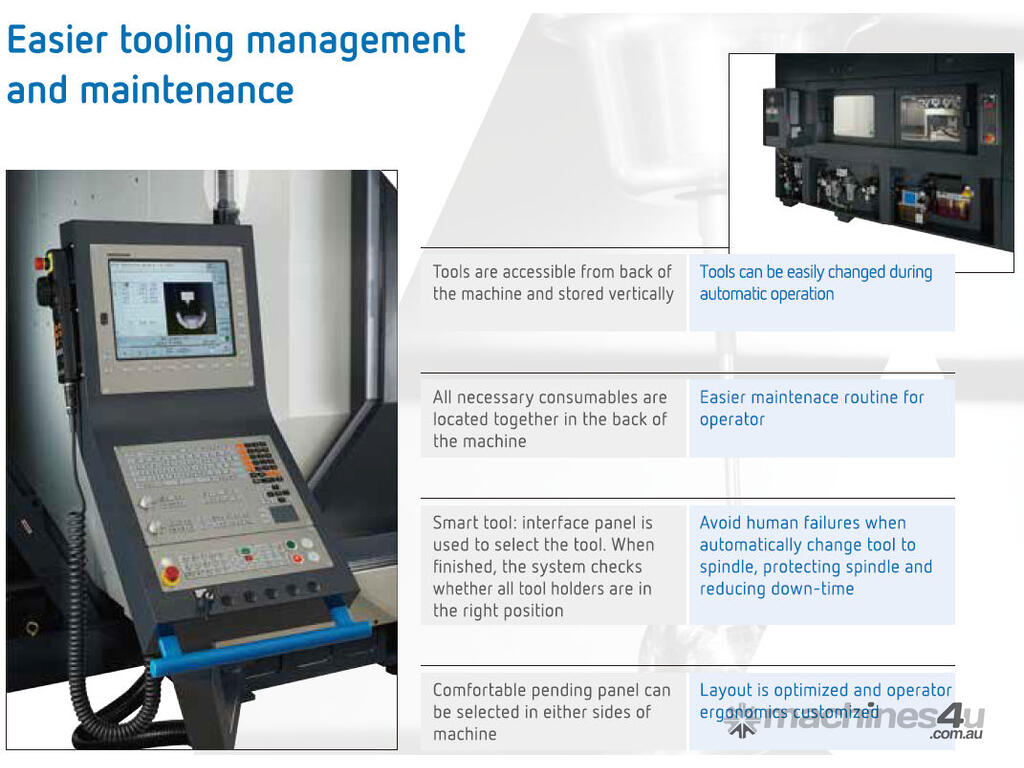

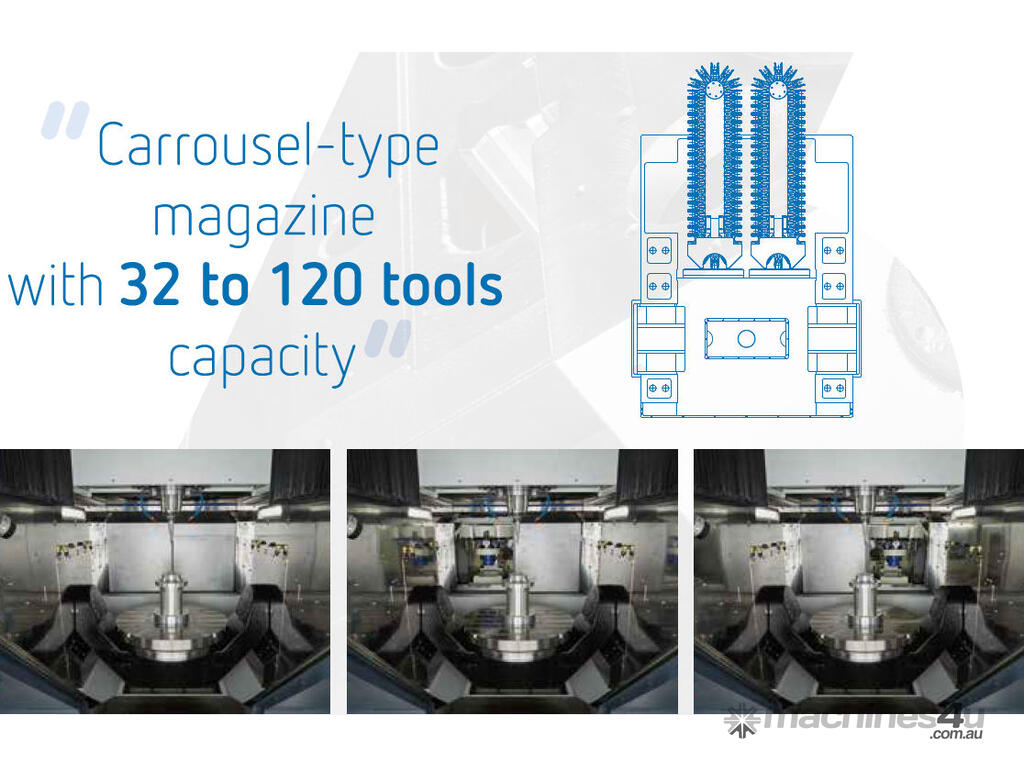

ATC: 60 tools (120 opt)
Optional turning function: 1,500 rpm table speed and HSK-T63 spindle taper
Max feed rate X, Y, Z (m/min): 36

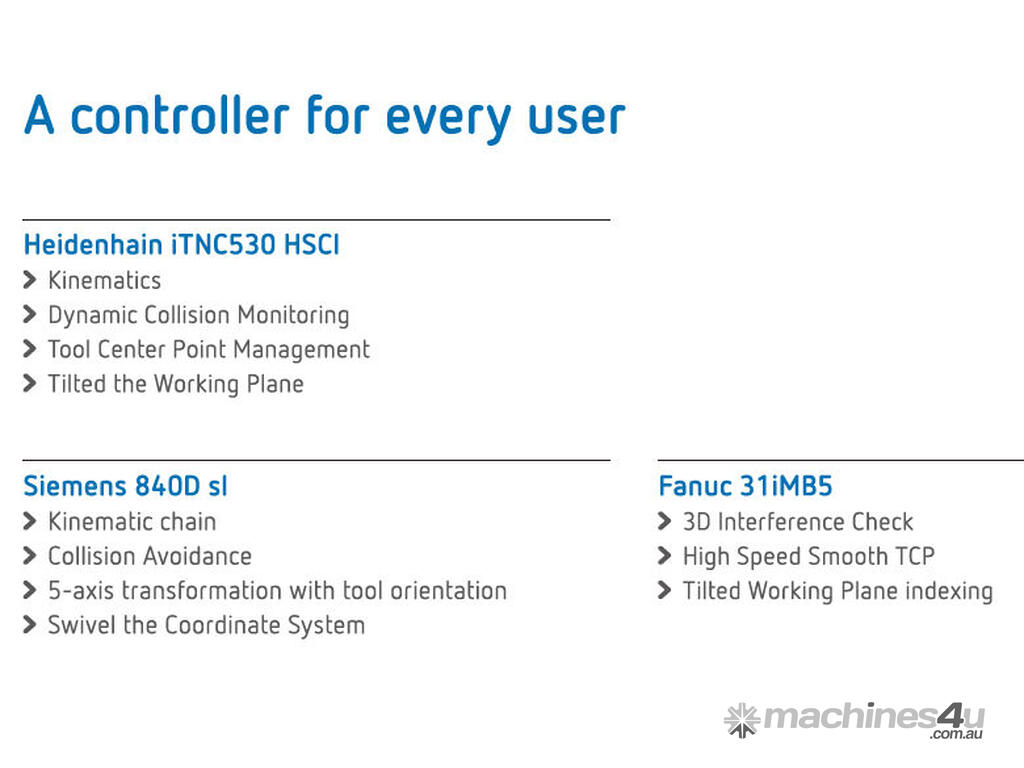

Controller: Heidenhain iTNC640, Siemens 840Dsl or Fanuc 31iMB
Machine weight (kg): 12,000

C/w: direct drive Kessler spindle, Kessler Ø600mm table, 600kg table loading, high speed ATC, linear feedback scales, heavy duty roller type linear guides, simple 20 bar coolant thru spindle, chip conveyor, swarf wash down system & Siemens, Heidenhain or Fanuc CNC Controls. Many other options are available on request.

You can find a very detailed overview of the G Series by MTDCNC in the UK on UTube, just open and search for "New Axile Machine" to watch this comprehensive review and explanation of many of the machine features!
