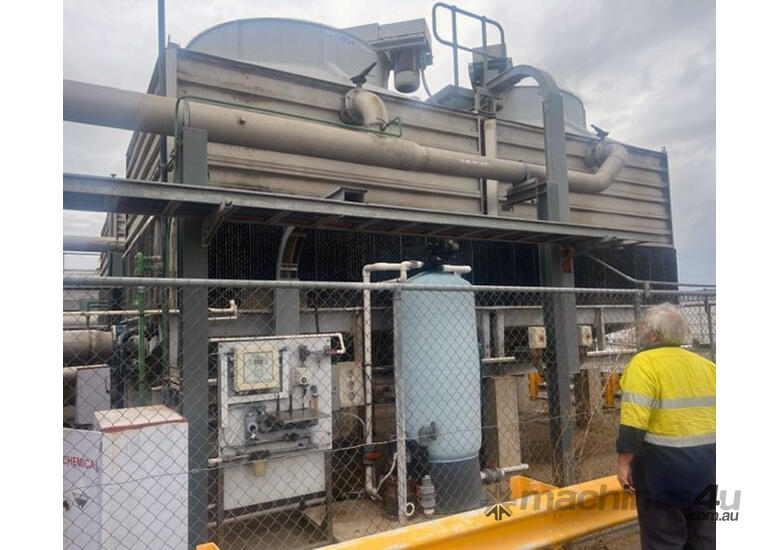

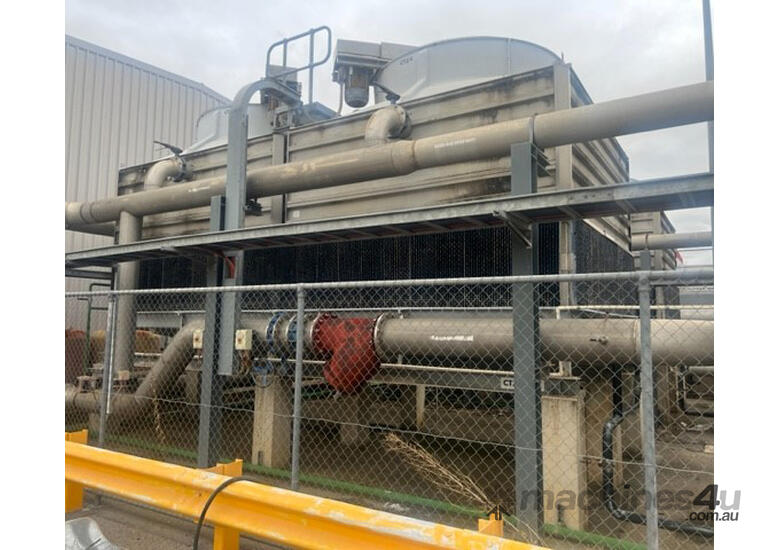

BALTIMORE AIRCOIL RCT2678 (RCT2000) Twin Cooling Tower 3000kW 103.5l/s flow 2x15kW motors
These towers are a model RCT2678 and were selected for a duty of 3000kW with 103.5l/s flow at 35.0°C entering, 29.0°C leaving at 26.0°C wet bulb (not sure why such a high wet bulb for Adelaide). They were fitted with 2 x 15kW (27.7A) 4-pole motors.
Original unit drawings and RCT rigging & Assembly instructions attached for your reference.
these are from GMH Elizabeth Holden Plant.
Key benefits
Easy maintenance
Superior construction
Low height
Easy maintenance
Easy basin access from all sides.
Easy no-tool removal of side panel gives access to all internal cooling tower components.
Sloped basin to flush out dirt and debris.
Easy removable fill, spray branch arms, eliminators and combined inlet shields.
Easy access to motor and drives from outside.
Superior construction
Superior structure strength: pultruded composite construction guarantuees a long service life.
Low height
Counterflow cooling tower with very restricted height, fits in most enclosures.
These are large double module towers and there are 4 the same design.
4 available, price is for 1.
This is a large tower base dimensions are approx. 3.5 x 7m and it would be about 5.5m high its going to need to be partially dismantled for transport because of the height
The price includes GST and a tax invoice will be issued if you pay by bank deposit
