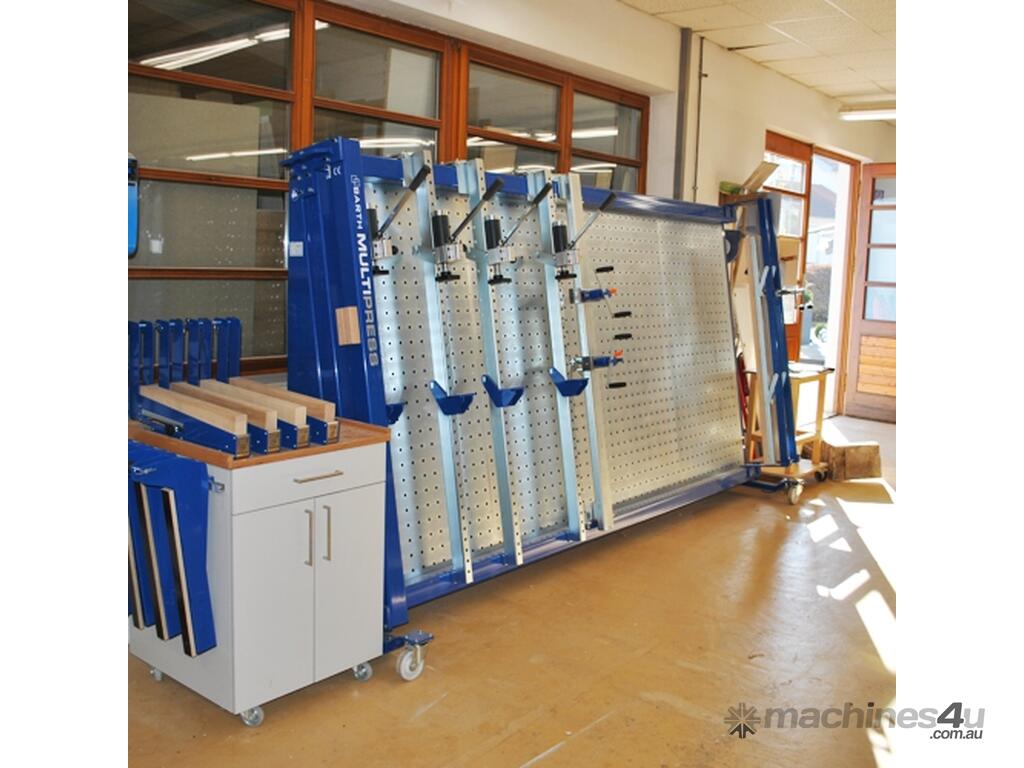

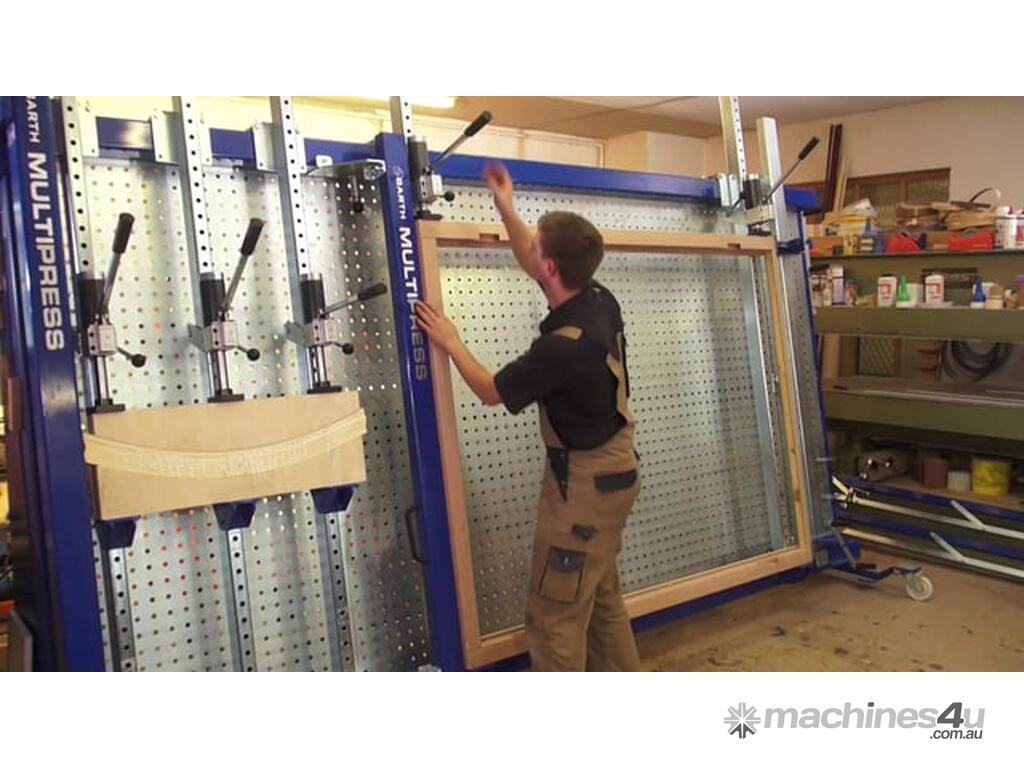

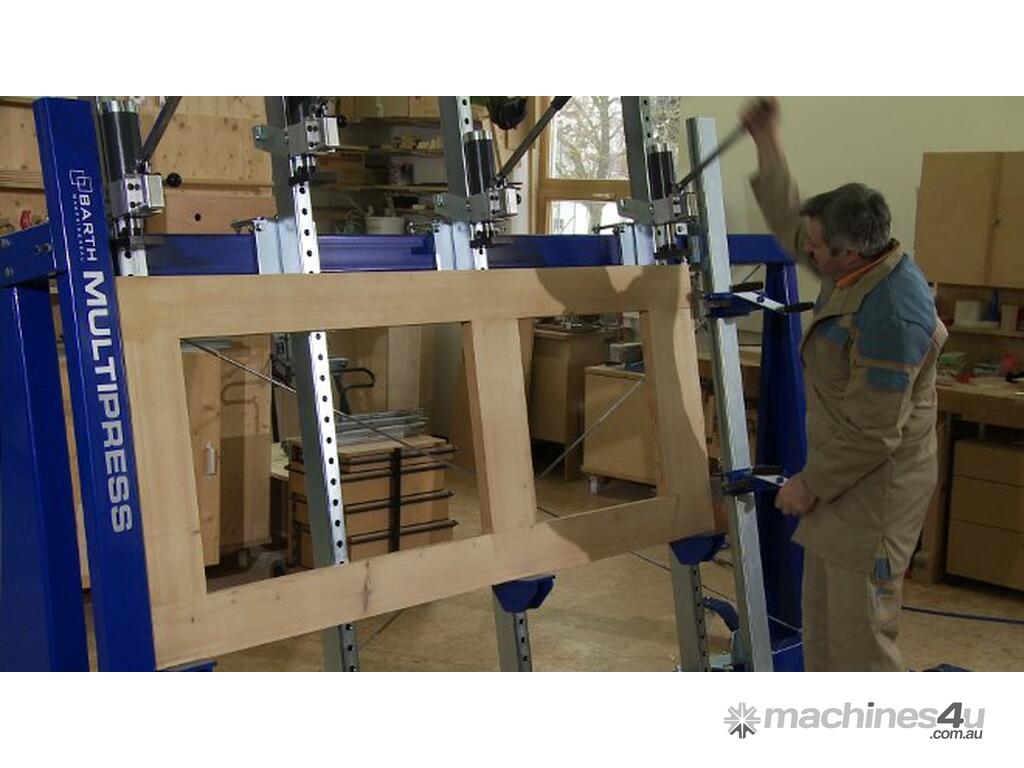

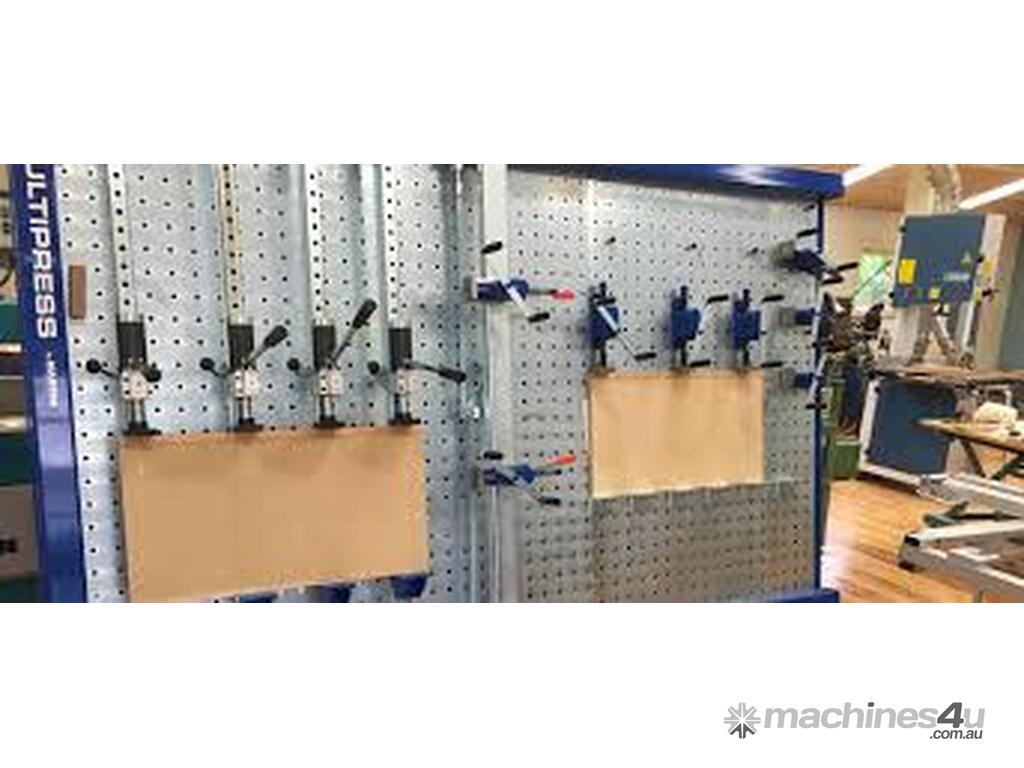

BARTH Multipress for Frames & Carcass clamping

Make your Frame and Carcass clamping easier, More efficient with less chance of staff injuries.
Please call or with you requirements on Minimum & maximum size requirements.

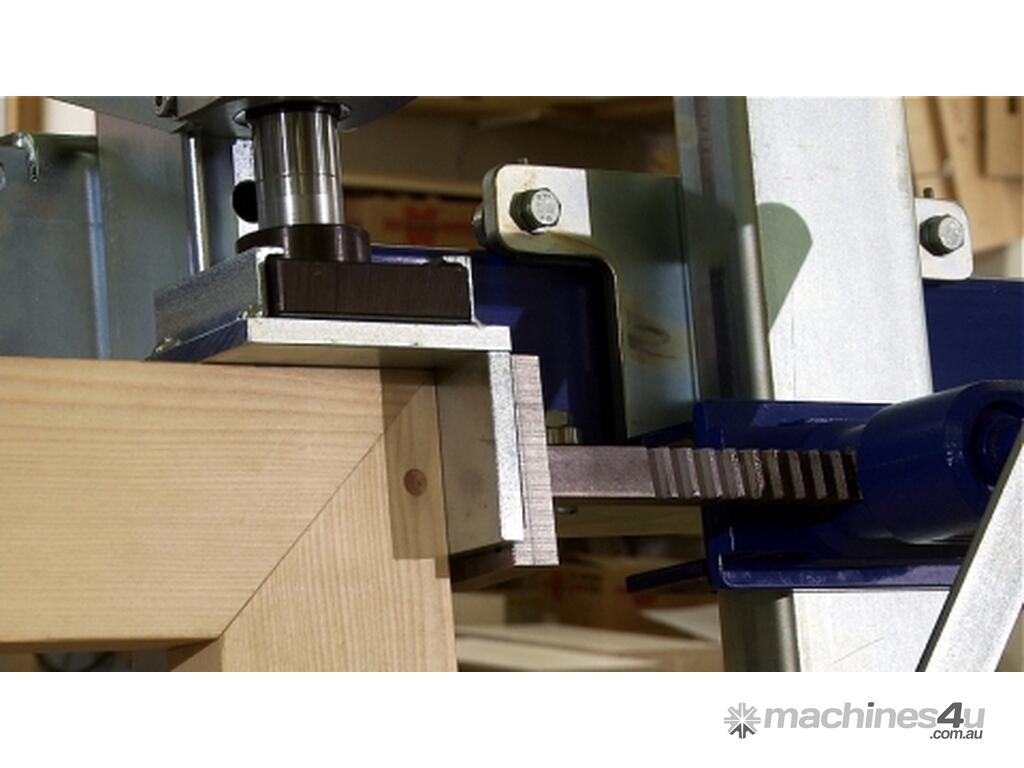

Whether gluing stands or hydraulic gluing presses, working with width gluing makes high demands. But the RPG-NH hydraulic gluing press from BARTH changes that. This press features movable hold-downs. Now gluing table tops, stair treads or solid wood panels becomes child’s play. The hold-down device on the gluing press prevents the scantlings from slipping on the glue line. On the normal gluing stand or gluing press, the high pressure often causes the scantlings to shift, which subsequently necessitates a high degree of surface removal by sanding or planing. Not so with the movable hold-down devices. The classic hold-down device has to be hooked in and unhooked each time it is used, whereas the movable hold-down device on the RPG-NH can be pulled in without much effort. The hand levers of the hydraulic cylinders simply fold away.

This means greater process reliability, shorter make ready times and more comfortable working!
Available in a variety of sizes

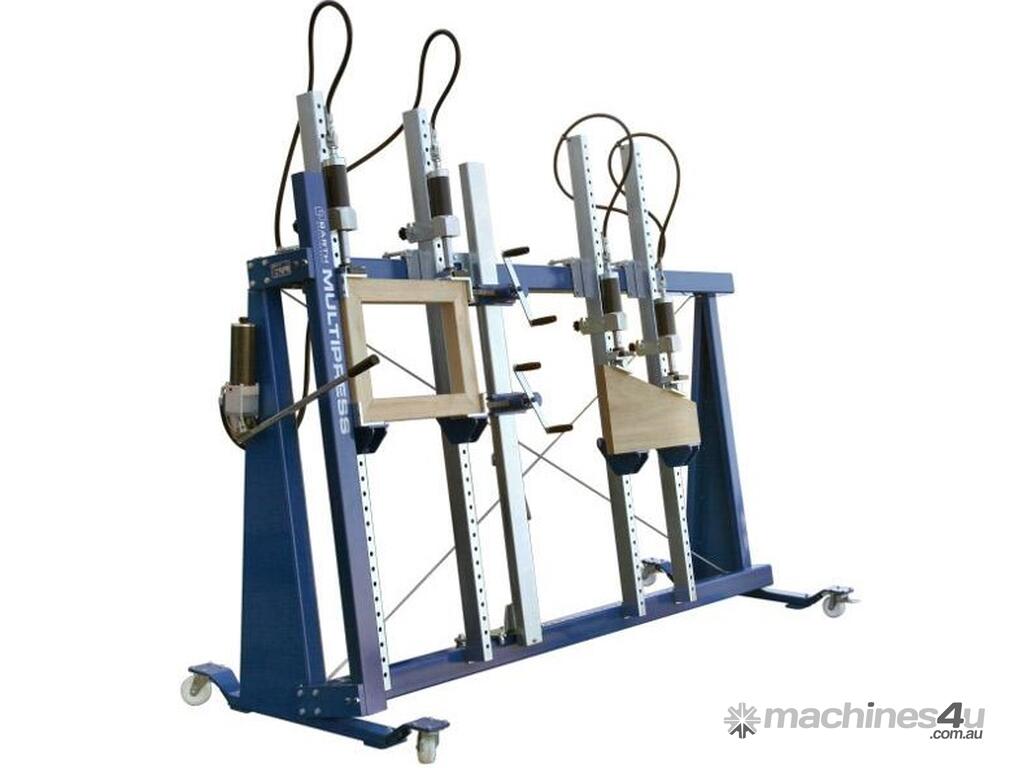

Base frame with receptacle for mobile hold-downs, 2 mobile hold-downs with quick-release fastener
RPG 20 clamping dimension L x W:
RPG 2030: 2,900 x 1,580 mm
RPG 2040: 3,900 x 1,580 mm
RPG 20 Installation dimension L x W x H:
RPG 2030: 3,580 x 980 x 2,410 mm
RPG 2040: 4,580 x 980 x 2,410 mm

The RPG-NH gluing press: the all-rounder for effective and ergonomic performance

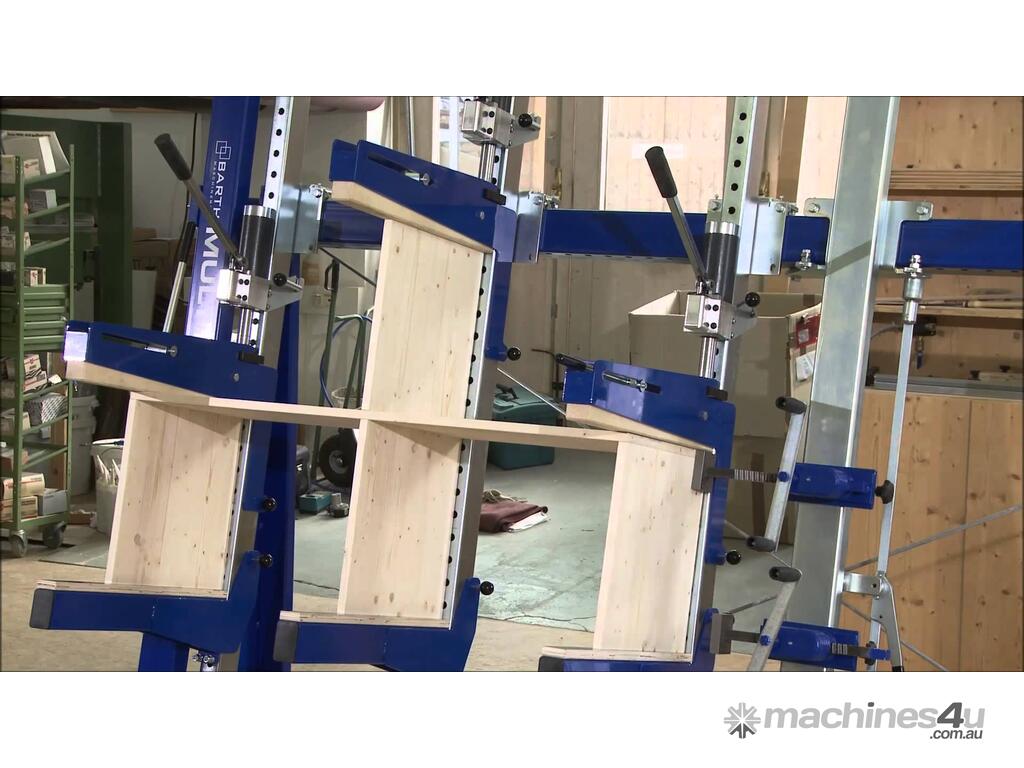

If your company has a lot of solid wood gluing operations, the RPG-NH gluing press is an ideal solution for more efficiency. But the RPG-NH is much more than a specialized gluing stand and a press for width gluing! With this machine, you can provide both a frame press, rack press, miter press and even a carcass press with the right accessories and a few simple steps. With our offers, you can transform the RPG-NH into exactly the kind of hydraulic press you need right now. Have questions about the equipment or possible uses of the RPG-NH gluing press? Contact us today for individual advice – our experienced team is at your disposal and looks forward to your inquiry!
