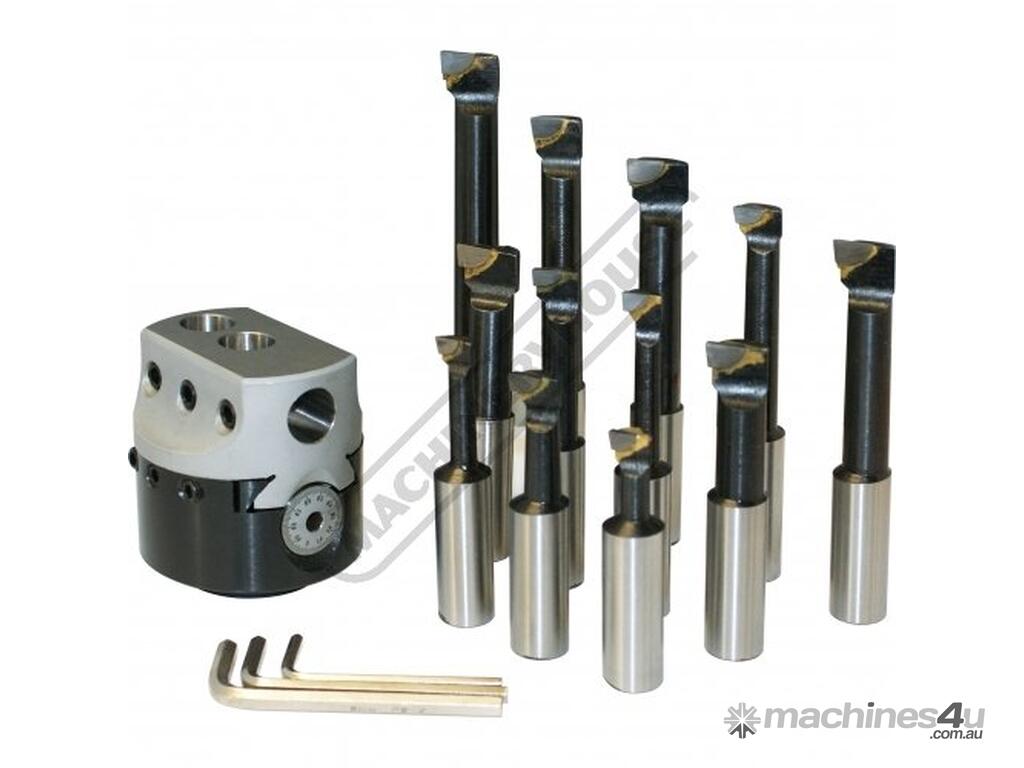

BC-3K Precision Boring Head Kit Ø75mm Head Requires Spindle Arbor To Suit Machine

TOOLMASTER BC-3K Precision Boring Head Kit Ø75mm Head Requires Spindle Arbor To Suit Machine
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M183

Fitted with 2 vertical and one cross hole for the boring bars
The boring head allows the boring bar to be adjusted at a right angle to the spindle axis. This feature makes it possible to position the boring cutter accurately to bore holes of varying diameters. Direct-reading adjustment screw is hardened and ground, has an easy-to-read, non-reflecting satin chrome dial face for accurate adjustments of 0.01mm.
Please note: Arbor are sold separately.

Features:
Wide range of boring diameters and depths
Calibrated micro adjusting screw via a hexagon key.
1-1/2" x 18TPI threaded body to mount optional arbors
Accepts 18mm diameter boring bars

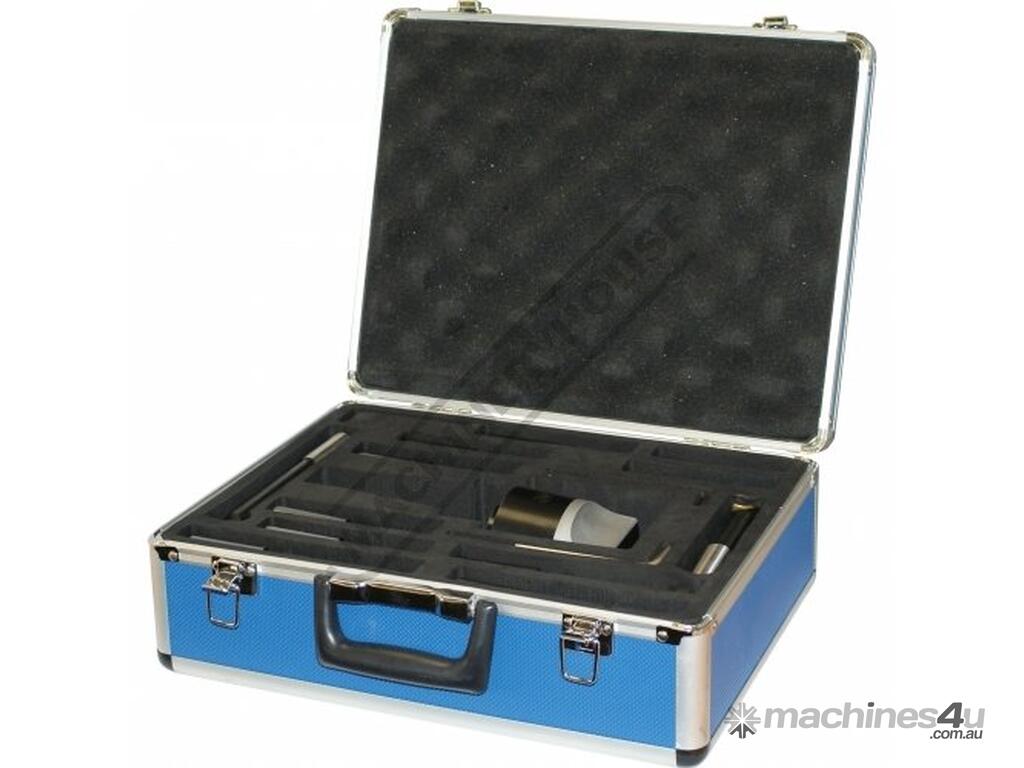

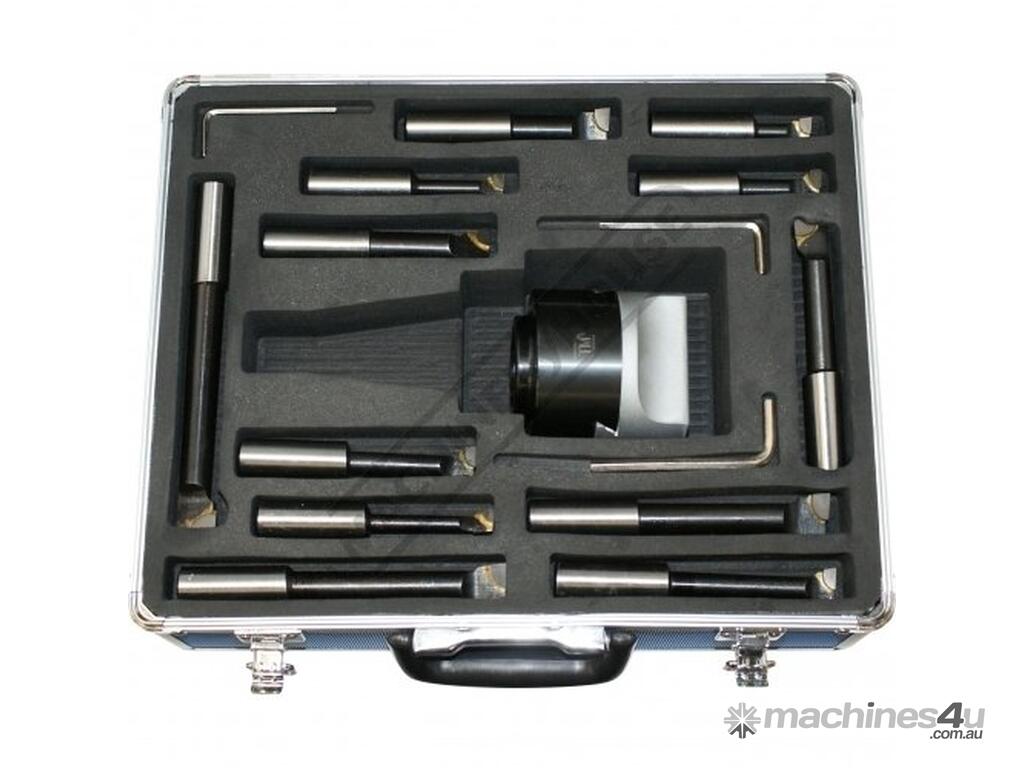

Includes boring bars and aluminium foam padded case for protection


Specifications:
ORDER CODE: M183
MODEL: BC-3K
Type: Boring
D (mm): 75
H (mm): 80
d (lowercase) (mm): 18
W (mm): ~
h (lowercase) (mm): ~
Cross Hole Diameter (mm): ~
Centre Distance Between Holes (mm): 23
Micro Adjustment Travel (mm): 25
Nett Weight (kg): 3.6
