BD-325 Medium-Duty Bench Drill & Clamp Package Deal Table Tilts Left & Right To 45º & Rotates 360º Ø

HAFCO-METALMASTER BD-325 Medium-Duty Bench Drill & Clamp Package Deal Table Tilts Left & Right To 45º & Rotates 360º Ø16mm Drill Capacity with 2MT Spindle Taper
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: D590C

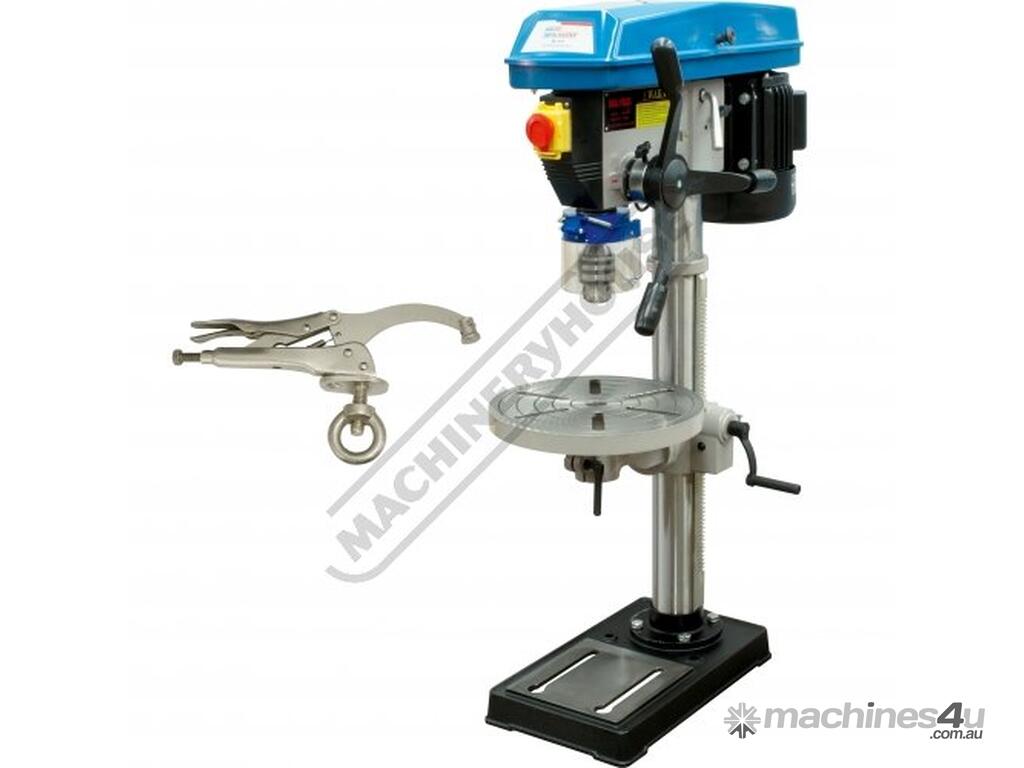

PACKAGE DEAL - BD-325 Bench Drill + 9" Locking Clamp

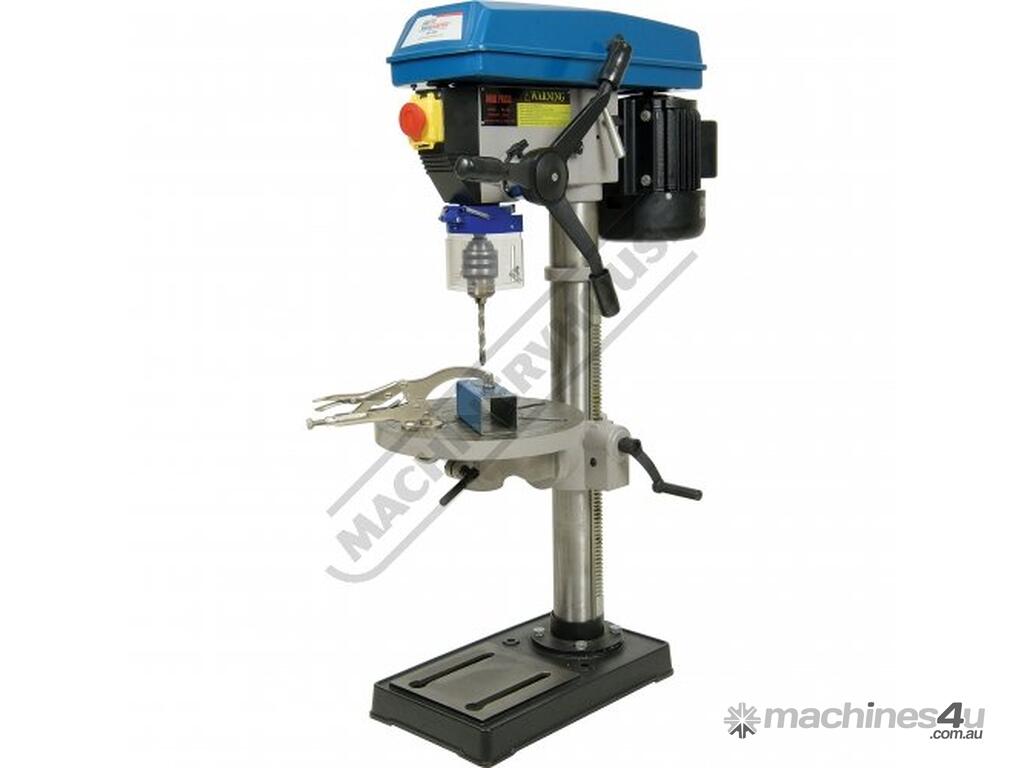

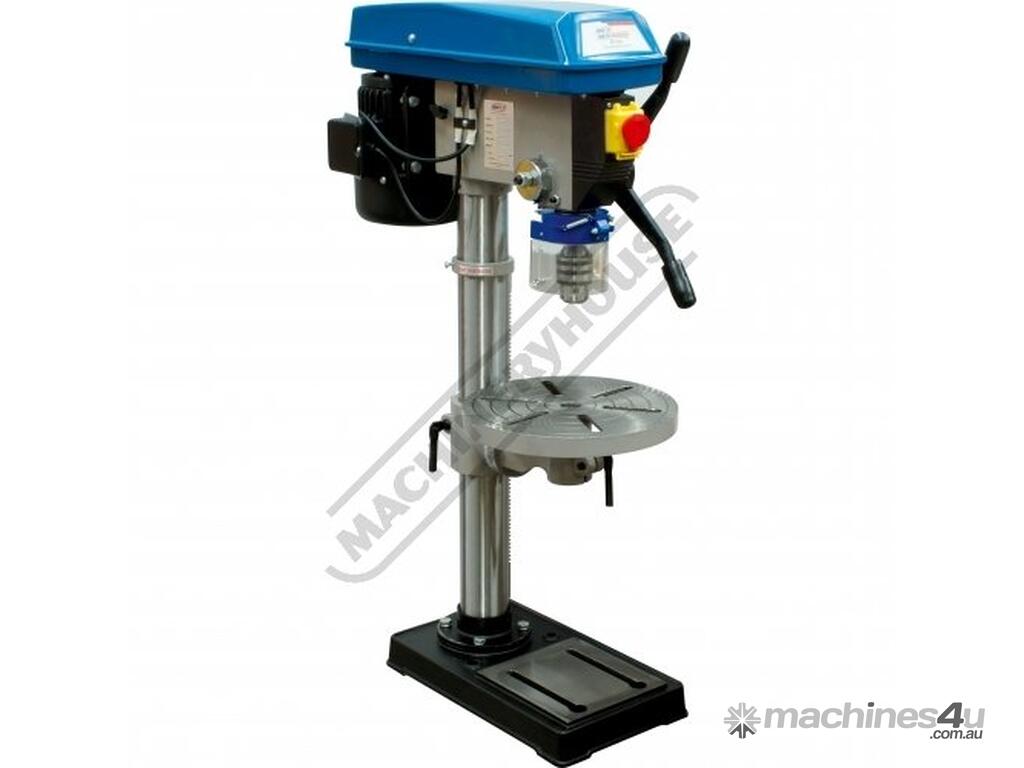

This versatile & reliable BD-325 bench drill is very useful for anyone requiring to drill consistent accurate holes and is commonly suited for any home workshop or garage use.

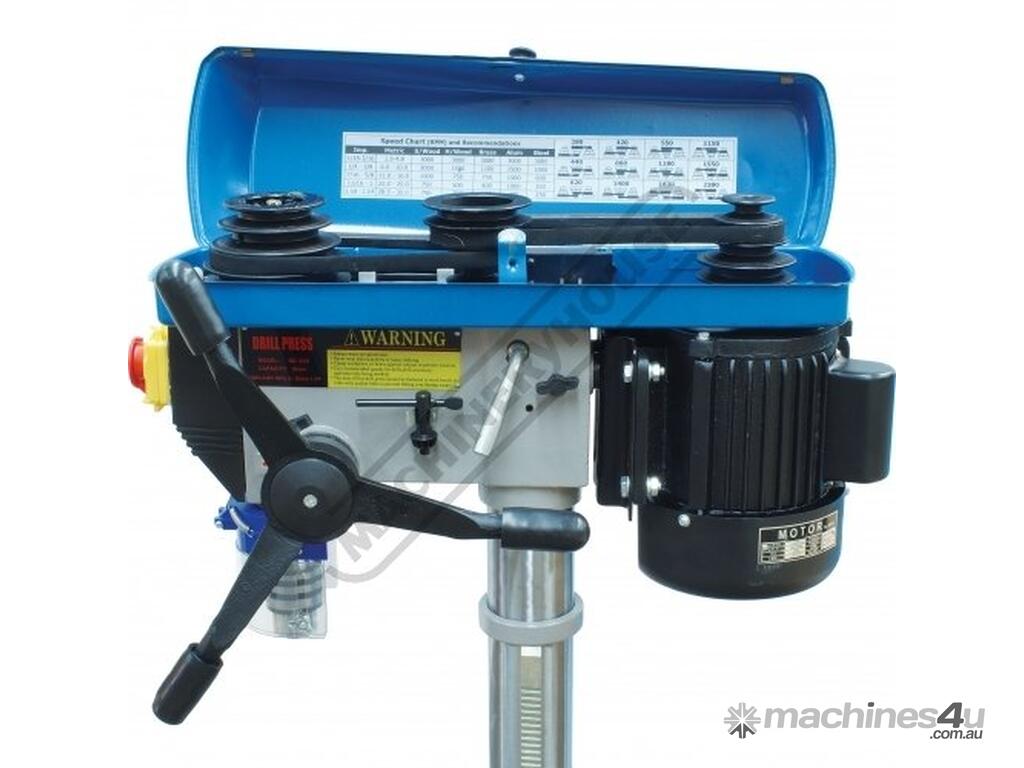

Mostly constructed from cast iron and machined steel to provide superior stability and strength. Powered by a 0.75kW, 1hp, 240-volt induction motor and coupled to a 12-belt speed pulley system offering wide range of speeds between 280-2380rpm. The down feed handle is also made from cast iron in one solid piece design and fitted with soft hand grips for your comfort & convenient drilling depth feed control.

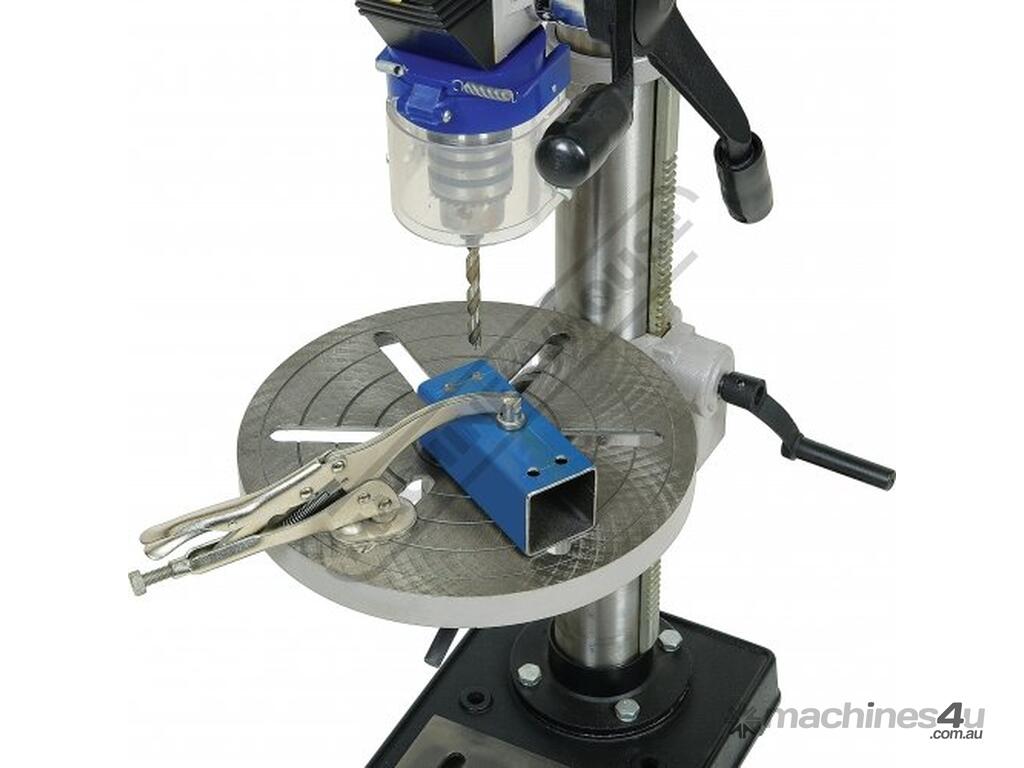

The drill quill is equipped with a 2 morse taper spindle allowing you to fit 2MT drill bits to the spindle or 1MT drill bits with an optional adaptor. A quality Ø3-Ø16mm keyed drill chuck with 2MT arbor is included & fitted. The drill table can tilt left or right, rotate 360 degrees and the height is also easily adjusted up or down via rack & pinion hand lever & can be locked into position. Furthermore, the whole table assembly can be swivelled away to allow the machined base to be used as a work support.

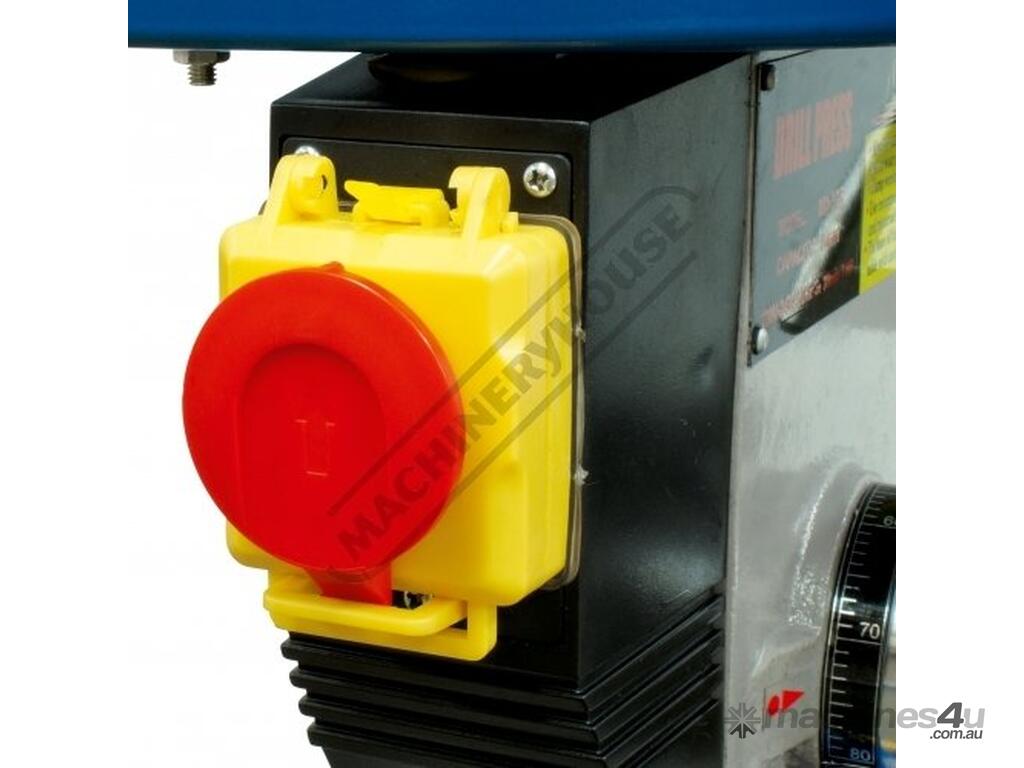

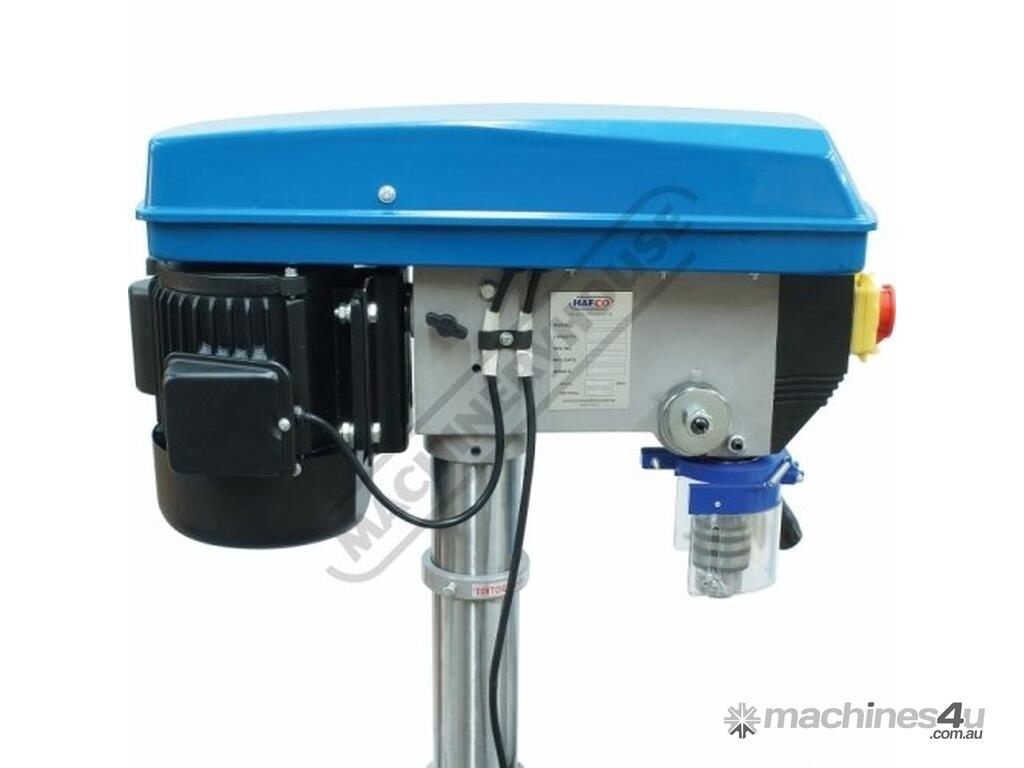

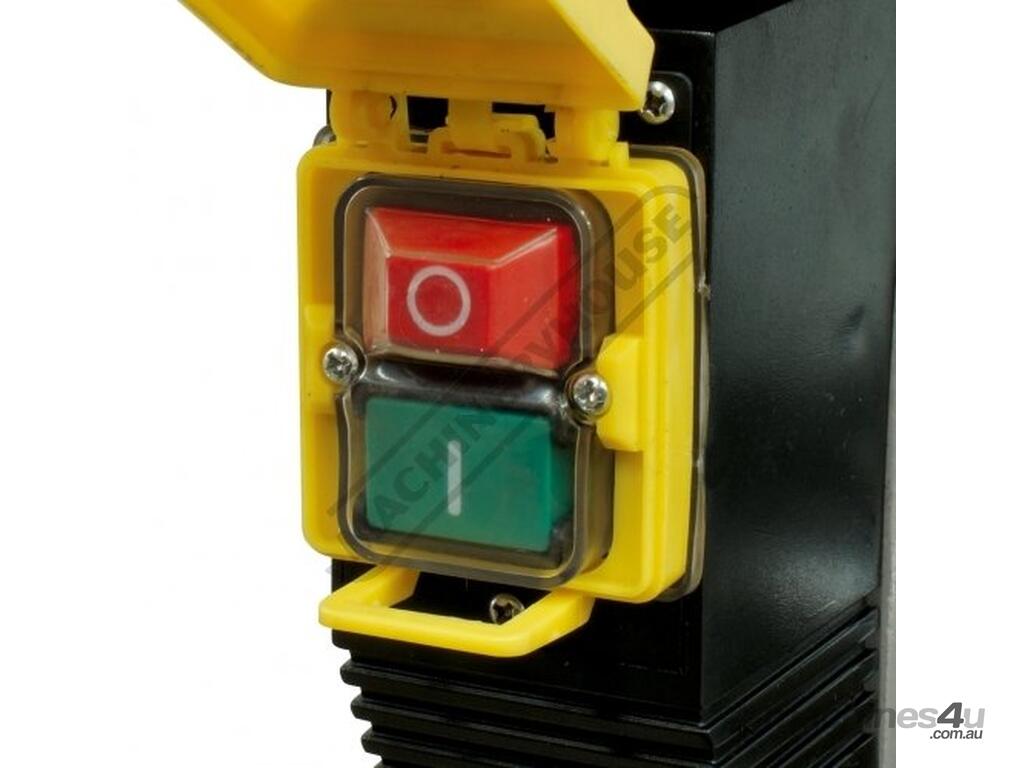

The magnetic safety switch with emergency stop is conveniently front mounted for quick access. The drill also includes an adjustable safety drill chuck guard and the belt cover is equipped with a safety switch to ensure safe belt speed changing.

Features:
BD-325 - Bench Drill - Belt Drive - (D590)
Ideal for home workshop or farm use
Quiet belt drive system

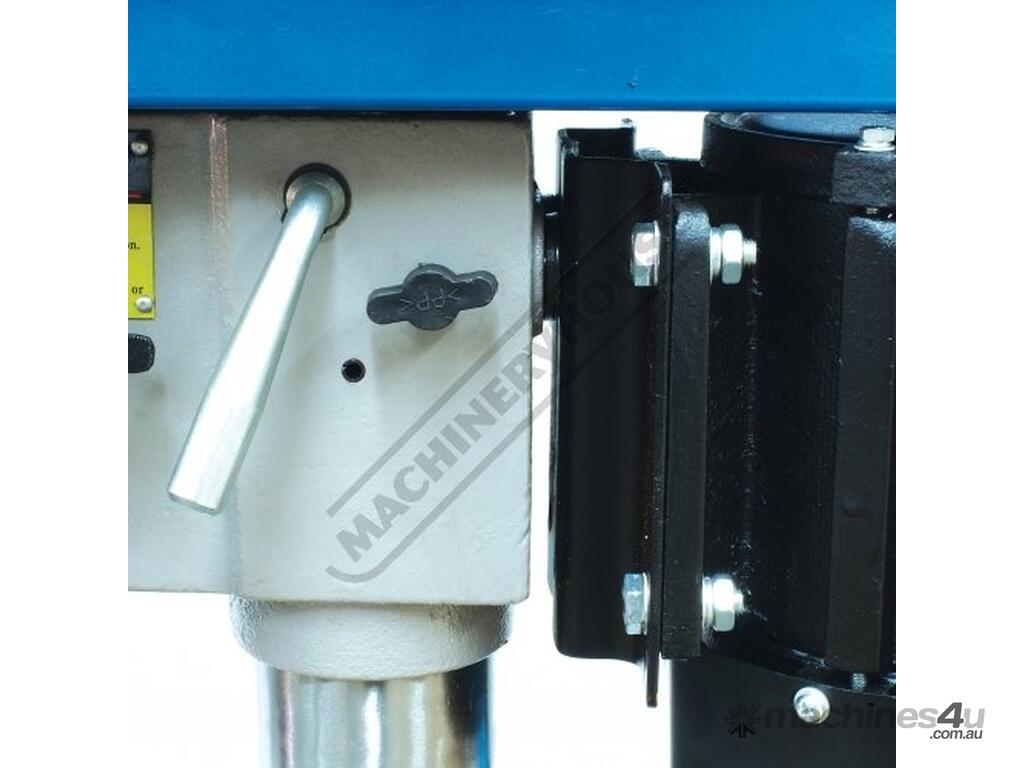

Quick action V-belt tensioning lever

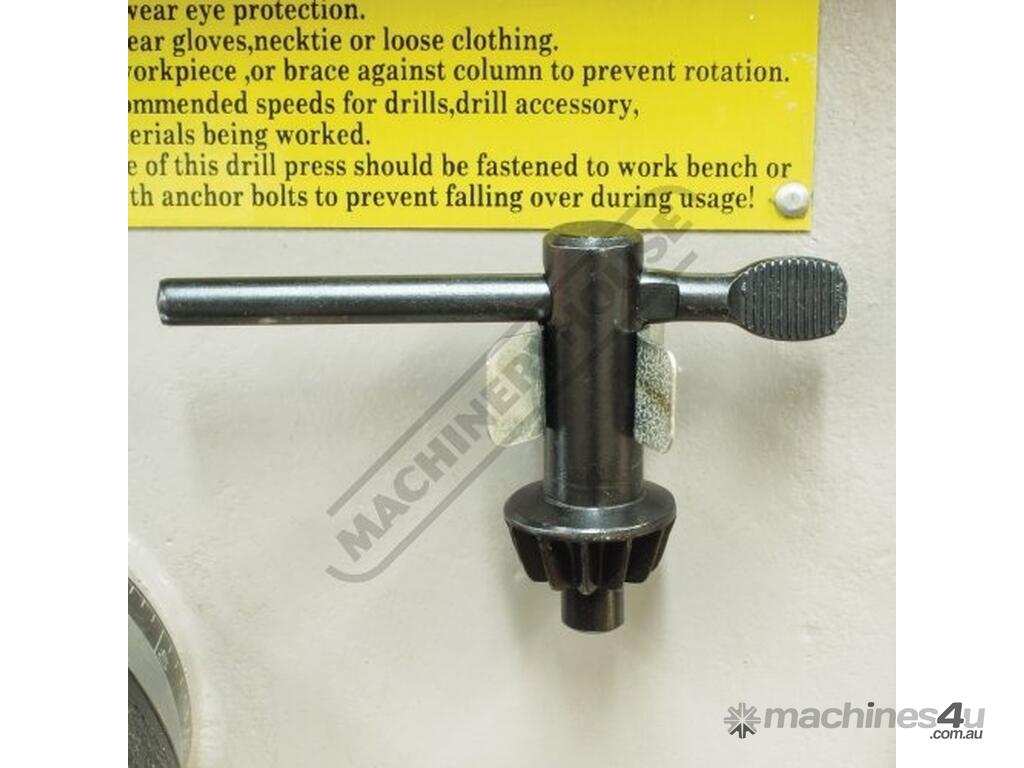

Drill chuck key holder mounted on right side of the machine

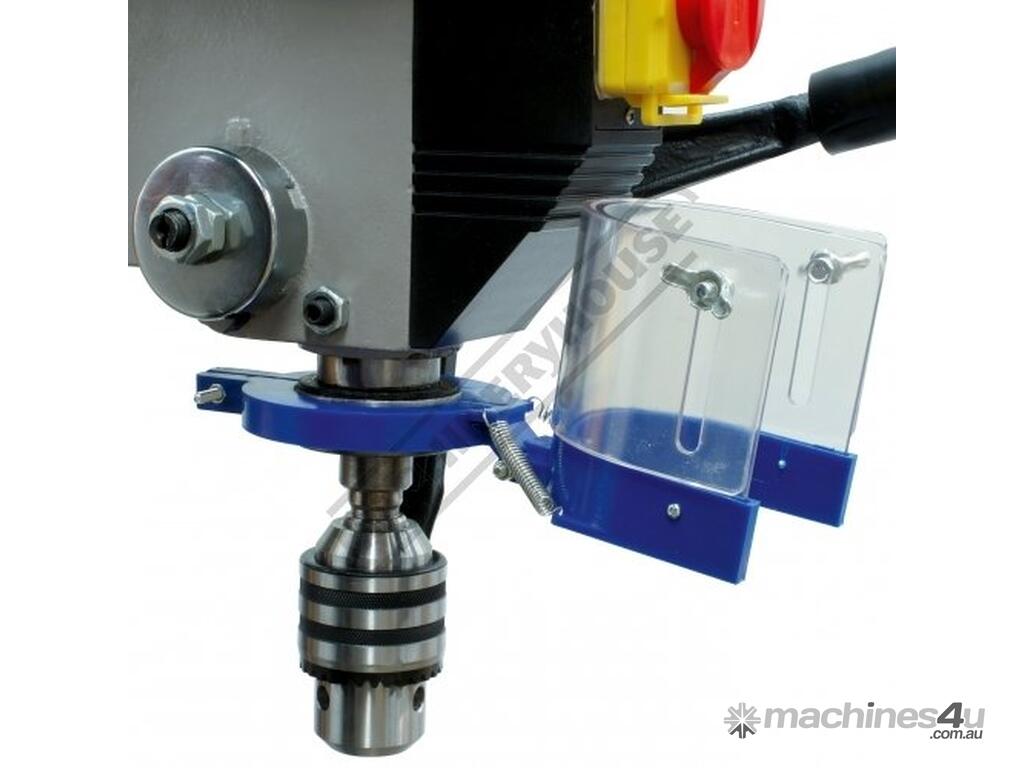

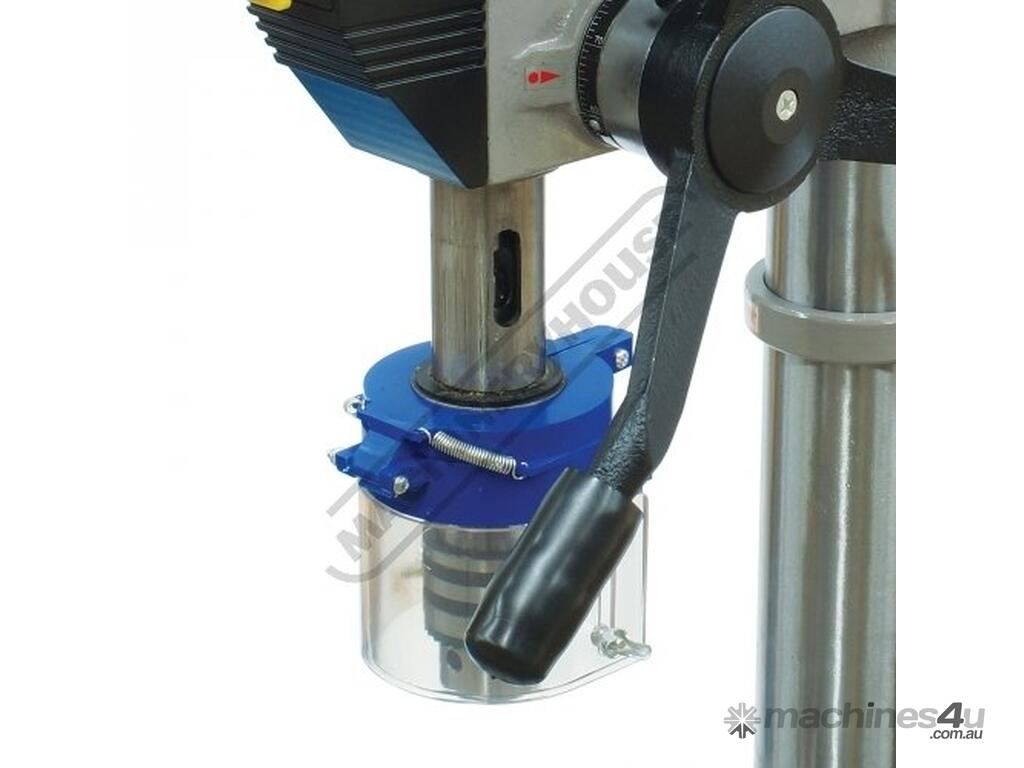

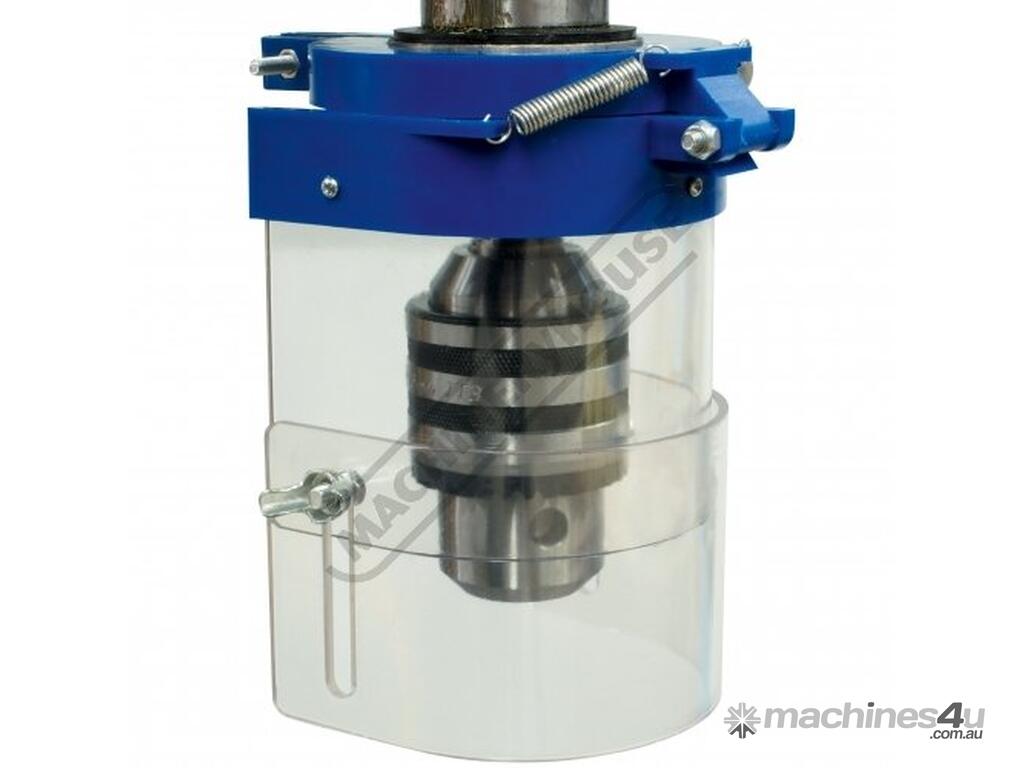

Adjustable safety drilling chuck guard with flip up screen

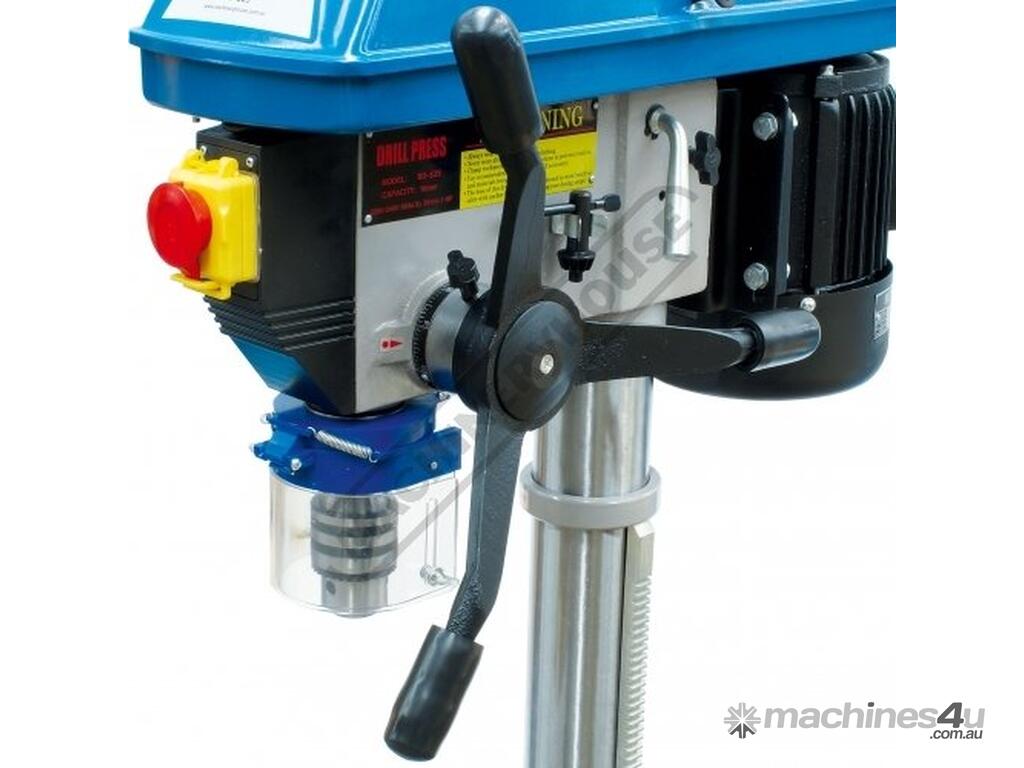

One piece cast iron drilling lever with comfort grips

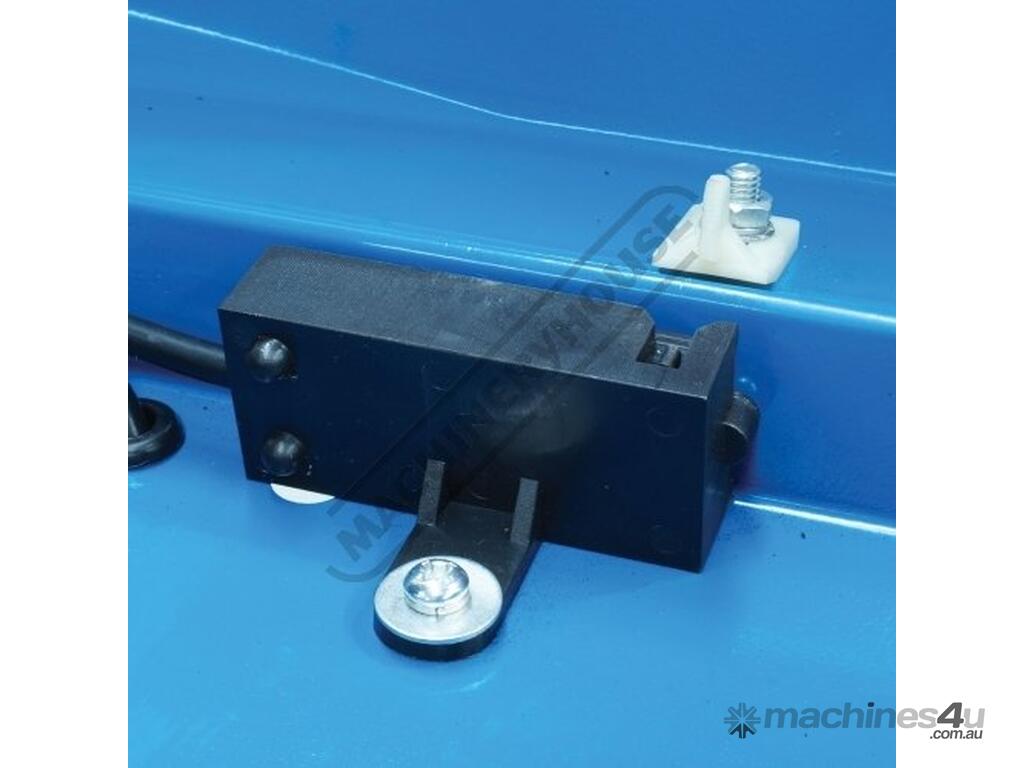

Safety micro switch on pulley guard
Safety magnetic-type switch
Rack & pinion table height adjustment with locking lever
Thick walled column ensuring greater rigidity
Table tilts left & right to 45º & rotates 360º

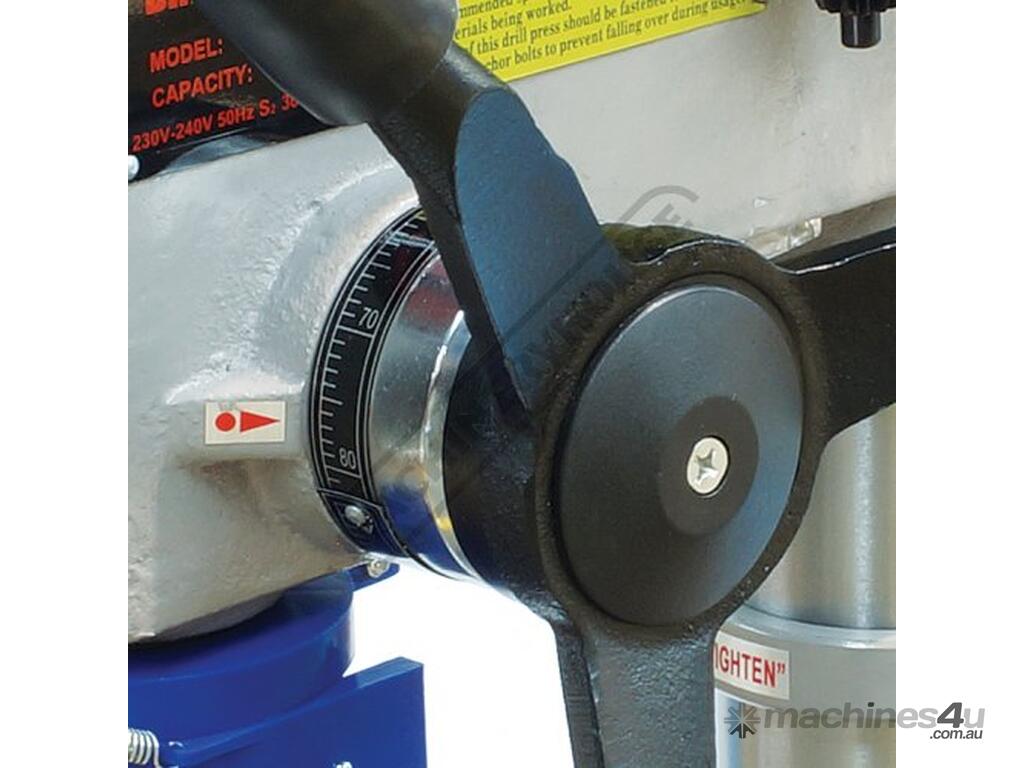

Drilling depth stop
Slotted work table

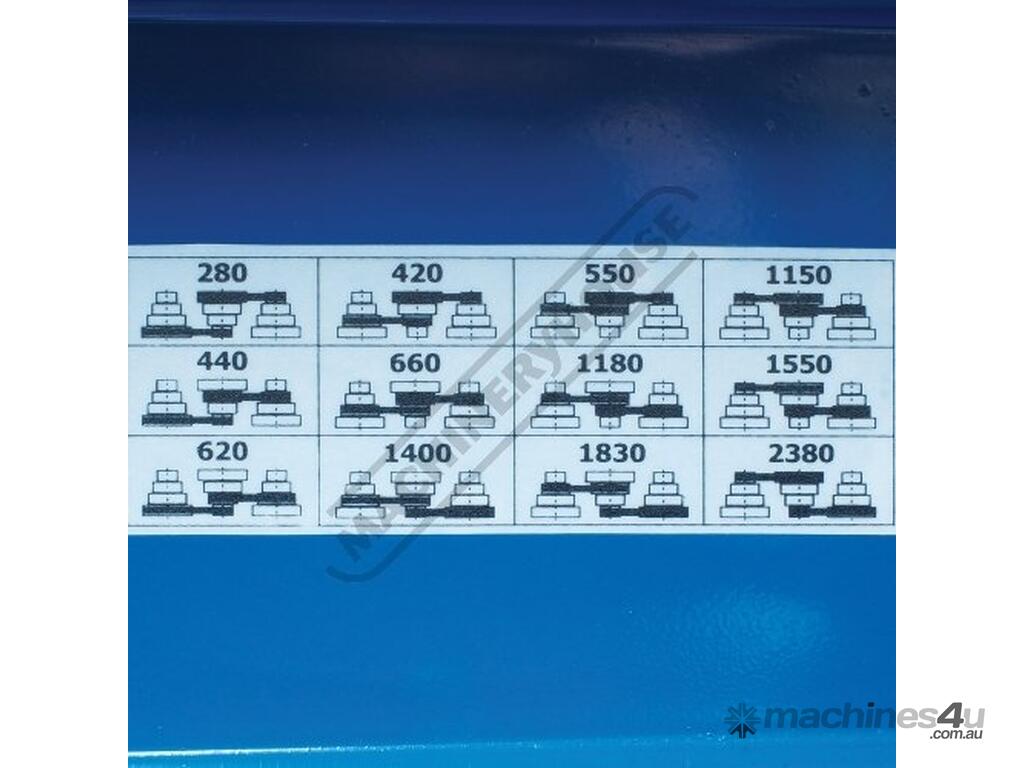

12 Spindle speeds - rpm
Fan-cooled copper wound 240V motor

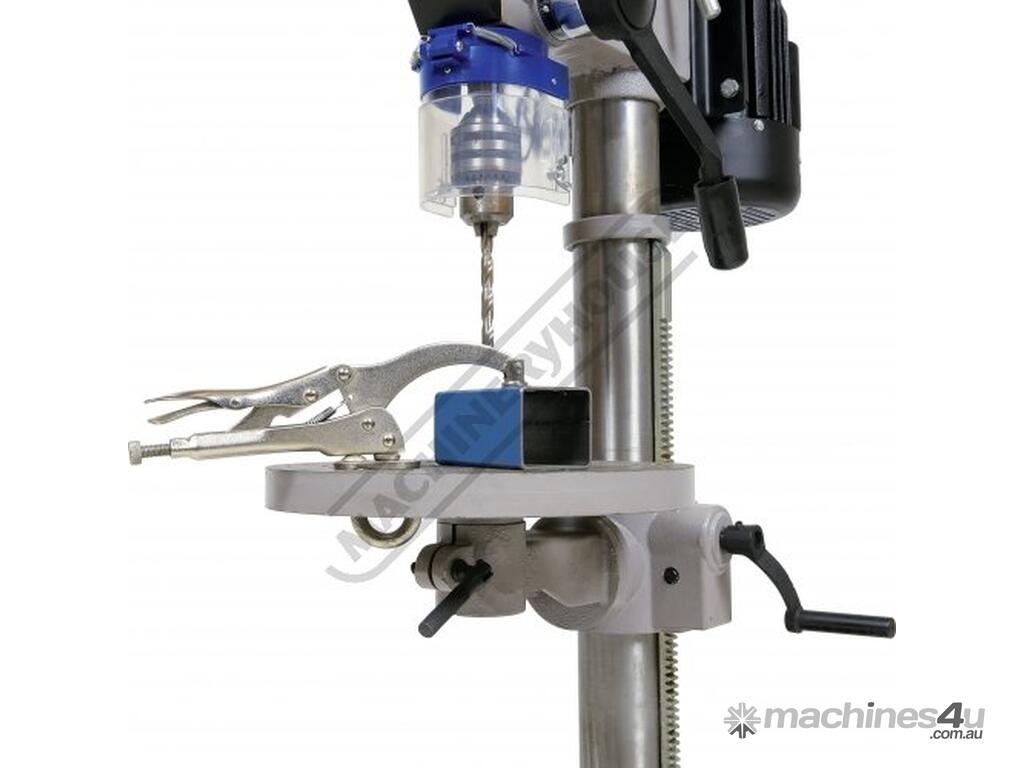

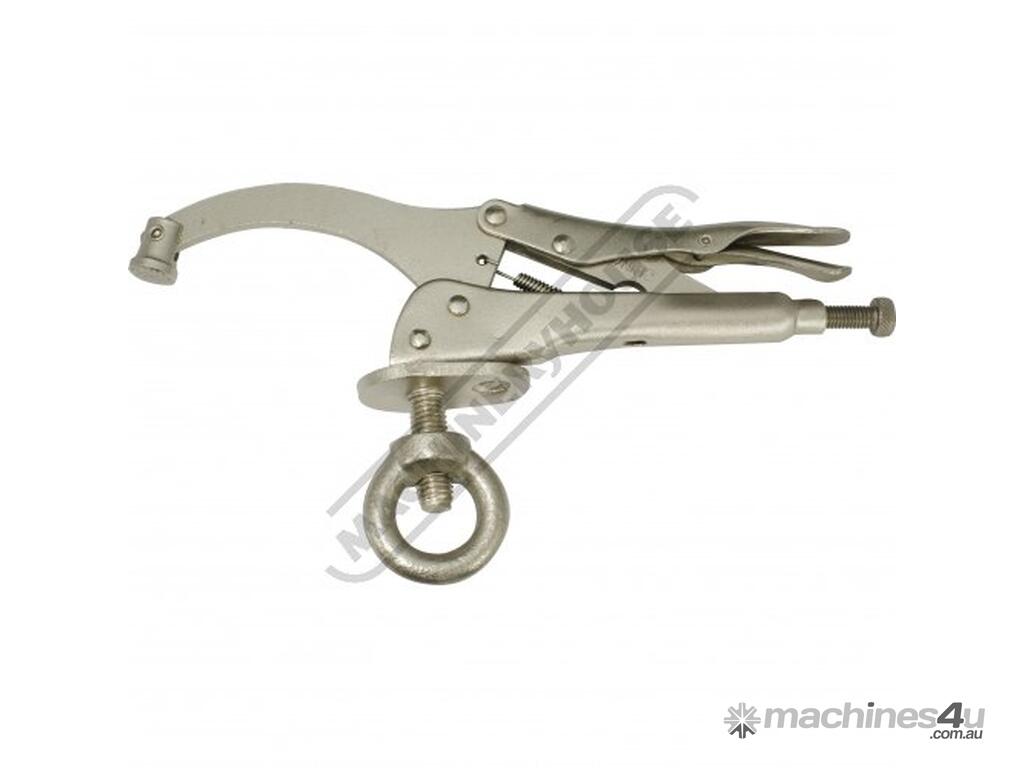

VGP9 - 9" Drill Press Locking Clamp - (C103)
Fastens to drill press table slots and secures with a finger type locking nut
Knurled nut adjusts the jaw opening and clamping pressure
Hardened alloy steel with chrome plating
Quick release lever to unlock the jaw
Swivelling jaw pad for parallel clamping
2" maximum jaw opening
3" throat depth

Includes:
- BD-325 - Bench Drill - Belt Drive (D590)
- VGP9 - 9" Drill Press Locking Clamp (C103)
- 16mm keyed drill chuck and arbor
- Chuck key to suit
- Drill drift tool to remove drill chuck or taper shank drills



Specifications:
ORDER CODE: D590C
MODEL: BD-325 + VGP9 Package Deal
Type - Bench / Pedestal: Bench
Duty Type: Medium-Duty
Drilling Diameter Capacity (mm): Ø16
Spindle Taper (MT): 2
Spindle Travel (mm): 80
Throat Depth (mm): 162.5
Quill Diameter (mm): 40
Collar Diameter (mm): 55
Column Diameter (mm): 72
Spindle To Table (mm): 450
Spindle To Base (mm): 630
Table Shape: Round
Table Size (mm): 290
Work Light: ~
Micro Switch On Pulley Guard: Yes
Drive Belt Type: A Section
Spindle Speed Steps (No.): 12
Spindle Speed Range (rpm): 280 - 2380
Motor Power (kW / hp): 0.75 / 1
Voltage / Amperage (V / amp): 240 / 10
Overall Height (mm): 980
Nett Weight (kg): 41.5
