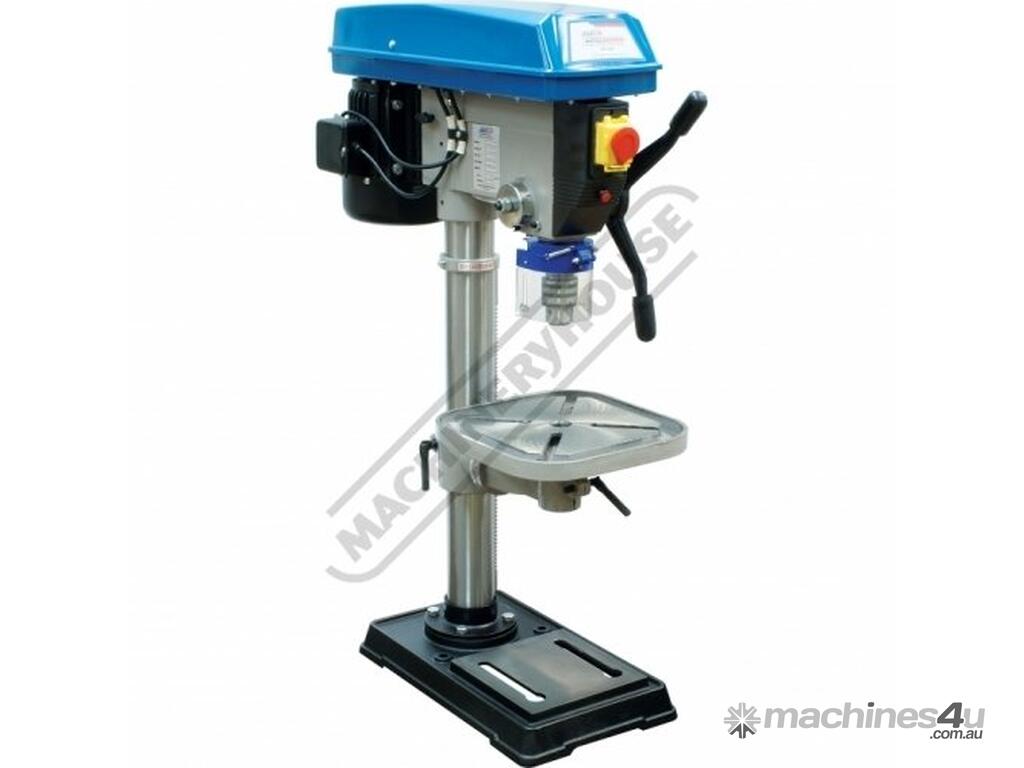

HAFCO-METALMASTER BD-360 Heavy-Duty Bench Drill - Belt Drive Table Tilts Left & Right To 45º & Rotates 360º Ø20mm Drill Capacity with 2MT Spindle Taper
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: D594

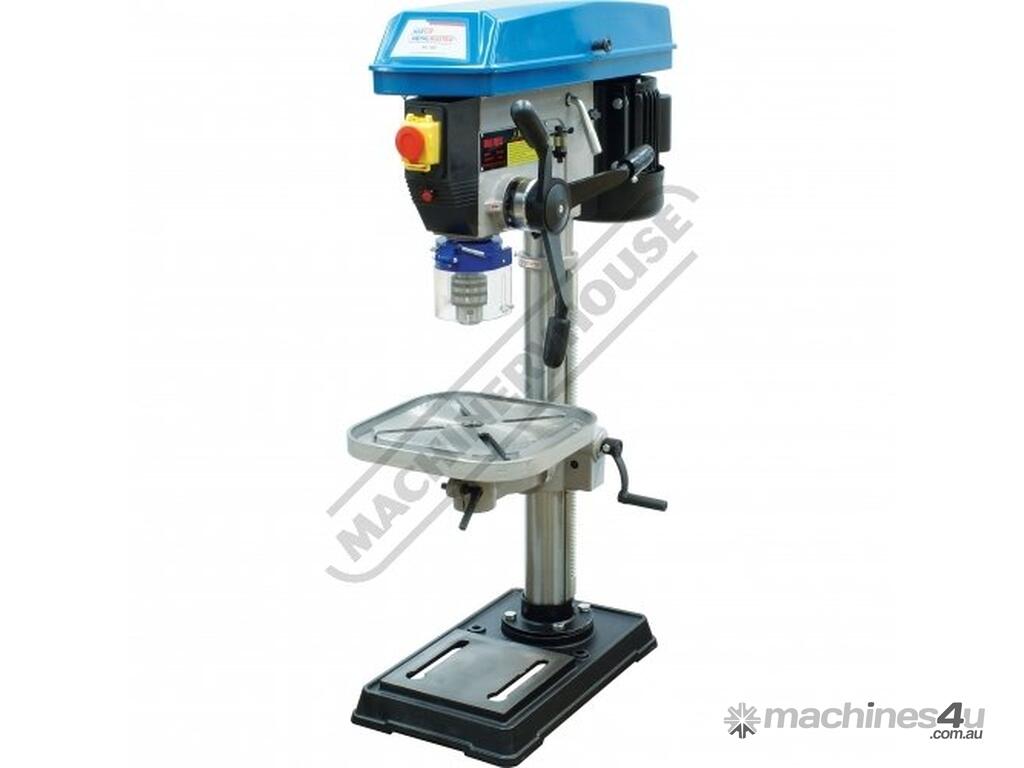

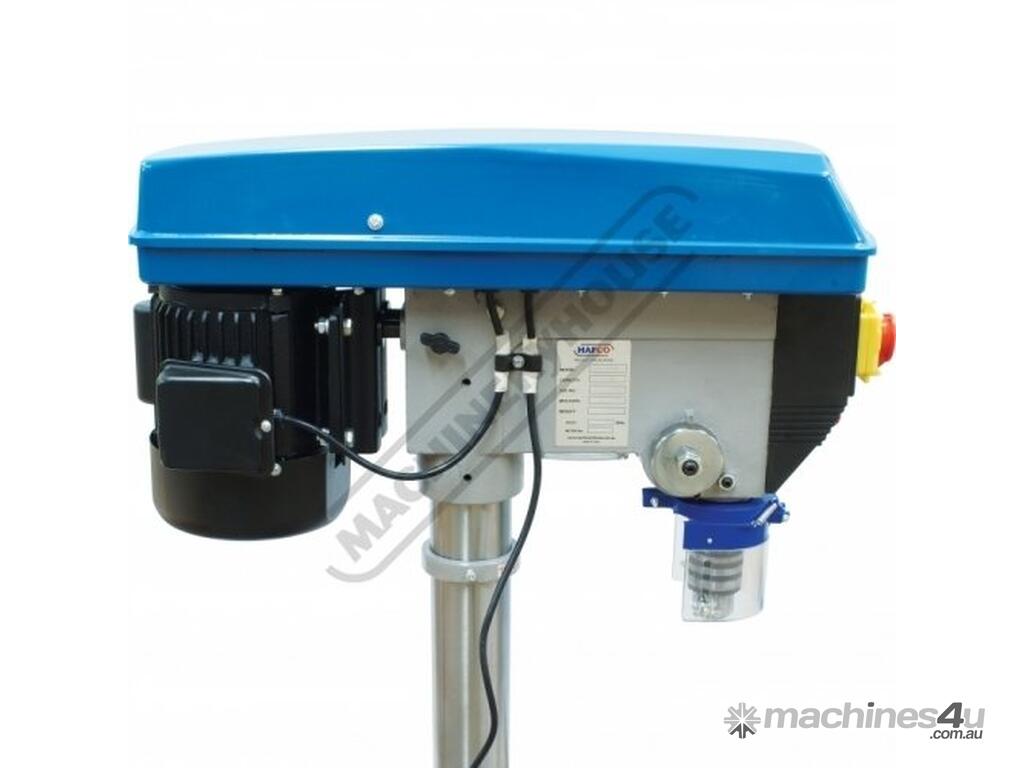

The BD-360 bench drill, heavy duty rated compared to its little brother BD-325 and consequently has a few more user-friendly features. The larger drill head has a work light fitted underneath to shine onto your job, the quill diameter is approximately 20% lager to increase accuracy & the square table offers more surface area to work on, and additionally allows T-nuts & clamps to be used on this design. This drilling machine is Ø20mm rated & beneficial for anyone requiring to drill consistent accurate holes and is commonly suited for any home workshop or farm use.

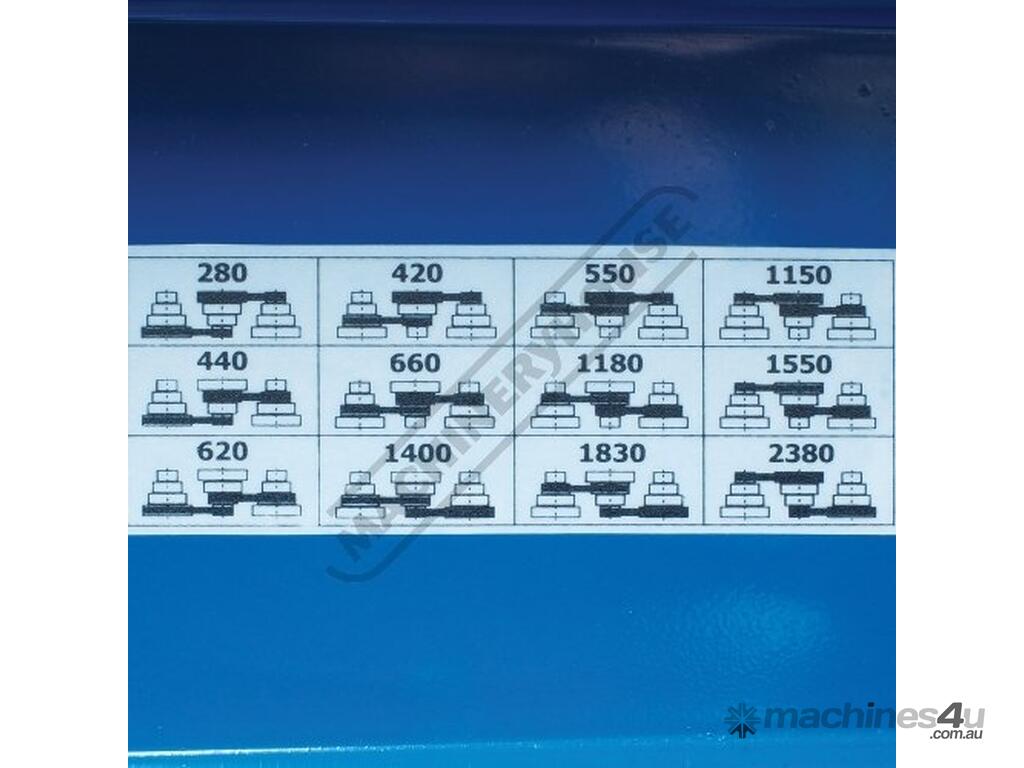

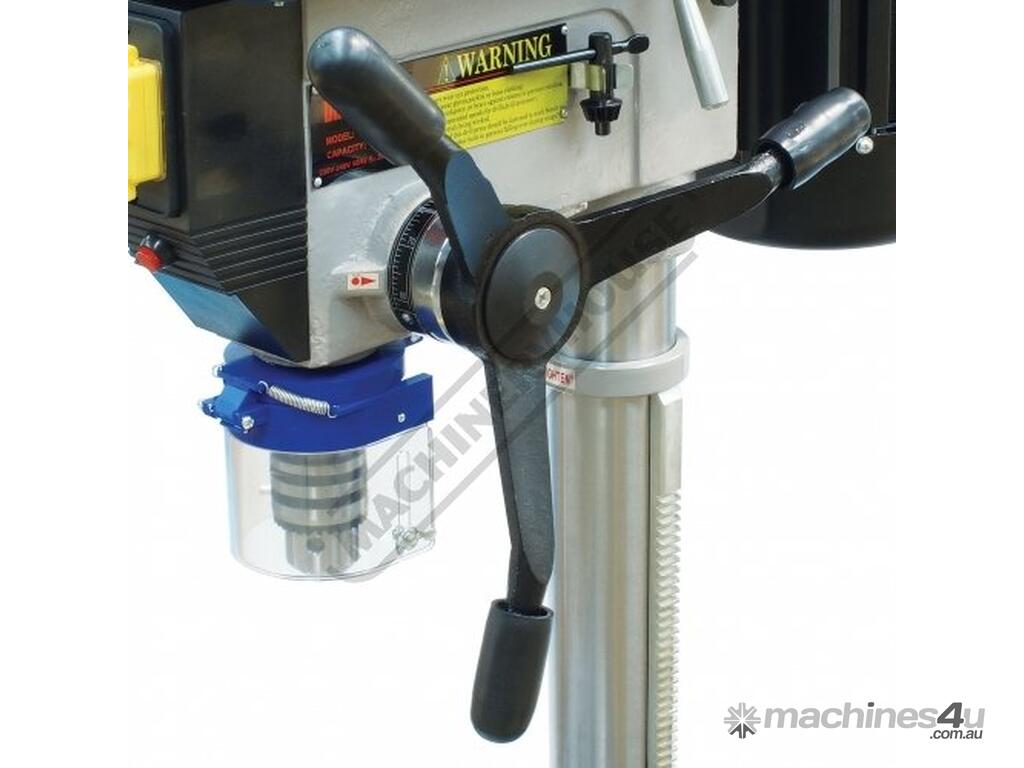

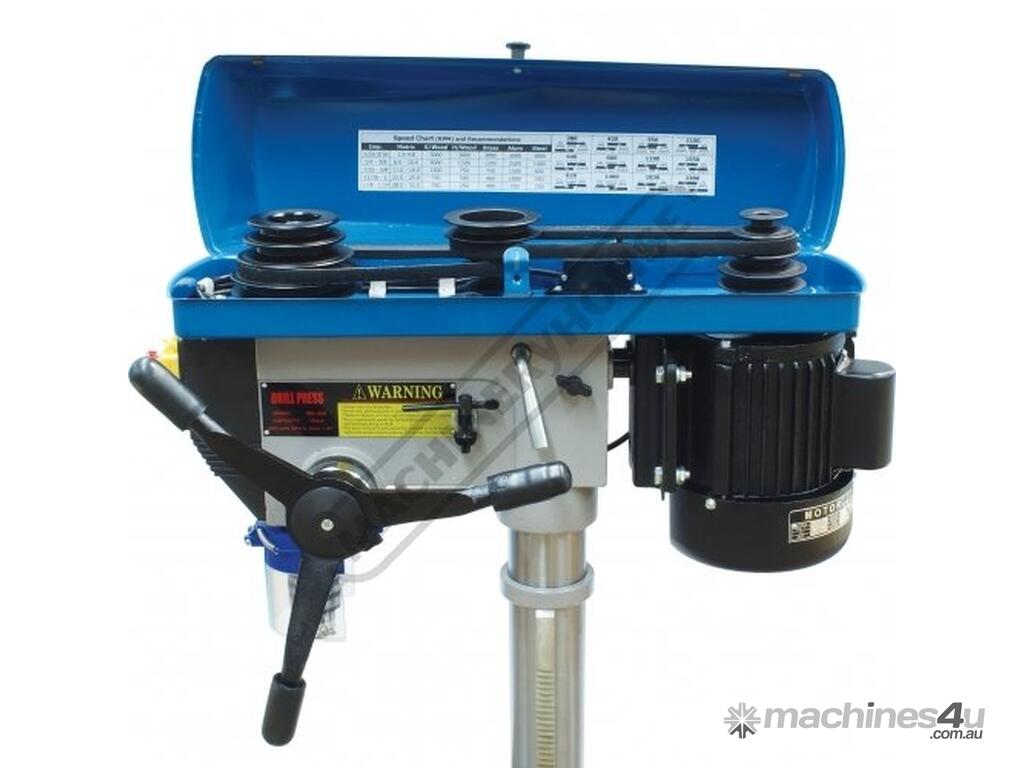

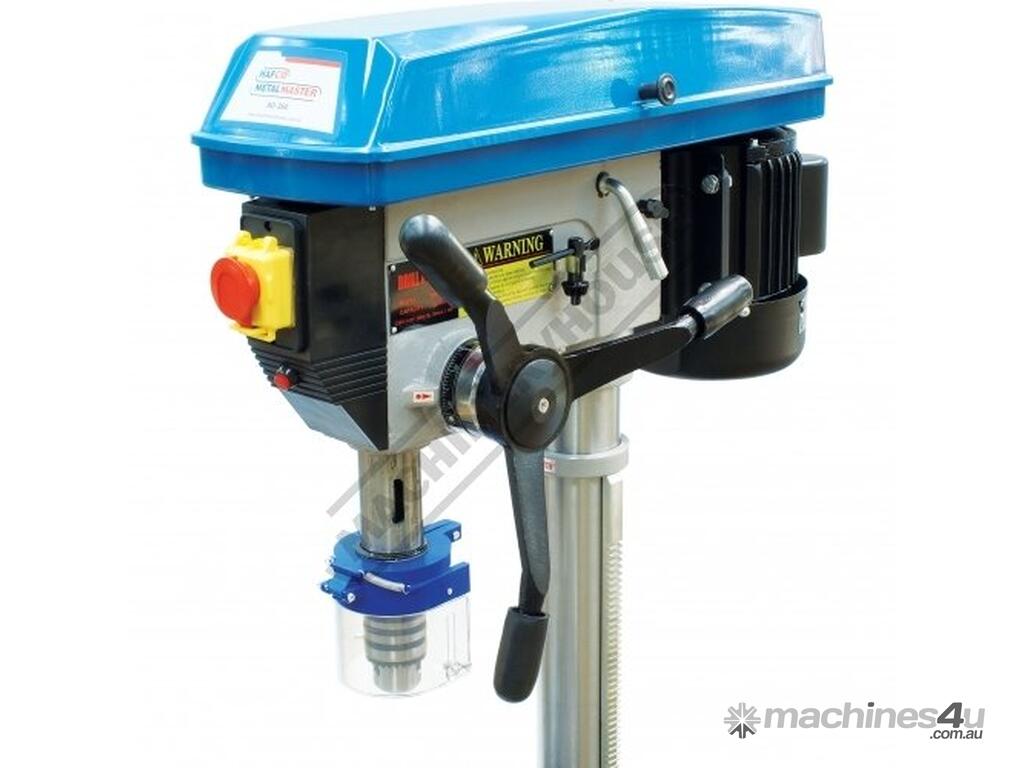

Mostly constructed from cast iron and machined steel to provide superior stability and strength. Powered by a 0.75kW, 1hp, 240-volt induction motor and coupled to a 12-belt speed pulley system offering wide range of speeds between 280-2380rpm. The down feed handle is also made from cast iron in one solid piece design and fitted with soft hand grips for your comfort & convenient drilling depth feed control.

The drill quill is equipped with a 2 morse taper spindle allowing you to fit 2MT drill bits to the spindle or 1MT drill bits with an optional adaptor. A quality Ø3-Ø16mm keyed drill chuck with 2MT arbor is included & fitted. The drill table can tilt left or right, rotate 360 degrees and the height is also easily adjusted up or down via rack & pinion hand lever & can be locked into position. Furthermore, the whole table assembly can be swivelled away to allow the machined base to be used as a work support.

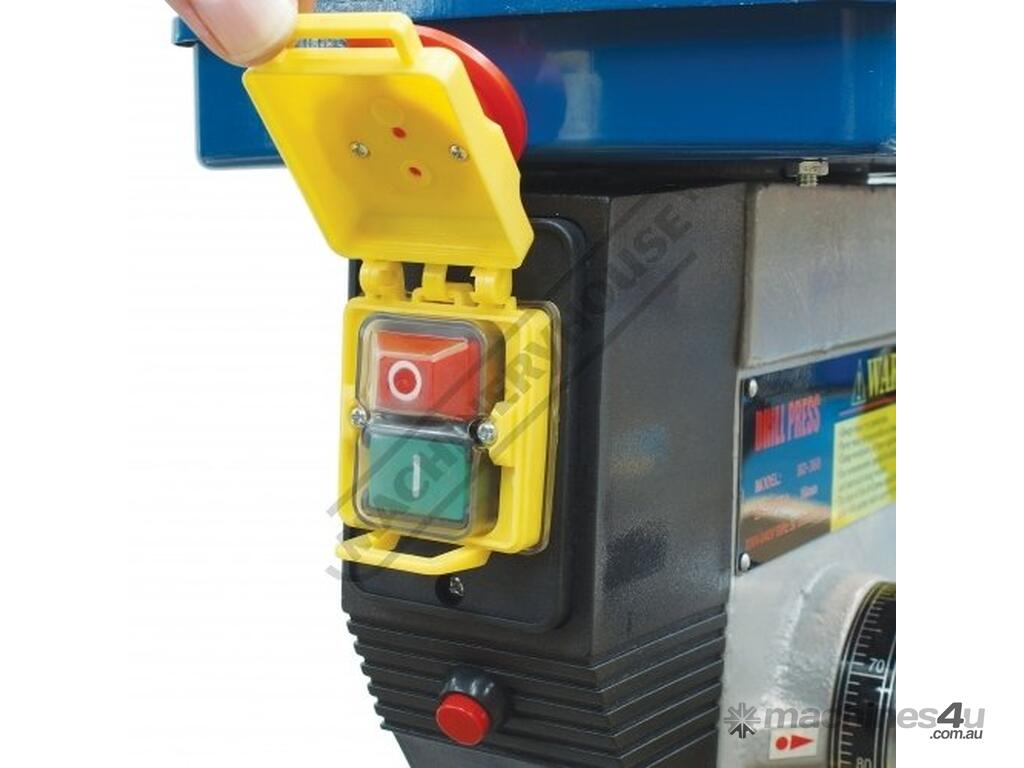

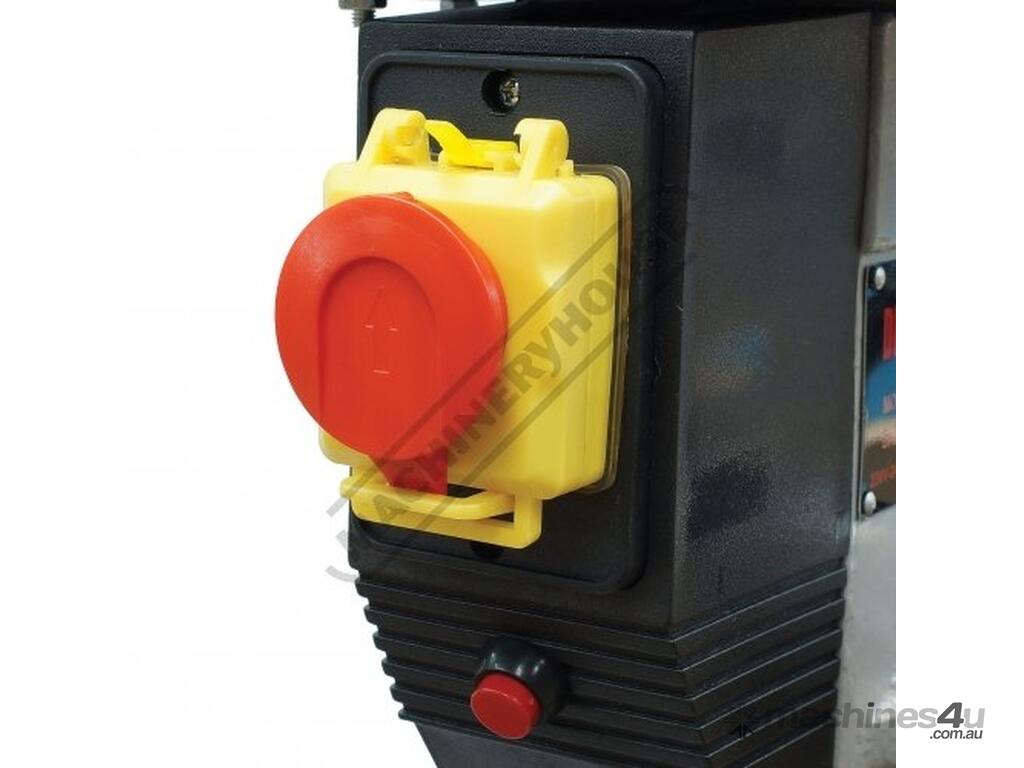

The magnetic safety switch with emergency stop is conveniently front mounted for quick access. The drill also includes an adjustable safety drill chuck guard and the belt cover is equipped with a safety switch to ensure safe belt speed changing.

Features:
Ideal for home workshop or farm use
Quiet V-belt drive system

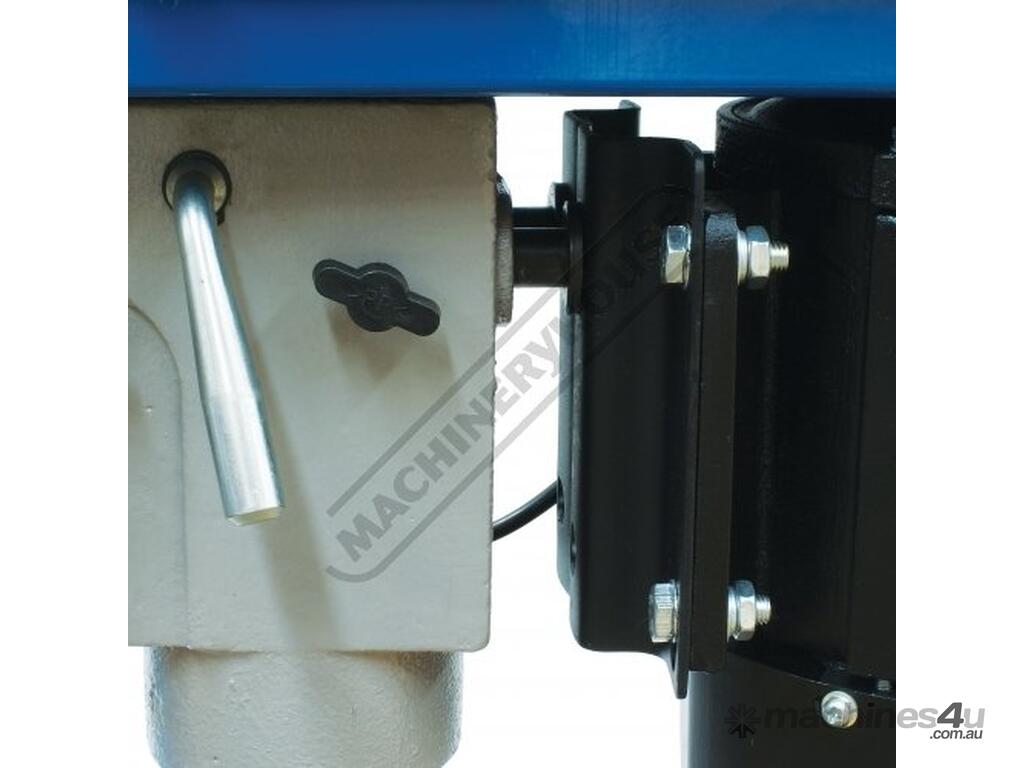

Quick action belt tensioning lever

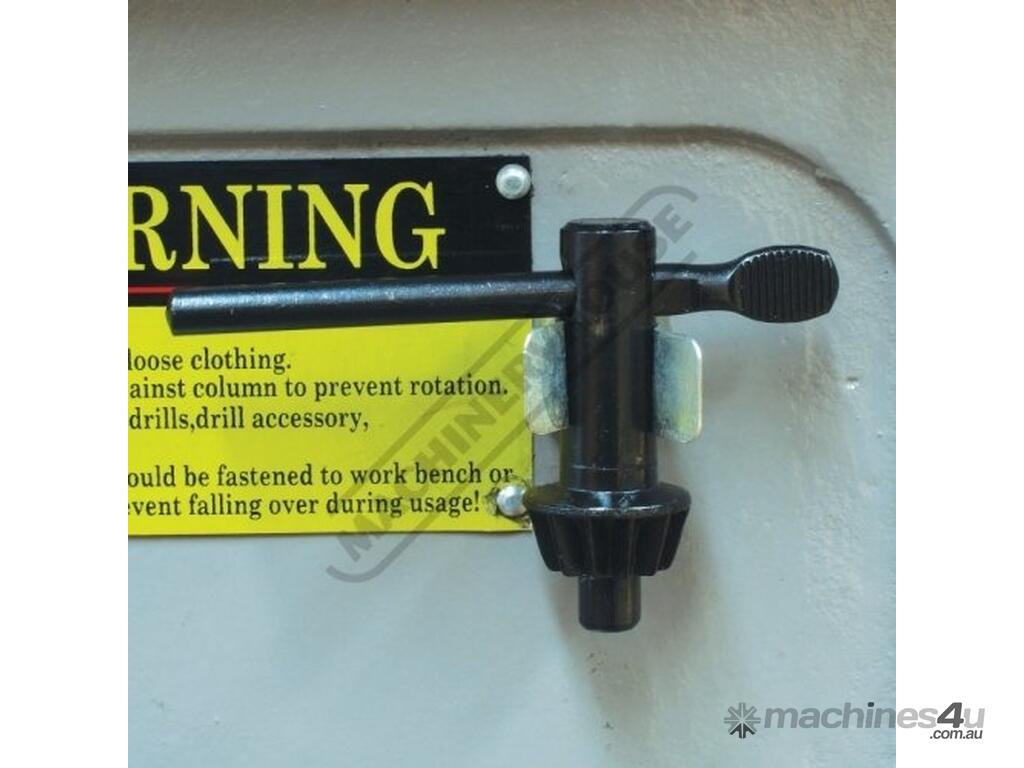

Drill chuck key holder mounted on right side of the machine

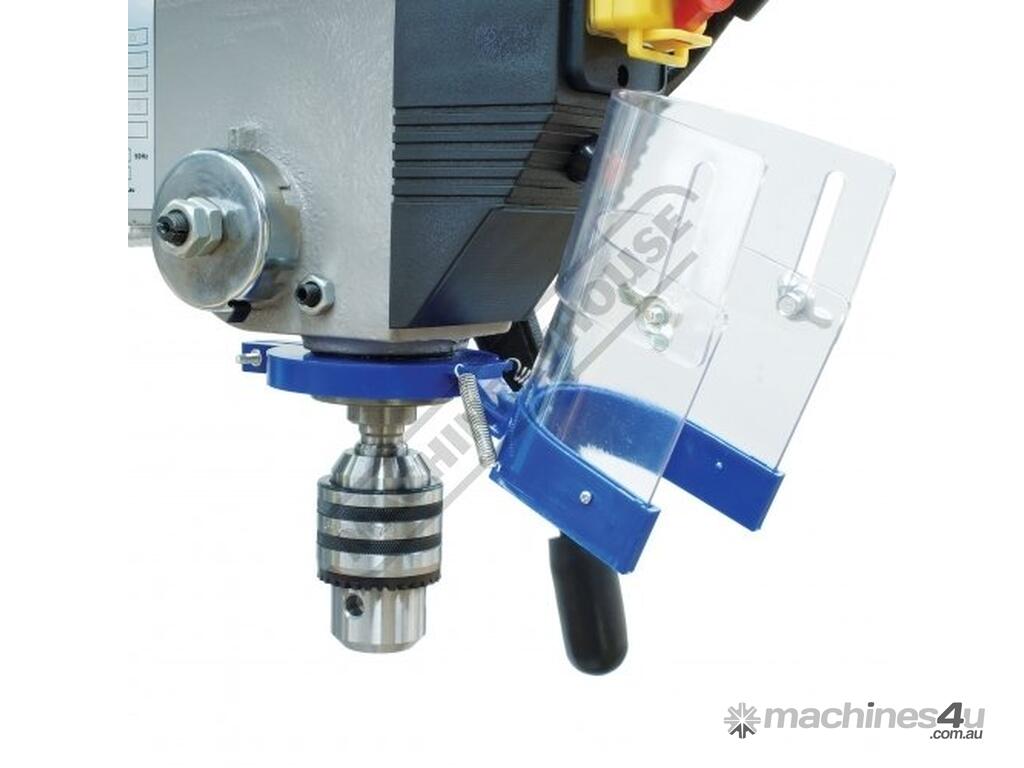

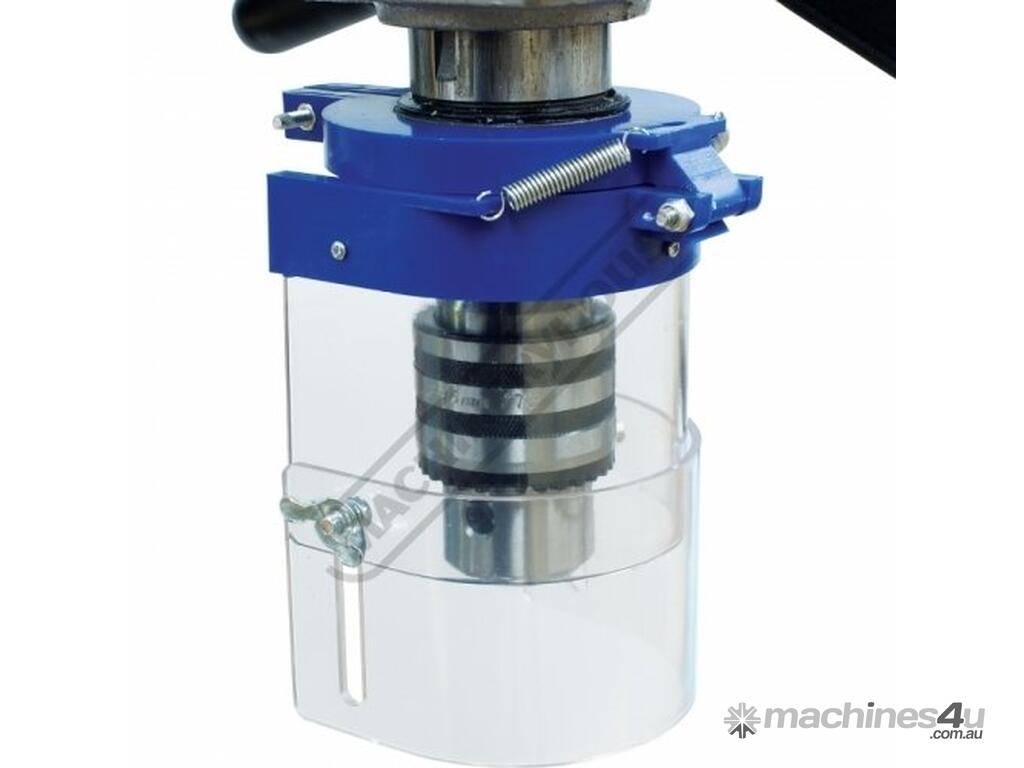

Adjustable safety drilling chuck guard with flip up screen
One piece cast iron drilling lever with comfort grips

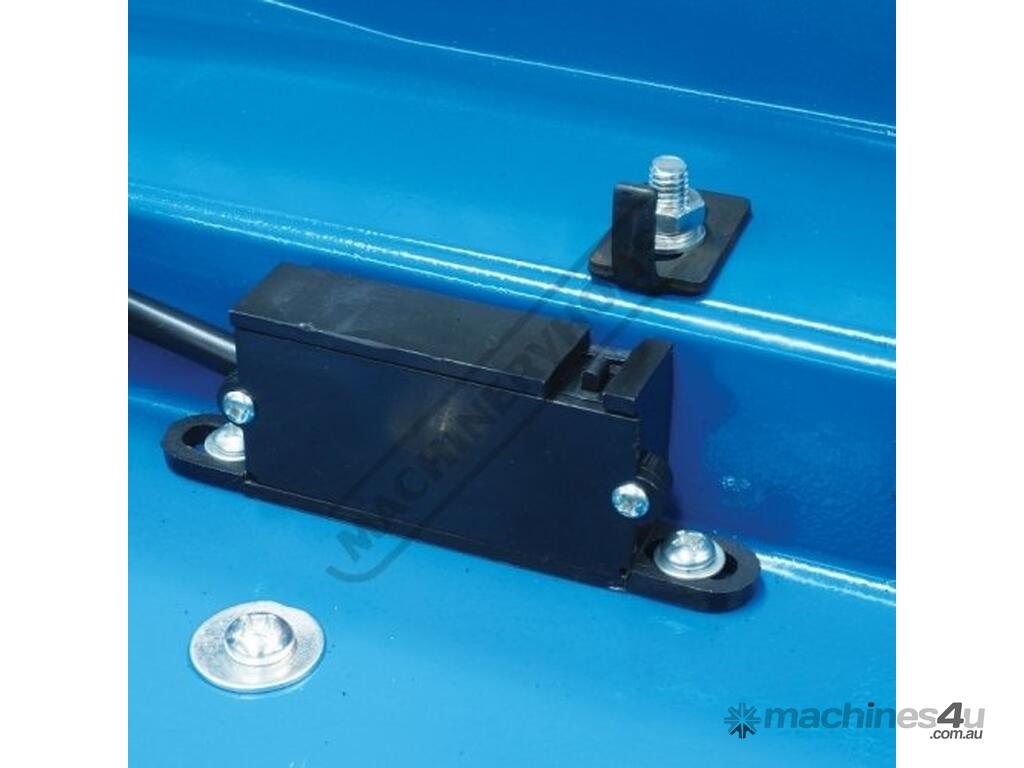

Safety micro switch on pulley guard
Safety magnetic-type switch

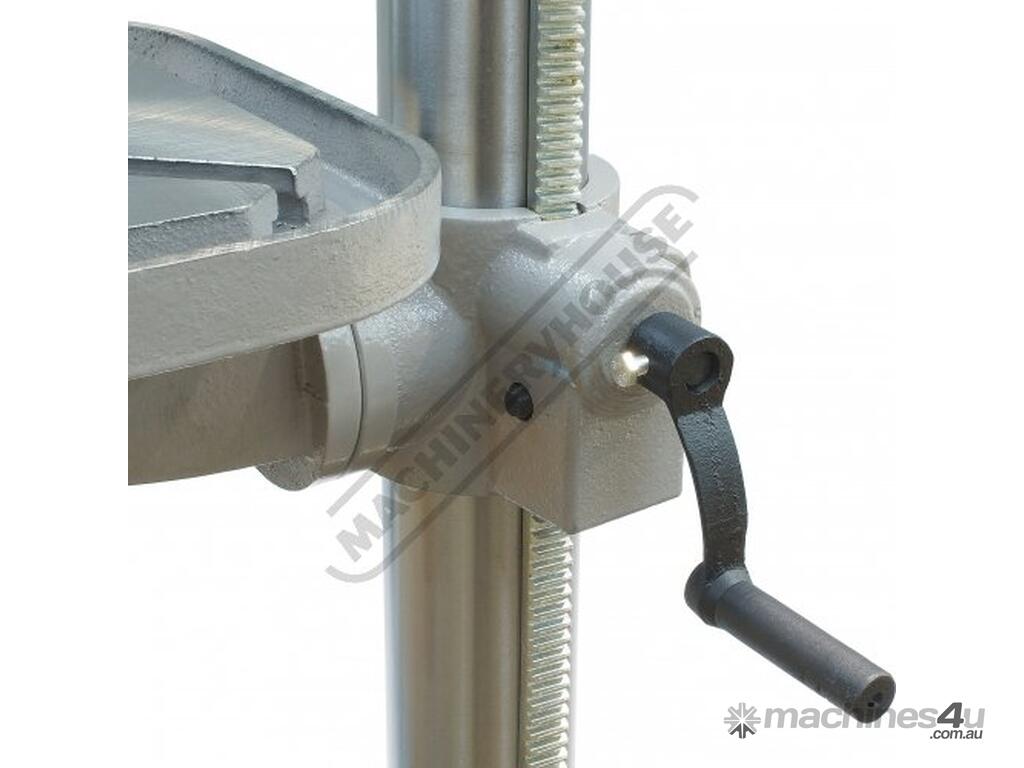

Rack & pinion table height adjustment with locking lever
Thick walled column ensuring greater rigidity

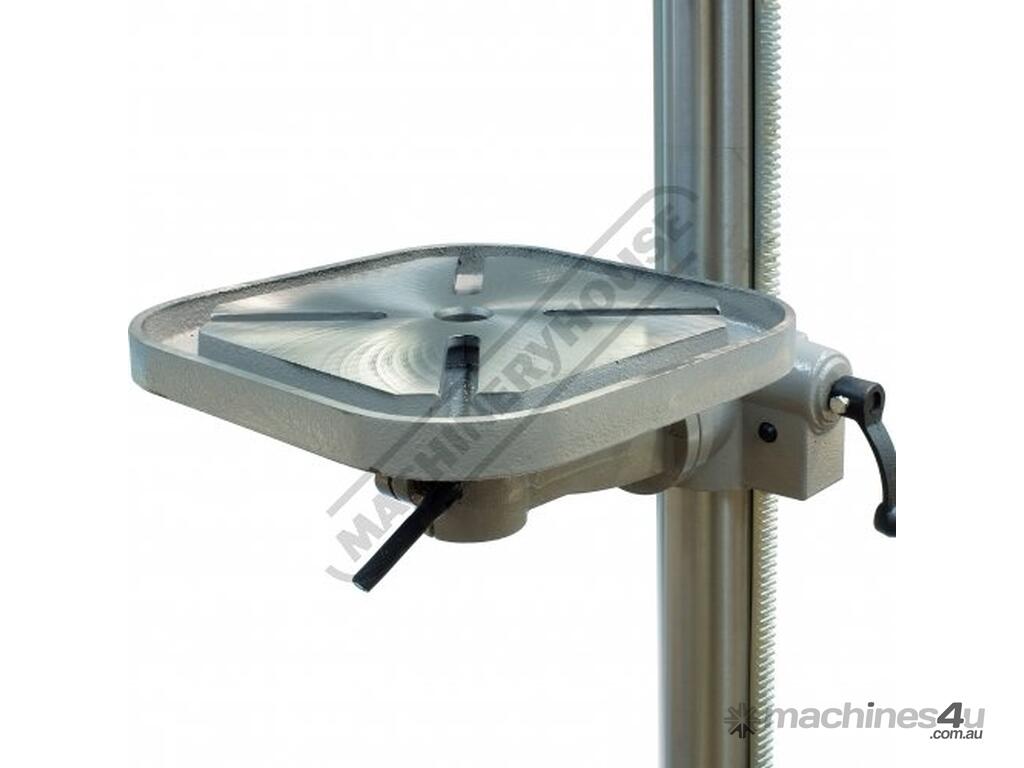

Table tilts left & right to 45º & rotates 360º

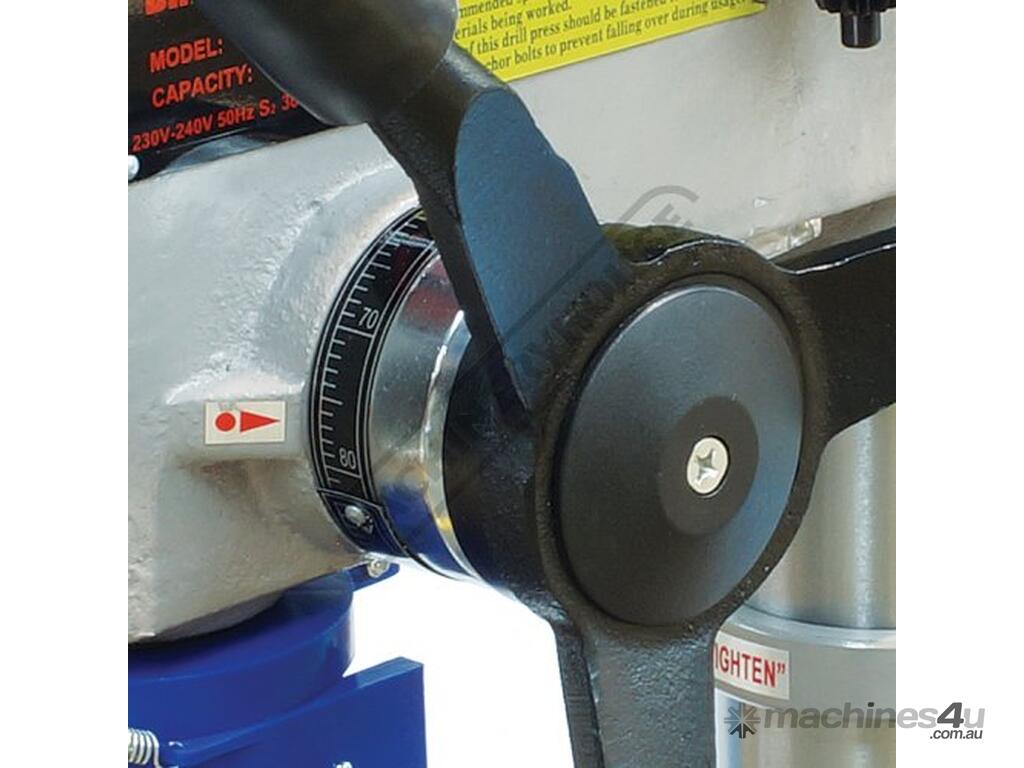

Drilling depth stop

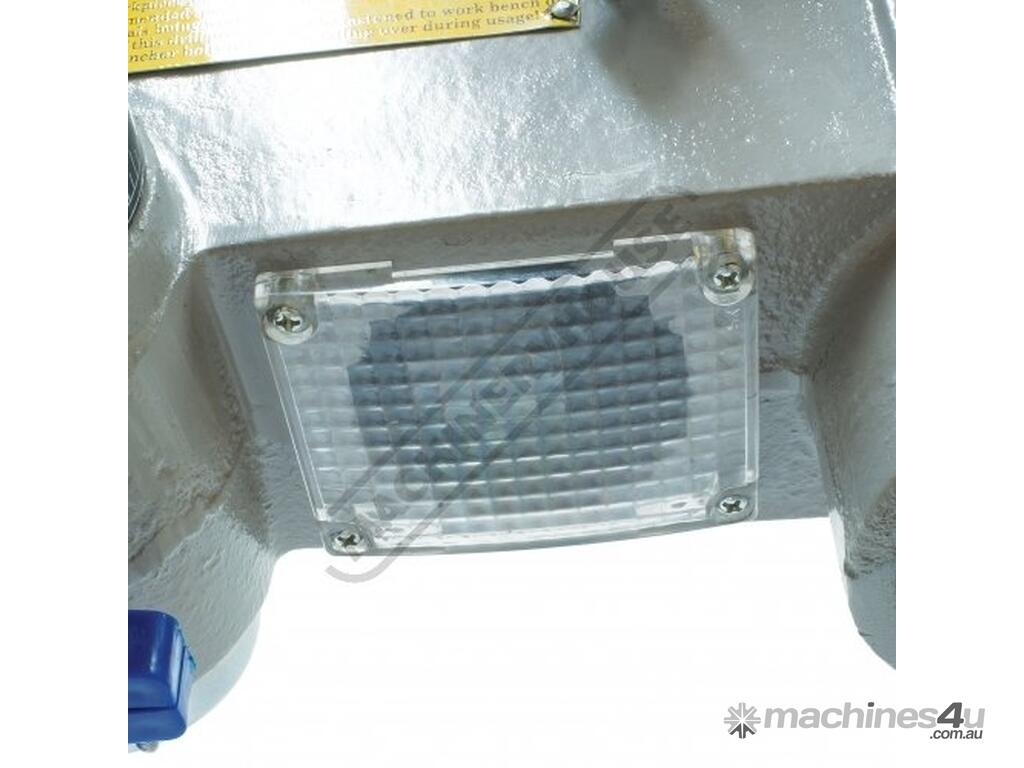

Work light mounted underneath drill head to provide direct light onto work piece

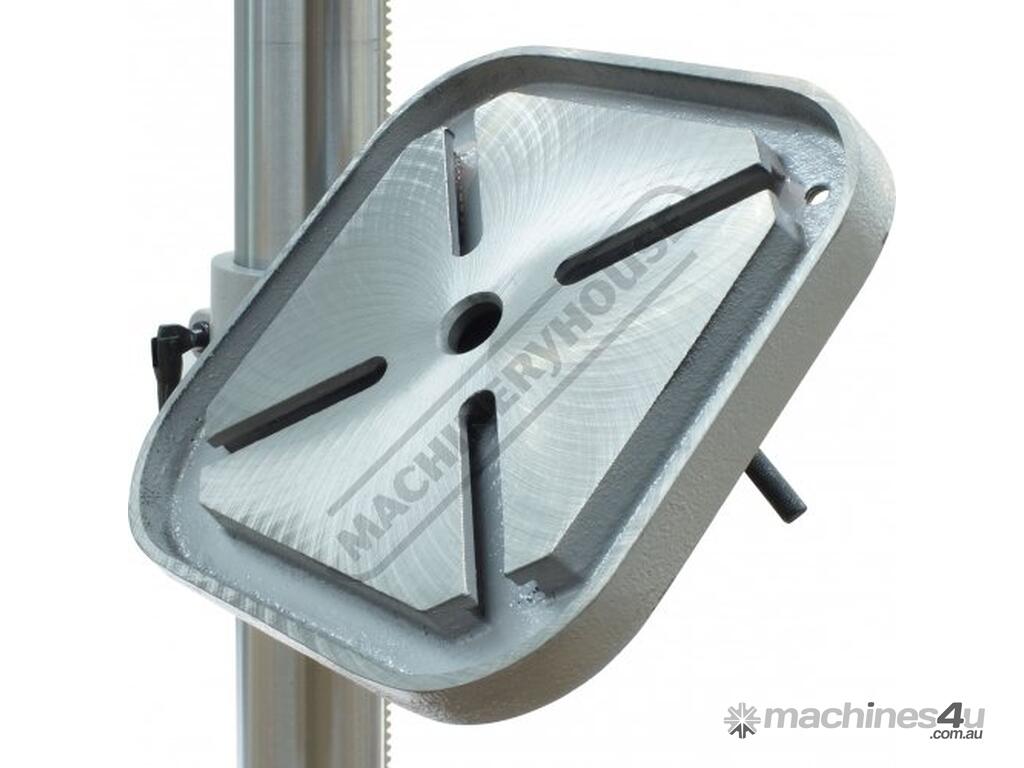

Slotted work table
12 Spindle speeds - rpm
Fan-cooled copper wound 240V motor

Includes:
- 16mm keyed drill chuck and arbor
- Chuck key to suit
- Drill drift tool to remove drill chuck or taper shank drills



Specifications:
ORDER CODE: D594
MODEL: BD-360
Type - Bench / Pedestal: Bench
Duty Type: Heavy-Duty
Drilling Diameter Capacity (mm): Ø20
Spindle Taper (MT): 2
Spindle Travel (mm): 85
Throat Depth (mm): 180
Quill Diameter (mm): 47
Collar Diameter (mm): 55
Column Diameter (mm): 72
Spindle To Table (mm): 410
Spindle To Base (mm): 600
Table Shape: Square
Table Size (mm): 290
Work Light: Yes
Micro Switch On Pulley Guard: Yes
Drive Belt Type: A Section
Spindle Speed Steps (No.): 12
Spindle Speed Range (rpm): 280 - 2380
Motor Power (kW / hp): 0.75 / 1
Voltage / Amperage (V / amp): 240 / 10
Overall Height (mm): 1000
Nett Weight (kg): 55
