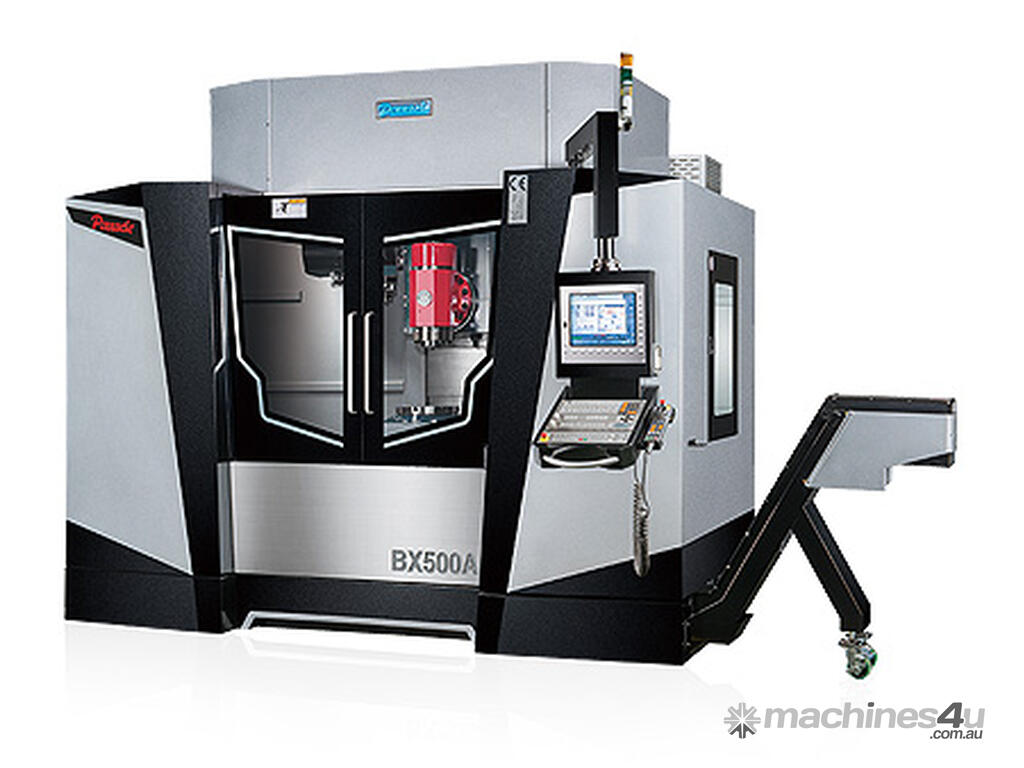

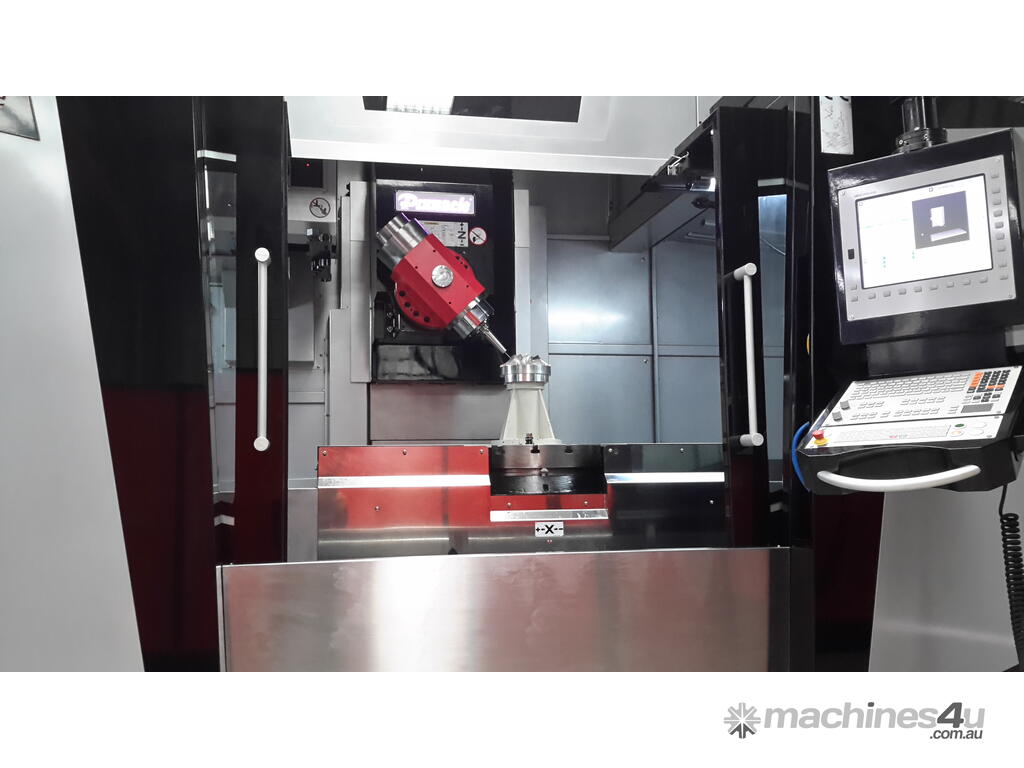

New Pinnacle BX300A – 500A – 700A - CNC 5 Axes Machining Centre.

Main Features and Inclusions:

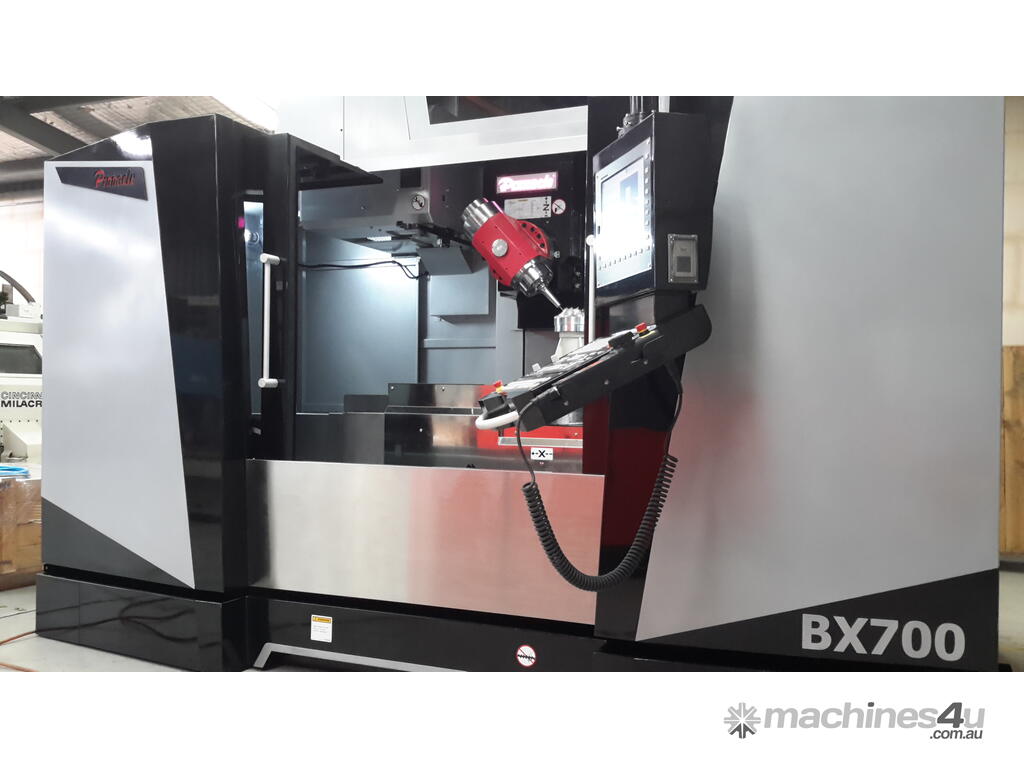

Travel: BX700 Series
• 1400 mm x-axis travel
• 710 mm y-axis travel
• Vertical 680 mm / Horizontal 810 mm z-axis travel

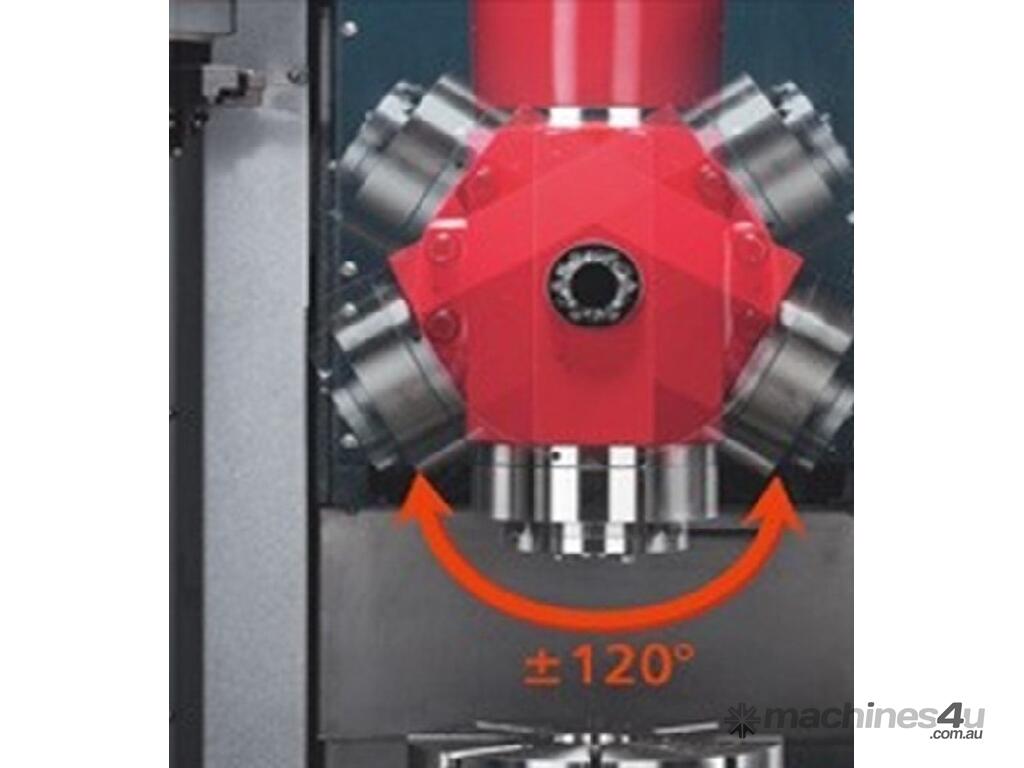

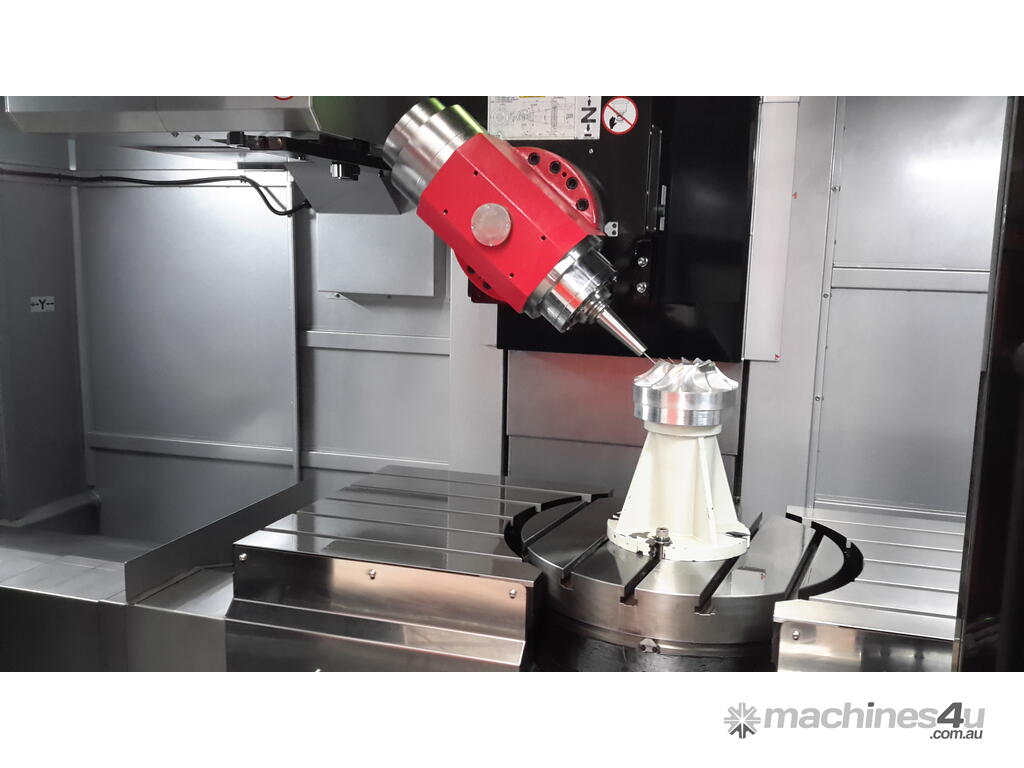

• +/- 120 deg A axis movement
• 360 deg C axis movement: BX A Series table not embedded


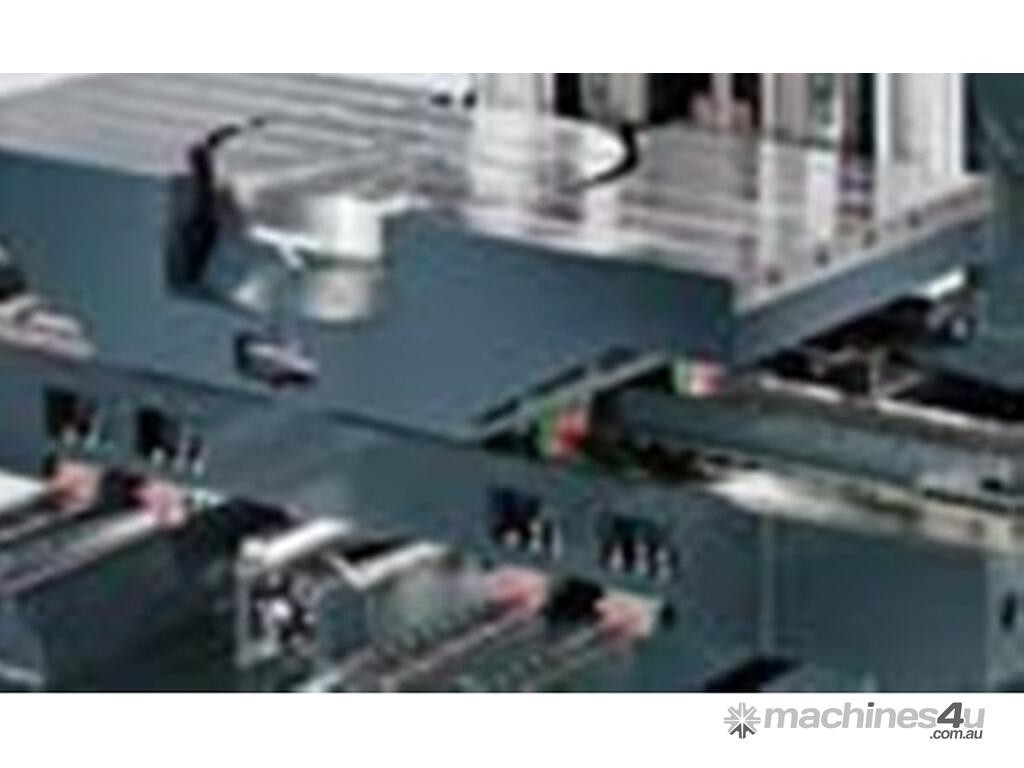

Table
• 1600 mm x 700 mm
• 630 mm embedded rotary table
• 1000 kg max load

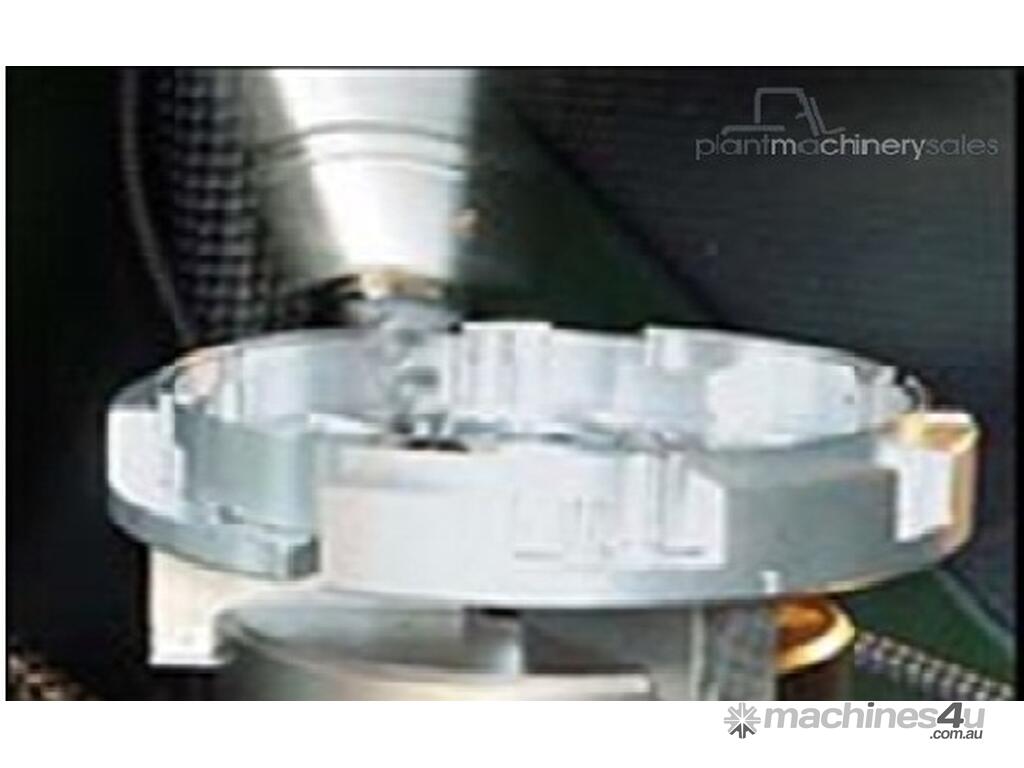

• Rotation speed Milling 50 rpm / Turning 1200 rpm


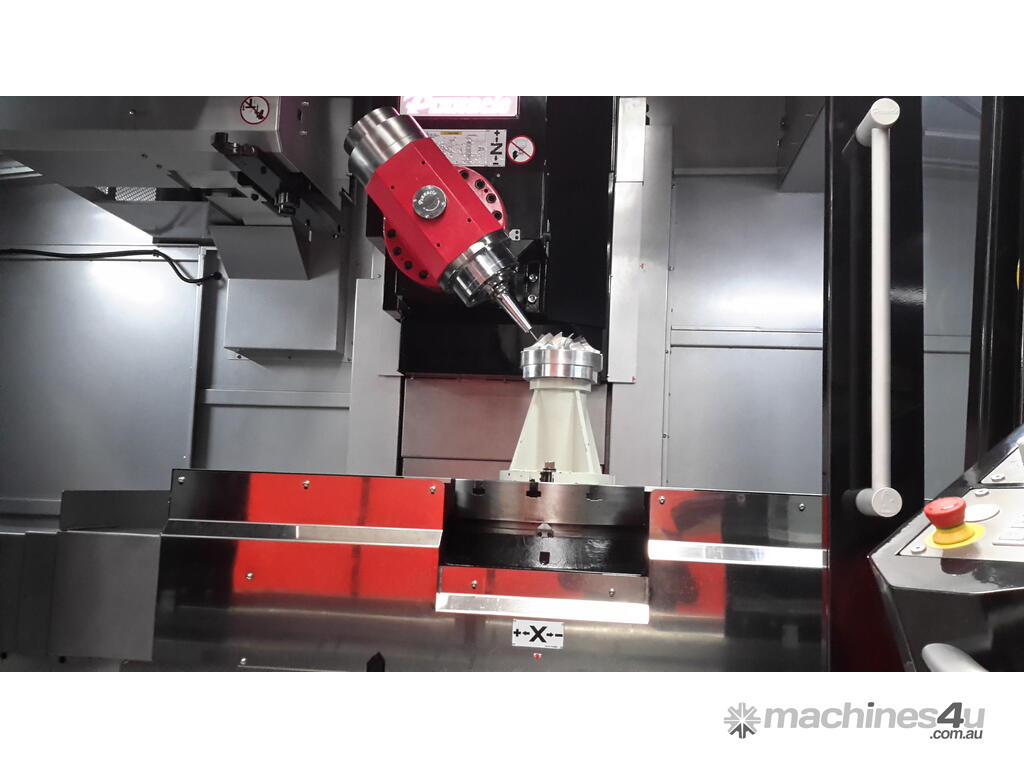

Spindle:
• 15000 rpm spindle speed
• 15 kW spindle motor
• 172 Nm spindle motor torque
• BT40 spindle taper / HSK40


Feed rate:
• 36 m/min x-axis rapid traverse
• 36 m/min y-axis rapid traverse
• 24 m/min z-axis rapid traverse
• 10000 mm/min cutting feed rate

Automatic Tool Changer:
• BT40 tool shank
• 30 (40,60) Tools ATC Random Selection
• 250 mm Max tool length

Accuracy:
• XYZ Linear axis (mm) 0.005
• Repeatability Linear axis (mm) 0.003
• BC Rotary axis (sec) 10”
• Repeatability Rotary axis (sec) 6”


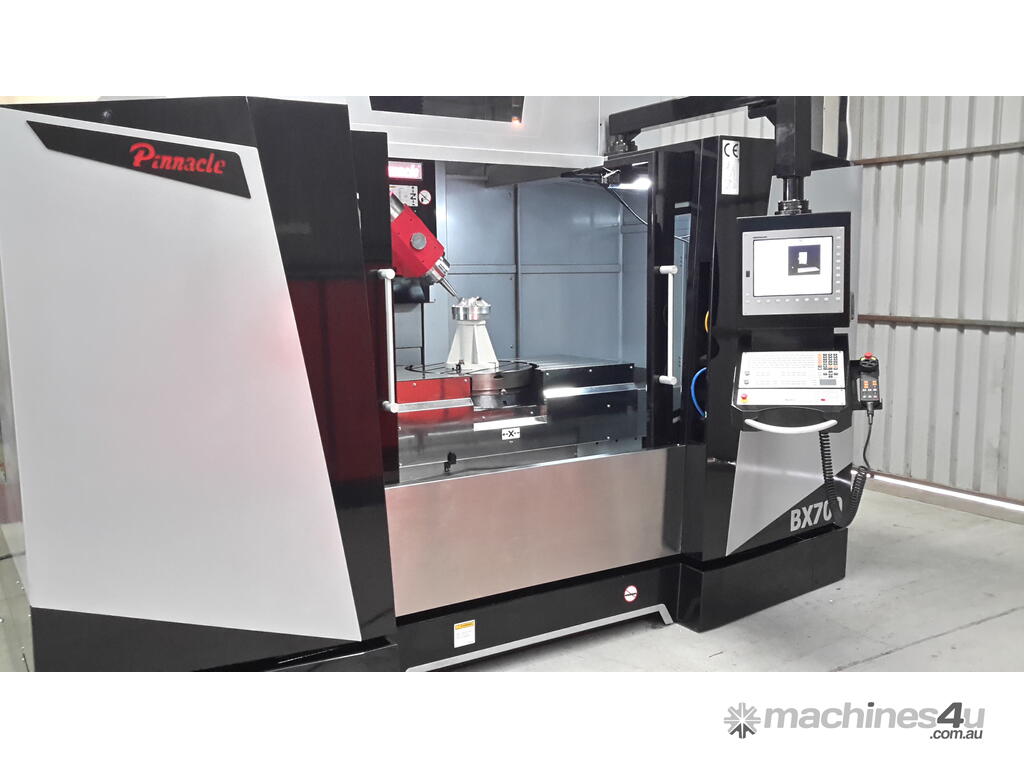

General:
• Machine Floor Space: 3890 x 3180 x 3200 mm (L x W x H)
• Nett machine weight: 12,000 kg



Included:

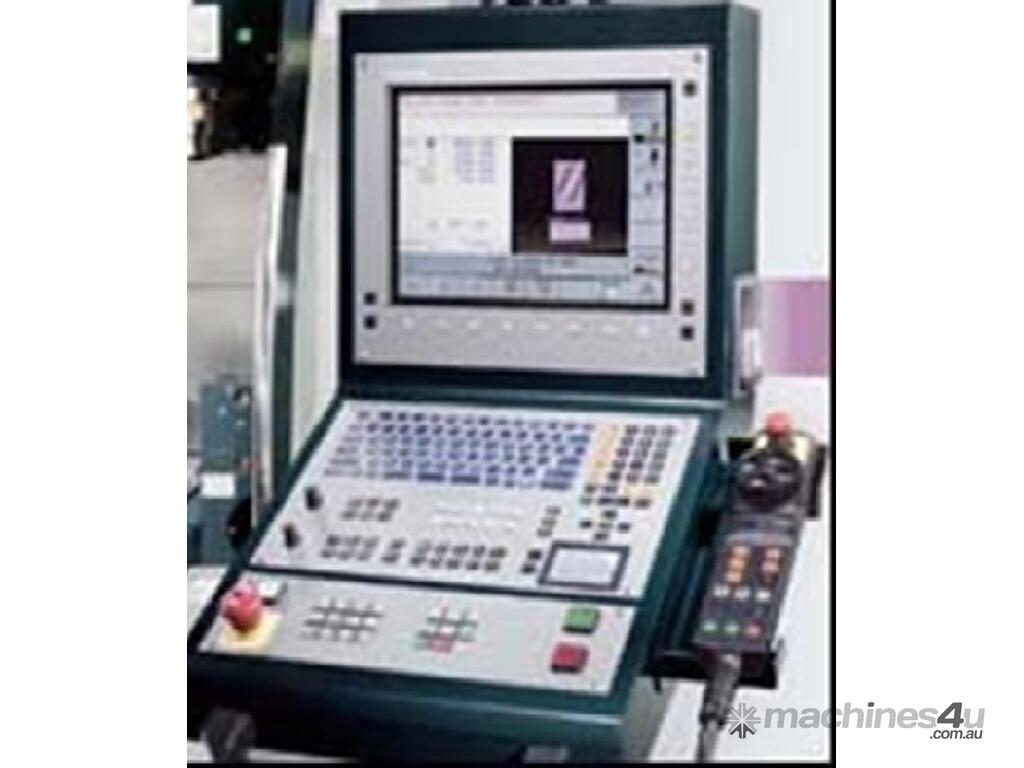

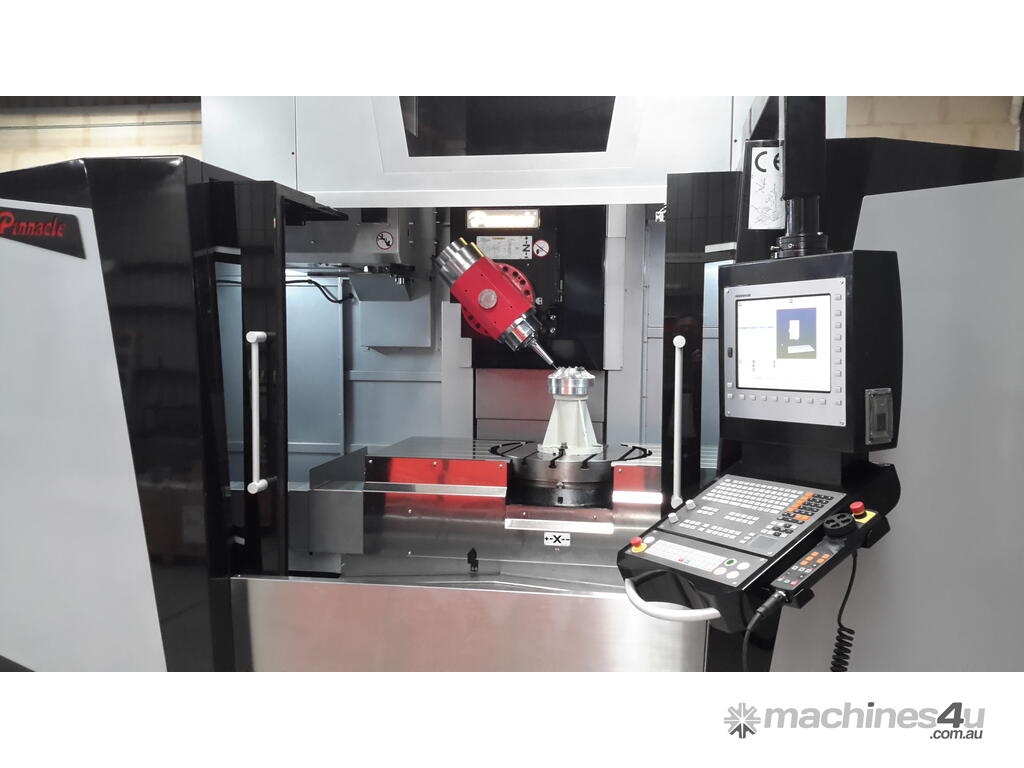

• Heidenhain ITNC 640 5 Axis simultaneously controlled axis
• DCM Dynamic Collision Monitoring software
• Plane Function Software
• Kenematic 3D touch probe software
• Tool Centre Point Management
• Renishaw Tool measurement system
• Renishaw OMP-600 Part probing system
• Renishaw Datum Sphere

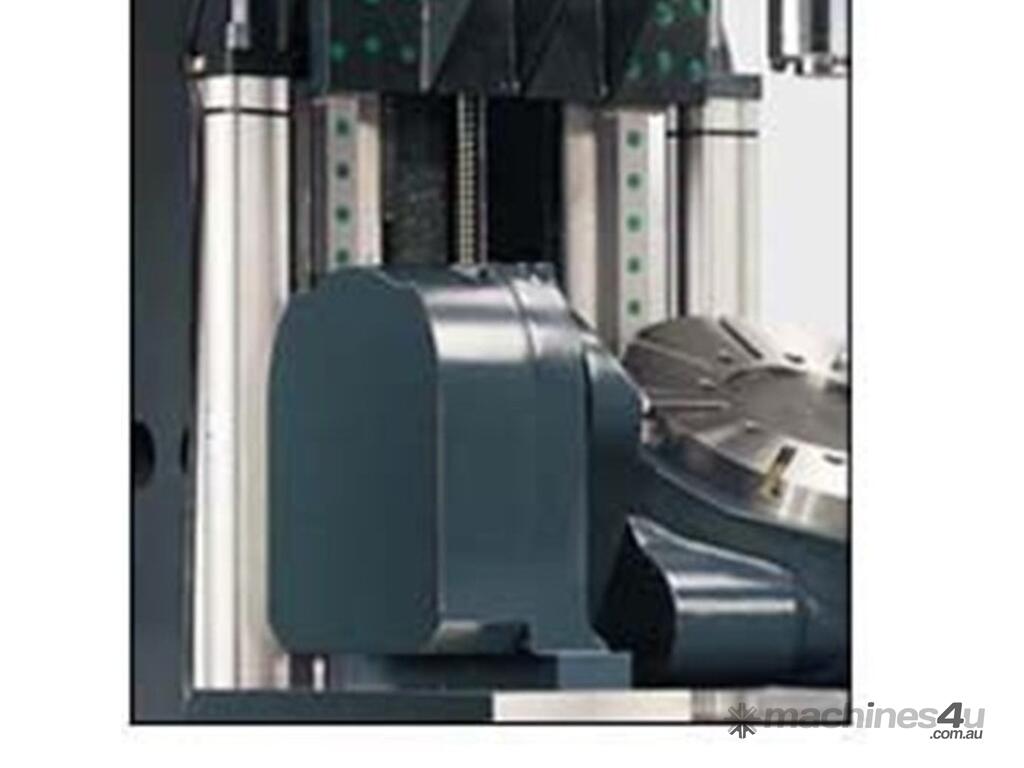

• Hollow ball screws with cooling system
• Rigid tapping
• B&C axis encoders
• Z axis pneumatic balance system
• Air blast through spindle
• Auto Lubrication system
• 20 Bar Spindle through Coolant (option)
• Spindle Chiller
• Spindle Air Blast
• 15,000 rpm spindle speed
• Air-conditioned electrical cabinet
• 30 tools ATC (40 & 60 Options)
• Chip conveyor with trolley
• X, Y, Z axes Linear feedback scales
• RS 232 & RJ 45 Ports for DNC
• USB Ports
• Transformer

Please contact Stewart for more information. All prices quoted include Delivery, Installation and Training
