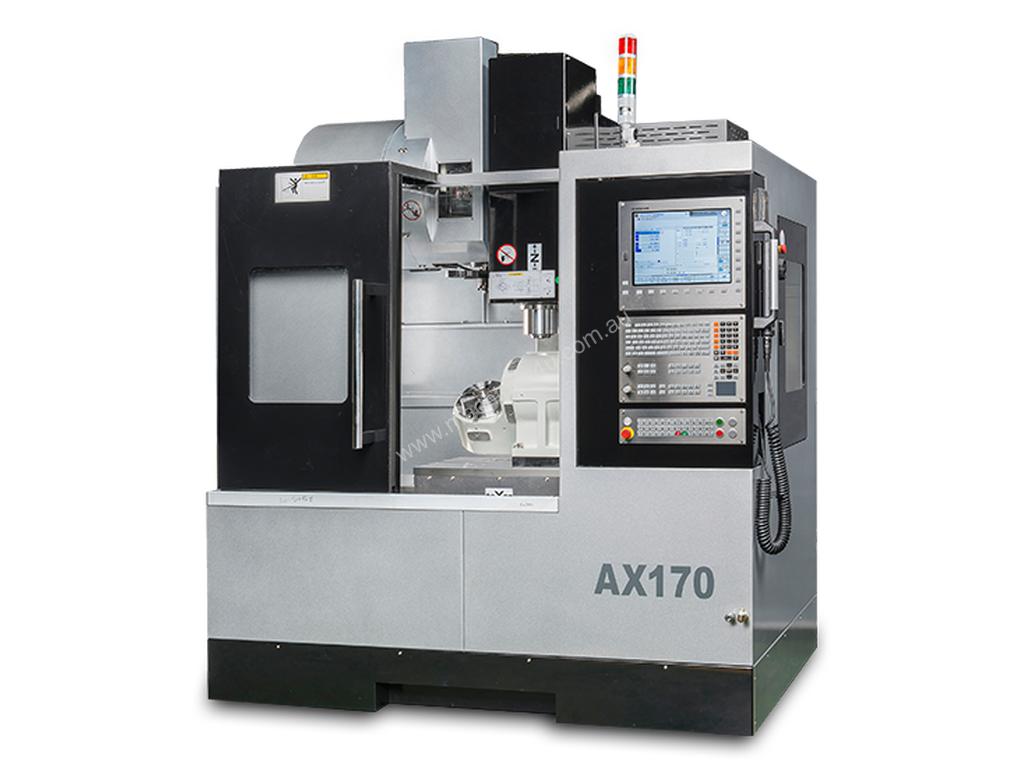

New Pinnacle AX170 - CNC 5 Axes Machining Center.

Main Features and Inclusions:

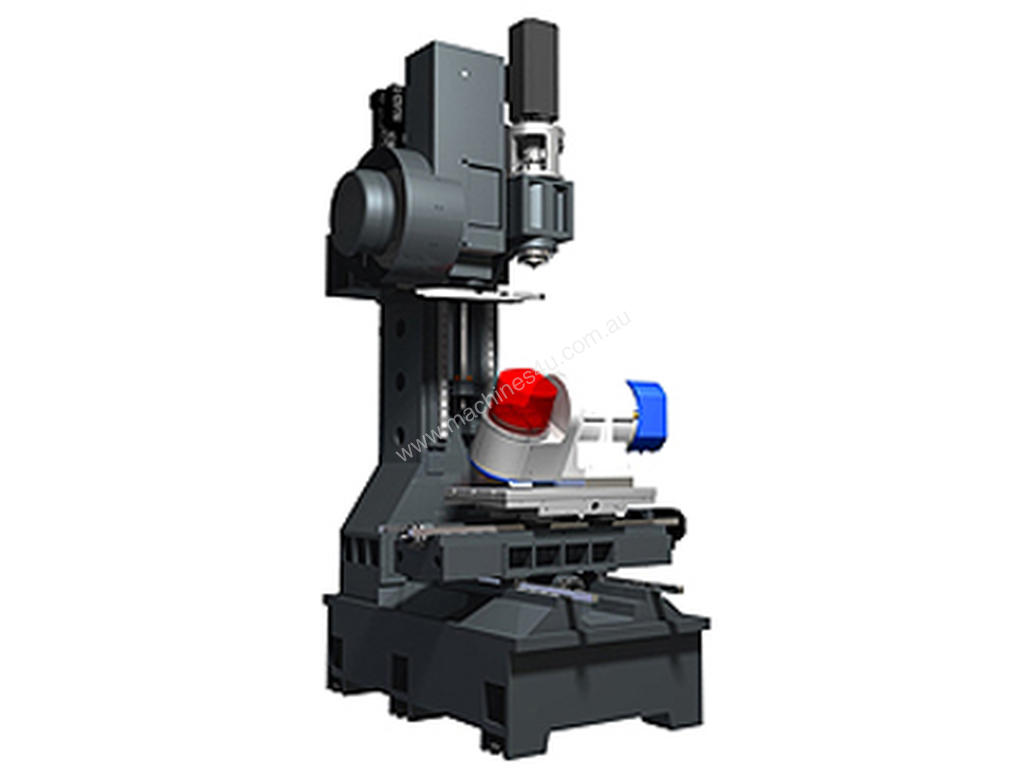

Travel:
• 320 mm x-axis travel
• 320 mm y-axis travel
• 380 mm z-axis travel
• A axis Tilt 240° (+/- 120°) 0.001°
• 360° C axis movement 0.001°


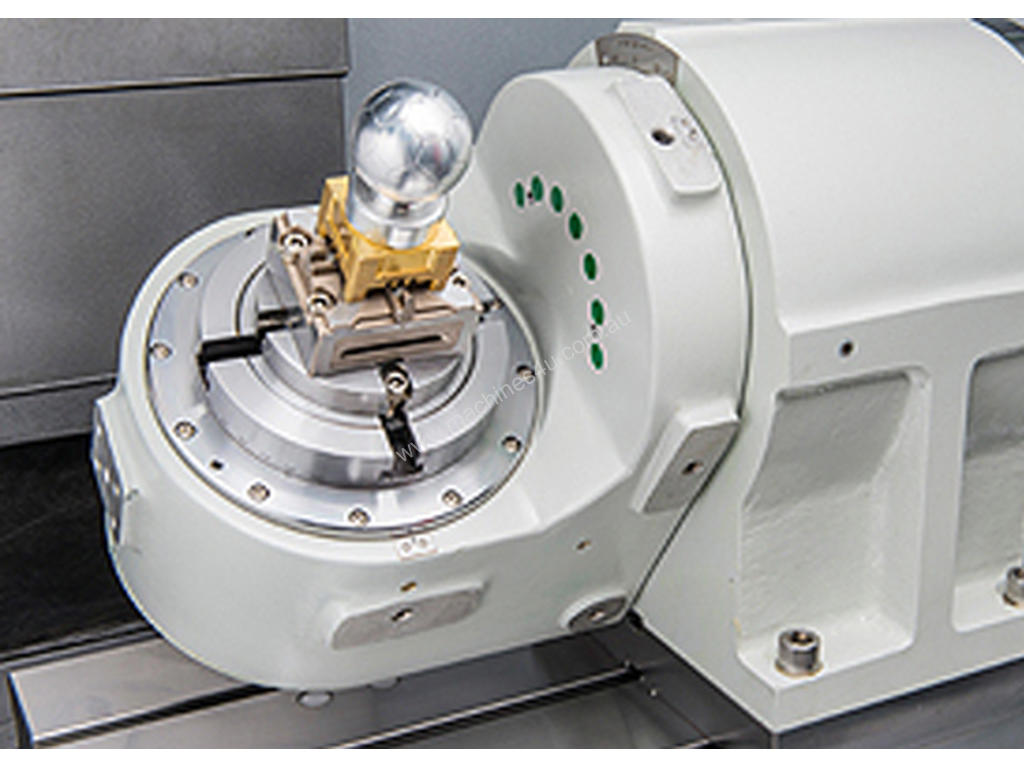

Table:
• Ø170 mm
• Max work piece ø210 x 160mm

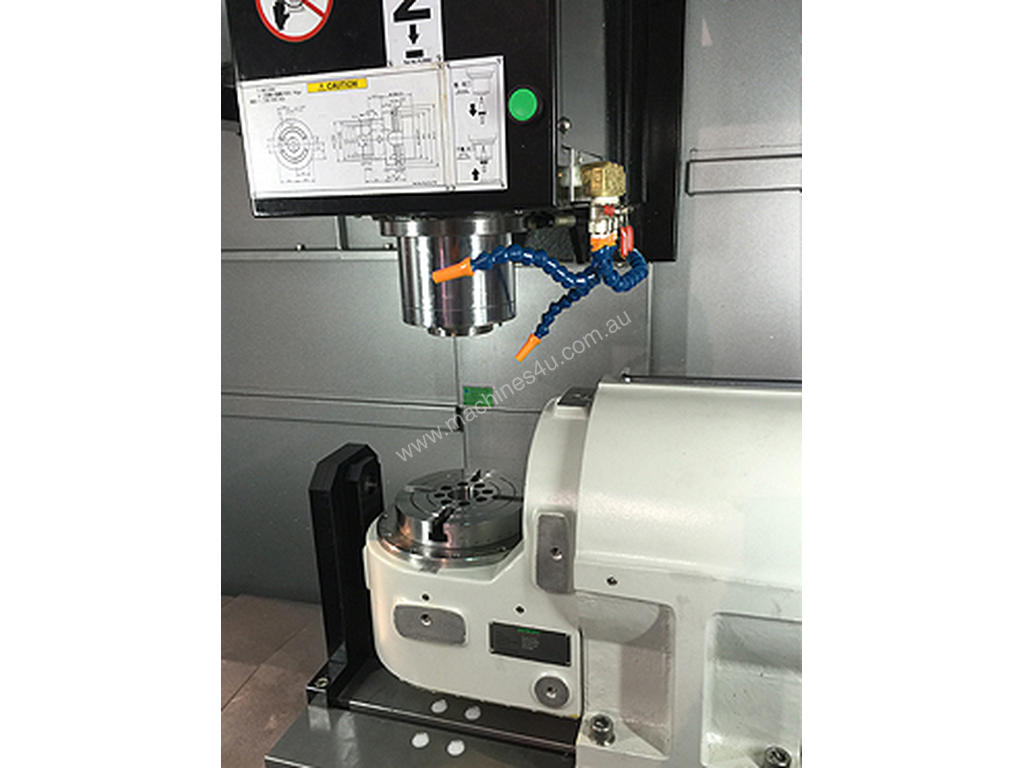

Spindle:
• 12,000 rpm spindle speed (15,000) Direct drive
• 12 kW spindle motor
• BT40 spindle taper


Feed rate:
• 36 m/min x-axis rapid traverse
• 36 m/min y-axis rapid traverse
• 26 m/min z-axis rapid traverse
• 20,000 mm/min cutting feed rate

Automatic Tool Changer:
• BT40 tool shank
• 20 Tools ATC Random Selection
• 250 mm Max tool length

Accuracy:
• XYZ Linear axis (mm) 0.005
• Repeatability Linear axis (mm) 0.003
• A Rotary axis (sec) 0.001°
• Repeatability Rotary axis 0.001°


General:
• Machine Floor Space: 1900 x 2300 x 2600 mm (L x W x H)
• Nett machine weight: 3,000 kg



Included:

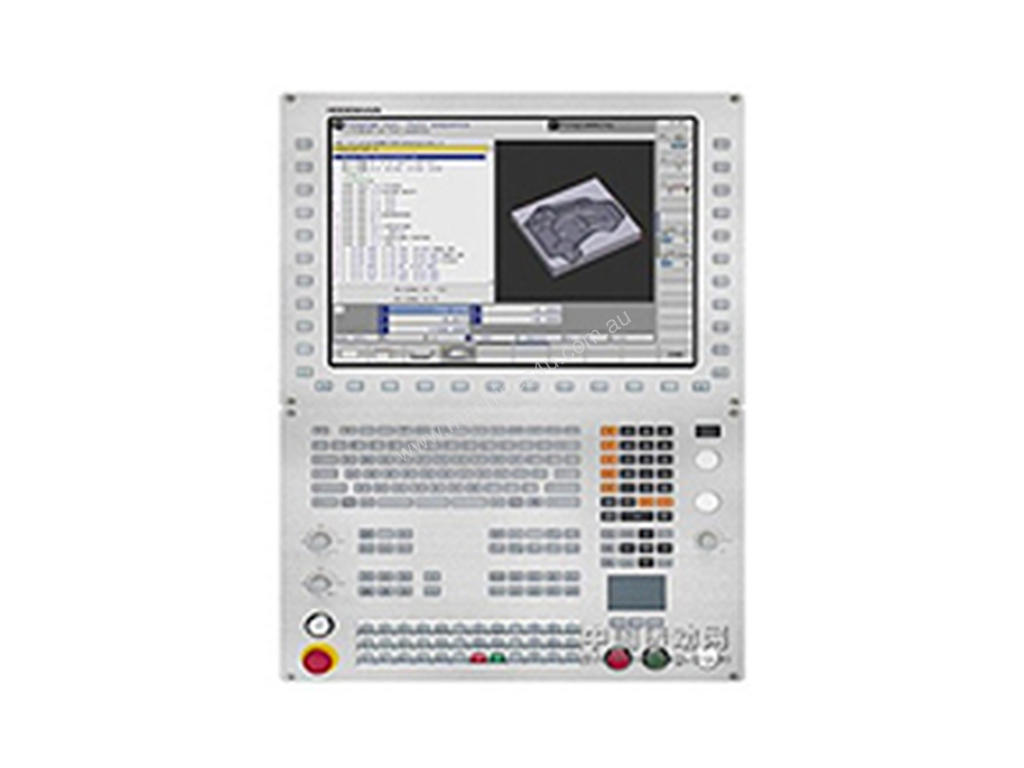

• Heidenhain ITNC 640 5 Axis simultaneously controlled axis
• DCM Dynamic Collision Monitoring software
• Plane Function Software
• Kenematic 3D touch probe software
• Tool Centre Point Management
• Renishaw Tool measurement system
• Renishaw OMP-600 Part probing system
• Renishaw Datum Sphere

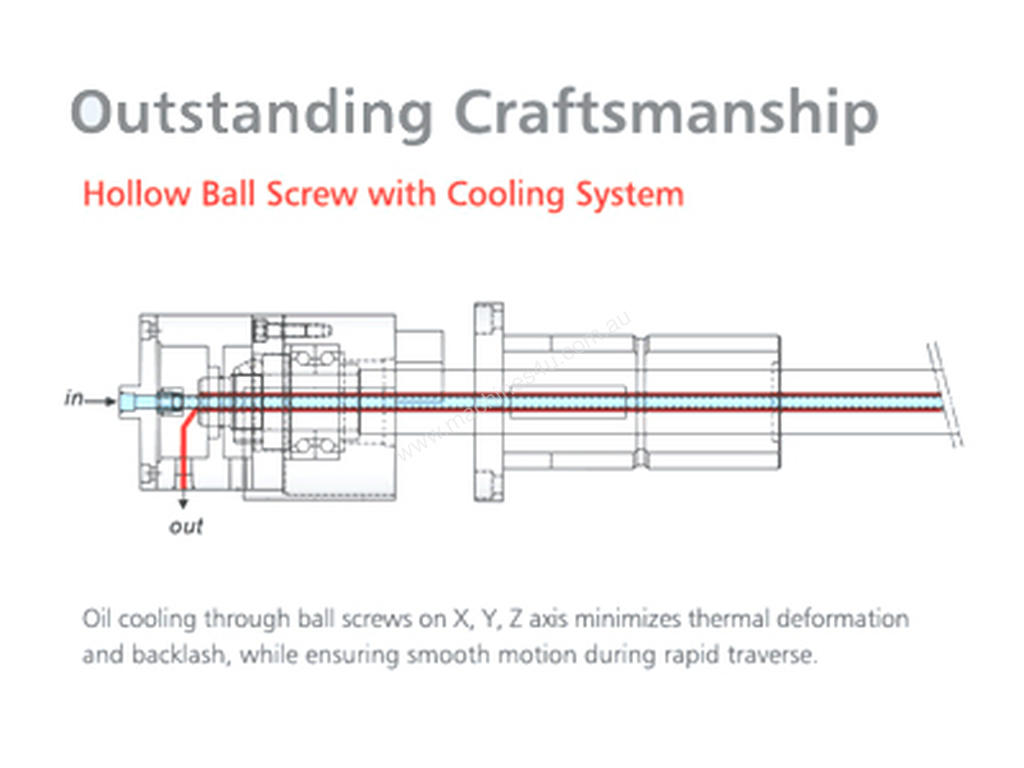

• Hollow ball screws with cooling system
• Rigid tapping
• A&C axis encoders
• Z axis pneumatic balance system
• Air blast through spindle
• Auto Lubrication system
• 20 Bar Spindle through Coolant (option)
• Spindle Chiller
• Spindle Air Blast
• 10,000 rpm spindle speed standard
• Air-conditioned electrical cabinet
• 30 tools ATC (40 & 60 Options)
• Chip conveyor with trolley
• X, Y, Z axes Linear feedback scales option
• RS 232 & RJ 45 Ports for DNC
• USB Ports
• Transformer

Please contact Stewart for more information. All prices quoted include Delivery, Installation and Training
