BDMS - PINNACLE - 5 Axis Vertical Machining Center AX450

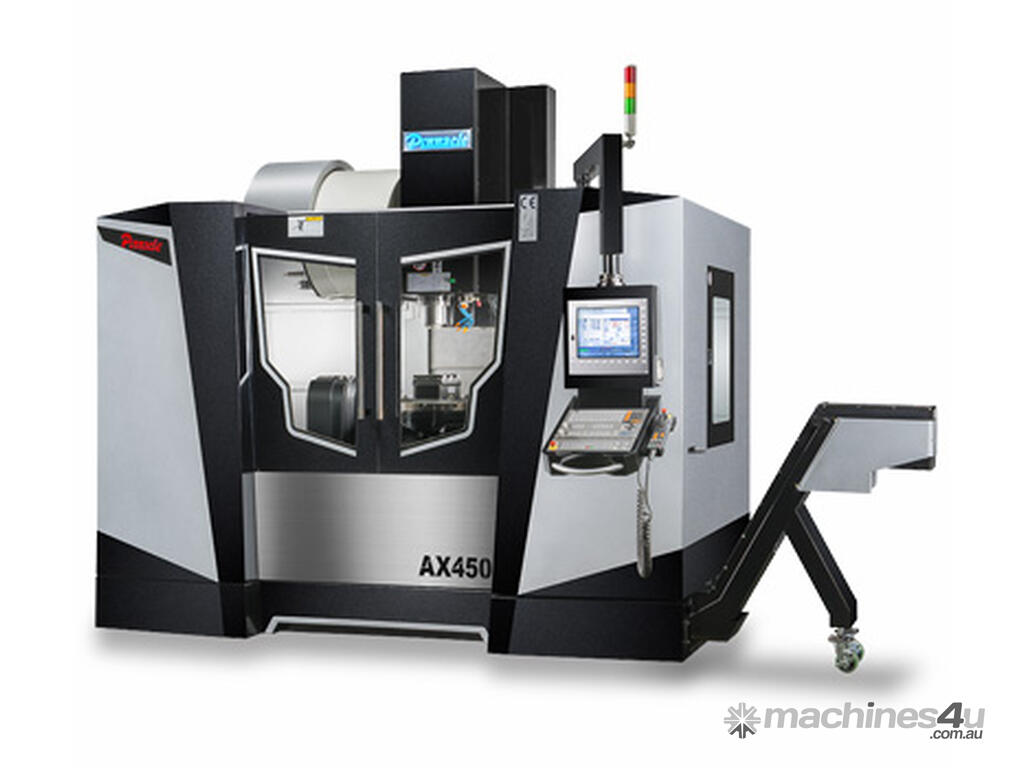

New Pinnacle AX450 - CNC 5 Axes Machining Centre.

Main Features and Inclusions:

Travel:
• 760 mm x-axis travel
• 610 mm y-axis travel
• 560 mm z-axis travel
• A axis Tilt 220° (+/- 110°) 0.001°
• 360° C axis movement 0.001°


Table:
• Ø450 mm
• Max work piece ø550 x 305mm

Spindle:
• 10,000 rpm spindle speed (12,000/15,000) Direct drive
• 12 kW spindle motor
• 20,000 rpm Built in Spindle
• BT40 spindle taper


Feed rate:
• 30 m/min x-axis rapid traverse
• 30 m/min y-axis rapid traverse
• 24 m/min z-axis rapid traverse
• 10,000 mm/min cutting feed rate

Automatic Tool Changer:
• BT40 tool shank
• 24 (30,40) Tools ATC Random Selection
• 250 mm Max tool length

Accuracy:
• XYZ Linear axis (mm) 0.005
• Repeatability Linear axis (mm) 0.003
• A Rotary axis (sec) 0.001°
• Repeatability Rotary axis 0.001°


General:
• Machine Floor Space: 3100 x 2390 x 3280 mm (L x W x H)
• Nett machine weight: 7,000 kg



Included:

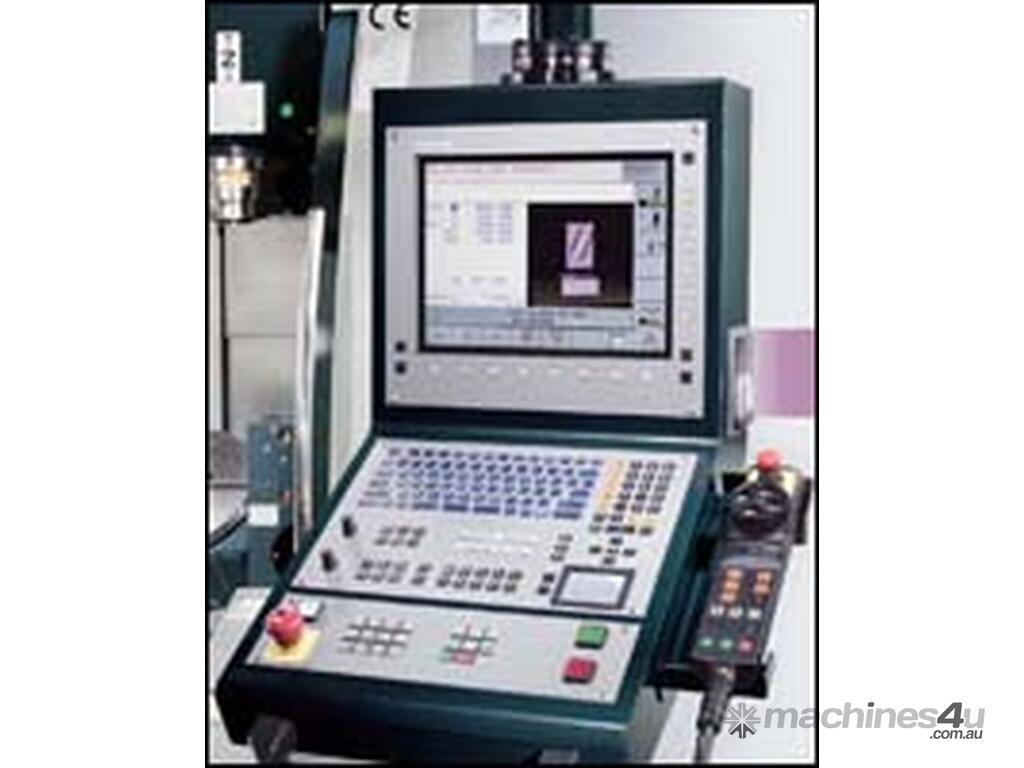

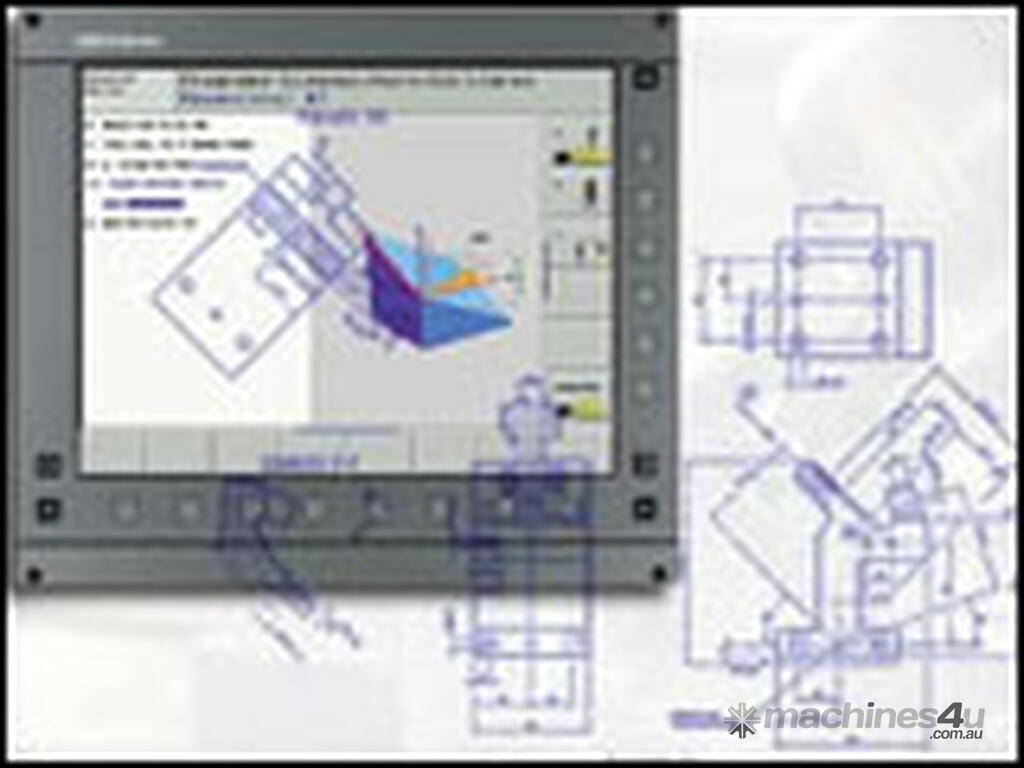

• Heidenhain ITNC 640 5 Axis simultaneously controlled axis
• DCM Dynamic Collision Monitoring software
• Plane Function Software
• Kenematic 3D touch probe software
• Tool Centre Point Management
• Renishaw Tool measurement system

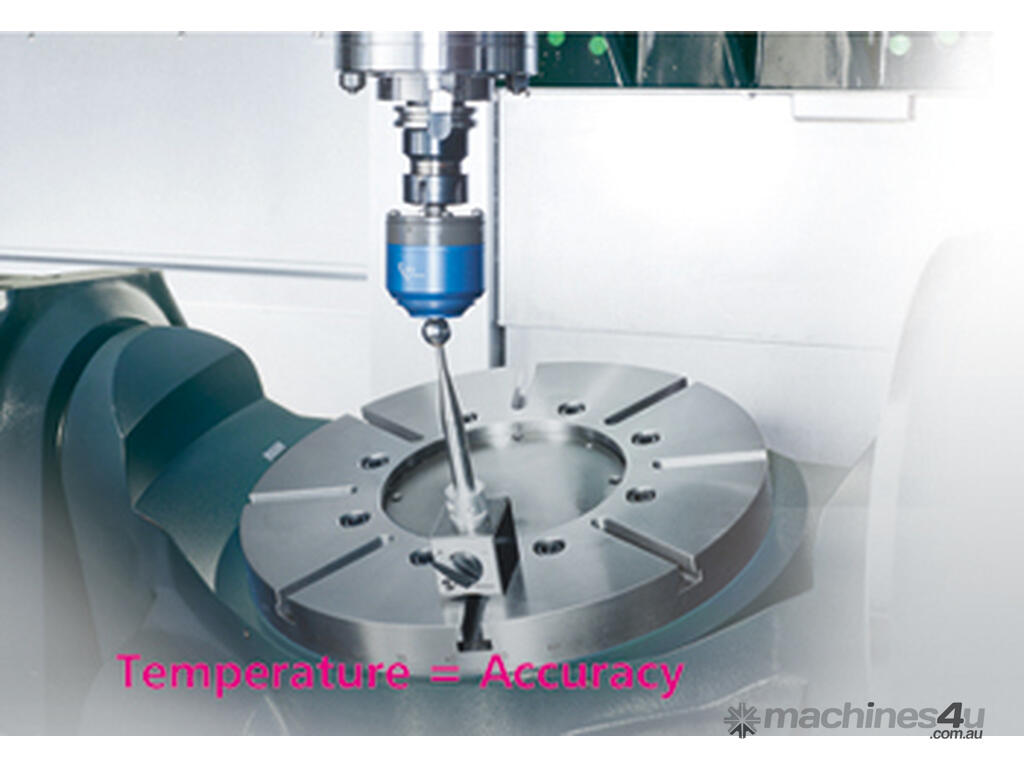

• Renishaw OMP-600 Part probing system
• Renishaw Datum Sphere

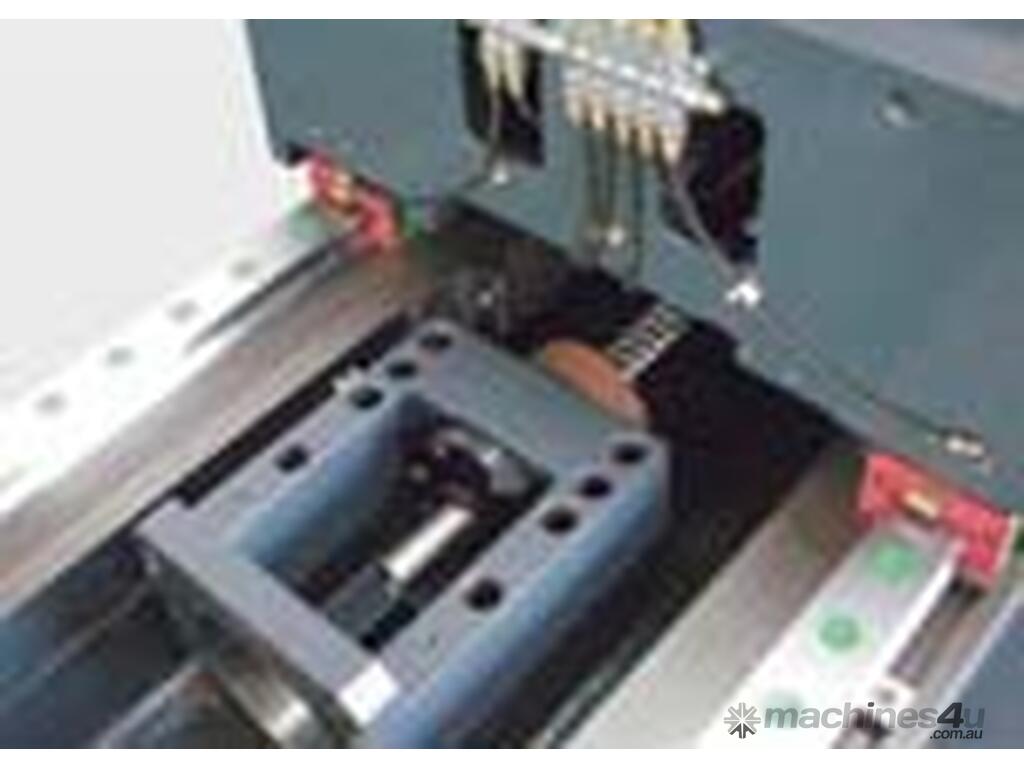

• Hollow ball screws with cooling system
• Rigid tapping
• A&C axis encoders
• Z axis pneumatic balance system
• Air blast through spindle
• Auto Lubrication system
• 20 Bar Spindle through Coolant (option)
• Spindle Chiller
• Spindle Air Blast
• 10,000 rpm spindle speed standard
• Air-conditioned electrical cabinet
• 30 tools ATC (40 & 60 Options)
• Chip conveyor with trolley
• X, Y, Z axes Linear feedback scales option
• RS 232 & RJ 45 Ports for DNC
• USB Ports
• Transformer

Please contact Stewart for more information. All prices quoted include Delivery, Installation and Training




Discover excellence in CNC machine tools with BDMS, your premier source for both new and used equipment across Australia. From our base in Lonsdale, South Australia, and our dedicated sales office in Brisbane, Queensland, we cater to a wide spectrum of clientele, from burgeoning startups to established industrial giants. Count on our expertise to guide you through every step, from selection to installation, training, and ongoing support, ensuring maximum ROI for your business. Our premium range of new Machine Tools is manufactured by Pinnacle. From complex 5 and 6 axis machining through to manual milling machines and lathes we have the solution for you.

Go to BDMS showroom on Machines4u to see the available range of machinery, send BDMS a message about the item that you are interested in, or give BDMS a call, we are happy to answer any of your questions and provide professional advice for your business requirements.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION*
