BDMS - PINNACLE Double Column 5 Axis with Turning Function

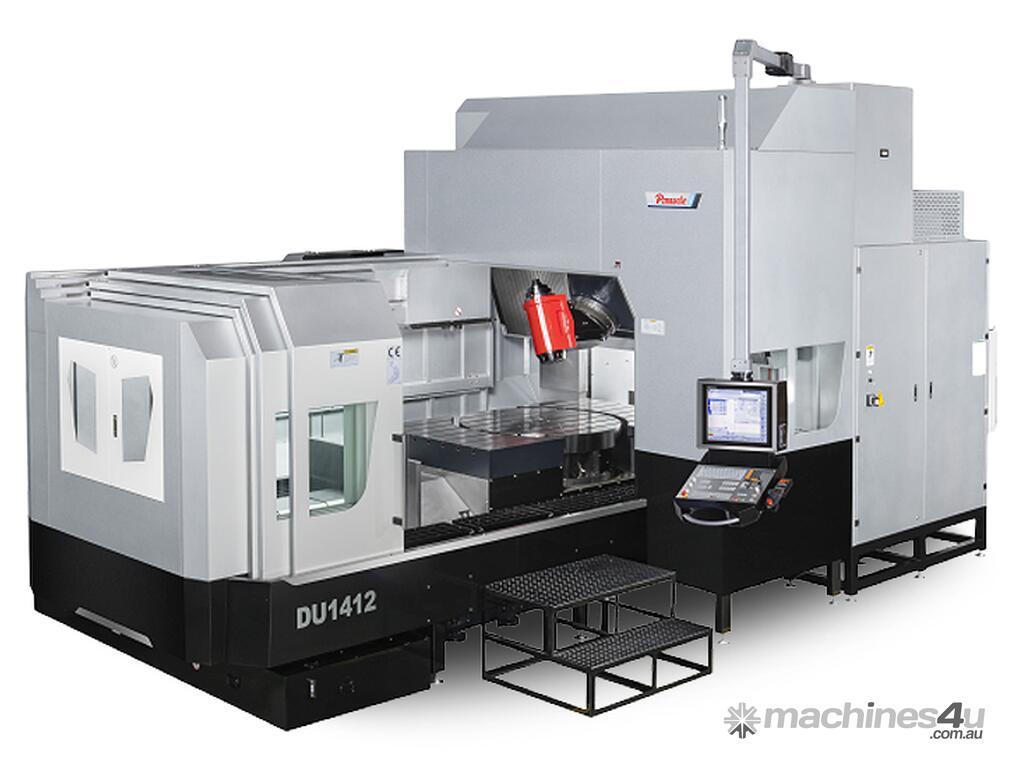

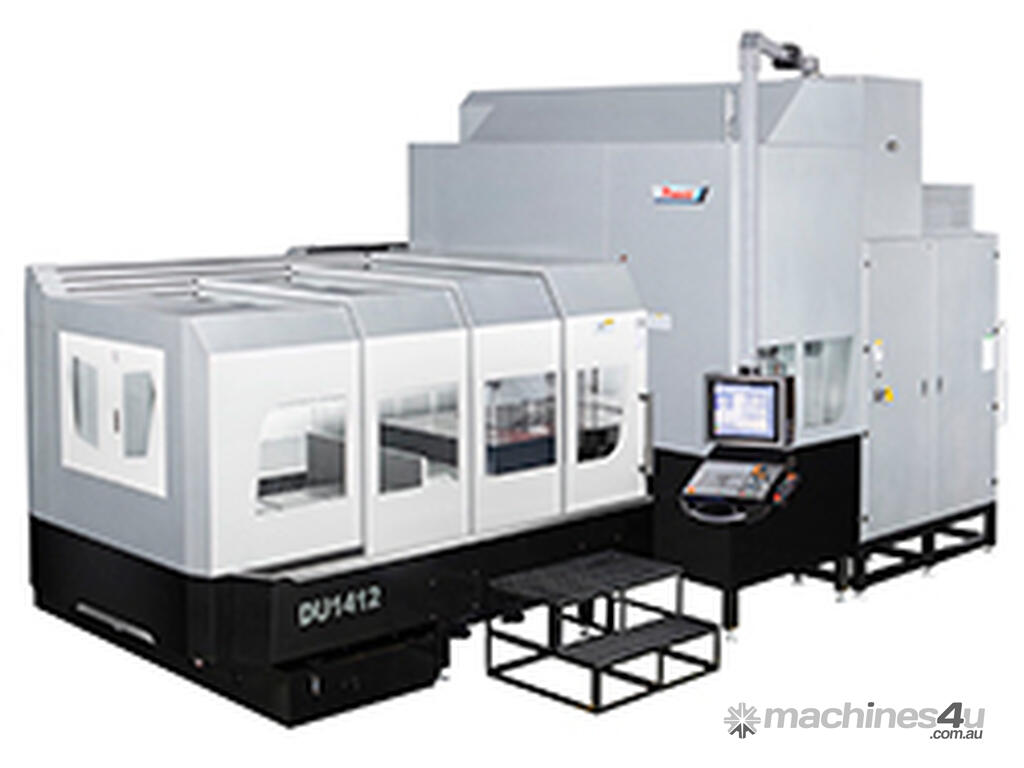

DU1412 (5 AXIS)
5-AXIS MOVING COLUMN MACHINING CENTER with TURNING FUNCTION
The Pinnacle DU series is designed to provide high-efficiency and high-accuracy machining of complex workpieces with only a single workpiece setup. This means reduced setup time and increased machine accuracy. This machine integrates many fine features, including:

Moving beam structure.
45° swivelling spindle head provides high precision 5-axis machining.
15000 RPM built-in type-high speed spindle.
Rotary table supported by hydrostatic bearing system to reduce vibration and increase rotation smoothness and machining accuracy.
A & C-axes equipped with rotary encoder to ensure orientating accuracy.
Direct drive on A, C-axis.
Linear scales on 3 axes.
DCM anti-collision software.

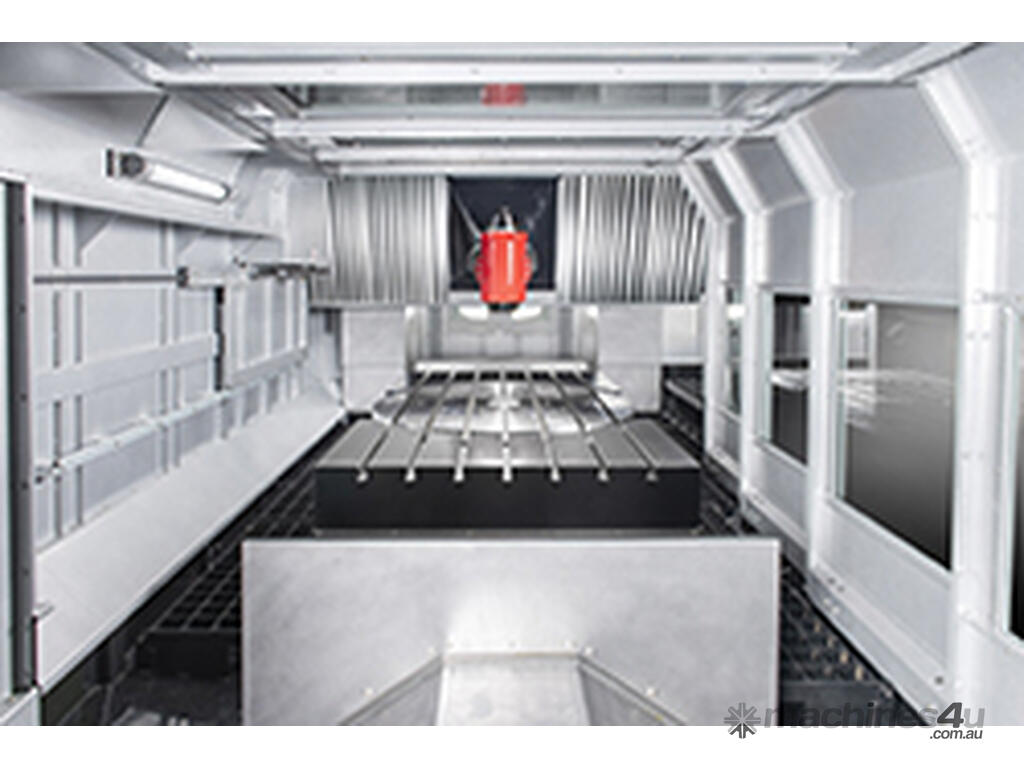

Fully enclosed splash guard.

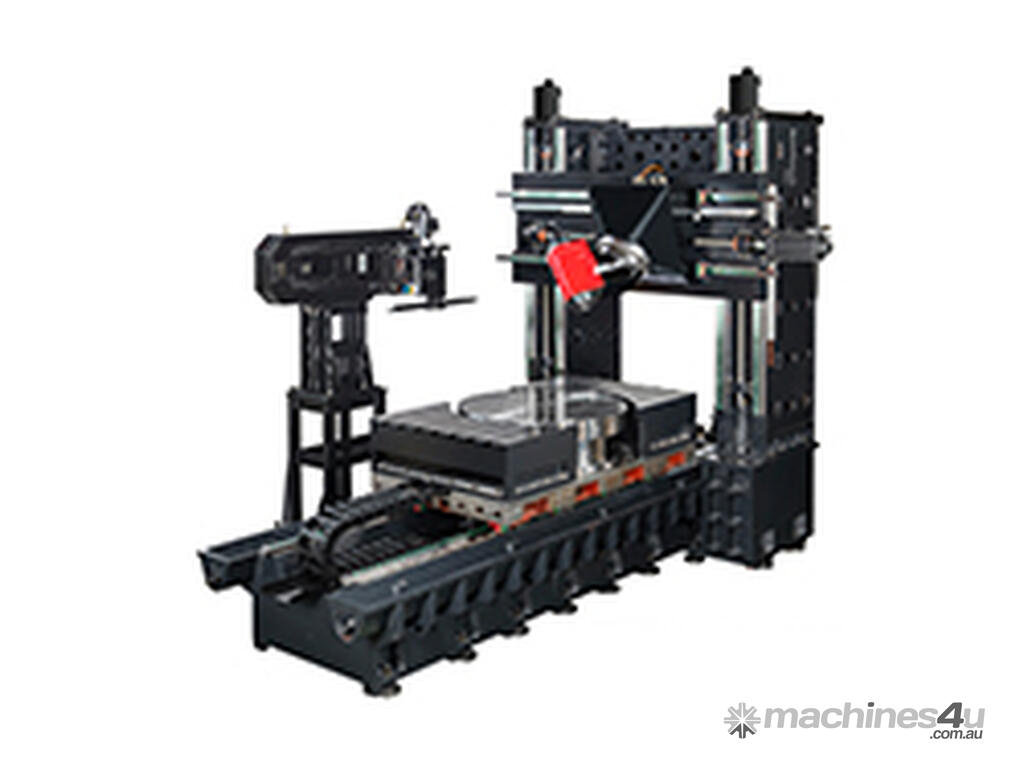

High Rigidity and High Precision Structure on DU Series
Rugged structure guarantees superior rigidity and stability.
High quality Meehanite cast iron (FC30).
Beam elevation is driven by twin ball screws.
Z-axis is equipped with double scales to ensure synchronization of twin ball screws.
Z-axis movement is counter-balanced through twin hydraulic cylinders in combination with the chain mechanism to reduce hydraulic system cost and energy consumption.
Heavy duty roller type linear guideways on 3 axes.

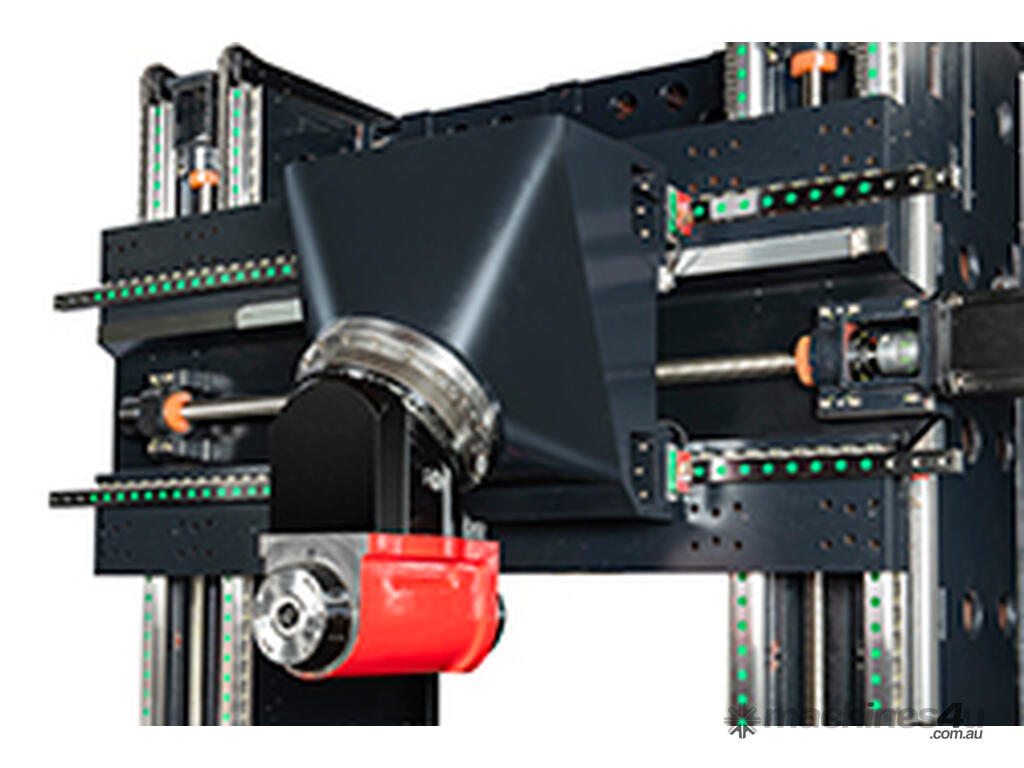

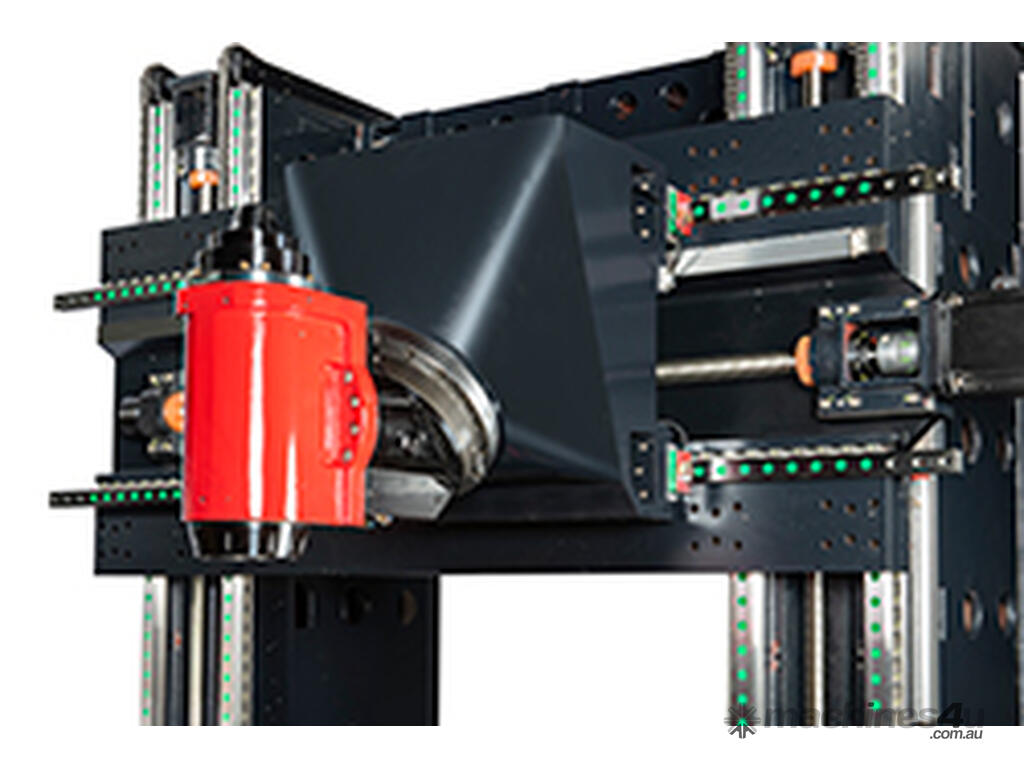

45° SWIVELING SPINDLE HEAD
The 45° swiveling spindle head is driven by a motor, featuring high rotation speed, high acceleration/deceleration, and optimal dynamic response that contributes to increased machining efficiency.

DIRECT DRIVE
The spindle is driven by a built-in type motor, providing outstanding milling function.
A curved-teeth clutch fixing system is mounted at the front end of the spindle, making it also suitable for turning operations.

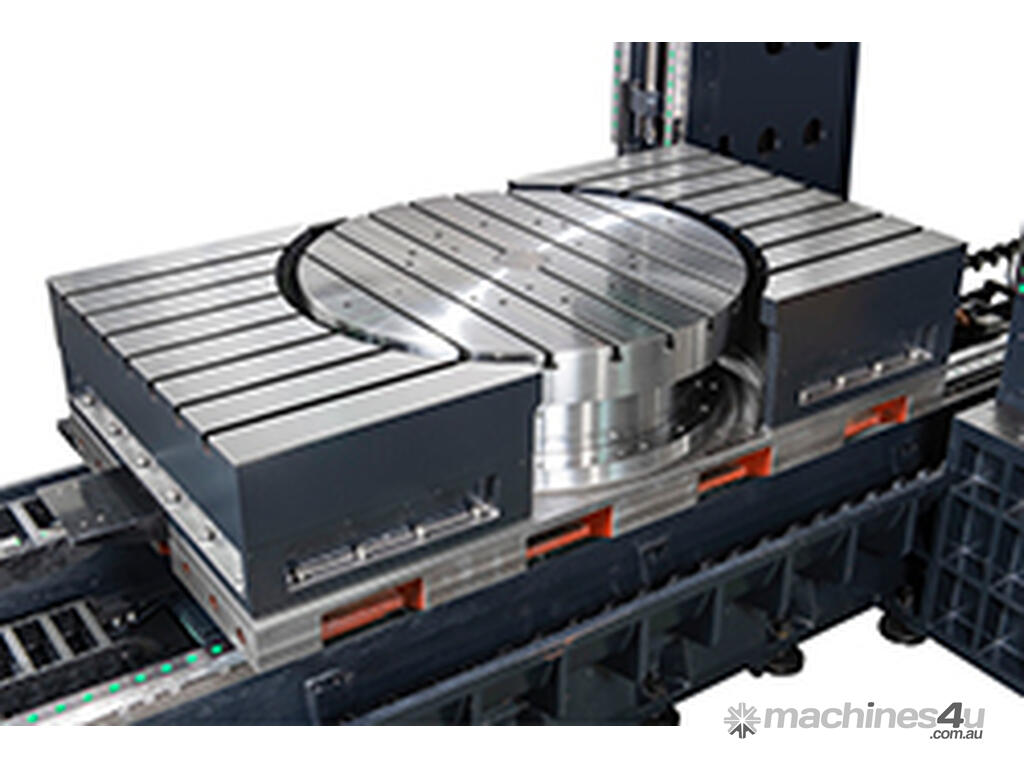

ROTARY TABLE IS SUPPORTED BY A HYDROSTATIC BEARING SYSTEM
The rotary table (C-axis) is integrated with a rectangular table with T-slots, enabling it to accommodate larger workpieces.
The rotary table is supported by a hydrostatic bearing system, allowing for high rotation speed up to 600 RPM, featuring a turning function.
C-axis is driven by a high speed, high rigidity motor with minimum indexing accuracy of 0.001°.

TRAVEL
Travel Ranges (X x Y mm) 2200/1400
Travel range (Z, mm) 900(V)/800(H)
Spindle nose to table surface (mm) 150~1050 130~1630(Max)
Spindle Centre to table surface (mm) 150~950
Spindle Centre to column (mm) 1000

TABLE
Table size (mm) 2200x1200
Max table load (kg) 5000
ROTARY TABLE
Table type EMBEDDED
Drive type DIRECT DRIVE
Table diameter (mm) Ø1200
Centre hole diameter (mm) Ø50H7
Rotation speed (RPM) 600(MAX.)
Min. indexing unit (degree) 0.001

SPINDLE
Taper, tool shank HSK T63
Spindle inside diameter (mm) Ø70
Spindle speed (RPM) 15000
Tool pulling force (Kgf) 2400
Spindle motor (con/S6, 60%, Kw) 19/23 15/18.5
Torque of motor (con/S6, 60%, Nm)

TILTING AXIS
Drive type DIRECT DRIVE
Max rotation degree -30°~+180°
Rotation speed (RPM) 50
Min. indexing unit (degree) 0.001

AXIS DRIVE MOTOR
Rapid traverse rates (X/Y/Z m/min) 20/20/20
Cutting feed rates (X/Y/Z m/min) 10000
Rated torques on 3 axes (Nm) 30.6/30.6/30.6
Rated torque on A axis (Nm) 782

TOOL MAGAZINE
Magazine type DISK/CHAIN
Cam type ARM
Tool selection RANDOM
Tool storage capacity (pcs) 30(60)/40(80)
Max tool diameter (mm) Ø75/Ø150
Max tool length (mm) 300

ACCURACY
Positioning accuracy X/Y/Z(mm), A/C (sec) 0.005, 10``/10`` 0.005,
Repeatability accuracy X/Y/Z(mm), A/C (sec) 0.003, 8``/4`` 0.003,
