BDMS - PINNACLE - Horizontal Machining Center LH500A

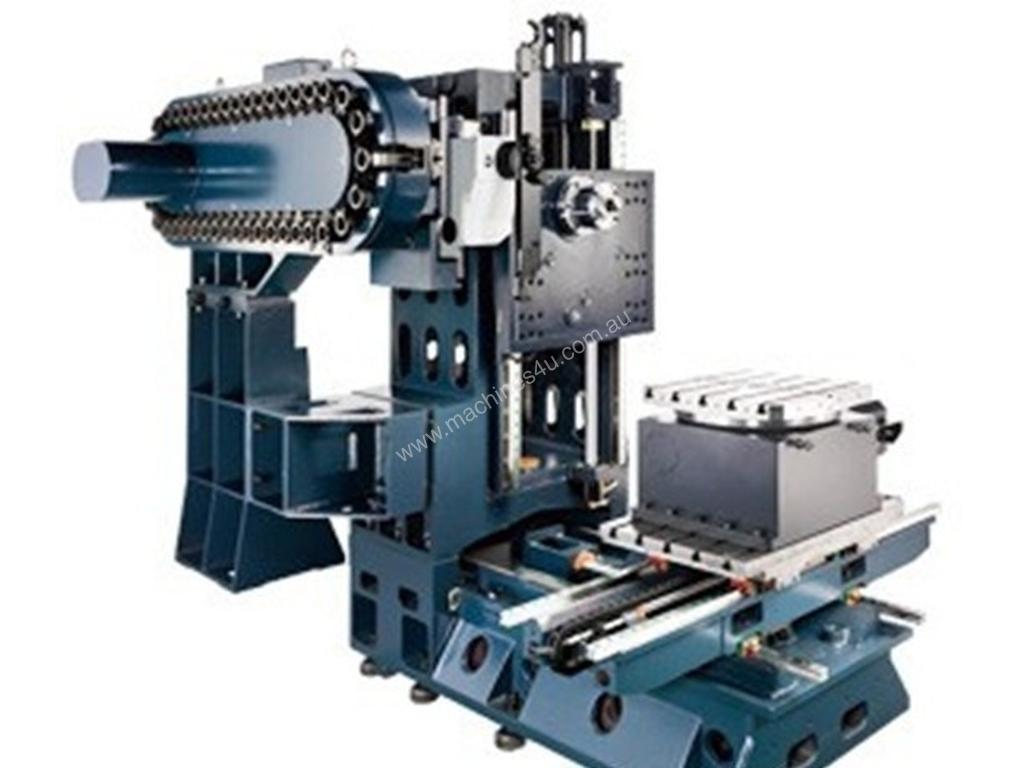

New Pinnacle LH - CNC Horizontal Machining Centre.

Main Features and Inclusions:

Travel & Table

LH500A Series
• X axis travel 650 mm
• Y axis travel 560 mm
• Z axis travel 560 mm

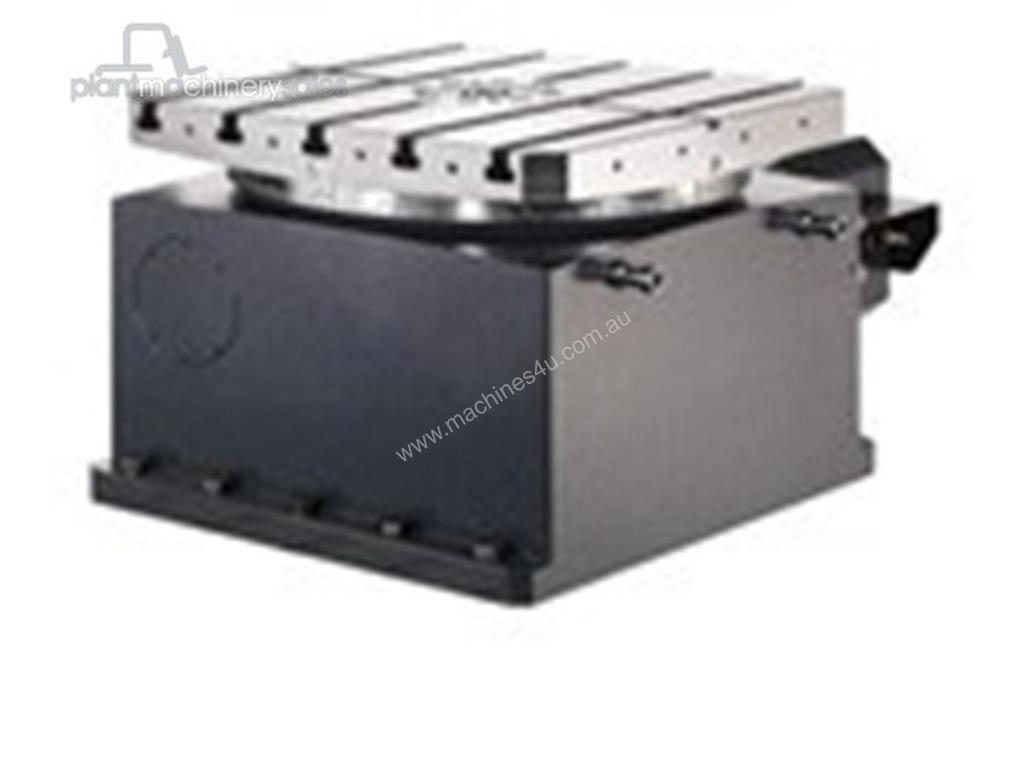

• Table 500 x 500 mm
• Indexing 0.001°

LH500 Series 2 x tables
• X axis travel 650 mm
• Y axis travel 560 mm
• Z axis travel 560 mm
• Table 500 x 500 mm x 2 tables
• Indexing 0.001°


Spindle:
• 10,000 rpm spindle speed Direct Drive
• BT40 spindle taper


Feed rate:
• 30 m/min x-axis rapid traverse
• 24 m/min y-axis rapid traverse
• 30 m/min z-axis rapid traverse
• 10000 mm/min cutting feed rate

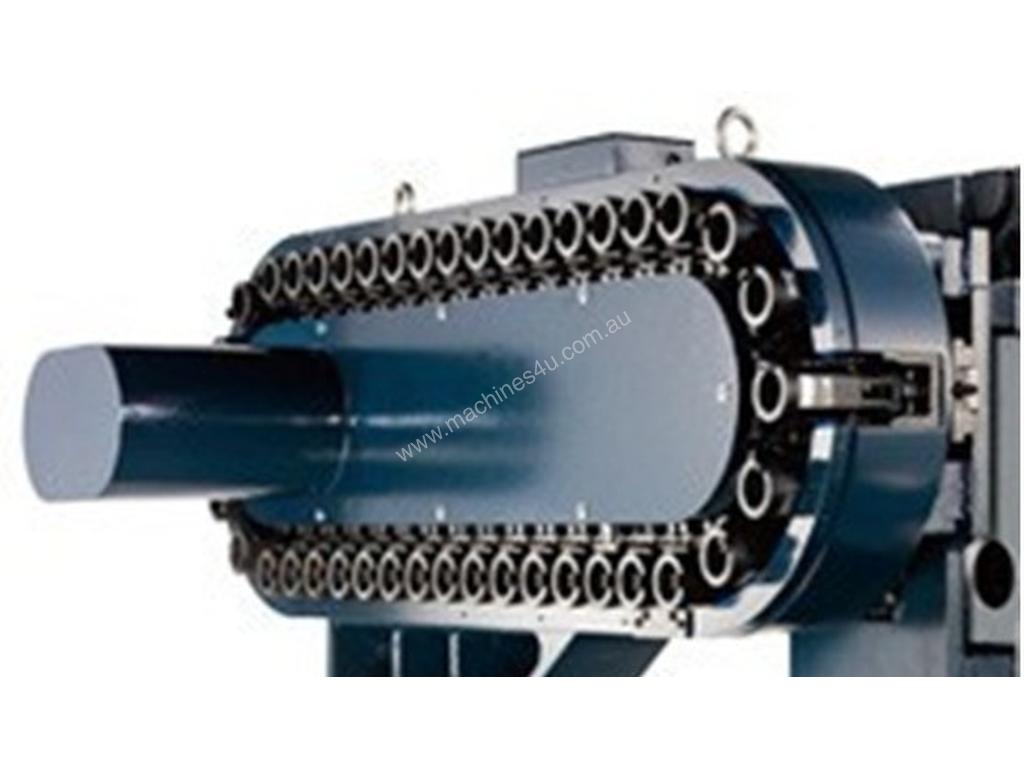

Automatic Tool Changer:
• BT40 tool shank
• 40 Tools ATC Random Selection
• 300 mm Max tool length


Accuracy:
• XYZ Linear axis (mm) 0.005
• Repeatability Linear axis (mm) 0.003


Included:
• Fanuc Oi-MF / Mitsubishi M80 – M800 / Heidenhain ITNC640 Controller all with conversational programming
• Rigid tapping
• Hollow ball screws cooling
• Air blast through spindle
• Auto Lubrication system
• Flush down system
• 20 Bar Spindle through Coolant (option)
• Spindle Chiller
• Spindle Air Blast

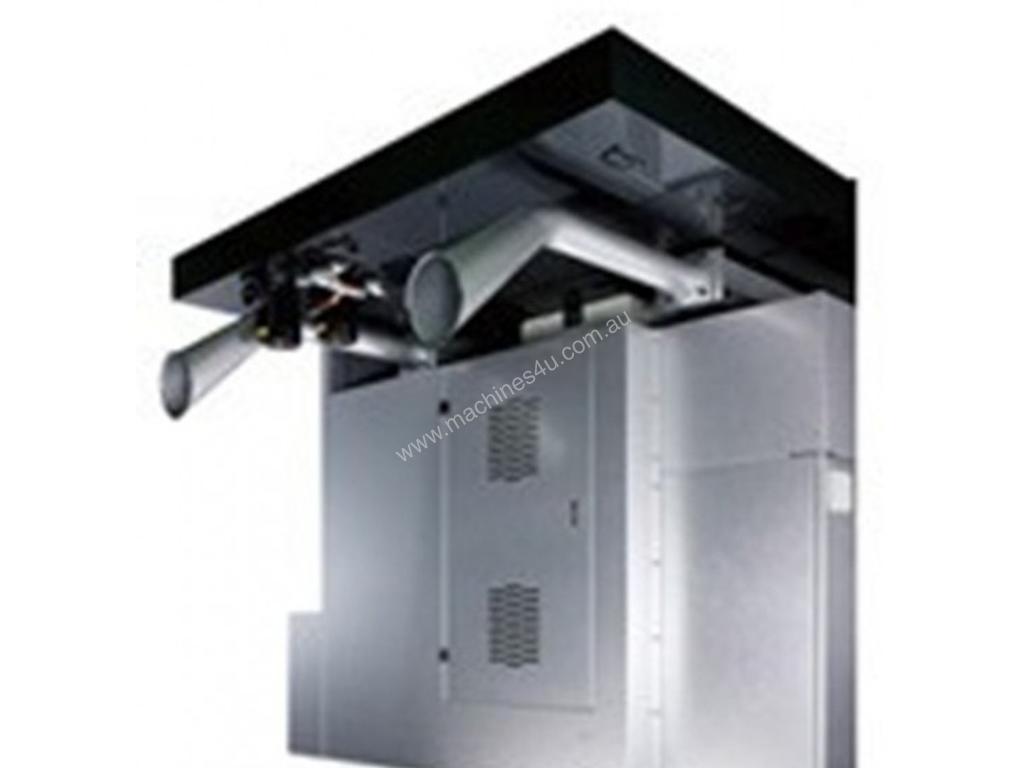

• Air-conditioned electrical cabinet
• 40 tools ATC
• Chip conveyor with trolley
• X, Y, Z axes Linear feedback scales (opt)
• RS 232 & RJ 45 Ports for DNC
• USB Ports
• Transformer


Please contact Stewart for more information. All prices quoted include Delivery, Installation and Training
