BDMS - PINNACLE - Horizontal Machining Center - Twin Tables LH500B

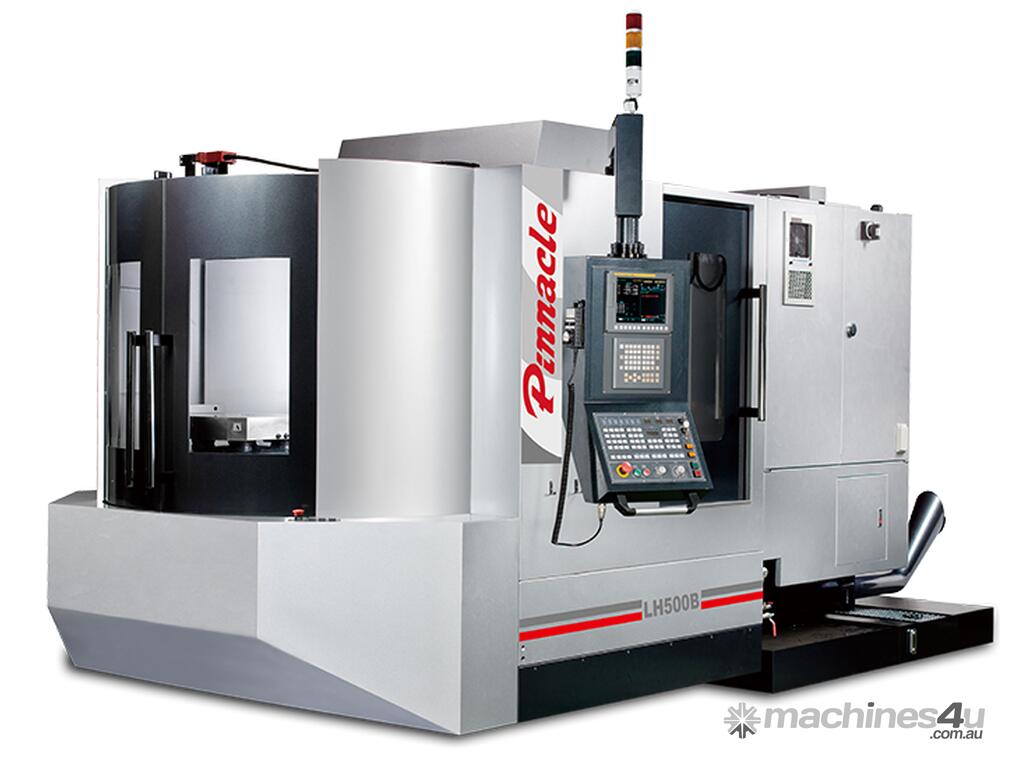

New Pinnacle LH500B - CNC Horizontal Machining Centre.

Main Features and Inclusions:

Travel & Table

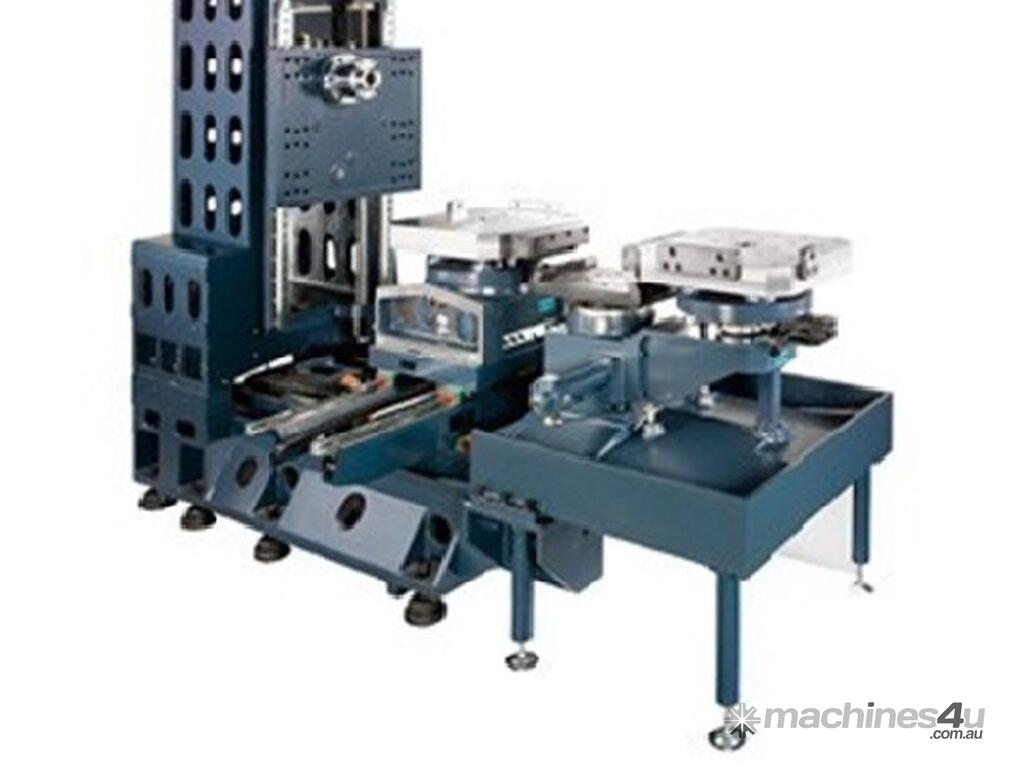

LH500B Series 2 x tables
• X axis travel 650 mm
• Y axis travel 560 mm
• Z axis travel 560 mm

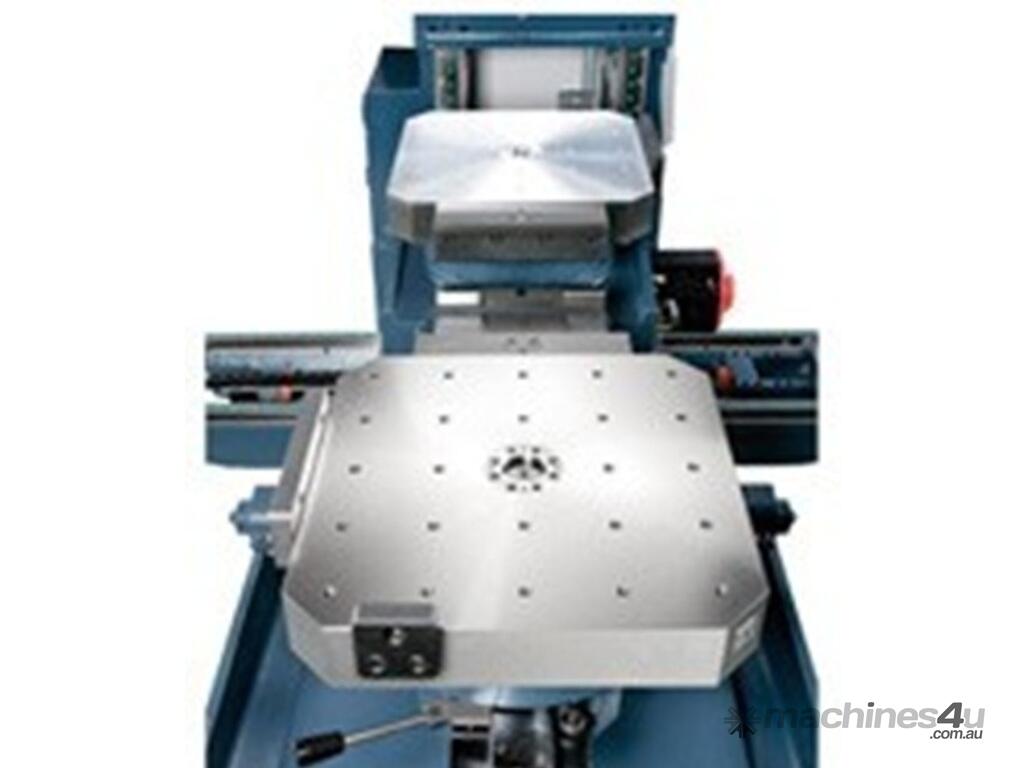

• Table 500 x 500 mm x 2 tables
• Indexing 0.001°


Spindle:
• 8,000 rpm spindle speed Direct Drive
• BT40 spindle taper


Feed rate:
• 30 m/min x-axis rapid traverse
• 24 m/min y-axis rapid traverse
• 30 m/min z-axis rapid traverse
• 10000 mm/min cutting feed rate

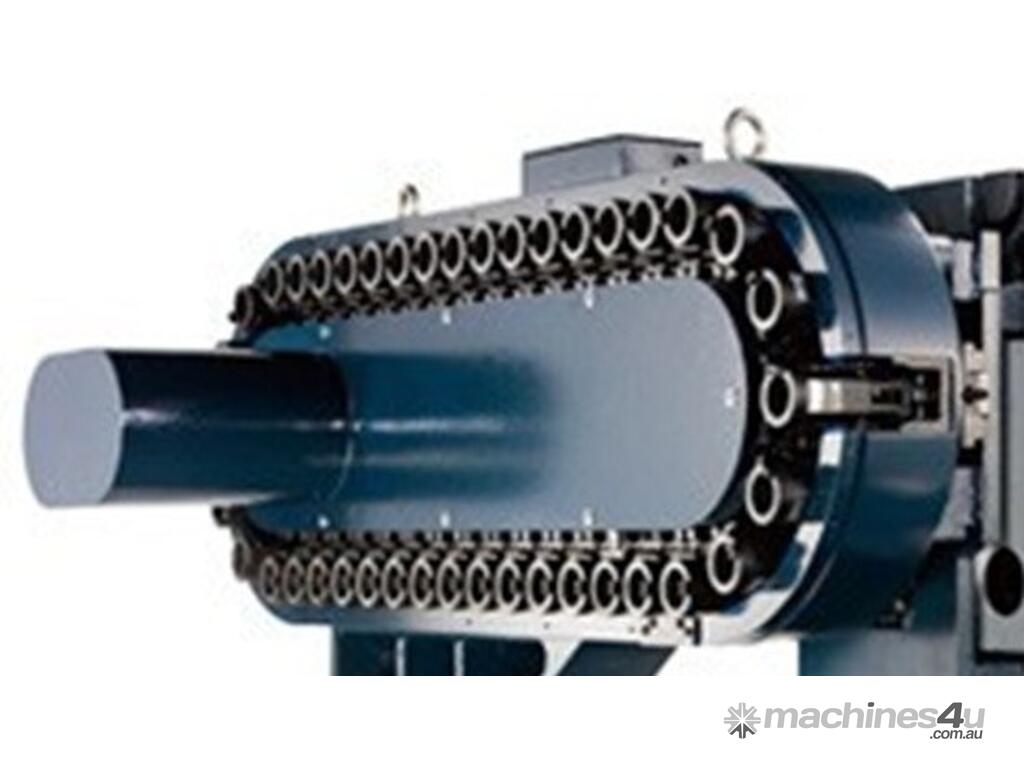

Automatic Tool Changer:
• BT40 tool shank
• 40 Tools ATC Random Selection
• 300 mm Max tool length


Accuracy:
• XYZ Linear axis (mm) 0.005
• Repeatability Linear axis (mm) 0.003


Included:
• Fanuc Oi-MF / Mitsubishi M80 – M800 / Heidenhain ITNC640 Controller all with conversational
programming
• Rigid tapping
• Hollow ball screws cooling
• Air blast through spindle
• Auto Lubrication system
• Flush down system
• 20 Bar Spindle through Coolant (option)
• Spindle Chiller
• Spindle Air Blast
• Air-conditioned electrical cabinet
• 40 tools ATC
• Chip conveyor with trolley
• X, Y, Z axes Linear feedback scales (opt)
• RS 232 & RJ 45 Ports for DNC
• USB Ports
• Transformer


Please contact Stewart for more information. All prices quoted include Delivery, Installation and Training



Discover excellence in CNC machine tools with BDMS, your premier source for both new and used equipment across Australia. From our base in Lonsdale, South Australia, and our dedicated sales office in Brisbane, Queensland, we cater to a wide spectrum of clientele, from burgeoning startups to established industrial giants. Count on our expertise to guide you through every step, from selection to installation, training, and ongoing support, ensuring maximum ROI for your business. Our premium range of new Machine Tools is manufactured by Pinnacle. From complex 5 and 6 axis machining through to manual milling machines and lathes we have the solution for you.

Go to BDMS showroom on Machines4u to see the available range of machinery, send BDMS a message about the item that you are interested in, or give BDMS a call, we are happy to answer any of your questions and provide professional advice for your business requirements.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION*
