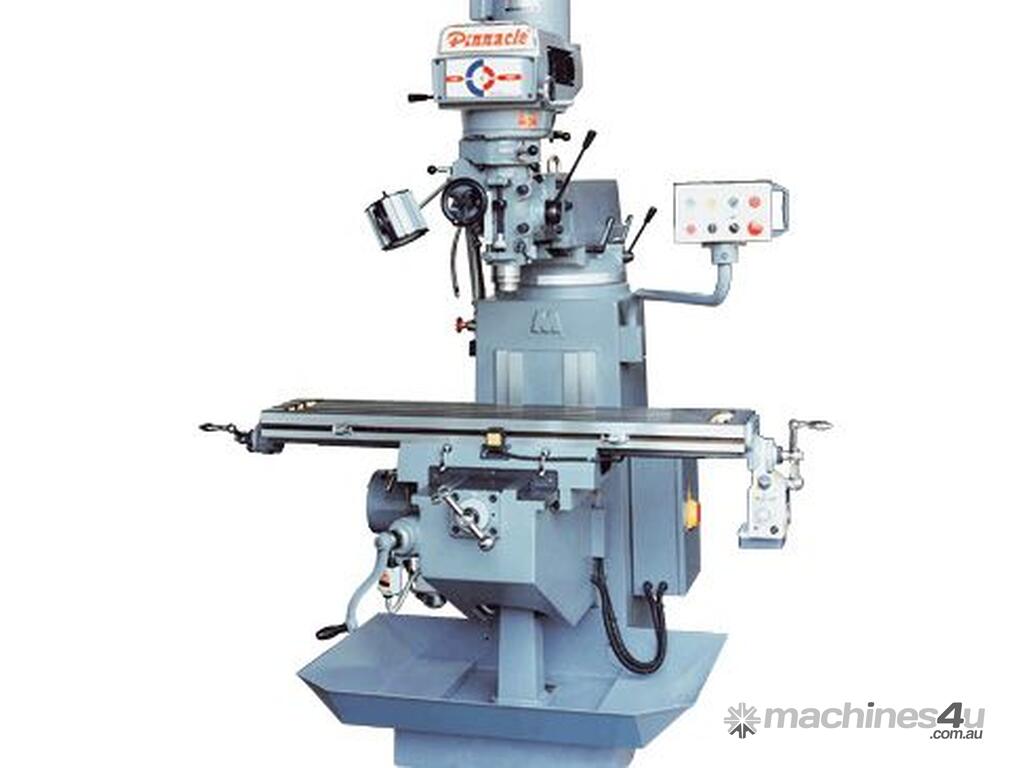

BDMS - PINNACLE PK-GRSMV / PK-GRSMB

3HP variable speed head
NT30# / R8 spindle taper
3HP powerful motor
Square slideways on knee.
Extra wide table working area 50`` x 10``
Hardened and ground X,Y axes and table surface

MODEL PK-GRSM-B
Table 1270 x 254mm
TRAVEL
Longitudinal 800 mm
Cross 380 mm
Vertical 380 mm
Spindle Travel 127 mm
SPINDLE
Taper R8 or NT30#
Spindle Spindle
Low Range - Low 60, 95, 150, 225
                   - High 535, 825, 1320, 1930
High Range - Low 120, 195, 305, 450
                   - High 1055, 1640, 2620, 3820
Quill Feeds Per. Rev. of   Spindle 0.04, 0.08, 0.15 MM
Main Motor 2.2 KW, 3PH or 3.7 KW, 3PH
Swivel Angle to Right &   Left 90°
Swivel Angle to Front &   Back 45°
Approximate Net Weight 1350 Kgs


MODEL PK-GRSM-V
Table 1270 x 254mm
TRAVEL
Longitudinal 800 mm
Cross 380 mm
Vertical 380 mm
Spindle Travel 127 mm
SPINDLE
Taper R8 or NT30#
Variable Speed 75-3800 R.P.M.
Quill Feeds Rer. Rev. of   Spindle 0.04 - 0.08 - 0.15 mm
Main Motor 2.2 KW 3PH or 3.7 KW 3PH
Swivel Angle to Right &   Left 90°
Swivel Angle to Front &   Back 45°
Approximate Net Weight 1350 Kgs


Discover excellence in CNC machine tools with BDMS, your premier source for both new and used equipment across Australia. From our base in Lonsdale, South Australia, and our dedicated sales office in Brisbane, Queensland, we cater to a wide spectrum of clientele, from burgeoning startups to established industrial giants. Count on our expertise to guide you through every step, from selection to installation, training, and ongoing support, ensuring maximum ROI for your business. Our premium range of new Machine Tools is manufactured by Pinnacle. From complex 5 and 6 axis machining through to manual milling machines and lathes we have the solution for you.

Go to BDMS showroom on Machines4u to see the available range of machinery, send BDMS a message about the item that you are interested in, or give BDMS a call, we are happy to answer any of your questions and provide professional advice for your business requirements.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION*
