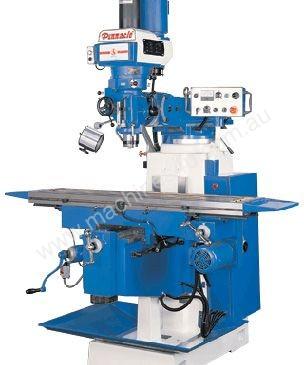

BDMS - PINNACLE PKFV3 / PKFV2

The rigid and precision spindle is driven by a powerful inverter motor

60`` x 12`` working table with ground T-slots

High rigid precision spindle driven by 5 HP powerful motor

X,Y axes are driven by inverter motors

NT40# spindle taper

The X and Y axes slideways are coated with Turcite - B

The X, Y and Z axes slideways and top of working surface are hardened and ground

Square slideways on column and knee

MODEL PK-FV3
Table 1524 x 305 mm
TRAVEL
Longitudinal 800 mm
Cross 400 mm
Vertical 380 mm
SPINDLE
Taper NT40#
Dia. of Quill 100 mm
Spindle Travel 127 mm
Main Motor for Inverting 3.75 Kw
Inverter 3.75 Kw
Variable Speed 70 - 4200 R.P.M.
Quill Feeds Per. Rev. of Spindle 0.04 - 0.08 - 0.15 mm
Feed Motro ( X, Y, Z - Axis ) 0.375 KW / 0.375 KW / 0.2 KW
Feed Rate ( X, Y - Axis ) Min: 20 mm/min Max.: 2200 mm/min
Swivel Angle to Right & Left 90°
Swivel Angle to Front & Back 45°
Approximate Net Weight 1550 Kgs

MODEL PK-FV2
Table 1372 x 254 mm
TRAVEL
Longitudinal 900 mm
Cross 380 mm
Vertical 380 mm
Spindle Travel 127 mm
SPINDLE
Taper NT40#
Dia. of Quill 70 - 4200 R.P.M.
Spindle Speed 0.04 - 0.08 - 0.15 mm
Main Motor for Inverting 3.7 Kw 3PH
Inverter 3.7 Kw 3PH
Swivel Angle to Right & Left 90°
Swivel Angle to Front & Back 45°
Approximate Net Weight 1450 Kgs

Discover excellence in CNC machine tools with BDMS, your premier source for both new and used equipment across Australia. From our base in Lonsdale, South Australia, and our dedicated sales office in Brisbane, Queensland, we cater to a wide spectrum of clientele, from burgeoning startups to established industrial giants. Count on our expertise to guide you through every step, from selection to installation, training, and ongoing support, ensuring maximum ROI for your business. Our premium range of new Machine Tools is manufactured by Pinnacle. From complex 5 and 6 axis machining through to manual milling machines and lathes we have the solution for you.

Go to BDMS showroom on Machines4u to see the available range of machinery, send BDMS a message about the item that you are interested in, or give BDMS a call, we are happy to answer any of your questions and provide professional advice for your business requirements.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION*
