BDMS - PINNACLE - Vertical Machining Center - Box Guide ways SV85 / SV105

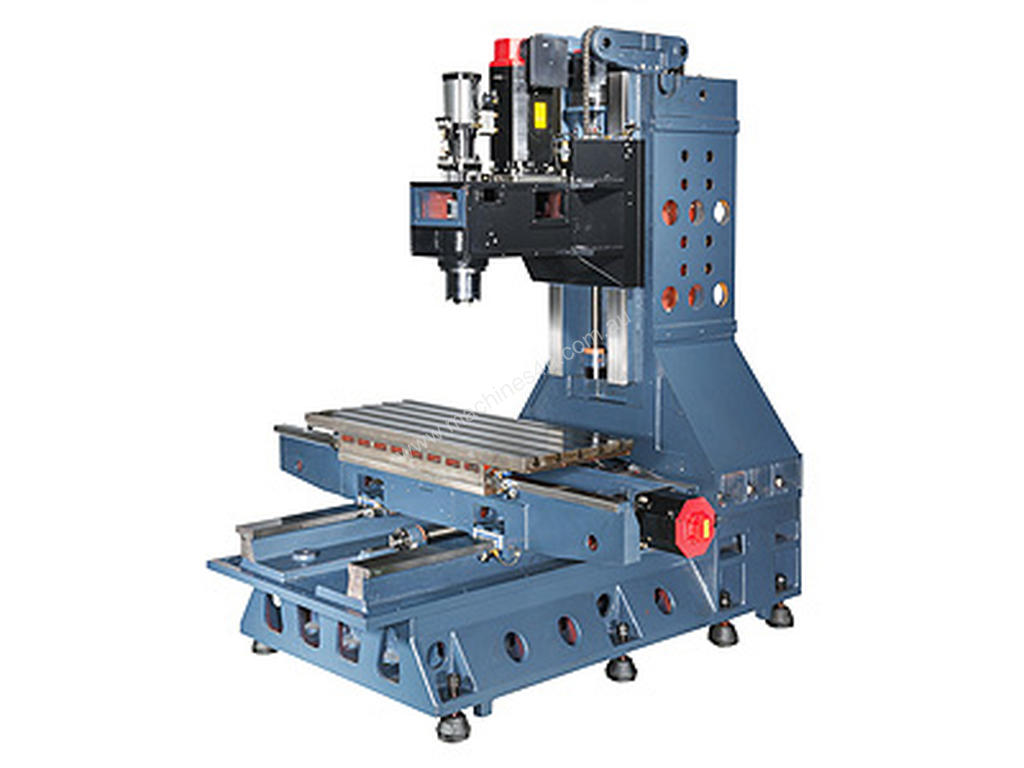

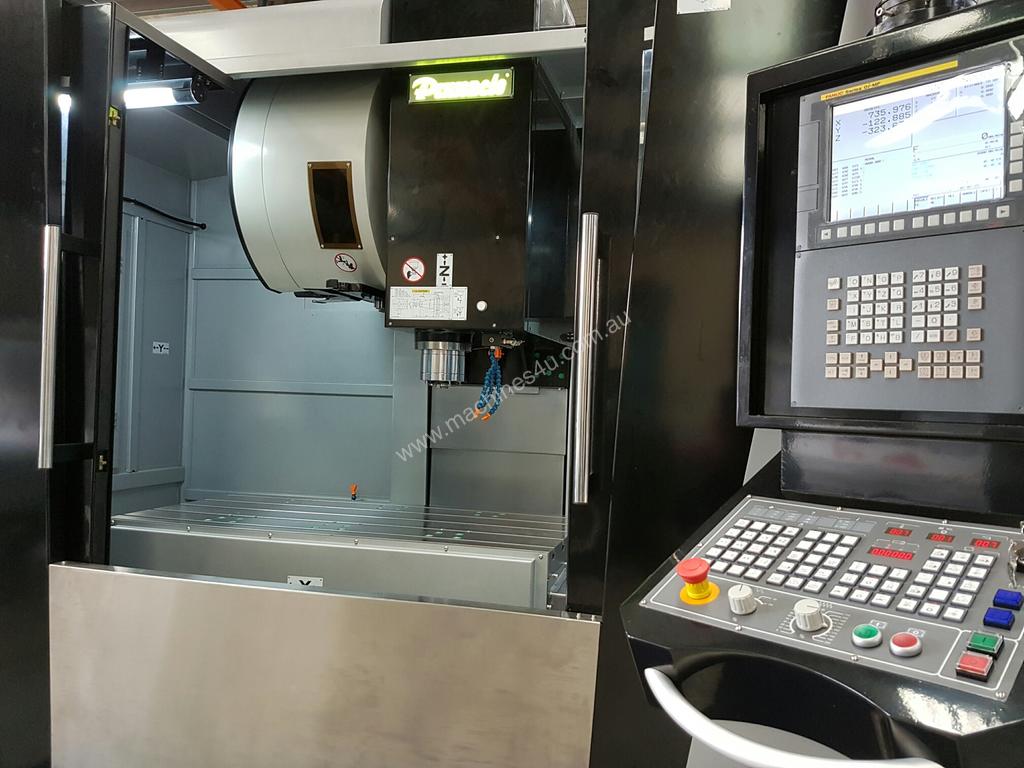

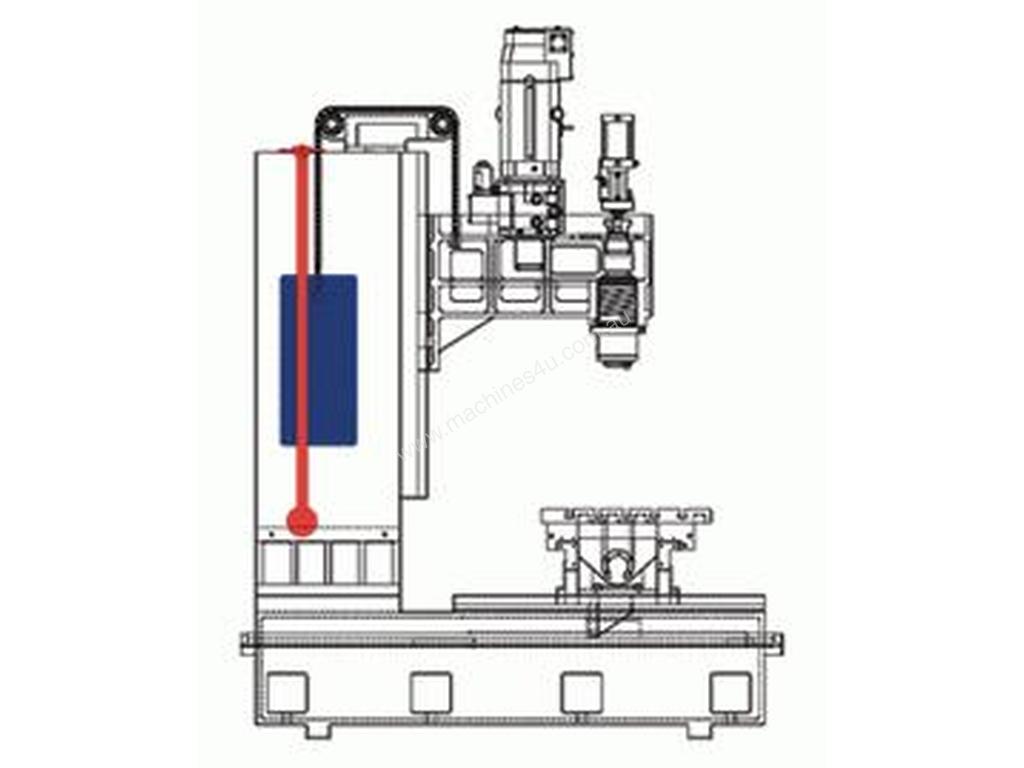

New Pinnacle SV85 / SV105 - CNC Vertical Machining Center. – Box Guide Ways

Main Features and Inclusions:

Travel:
SV85
• 850 mm x-axis travel
• 560 mm y-axis travel
• 560 mm z-axis travel

SV105
• 1020 mm x-axis travel
• 560 mm y-axis travel
• 560 mm z-axis travel


Table:
• 1000 mm x 510 mm – SV85
• 1200 mm x 510 mm – SV105


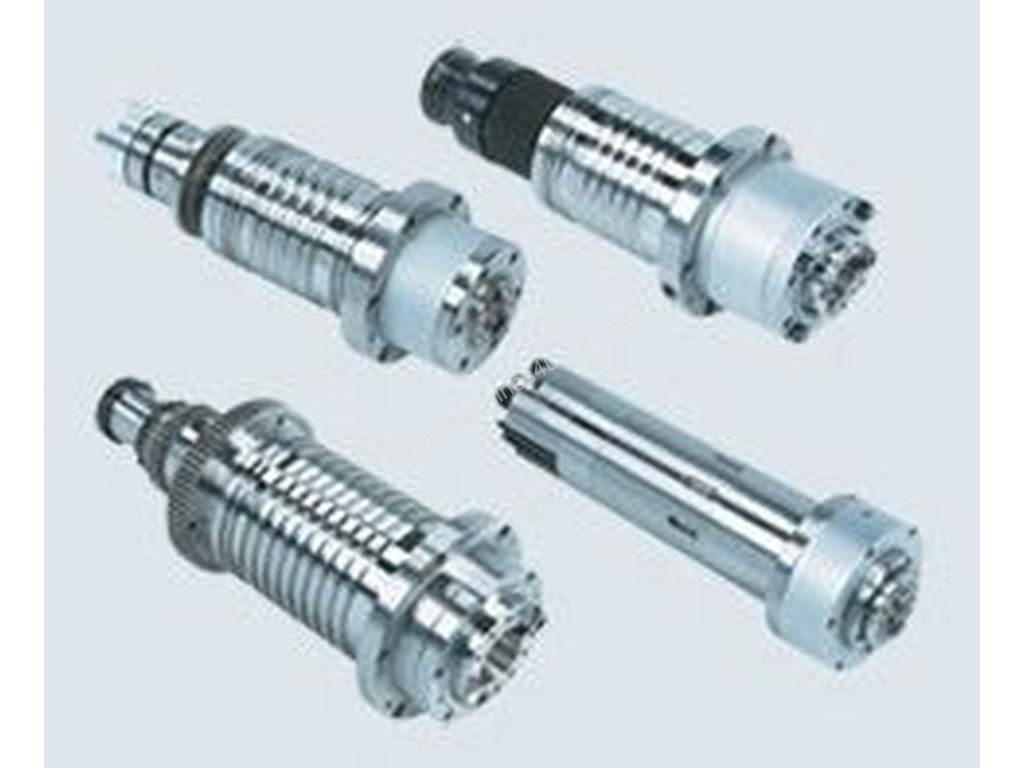

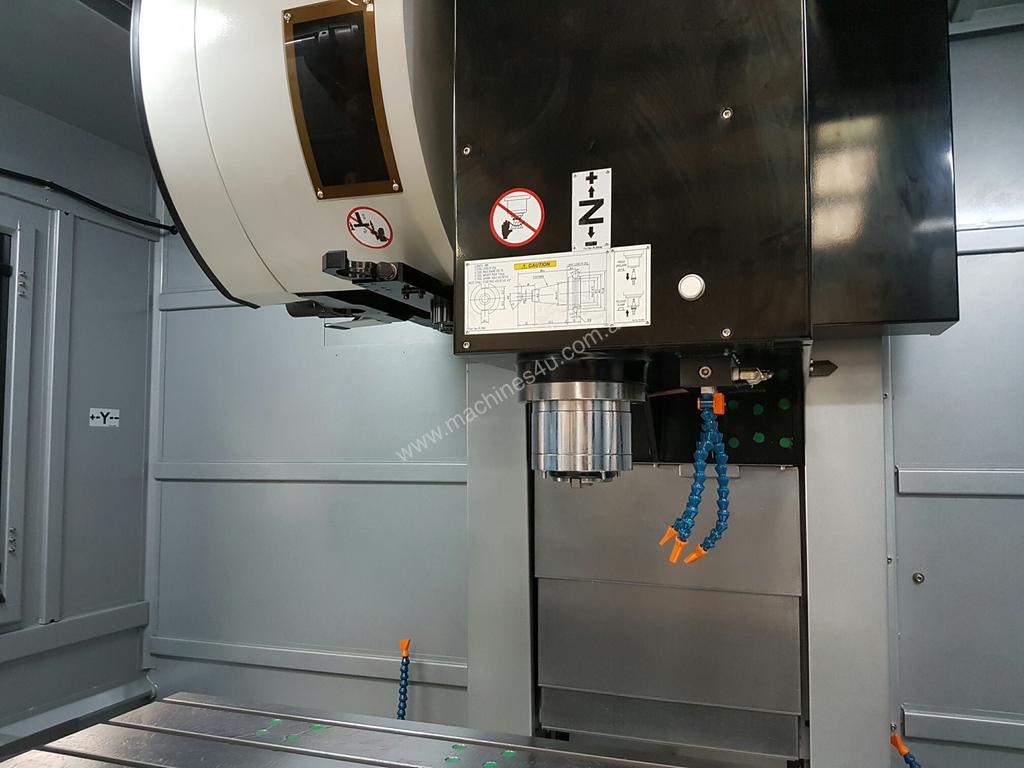

Spindle:
• 10000 rpm (12000/15000) spindle speed Direct Drive
• BT40 spindle taper

Feed rate:
• 36 m/min x-axis rapid traverse
• 36 m/min y-axis rapid traverse
• 24 m/min z-axis rapid traverse
• 10000 mm/min cutting feed rate

Automatic Tool Changer:
• 24 Tools ATC Random Selection
• Arm type
• 250 mm Max tool length

General:
SV85
• Machine Floor Space: 2600 x 2280 x 2750 mm (L x W x H)
• Nett machine weight: 5,500 kg

SV105
• Machine Floor Space: 2820 x 2280 x 2750 mm (L x W x H)
• Nett machine weight: 5,700 kg


Included:

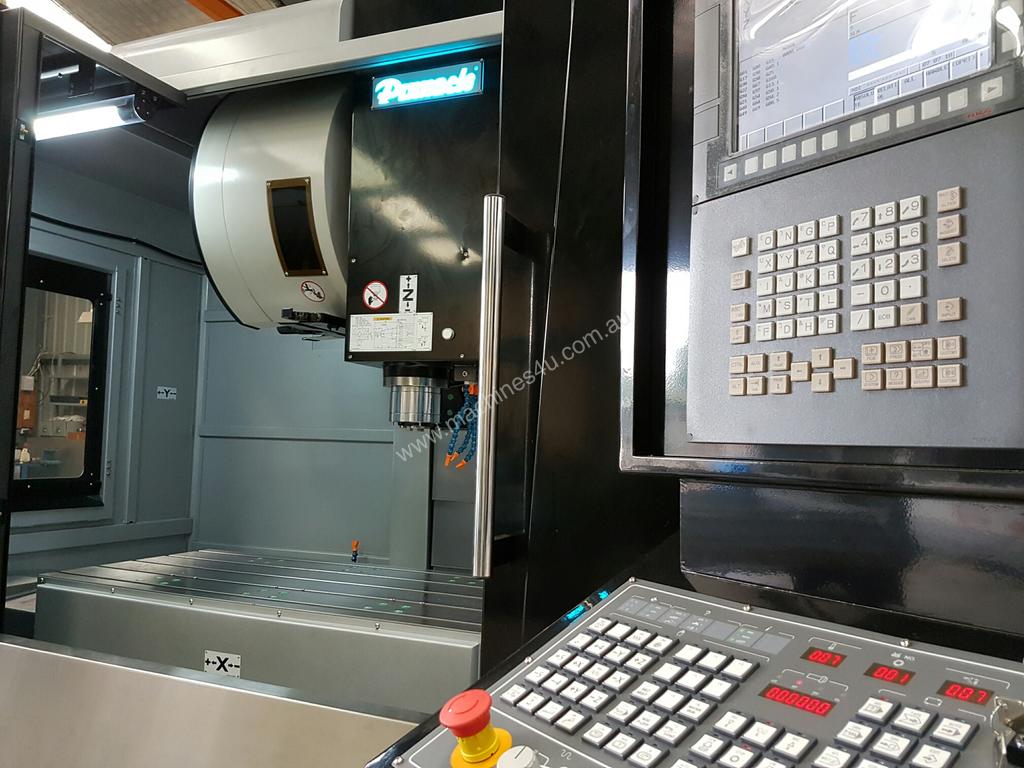

• Mitsubishi M80 / Fanuc Oi-MF / Heidenhain TNC620 Controller
• Air blast through spindle
• Air blast on workpiece
• Auto Lubrication system
• Spindle Chiller
• Spindle Air Blast
• Air-conditioned electrical cabinet
• 10,000 rpm spindle speed standard
• 4th axis prepared
• Rigid tapping
• 24 tools ATC Arm type
• RS 232 & RJ 45 Ports for DNC
• USB Ports
• Transformer

Please contact Stewart for more information. All prices quoted include Delivery, Installation and Training
