BDMS - PINNACLE - Vertical Machining Center - High Speed LV

The very latest edition to the Pinnacle range of products has just been released. The LV5 & LV8 High speed vertical machining centers. These machines are designed for, however, not limited to the following industries:

Medical
Dental
Watch
Electronics
Communications

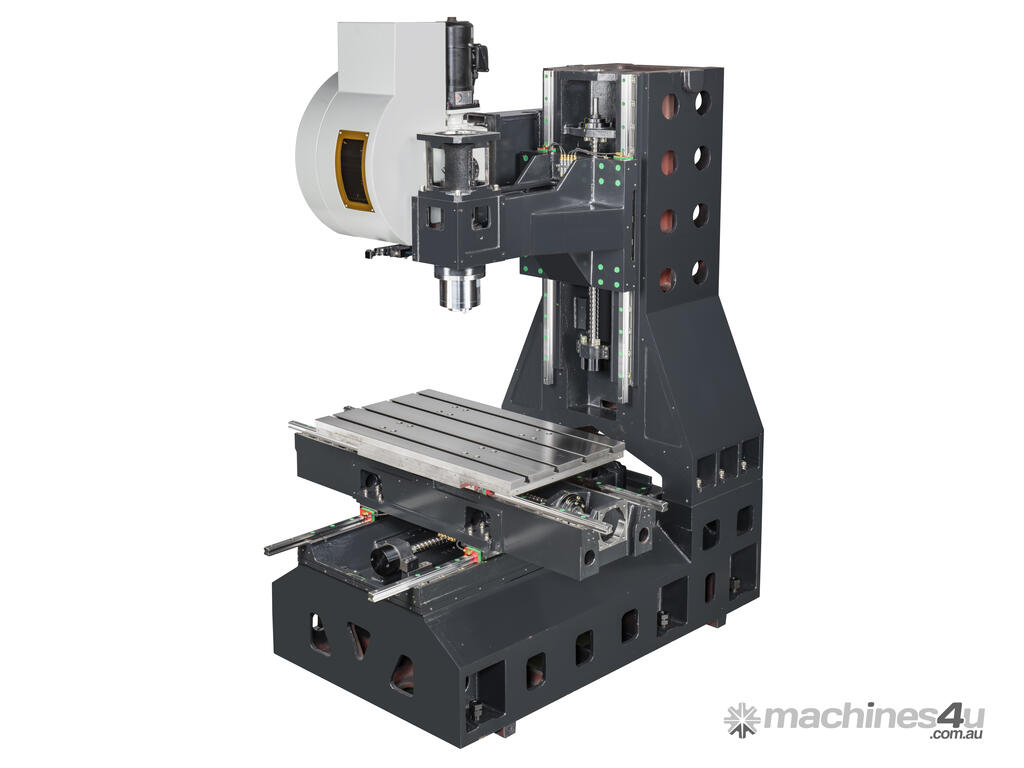

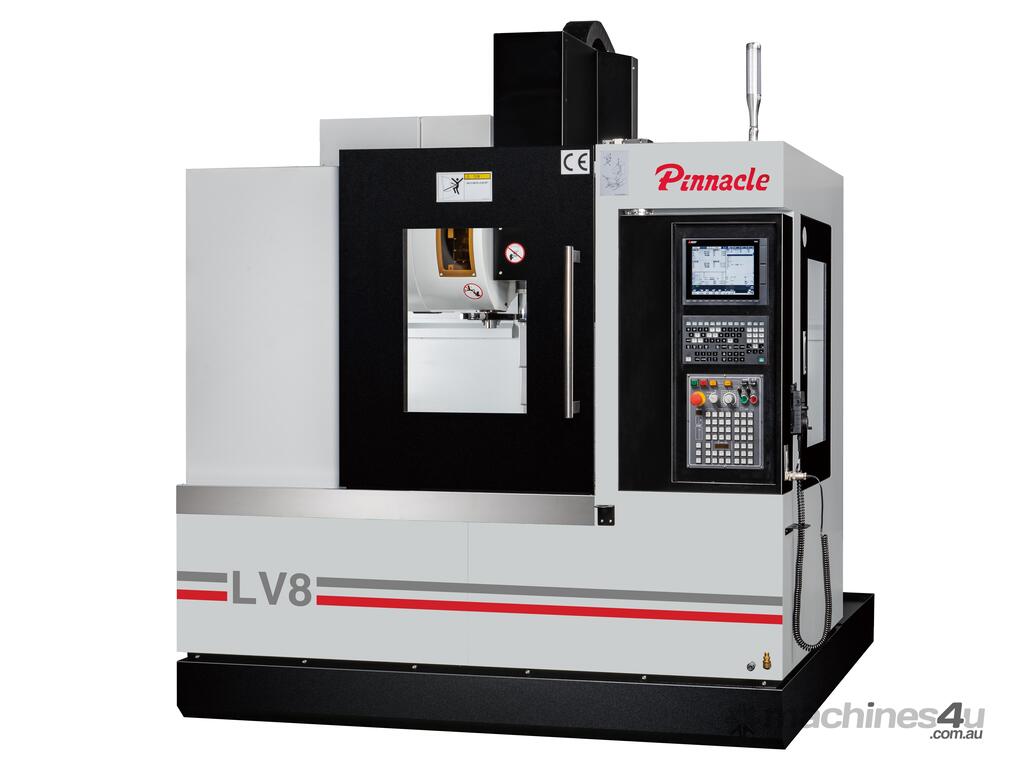

New Pinnacle LV5 / LV8 - CNC High Speed Vertical Machining Center.

Main Features and Inclusions:

Travel:
LV5
• 510 mm x-axis travel
• 410 mm y-axis travel
• 510 mm z-axis travel

LV8
• 810 mm x-axis travel
• 510 mm y-axis travel
• 510 mm z-axis travel

Table:
• 660 mm x 410 mm – LV5
• 910 mm x 510 mm – LV8

Spindle:
LV5
• 12000 rpm spindle speed (15000, 24000, 36000)
• BT30 spindle taper / HSK

LV8
• 12000 rpm spindle speed (15000)
• BT40 spindle taper

Feed rate:
• 48 m/min x-axis rapid traverse
• 48 m/min y-axis rapid traverse
• 48 m/min z-axis rapid traverse
• 20000 mm/min cutting feed rate

Automatic Tool Changer:
• 20 Tools ATC Random Selection
• Arm type
• 200 mm Max tool length

General:
LV5
• Machine Floor Space: 1900 x 2250 x 2815 mm (L x W x H)
• Nett machine weight: 2,800 kg

LV8
• Machine Floor Space: 2200 x 2380 x 2815 mm (L x W x H)
• Nett machine weight: 3,000 kg



Included:
• Mitsubishi M80 / Fanuc Oi-MF / Heidenhain TNC620 Controller
• Air blast through spindle
• Air blast on workpiece
• Auto Lubrication system
• Spindle Chiller
• Spindle Air Blast
• 12,000 rpm spindle speed standard
• 20 tools ATC Arm type
• RS 232 & RJ 45 Ports for DNC
• USB Ports
• Transformer

Please contact Stewart for more information. All prices quoted include Delivery, Installation and Training
