BDMS - PINNACLE - Vertical Machining Center - Linear Guide ways FANUC Smart Panel

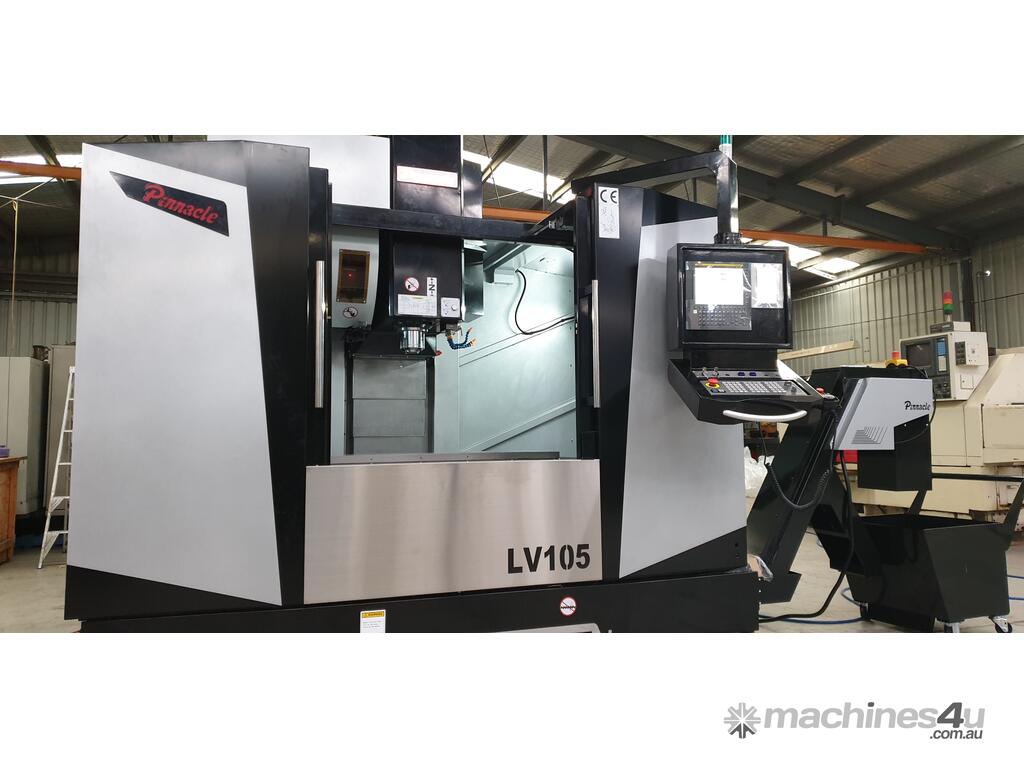

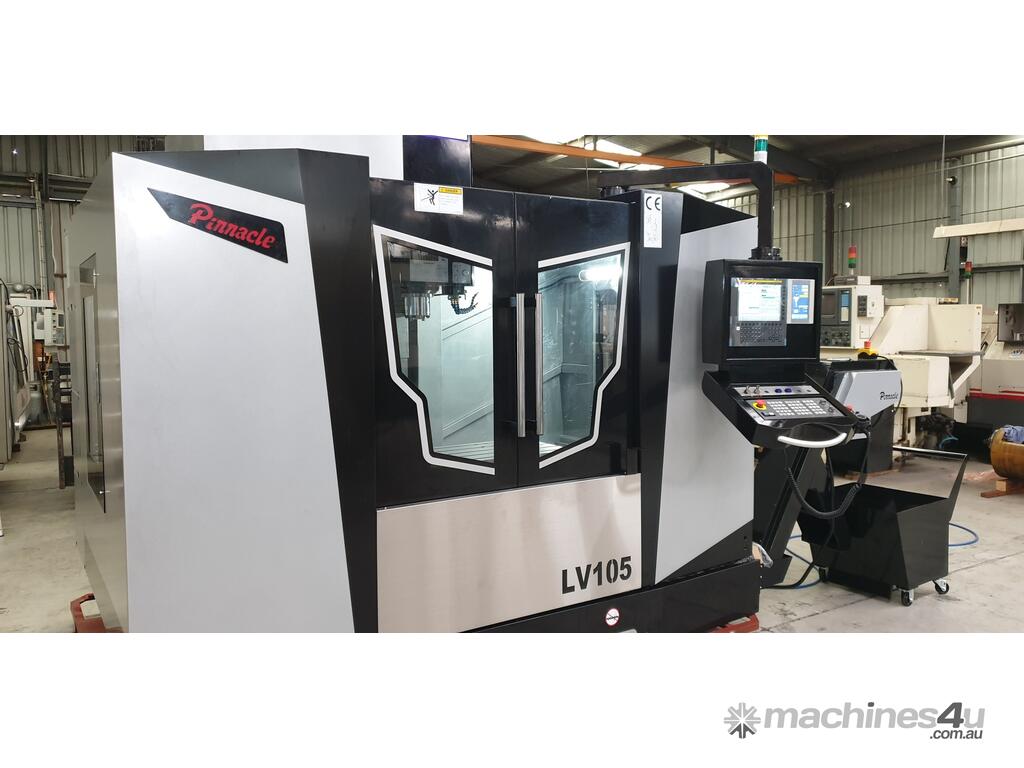

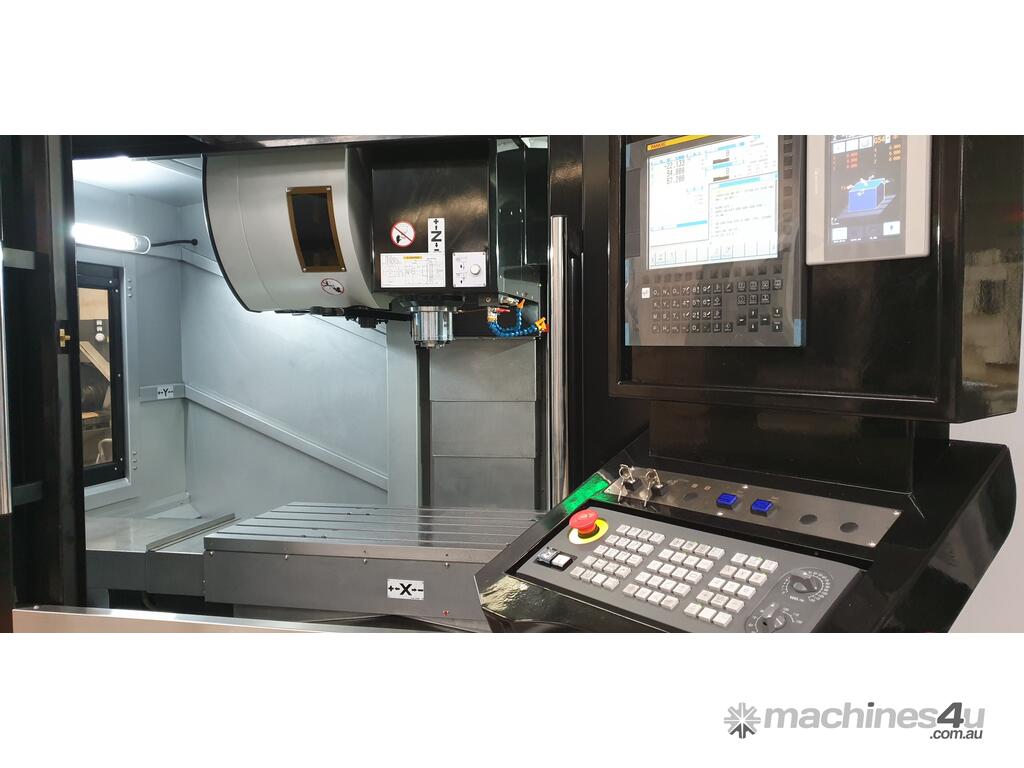

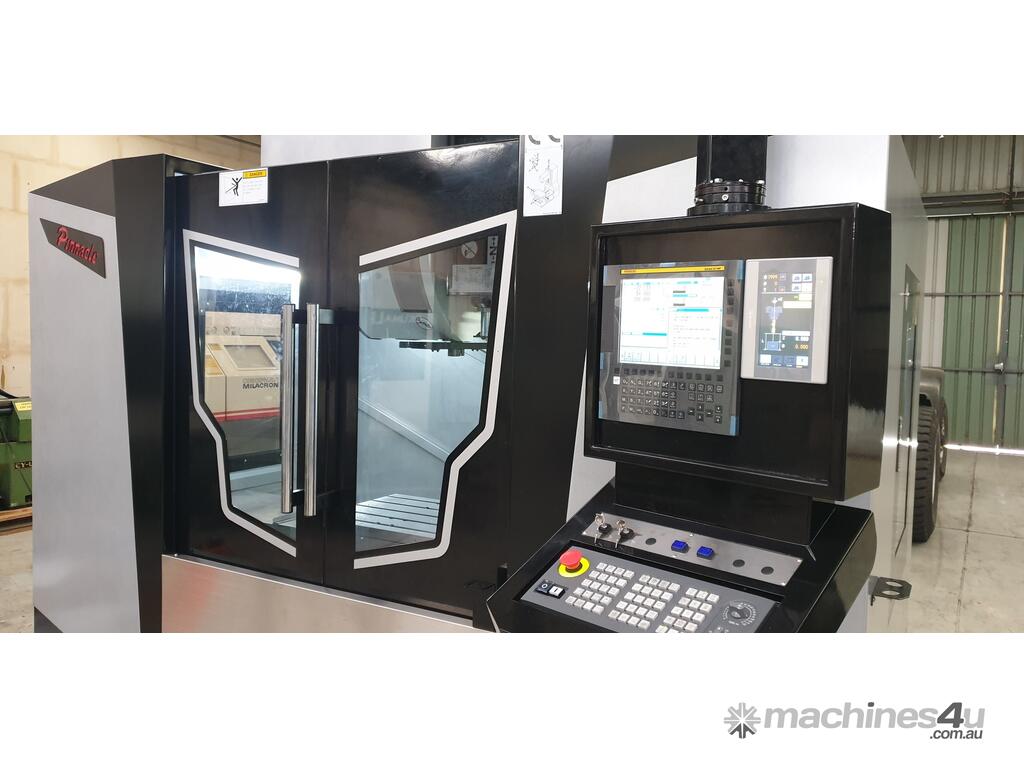

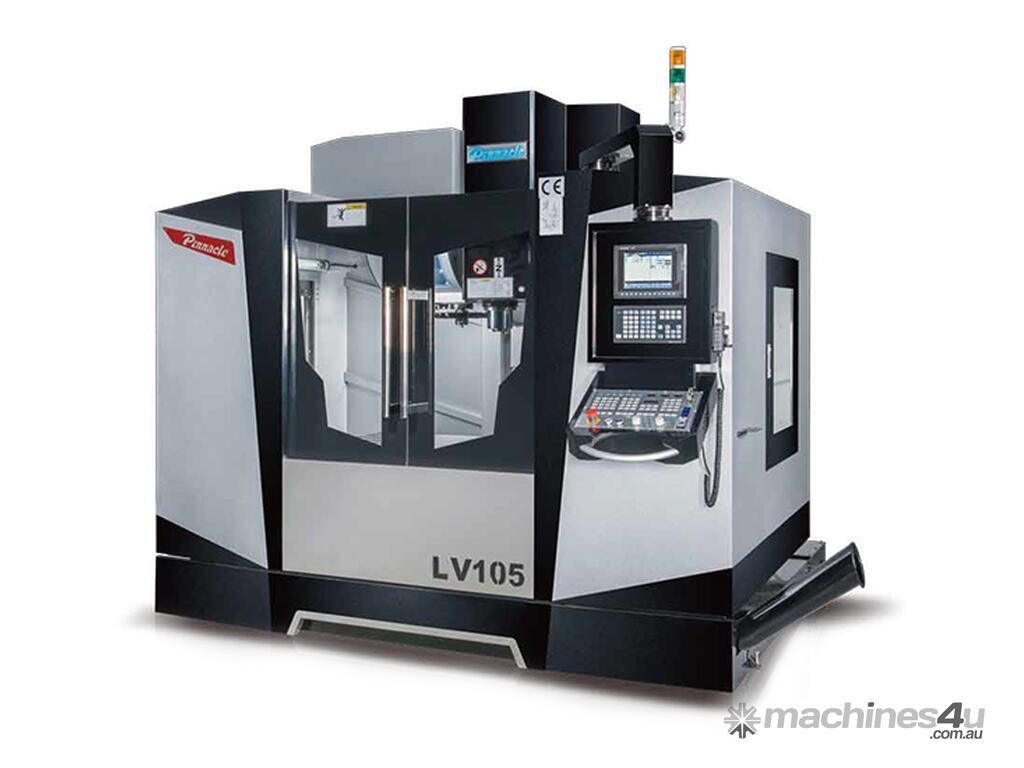

New Pinnacle LV105 Vertical Machining Center

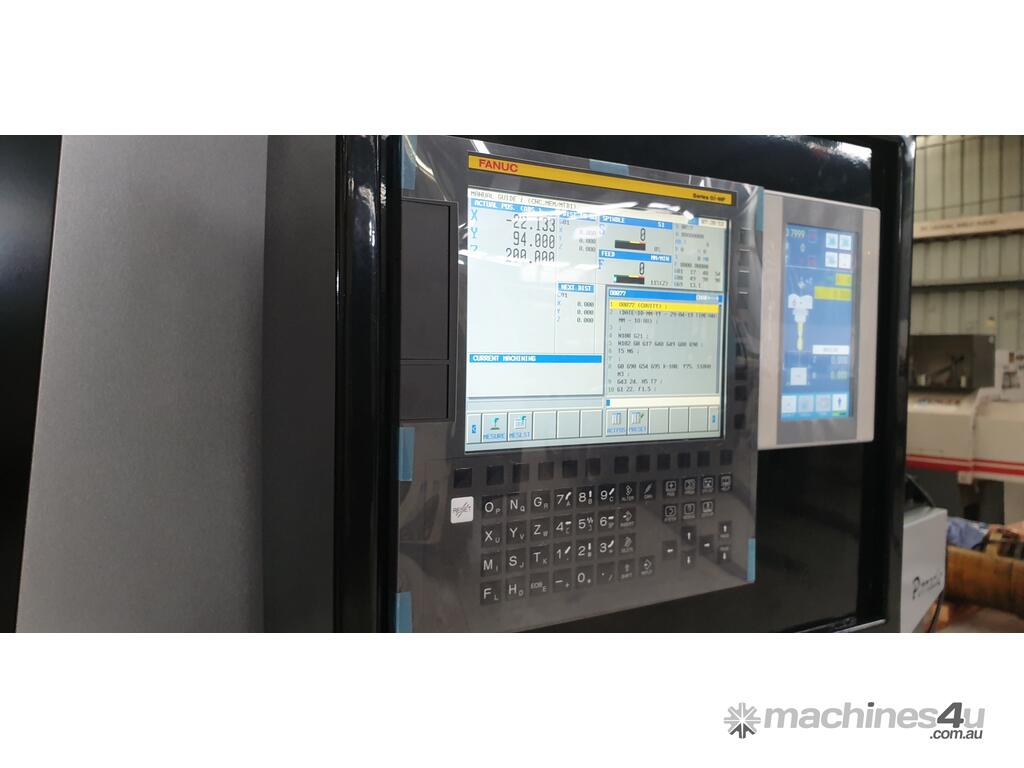

Fanuc OI-MF Controller
Manual Guide I + AICC II Conversational programming

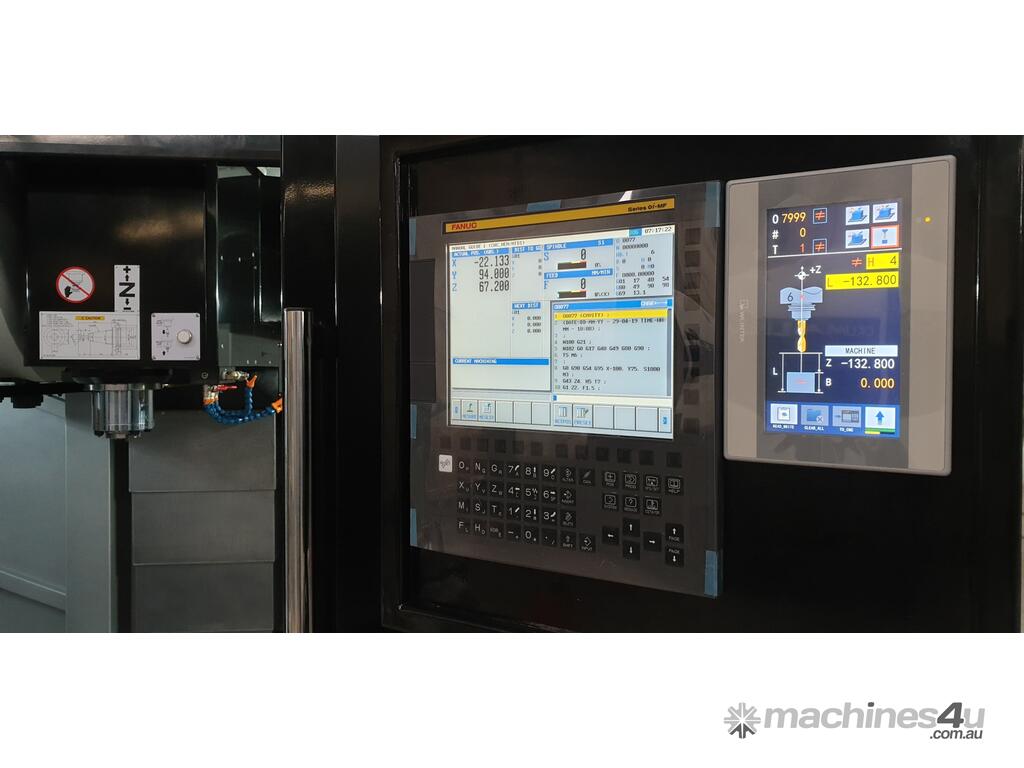

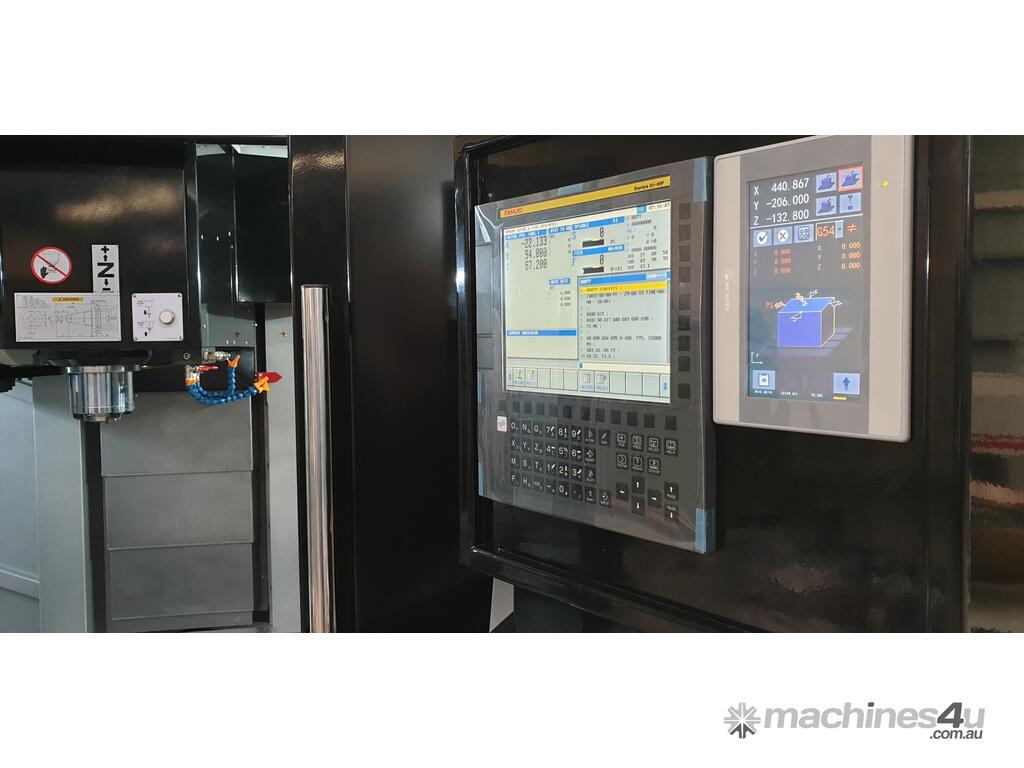

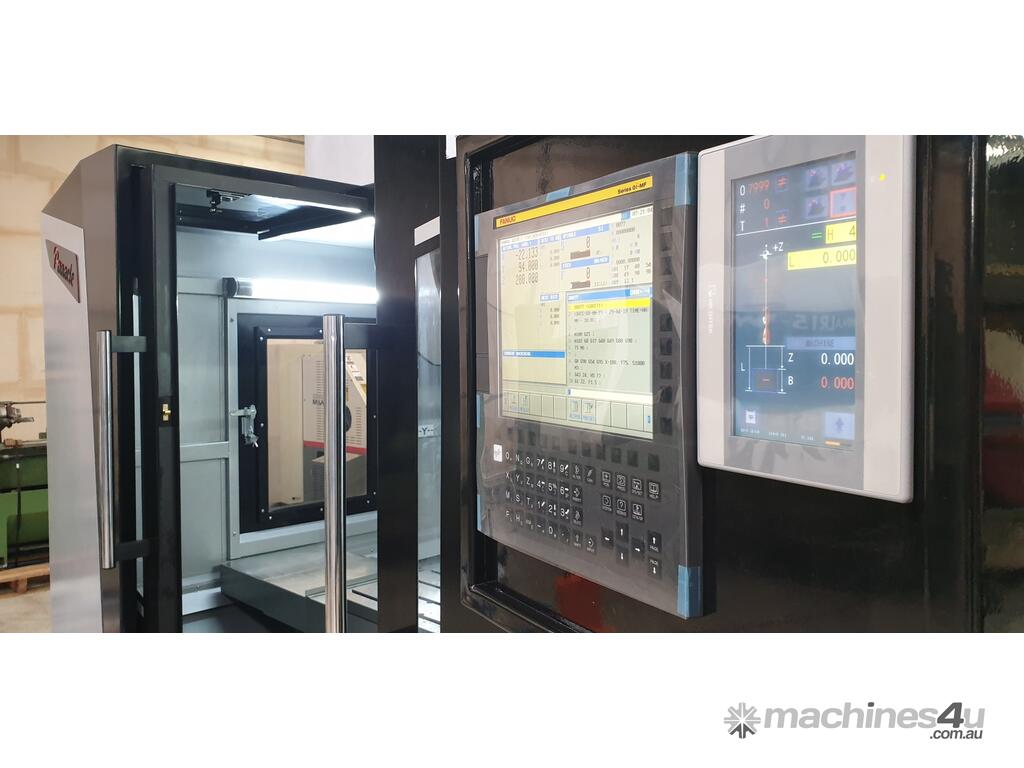

Fanuc Smart Panel for easy set up and machine control (Touch Screen)
10.4” Screen
USB – Ethernet – RS232 – Data Card (data transfer)
M30 Auto Power off System
AICC II with Jerk Control (Super Smooth Surface)

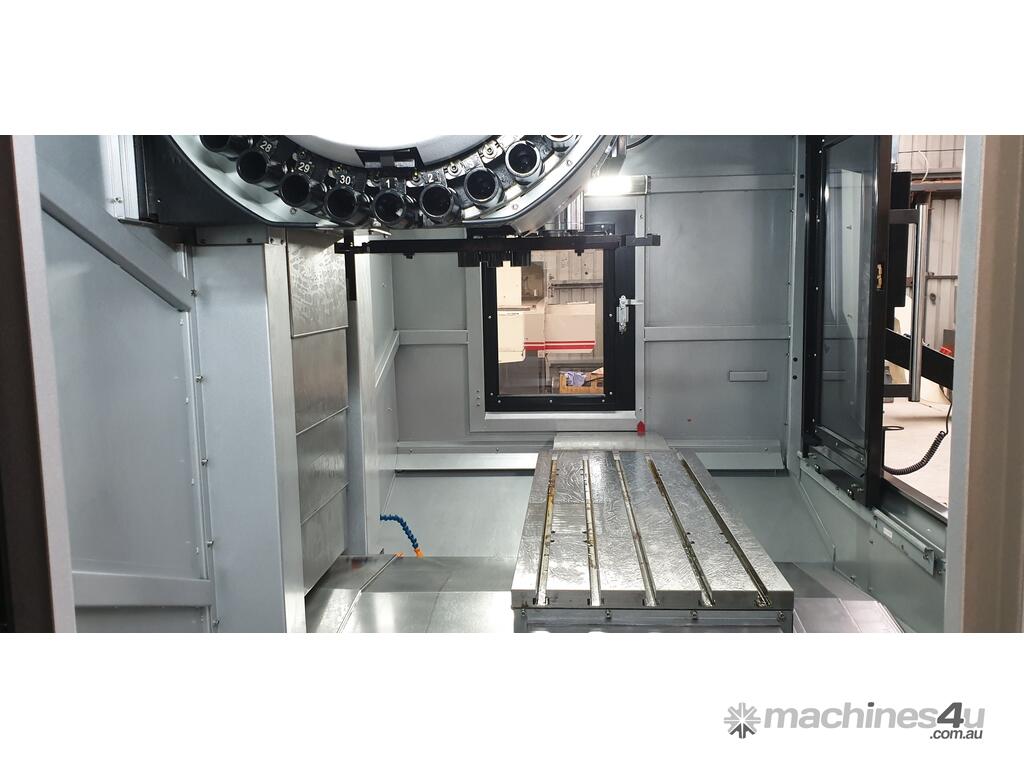

Linear guide way machine table size 1200mm x 510mm
Travel X 1020mm Y 560mm Z 560mm
Coolant Through Spindle 20 Bar Pressure

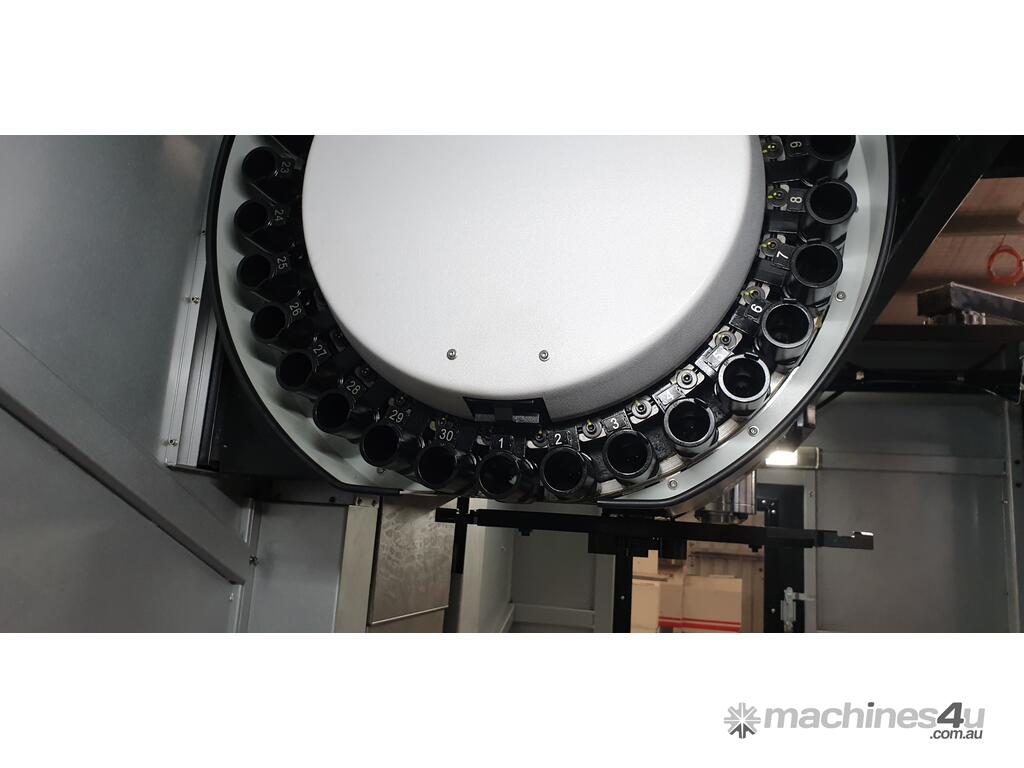

30 ATC – BT40

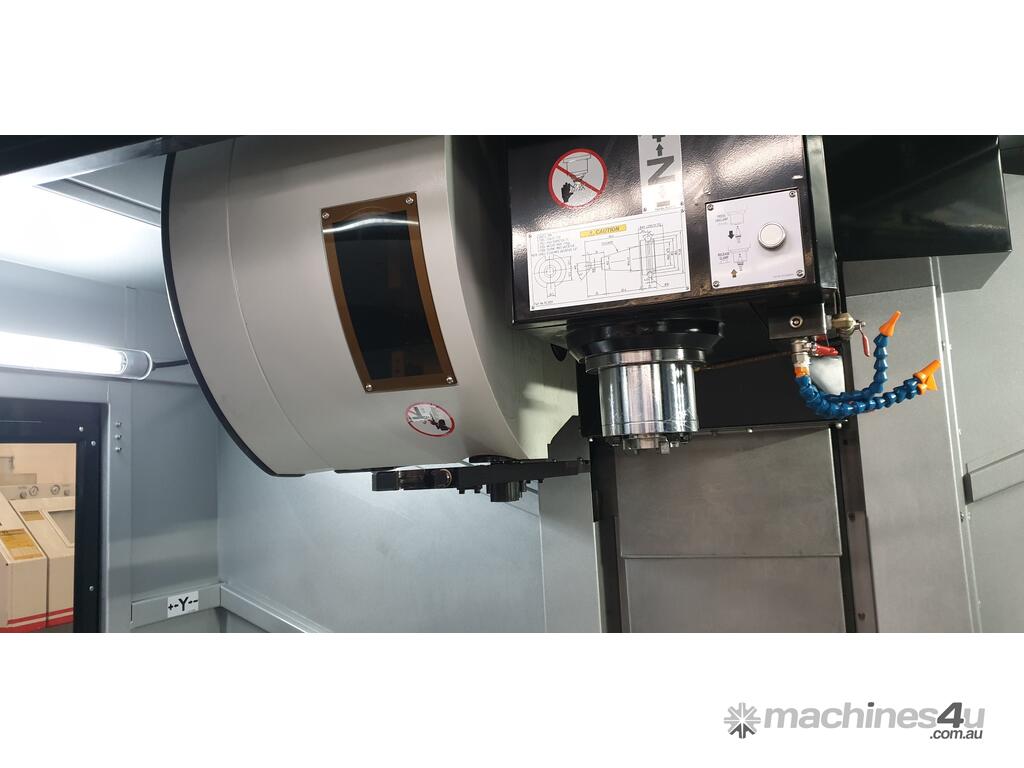

12,000RPM Spindle with Spindle oil cooler
Oil Skimmer
Chain Type Chip Conveyor
Pneumatic Counterbalance on Z axis
4th Axis preparation
Air conditioned electrical cabinet
Air blast through spindle
Air blast for workpiece (nose)
Coolant flushing system
3 axes telescopic covers
Full splash guard
Centralized automatic lubrication system
Working lamp
Operation status light
Cooling system
Air gun and water spray-gun
MPG hand wheel
Heat exchanger
RS-232 Interface
Rigid tapping
Adjusting tools and box
Levelling bolts and pads
Operation and programming manual

For detailed specifications please see attached PDF brochure



Discover excellence in CNC machine tools with BDMS, your premier source for both new and used equipment across Australia. From our base in Lonsdale, South Australia, and our dedicated sales office in Brisbane, Queensland, we cater to a wide spectrum of clientele, from burgeoning startups to established industrial giants. Count on our expertise to guide you through every step, from selection to installation, training, and ongoing support, ensuring maximum ROI for your business. Our premium range of new Machine Tools is manufactured by Pinnacle. From complex 5 and 6 axis machining through to manual milling machines and lathes we have the solution for you.

Go to BDMS showroom on Machines4u to see the available range of machinery, send BDMS a message about the item that you are interested in, or give BDMS a call, we are happy to answer any of your questions and provide professional advice for your business requirements.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION*
