BDMS - PINNACLE - Vertical Machining Center - Linear Guide ways LV116

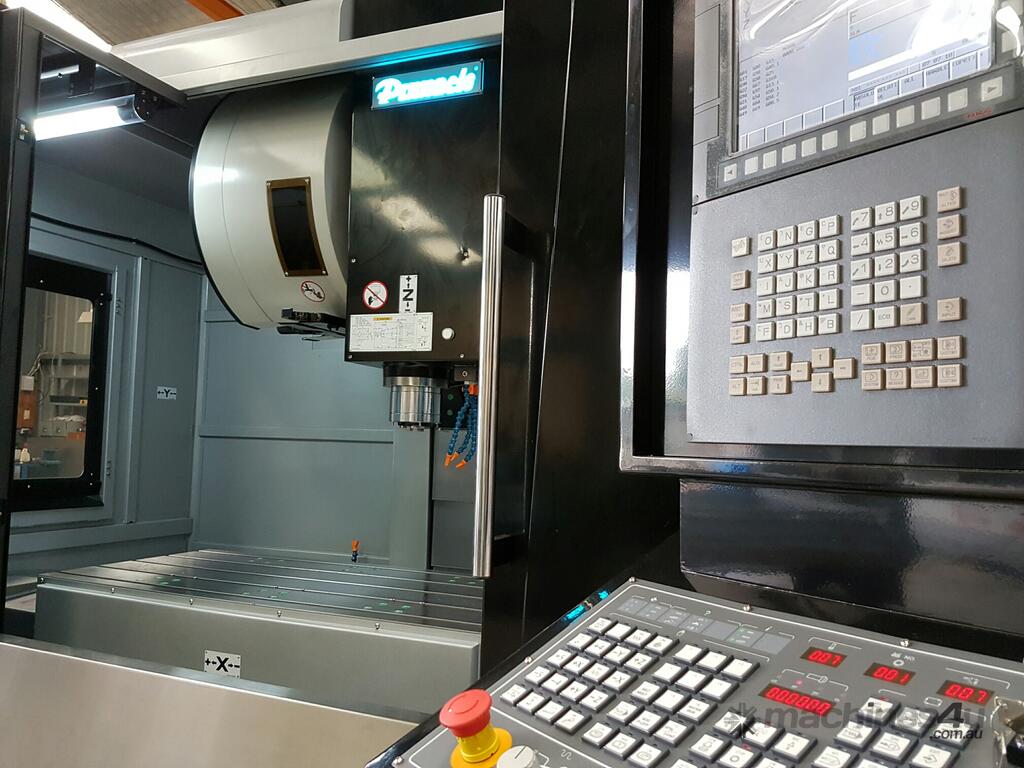

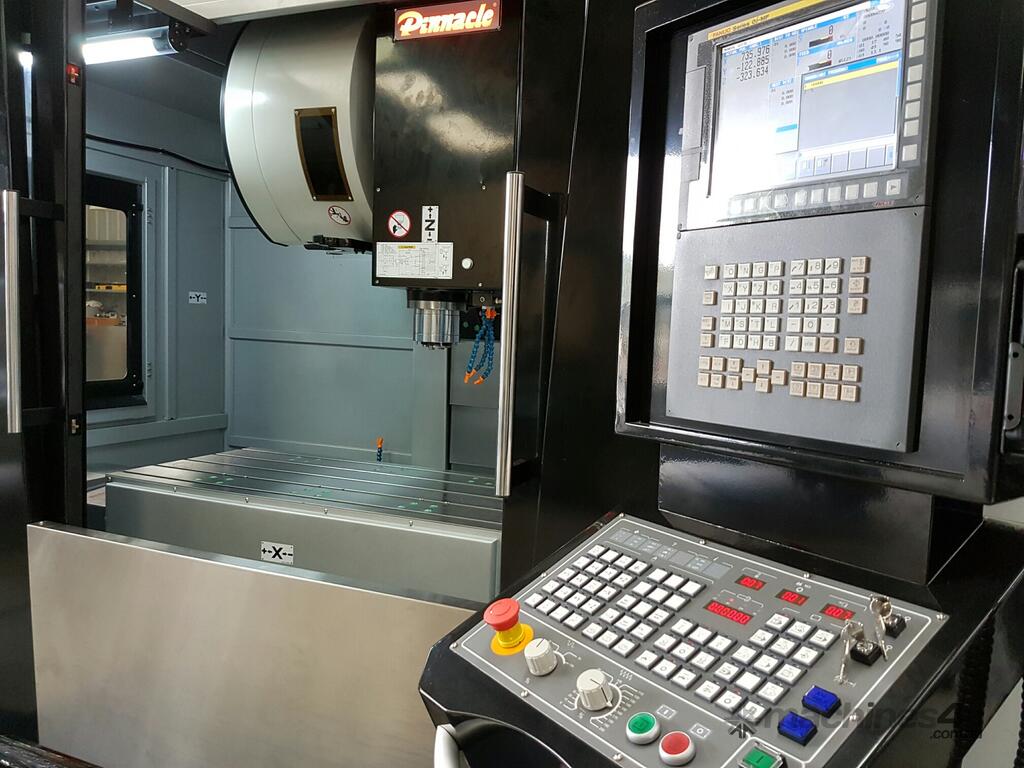

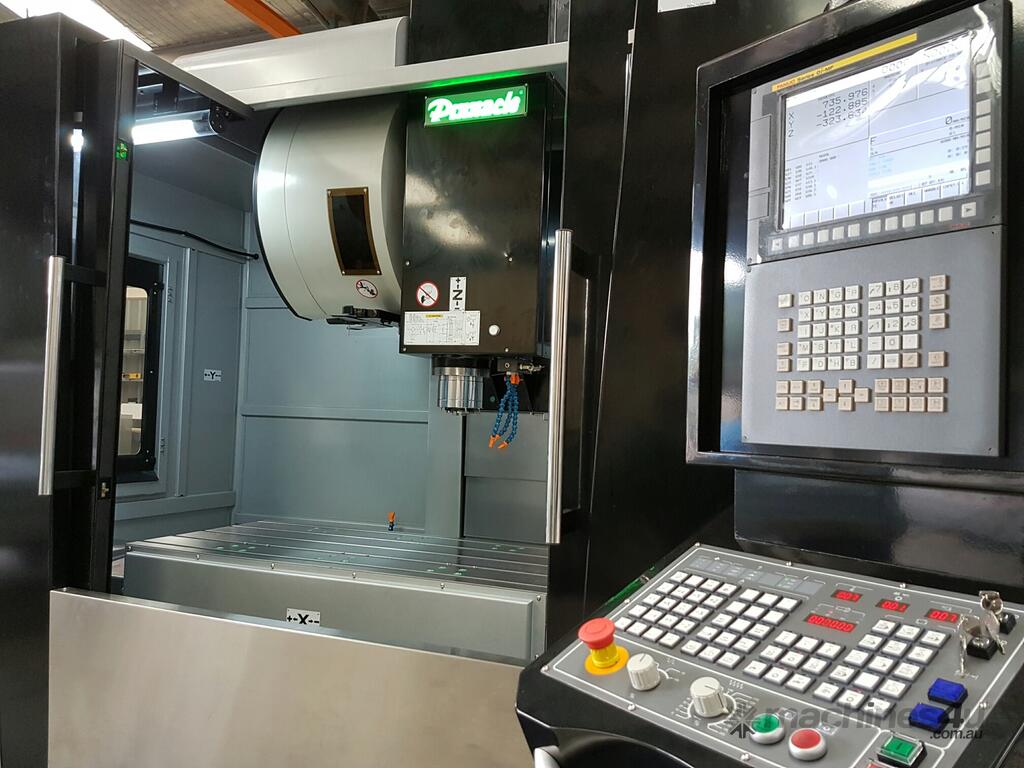

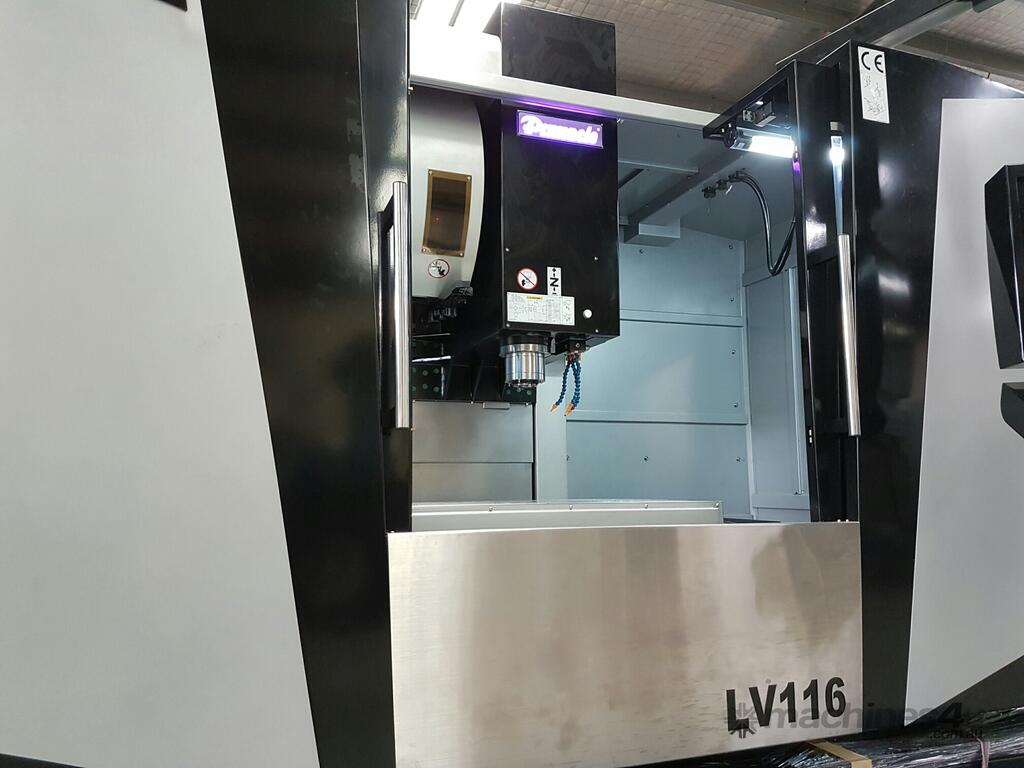

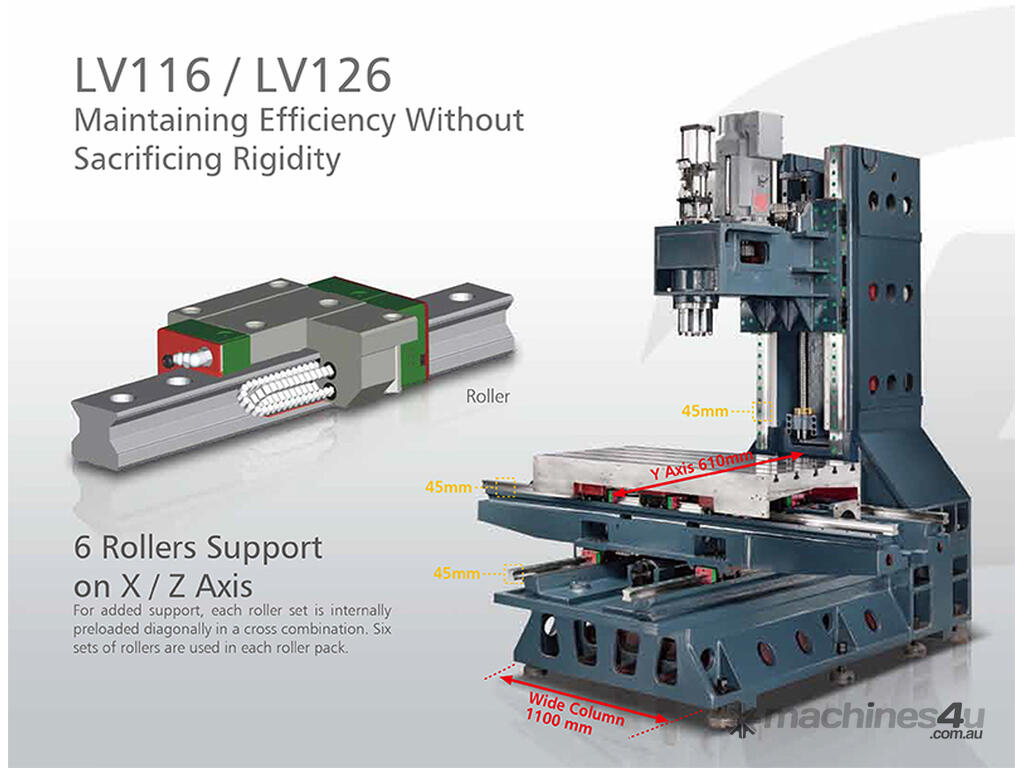

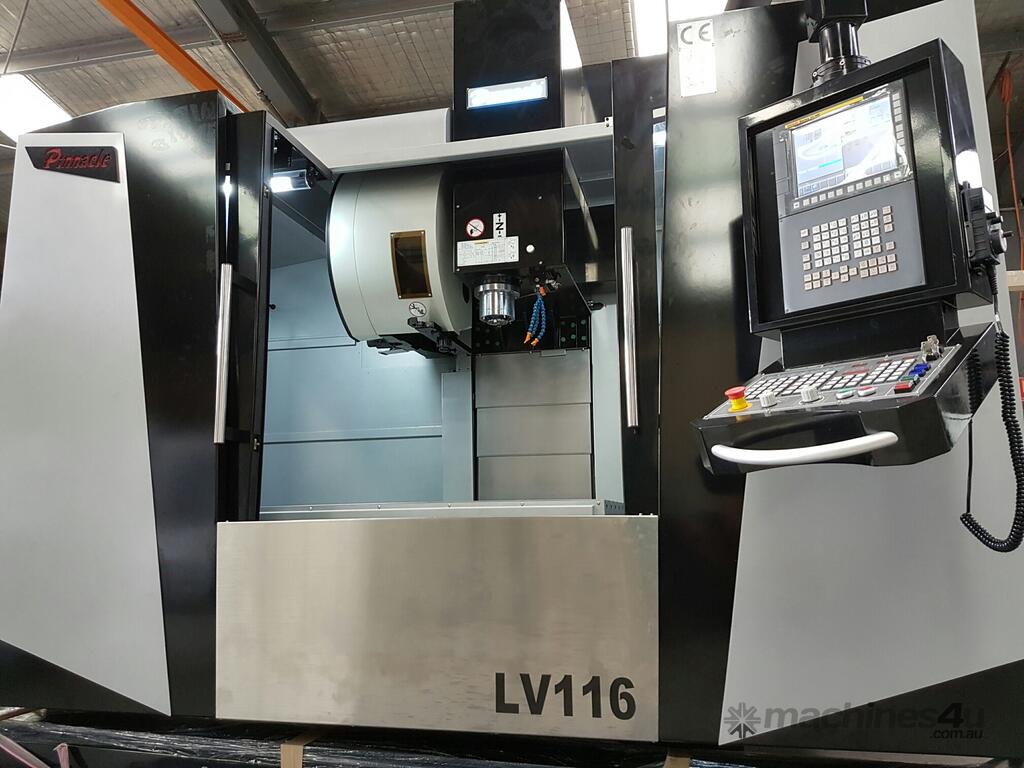

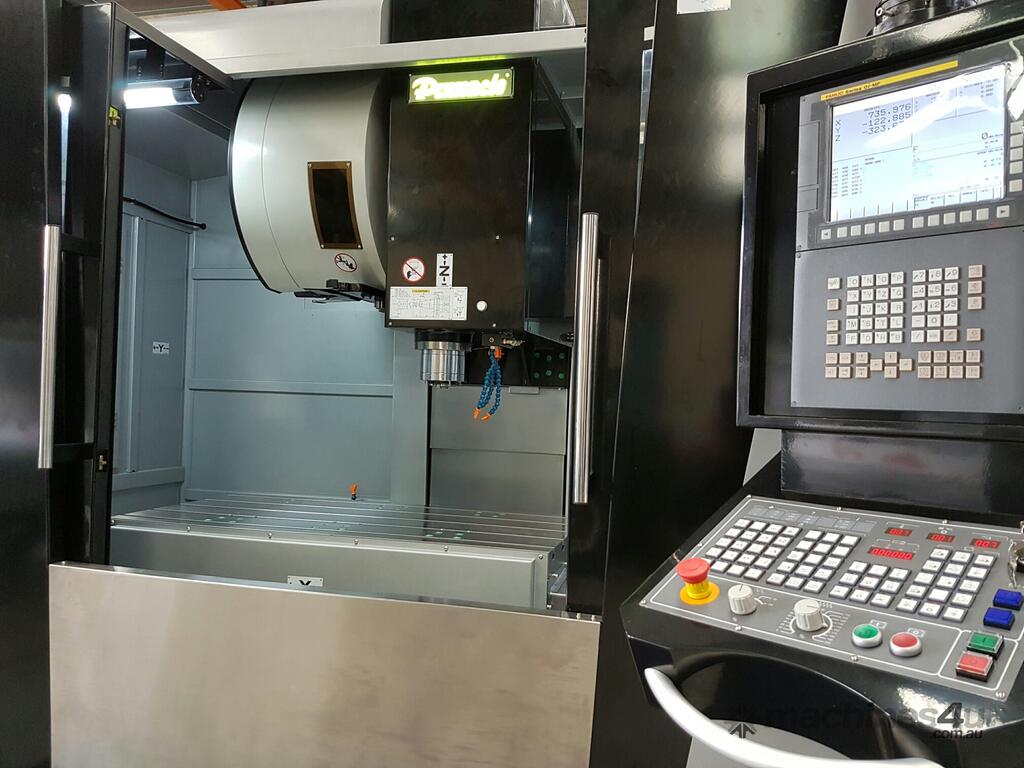

New Pinnacle LV116 / LV126 - CNC Vertical Machining Center. – Linear Guide Ways

Main Features and Inclusions:

Travel:
LV116
• 1140 mm x-axis travel
• 610 mm y-axis travel
• 610 mm z-axis travel

LV126
• 1270 mm x-axis travel
• 610 mm y-axis travel
• 610 mm z-axis travel


Table:
• 1300 mm x 610 mm – LV116
• 1400 mm x 610 mm – LV126

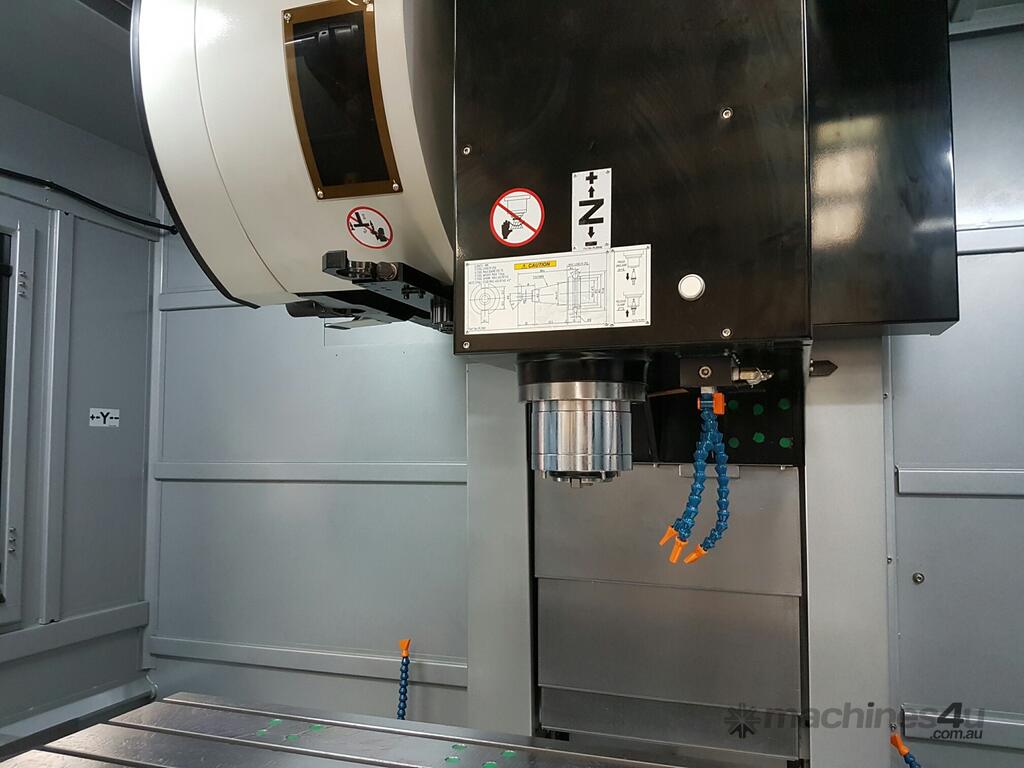

Spindle:
• 8000 rpm (10000/12000) spindle speed Direct Drive
• BT40 spindle taper LV116
• BT40 or BT50 LV126

Feed rate:
• 30 m/min x-axis rapid traverse
• 30 m/min y-axis rapid traverse
• 24 m/min z-axis rapid traverse
• 10000 mm/min cutting feed rate

Automatic Tool Changer:
• 24 (30) Tools ATC Random Selection
• Arm type
• 250 mm Max tool length

General:
LV116
• Machine Floor Space: 3450 x 2300 x 3000 mm (L x W x H)
• Nett machine weight: 6,500 kg

LV126
• Machine Floor Space: 3450 x 2300 x 3000 mm (L x W x H)
• Nett machine weight: 6,800 kg


Included:
• Mitsubishi M80 / Fanuc Oi-MF / Heidenhain TNC620 Controller
• Air blast through spindle
• Air blast on work piece
• Auto Lubrication system
• Spindle Chiller
• Spindle Air Blast
• Chip conveyor
• Air-conditioned electrical cabinet
• 8,000 rpm spindle speed standard

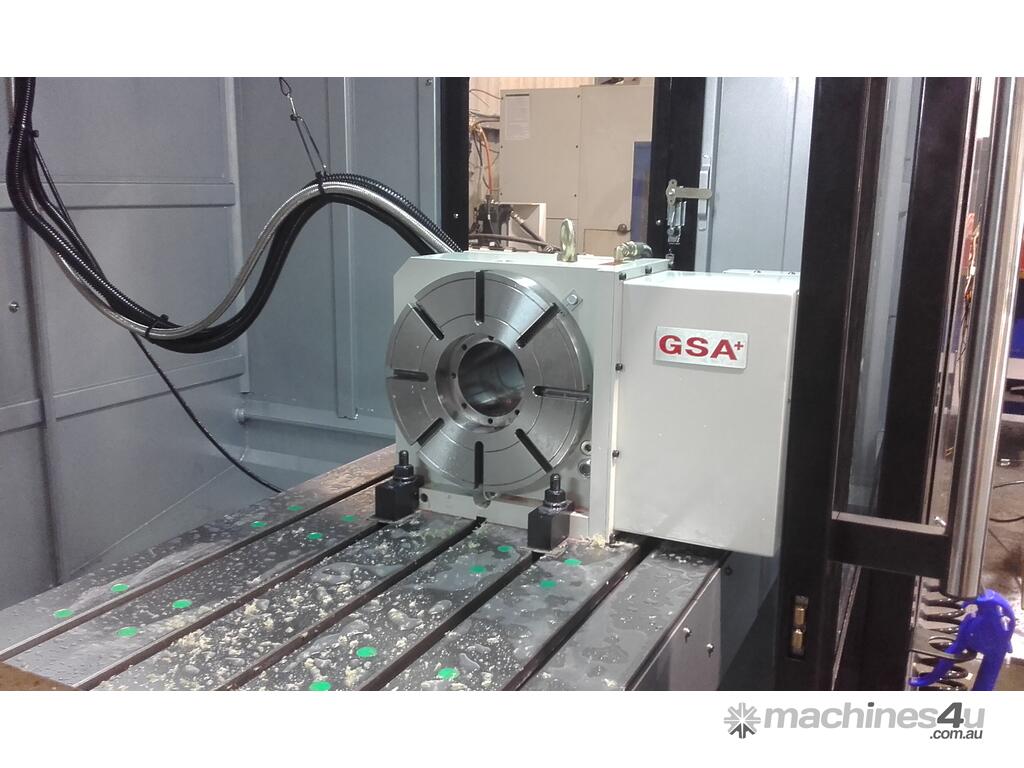

• 4th axis prepared
• Rigid tapping
• 24 tools ATC Arm type (30)
• RS 232 & RJ 45 Ports for DNC
• USB Ports
• Transformer

Please contact Stewart for more information. All prices quoted include Delivery, Installation and Training



Discover excellence in CNC machine tools with BDMS, your premier source for both new and used equipment across Australia. From our base in Lonsdale, South Australia, and our dedicated sales office in Brisbane, Queensland, we cater to a wide spectrum of clientele, from burgeoning startups to established industrial giants. Count on our expertise to guide you through every step, from selection to installation, training, and ongoing support, ensuring maximum ROI for your business. Our premium range of new Machine Tools is manufactured by Pinnacle. From complex 5 and 6 axis machining through to manual milling machines and lathes we have the solution for you.

Go to BDMS showroom on Machines4u to see the available range of machinery, send BDMS a message about the item that you are interested in, or give BDMS a call, we are happy to answer any of your questions and provide professional advice for your business requirements.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION*
