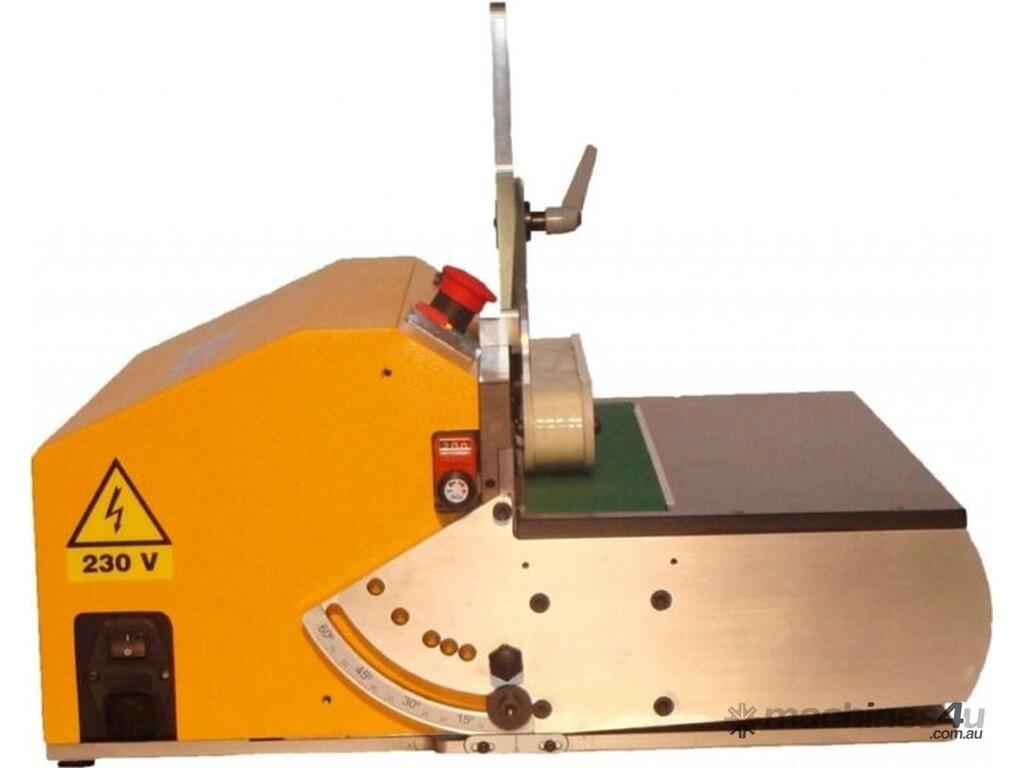

BERMAQ – Edge Polishing Machine AMT

The edge polishing machine AMT is a tabletop tilting machine perfect for processing small workpieces. Thanks to its tilting capability, it is able to polish the edges of the acrylic and methacrylate (PMMA) pieces in bevels up to 60°.

If you are looking for a practical, handy, easy to use, versatile and, above all, with a high-quality finish, the AMT edge polisher is your machine. Recommended for displays, decorative elements and stand elements.

Technical specifications

Working length: 700 mm
Automatic feeding
Workpiece hold-down system: clamp
Maximum thickness:
35 mm: straight angles
20 mm: at 45º tilt angle
Regulable cutting depth: 0 – 1,5 mm
Motor speed: from 7000 rpm to 12000 rpm
Feed speed: from 0 to 1,50 m/min
Minimum / maximum inclination: from –3º to +60º
Milling angles: 15º 22,5º 30º 45º and 60º
Power supply: 220 V 1PH 50/60 Hz
Outer machine dimensions: 792 x 539 x 267 mm

Applications

Methacrylate display stand polishing
Methacrylate decoration elements
Stand elements
Gifts and jewellery

Optional accessories

AMT Suction system: 230V /1200W

Description

Table-top machine designed for polishing acrylic and methacrylate parts (PMMA) with high quality finishing. On the AMT model, its table can be positioned to obtain bevels or angles up to 60º. It is ideal for the machining of small pieces.
