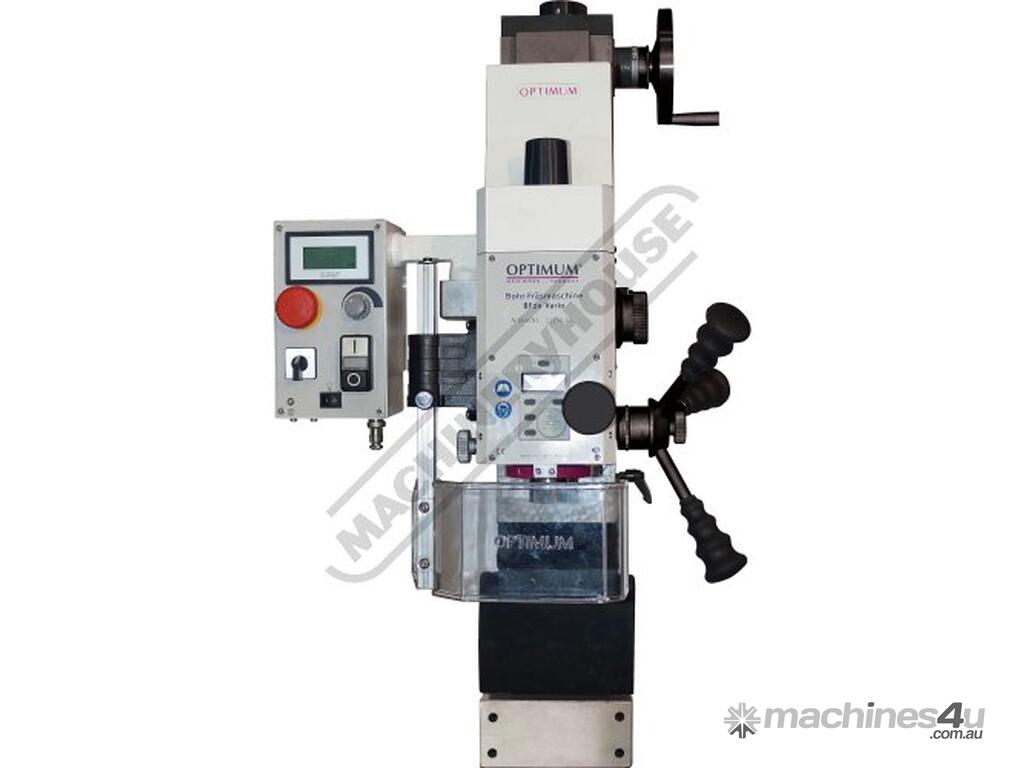

OPTIMUM BF-20AV Opti-Mill Head Attachment - Geared & Tilting Head Electronic Variable Speeds & Dovetail Column
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M647

The BF-20AV mill head attachment has more throat & height capacity than the the BF-16AV and allows for larger work to be machined, it also is specifically designed to suit the TU-2506V & TU-3008G Optimum bench lathes; converting them into a universal combination lathe/mill when mounted together. In addition this compact setup has the advantage of that it requires less valuable floor space then the two separate conventional machines.

Features:
Electronic infinitely variable speed
3MT spindle taper
Dovetail vertical Z-Axis

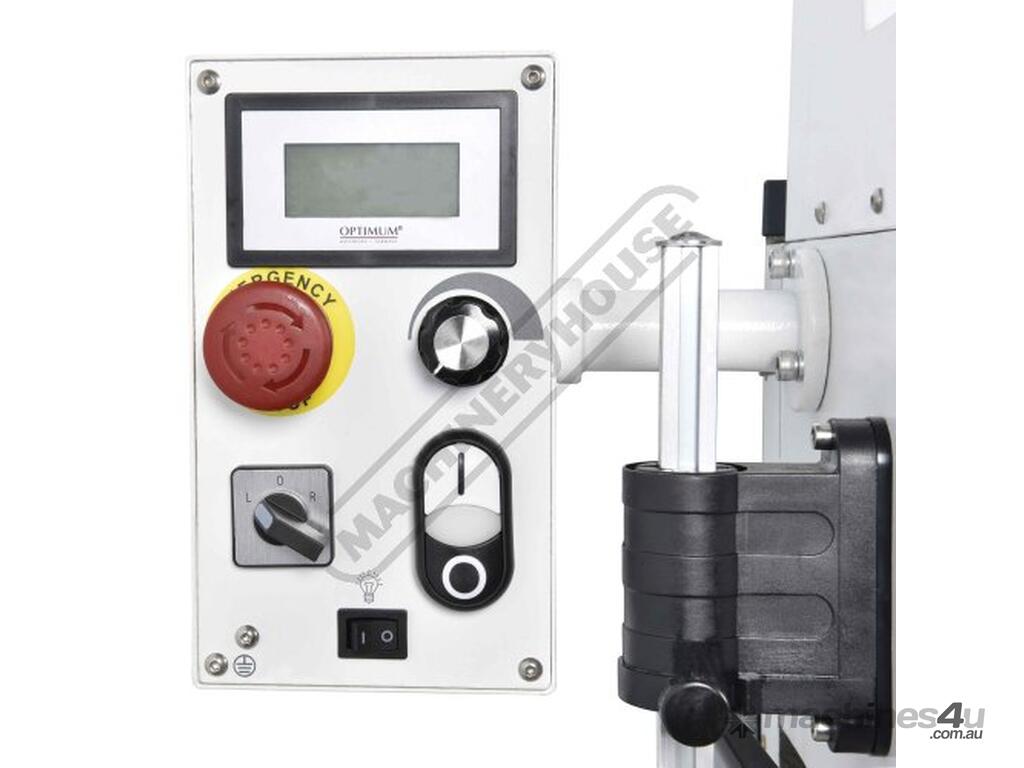

Digital readout speed display

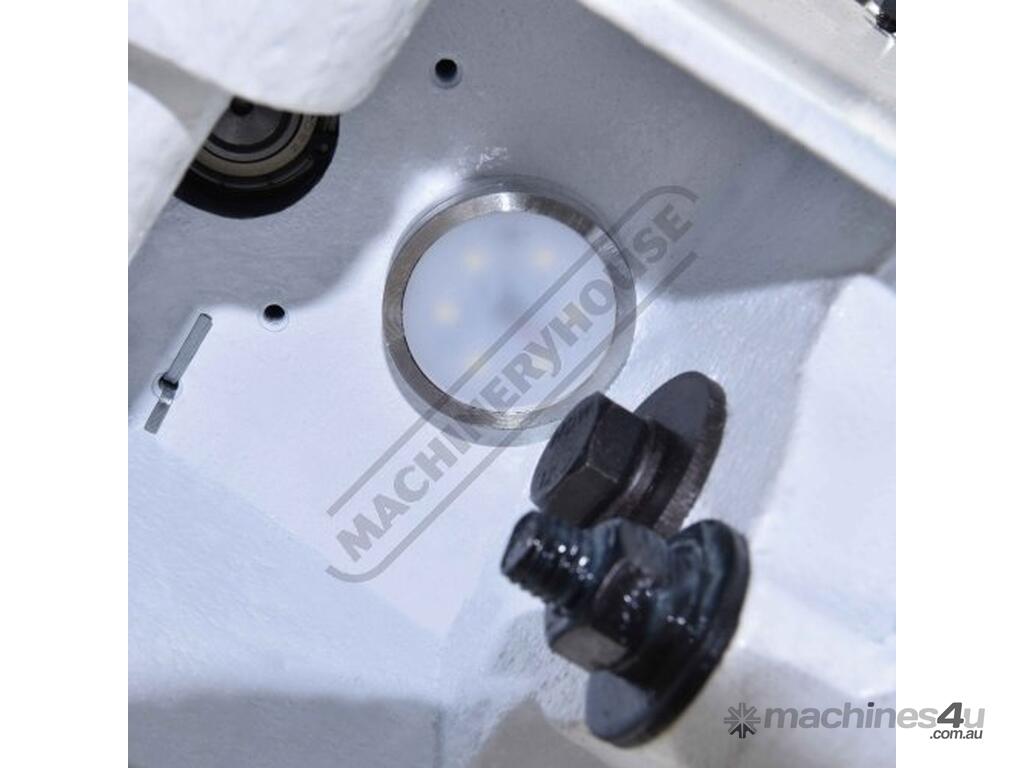

Work light mounted underneath mill head

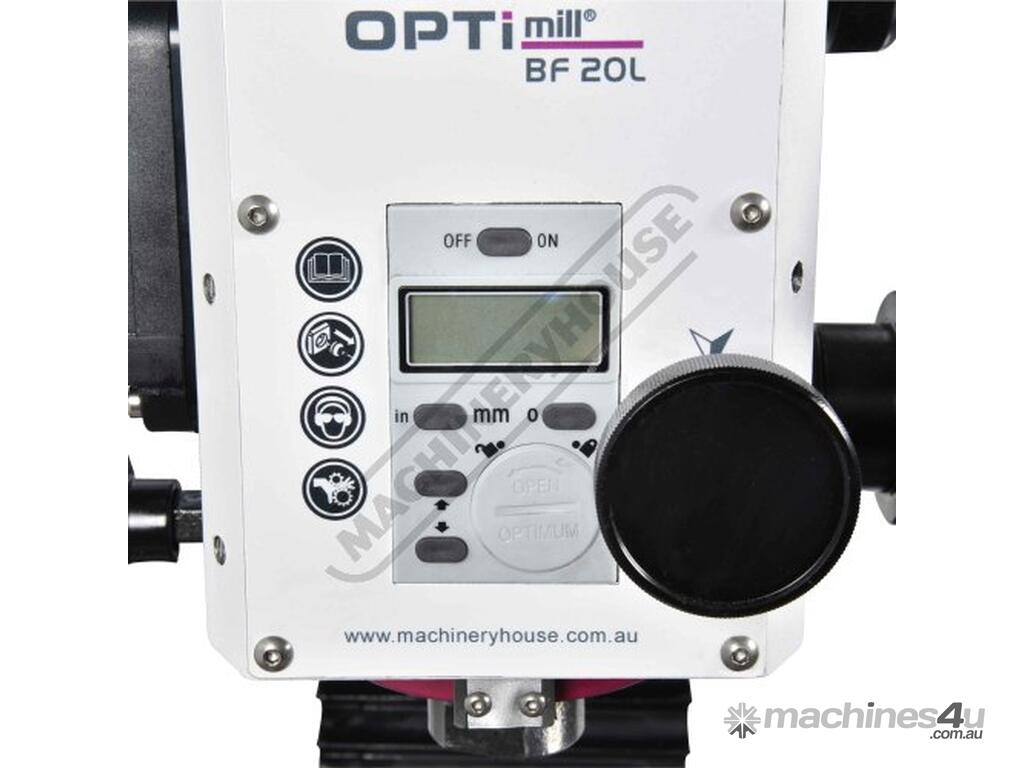

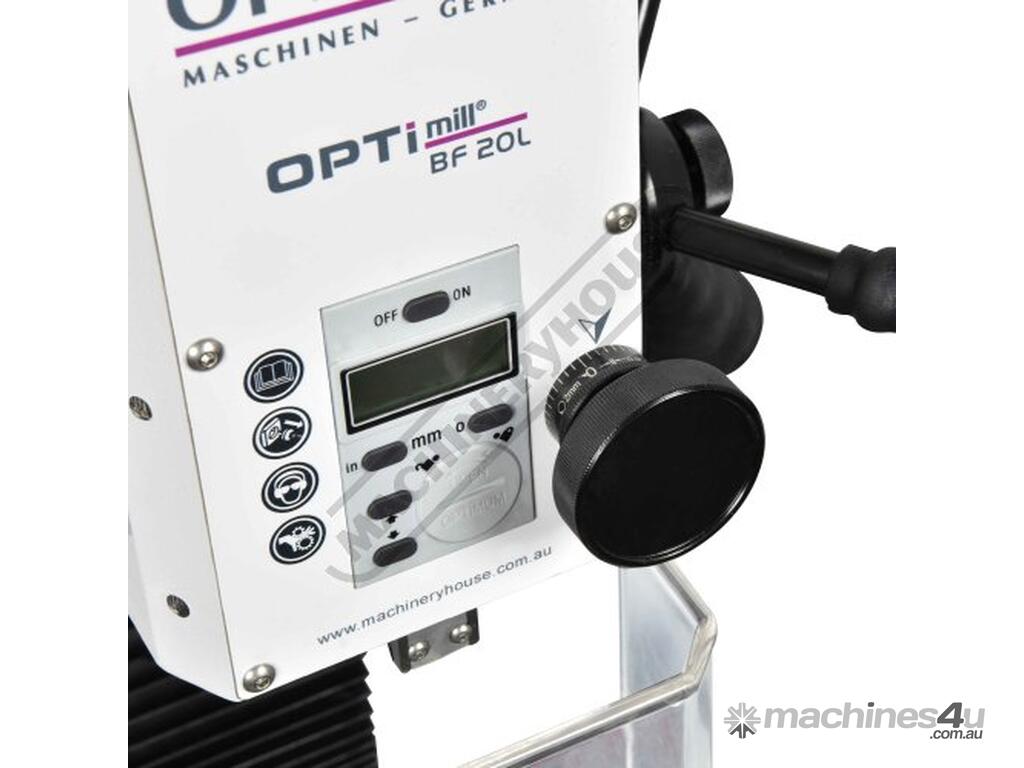

Digital depth display with zero reset for quill

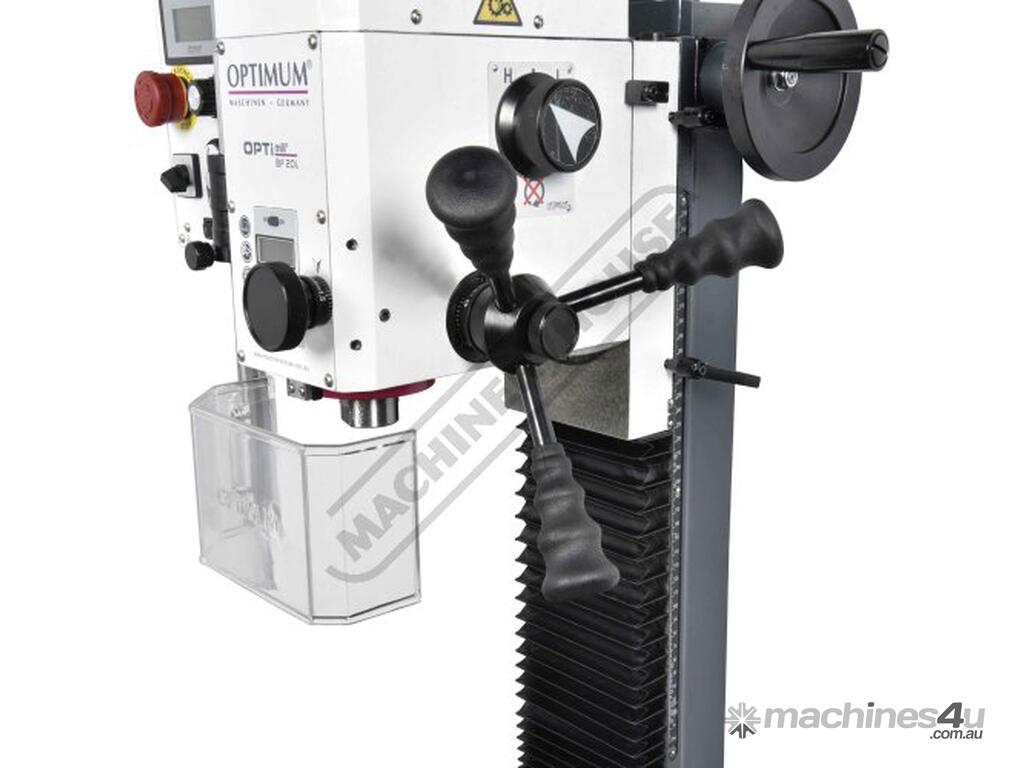

Tilting head to ± 90° from vertical

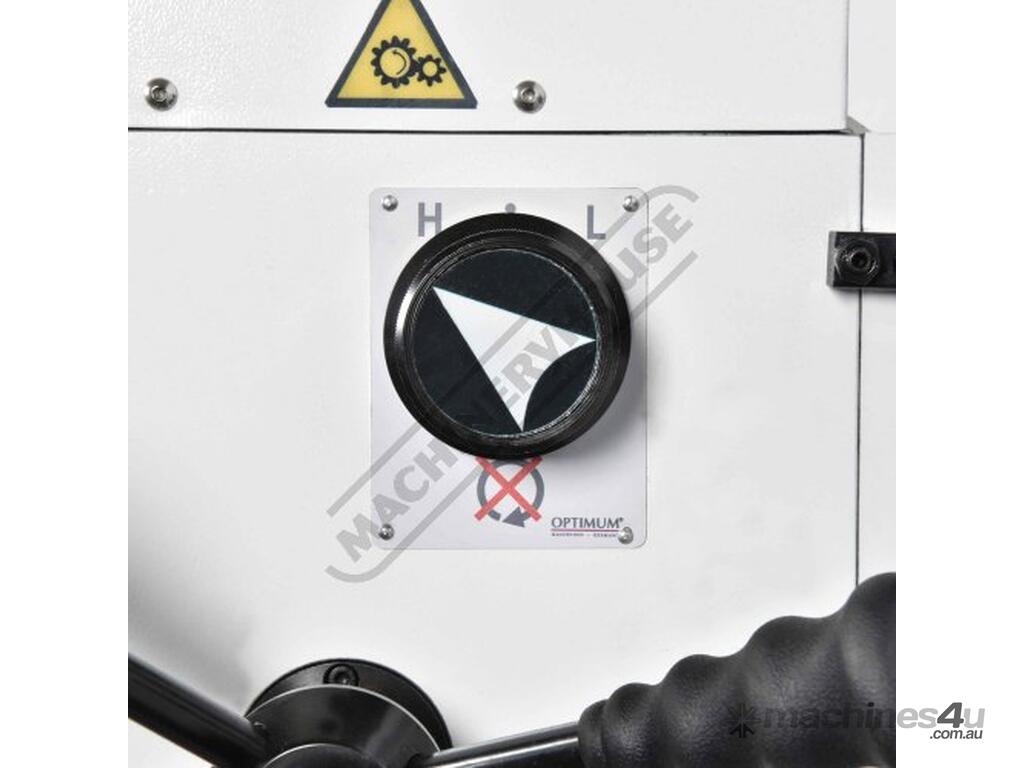

2 speed gearbox (high / low) drive
Forward and reverse spindle switch
Scale collars for all Axis are adjustable
Adjustable dovetail slideway on Z-Axis
Adjustable drill length stop
Metric dial graduations

Note: The lathe rear splash tray is required to be removed to fit Mill Head Attachment

Includes:
- 3MT x JT6 drill chuck arbor

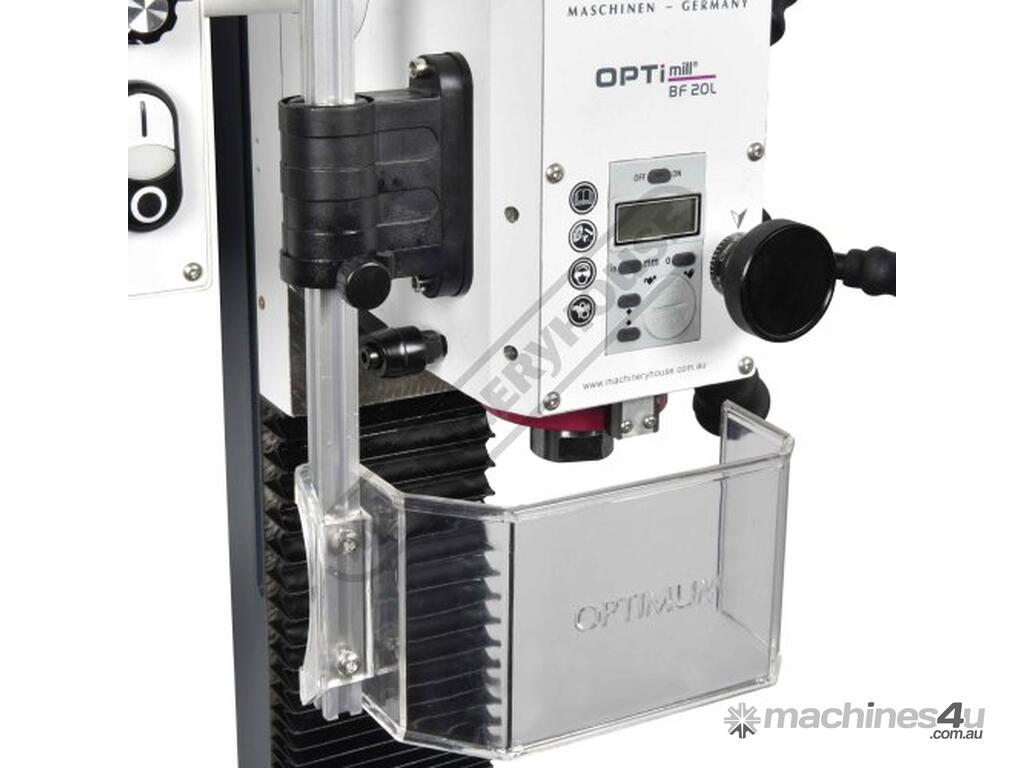

- Safety cutter guard
- Bracket kit for optional digital readout
- 1/2" x 12tpi whitworth drawbar



Specifications:
ORDER CODE: M647
MODEL: BF-20AV
Digital Readout: Optional
Type: Vertical
Table Size (mm): ~
Column Type: Dovetail
Spindle Taper - Vertical: 3MT
Spindle Taper - Horizontal: ~
Longitudinal Travel (X-Axis) (mm): ~
Cross Travel (Y-Axis) (mm): ~
Vertical Travel (Z-Axis) (mm): 280
Type of Slides: Dovetail
Ram Travel (mm): ~
Spindle to Table (mm): ~
Spindle to Base: ~
Spindle Travel / Diameter (mm): 50 / 60
Throat Depth (max.) (mm): 185
Tilting Head (Left ~ Right): ±90º
Tilting Head (Forward ~ Back): Fixed
Drilling Capacity (mm): 16
End Milling Capacity (mm): 20
Face Milling Capacity (mm): 63
Power Feed - Quill (mm/rev): ~
Power Feed - Longitudinal (X-Axis) (mm/min): ~
Power Feed - Cross (Y-Axis) (mm/min): ~
Power Feed - Vertical (Z-Axis) (mm/min): ~
Table T-Slot Size (inch / mm): ~
Work Table Load Capacity (kg): ~
Spindle Speeds Vertical (No./ rpm): Variable (90 - 3000)
Spindle Speeds Horizontal (No./ rpm): ~
Spindle Speeds - Universal Head: ~
Motor Power - Vertical Spindle (kW / hp): 0.85 / 1.13
Motor Power - Horizontal Spindle (kW / hp): ~
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 103
