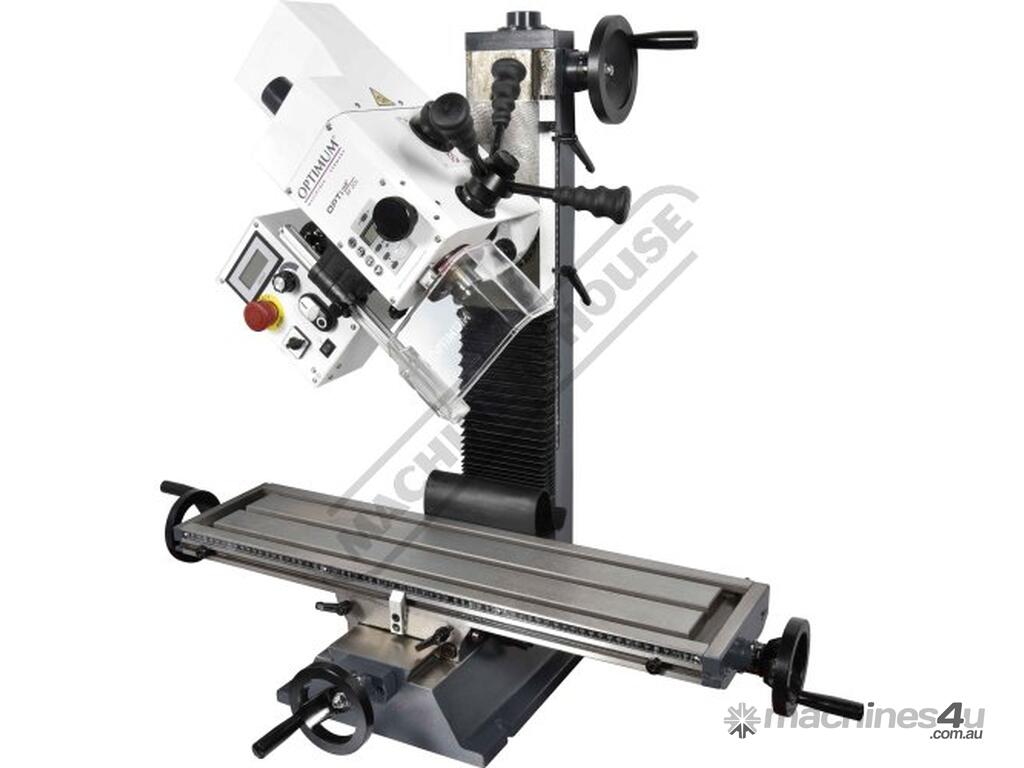

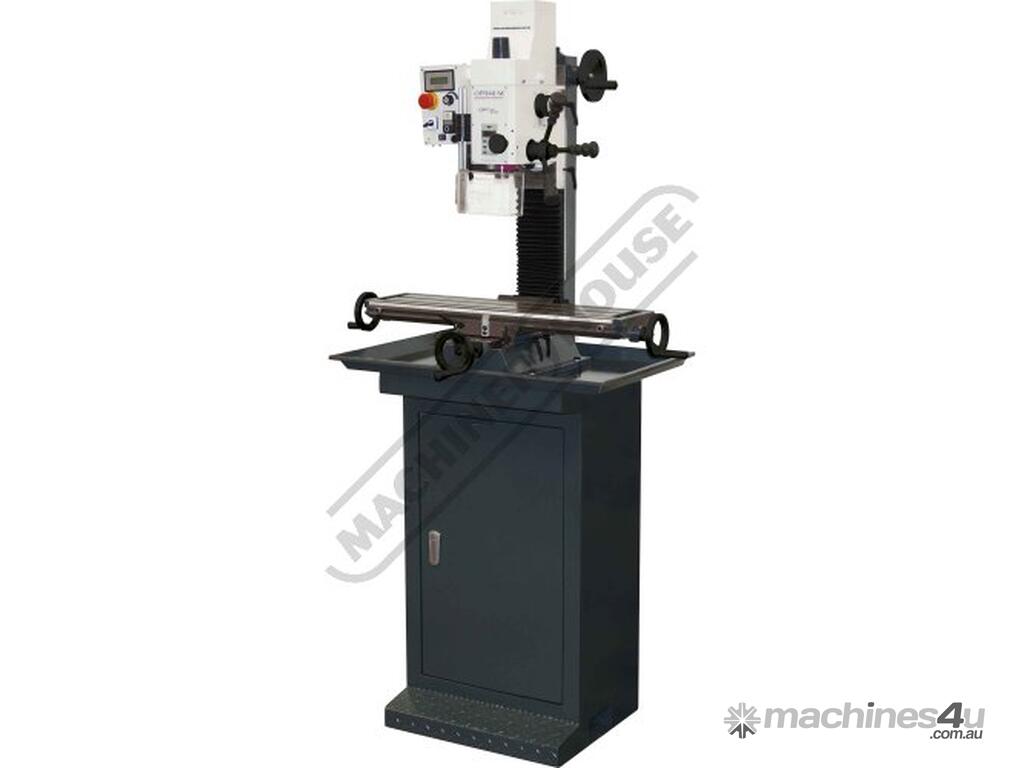

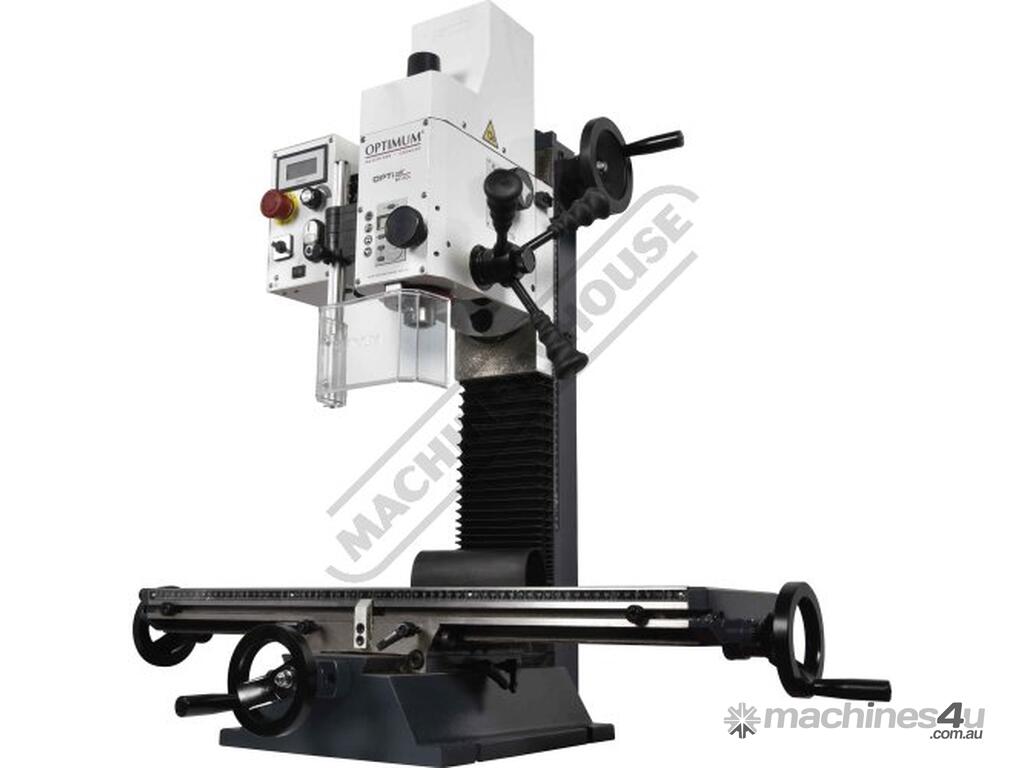

BF-20LV Opti-Mill Drill - Geared & Tilting Head Table Travel: (X) - 480mm (Y) - 175mm (Z) - 280mm El

OPTIMUM BF-20LV Opti-Mill Drill - Geared & Tilting Head Table Travel: (X) - 480mm (Y) - 175mm (Z) - 280mm Electronic Variable Speeds & Dovetail Column
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M650

Excellent quality mill drill machine designed for the model engineer

Features:
Electronic infinitely variable speed
3MT spindle taper
Dovetail vertical Z-Axis

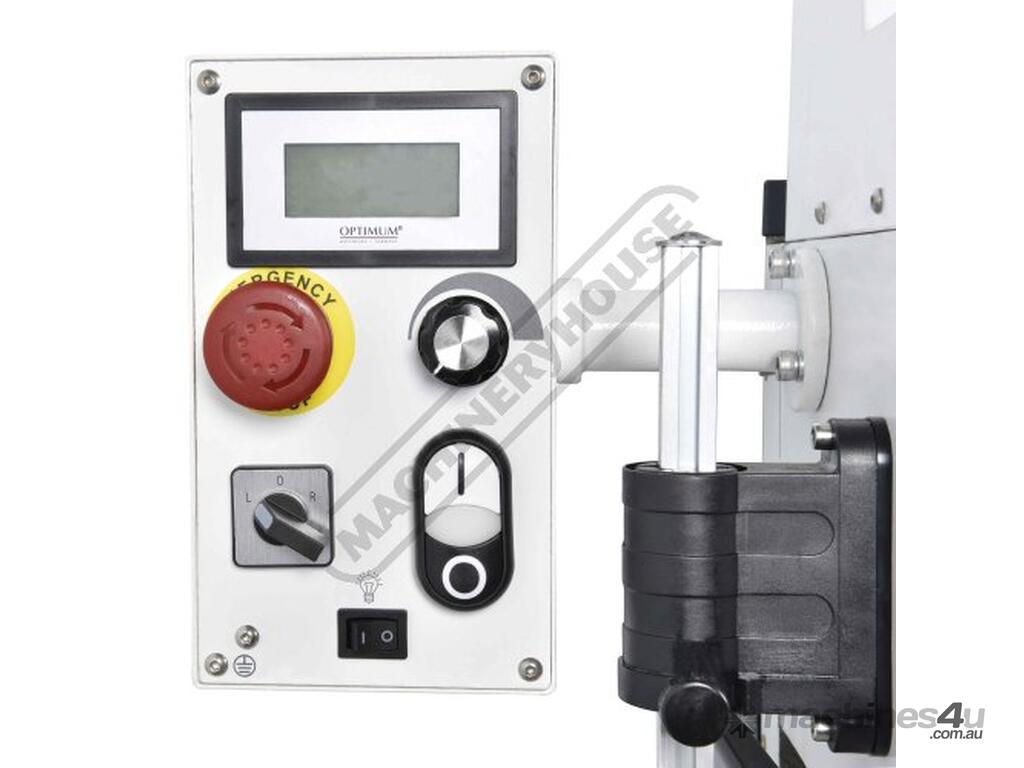

Digital readout speed display

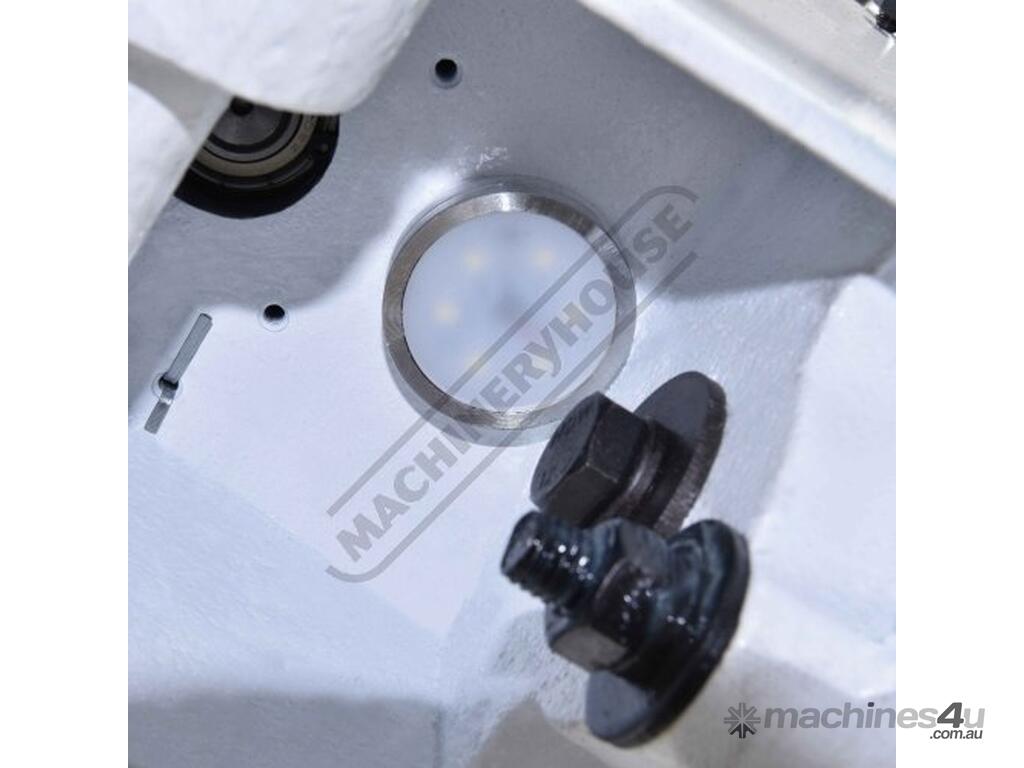

Work light mounted underneath mill head

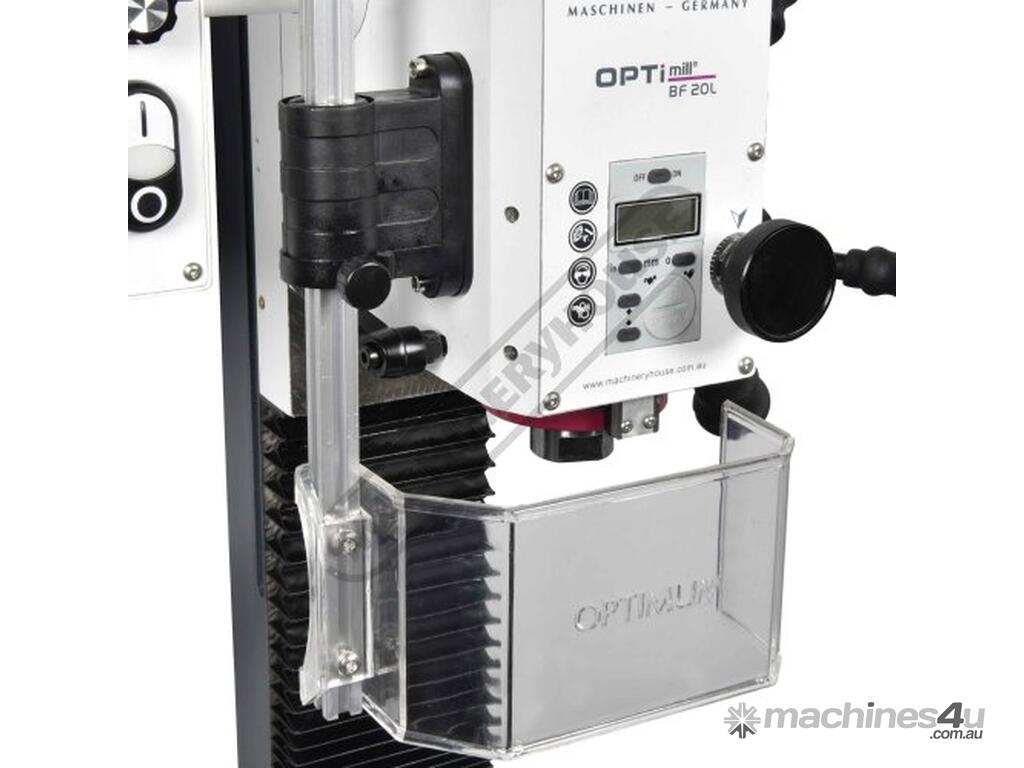

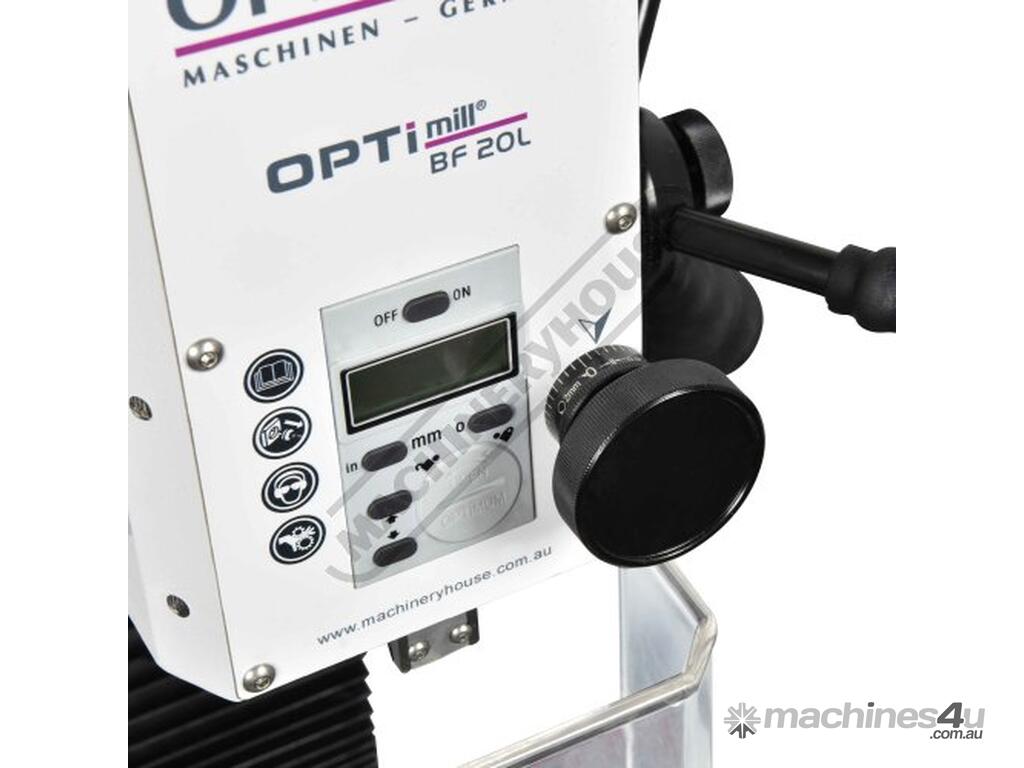

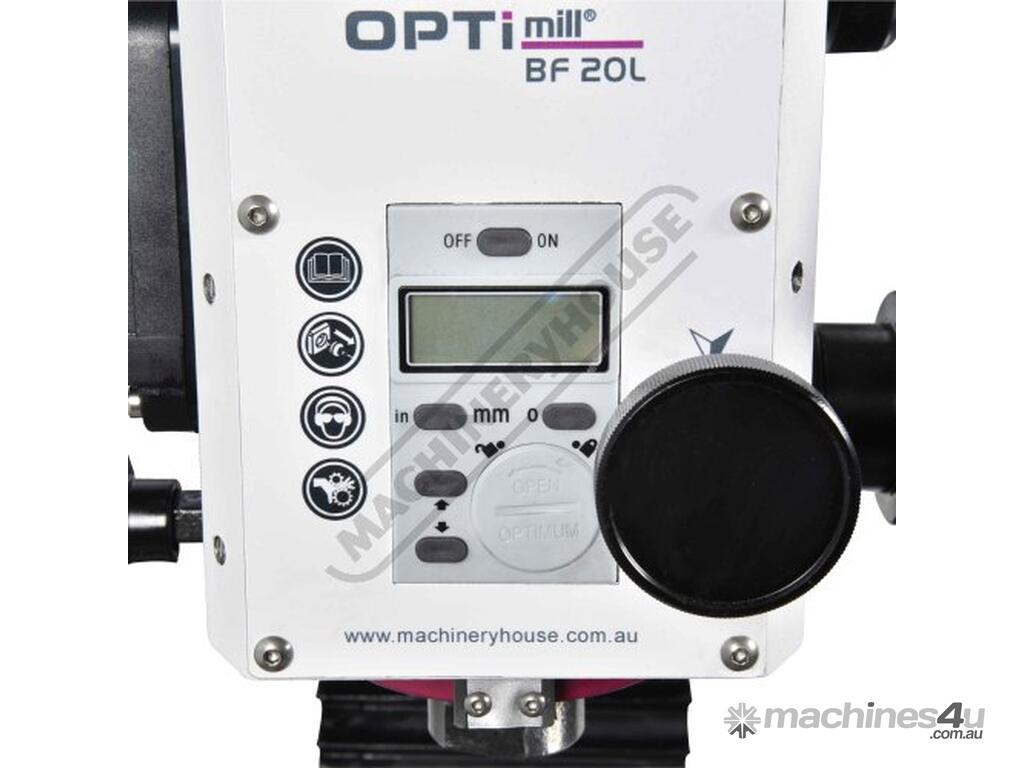

Digital depth display with zero reset for quill
Tilting head to ± 90° from vertical

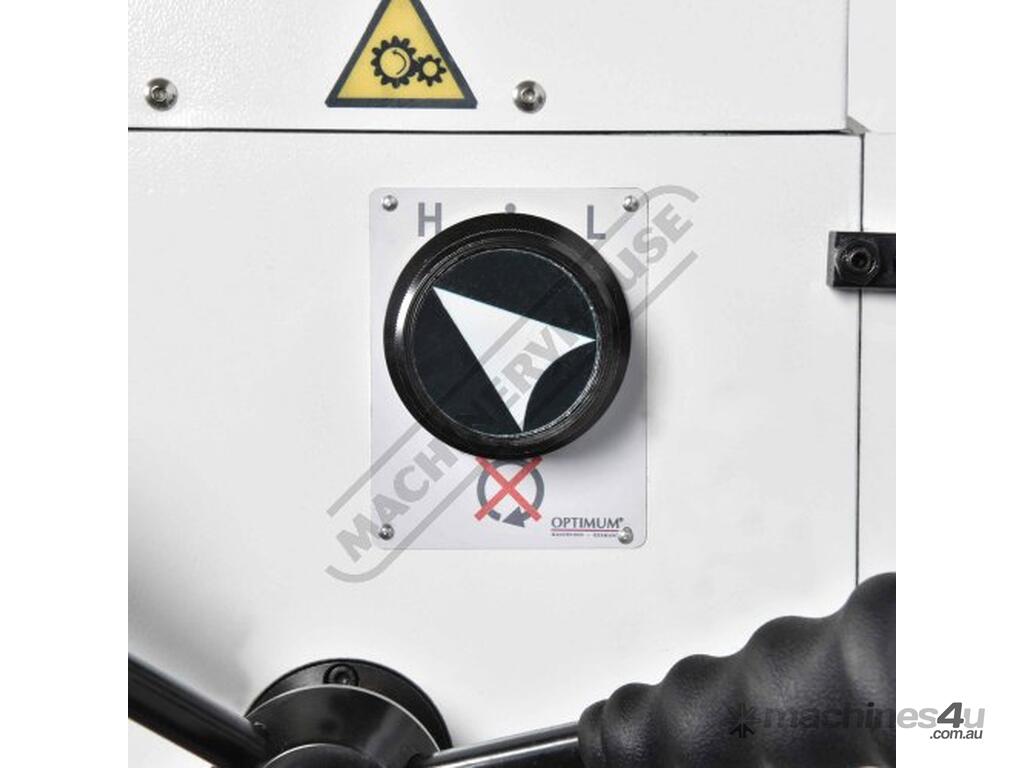

2 speed gearbox (high / low) drive
Forward and reverse spindle switch
Scale collars for all Axis are adjustable
Adjustable dovetail slideways on all 3 axis

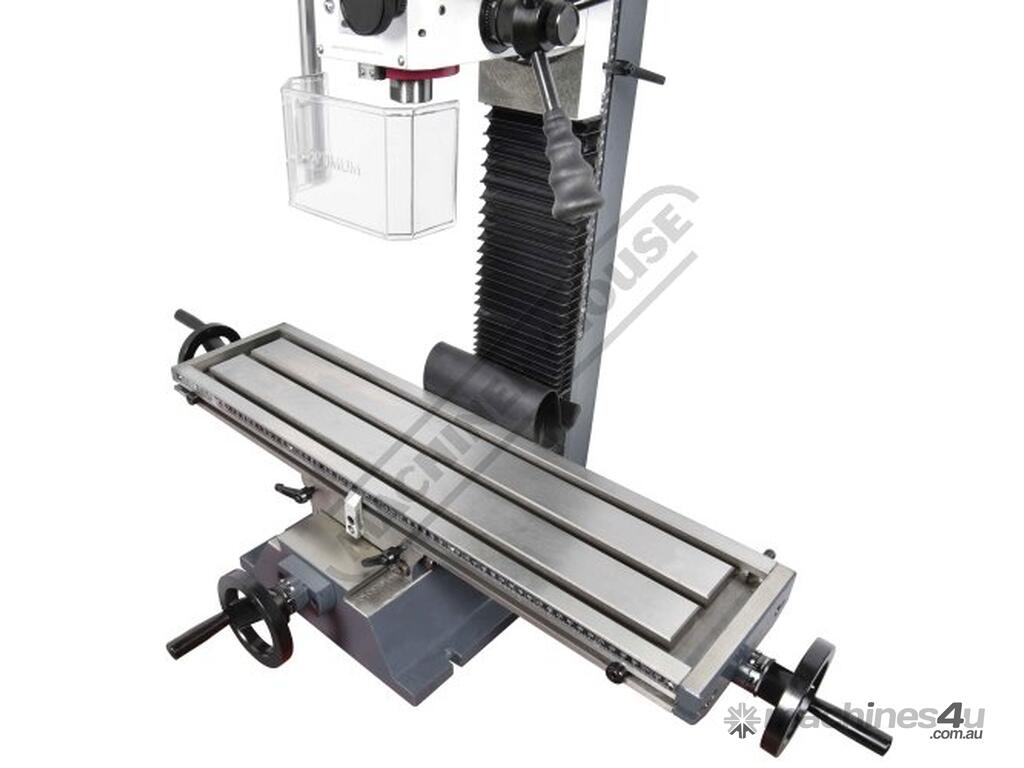

700 x 180mm cast iron table with T-slots
Adjustable table and drill length stops
Rear slideway covers and slide clamps on all axis
Metric dial graduations on X & Y-Axis



Includes:
- 3MT x JT6 drill chuck arbor

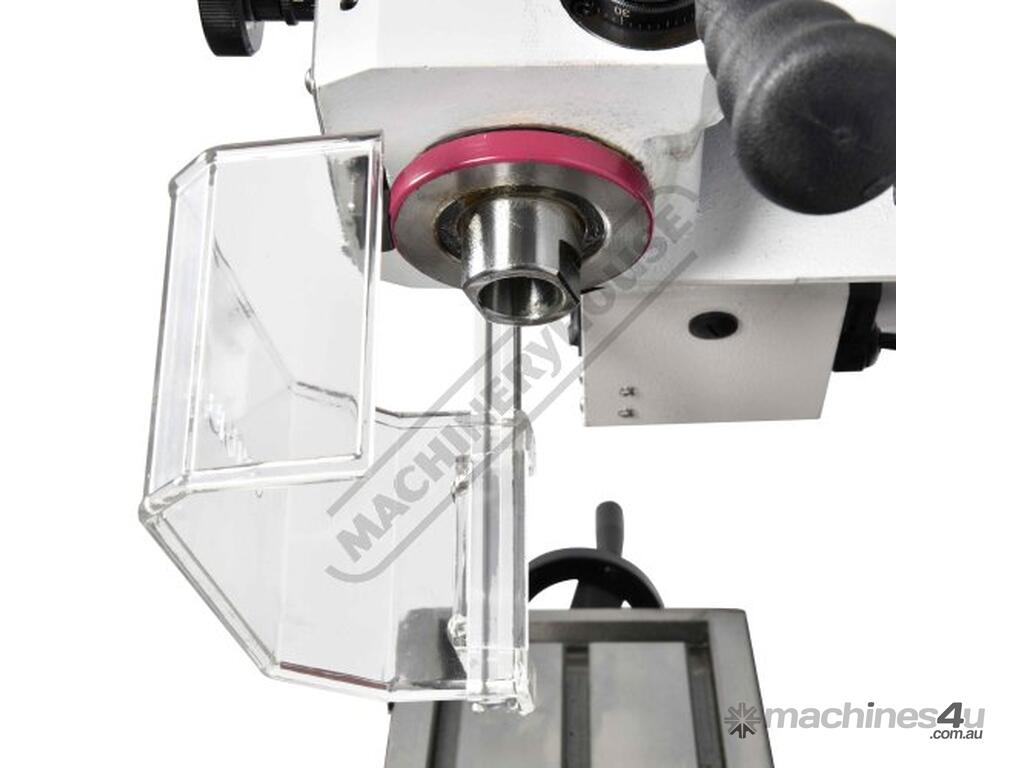

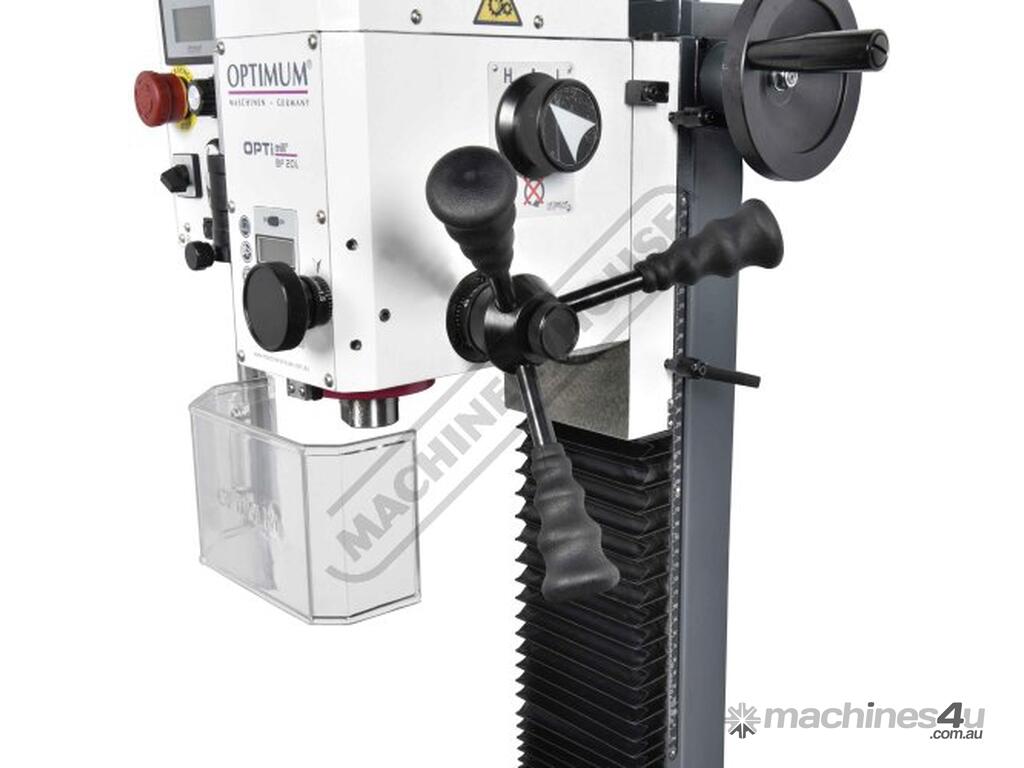

- Safety cutter guard
- Work light
- Bracket kit for optional digital readout
- 1/2" x 12tpi whitworth drawbar



Specifications:
ORDER CODE: M650
MODEL: BF-20LV
Digital Readout: Optional
Type: Vertical
Table Size (mm): 700 x 180
Column Type: Dovetail
Spindle Taper - Vertical: 3MT
Spindle Taper - Horizontal: ~
Longitudinal Travel (X-Axis) (mm): 480
Cross Travel (Y-Axis) (mm): 175
Vertical Travel (Z-Axis) (mm): 280
Type of Slides: Dovetail
Ram Travel (mm): ~
Spindle to Table (mm): 350
Spindle to Base: ~
Spindle Travel / Diameter (mm): 50 / 60
Throat Depth (max.) (mm): 185
Tilting Head (Left ~ Right): ±90º
Tilting Head (Forward ~ Back): Fixed
Drilling Capacity (mm): 16
End Milling Capacity (mm): 20
Face Milling Capacity (mm): 63
Power Feed - Quill (mm/rev): ~
Power Feed - Longitudinal (X-Axis) (mm/min): ~
Power Feed - Cross (Y-Axis) (mm/min): ~
Power Feed - Vertical (Z-Axis) (mm/min): ~
Table T-Slot Size (inch / mm): 12
Work Table Load Capacity (kg): 40
Spindle Speeds Vertical (No./ rpm): Variable (90 - 3000)
Spindle Speeds Horizontal (No./ rpm): ~
Spindle Speeds - Universal Head: ~
Motor Power - Vertical Spindle (kW / hp): 0.85 / 1.13
Motor Power - Horizontal Spindle (kW / hp): ~
Motor Power - Universal Head: ~
Voltage / Amperage (V / amp): 240 / 10
Nett Weight (kg): 162
