BFT ECOTRON® waterjet high pressure intensifier pump - Made in Austria

BTF HIGH PRESSURE PUMPS SERIES ECOTRON®

please download brochure to see all specs.

FEATURES:
BASIC EQUIPMENT

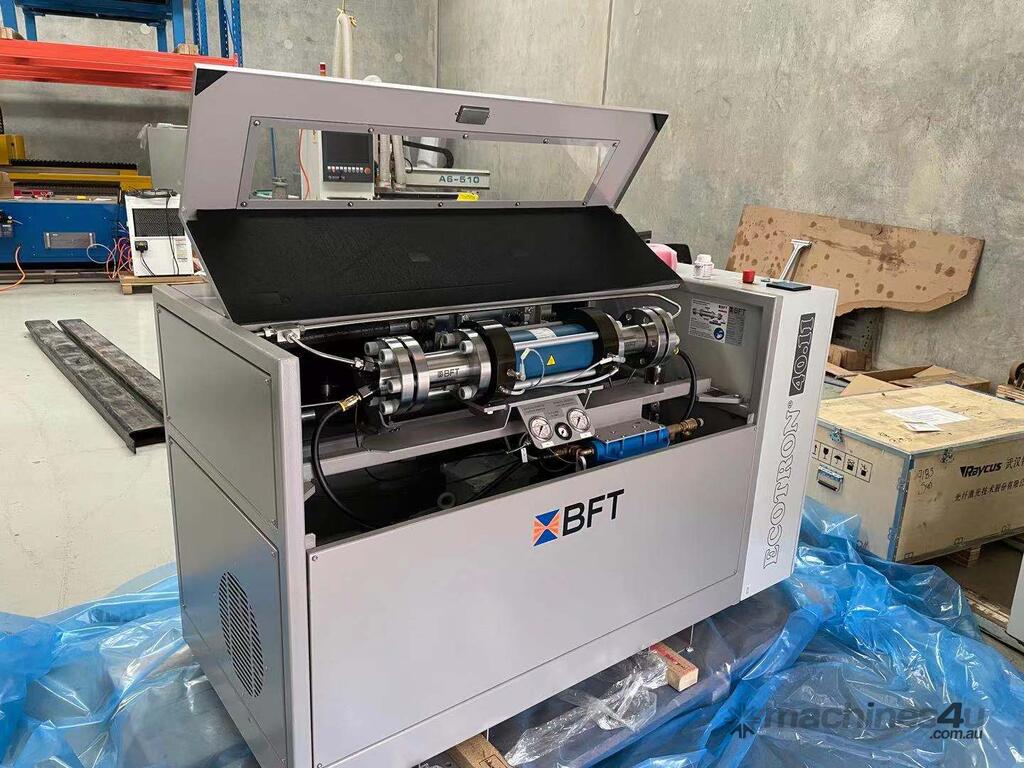

The basic design of this high pressure pump includes a complete hydraulic drive unit with oil/air or water cooler, high pressure inten- sifier, accumulator and bleed down valve. The operating pressure is controlled by proportional valve and continuously adjustable via the touch panel between 50 and 400 MPa. All hydraulic and high pressure components are mounted on a base frame and covered by a sound insulated housing. The electric control is installed inside a switch box attached to the basic frame of the pump.

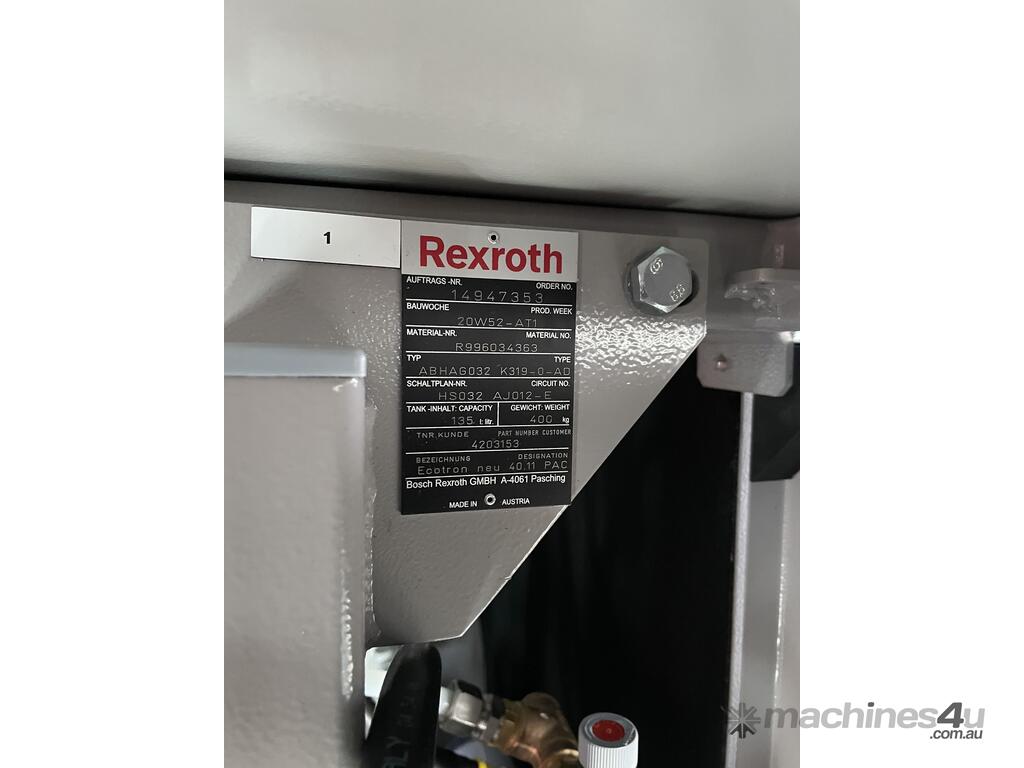

OPTIMIZED HYDRAULIC SYSTEM

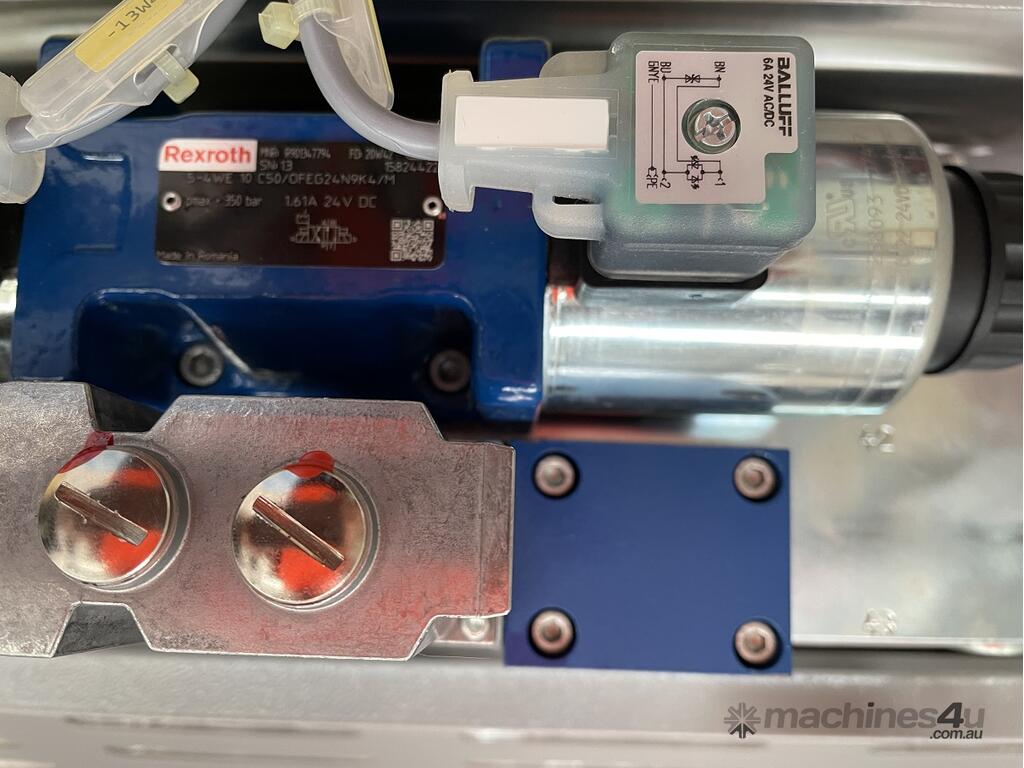

The hydraulic unit is characterized by highly dynamic controls. Use of a soft-switching hydraulic valve with specially designed control geometry guarantees extremely short switch-over times. Oil filtering and cooling take place via the axial piston pump of the hydraulic drive. The excellent oil quality this achieves has a
positive influence on operational safety and the life expectancy of the whole hydraulic system.

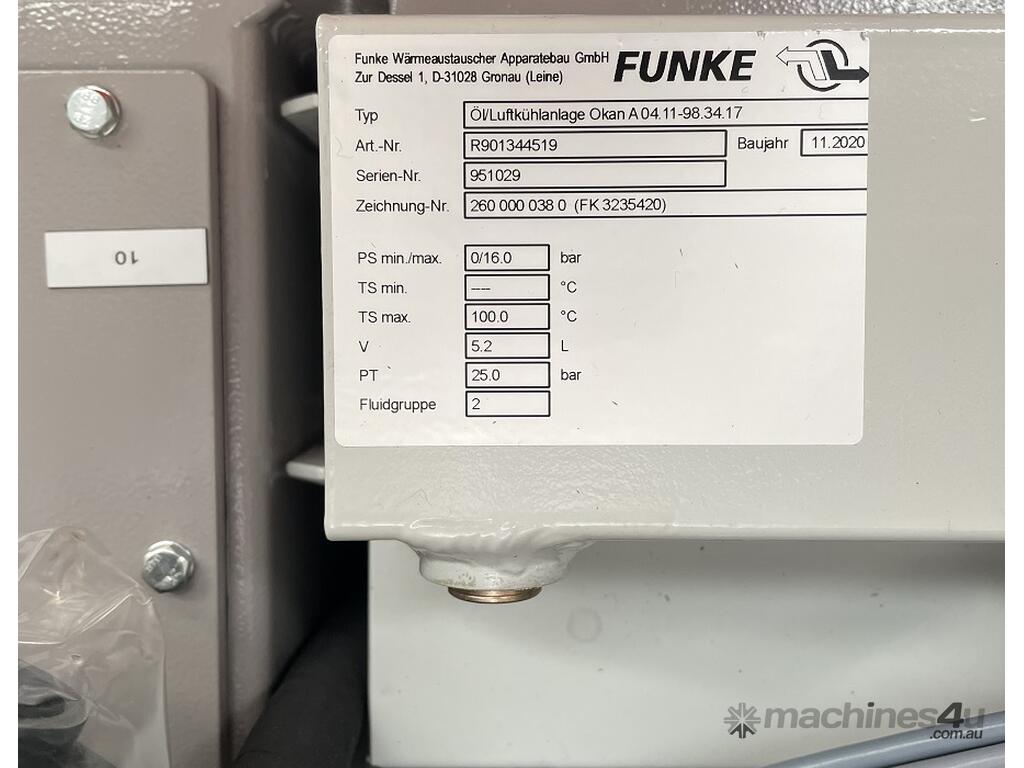

OIL COOLING
Oil/air as well as oil/water cooler are available as standard and installed on the base frame inside the pump housing. If the ambient temperature is lower than 35°C, an air cooler may be used. This eliminates the entire cooling water requirements. For higher temperatures the water cooler is available. Cooling water flow is controlled via thermostat.
FEED WATER SUPPLY
The feed water line is equipped with an on/off valve. If the pump is stopped there is no flow of water. The fitted pre-filtering unit with 5 ?m and 1.2 ?m filters guarantees optimum feed water supply. Ifthe feed water pressure is lower than 0.3 MPa, an optional booster pump is available to increase the water pressure.

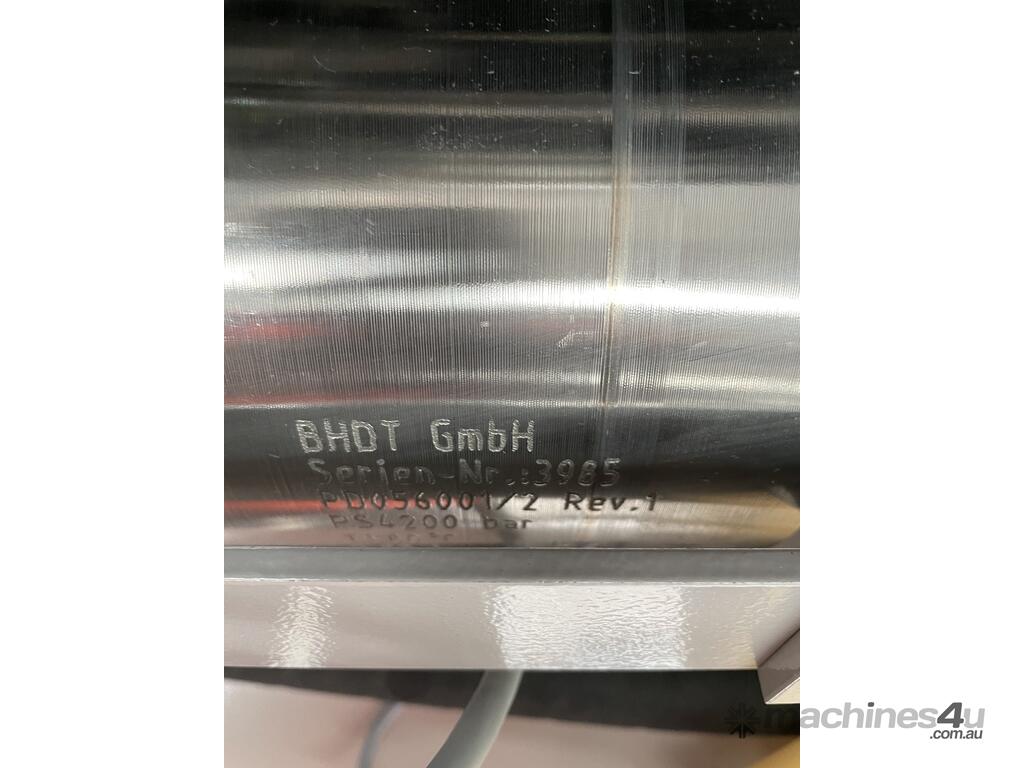

AT THE CORE - THE PRESSURE INTENSIFIER

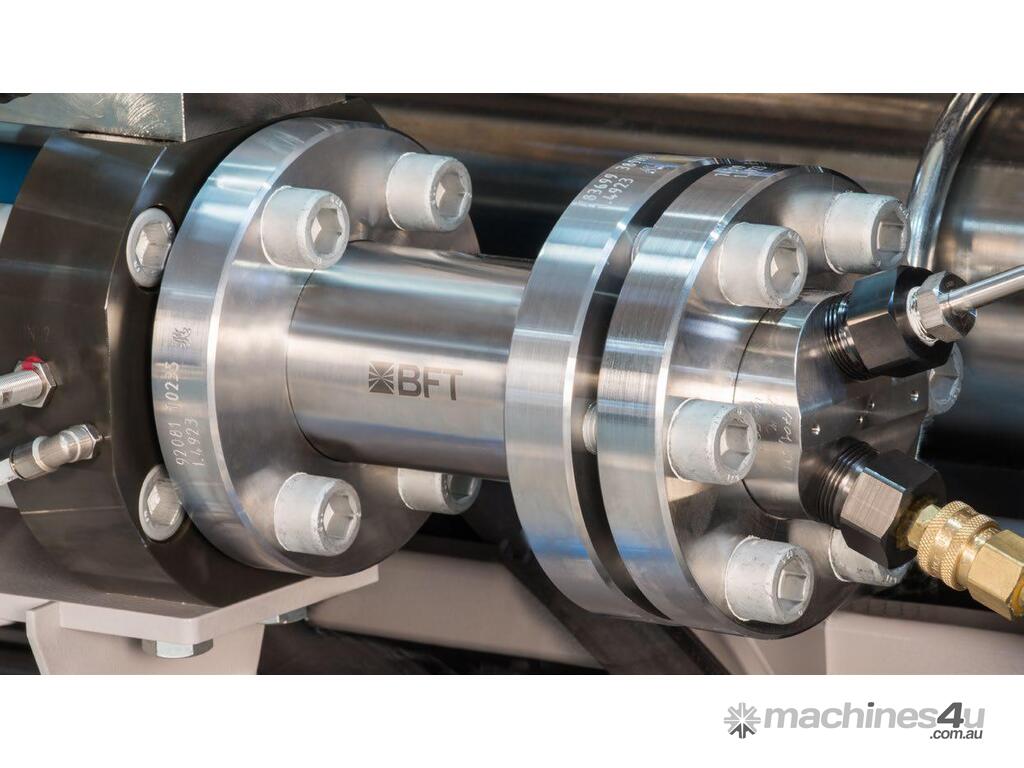

The high pressure components in the intensifier are characterized by a long life expectancy. Besides the special stainless steels developed specifically for this application, a large plunger diameter and a long stroke both help to achieve this. Thanks to the special flange design and externally accessible check valves, the intensi- fier is easy to maintain. Wearing parts like seals and check valves can be replaced quickly and easily.

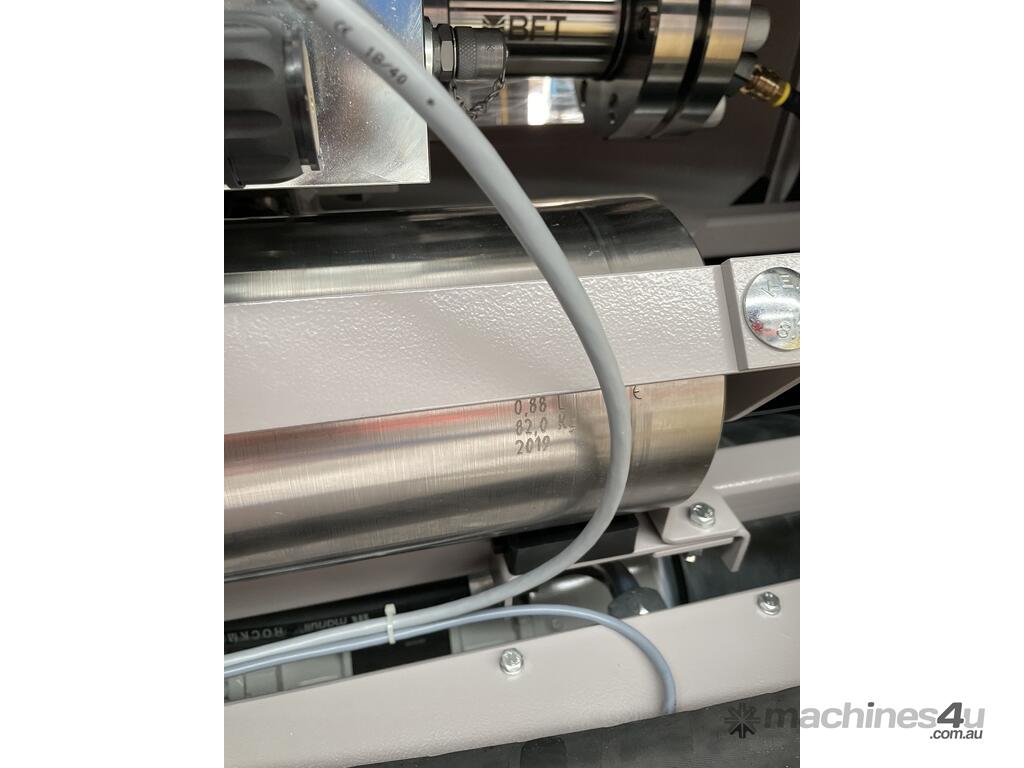

REDUCED PRESSURE FLUCTUATIONS
Depending on the flow rate of the pump, the integrated accumu- lator has a large volume of up to 2.49 liters. This reduces pressure fluctuations to a minimum and thus prevents wear on the high pressure system.
PRESSURE ADJUSTMENT
Electronic pressure adjustment via proportional valve is standard. At the operating panel two different operating pressures (e.g.: piercing and cutting pressure) are adjustable. The switch-over
between both pressures is done internally and externally via digital signal. The working pressure is adjustable at the operating panel at the pump or via external analog signal from 0 to 10 V.
BLEED DOWN VALVE
This pressure release valve is installed within the high pressure line of the pump. The valve is activated via the stop button or the emergency stop circuit. In addition it can also be controlled exter- nally, e.g. if needed for the piercing process with abrasive waterjet.
ELECTRIC CONTROL
The switch box is mounted at the base frame of the pump. Control is done via the integrated touch panel. Operating pressure of all ECOTRON® high pressure pumps is continuously adjustable between 50 and 400 MPa. All warnings and monitoring functions are displayed in clear text. Operating data are recorded and
can be retrieved via the display.
REMOTE CONTROL SUPPORT
All important functions can be remotely controlled. External connectors are available for start/stop, emergency stop circuit, bleed down valve, malfunction and operating messages.
Operating pressure setting is done via 0 to 10 V signal.
On request, multiple-voltage and multiple-frequency motors are available for ECOTRON® series high pressure pumps.
