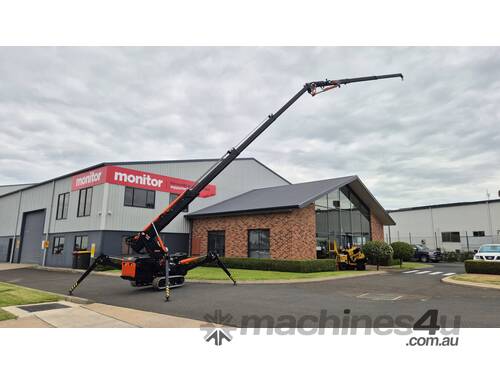

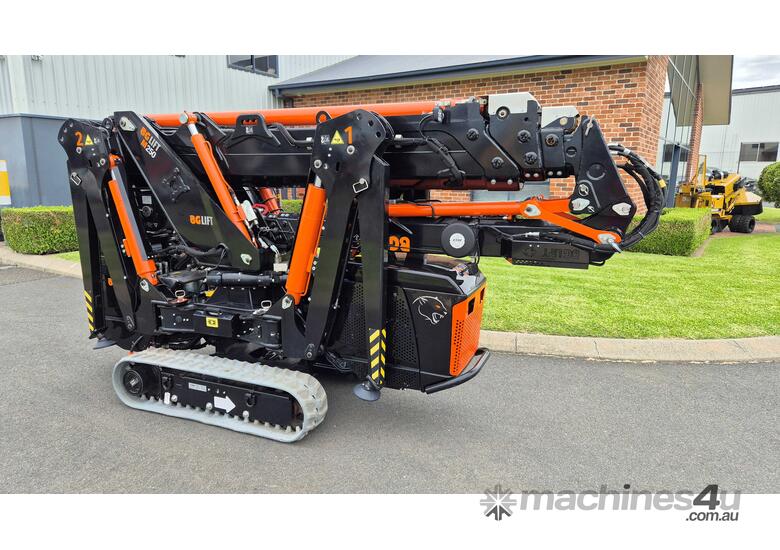

BG Lift M250 Spider Crane
A solid crane, equipped with advanced technologies, top quality materials and components, to obtain the best overall performance. Built for indoor and outdoor use in limited spaces and hardly accessible buildings. The dimensions and lightweight, combined to millimetric precision manoeuvrability, allow quick and less invasive operations.
Specifications:
Dimensions: H 1760mm, W 780mm, L 3,240mm
Weight: 2,750kg
Lifting Capacity: 2,500kg
Max Outreach with Hydraulic Jib: 12.85m
Max Lifting Height with Hydraulic Jib: 16.00m
Max Underground Lifting Height -62.50m
Standard Options:
- Hydraulic extendable tracks
- White ``non marking`` tracks
- Yanmar engine
- Continuous slewing by means of slew ring and electro/hydraulic joint

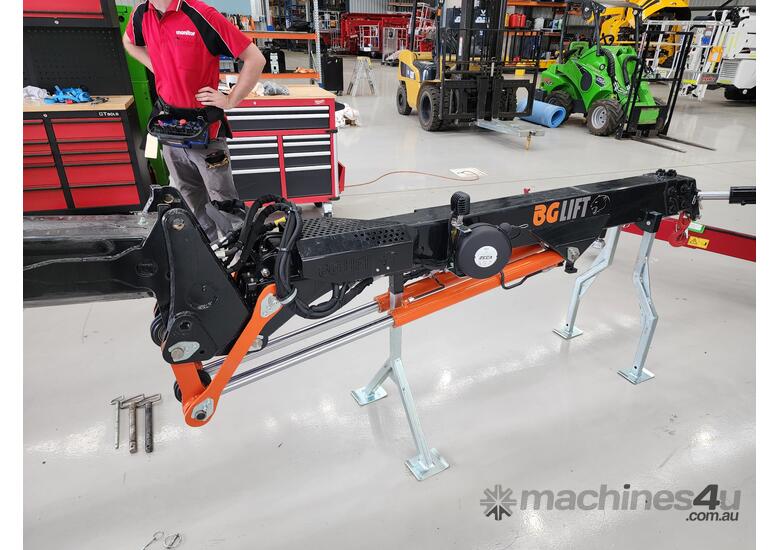

- Telescopic boom with three hydraulic extensions

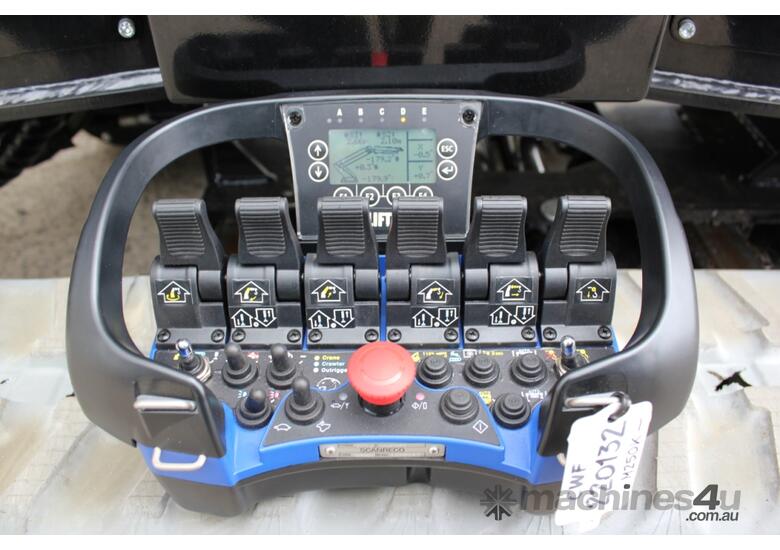

- Proportional multi-function Scanreco radio remote control
- Electronic load limiting device with LCD information display
- LED Lamps mounted on the crawler
- 900kg Rotzler hydraulic winch, controlled by radio remote (rope length 68m)
- Hydraulic articulated fly job
- Electric motor
- Full set of pulleys
