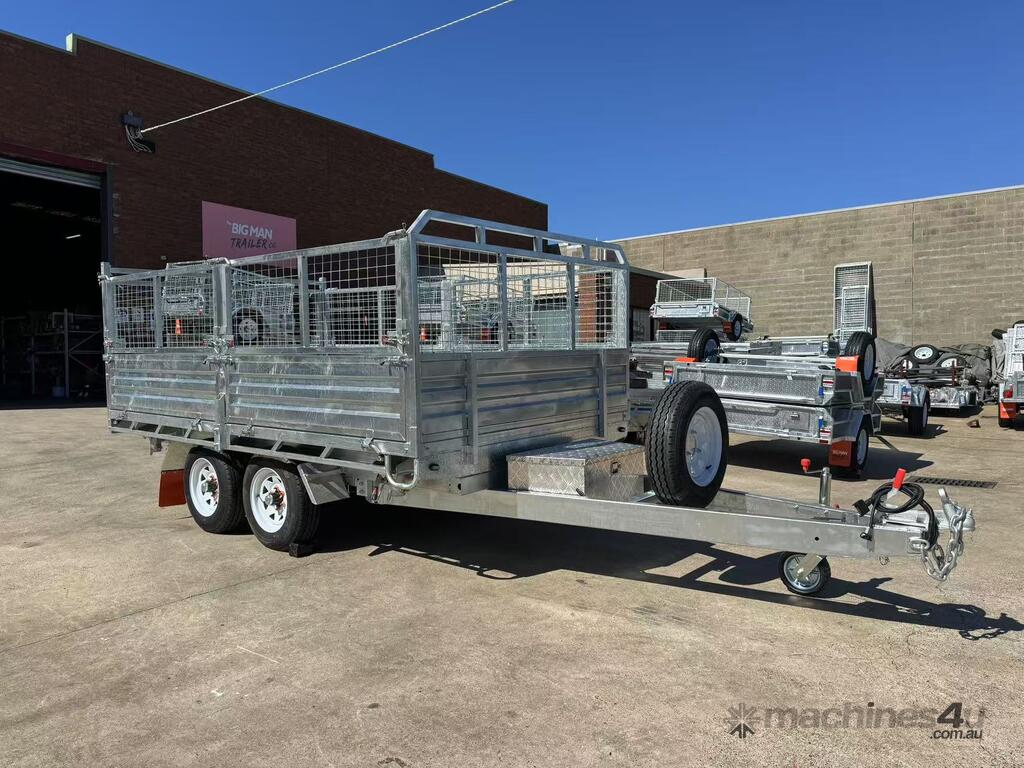

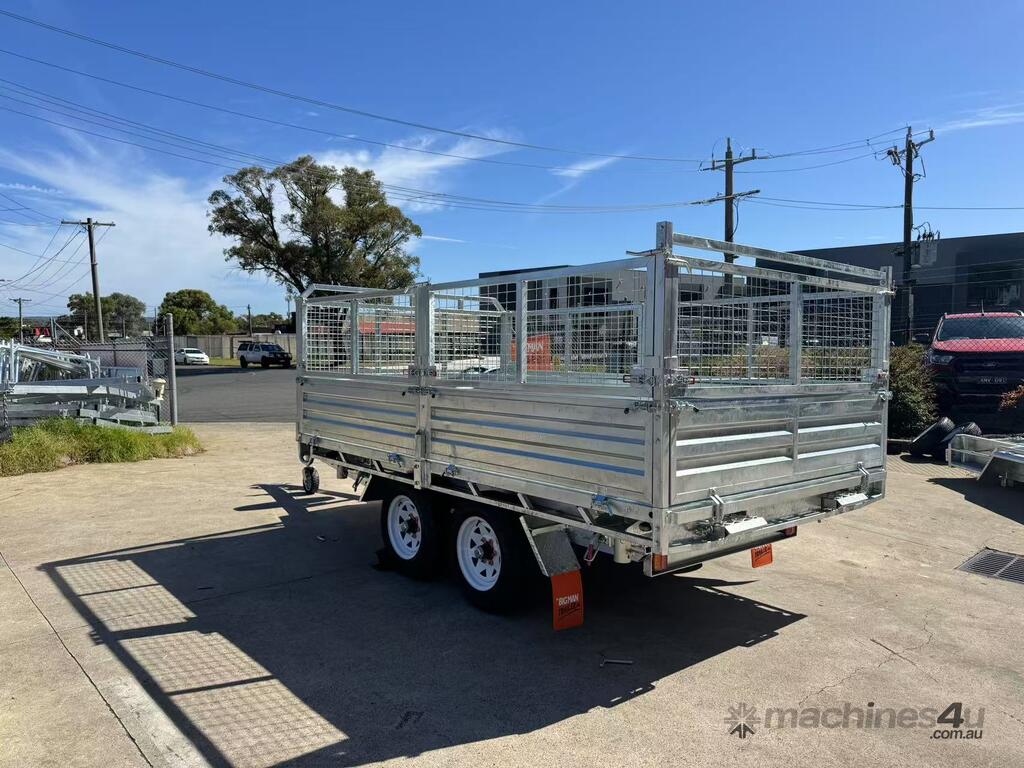

BIGMAN TRAILER 12x7 3-Way Tipper Flat Top Trailer 3500KG with Ramps and Cages

About the 12×7 Hydraulic 3 Way Tipper Trailer Flat Top 3500KG
Experience the ultimate in efficiency with our 12×7 3-Way Tipper Trailer —a game-changer in trailer technology. Built for durability, it boasts a fully welded, hot-dipped galvanized steel frame, designed to withstand tough conditions and heavy workloads. The powerful hydraulic tipping system takes the strain off your back, making unloading effortless and efficient. Equipped with 12-inch electric drum brakes and a breakaway unit, this trailer ensures superior safety and stability for your load. Plus, with our 24-month structural warranty, you can invest with confidence. The only question is—why haven’t you picked one up yet?

Full body hot dipped galvanised (including inside rail)
24 months structural warranty
Free Heavy Duty jockey wheel
Brand new 15” Sunraysia rim and 195 light truck tyre

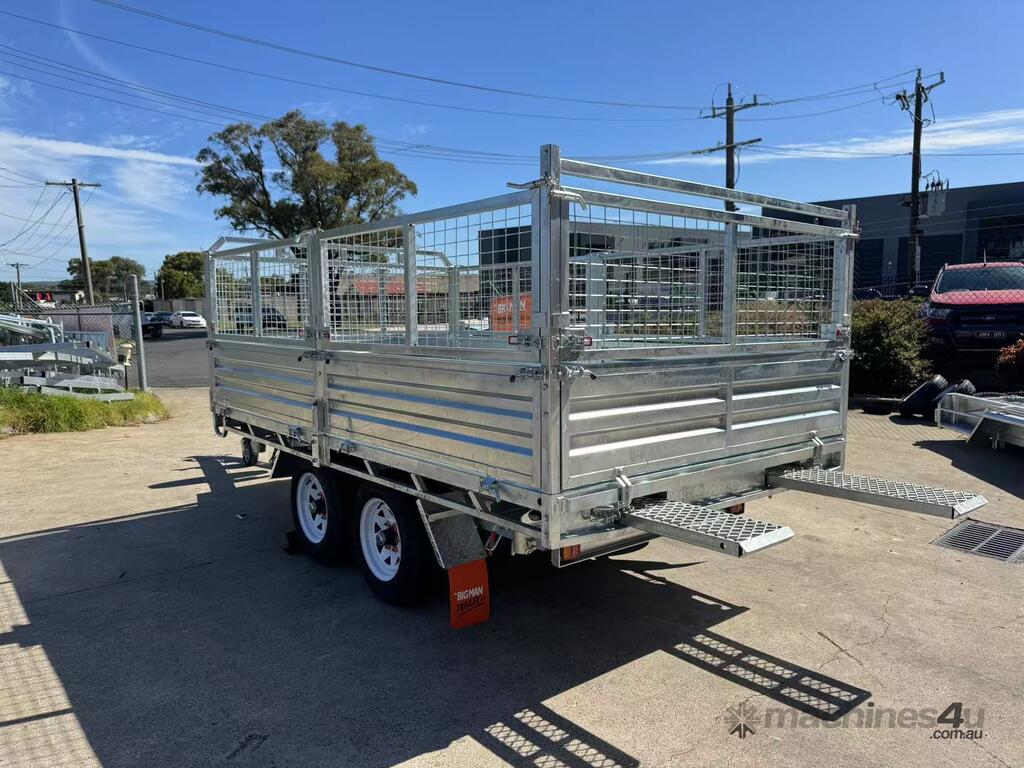

Removable 450mm side and 600mm cage
Fully weld body
3500KG ATM with 12-inch electric drum brakes on 4 wheels
Breakaway unit fitted
Checker plate floor
2100mm long drawbar

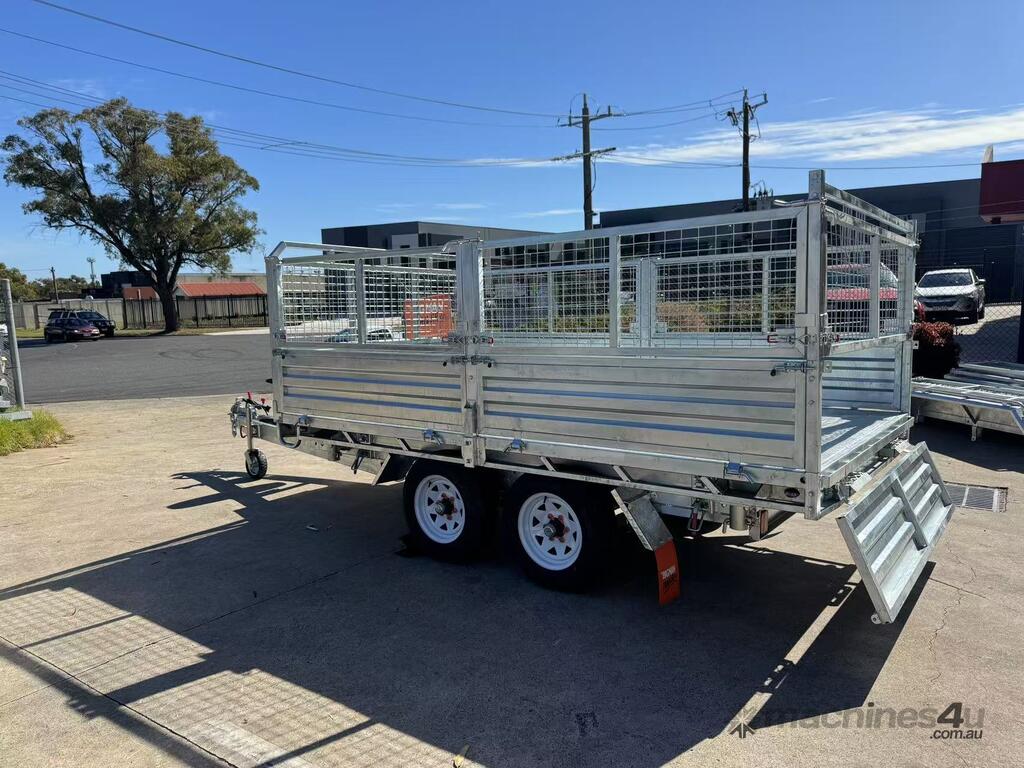

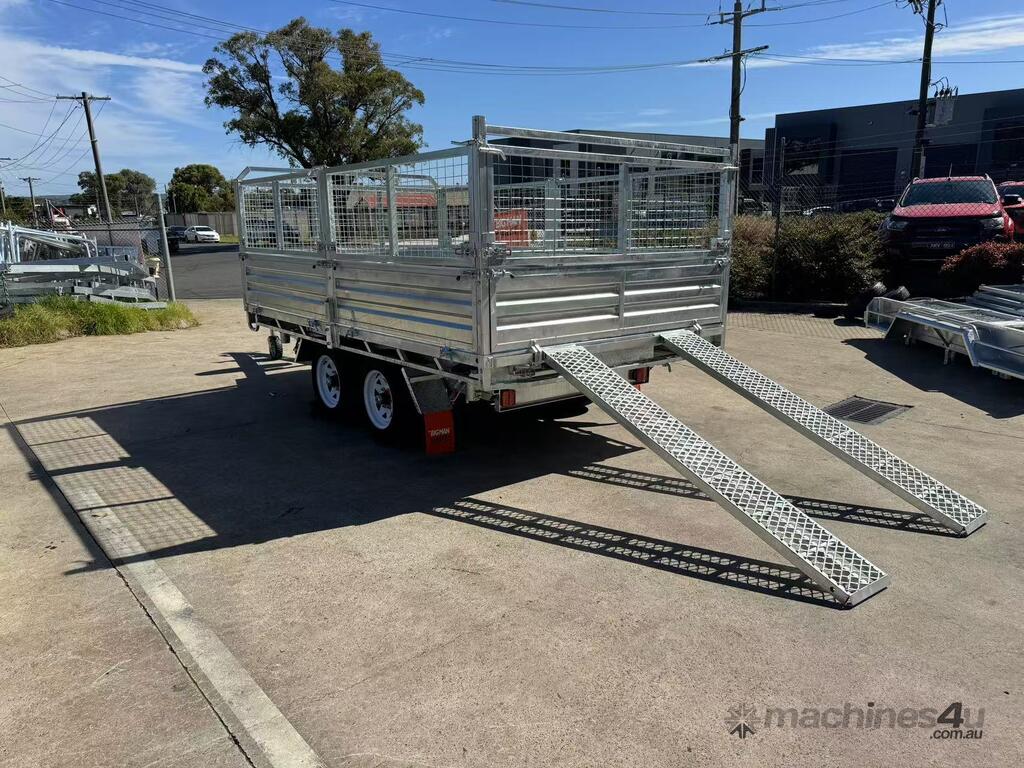

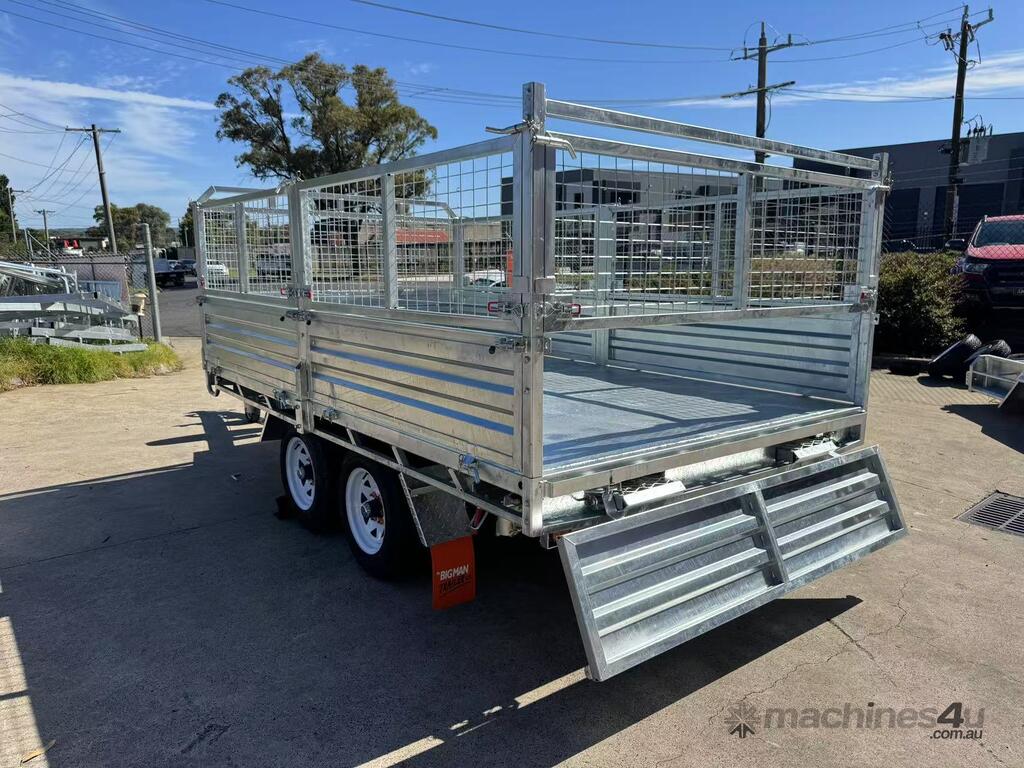

2000mm long 300mm wide loading ramp included (1000KG Max. load for a pair)
Wheel nuts indicator included

Item Number FT1273WT
Trailer Size 12’ x 7’
Drawbar 150x50x4mm
Internal Size 3600mm X 2100mm
Surface Finish Hot Dipped Galvanised
Colour Silver
Lights LED ADR Light
Axle 60mm Solid
ATM 3500kg
Tare Mass 1480kg

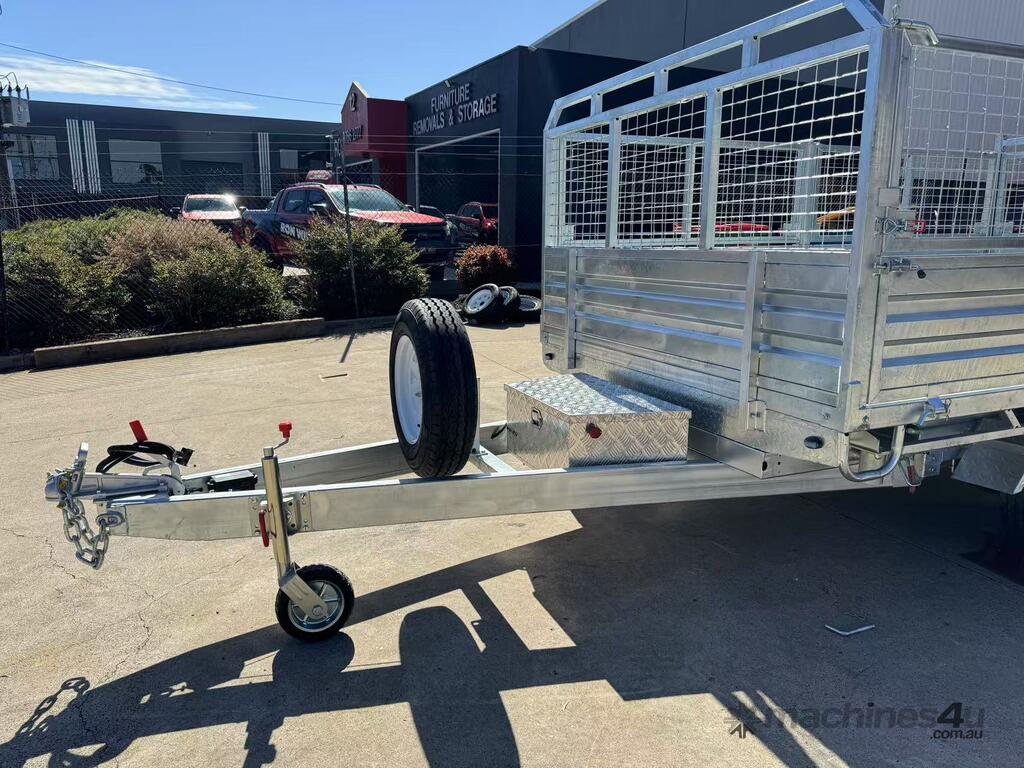

Jockey Wheel 10” Swivel
Fully Weld Yes
Checker Plate 4mm

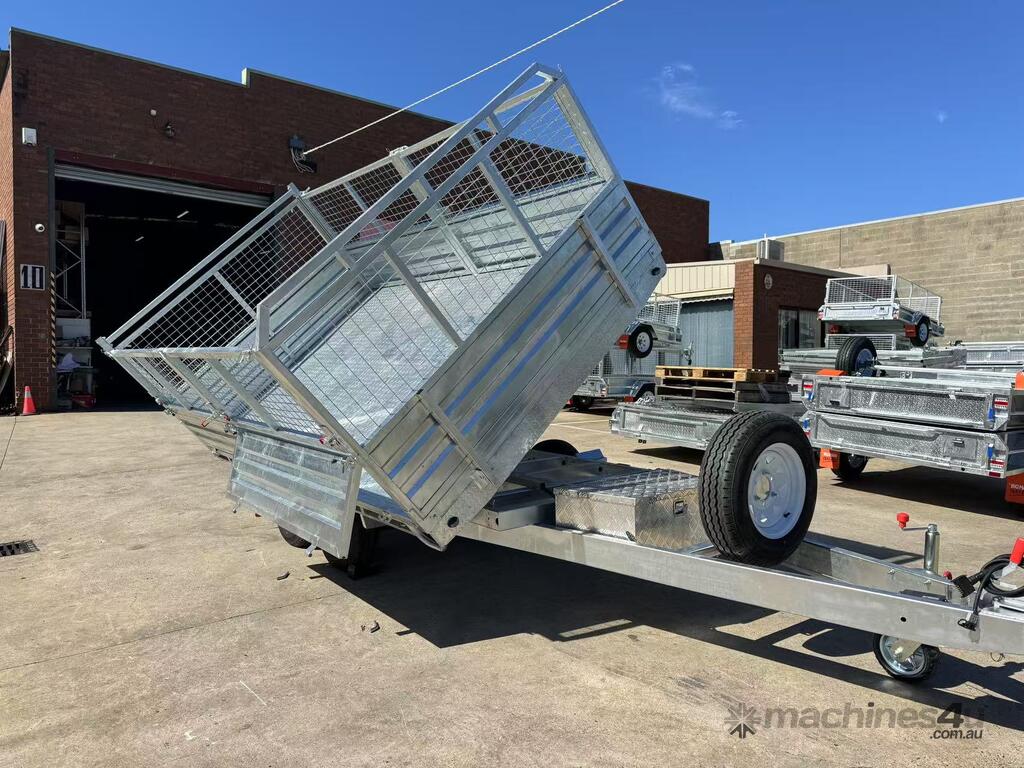

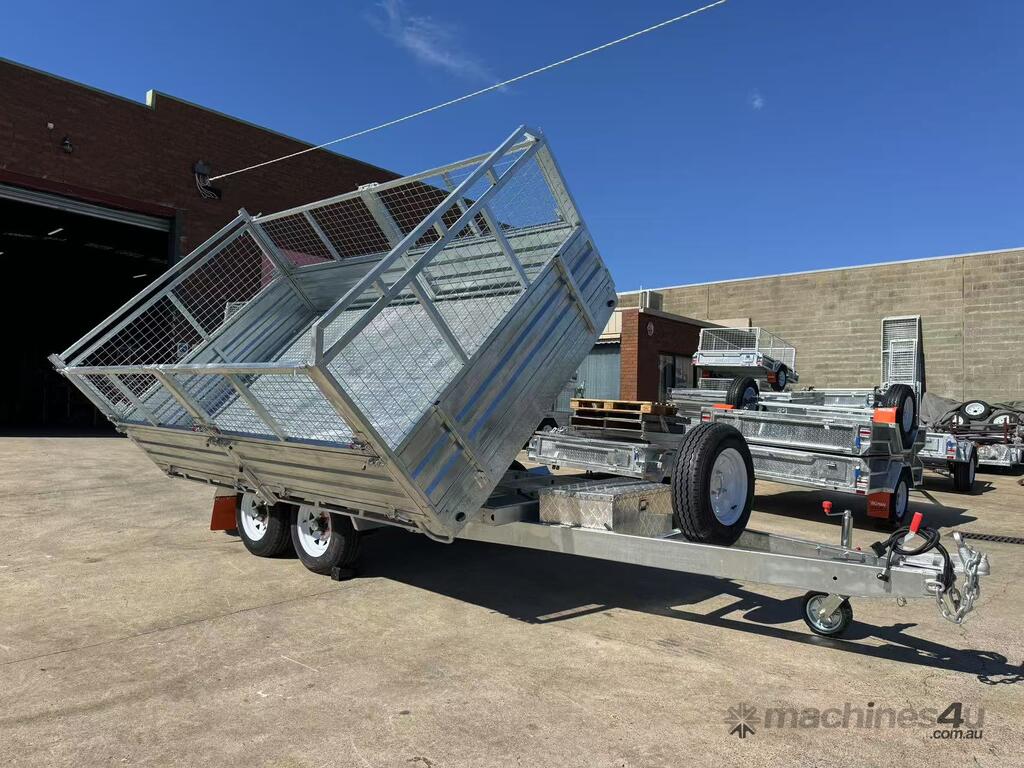

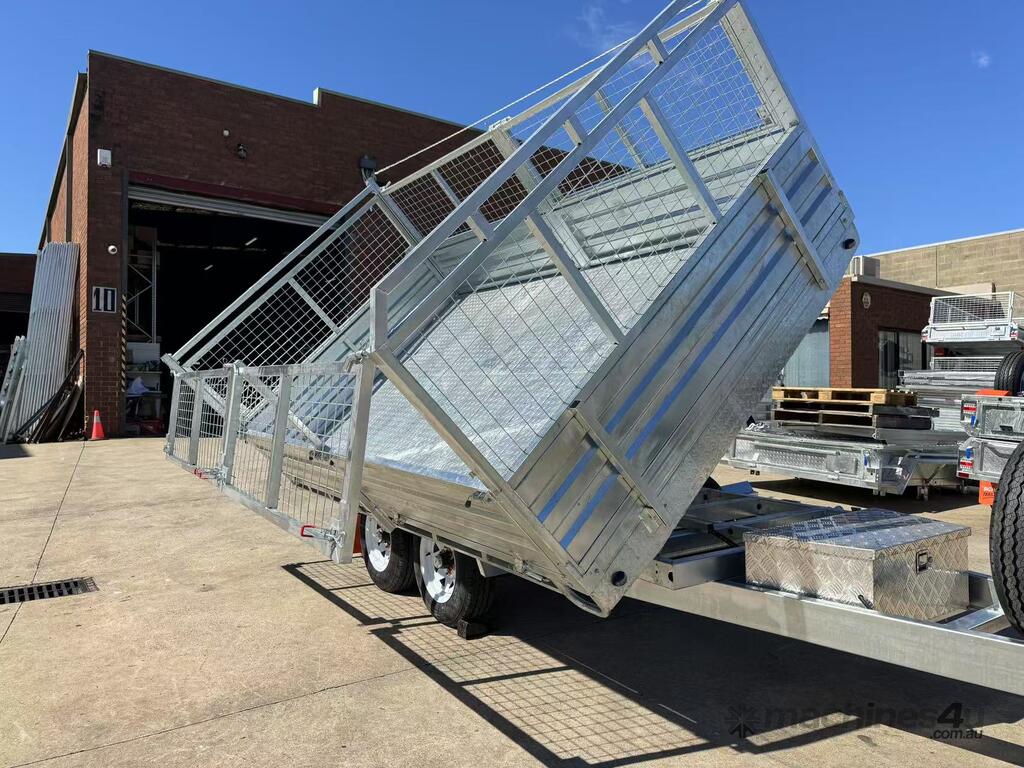

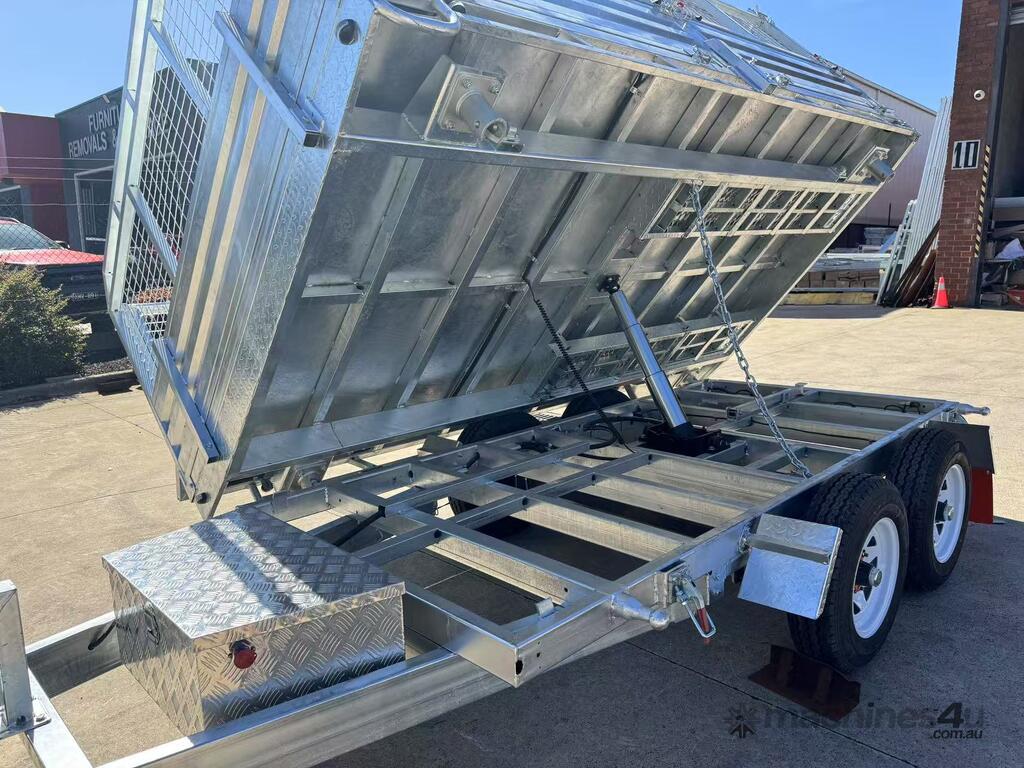

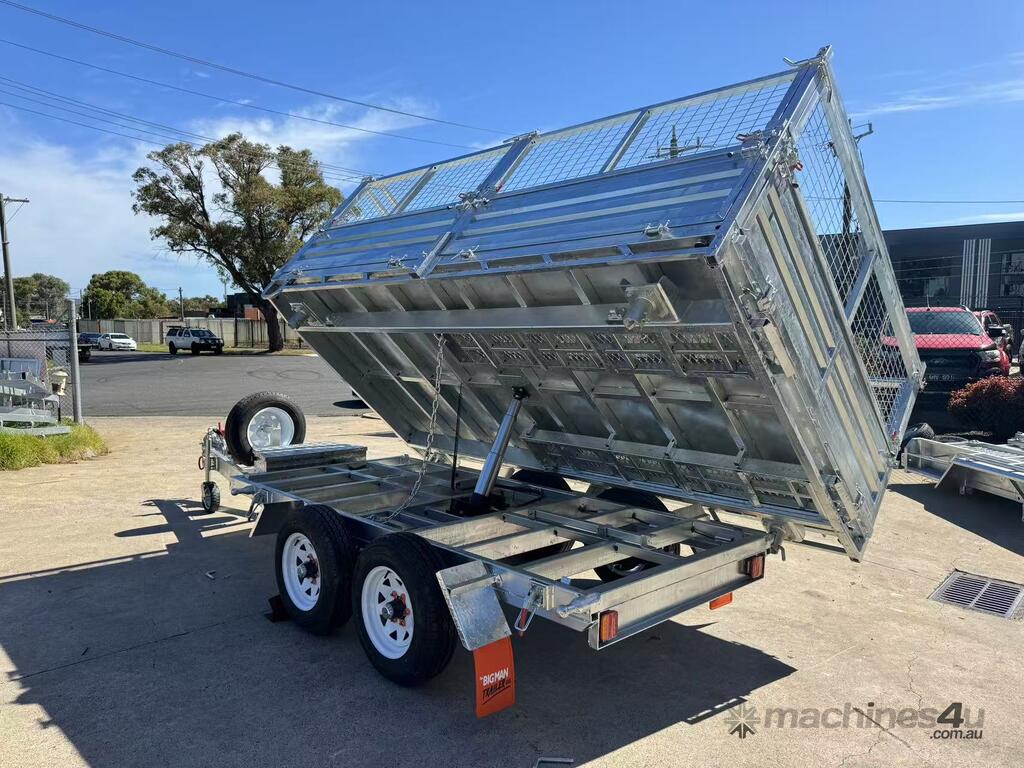

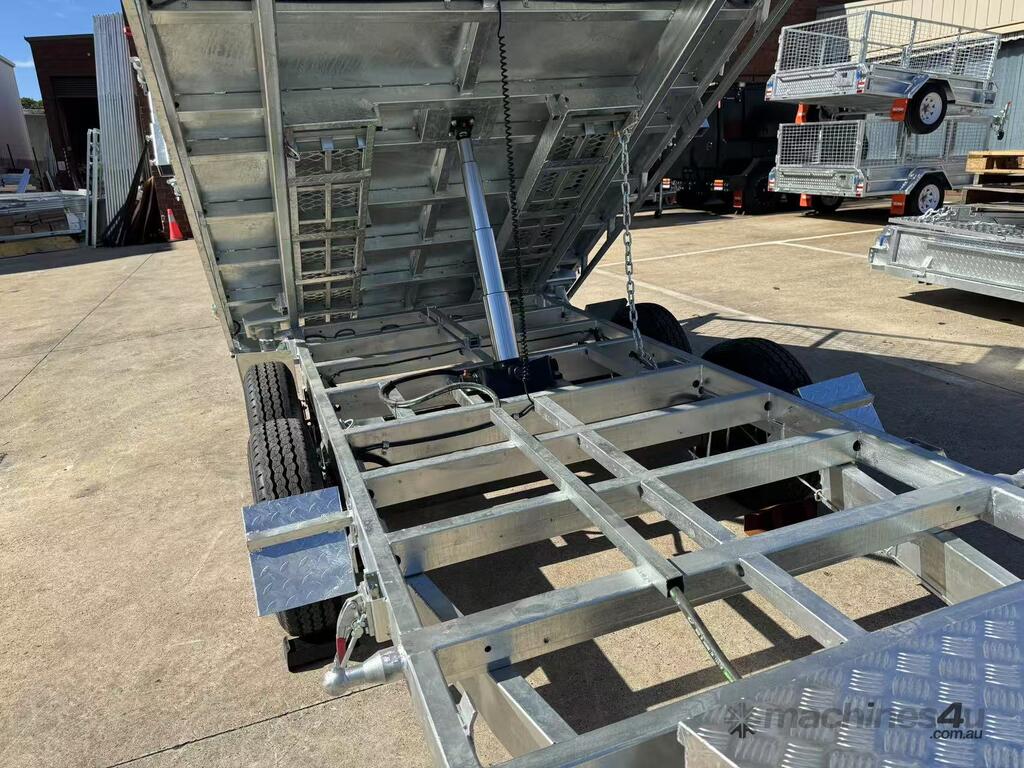

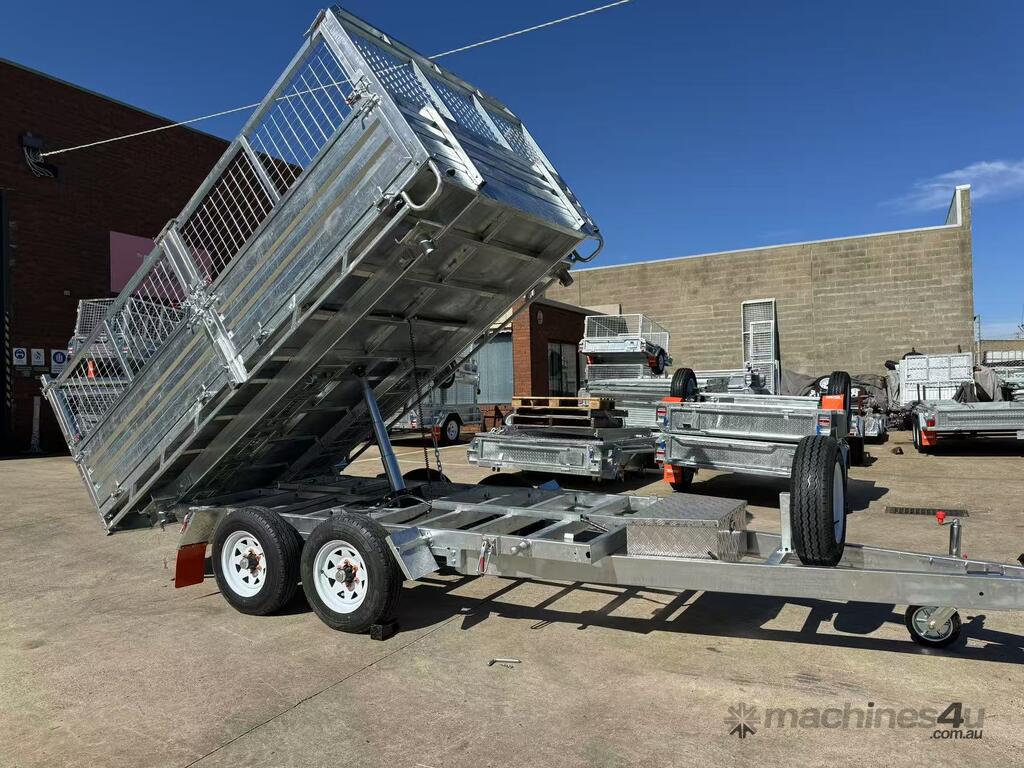

Tilt body 5 stage ram with 5000KG lifting capacity
Side 450mm 2.5mm Removable

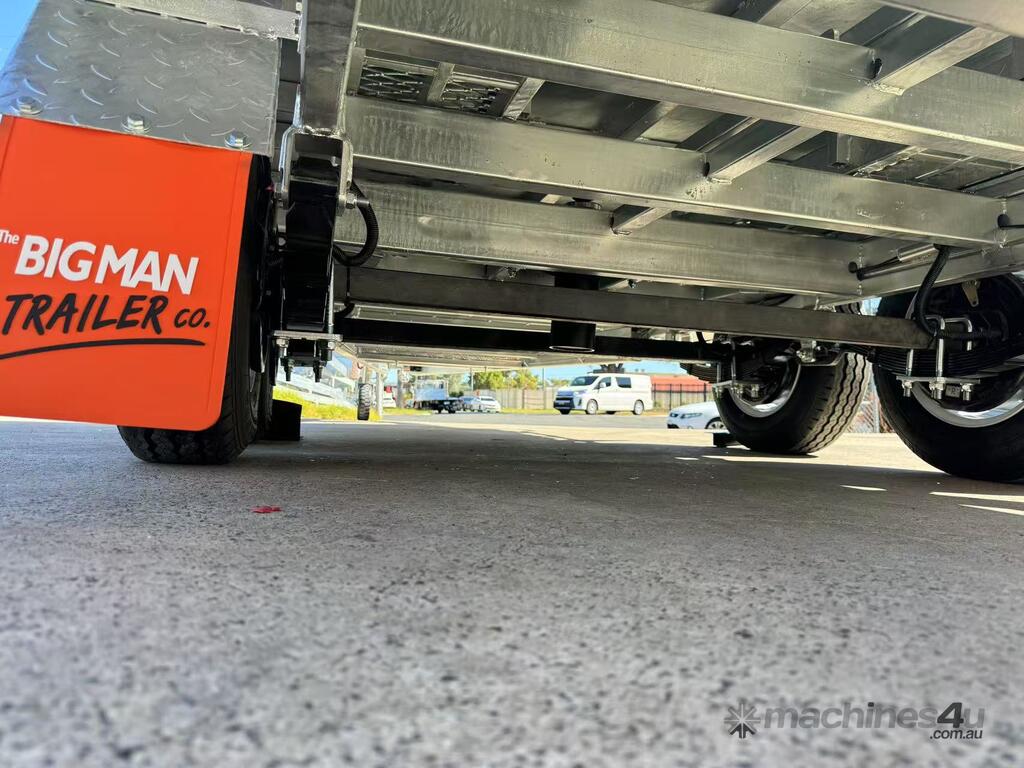

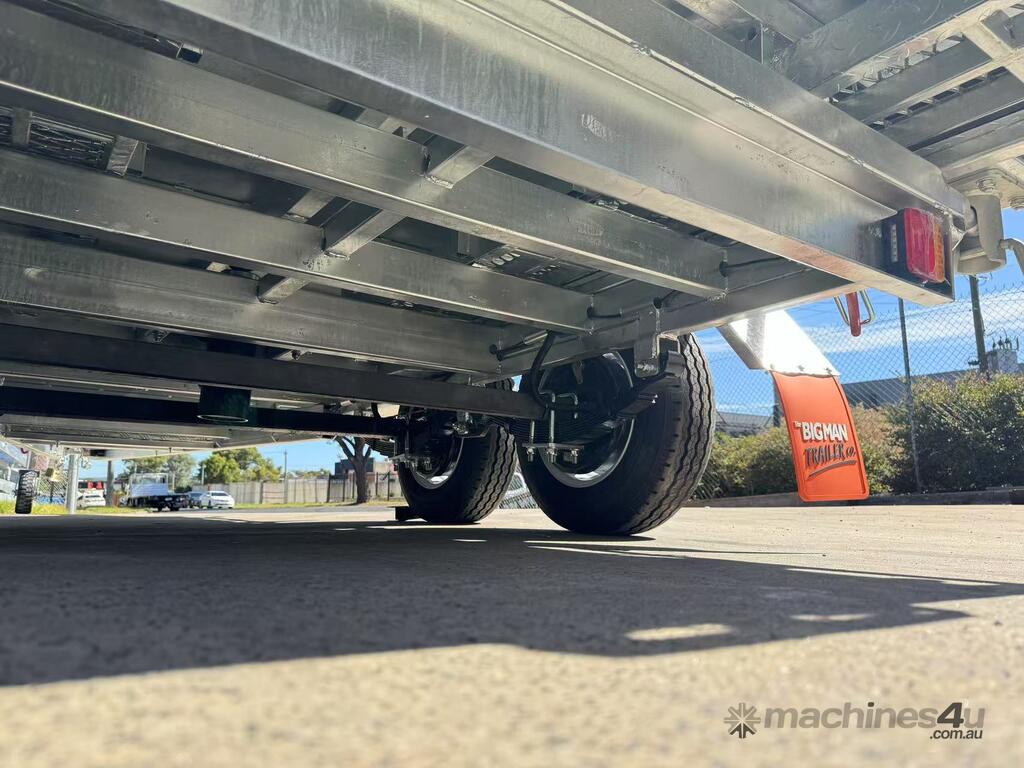

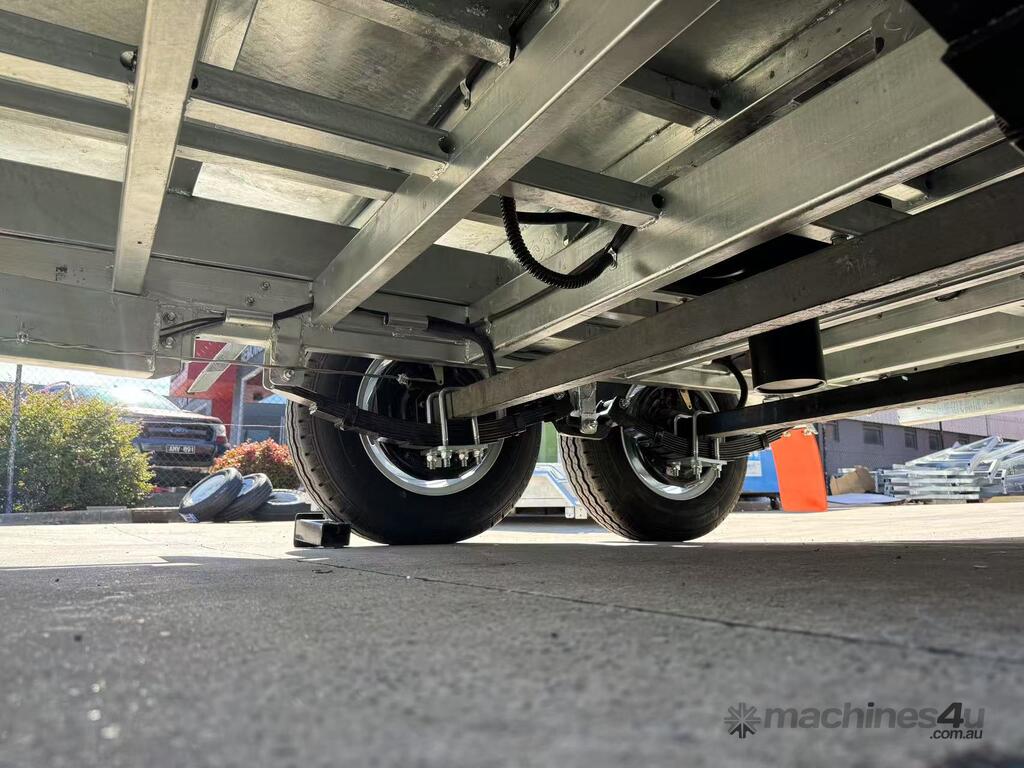

Suspension 9 leaf rocker roller
Cross Beam 70x50x3mm
Wheel & Tyre 195R15C Light Truck
Brake 12 inch Electric Drum Brake
Warranty 24 Months Structural
Extra 2000mmx300mm loading ramp (1000KG Max. load)

Photos of the trailer include some optional extras. Pictures shown are only for demonstration only. Speak to one of us further for info on accessories

Pick up in our local stores are free, but please always contact us for availability.

We can deliver Australia wide simply send us your postcode for a quote and we quote for transporting for all major cities.

Finance is Available on all of our trailers however please contact us via phone or for further information.

The Big Man Trailer Co. specializes in designing and manufacturing high-quality trailers tailored to the specific needs of professionals and home users alike. Founded in 2014 in Dandenong, Victoria, the company has built a reputation for innovation, durability, and compliance with Australian Design Rules and Standards. Initially producing trailer parts, The Big Man Trailer Co. expanded in 2016 to deliver complete trailer solutions that cater to industries ranging from construction and farming to landscaping and furniture moving, with a strong focus on customer service and after-sales support.

Go to The Big Man Trailer Co showroom on Machines4u to see the full range of trailers that is available for immediate national delivery, send The Big Man Trailer Co a message about the item you are interested in, or give The Big Man Trailer Co a call, we are happy to answer any of your questions.

* Click on the pdf spec sheet or contact us for more detailed information *
