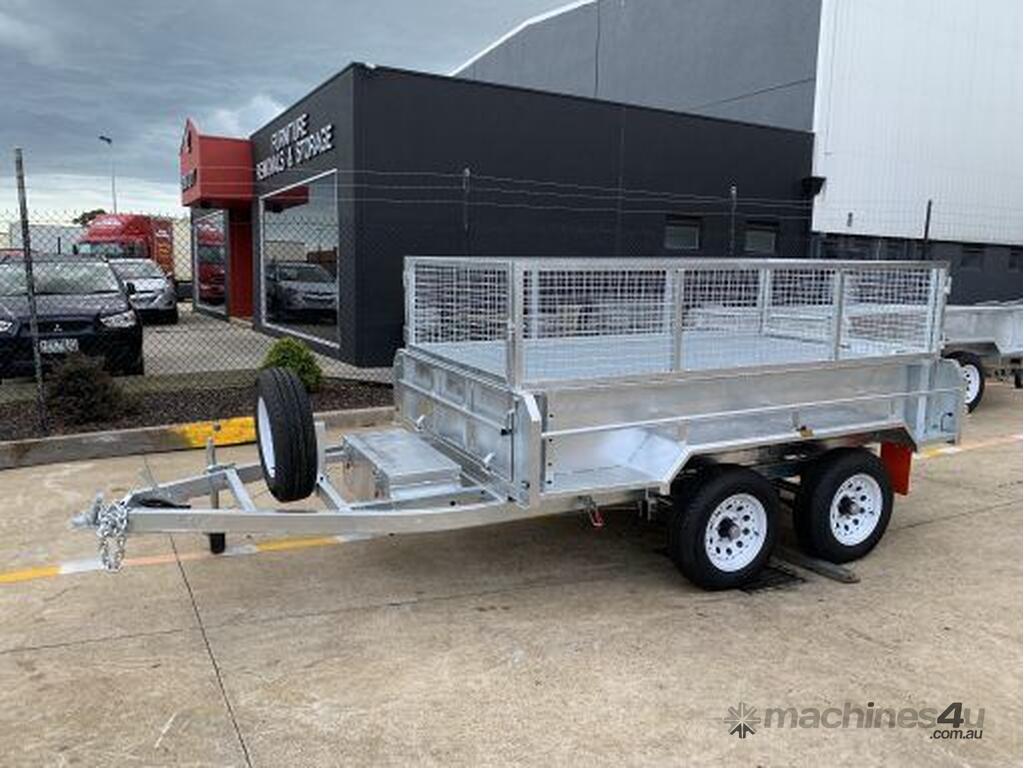

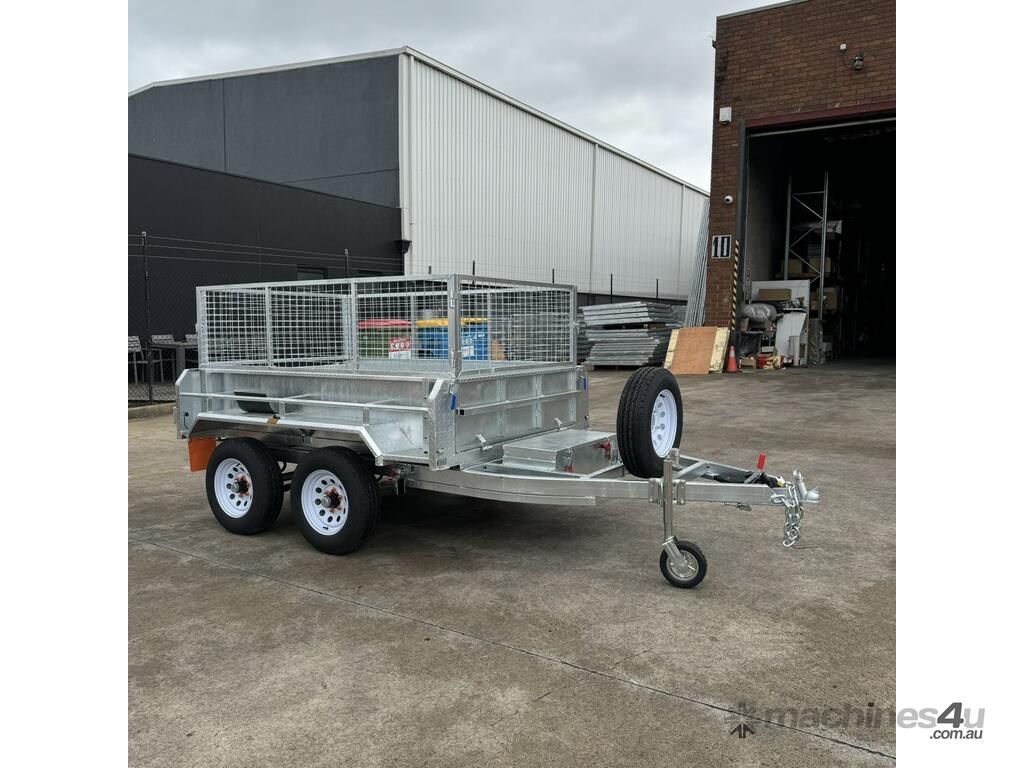

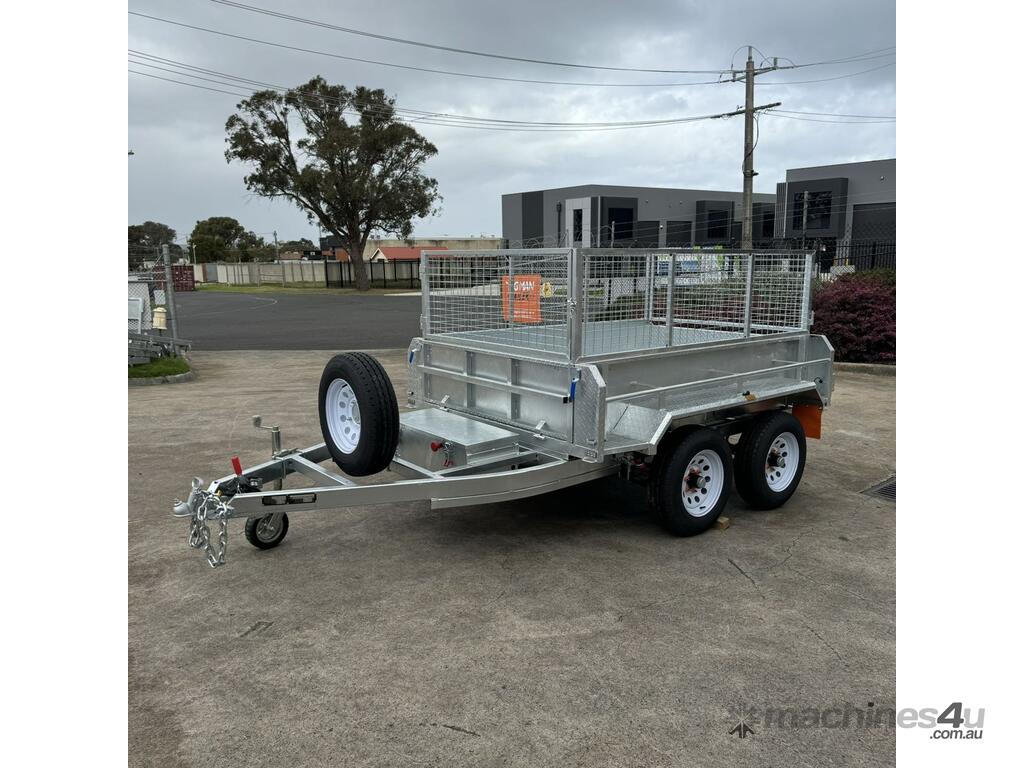

BIGMAN TRAILER 8x5 Galvanised Cage Mesh Hydraulic Tipper Trailer 3.5T ATM

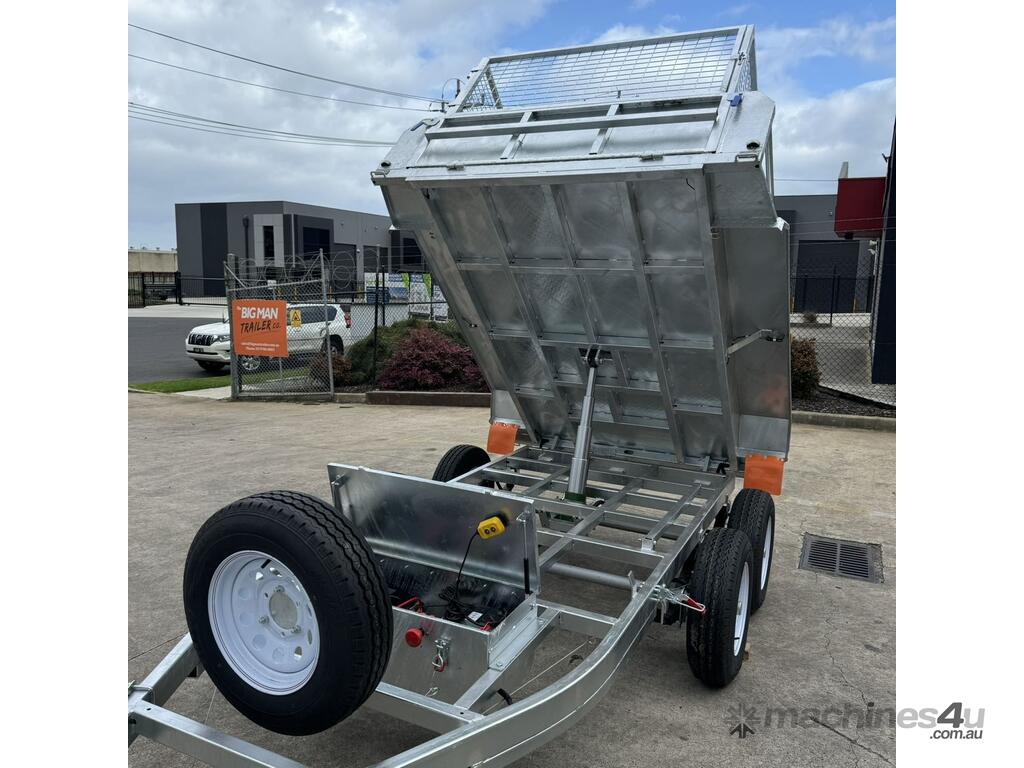

Dumping rubbish? Unloading stones? With Hydraulic Tippers, simply push a remote button and let the mechanism do the work for you. By using the hydraulic lifting function, trailer body tilts to about 65 degrees allowing you to unload all things without any stress.

Full body hot dipped galvanised (include inside the Rail)
24 months’ structural warranty

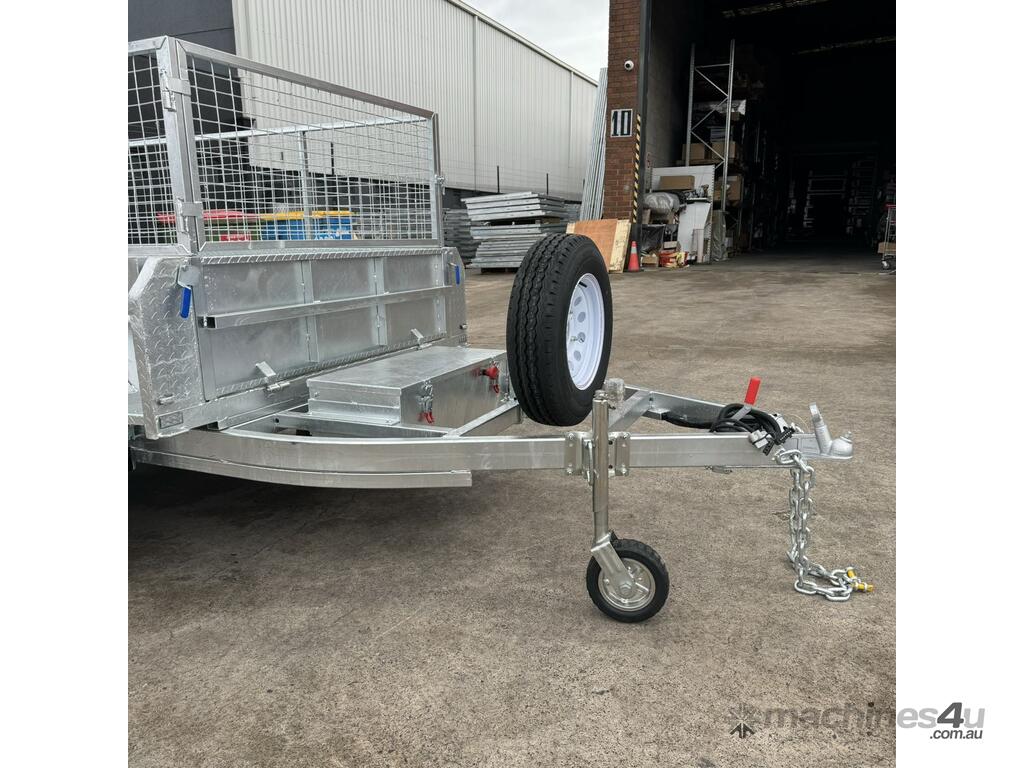

10 inch heavy duty jockey wheel

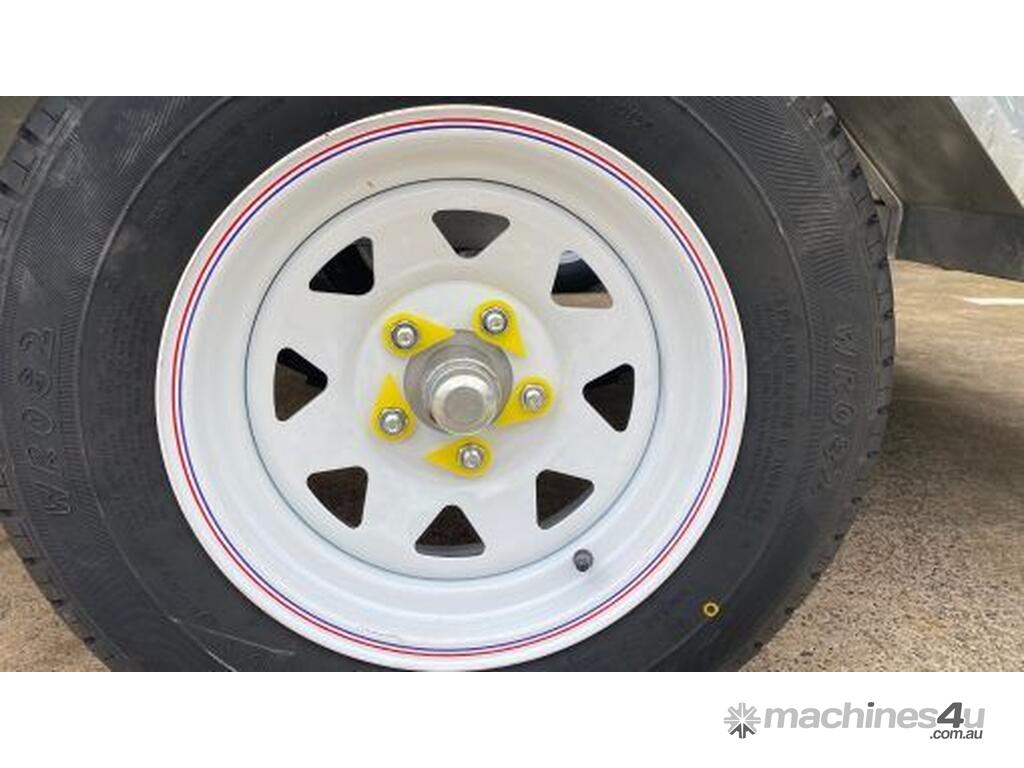

Brand new 15” sunraysia rim and 195 light truck tyre
Removable 600mm Cage
Fully weld body
450mm deep side wall
One-piece fully welded heavy duty chassis
3500kg ATM

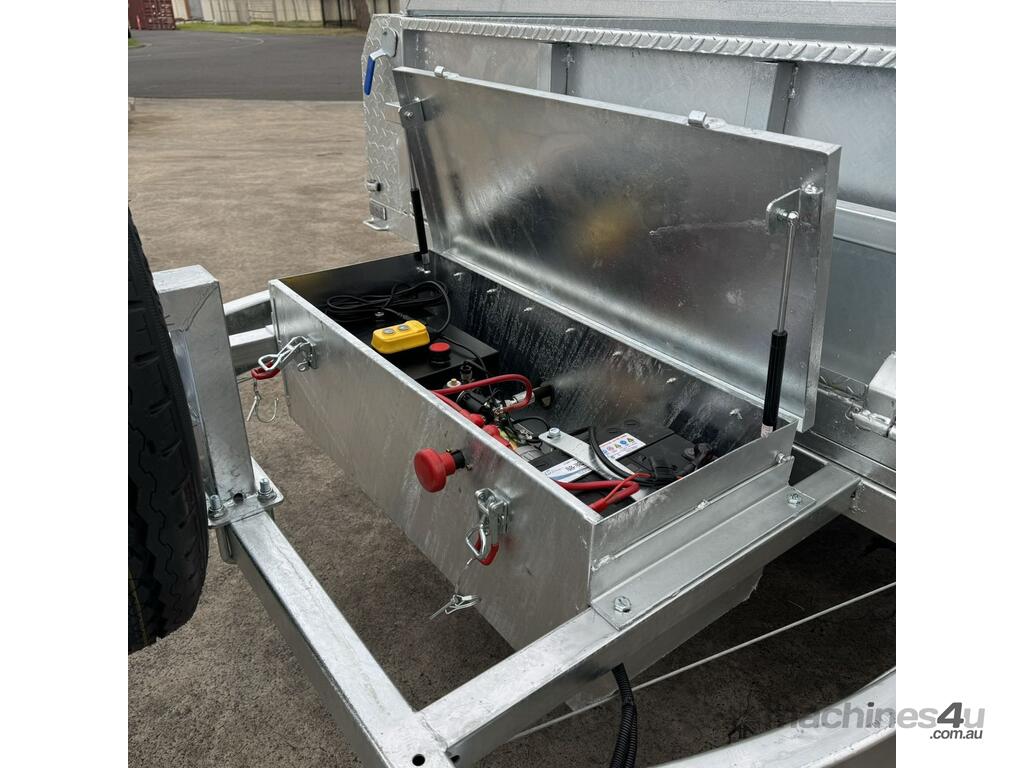

Hydraulic system and battery pack complete

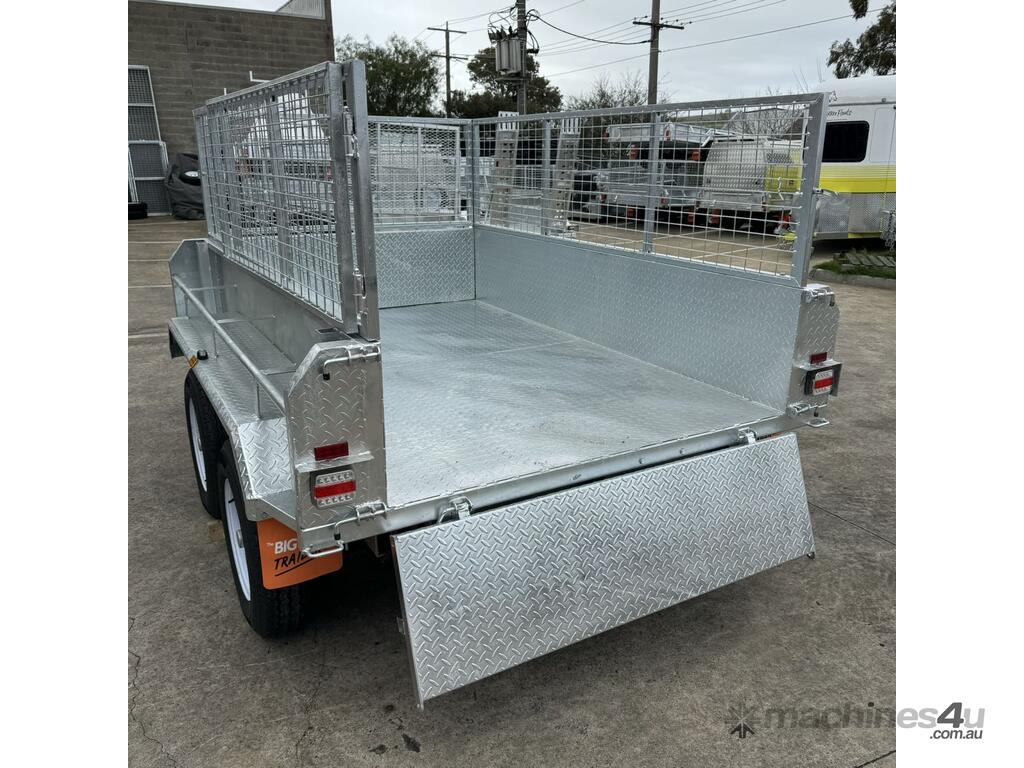

Checker plate floor

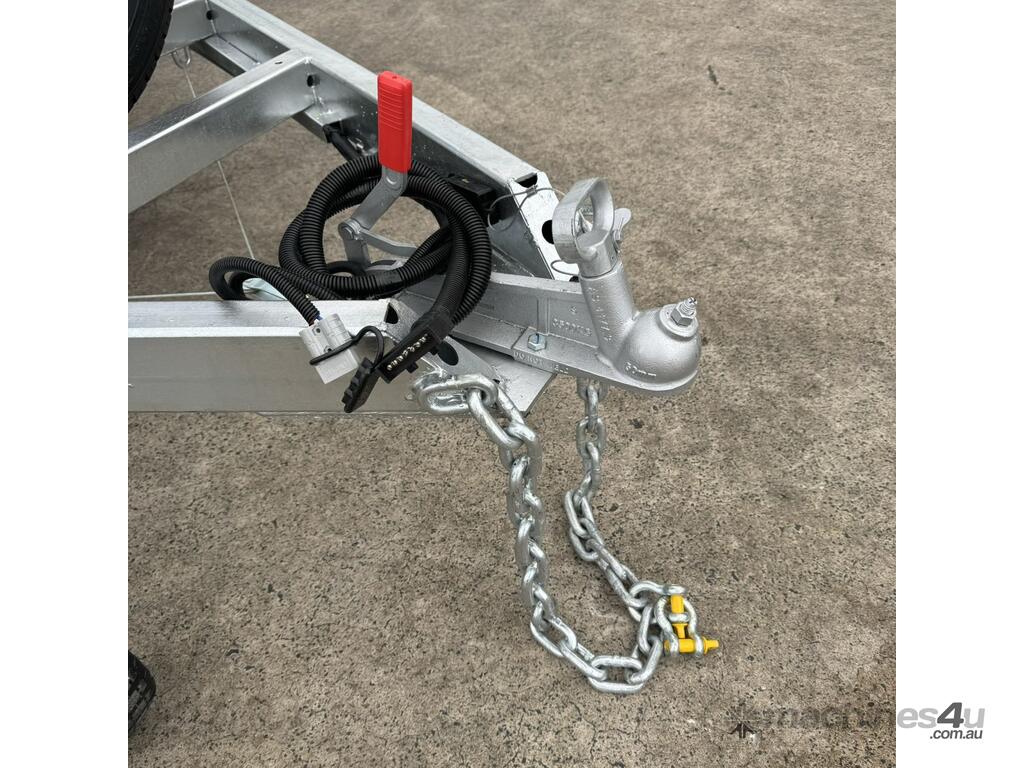

Breakaway unit fitted
7 pin flat plug
1800mm drawbar
Wheel nuts indicator included

Item Number HT85
Trailer Size 8’ x 5’
Drawbar 100x50x5mm
Internal Size 2420mm x 1500mm
Surface Finish Hot Dipped Galvanised
Colour Silver
Lights LED ADR Light
Axle 60mm Solid axle with 2T dexter bearings
ATM 3500kg
Tare Mass 1080kg
Jockey Wheel 10” Swivel
Fully Weld Yes
Checker Plate Full 2.5mm
Tilt body 4 stage ram with 4000KG lifting capacity
Side 450mm 2.5mm Fold Up
Cage 600mm 30x30mm

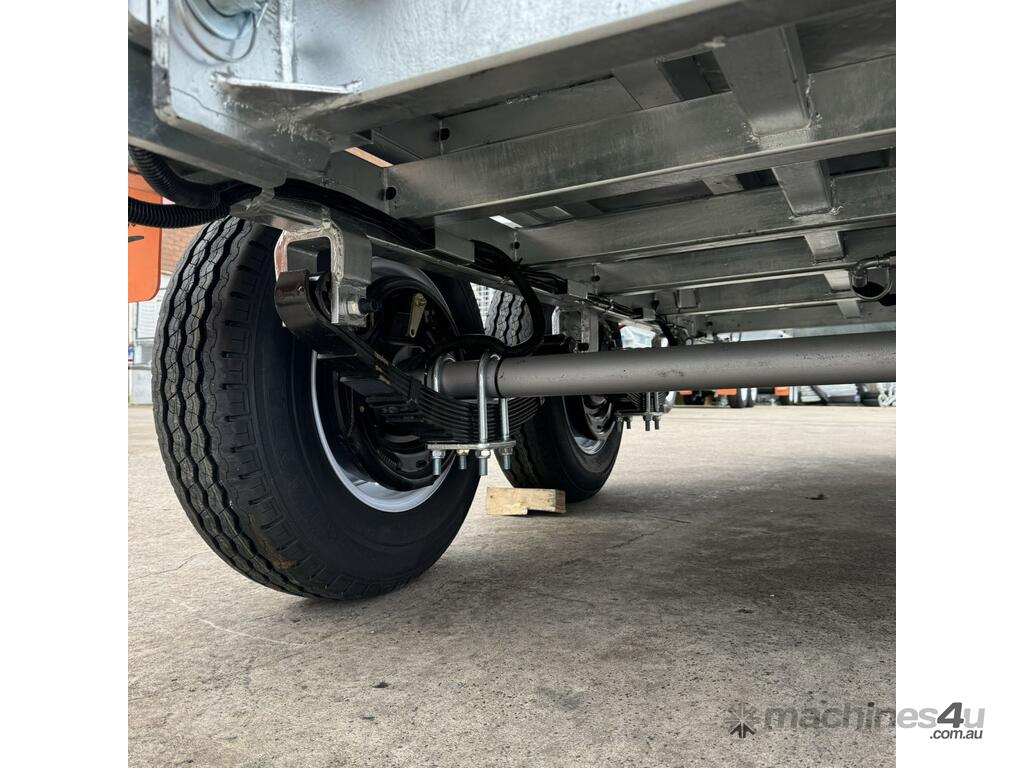

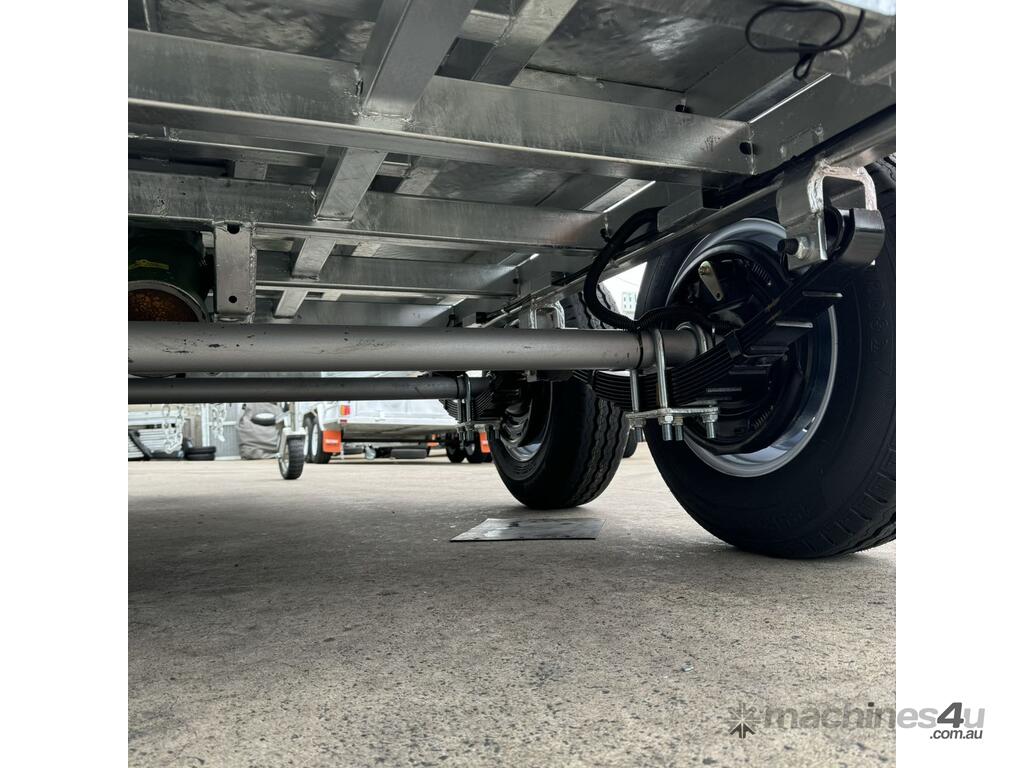

Suspension 9 leaf rocker roller
Cross Beam 70x50x5mm
Wheel & Tyre 195R15C Light Truck
Brake 12 inch electric drum brakes
Warranty 24 Months Structural

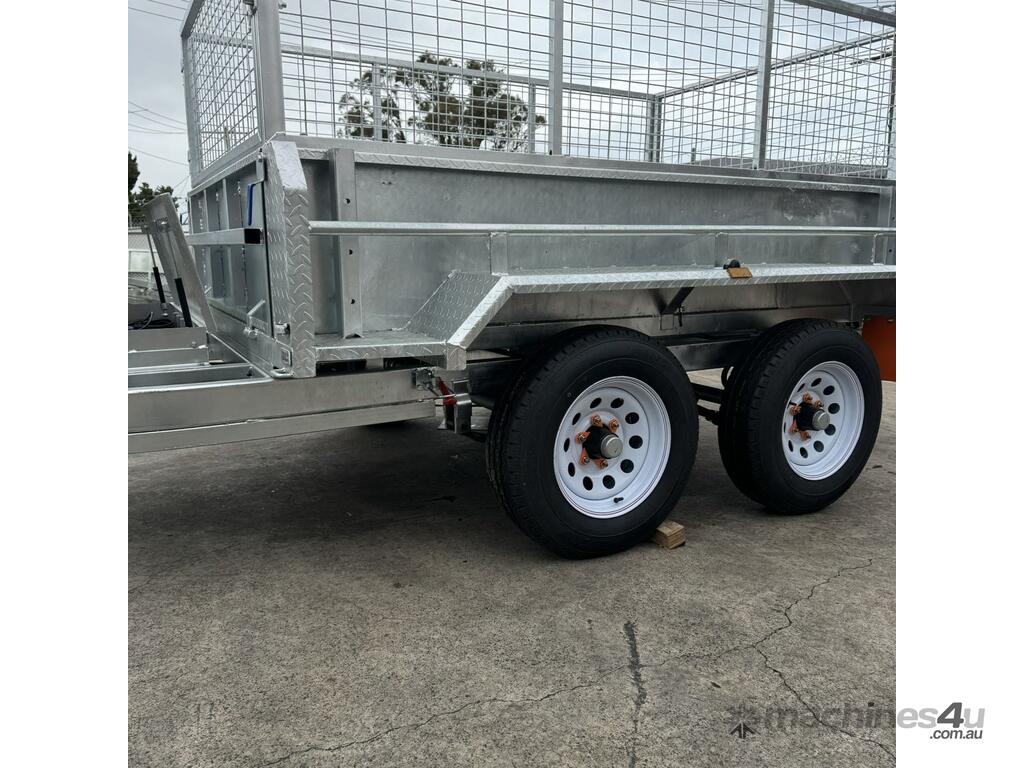

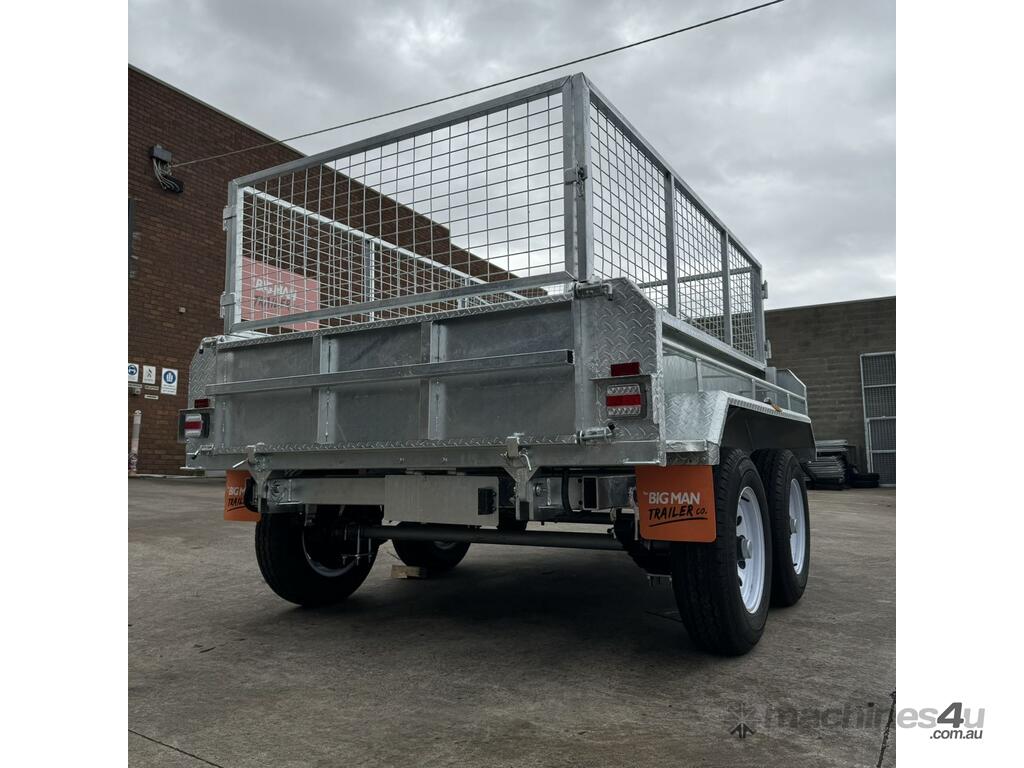

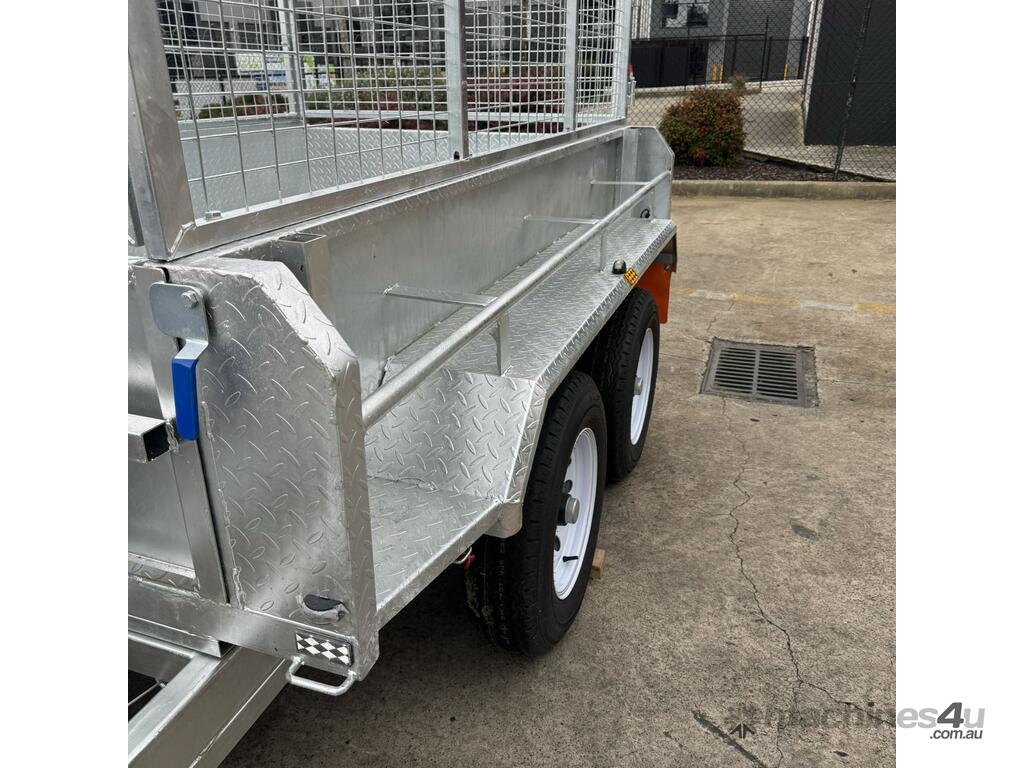

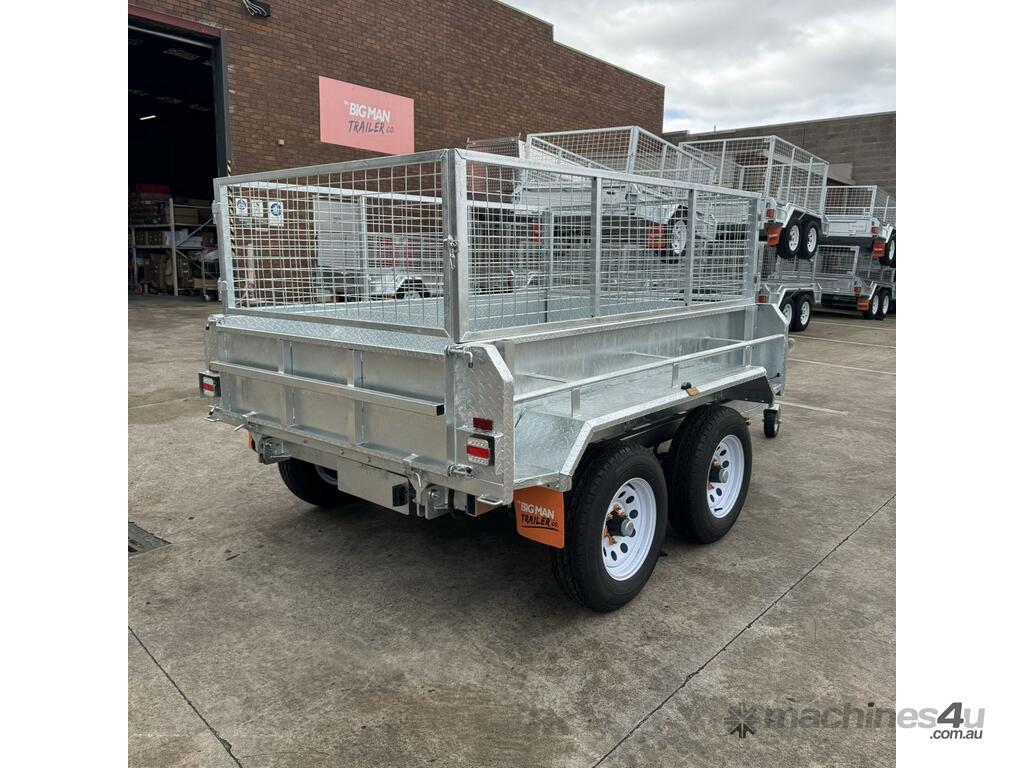

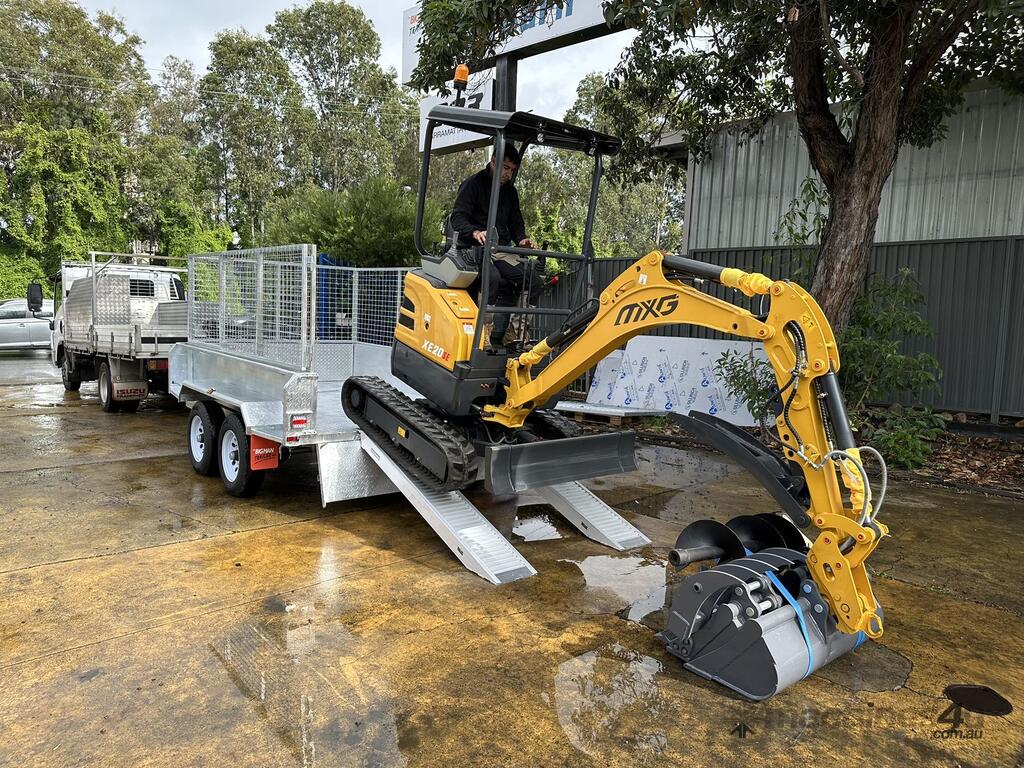

Photos of the trailer include some optional extras. Pictures shown are only for demonstration only. Speak to one of us further for info on accessories

Pick up in our local stores are free, but please always contact us for availability.

We can deliver Australia wide simply send us your postcode for a quote and we quote for transporting for all major cities.

Finance is Available on all of our trailers however please contact us via phone or for further information.

The Big Man Trailer Co. specializes in designing and manufacturing high-quality trailers tailored to the specific needs of professionals and home users alike. Founded in 2014 in Dandenong, Victoria, the company has built a reputation for innovation, durability, and compliance with Australian Design Rules and Standards. Initially producing trailer parts, The Big Man Trailer Co. expanded in 2016 to deliver complete trailer solutions that cater to industries ranging from construction and farming to landscaping and furniture moving, with a strong focus on customer service and after-sales support.

Go to The Big Man Trailer Co showroom on Machines4u to see the full range of trailers that is available for immediate national delivery, send The Big Man Trailer Co a message about the item you are interested in, or give The Big Man Trailer Co a call, we are happy to answer any of your questions.

* Click on the pdf spec sheet or contact us for more detailed information *
