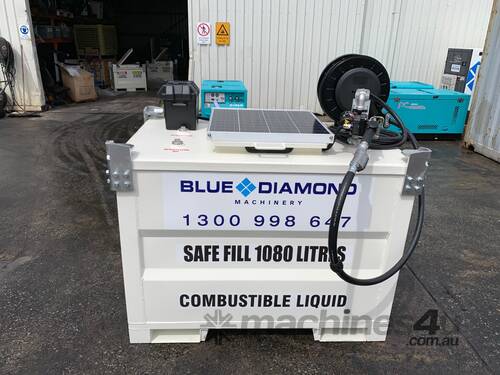

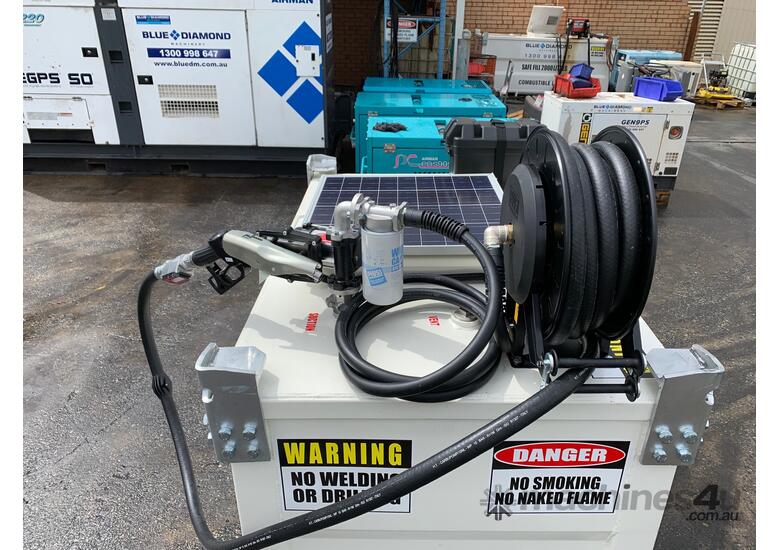

BLUE DIAMOND - Fuel Tank Cube 1200L Self Bunded Baffled

FUEL TANK 1,200 CUBE SELF BUNDED BAFFLED
Blue Diamond’s range of Self Bunded tanks, fully baffled are designed and approved for site storage and transport of diesel. Meeting the needs of multiple applications in industry, construction, agriculture and mining.

Tank features rounded corners designed to eliminate stress points for improved quality and greater longevity. Also designed for visibility across all external surfaces of the tank

KEY FEATURES
CUBE - BDM 1,200L Self Bunded Tank Baffled Safe Fill Level 1,080L
Designed and approved for site storage and transport of diesel.
Mild Steel Internal Tank and Wetted Parts - Heavy duty mild steel External tank
Stackable - 3-high empty / 2-high when full
UN Approved for transport of dangerous goods and / or static storage / AS1940 / AS1692 approved as self bunded tank for static storage
Bunded tank capacity 110% of internal tank volume. Self Bunded double wall design
Fluid level dipsticks for tank and interstitial space
UL complaint emergency relief vents on the main tank and interstitial space
Vent stack with screened rainproof outlet
1 x 2inch fill port with camlock male tanker hose filter c/w dust cap connection
1x 2inch fill port with filter
3x 1.5inch suction port
2x 1.5inch suction port
2x 2inch suction port
2x 1.5inch return port
1 x Air breather vents and fittings supplied complete with dust filter fitting
2 x anodized dipstick, one for fuel dip, one for interstitial dip
1 x set of statutory signage
Suction foot valve, overfill protection and electronic overfill alarm.
Fill point with fire safe safe ball valve, non return valve and camlock with dust cap connection
Warranty - 5 Years Structural, 1 year on valves (conditions apply)
Easily removable carbon steel inner tank for maintenance and cleaning
Vent Pipe: Standard
Galvanised lifting lugs
Fluid Level Dipstick: standard
Length - 161cm x 102cm x 124cm
Weight - 680KG
Optional Extra's;

Pumps / connections / hoses / meters / filters housed in bund, which can be locked even when in use!
