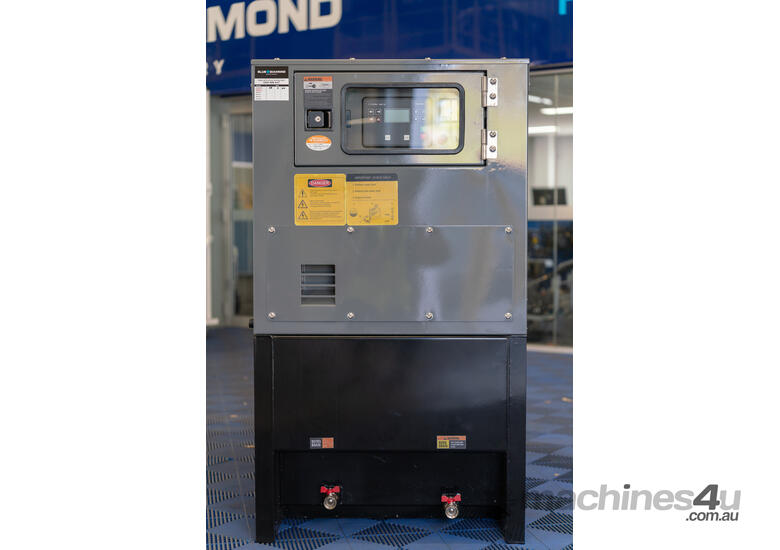

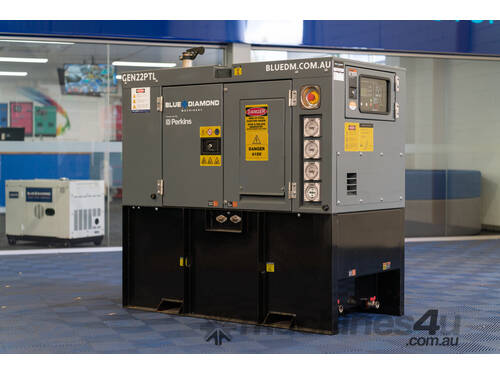

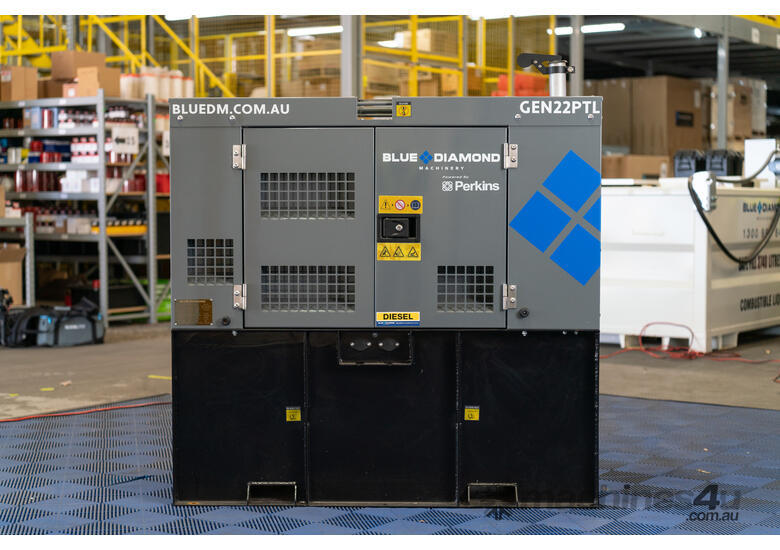

BLUE DIAMOND - PERKINS engine - 22KVA 415V Diesel Generator Long Range

22 KVA DIESEL GENERATOR - LONG RANGE PERKINS ENGINE- 3 PHASE- 415V

Blue Diamond 22 KVA diesel generator is cost-effective, efficient and robust units you can buy for your power needs. Fully enclosed sets with very compact design, water cooled- so will run in hot conditions, Super Quiet-fully enclosed sound proof canopy, remote start and an automatic transfer switch plug.

This 22 KVA 3 Phase generator allows for greater electrical loads is particularly suited for larger loads found in industrial and commercial use as well as backup for offices buildings or homes. Providing either prime power or standby/back-up power sources and an estimated run time of 47 hours at 75% load. Genuine PERKINS Engine with a Leroy Somer Alternator!

Blue Diamond’s range of Perkins Powered Diesel Generators are backed by a generous 3 year – 1500 hour warranty for your piece of mind.

DIESEL GENERATOR KEY FEATURES

Prime kVa: 20
Standby kVa: 22
Prime kW: 16
Standby kW: 17.6
Power Factor: 0.8
Amps: 27.8

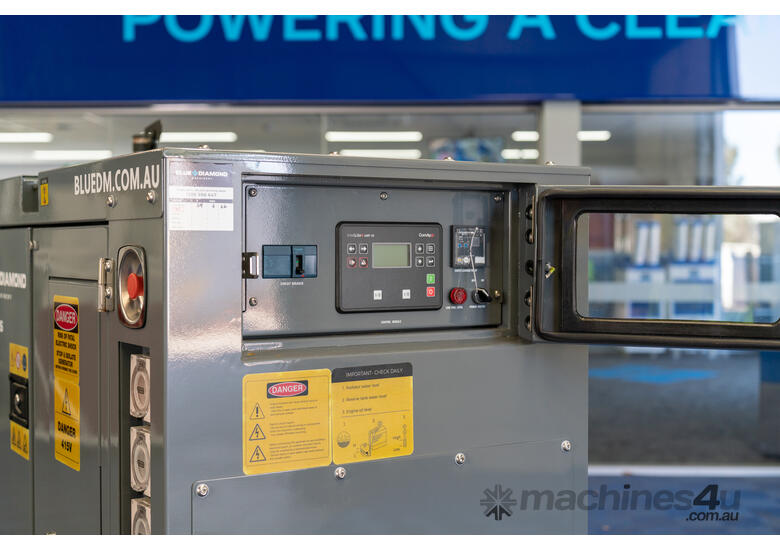

Easy to use CompAP Controller with Remote Start & ATS Plug
Water Cooled
Voltage: 415 V
Alternator: Leroy Somer
Number of phase: 3
Make and model: Perkins 404A-22G
Number of cylinder: 4
Main breaker: Schneider
Type: VERTICAL INLINE 4
Speed: 1500 RPM
Fuel tank: 250 Ltrs
Fuel consumption: 5.3 L/H (75% LOAD)
Estimated run time: 47 HOURS (75% LOAD)
Bunded fuel tank: YES
Emergency stop: YES
Australian standards: YES
Fully enclosed sound proof canopy: YES
Noise level: 67 DbA 7M
Outlets: 1 x 32AMP, 3 X 15 AMP
Recommended oil; 15W40
Dimensions: 1485 x 800 x 1420
Weight: 790kg

Warranty

Gain peace of mind knowing your Perkins Powered Diesel Generator is backed by our Generous 3 year – 1500 hour warranty. We offer 24/7 Australia wide support on all our Perkins diesel generator models, with service agents throughout Perth, Melbourne, Brisbane, Adelaide, Sydney.

Delivery

We can ship direct to you Australia wide. Alternatively, you can pick up from one of our sales offices located in Perth or Melbourne

Blue Diamond Machinery is an Australian-owned and operated company specializing in the supply of high-quality power and construction equipment. With a wide range of products including generators, air compressors, lighting towers, and fuel storage solutions, the company caters to industries such as mining, construction, and agriculture. Known for exceptional customer service, Blue Diamond Machinery delivers tailored solutions to meet diverse project needs. With a strong commitment to reliability and performance, the company ensures that every product is backed by expert support, making it a trusted partner for clients across Australia seeking dependable equipment solutions.

Go to the Blue Diamond showroom on Machines4u to see our range, send Blue Diamond a message about the item you are interested in, or give Blue Diamond a call, we are happy to answer any of your questions.

* Click on the PDF spec sheet for more detailed information *
