BM-2000 Heavy Duty Universal Milling Machine Table Travel: (X) - 1400mm (Y) - 700mm (Z) - 500mm Incl

HAFCO-METALMASTER BM-2000 Heavy Duty Universal Milling Machine Table Travel: (X) - 1400mm (Y) - 700mm (Z) - 500mm Includes Digital Readout System & Servo Driven Ballscrew System X, Y & Z-Axis
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M640D

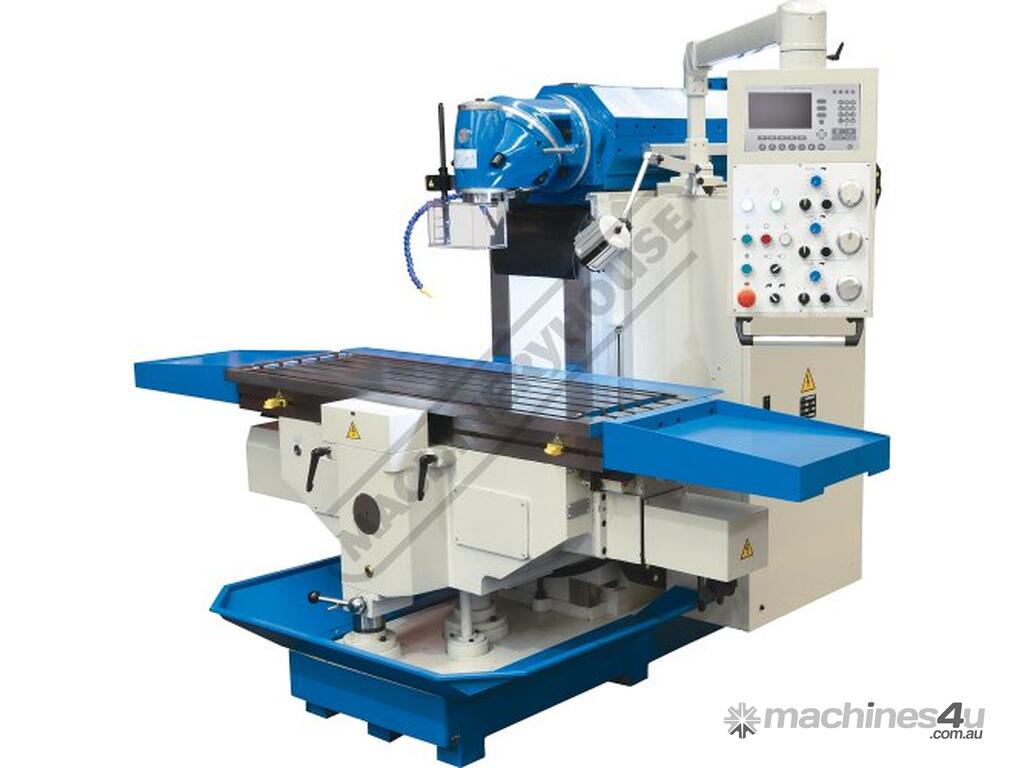

The BM-2000 universal milling machine features a solid, heavy cast iron construction, making this model ideal for heavy machining of oversize workpieces.
The servo-controlled feed system ensures constant torque when removing metal under extreme load. All this is combining with and extra-large hardened & ground working table with long travels to match.

Features:

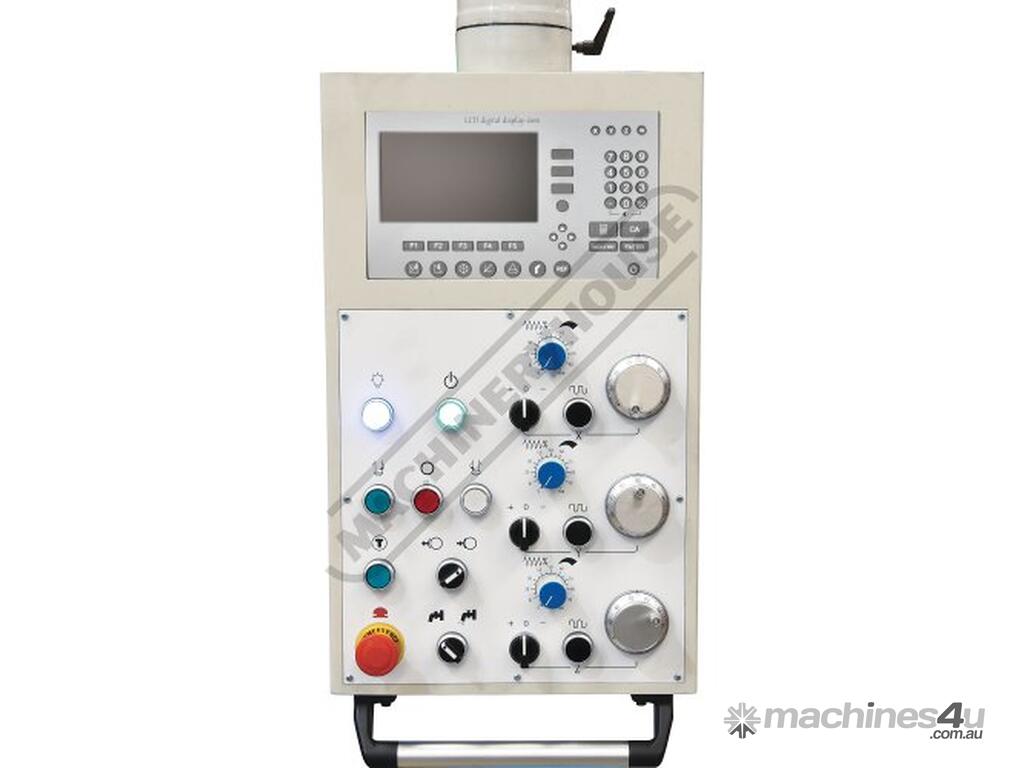

3-Axis digital readout fitted

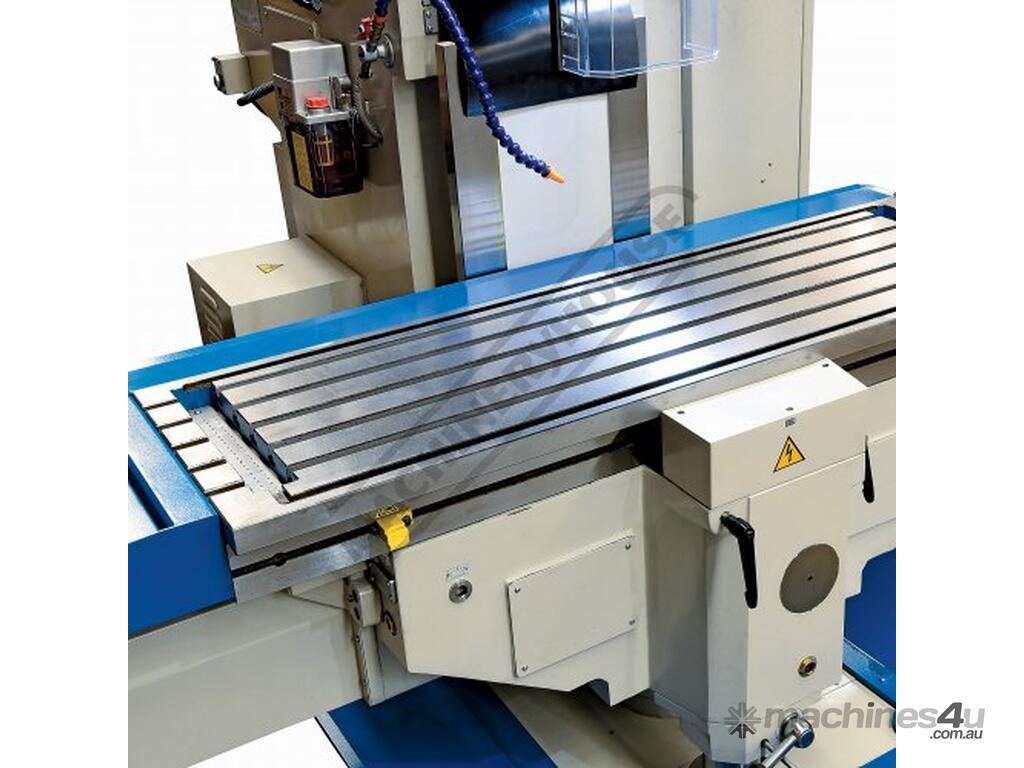

Large 2000 x 500mm slotted work table

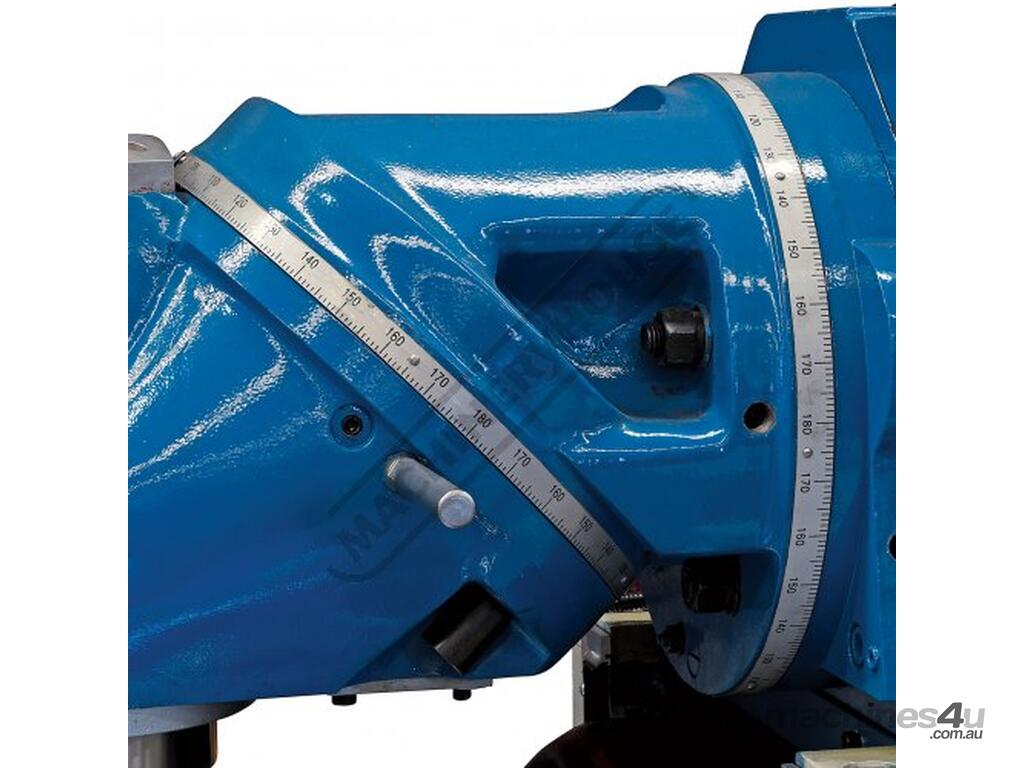

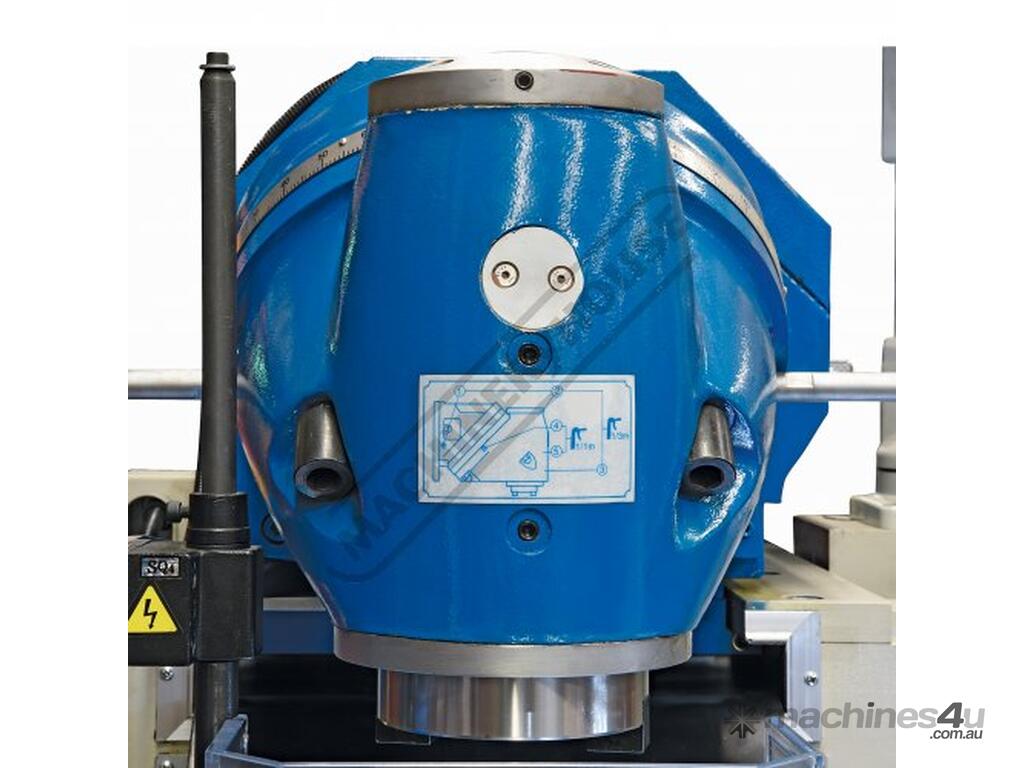

NT50 universal head swivels 360º & tilts vertical to horizontal position
Electric brake & rapid feed on X Y & Z-Axis

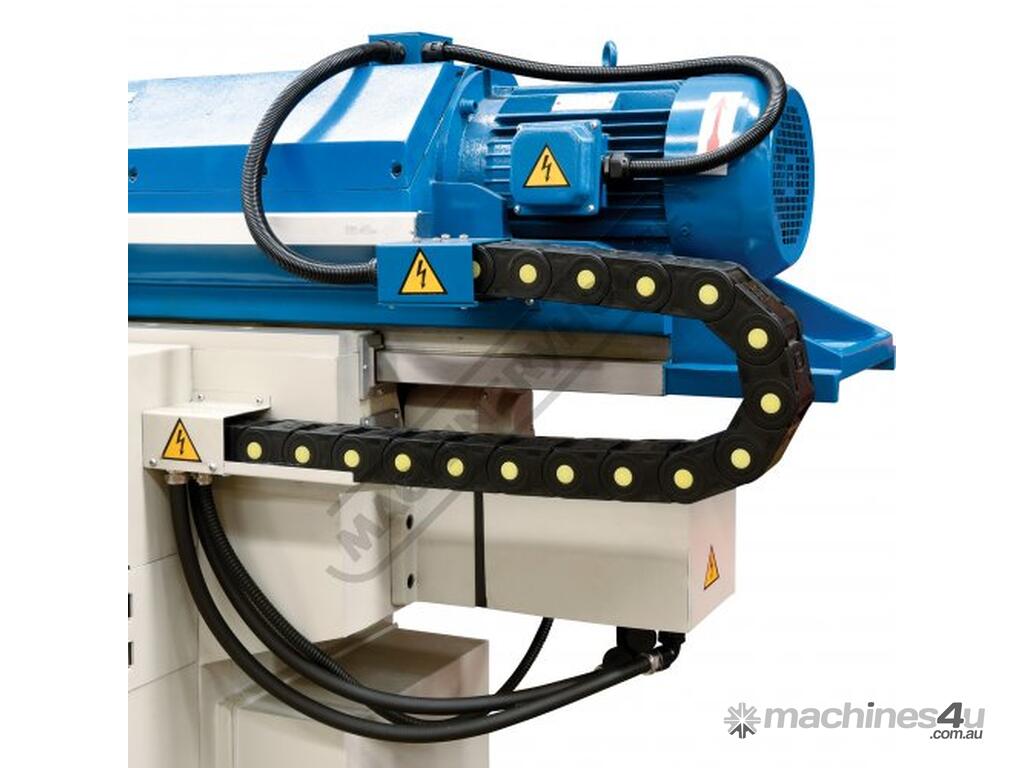

Servo controlled feed motors on X Y & Z-Axis ensures constant torque
Hardened ballscrew X Y & Z-Axis preloaded for easy and precise feeds
Rigid torsion-proof construction dovetail guide X-Axis & wide square guides Y & Z-Axis
Robust transmission with hardened and ground gears & slide-ways
Hardened & ground work table & all X Y & Z-Axis slideways
All slideways are automatically lubricated
High grade casting for additional strength & minimal deformation
Quality electrics & overload protection in an easy access enclosure

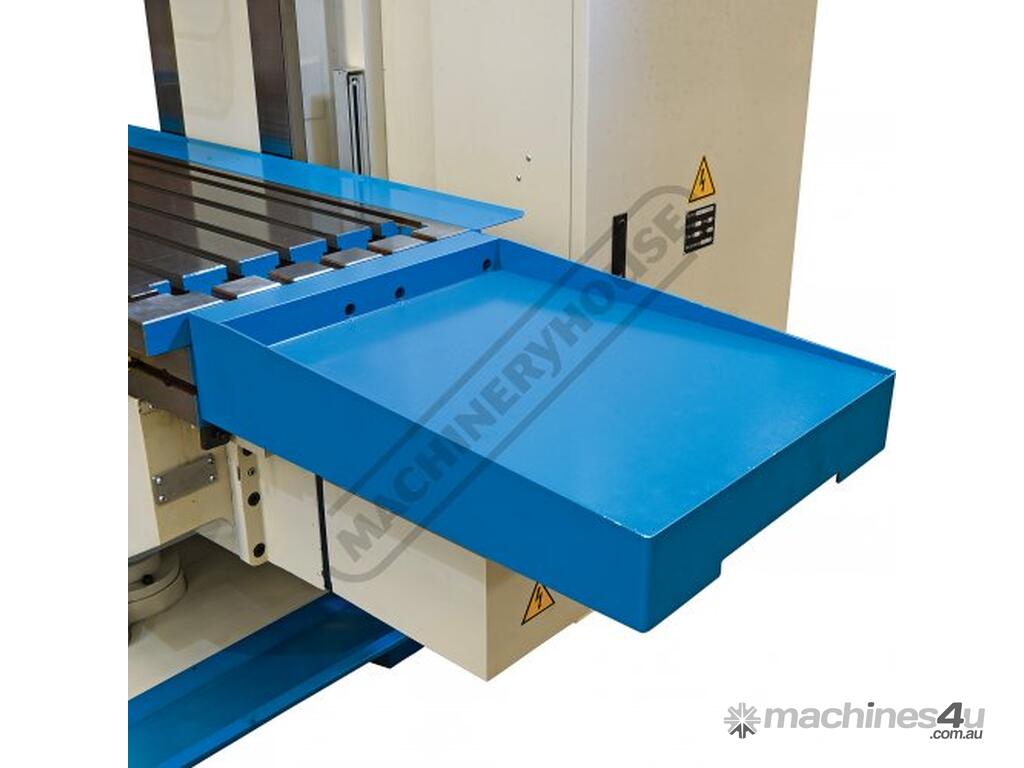

Table trays each end of work table
Steel slide-way cover Y-Axis

Includes:
- Safety cutter guard
- Coolant system

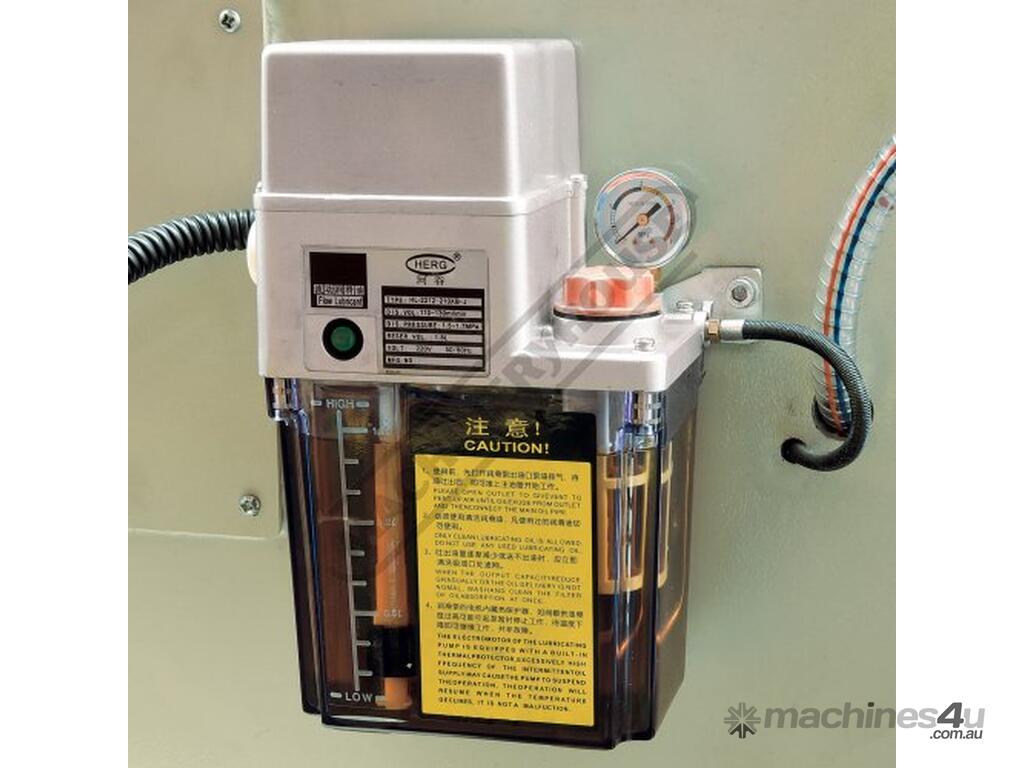

- Automatic oil lubrication system
- Cast iron table extensions

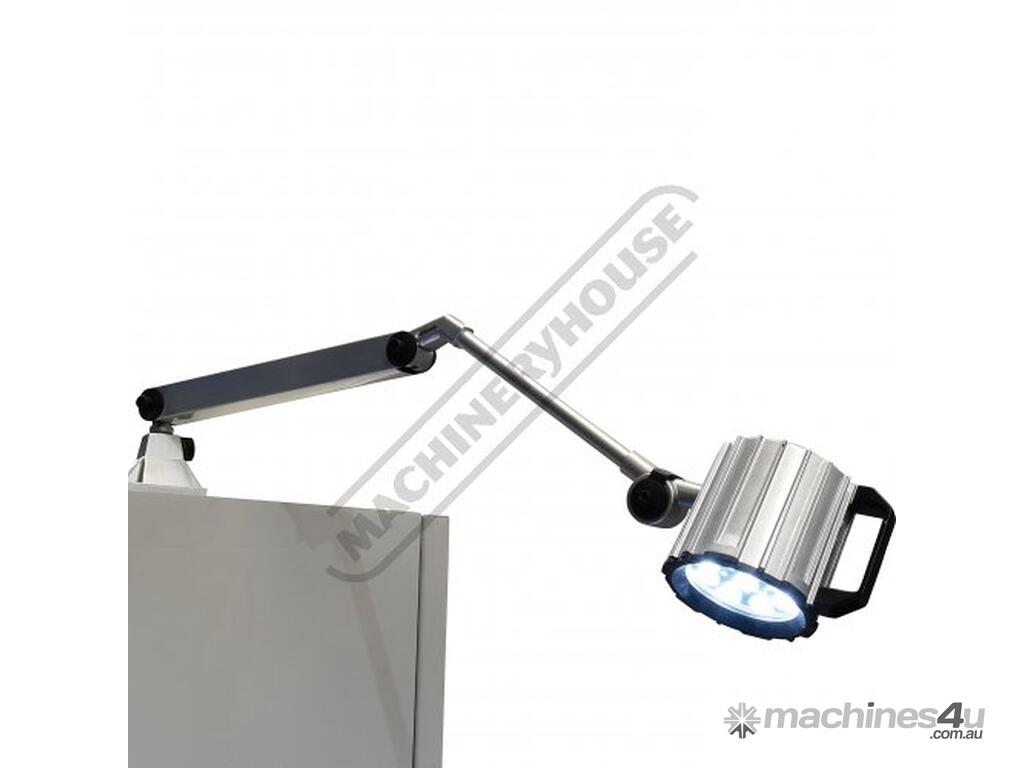

- LED light
- Base swarf tray
- M24 drawbar


Specifications:
ORDER CODE: M640D
MODEL: BM-2000
Digital Readout: 3-Axis Digital Readout
Type: Universal Head
Table Size (mm): 2000 x 500
Column Type: Dovetail
Spindle Taper - Vertical: NT50
Spindle Taper - Horizontal: NT50
Longitudinal Travel (X-Axis) (mm): 1400
Cross Travel (Y-Axis) (mm): 700
Vertical Travel (Z-Axis) (mm): 570
Type of Slides: Dovetail (X), Square (Y & Z)
Ram Travel (mm): 45 - 745
Spindle to Table (mm): 50 - 550
Spindle to Base: ~
Spindle Travel / Diameter (mm): ~
Throat Depth (max.) (mm): ~
Tilting Head (Left ~ Right): 360º
Tilting Head (Forward ~ Back): Fixed
Drilling Capacity (mm): ~
End Milling Capacity (mm): ~
Face Milling Capacity (mm): ~
Power Feed - Quill (mm/rev): ~
Power Feed - Longitudinal (X-Axis) (mm/min): 10 - 1000
Power Feed - Cross (Y-Axis) (mm/min): 10 - 1000
Power Feed - Vertical (Z-Axis) (mm/min): 5 - 500
Table T-Slot Size (inch / mm): 18
Work Table Load Capacity (kg): 1800
Spindle Speeds Vertical (No./ rpm): ~
Spindle Speeds Horizontal (No./ rpm): ~

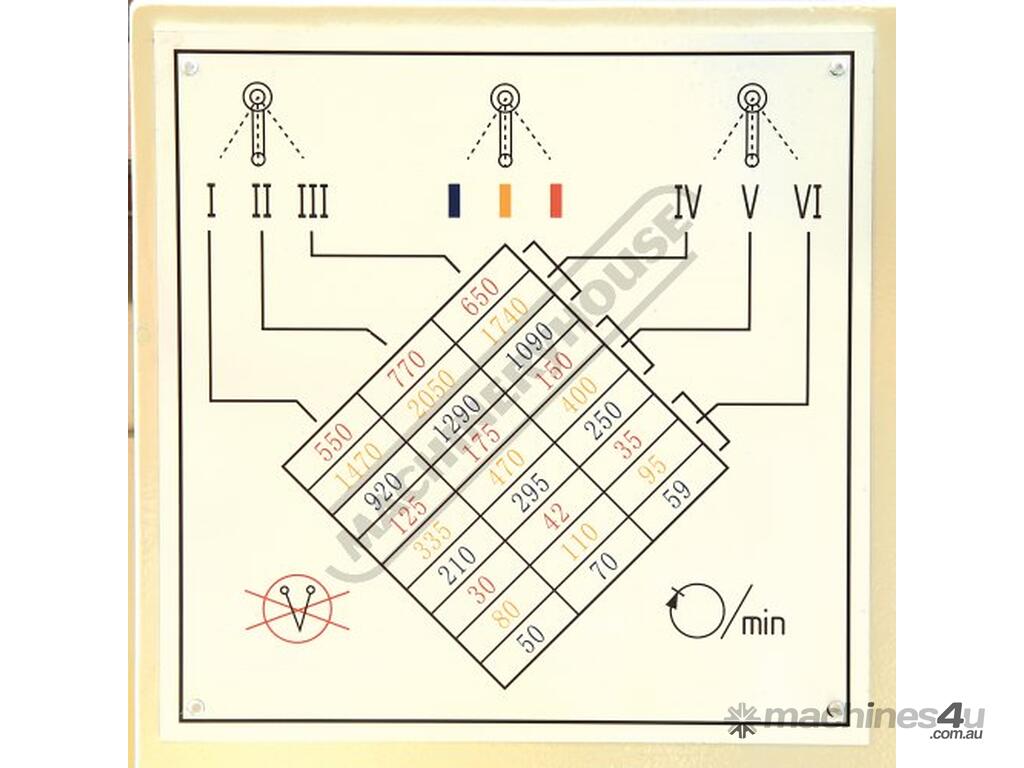

Spindle Speeds - Universal Head: 27 (30 - 2050)
Motor Power - Vertical Spindle (kW / hp): ~
Motor Power - Horizontal Spindle (kW / hp): ~
Motor Power - Universal Head: 7.5 / 10
Voltage / Amperage (V / amp): 415
Nett Weight (kg): 4700
